731 6-1. Specifications
6
Vehicle specifications

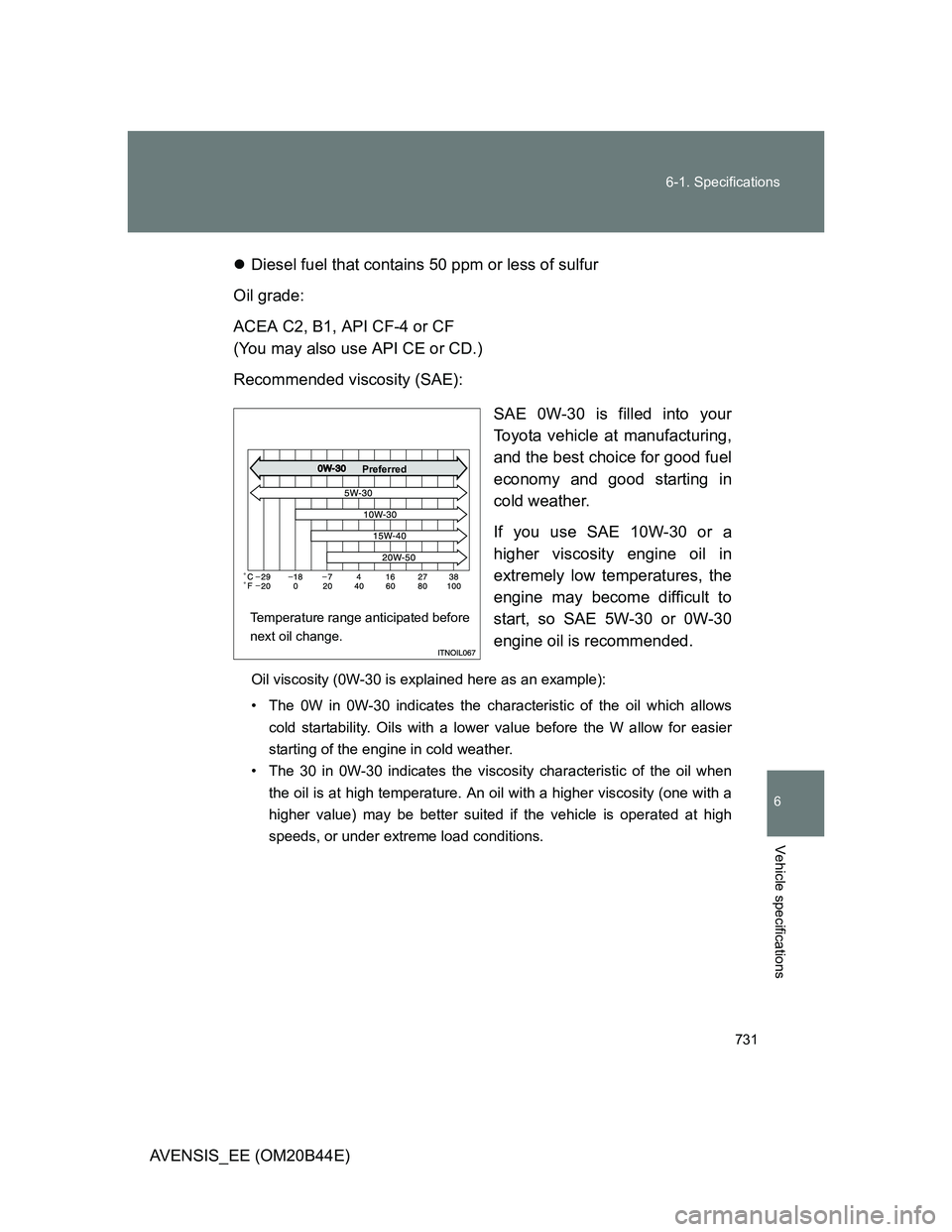

AVENSIS_EE (OM20B44E)Diesel fuel that contains 50 ppm or less of sulfur
Oil grade:
ACEA C2, B1, API CF-4 or CF
(You may also use API CE or CD.)
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or 0W-30
engine oil is recommended.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

732 6-1. Specifications

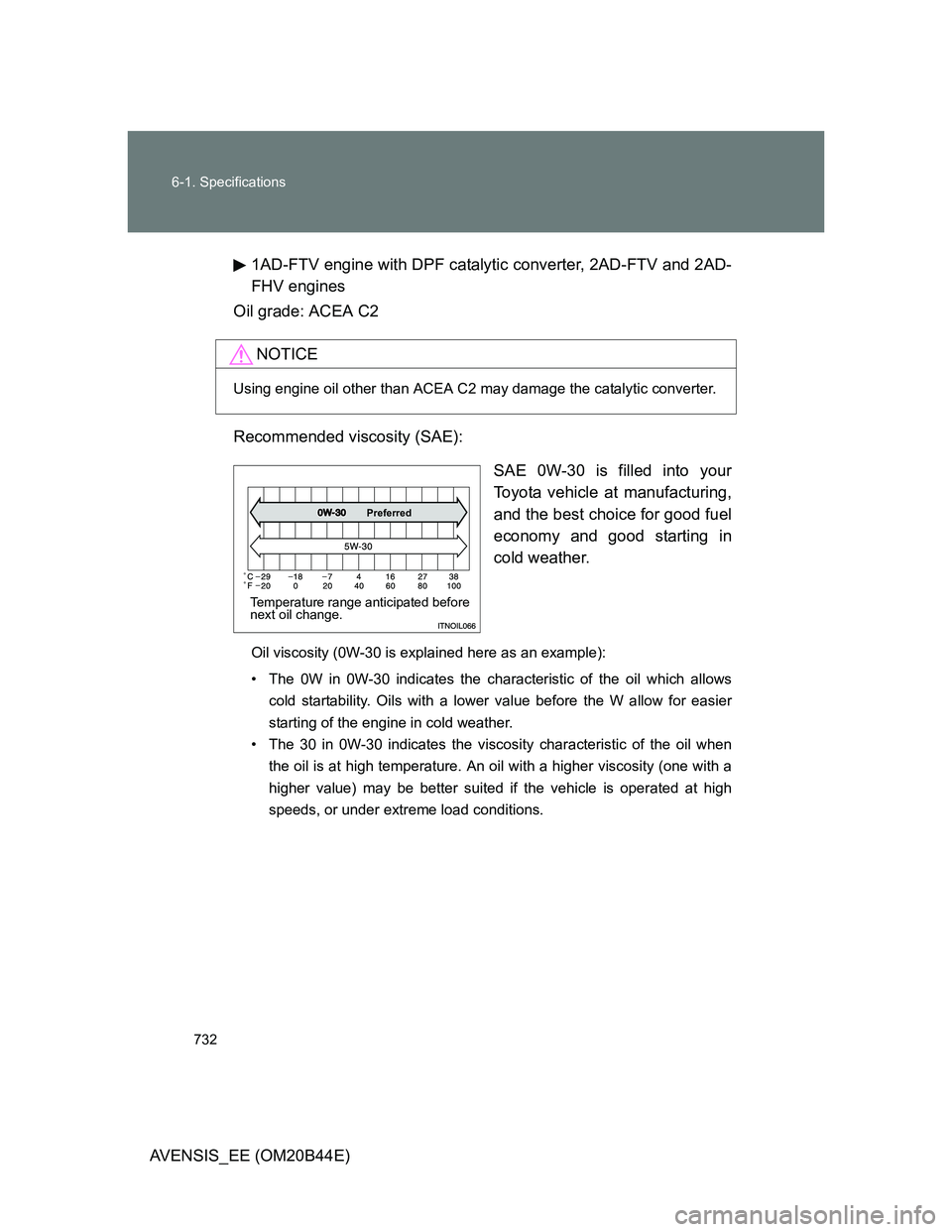

AVENSIS_EE (OM20B44E)1AD-FTV engine with DPF catalytic converter, 2AD-FTV and 2AD-
FHV engines
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated before
next oil change.
Preferred

733 6-1. Specifications
6
Vehicle specifications
AVENSIS_EE (OM20B44E)

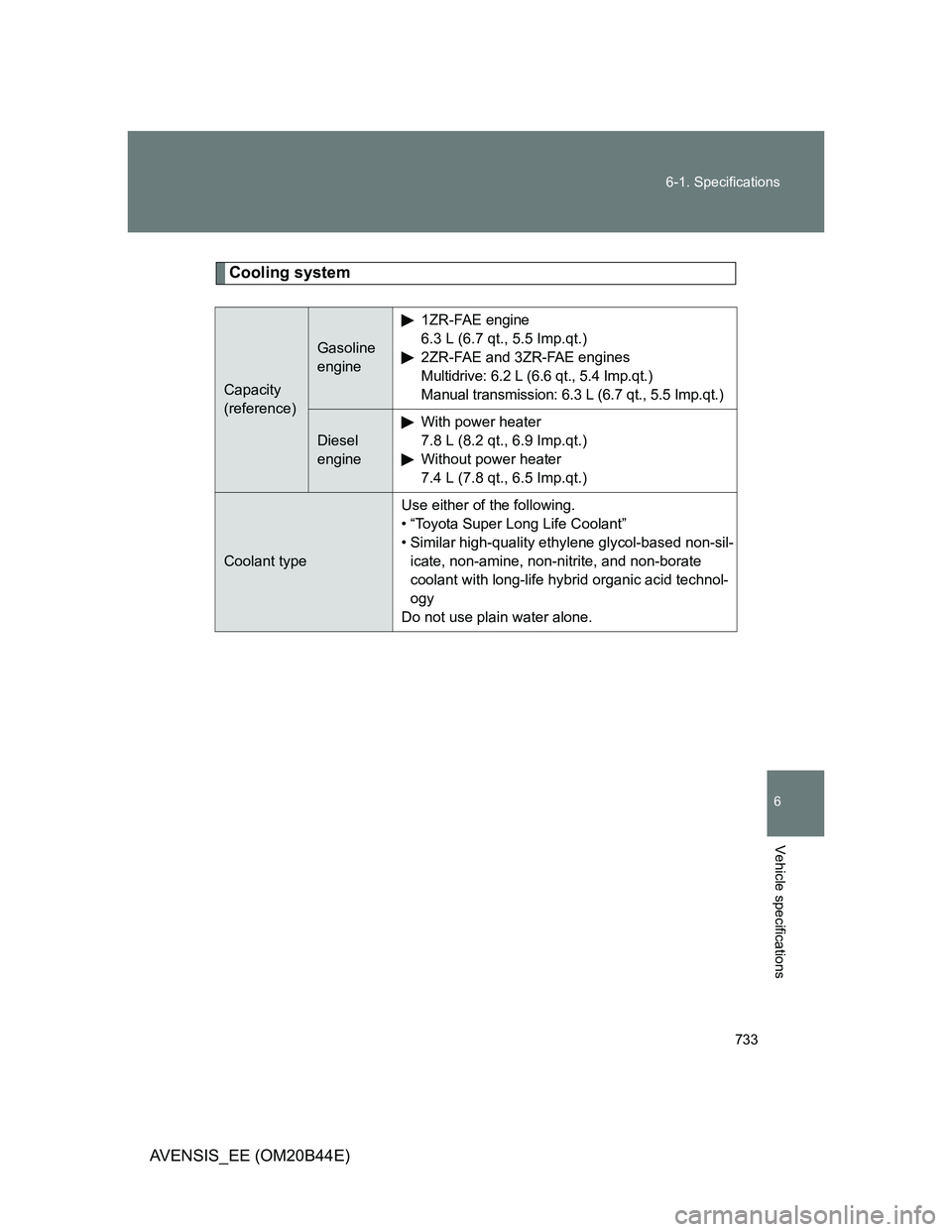

Cooling system
Capacity
(reference)
Gasoline
engine
1ZR-FAE engine
6.3 L (6.7 qt., 5.5 Imp.qt.)
2ZR-FAE and 3ZR-FAE engines
Multidrive: 6.2 L (6.6 qt., 5.4 Imp.qt.)
Manual transmission: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Diesel
engine
With power heater
7.8 L (8.2 qt., 6.9 Imp.qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sil-
icate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.

734 6-1. Specifications
AVENSIS_EE (OM20B44E)

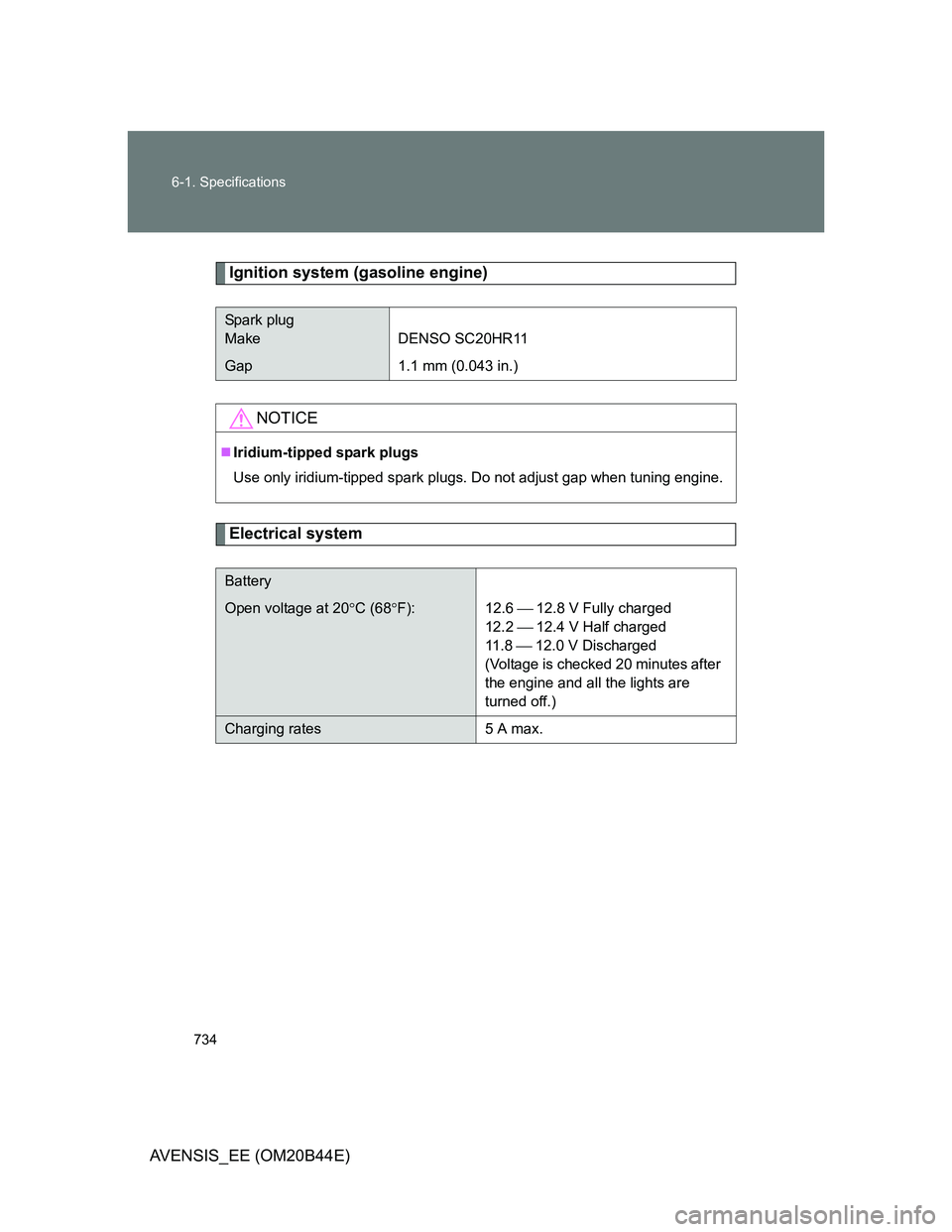

Ignition system (gasoline engine)
Electrical system
Spark plug
Make DENSO SC20HR11
Gap 1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at 20C (68F): 12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8  12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.

735 6-1. Specifications
6
Vehicle specifications
AVENSIS_EE (OM20B44E)

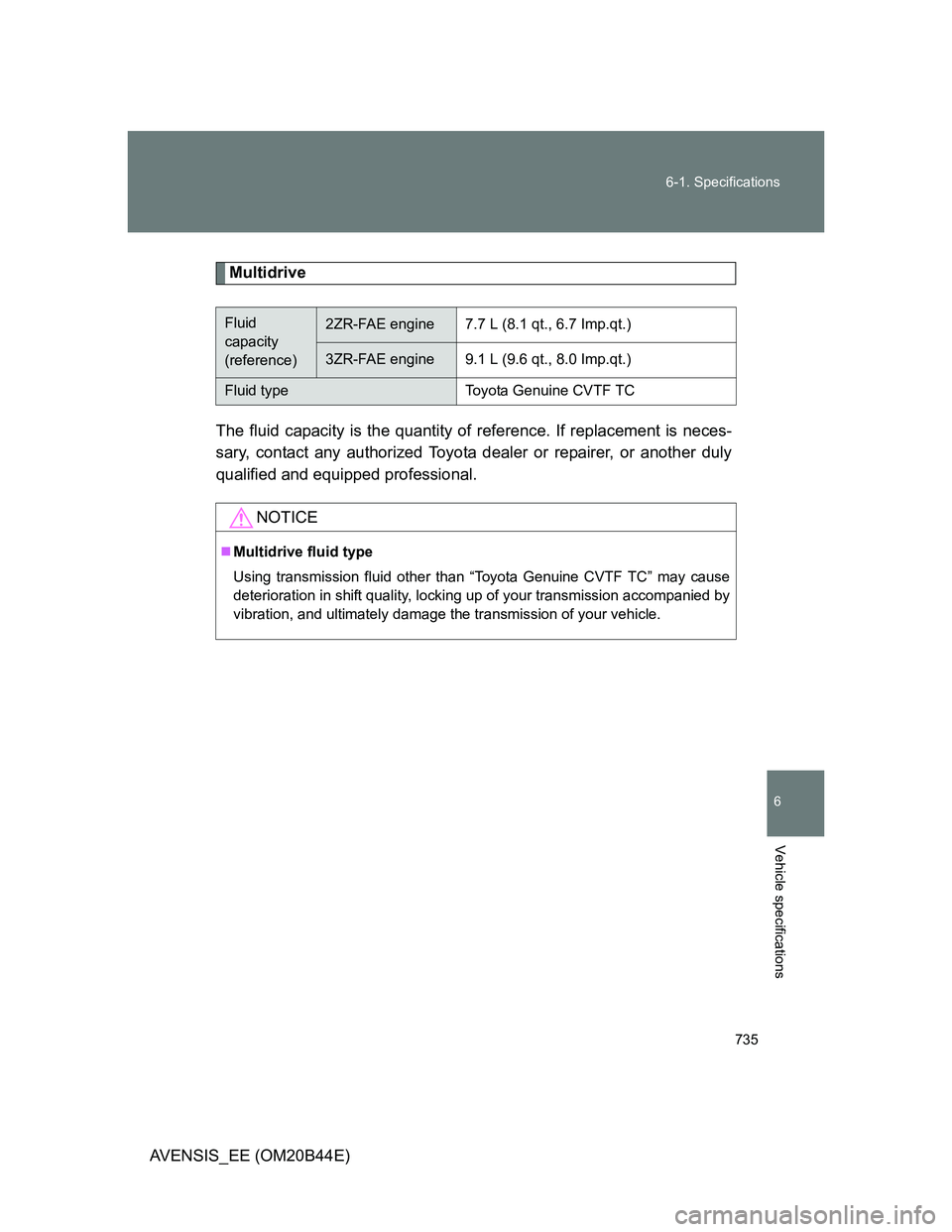

Multidrive
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Fluid
capacity
(reference)2ZR-FAE engine7.7 L (8.1 qt., 6.7 Imp.qt.)
3ZR-FAE engine9.1 L (9.6 qt., 8.0 Imp.qt.)
Fluid typeToyota Genuine CVTF TC
NOTICE
Multidrive fluid type
Using transmission fluid other than “Toyota Genuine CVTF TC” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

736 6-1. Specifications
AVENSIS_EE (OM20B44E)

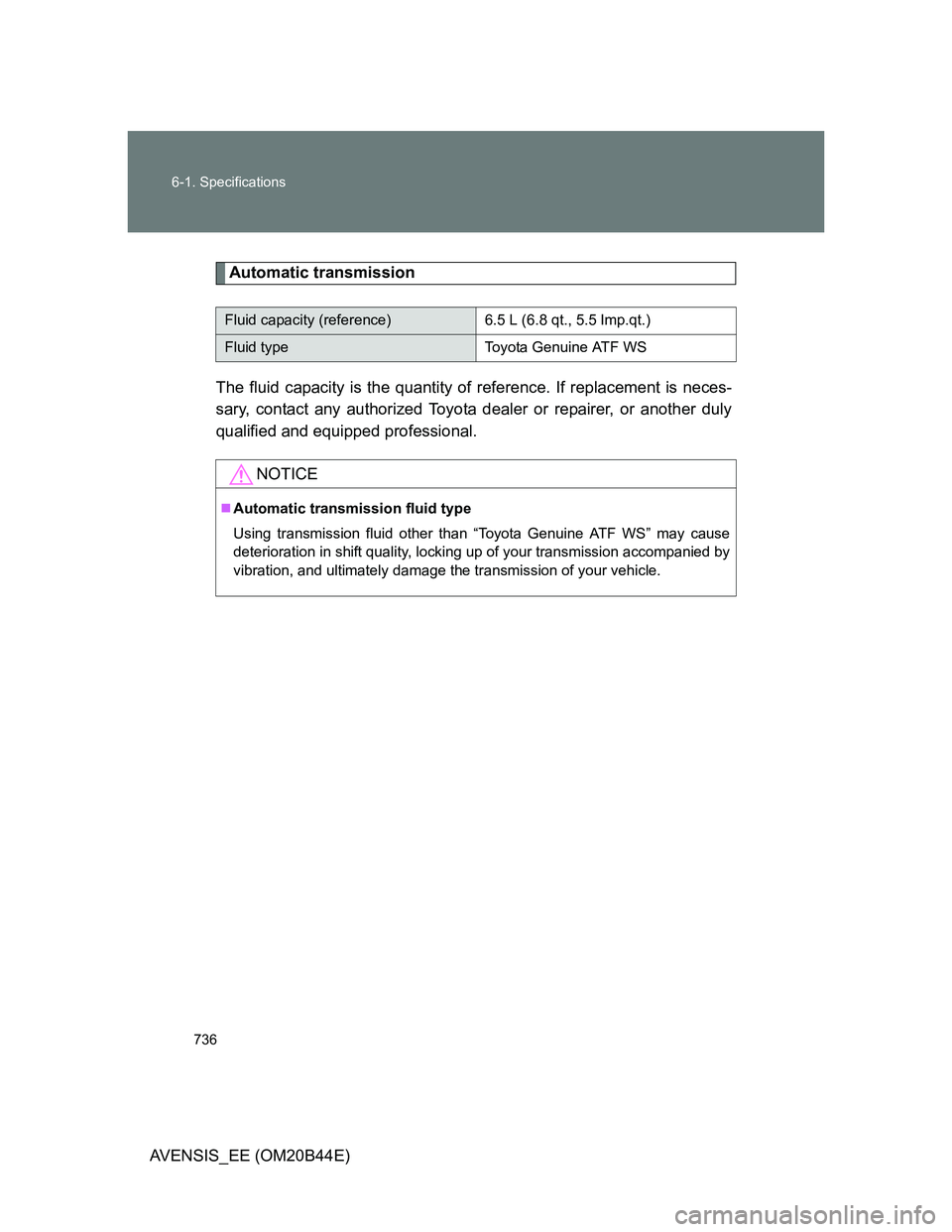

Automatic transmission
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Fluid capacity (reference) 6.5 L (6.8 qt., 5.5 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

737 6-1. Specifications
6
Vehicle specifications
AVENSIS_EE (OM20B44E)

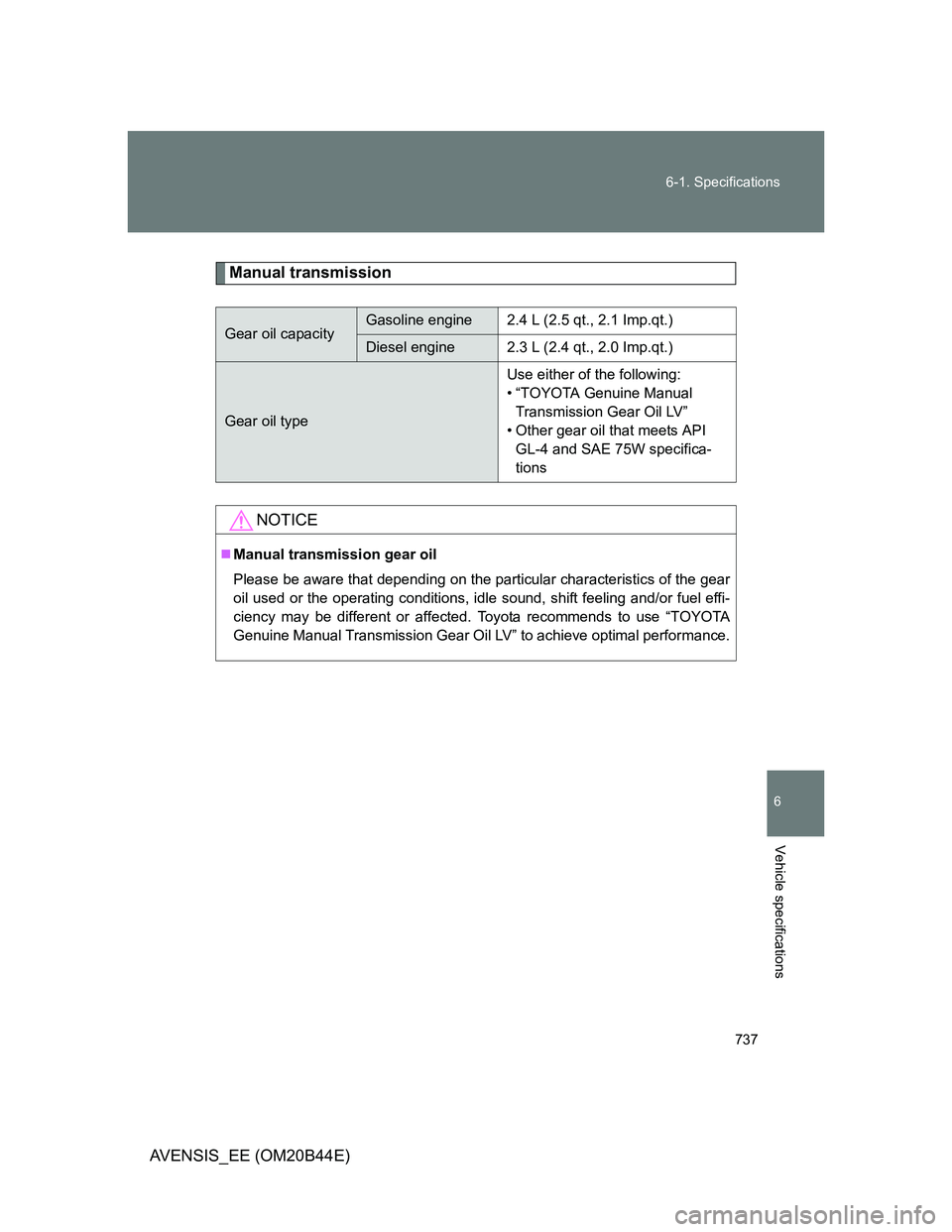

Manual transmission
Gear oil capacityGasoline engine2.4 L (2.5 qt., 2.1 Imp.qt.)
Diesel engine2.3 L (2.4 qt., 2.0 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual
Transmission Gear Oil LV”
• Other gear oil that meets API
GL-4 and SAE 75W specifica-
tions
NOTICE
Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.

738 6-1. Specifications
AVENSIS_EE (OM20B44E)

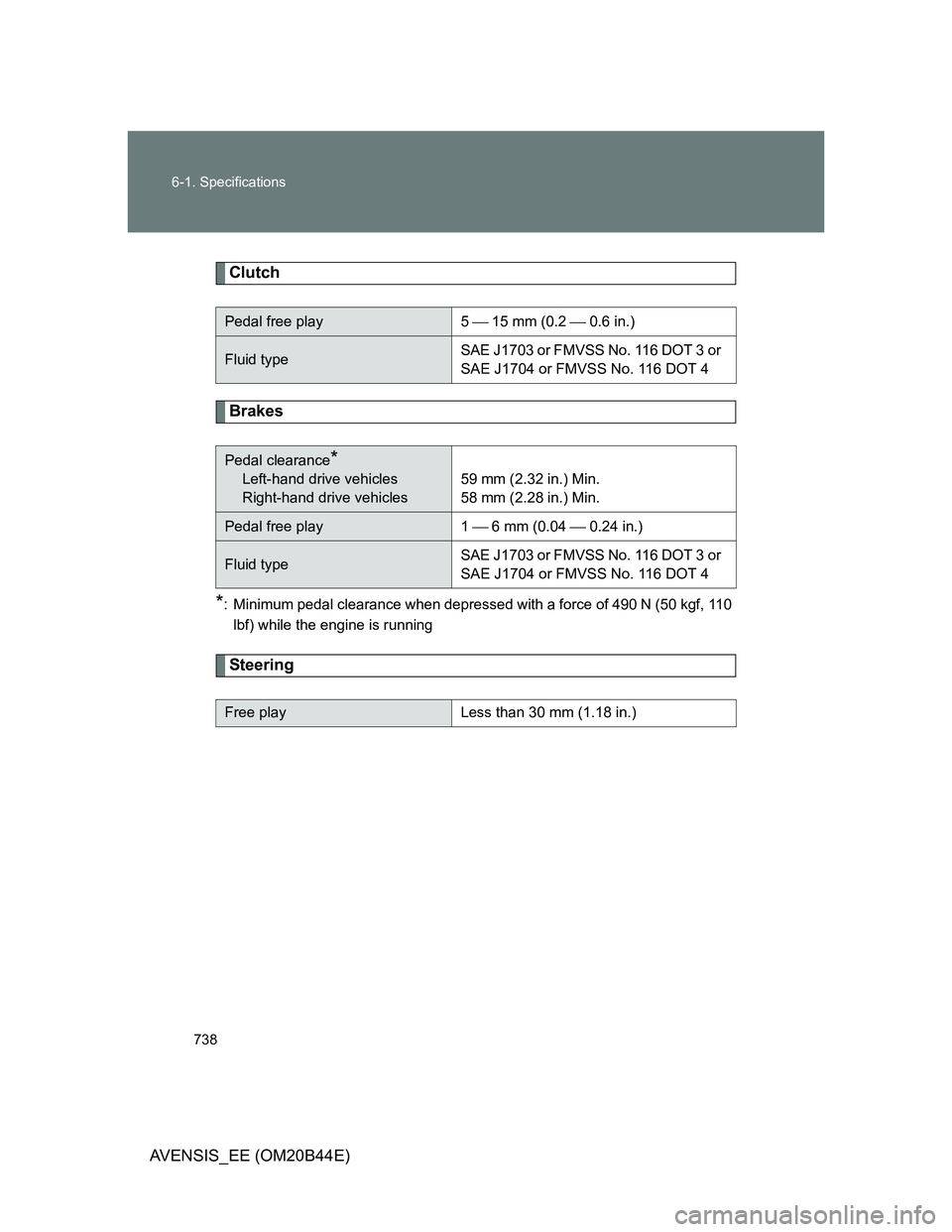

Clutch
Brakes
*: Minimum pedal clearance when depressed with a force of 490 N (50 kgf, 110
lbf) while the engine is running
Steering
Pedal free play 5  15 mm (0.2  0.6 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Pedal clearance*
Left-hand drive vehicles
Right-hand drive vehicles59 mm (2.32 in.) Min.
58 mm (2.28 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Free playLess than 30 mm (1.18 in.)

739 6-1. Specifications
6
Vehicle specifications
AVENSIS_EE (OM20B44E)

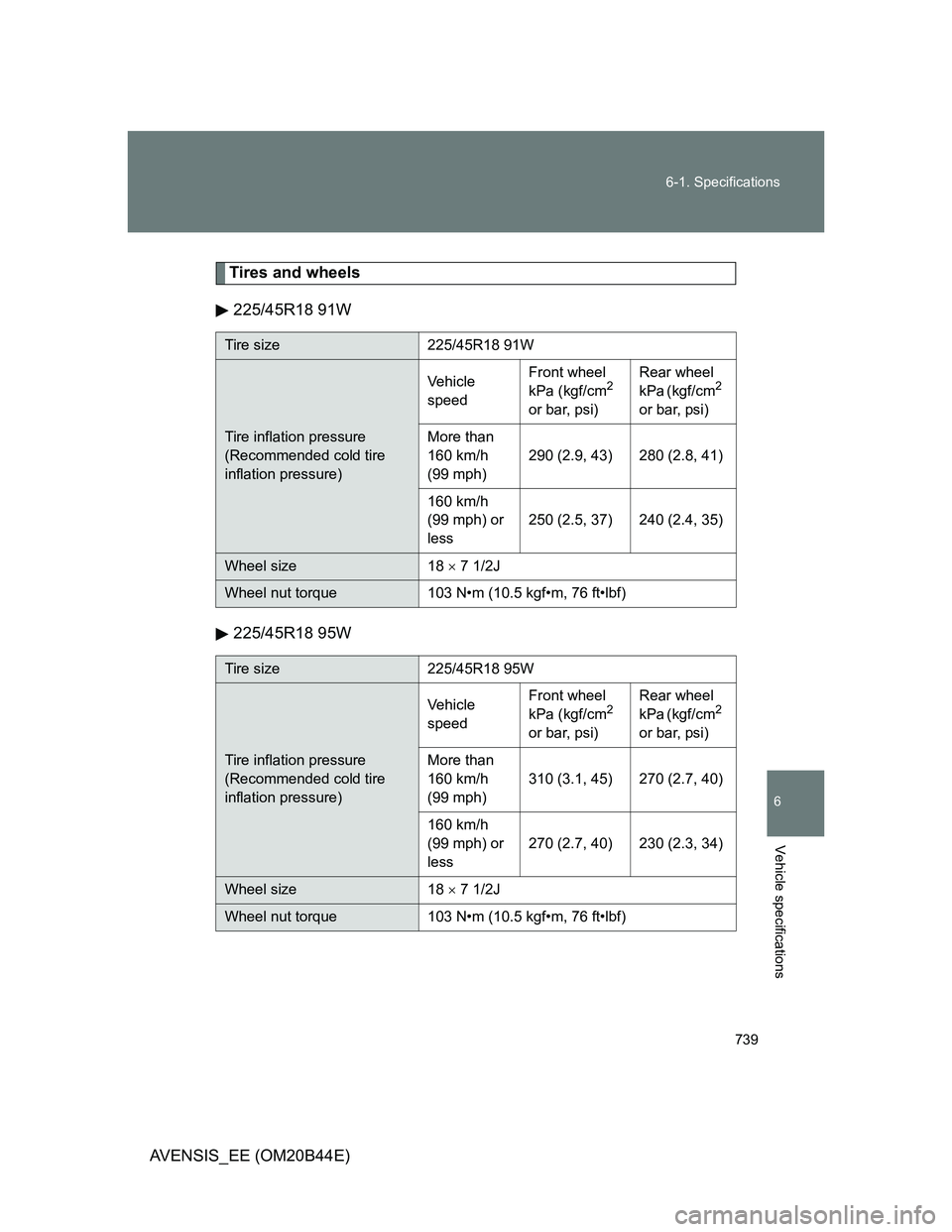

Tires and wheels
225/45R18 91W
225/45R18 95W
Tire size 225/45R18 91W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)290 (2.9, 43) 280 (2.8, 41)
160 km/h
(99 mph) or
less250 (2.5, 37) 240 (2.4, 35)
Wheel size 18  7 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 225/45R18 95W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)310 (3.1, 45) 270 (2.7, 40)
160 km/h
(99 mph) or
less270 (2.7, 40) 230 (2.3, 34)
Wheel size 18  7 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

740 6-1. Specifications

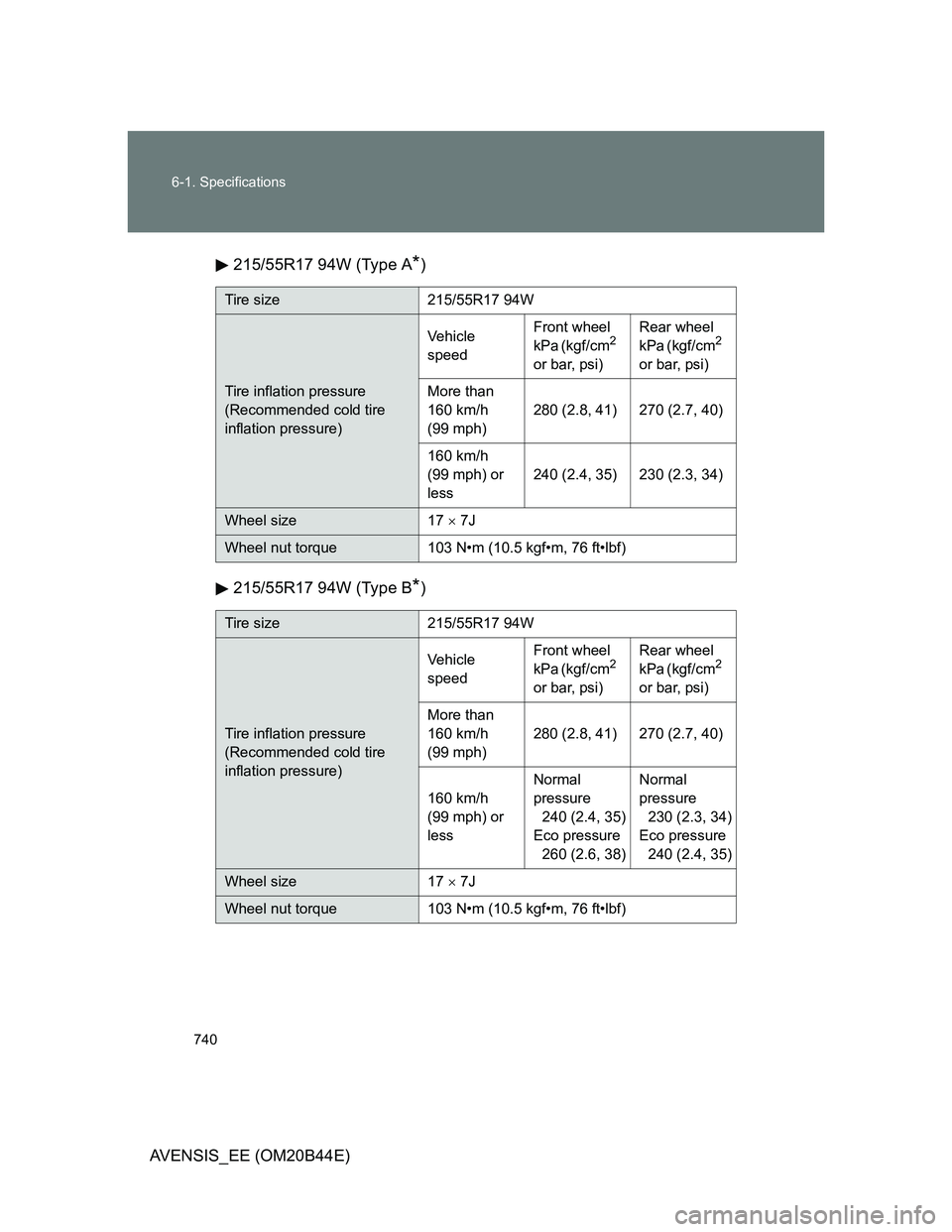

AVENSIS_EE (OM20B44E)215/55R17 94W (Type A
*)
215/55R17 94W (Type B
*)
Tire size 215/55R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)280 (2.8, 41) 270 (2.7, 40)
160 km/h
(99 mph) or
less240 (2.4, 35) 230 (2.3, 34)
Wheel size 17  7J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 215/55R17 94W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)280 (2.8, 41) 270 (2.7, 40)
160 km/h
(99 mph) or
lessNormal
pressure
240 (2.4, 35)
Eco pressure
260 (2.6, 38)Normal
pressure
230 (2.3, 34)
Eco pressure
240 (2.4, 35)
Wheel size 17  7J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
