491 3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

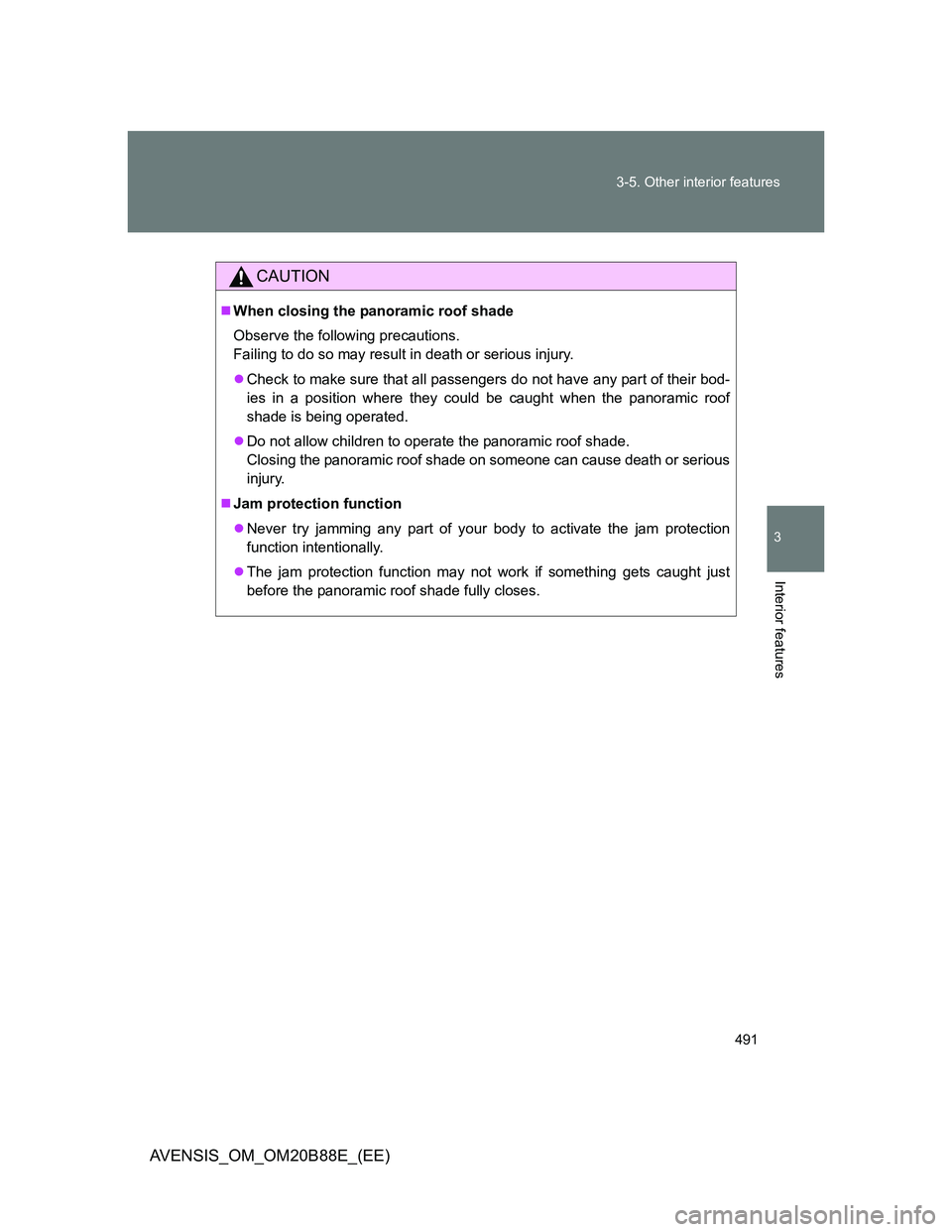

CAUTION
When closing the panoramic roof shade
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the panoramic roof
shade is being operated.
Do not allow children to operate the panoramic roof shade.
Closing the panoramic roof shade on someone can cause death or serious
injury.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the panoramic roof shade fully closes.

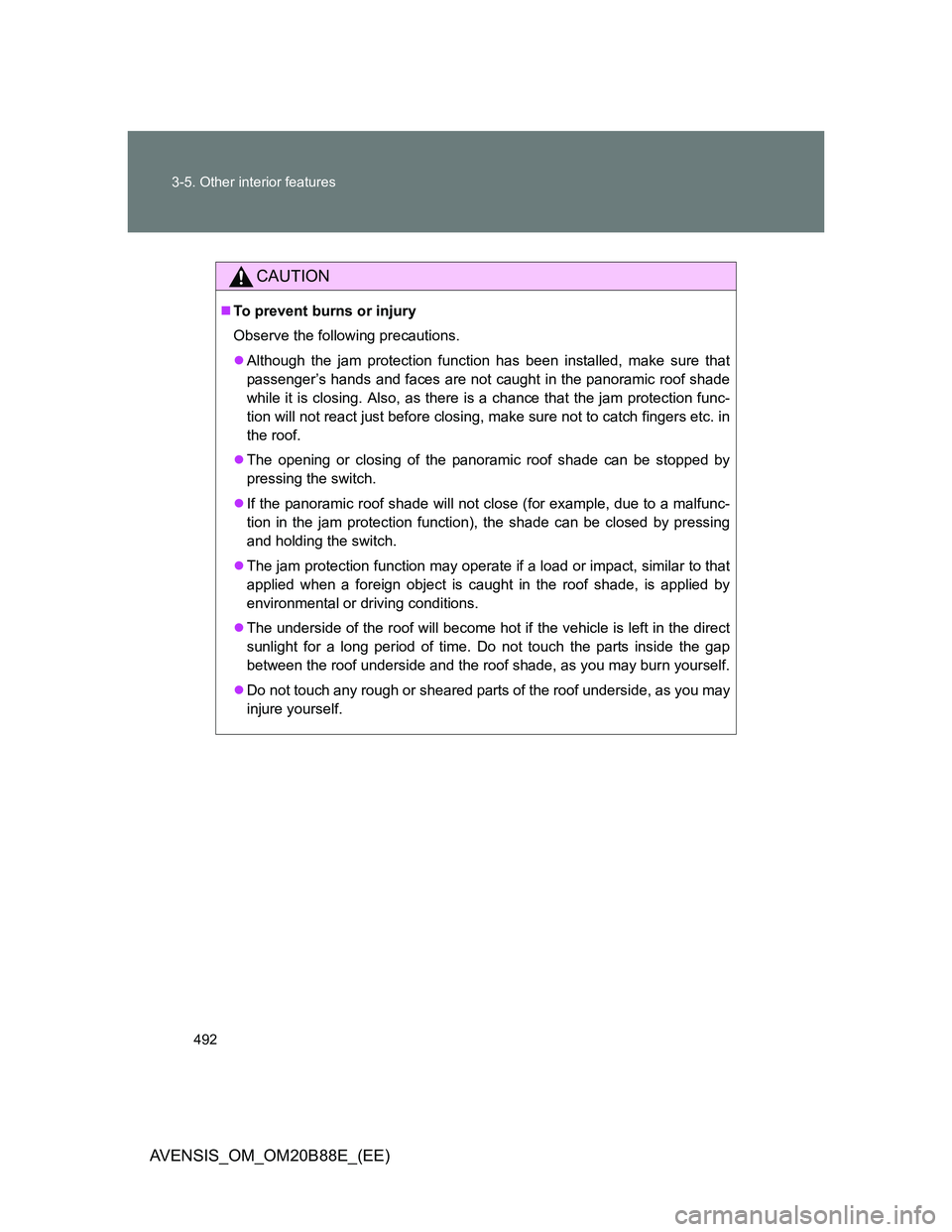

492 3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)
CAUTION
To prevent burns or injury
Observe the following precautions.
Although the jam protection function has been installed, make sure that
passenger’s hands and faces are not caught in the panoramic roof shade
while it is closing. Also, as there is a chance that the jam protection func-
tion will not react just before closing, make sure not to catch fingers etc. in
the roof.
The opening or closing of the panoramic roof shade can be stopped by
pressing the switch.
If the panoramic roof shade will not close (for example, due to a malfunc-
tion in the jam protection function), the shade can be closed by pressing
and holding the switch.
The jam protection function may operate if a load or impact, similar to that
applied when a foreign object is caught in the roof shade, is applied by
environmental or driving conditions.
The underside of the roof will become hot if the vehicle is left in the direct
sunlight for a long period of time. Do not touch the parts inside the gap
between the roof underside and the roof shade, as you may burn yourself.
Do not touch any rough or sheared parts of the roof underside, as you may
injure yourself.

493
3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

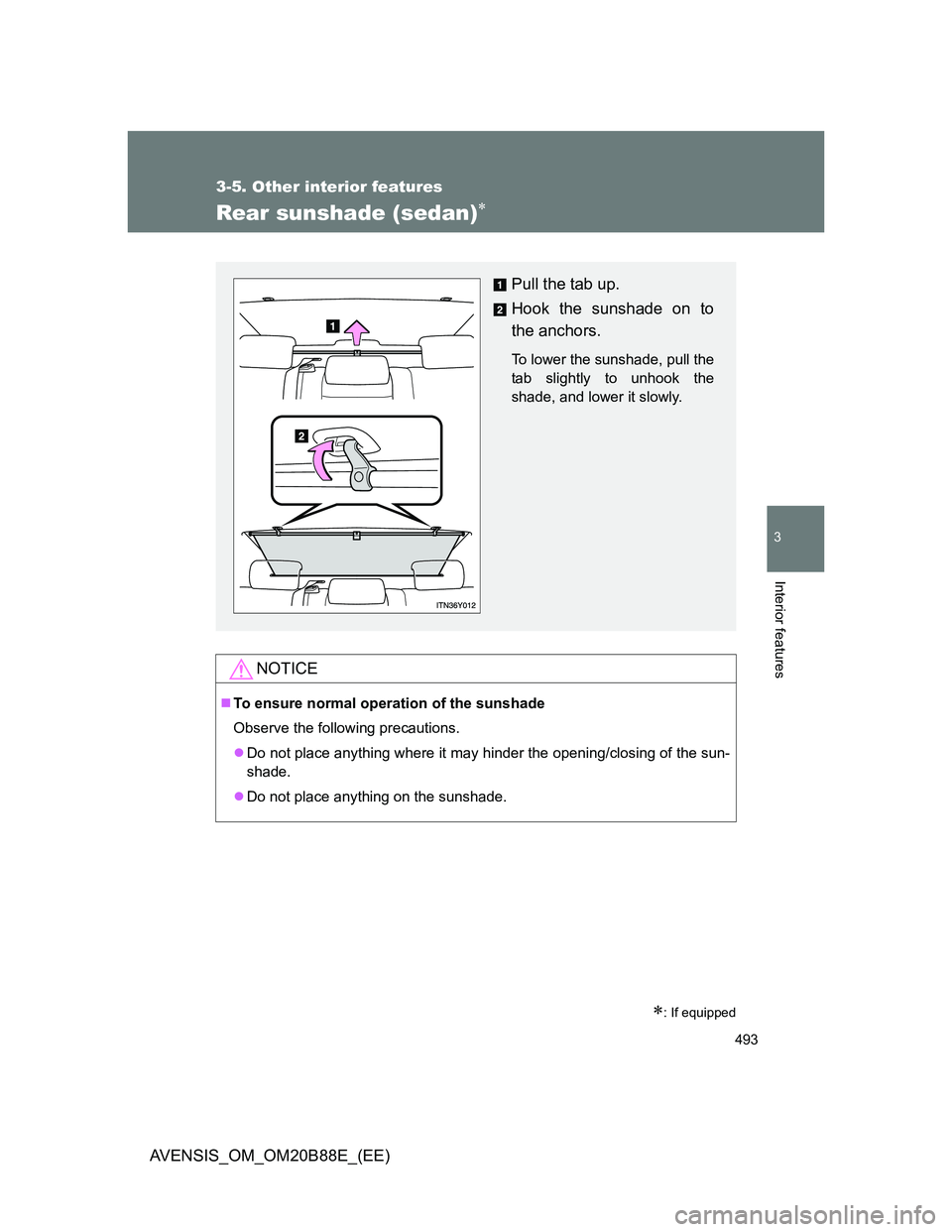

Rear sunshade (sedan)
: If equipped
NOTICE
To ensure normal operation of the sunshade
Observe the following precautions.
Do not place anything where it may hinder the opening/closing of the sun-
shade.
Do not place anything on the sunshade.
Pull the tab up.
Hook the sunshade on to
the anchors.
To lower the sunshade, pull the
tab slightly to unhook the
shade, and lower it slowly.

494
3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

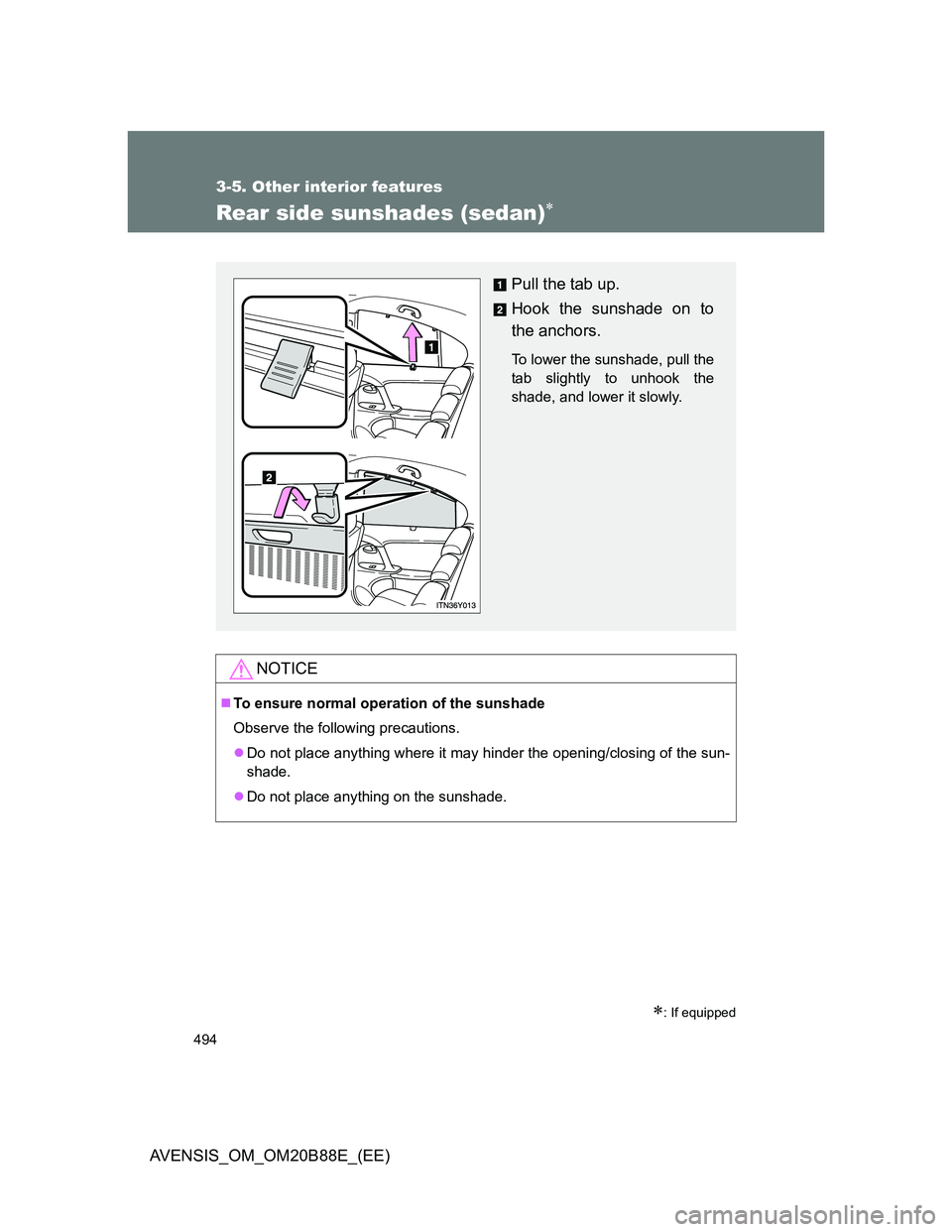

Rear side sunshades (sedan)
: If equipped
NOTICE
To ensure normal operation of the sunshade
Observe the following precautions.
Do not place anything where it may hinder the opening/closing of the sun-
shade.
Do not place anything on the sunshade.
Pull the tab up.
Hook the sunshade on to
the anchors.
To lower the sunshade, pull the
tab slightly to unhook the
shade, and lower it slowly.

495
3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

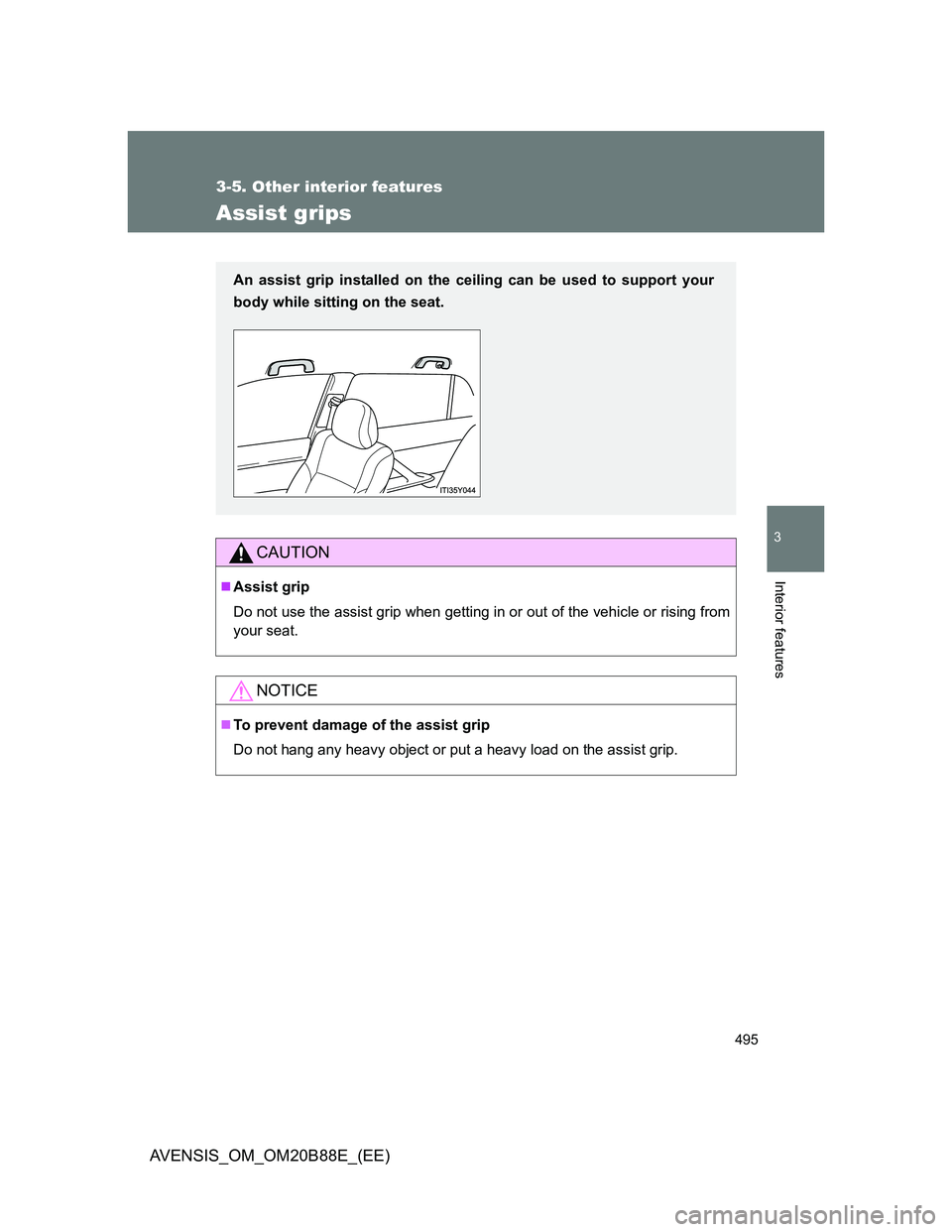

Assist grips
CAUTION
Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage of the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the ceiling can be used to support your
body while sitting on the seat.

496
3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

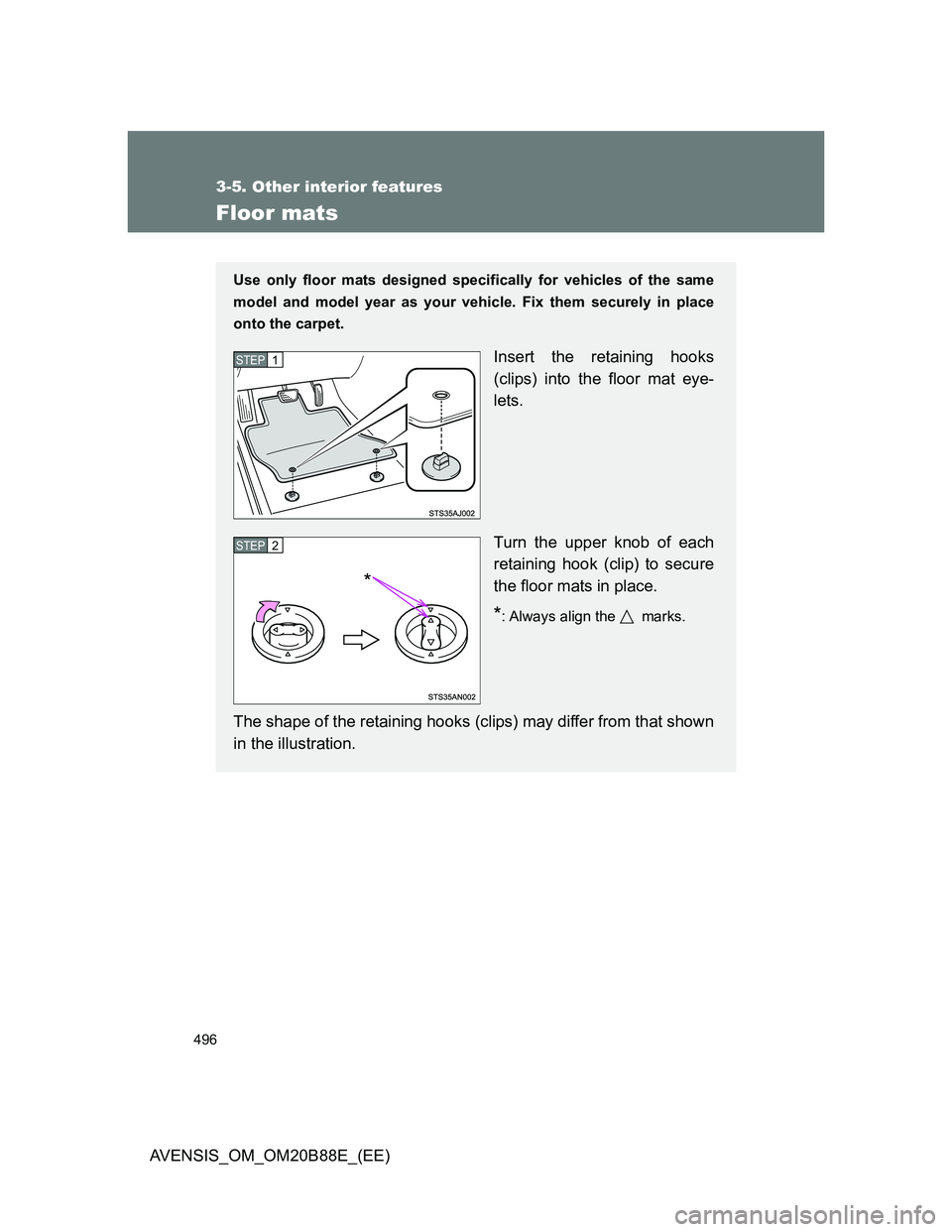

Floor mats
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown
in the illustration.
STEP1
STEP2
*

497 3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)

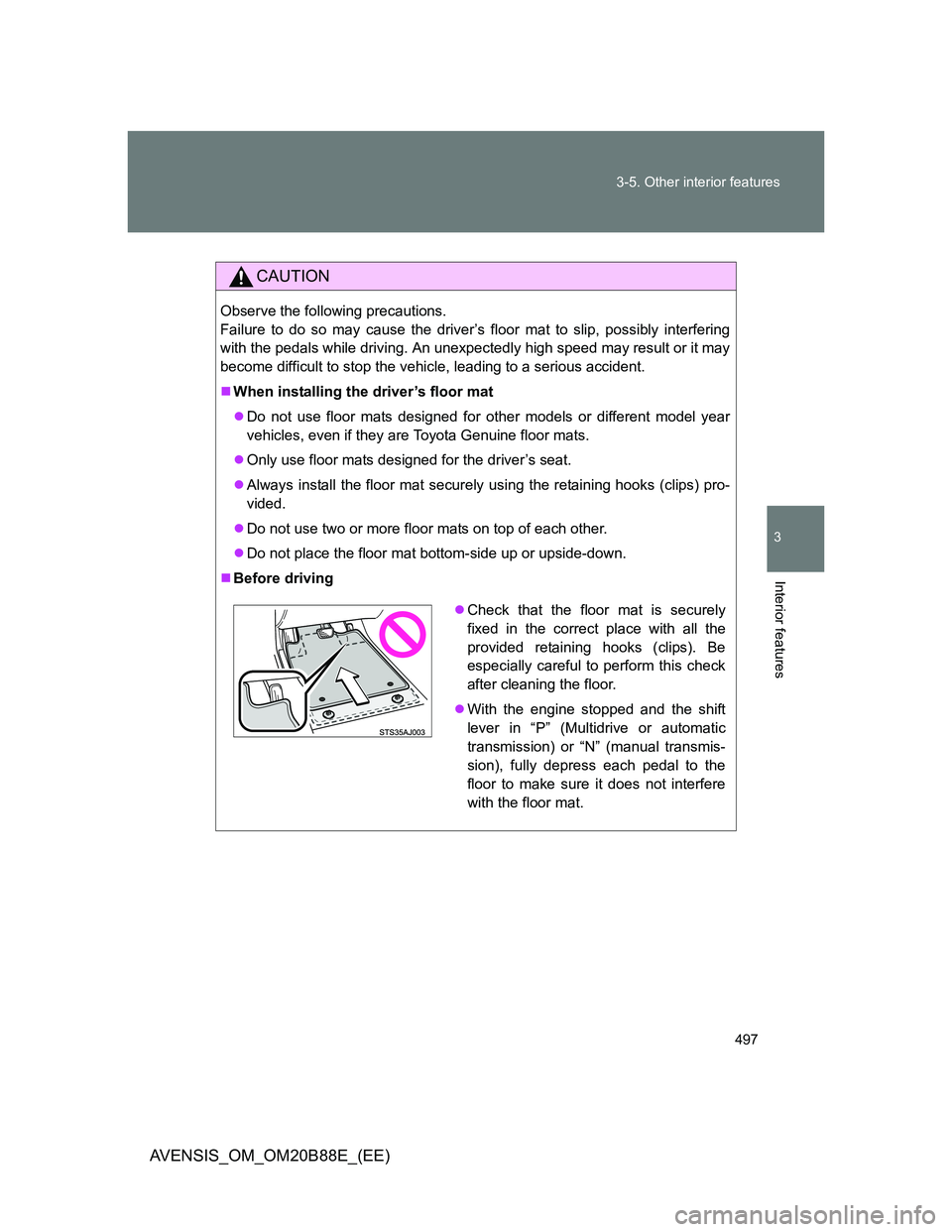

CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in “P” (Multidrive or automatic
transmission) or “N” (manual transmis-
sion), fully depress each pedal to the
floor to make sure it does not interfere
with the floor mat.

498
3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

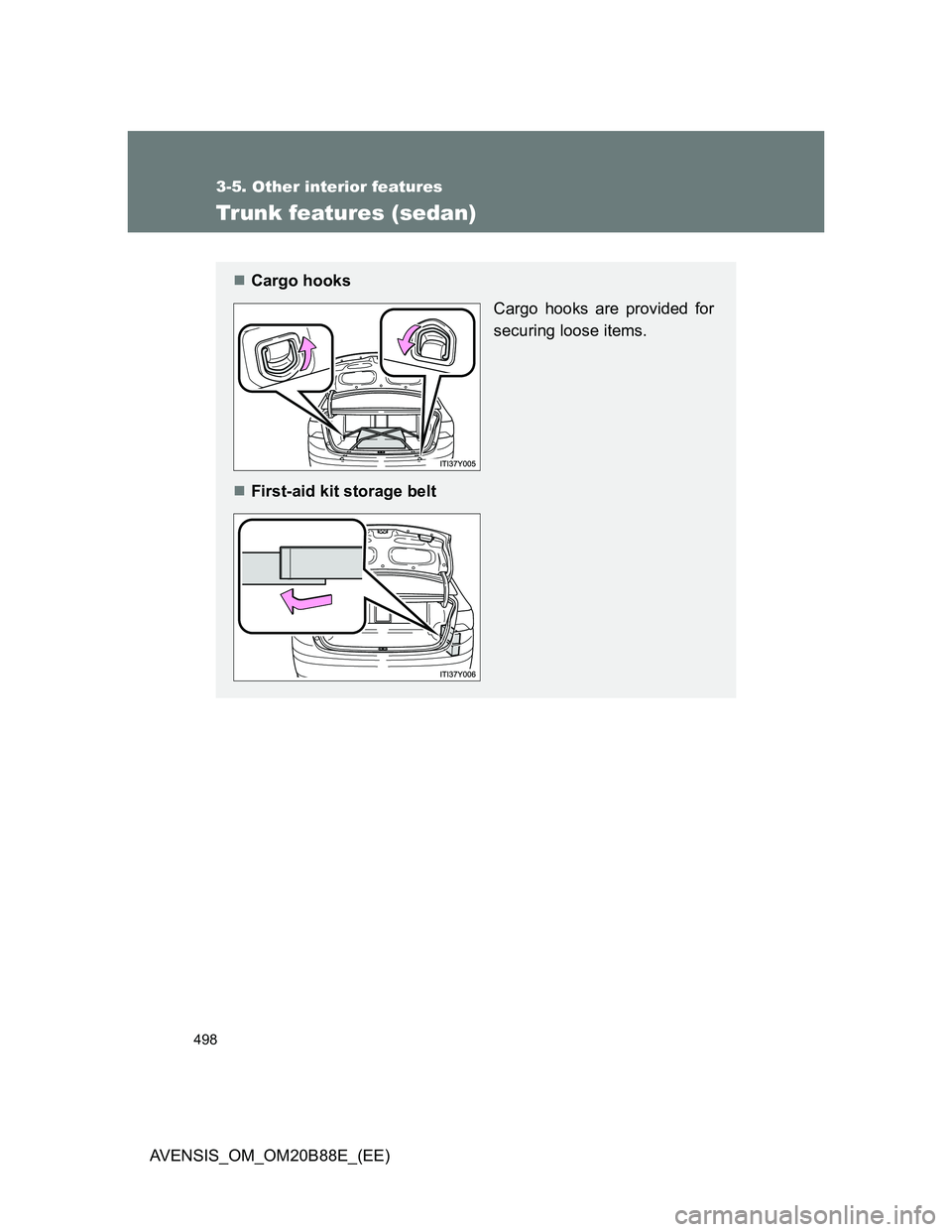

Trunk features (sedan)
Cargo hooks
Cargo hooks are provided for
securing loose items.
First-aid kit storage belt

499 3-5. Other interior features
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
CAUTION
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
NOTICE
When closing the trunk
Do not leave the luggage mat lever hooked on the edge of the trunk. The
luggage mat may get damaged.

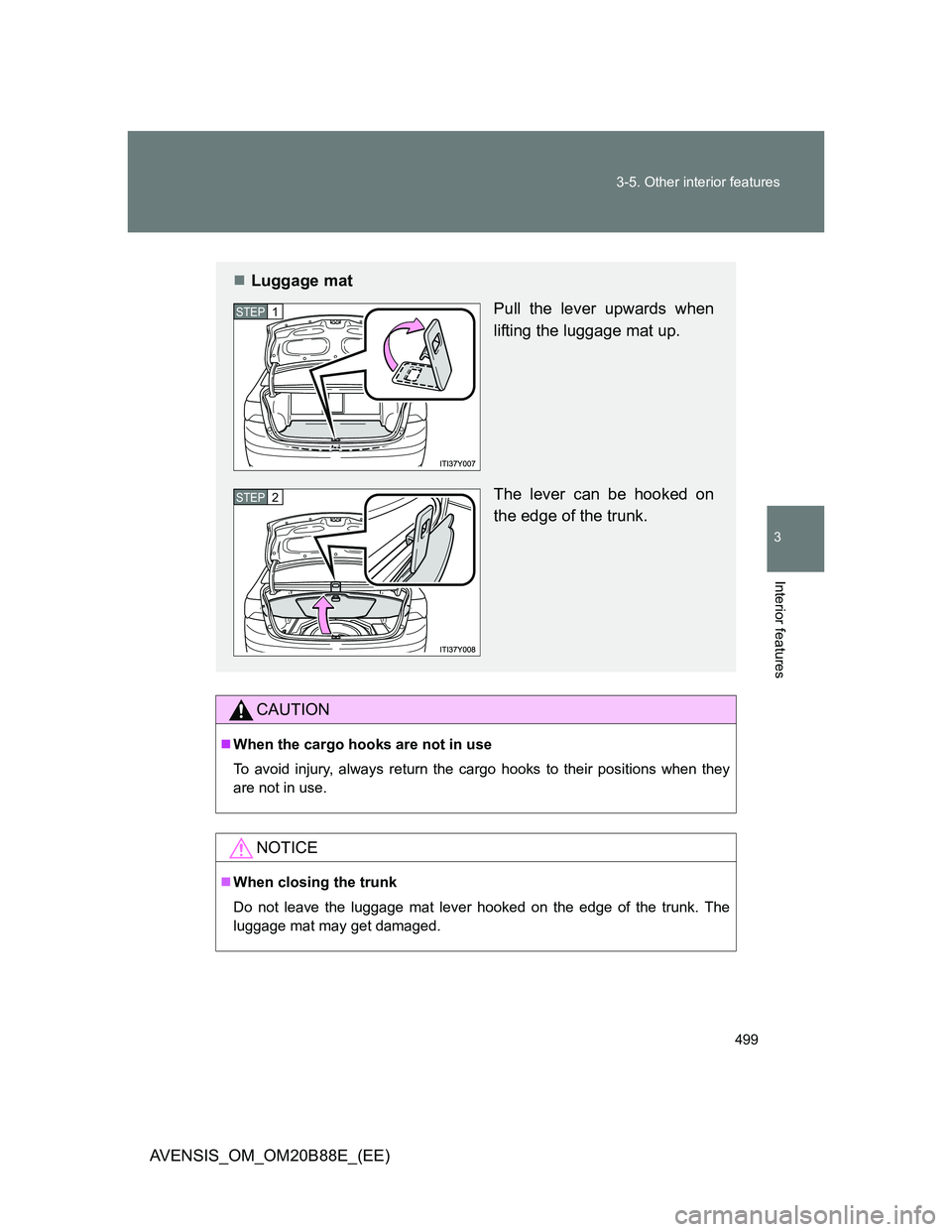

Luggage mat
Pull the lever upwards when
lifting the luggage mat up.
The lever can be hooked on
the edge of the trunk.
STEP1
STEP2

500
3-5. Other interior features
AVENSIS_OM_OM20B88E_(EE)

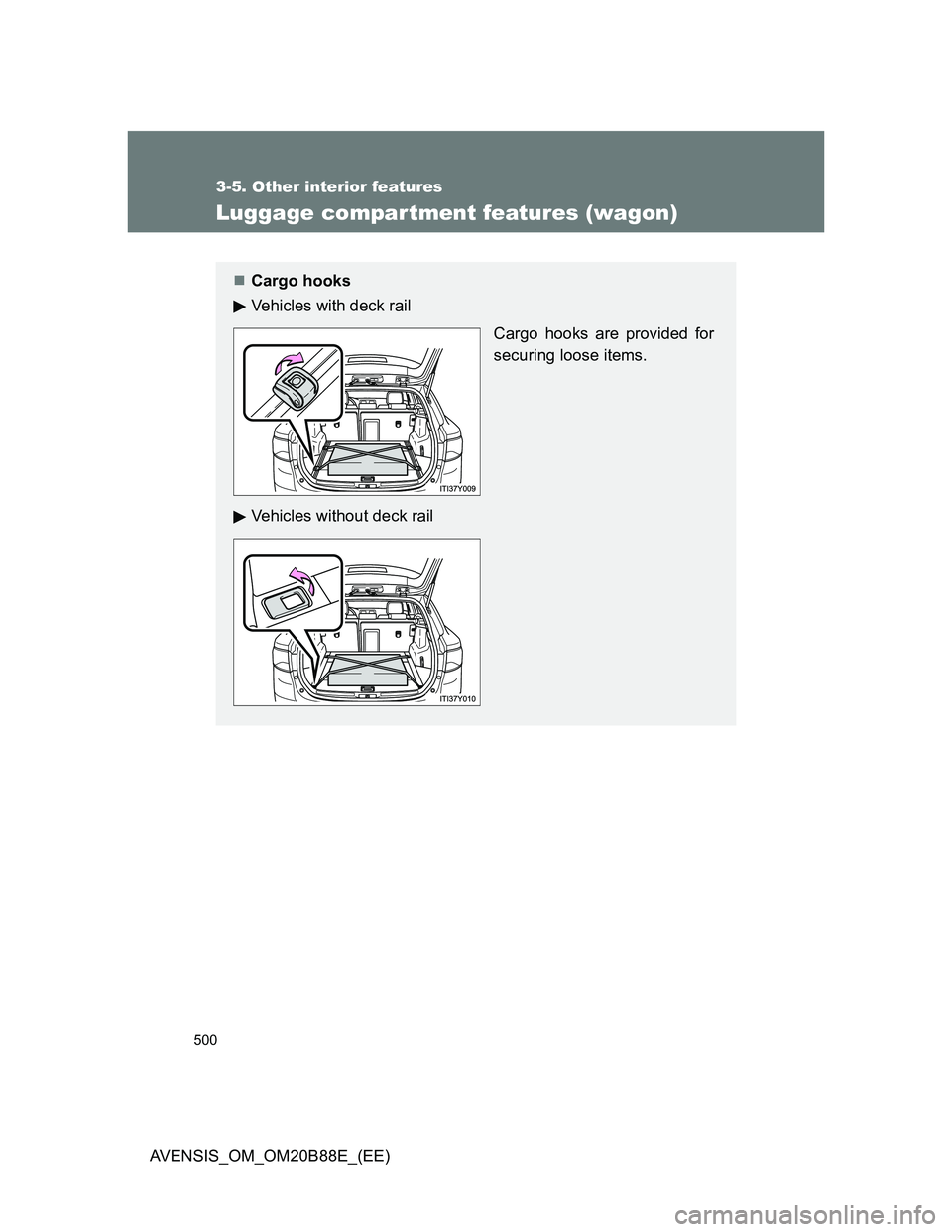

Luggage compar tment features (wagon)
Cargo hooks
Vehicles with deck rail
Cargo hooks are provided for
securing loose items.
Vehicles without deck rail
