Page 451 of 776

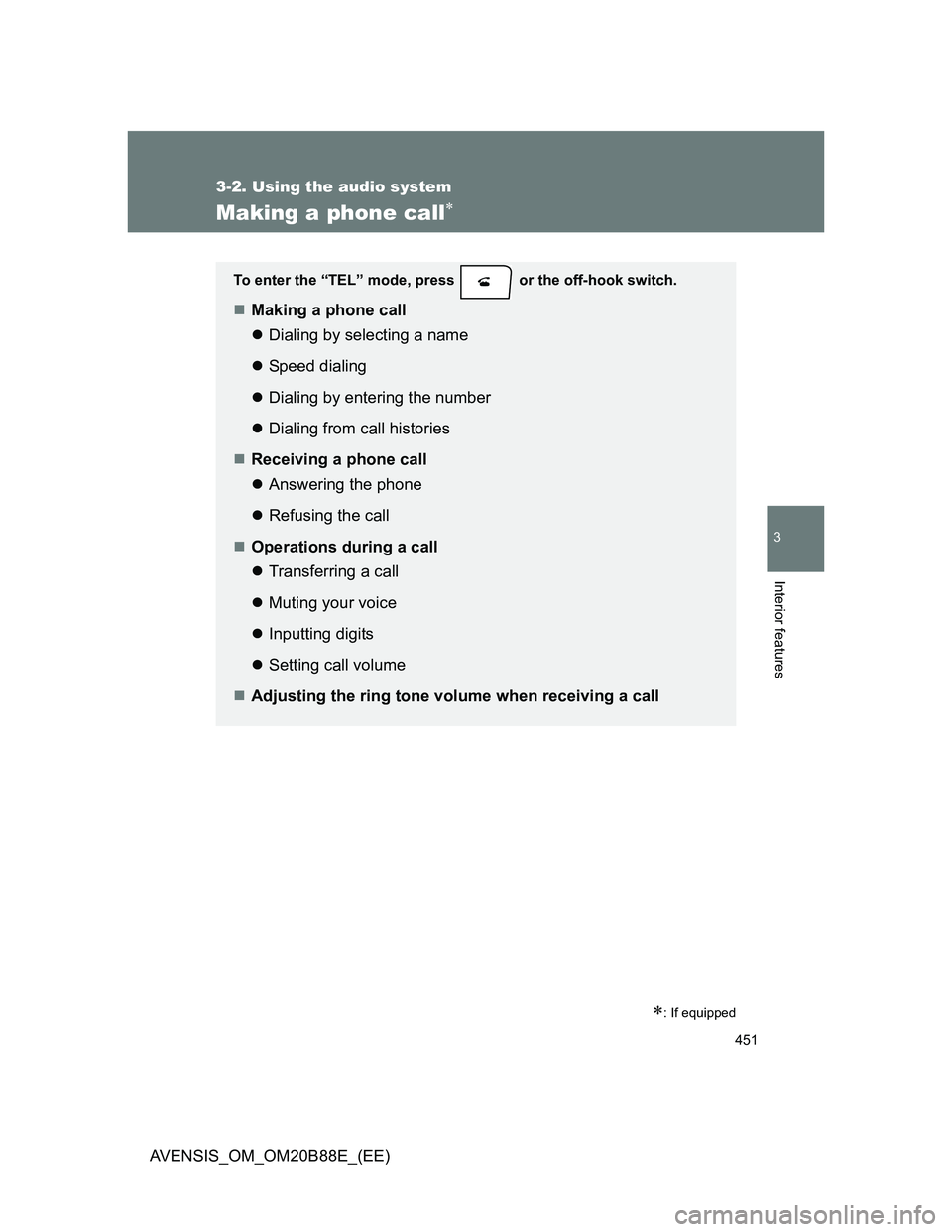

451
3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Making a phone call
: If equipped
To enter the “TEL” mode, press or the off-hook switch.
Making a phone call
Dialing by selecting a name
Speed dialing
Dialing by entering the number
Dialing from call histories
Receiving a phone call
Answering the phone
Refusing the call
Operations during a call
Transferring a call
Muting your voice
Inputting digits
Setting call volume
Adjusting the ring tone volume when receiving a call
Page 452 of 776
452 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Dialing by selecting a name
Select “Phonebook” using .
Select the desired name using and press or
the off-hook switch.
By pressing [Add S. Dial] and one of the speed dial buttons
(from [1] to [5]) while the desired name is selected, it
can be registered as a speed dial.
Speed dialing
Select “Speed Dials” using .
Press the desired preset button (from [1] to
[5]) and press or the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press [DELETE] and
then press [YES].
STEP1
STEP2
STEP1
STEP2
Page 453 of 776
453 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Dialing by entering the number
Select “Speed Dials” using .
Enter the phone number and press or the off-hook
switch.
Dialing from call histories
Select “All calls”, “Missed calls”, “Incoming calls” or “Outgoing
calls” using .
Select a desired number using and press or
the off-hook switch.
The following operations can be performed:
Registering a number as a speed dial
Press [Add S. Dial] and then press the desired preset but-
ton (from [1] to [5]).
Deleting the selected number
Press [DELETE] and press [YES].
STEP1
STEP2
STEP1
STEP2
Page 454 of 776

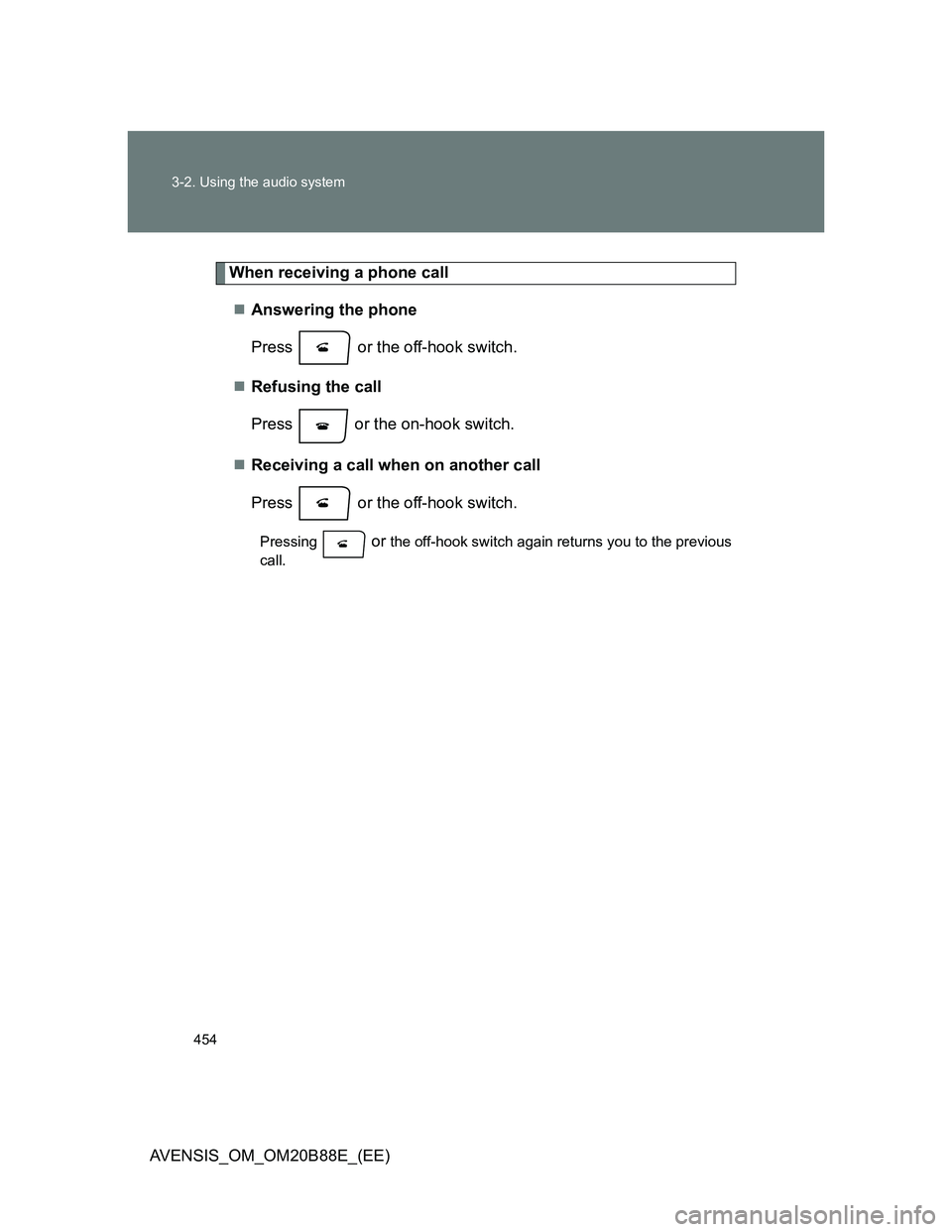

454 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
When receiving a phone call
Answering the phone
Press or the off-hook switch.
Refusing the call
Press or the on-hook switch.
Receiving a call when on another call
Press or the off-hook switch.
Pressing or the off-hook switch again returns you to the previous
call.
Page 455 of 776
455 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Operations during a call
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the fol-
lowing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press the * [PHONE].
*: This operation can be performed only when transferring a call
from the cellular phone to the system during a call.
Muting your voice
Press [MUTE].
Inputting digits
Press [0-9] and using the input the desired digits.
• To send the input digits press [SEND].
• When finished, press [EXIT] to return to the previous
screen.
Setting call volume
To decrease the volume: Press .
To increase the volume: Press .
Page 456 of 776

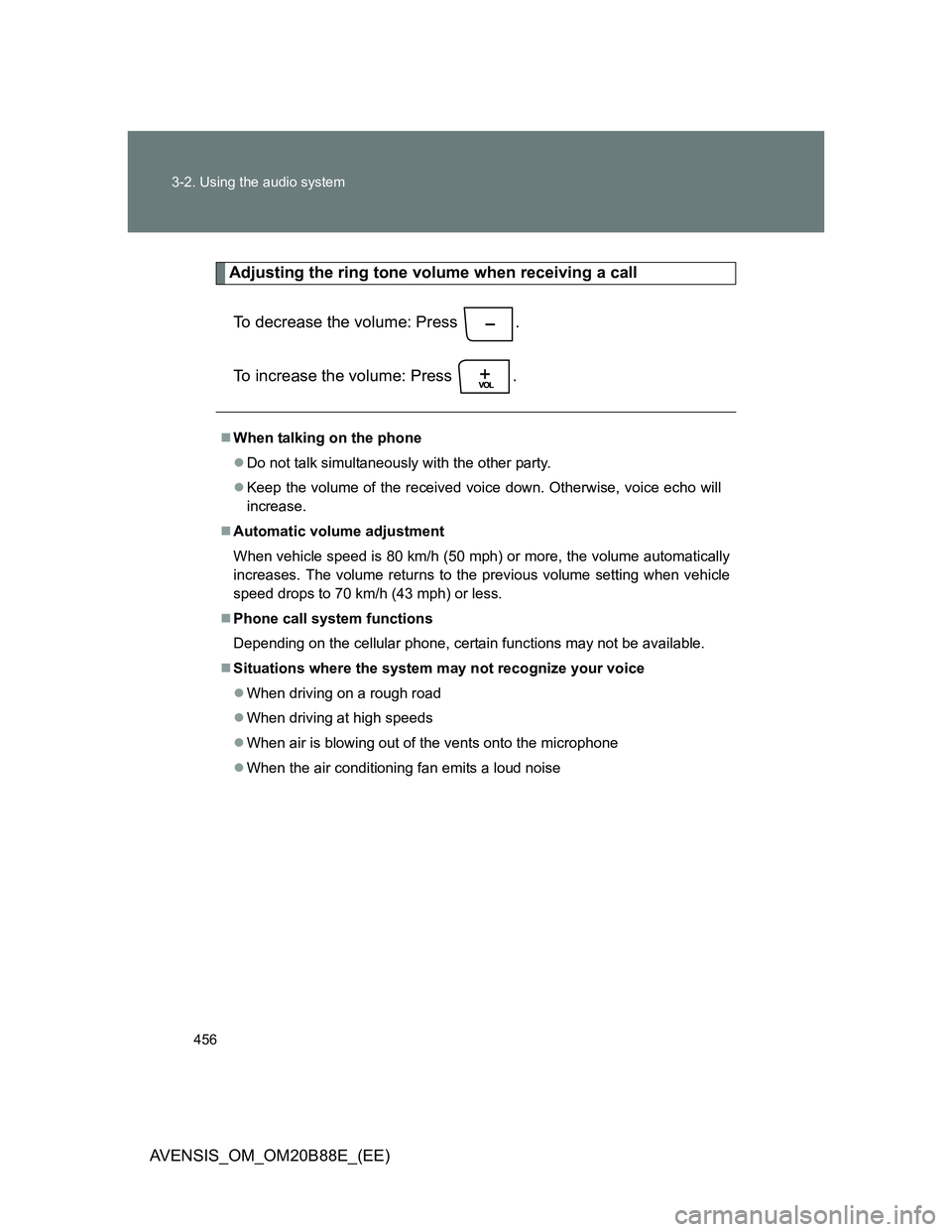

456 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Adjusting the ring tone volume when receiving a call
To decrease the volume: Press .
To increase the volume: Press .
When talking on the phone
Do not talk simultaneously with the other party.
Keep the volume of the received voice down. Otherwise, voice echo will
increase.
Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
Phone call system functions
Depending on the cellular phone, certain functions may not be available.
Situations where the system may not recognize your voice
When driving on a rough road
When driving at high speeds
When air is blowing out of the vents onto the microphone
When the air conditioning fan emits a loud noise
Page 457 of 776

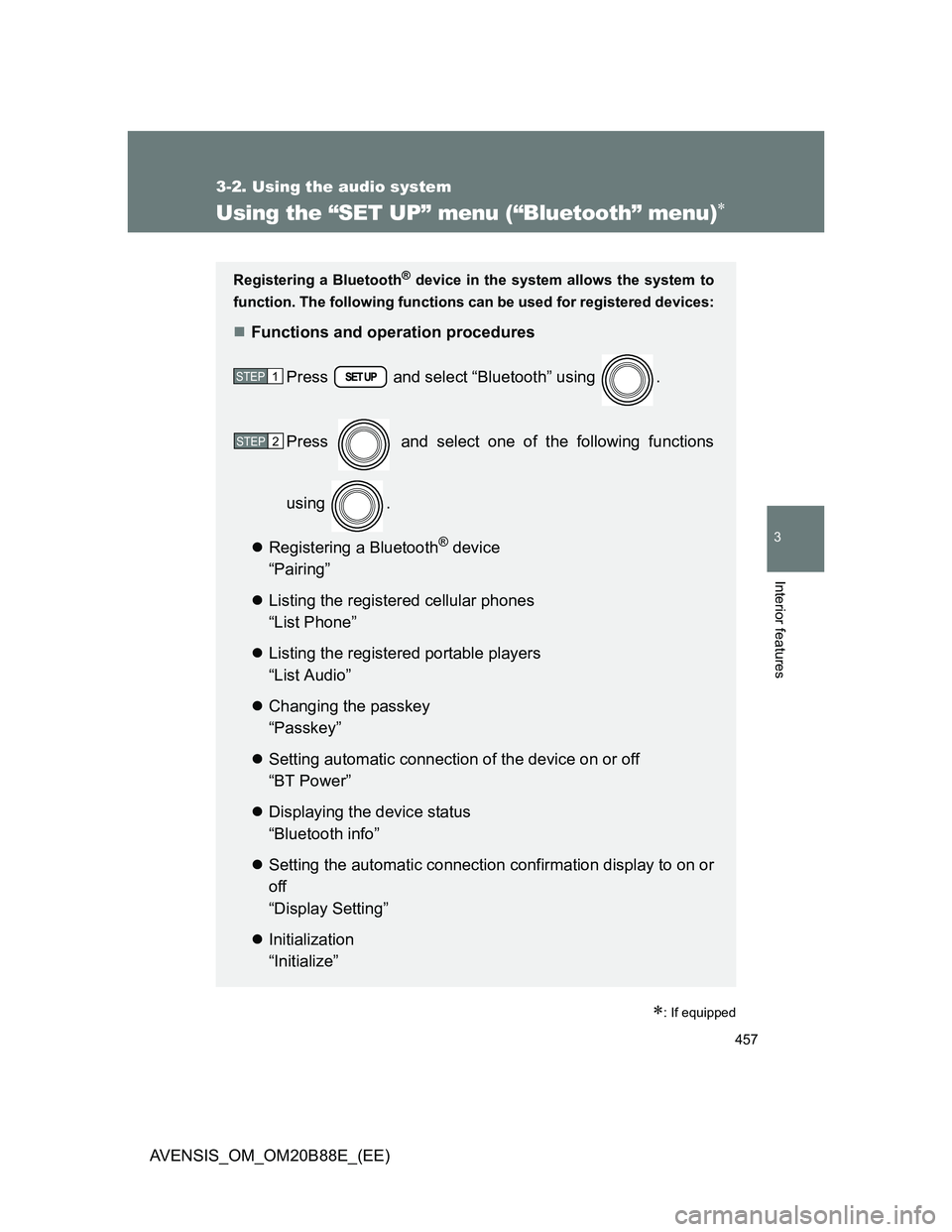

457
3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Using the “SET UP” menu (“Bluetooth” menu)
: If equipped
Registering a Bluetooth® device in the system allows the system to
function. The following functions can be used for registered devices:
Functions and operation procedures
Press and select “Bluetooth” using .
Press and select one of the following functions
using .
Registering a Bluetooth
® device
“Pairing”
Listing the registered cellular phones
“List Phone”
Listing the registered portable players
“List Audio”
Changing the passkey
“Passkey”
Setting automatic connection of the device on or off
“BT Power”
Displaying the device status
“Bluetooth info”
Setting the automatic connection confirmation display to on or
off
“Display Setting”
Initialization
“Initialize”
STEP1
STEP2
Page 458 of 776
458 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Registering a portable player
Select “Pairing” using , and perform the procedure for regis-
tering a portable player. (P. 444)
Listing the registered cellular phones
Select “List Phone” using . The list of registered cellular
phones will be displayed.
Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected
using .
Select “Select” using .
Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using
.
Select “Delete” using .
Press [YES].
STEP1
STEP2
STEP1
STEP2
STEP3
Page 459 of 776
459 3-2. Using the audio system
3
Interior features
AVENSIS_OM_OM20B88E_(EE)
Listing the registered portable players
Select “List Audio” using . The list of registered portable play-
ers will be displayed.
Connecting the registered portable player to the audio system
Select the name of the portable player to be connected
using .
Select “Select” using .
Deleting the registered portable player
Select the name of the portable player to be deleted using
.
Select “Delete” using .
Press [YES].
STEP1
STEP2
STEP1
STEP2
STEP3
Page 460 of 776

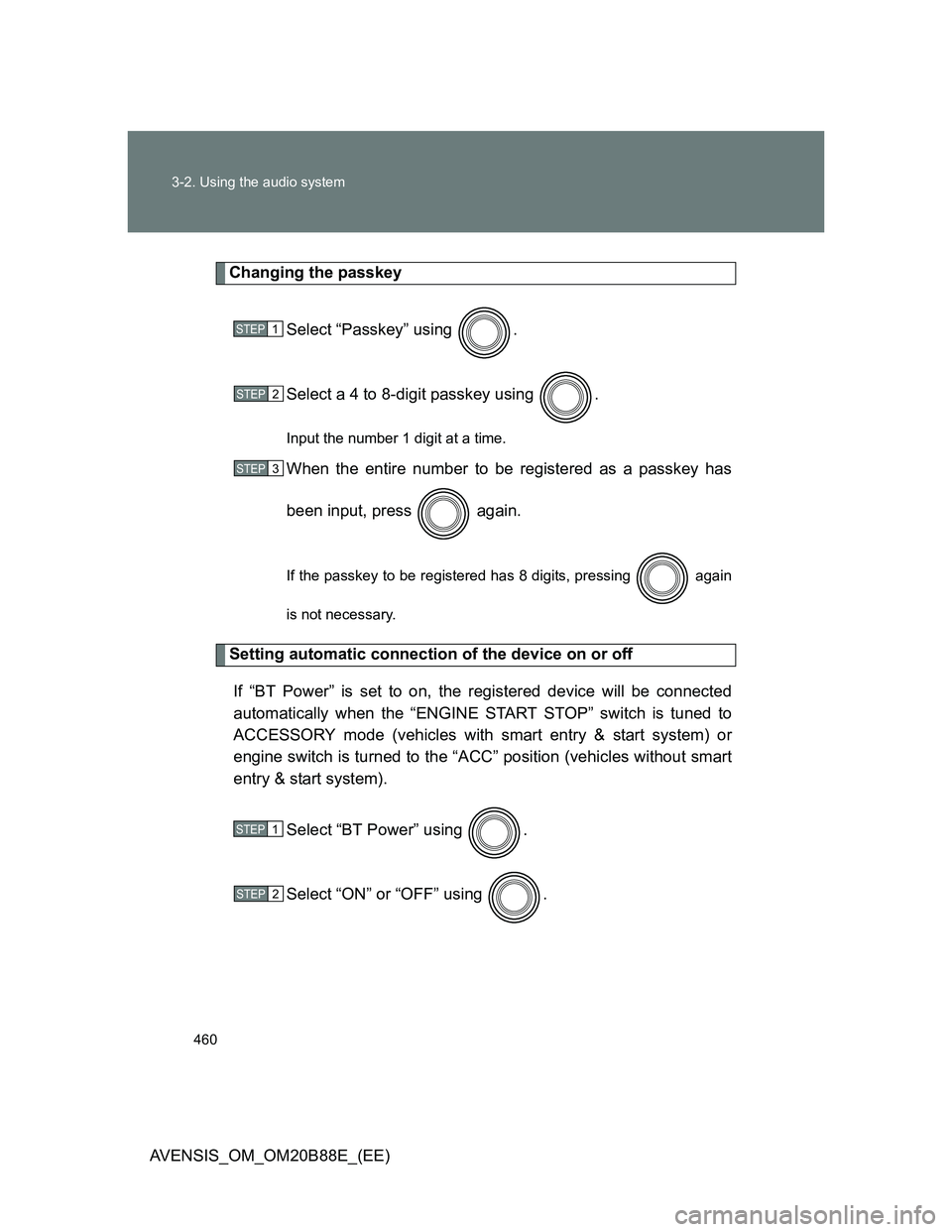

460 3-2. Using the audio system
AVENSIS_OM_OM20B88E_(EE)
Changing the passkey
Select “Passkey” using .
Select a 4 to 8-digit passkey using .
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
If the passkey to be registered has 8 digits, pressing again
is not necessary.
Setting automatic connection of the device on or off
If “BT Power” is set to on, the registered device will be connected
automatically when the “ENGINE START STOP” switch is tuned to
ACCESSORY mode (vehicles with smart entry & start system) or
engine switch is turned to the “ACC” position (vehicles without smart
entry & start system).
Select “BT Power” using .
Select “ON” or “OFF” using .
STEP1
STEP2
STEP3
STEP1
STEP2
