TOYOTA AVENSIS 2014 Owners Manual (in English)

5

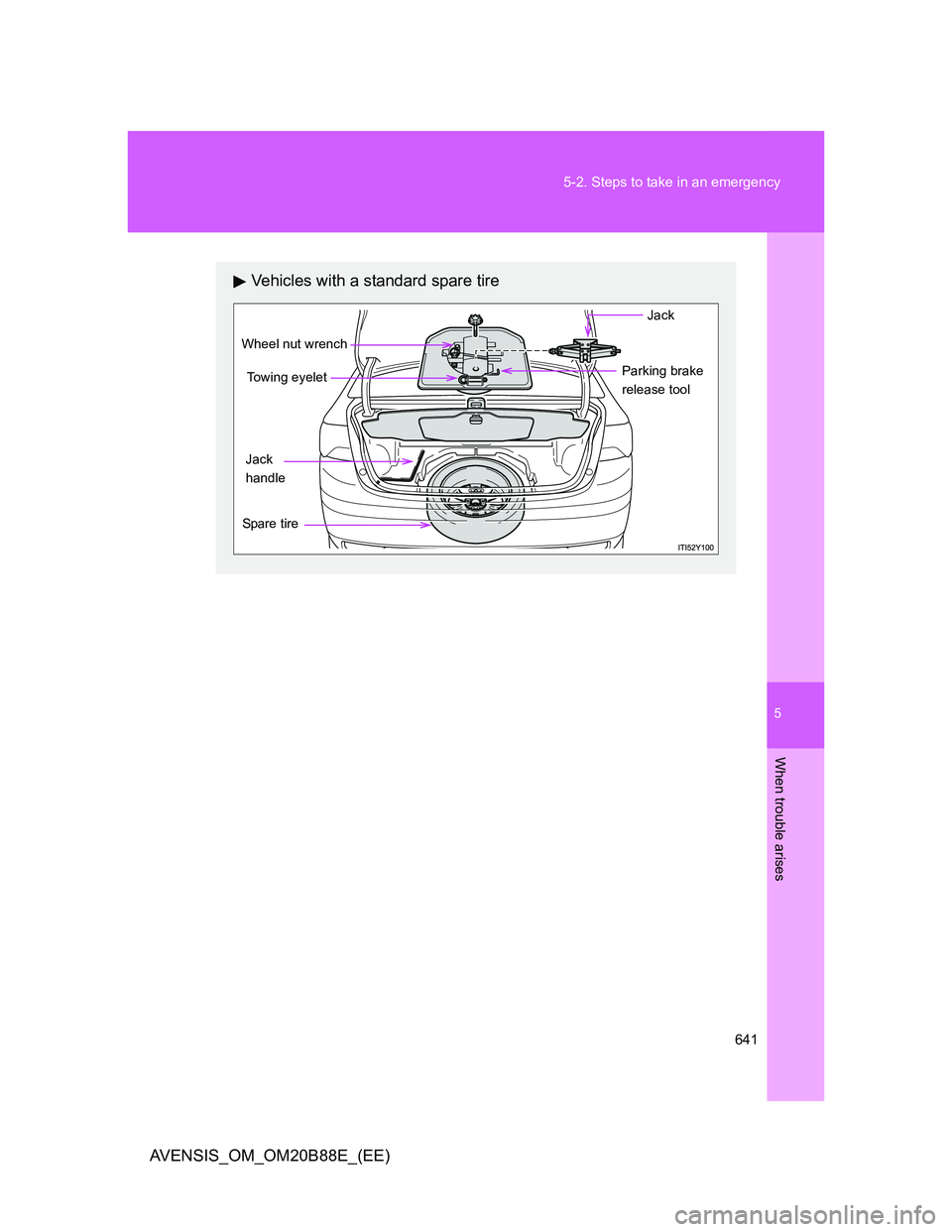

641 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)
Vehicles with a standard spare tire
Parking brake
release toolTowing eyelet
Wheel nut wrench
Spare tire
Jack
Jack
handle

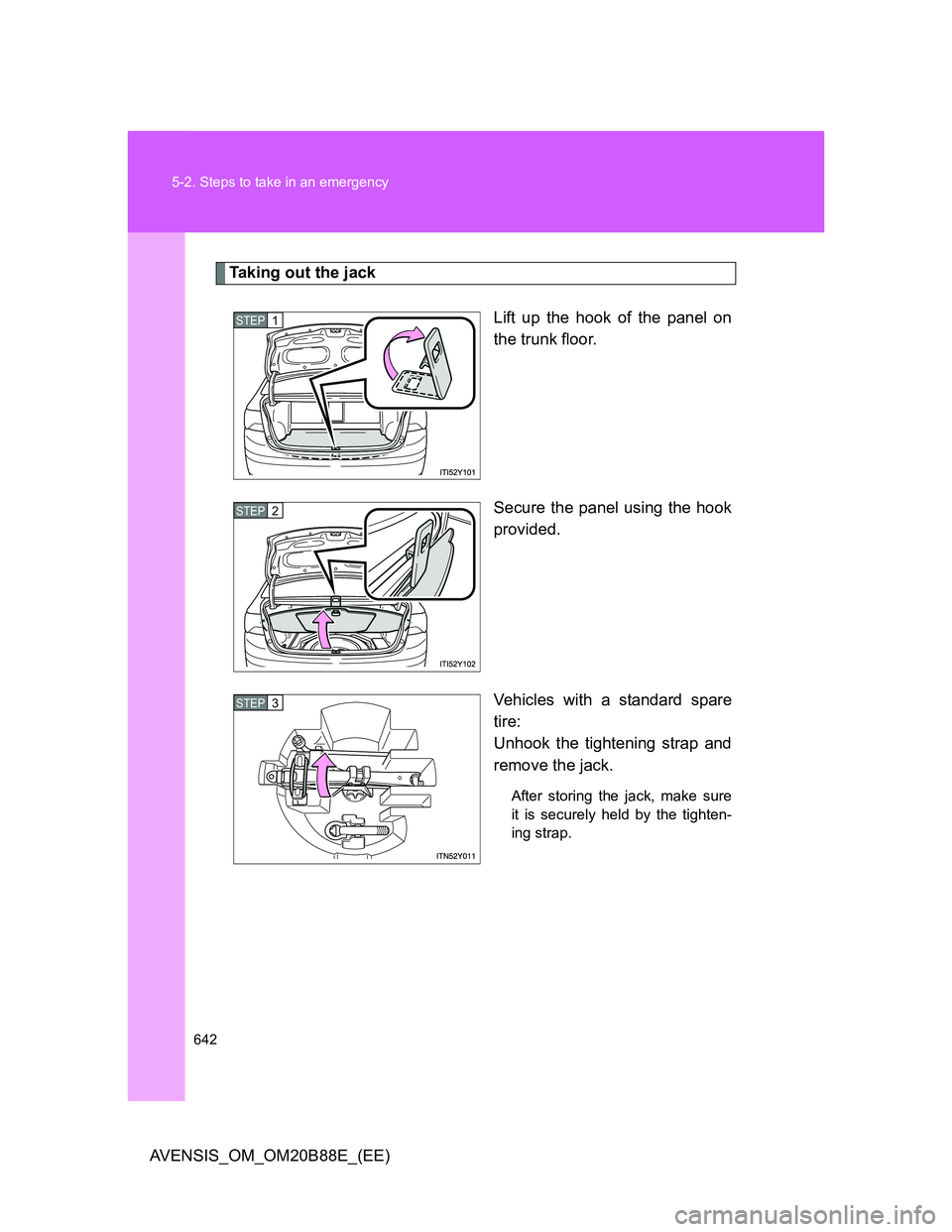

642 5-2. Steps to take in an emergency
AVENSIS_OM_OM20B88E_(EE)
Taking out the jack
Lift up the hook of the panel on
the trunk floor.
Secure the panel using the hook
provided.
Vehicles with a standard spare
tire:
Unhook the tightening strap and
remove the jack.
After storing the jack, make sure
it is securely held by the tighten-
ing strap.
STEP1
STEP2
STEP3

5
643 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)

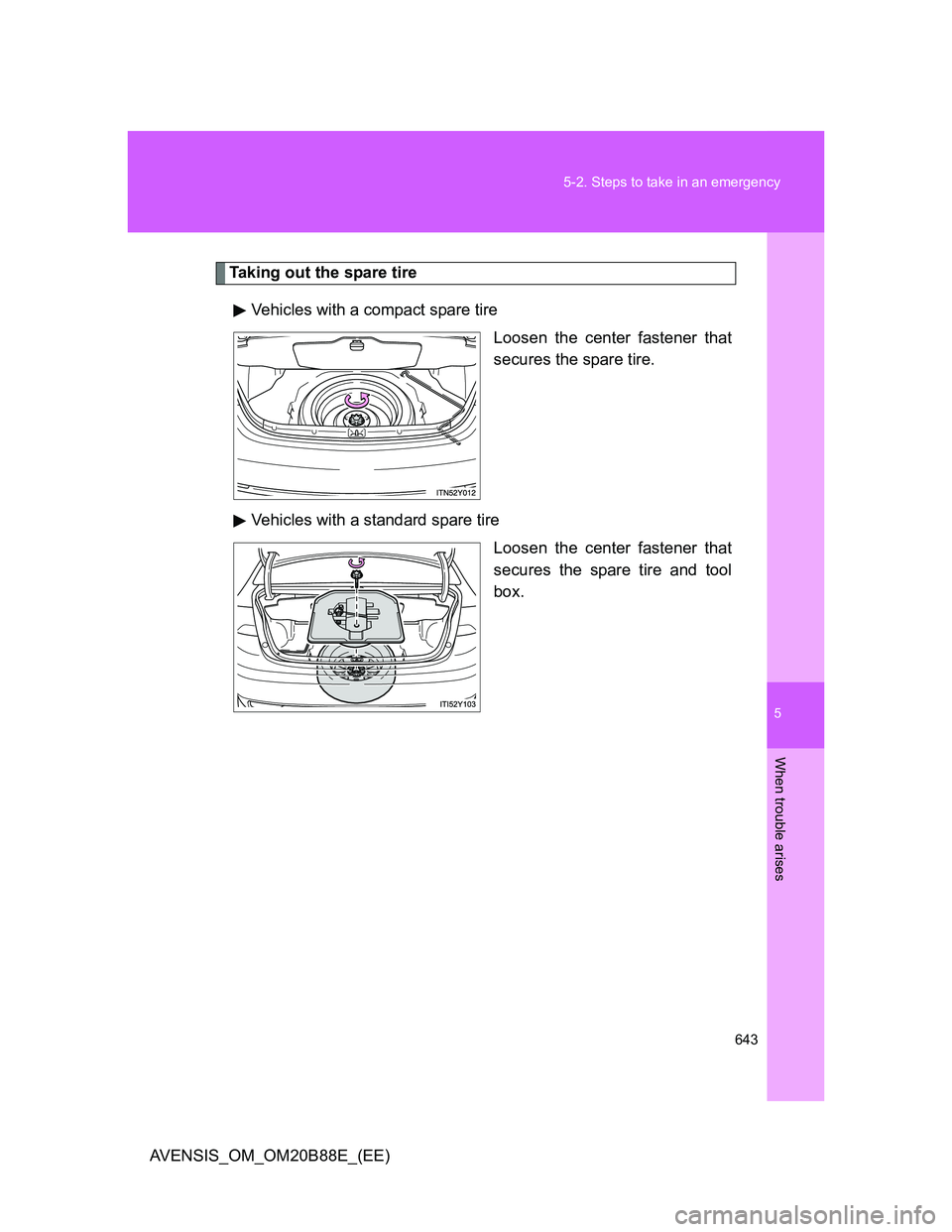

Taking out the spare tire
Vehicles with a compact spare tire
Loosen the center fastener that
secures the spare tire.
Vehicles with a standard spare tire
Loosen the center fastener that
secures the spare tire and tool
box.

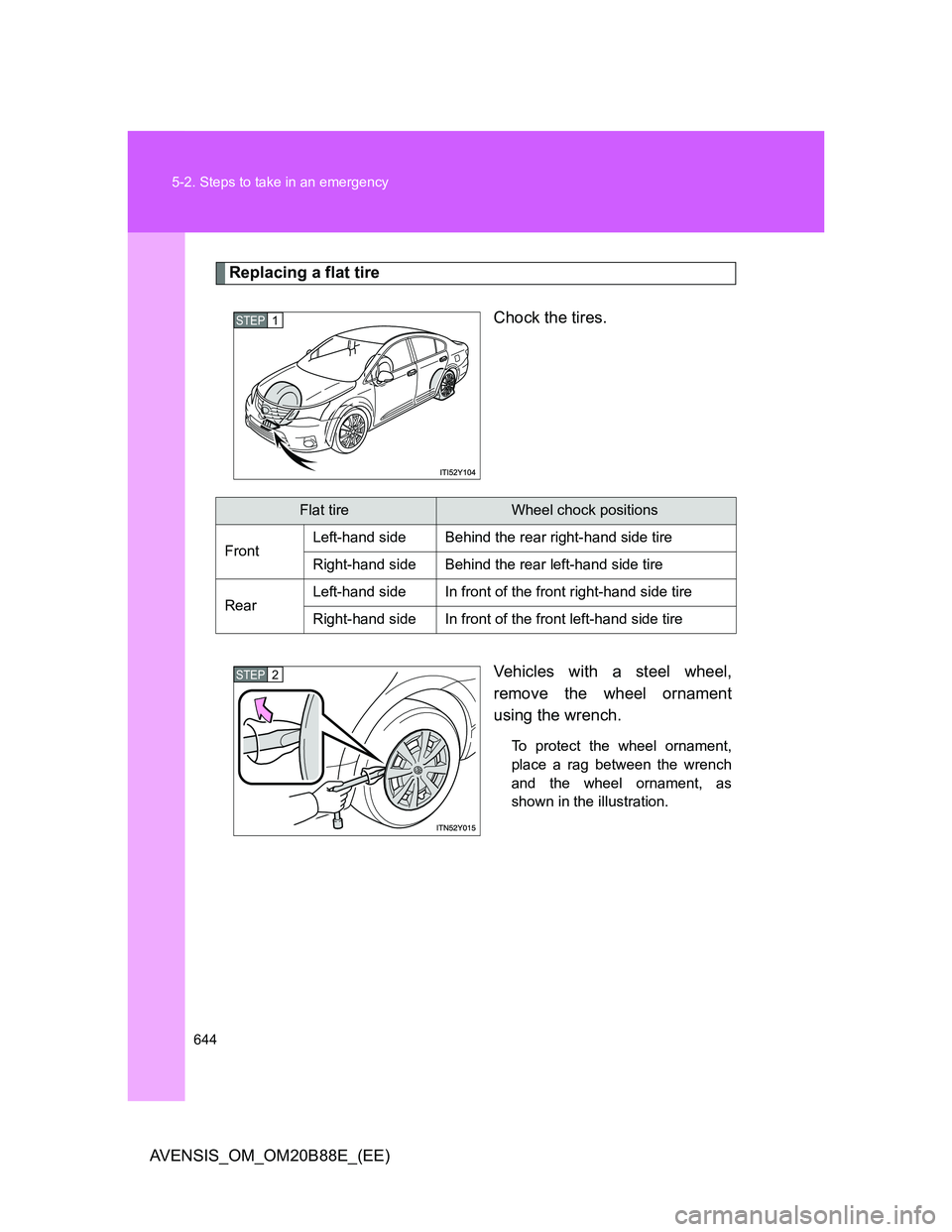

644 5-2. Steps to take in an emergency
AVENSIS_OM_OM20B88E_(EE)
Replacing a flat tire
Chock the tires.
Vehicles with a steel wheel,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
STEP1STEP1
Flat tireWheel chock positions
FrontLeft-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
RearLeft-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP2

5

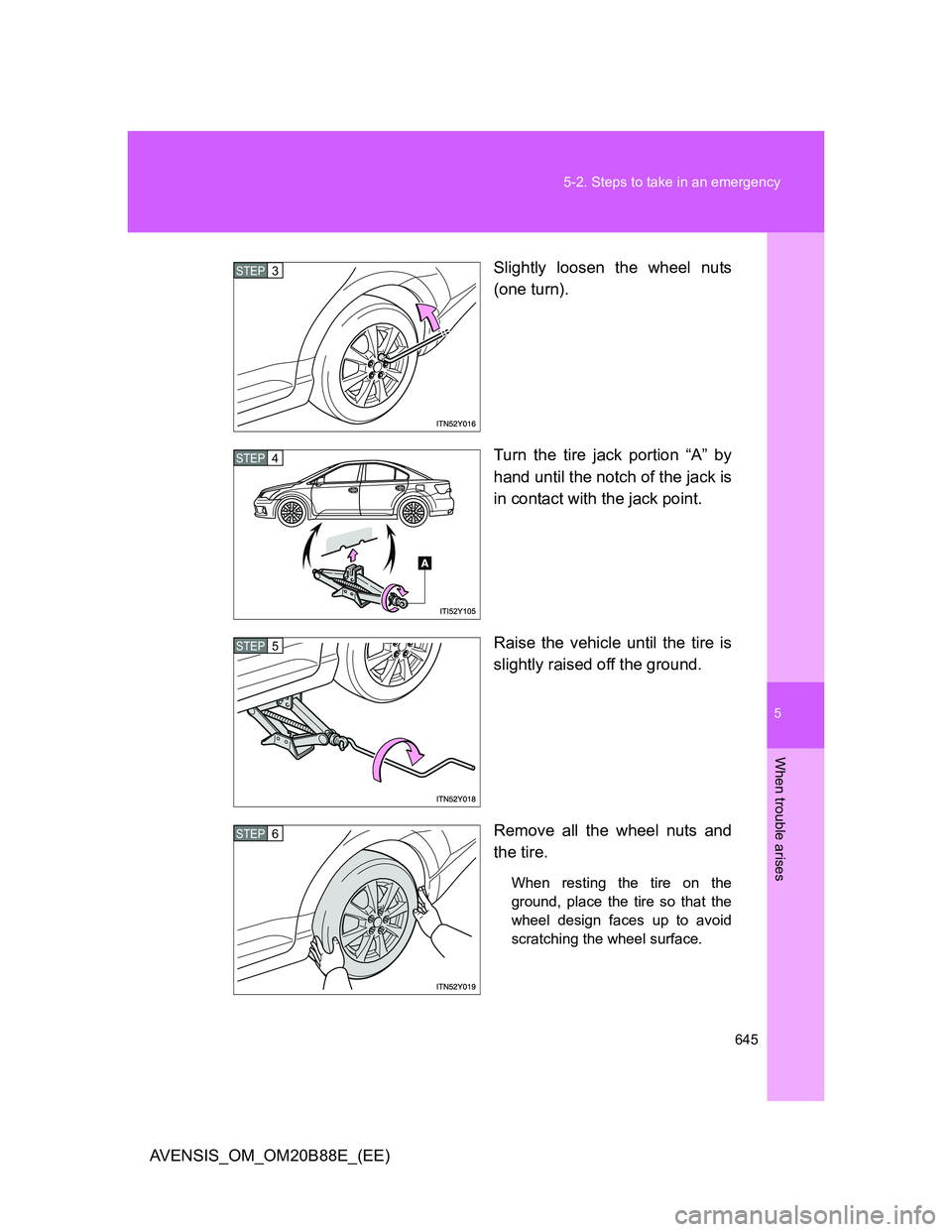

645 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP3
STEP4
STEP5
STEP6

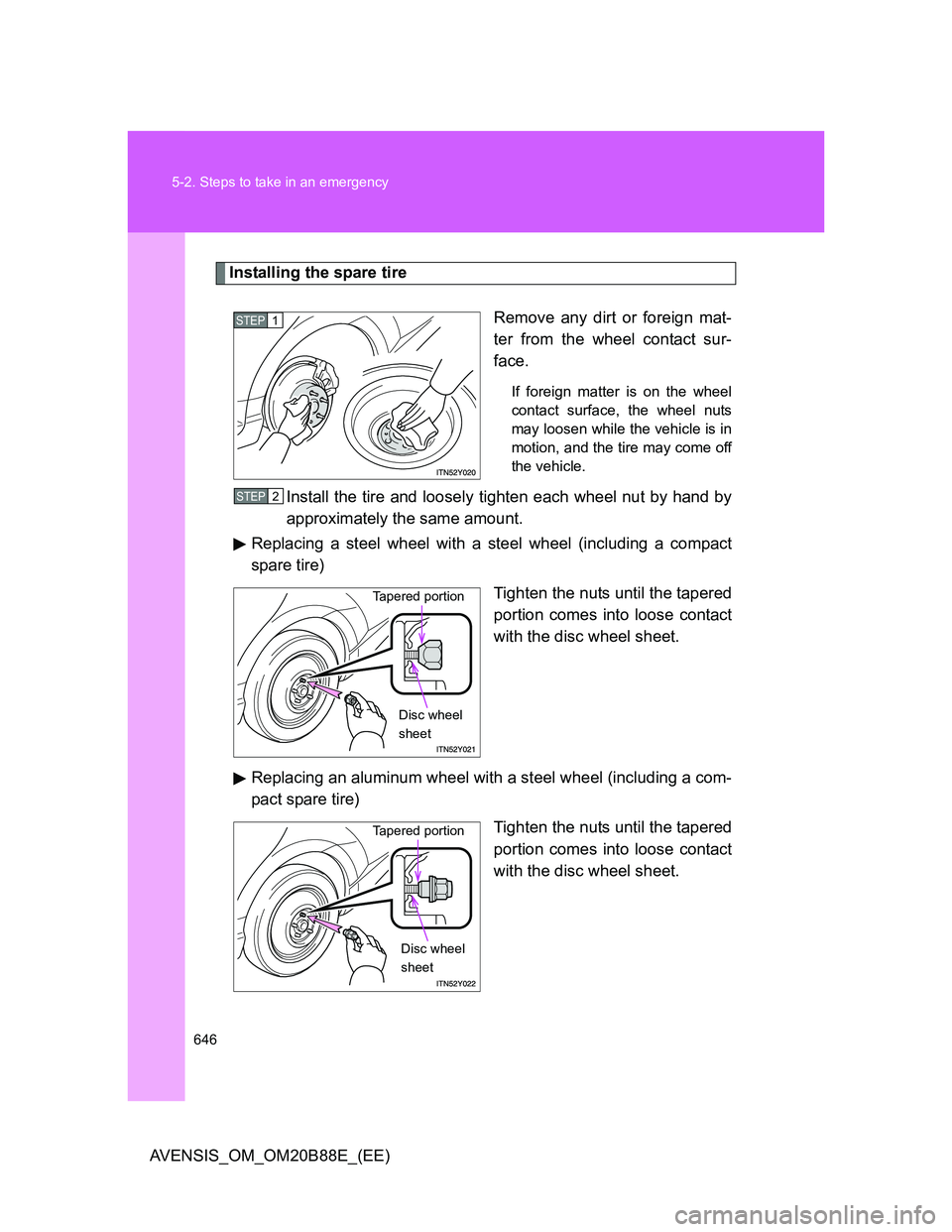

646 5-2. Steps to take in an emergency
AVENSIS_OM_OM20B88E_(EE)
Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Replacing a steel wheel with a steel wheel (including a compact
spare tire)
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel sheet.
Replacing an aluminum wheel with a steel wheel (including a com-
pact spare tire)
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel sheet.
STEP1
STEP2
Tapered portion
Disc wheel
sheet
Tapered portion
Disc wheel
sheet

5

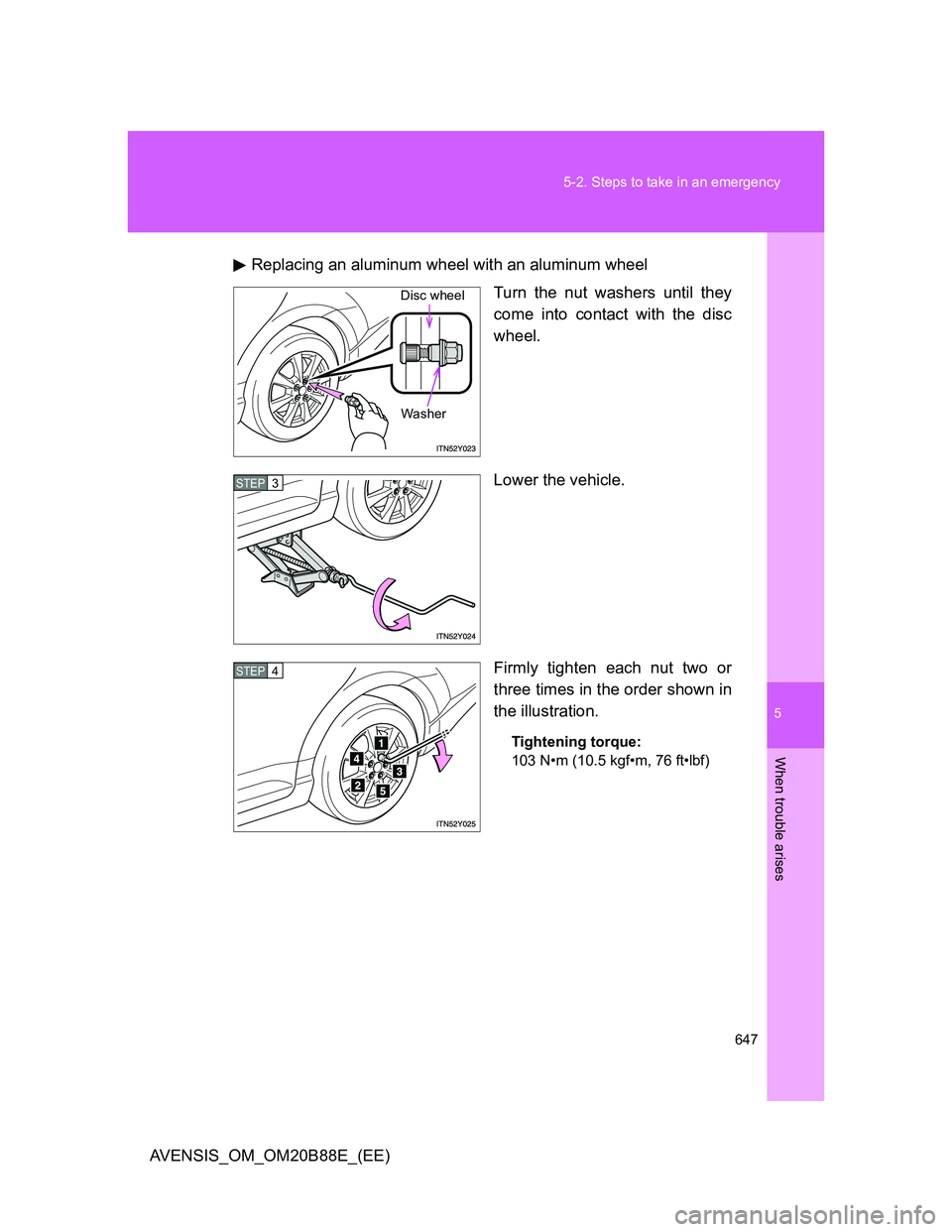

647 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)Replacing an aluminum wheel with an aluminum wheel
Turn the nut washers until they
come into contact with the disc
wheel.
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Disc wheel
Washer
STEP3
STEP4

648 5-2. Steps to take in an emergency
AVENSIS_OM_OM20B88E_(EE)Vehicles with a steel wheel, rein-
stall the wheel ornament.
Align the cutout of the wheel
ornament with the valve stem as
shown.
Stow the flat tire, tire jack and all tools.
STEP5
The compact spare tire
The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
Make sure to check the tire inflation pressure of the compact spare tire.
(P. 743)
If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on the rear of the vehicle. Perform the following
steps and fit tire chains to the front tires.
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the
vehicle.
Fit tire chains to the front tires.
STEP6
STEP1
STEP2
STEP3

5

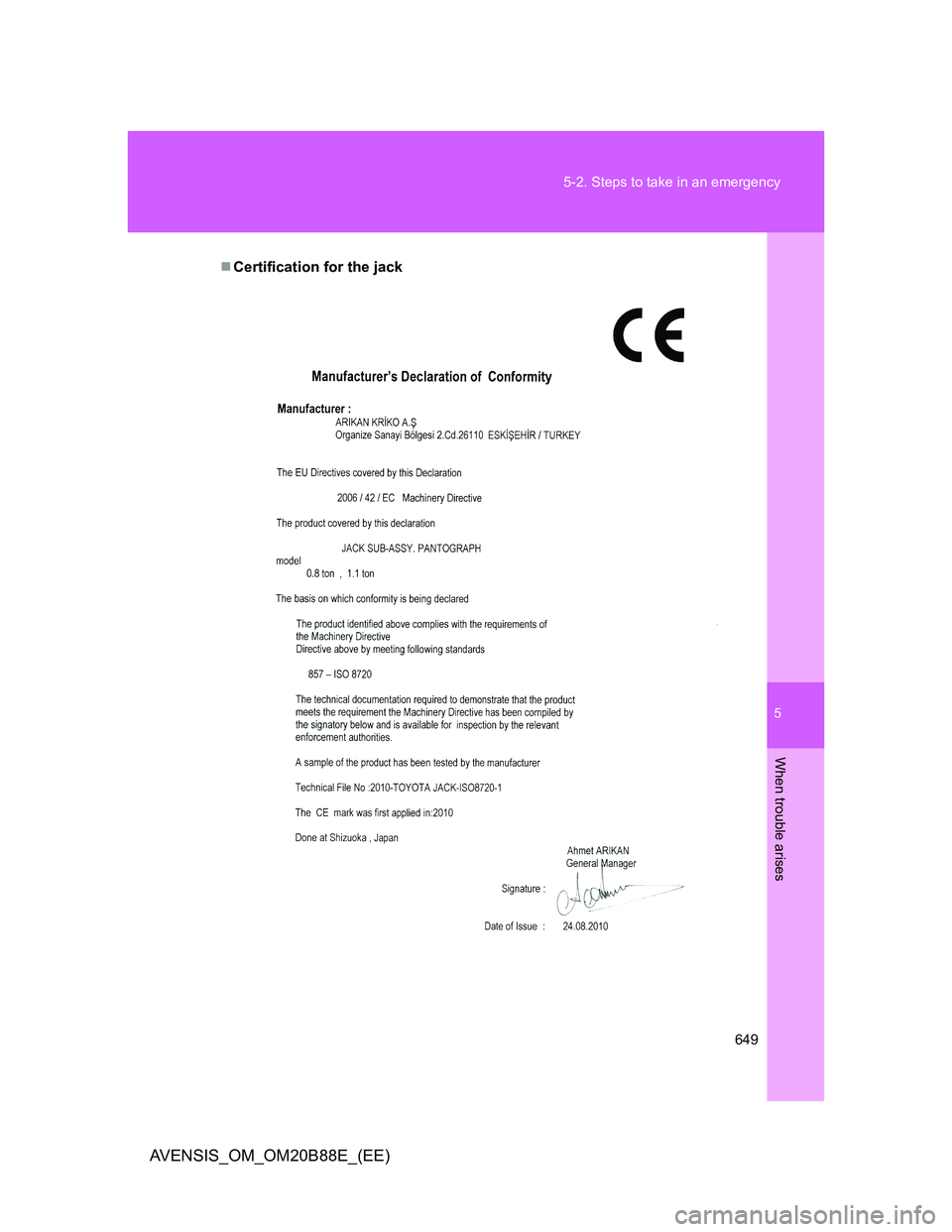

649 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)
Certification for the jack

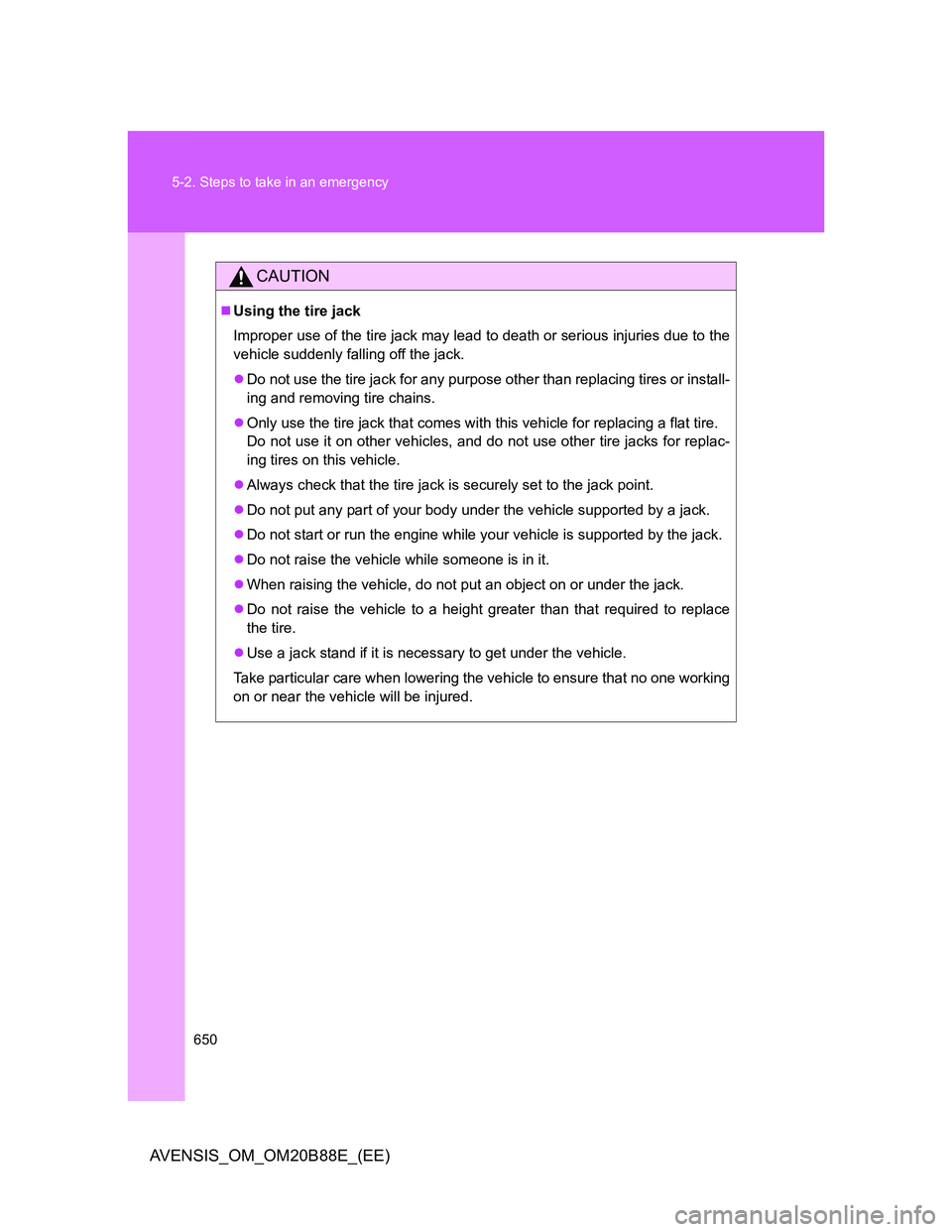

650 5-2. Steps to take in an emergency
AVENSIS_OM_OM20B88E_(EE)
CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle will be injured.
