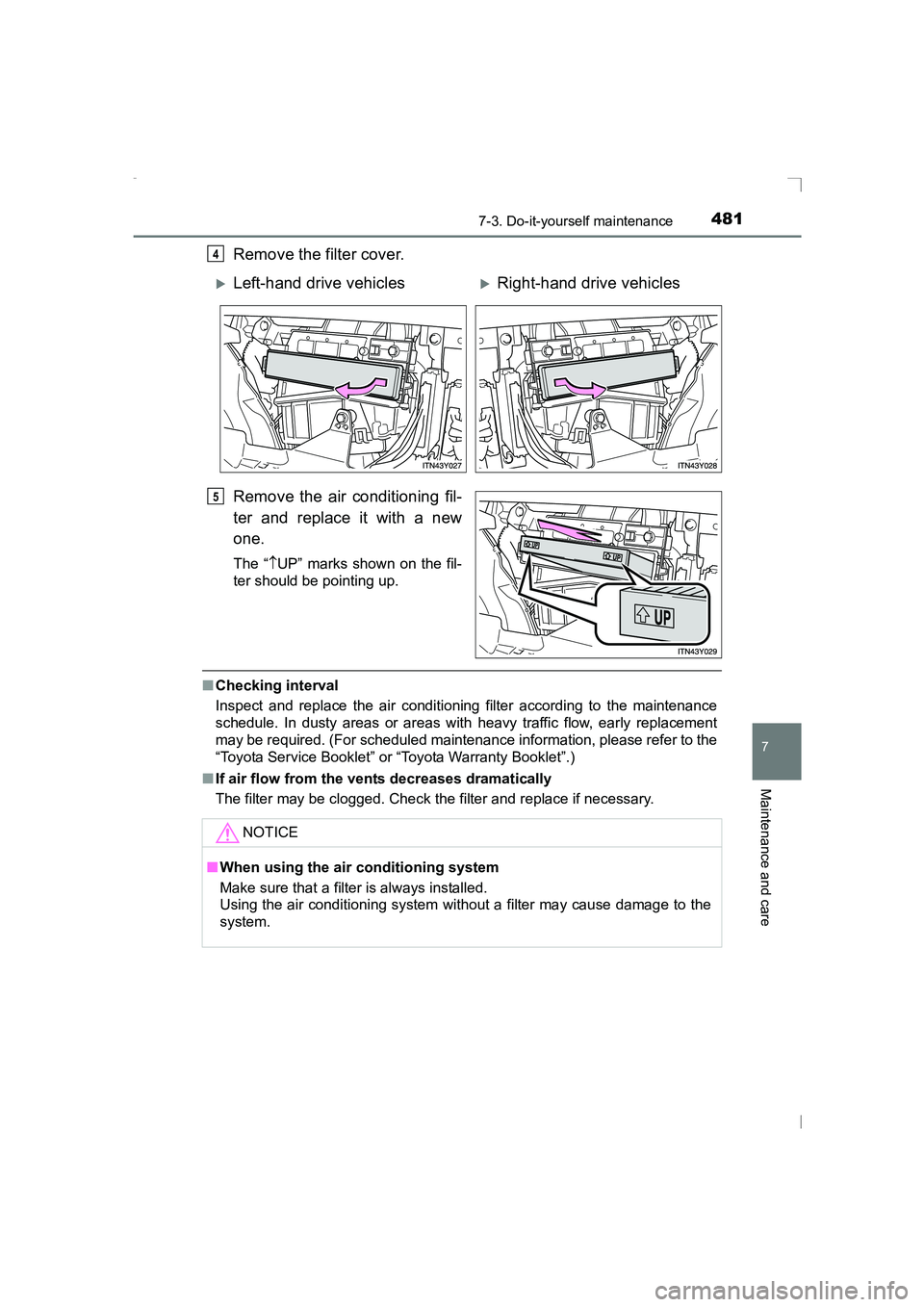

Page 481 of 648

TOYOTA AVENSIS 2015  Owners Manual 4817-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
Remove the filter cover.
Remove the air conditioning fil-
ter and replace it with a new
one.
The “↑UP” marks sh

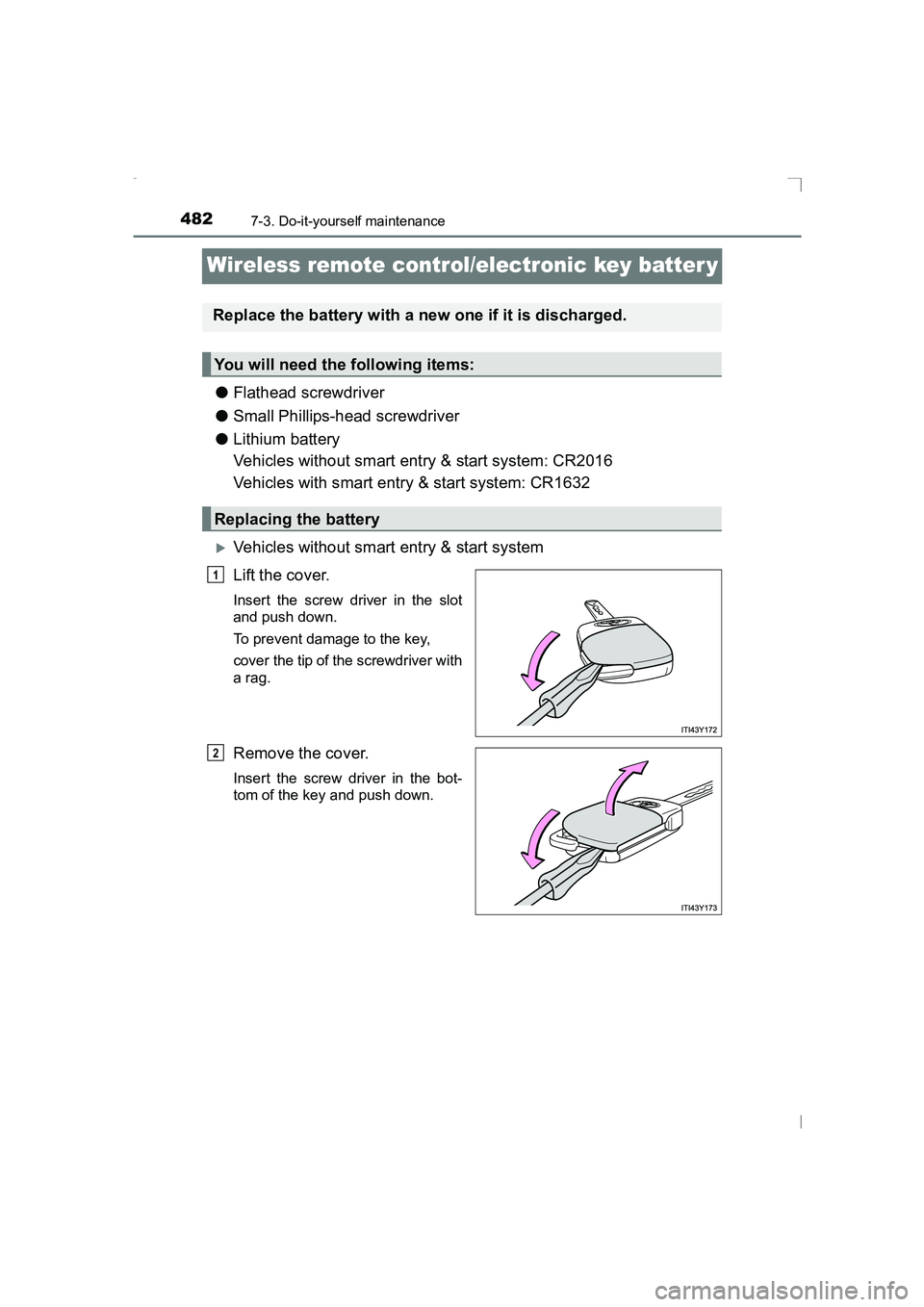

Page 482 of 648

TOYOTA AVENSIS 2015  Owners Manual 4827-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
Wireless remote control/electronic key batter y
●Flathead screwdriver
● Small Phillips-head screwdriver
● Lithium battery
Vehicles wit

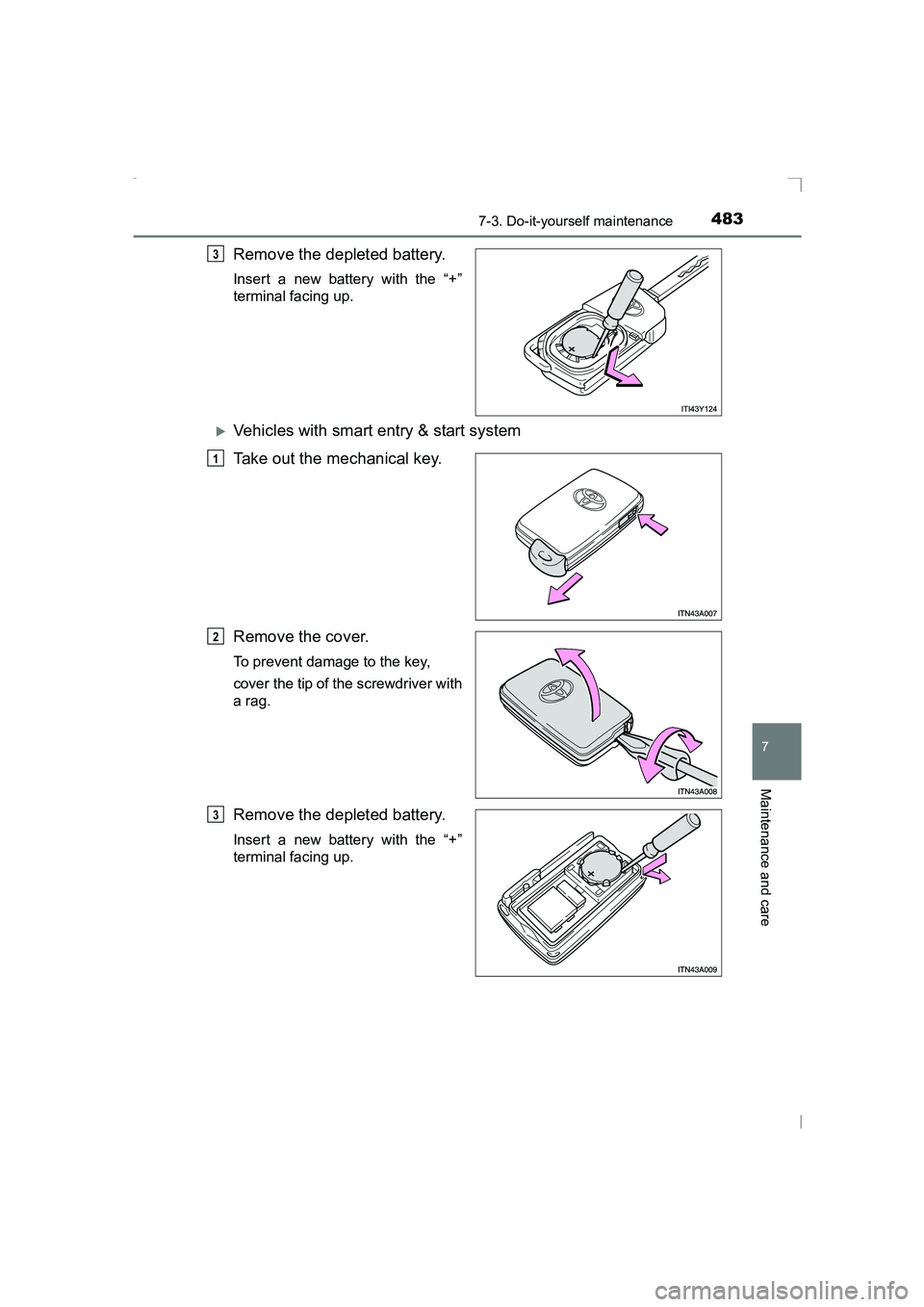

Page 483 of 648

TOYOTA AVENSIS 2015  Owners Manual 4837-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
�XVehicles with smart entry &

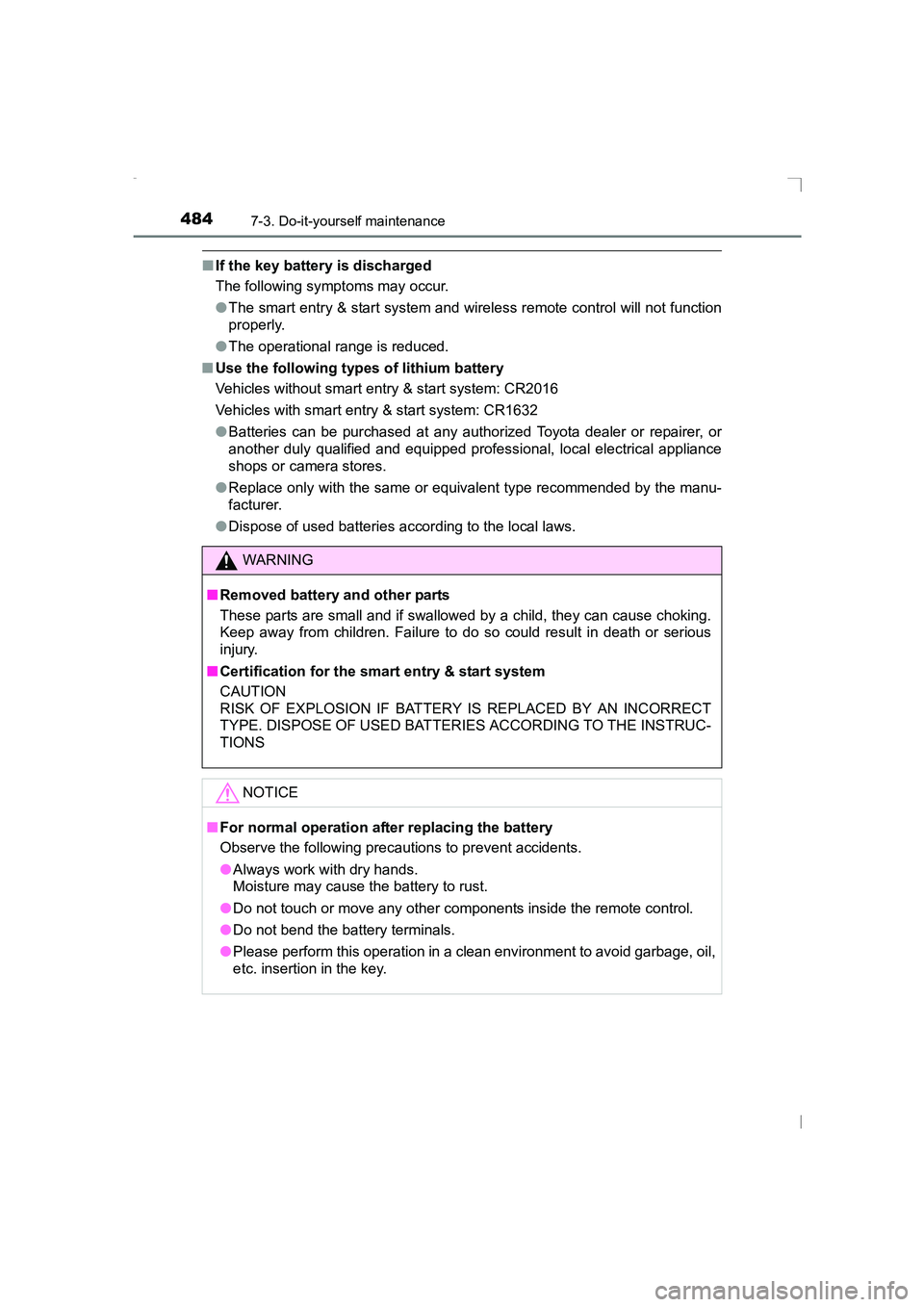

Page 484 of 648

TOYOTA AVENSIS 2015  Owners Manual 4847-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
■If the key battery is discharged
The following symptoms may occur.
●The smart entry & start system and wireless remote control will not

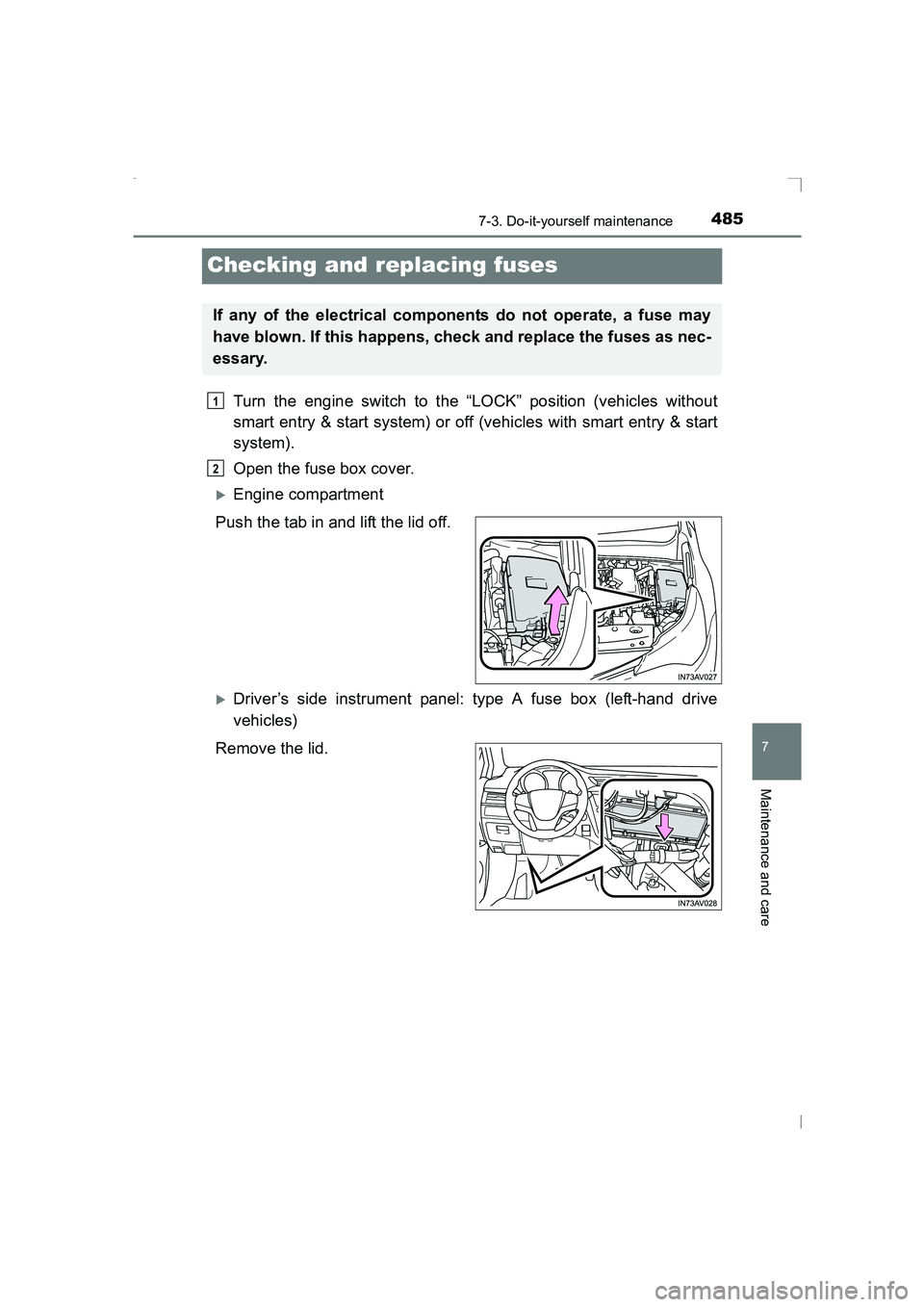

Page 485 of 648

TOYOTA AVENSIS 2015  Owners Manual 4857-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
Checking and replacing fuses
Turn the engine switch to the “LOCK” position (vehicles without
smart entry & start

Page 486 of 648

TOYOTA AVENSIS 2015  Owners Manual 4867-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
�XDriver’s side instrument panel: type B fuse box (left-hand drive
vehicles)
Remove the coin box.
�XPassenger’s side instrument panel: t

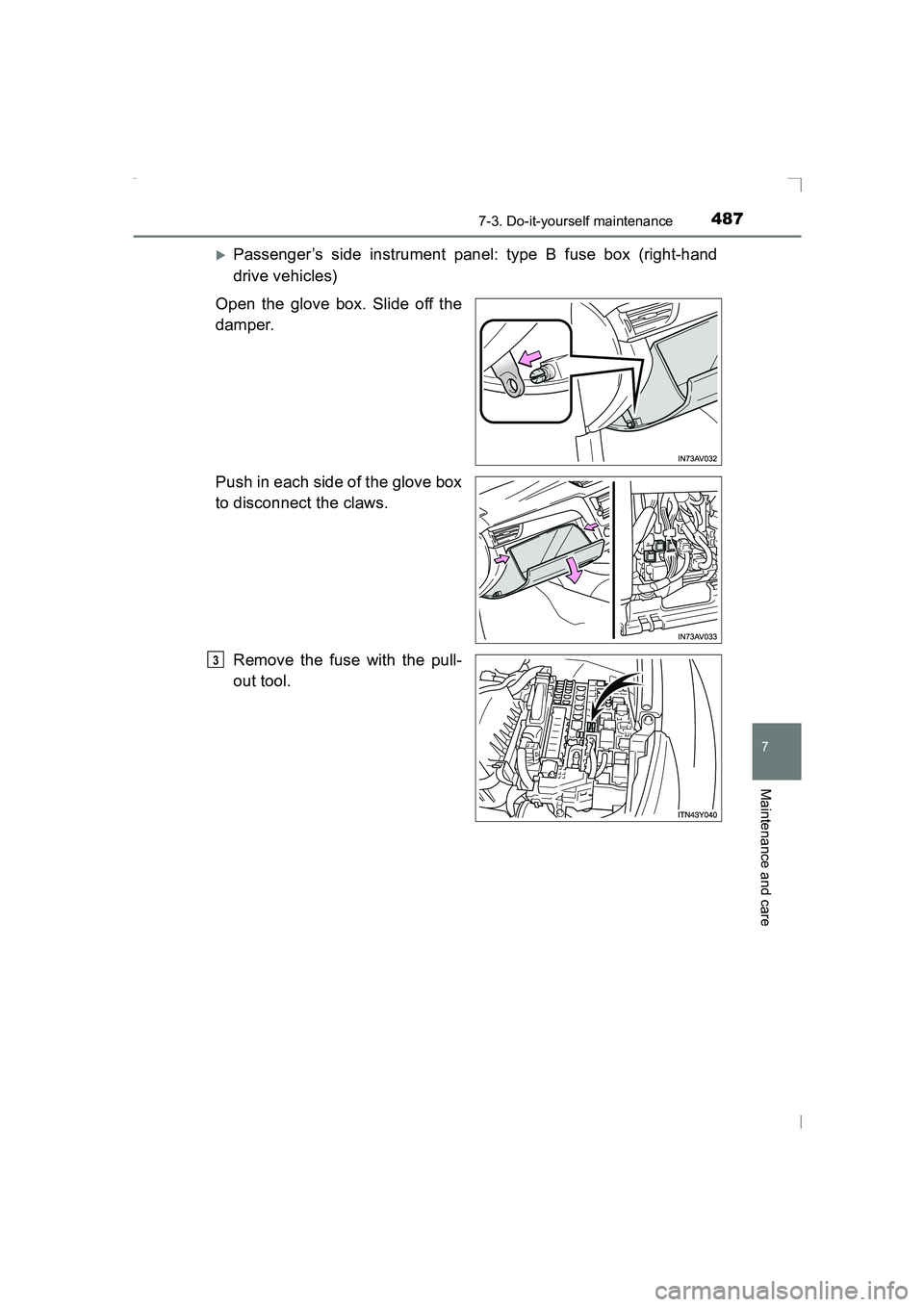

Page 487 of 648

TOYOTA AVENSIS 2015  Owners Manual 4877-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
�XPassenger’s side instrument panel: type B fuse box (right-hand
drive vehicles)
Open the glove box. Slide off the

Page 488 of 648

TOYOTA AVENSIS 2015  Owners Manual 4887-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
Check if the fuse has blown.Normal fuse
Blown fuse
Type A and B
Replace it with one of an appropriate amperage rating. The amper-
age rating

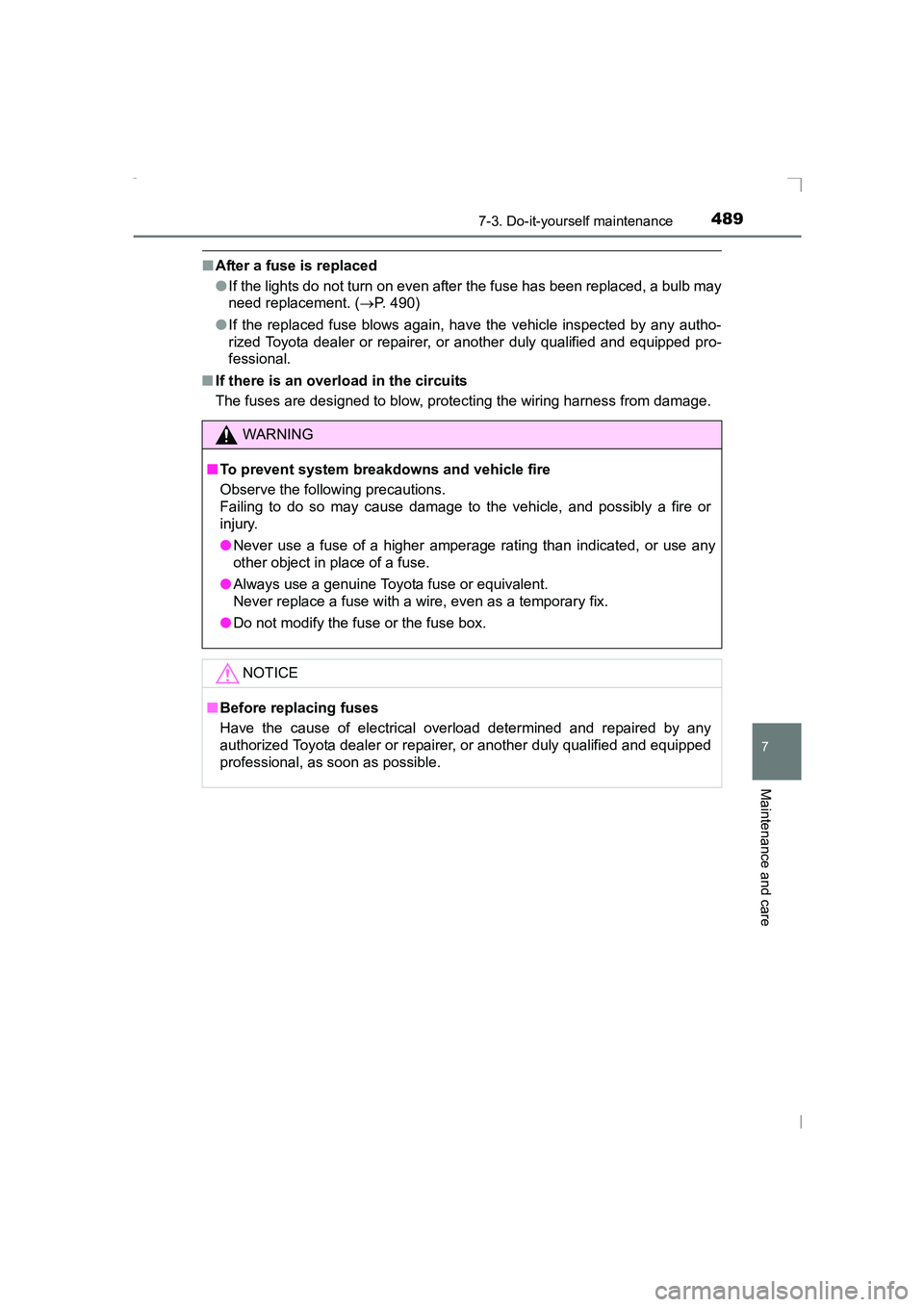

Page 489 of 648

TOYOTA AVENSIS 2015  Owners Manual 4897-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need re

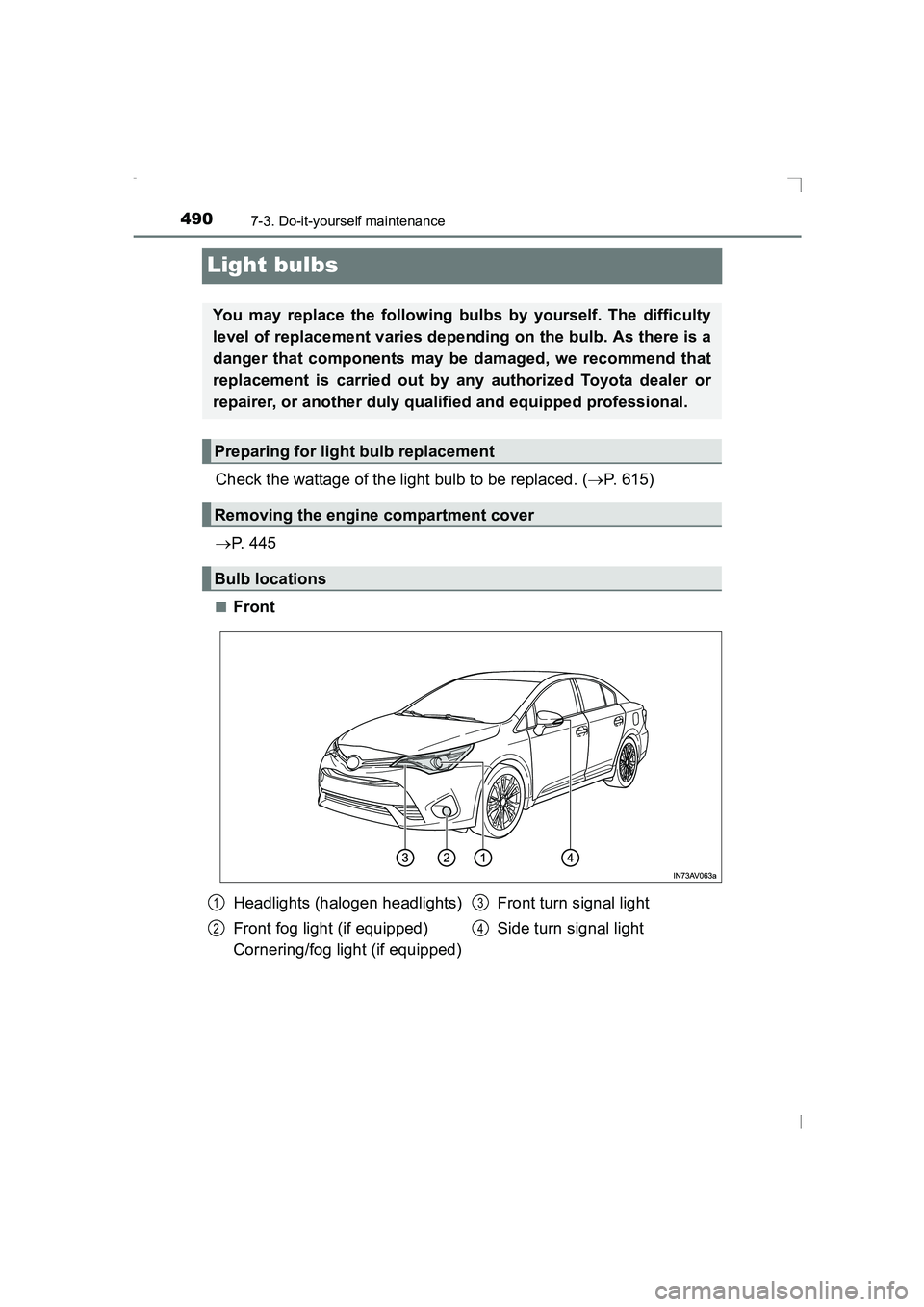

Page 490 of 648

TOYOTA AVENSIS 2015  Owners Manual 4907-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 615)
→ P.  4 4 5
■Front
You may replace the following bulbs by yo
