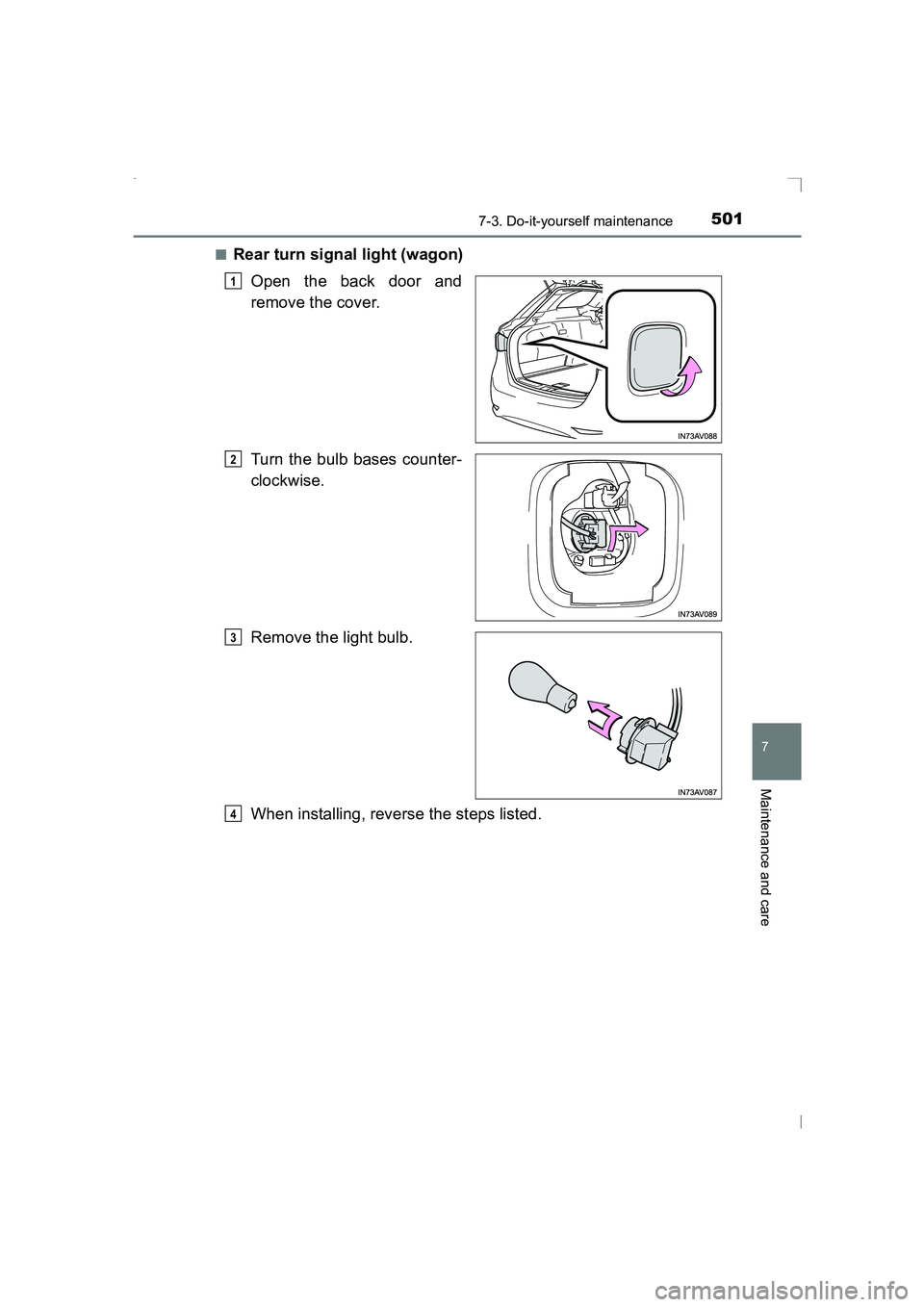

■Rear turn signal light (wagon)Open the back door and
remove the cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C20E_(EE).book Page 501 Thursday, January 29, 2015 1:47 PM

5027-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)■

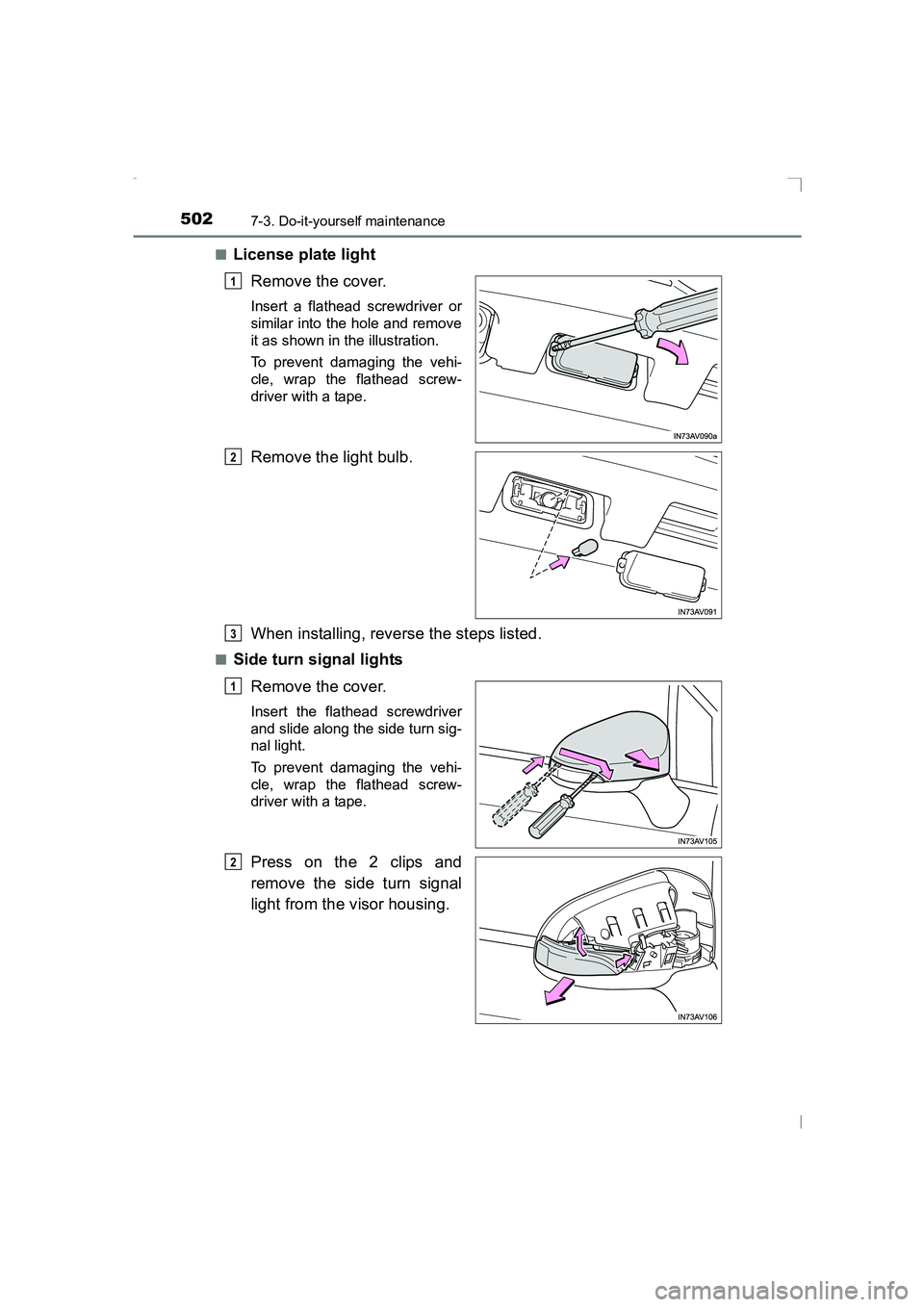

License plate light
Remove the cover.
Insert a flathead screwdriver or
similar into the hole and remove
it as shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Remove the light bulb.
When installing, reverse the steps listed.
■Side turn signal lights
Remove the cover.
Insert the flathead screwdriver
and slide along the side turn sig-
nal light.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Press on the 2 clips and
remove the side turn signal
light from the visor housing.
1
2
3
1
2
AVENSIS_OM_OM20C20E_(EE).book Page 502 Thursday, January 29, 2015 1:47 PM

5037-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care

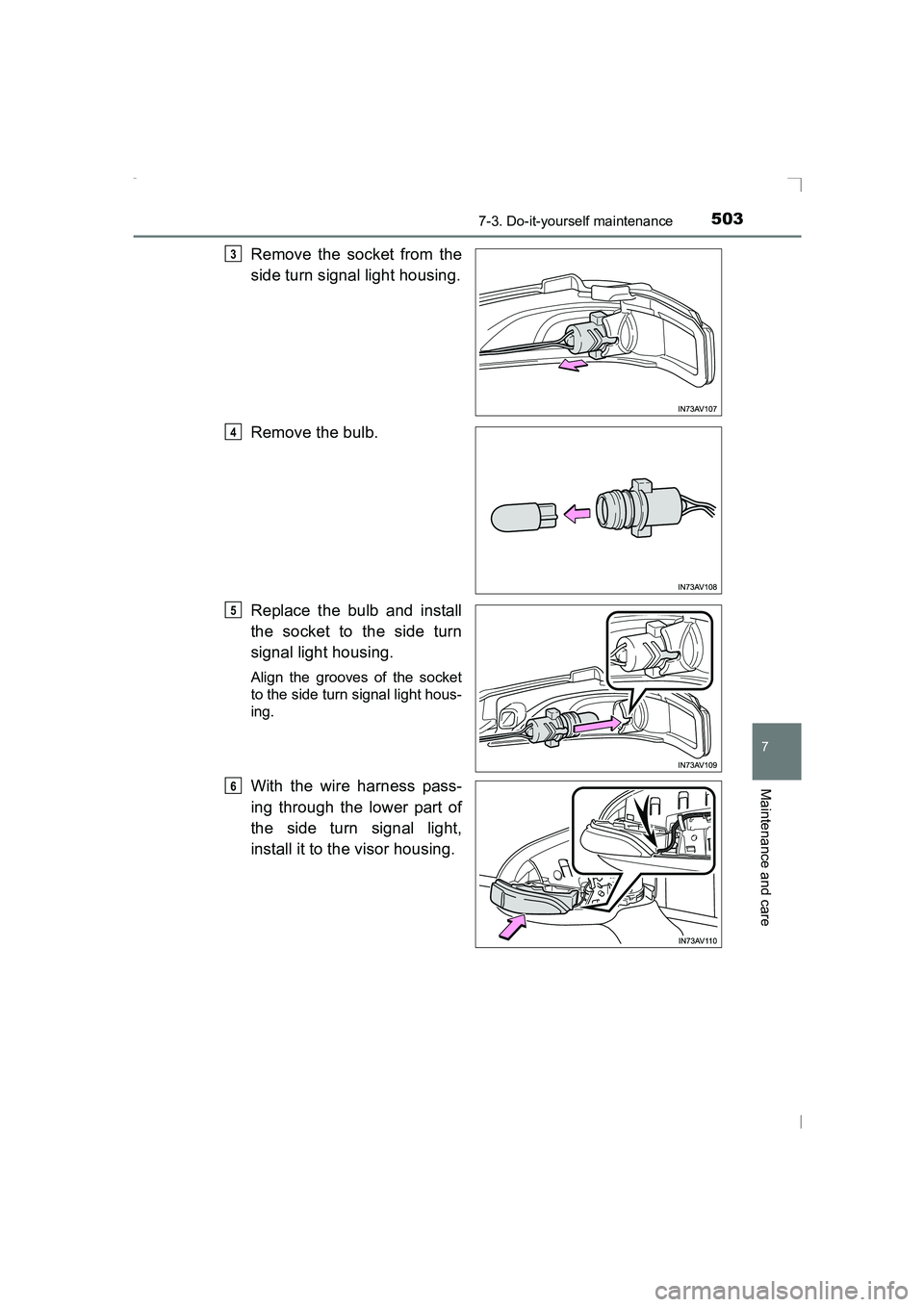

Remove the socket from the
side turn signal light housing.
Remove the bulb.
Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
ing through the lower part of
the side turn signal light,
install it to the visor housing.
3
4
5
6
AVENSIS_OM_OM20C20E_(EE).book Page 503 Thursday, January 29, 2015 1:47 PM

5047-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)

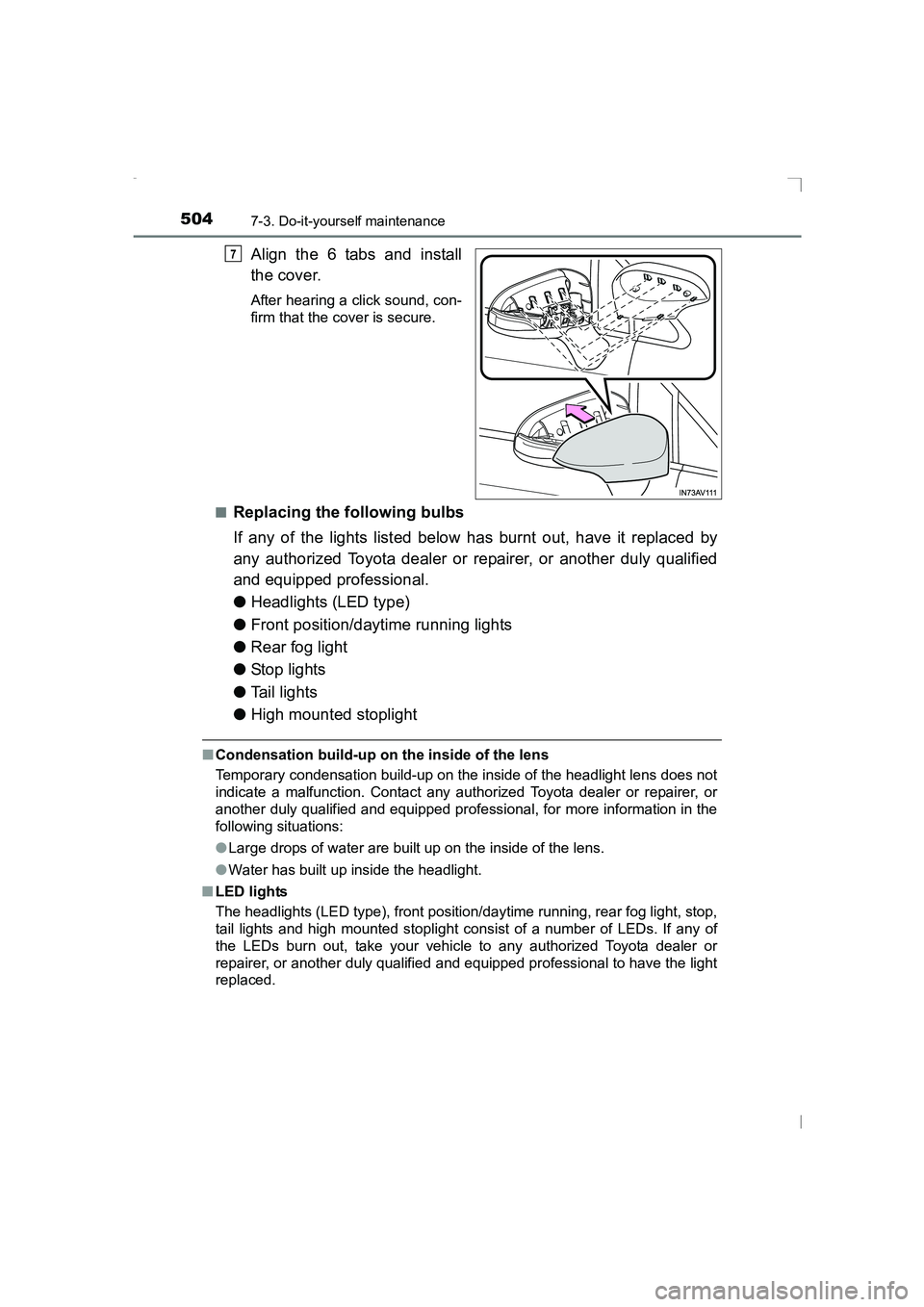

Align the 6 tabs and install
the cover.
After hearing a click sound, con-
firm that the cover is secure.
■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Headlights (LED type)
● Front position/daytime running lights
● Rear fog light
● Stop lights
● Tail lights
● High mounted stoplight
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional , for more information in the
following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED lights
The headlights (LED type), front position/ daytime running, rear fog light, stop,
tail lights and high mounted stoplight consist of a number of LEDs. If any of
the LEDs burn out, take your vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional to have the light
replaced.
7
AVENSIS_OM_OM20C20E_(EE).book Page 504 Thursday, January 29, 2015 1:47 PM

5057-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
7
Maintenance and care

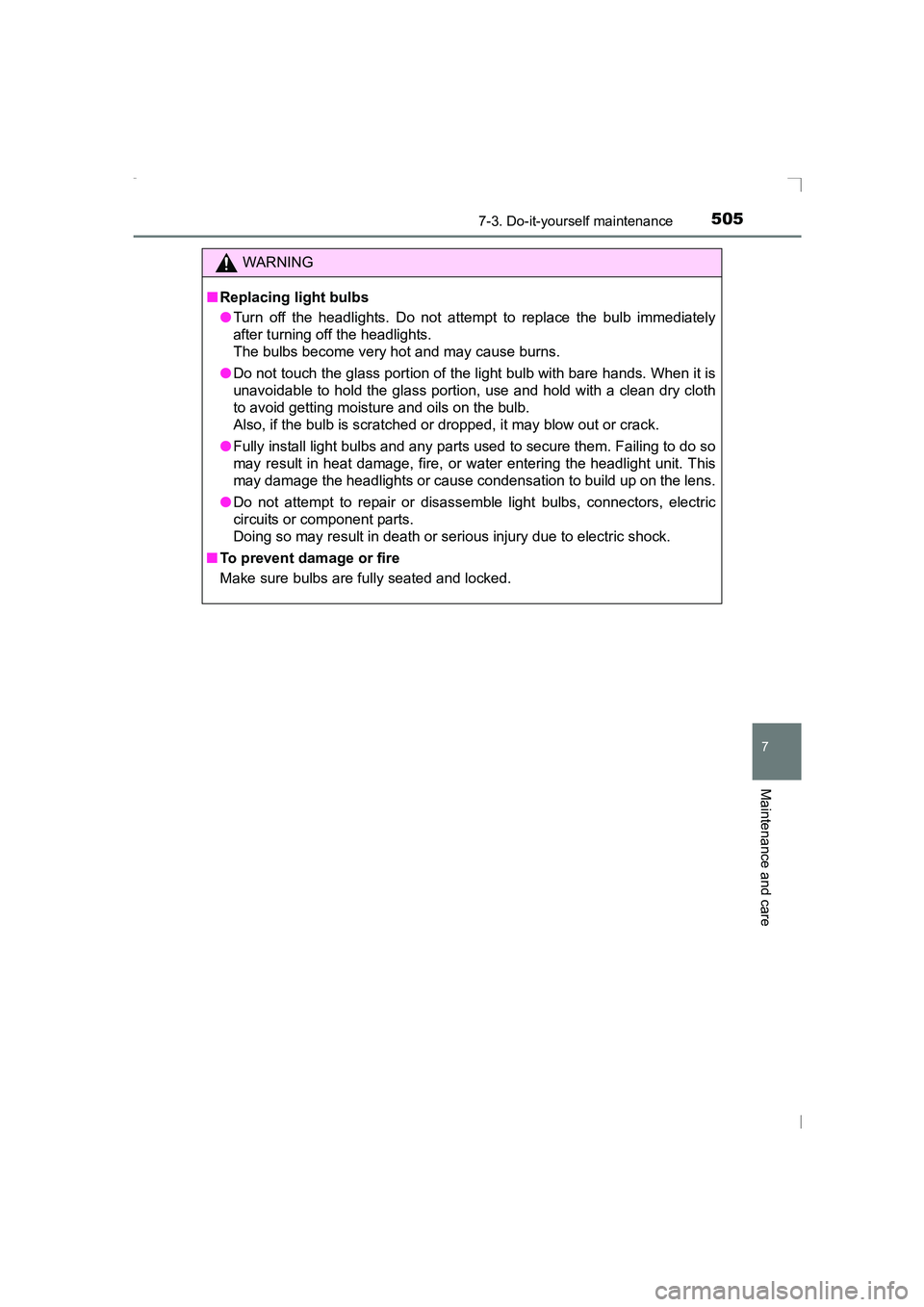

WARNING
■ Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of t he light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
AVENSIS_OM_OM20C20E_(EE).book Page 505 Thursday, January 29, 2015 1:47 PM

5067-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 506 Thursday, January 29, 2015 1:47 PM

507
8When trouble arises
AVENSIS_OM_OM20C20E_(EE)8-1. Essential information
Emergency flashers ........... 508
If your vehicle has to be stopped in an
emergency ....................... 509 8-2. Steps to take in an
emergency
If your vehicle needs to be towed .......................... 511
If you think something is wrong ............................... 518
Fuel pump shut off system (gasoline engine) ............. 519
If a warning light turns on or a warning buzzer
sounds ............................. 520
If a warning message is displayed ......................... 527
If you have a flat tire (vehicles with spare
tire) .................................. 544
If you have a flat tire (vehicles with
emergency tire
puncture repair kit)........... 560
If the engine will not start.................................. 575
If the shift lever cannot be shifted from P .................. 577
If the parking brake cannot be released .......... 578
If the electronic key does not operate properly ........ 582
If the vehicle battery is discharged ....................... 585
If your vehicle overheats .... 590
If the vehicle becomes stuck ................................ 593
AVENSIS_OM_OM20C20E_(EE).book Page 507 Thursday, January 29, 2015 1:47 PM

5088-1. Essential information
AVENSIS_OM_OM20C20E_(EE)

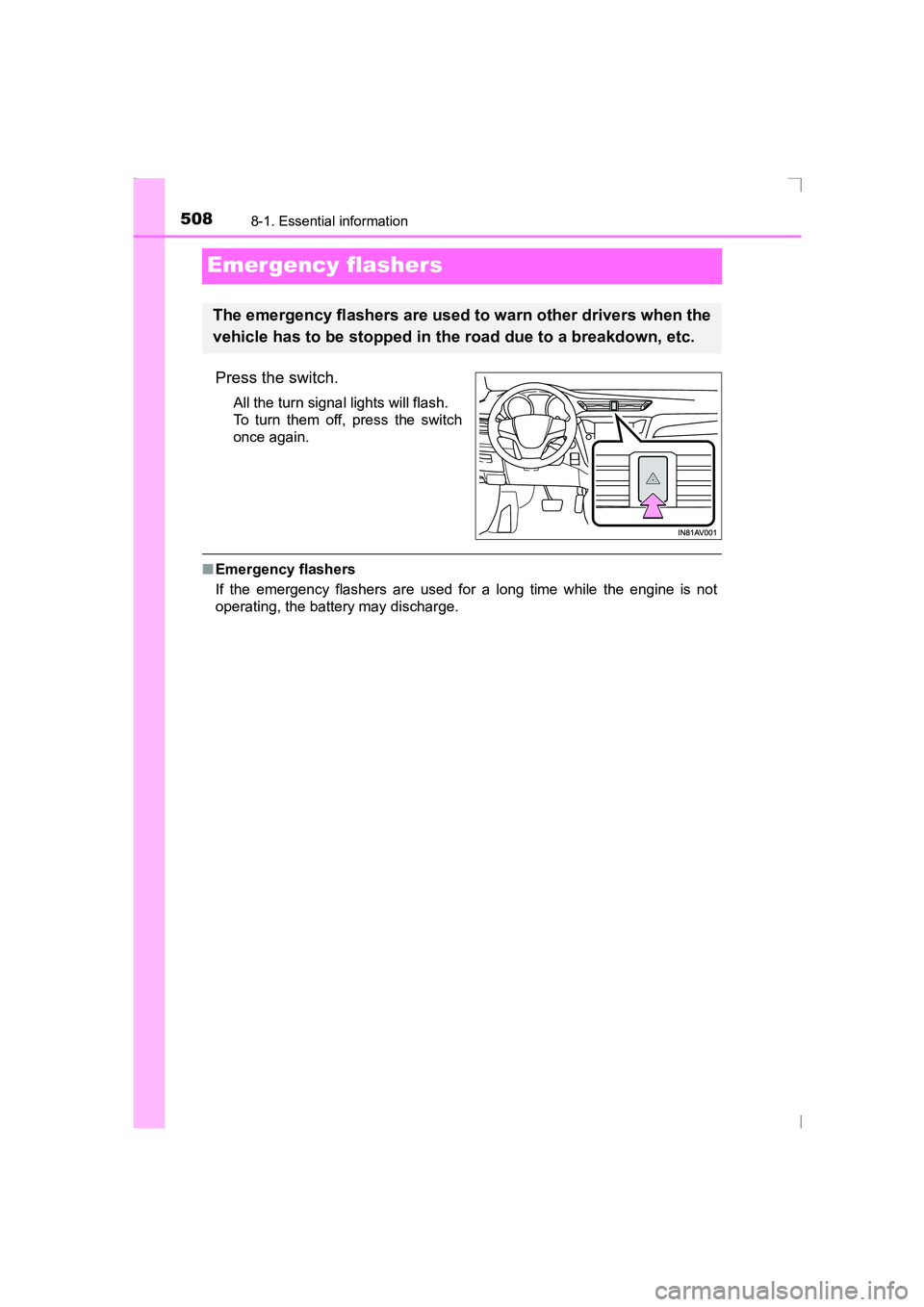

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
AVENSIS_OM_OM20C20E_(EE).book Page 508 Thursday, January 29, 2015 1:47 PM

5098-1. Essential information
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises

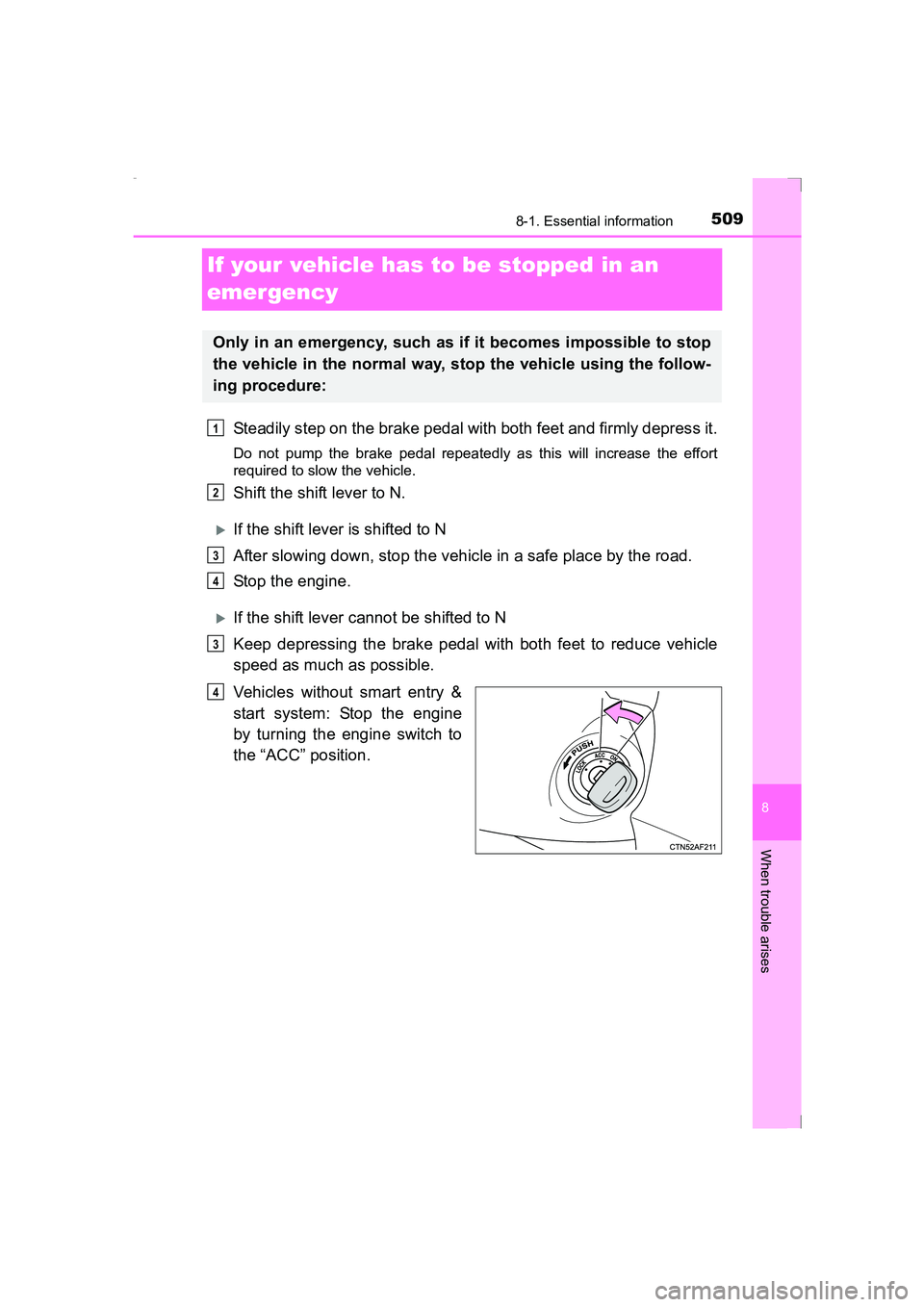

If your vehicle has to be stopped in an
