21Pictorial index
AVENSIS_OM_OM20C66E_(EE)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 176
Sun visors
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Personal/interior lights
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 410
Panoramic roof shade switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 431
Overhead console
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414
*3: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
*1: If equipped
*2: NEVER use a rearward facing child restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( →P. 6 2 )
AVENSIS_OM_OM20C66E_(EE).book Page 21 Wednesday, June 15, 201 6 4:07 PM
Page 22 of 661

22Pictorial index
AVENSIS_OM_OM20C66E_(EE)
■Instrument panel (Right-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209, 212
Starting the engine/changing the modes . . . . . . . . . . . . . P. 209, 212
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 519
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 586
Warning messages
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
Shift lever (Multidrive) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 224
Shift lever (manual transmission) . . . . . . . . . . . . . . . . . . . . P. 226
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 226
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Reading the meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Adjusting the instrument cluster light . . . . . . . . . . . . . . . . P. 106, 114
Warning lights/indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 530
1
2
3
AVENSIS_OM_OM20C66E_(EE).book Page 22 Wednesday, June 15, 201 6 4:07 PM
Page 23 of 661

23Pictorial index
AVENSIS_OM_OM20C66E_(EE)Multi-information display . . . . . . . .
. . . . . . . . . . . . . . . P. 108, 111
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 108, 111
When the warning messages are displayed . . . . . . . . . . . . . . P. 537
Parking brake switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 230
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 313
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . P. 532, 540
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Front fog lights
*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 241
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 243
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 243
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 466
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 518
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 250
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 450
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 174
Manual air conditioning system . . . . . . . . . . . . . . . . . . . . . . P. 392
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 392
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 394
Automatic air conditioning system . . . . . . . . . . . . . . . . . . . P. 398
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 398
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Audio system
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Navigation system/Multimedia system
*1, 2
*1: If equipped
*2: For vehicles with navigation system or a multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12
13
AVENSIS_OM_OM20C66E_(EE).book Page 23 Wednesday, June 15, 201 6 4:07 PM
Page 24 of 661

24Pictorial index
AVENSIS_OM_OM20C66E_(EE)
■Switches (Right-hand drive vehicles)
Manual headlight leveling dial*1 . . . . . . . . . . . . . . . . . . . . . P. 236
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 179
Stop & Start cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 295
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182
Driving position memory buttons
*1 . . . . . . . . . . . . . . . . . . P. 170
PCS (Pre-Crash Safety system) switch
*1 . . . . . . . . . . . . . . P. 259
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
1
2
3
4
5
6
7
8
9
AVENSIS_OM_OM20C66E_(EE).book Page 24 Wednesday, June 15, 201 6 4:07 PM
Page 25 of 661

25Pictorial index
AVENSIS_OM_OM20C66E_(EE)Paddle shift switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . P. 108, 112
LDA (Lane Departure Alert) switch
*1. . . . . . . . . . . . . . . . . . P. 272
Speed limiter switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
Cruise control switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 289
Telephone switches
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 366
Talk switch
*1, 2
Audio remote control switches*1, 2. . . . . . . . . . . . . . . . . . . P. 321
Front seat heater switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 407
“SPORT” switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
1
2
3
4
5
6
7
8
*1: If equipped
*2: For vehicles with navigation system or a multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
1
2
AVENSIS_OM_OM20C66E_(EE).book Page 25 Wednesday, June 15, 201 6 4:07 PM
Page 26 of 661

26Pictorial index
AVENSIS_OM_OM20C66E_(EE)

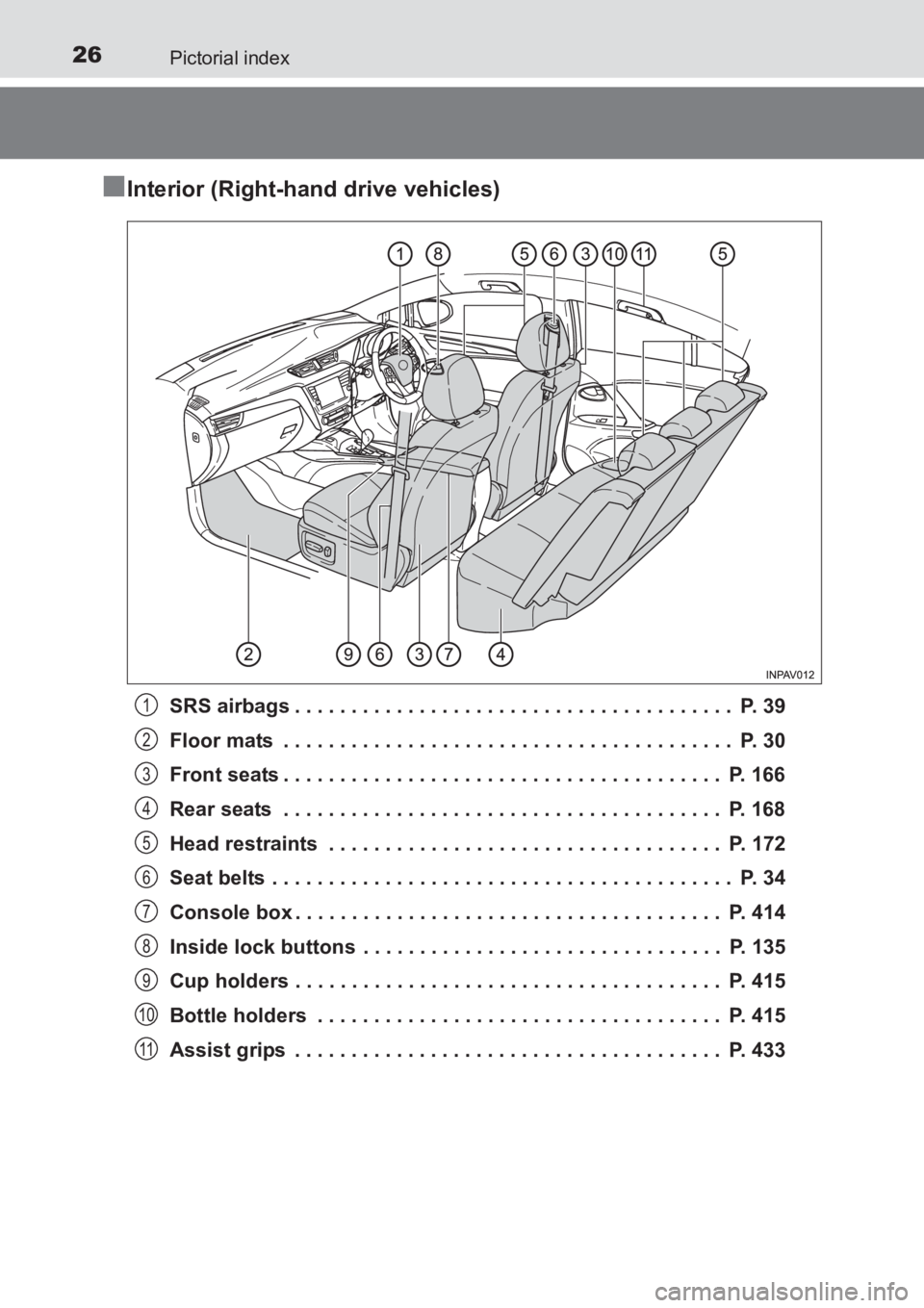

■Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 39
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 135
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 415
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 415
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4331
2
3
4
5
6
7
8
9
10
11
AVENSIS_OM_OM20C66E_(EE).book Page 26 Wednesday, June 15, 2016 4:07 PM
Page 27 of 661

27Pictorial index
AVENSIS_OM_OM20C66E_(EE)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 176
Sun visors
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 427
Personal/interior lights
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 410
Panoramic roof shade switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 431
Intrusion sensor cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . P. 92
Overhead console
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414
*3: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
*1: If equipped
*2: NEVER use a rearward facing child restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. ( →P. 6 2 )
AVENSIS_OM_OM20C66E_(EE).book Page 27 Wednesday, June 15, 201 6 4:07 PM
Page 28 of 661

28Pictorial index
AVENSIS_OM_OM20C66E_(EE)
AVENSIS_OM_OM20C66E_(EE).book Page 28 Wednesday, June 15, 2016 4:07 PM
Page 29 of 661

29
1For safety and security

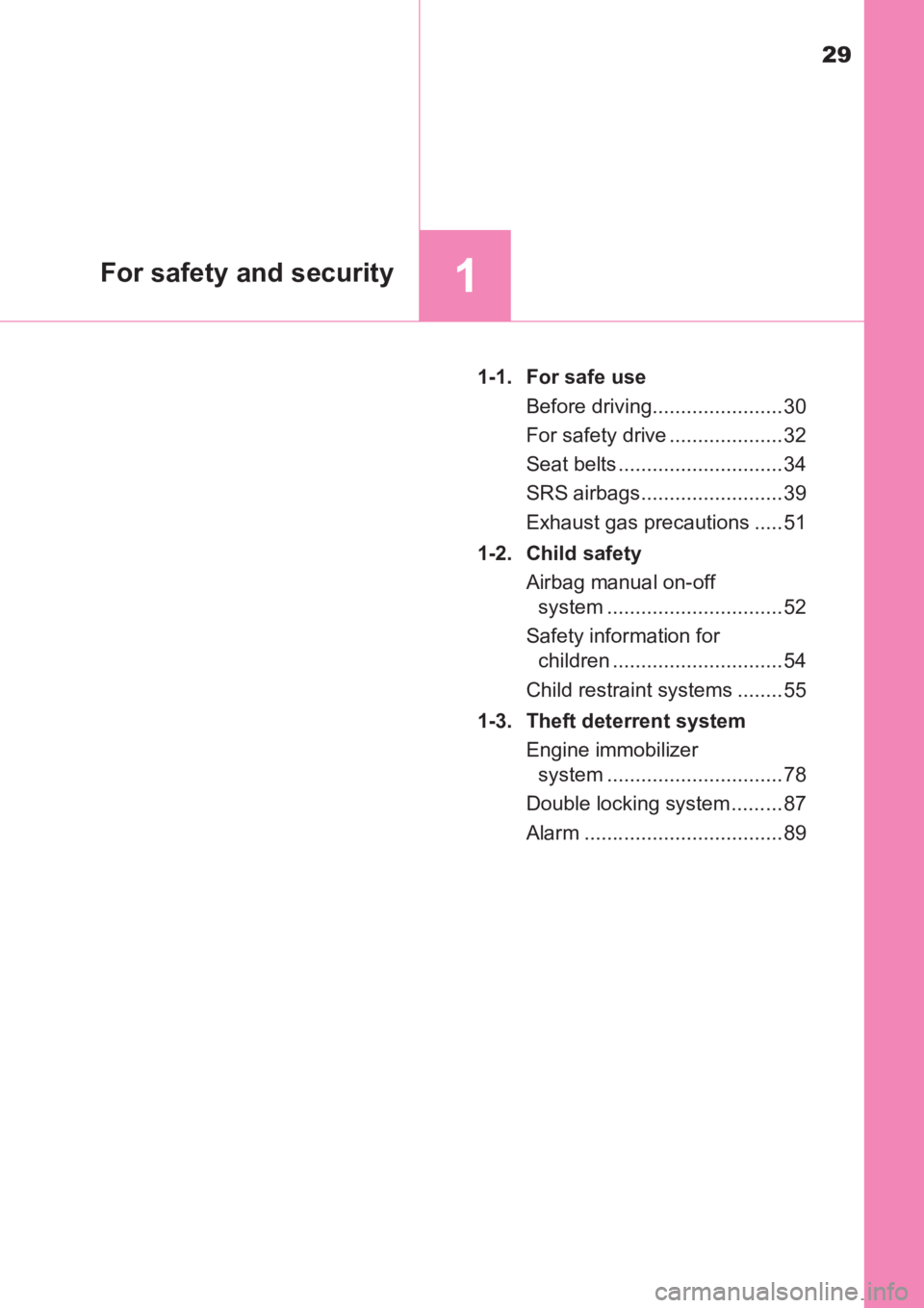

AVENSIS_OM_OM20C66E_(EE)1-1. For safe use
Before driving....................... 30
For safety drive .................... 32
Seat belts ............................. 34
SRS airbags.........................39
Exhaust gas precautions ..... 51
1-2. Child safety Airbag manual on-off system ............................... 52
Safety information for children .............................. 54
Child restraint systems ........ 55
1-3. Theft deterrent system Engine immobilizer system ............................... 78
Double locking system ......... 87
Alarm ................................... 89
AVENSIS_OM_OM20C66E_(EE).book Page 29 Wednesday, June 15, 201 6 4:07 PM
Page 30 of 661

301-1. For safe use
AVENSIS_OM_OM20C66E_(EE)
Before driving

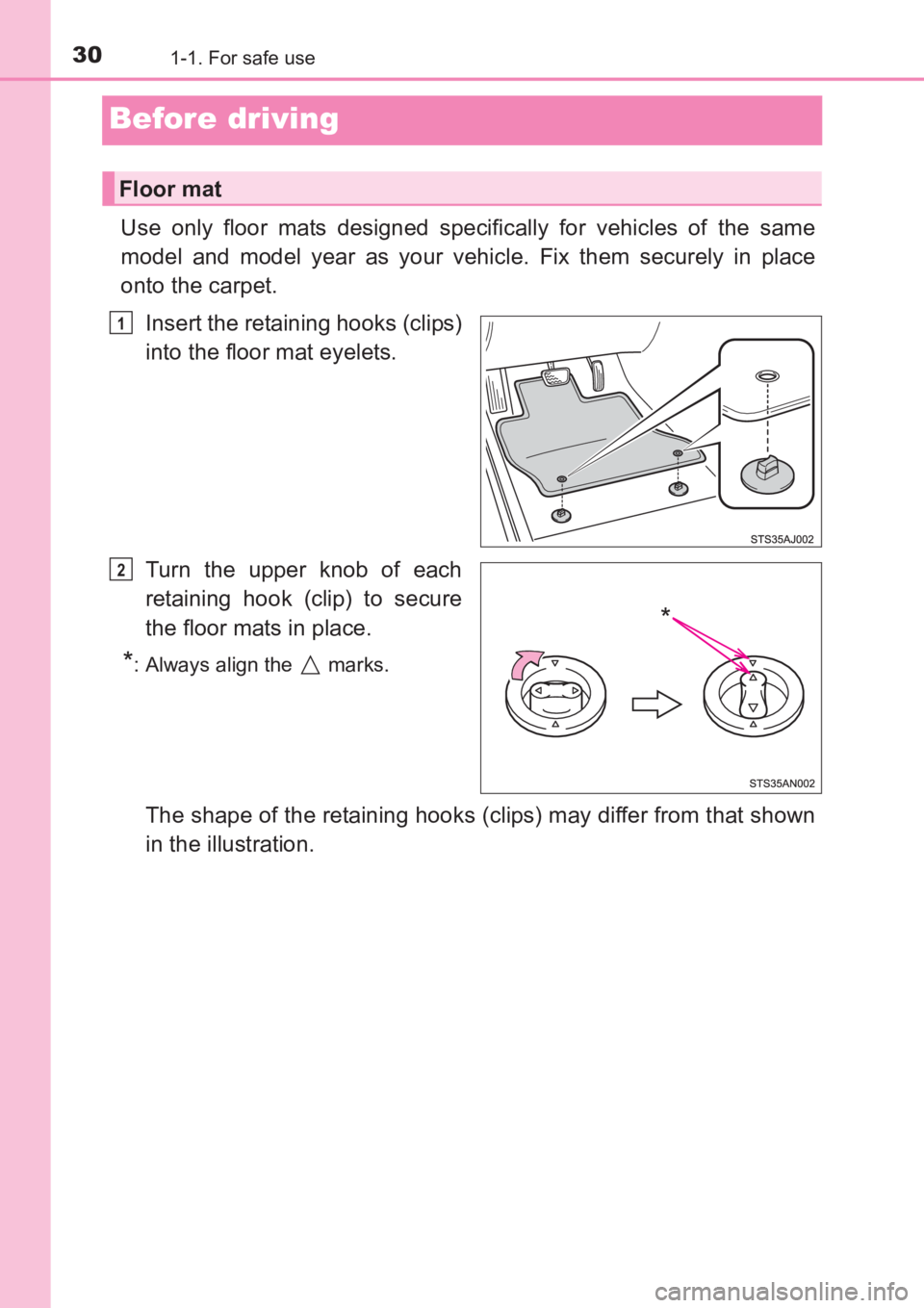

Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet. Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown
in the illustration.
Floor mat
1
*
2
AVENSIS_OM_OM20C66E_(EE).book Page 30 Wednesday, June 15, 201 6 4:07 PM
