TOYOTA AVENSIS 2018 Owners Manual

3415-4. Playing an audio CD and MP3/WMA discs
5
Audio system
AVENSIS_OM_OM20C79E_(EE)

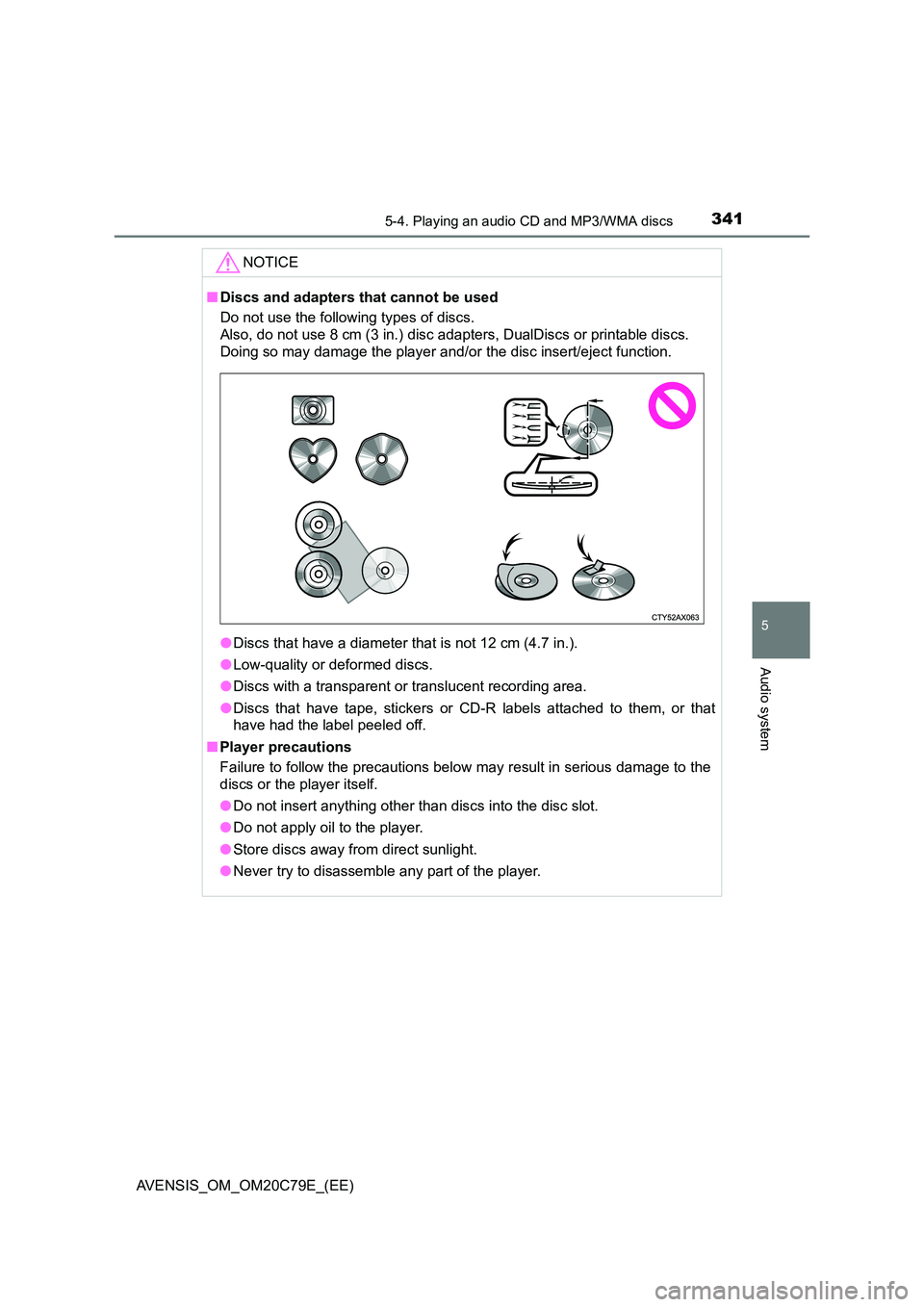

NOTICE
■Discs and adapters that cannot be used
Do not use the following types of discs.
Also, do not use 8 cm (3 in.) disc adapters, DualDiscs or printable discs.
Doing so may damage the player and/or the disc insert/eject function.
● Discs that have a diameter that is not 12 cm (4.7 in.).
● Low-quality or deformed discs.
● Discs with a transparent or translucent recording area.
● Discs that have tape, stickers or CD-R labels attached to them, or that
have had the label peeled off.
■ Player precautions
Failure to follow the precautions below may result in serious damage to the
discs or the player itself.
● Do not insert anything other than discs into the disc slot.
● Do not apply oil to the player.
● Store discs away from direct sunlight.
● Never try to disassemble any part of the player.

3425-5. Using an external device
AVENSIS_OM_OM20C79E_(EE)
Listening to an iPod
P. 3 2 2
Ty pe A
: If equipped
Connecting an iPod enables you to enjoy music from the vehicle
speakers. Press the “MODE” button until “iPod” is displayed.
Connecting an iPod
Control panel
Tune/scroll knob: Selecting an
iPod menu/song or displays
text message
Back button
Shuffle playback
Repeat play
PlaybackiPod menu mode
Displays song list
Selecting a track, fast-forward-
ing or rewinding
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8
9

3435-5. Using an external device
5
Audio system
AVENSIS_OM_OM20C79E_(EE)

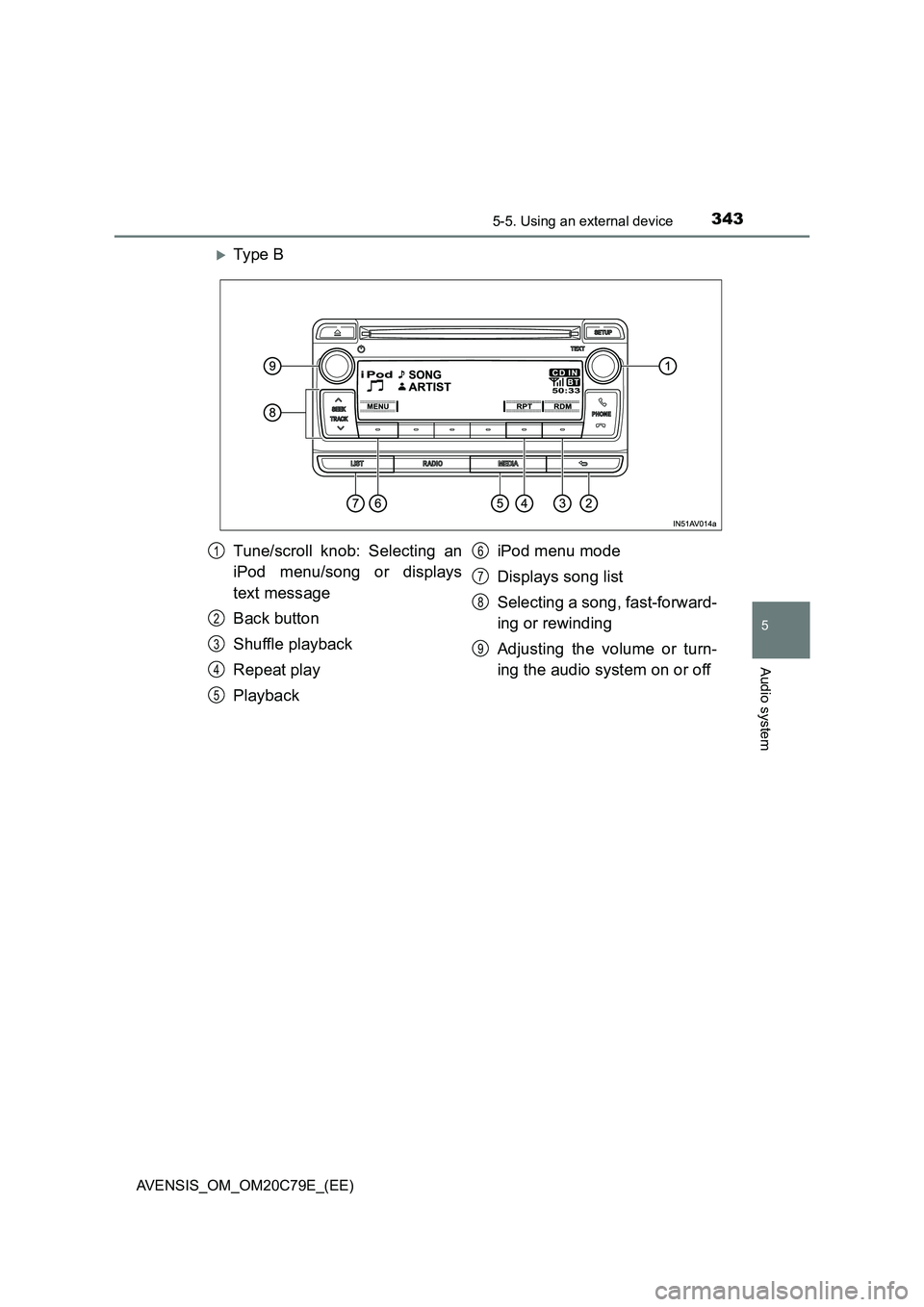

Ty pe B
Tune/scroll knob: Selecting an
iPod menu/song or displays
text message
Back button
Shuffle playback
Repeat play
PlaybackiPod menu mode
Displays song list
Selecting a song, fast-forward-
ing or rewinding
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8
9

3445-5. Using an external device
AVENSIS_OM_OM20C79E_(EE)

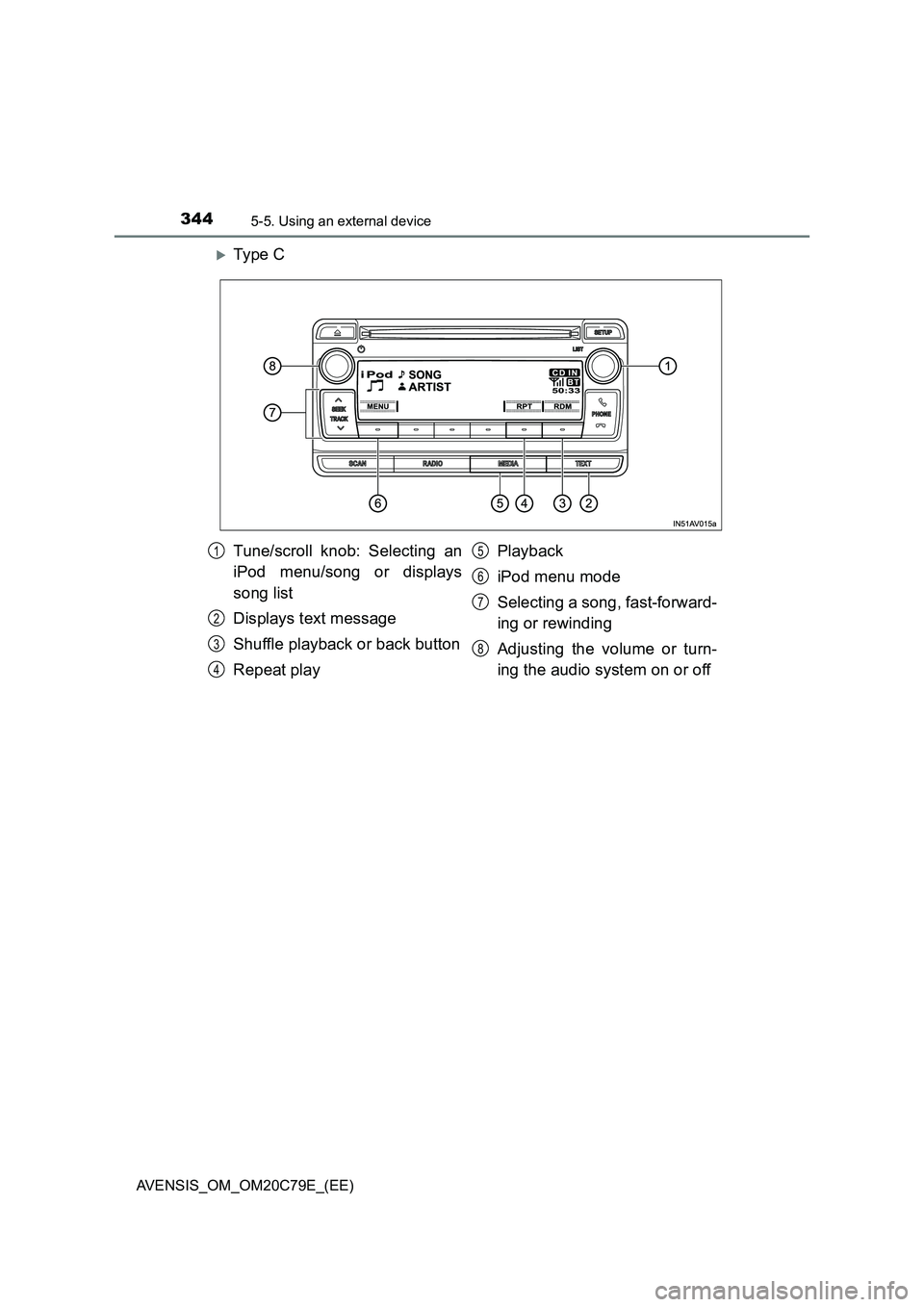

Ty pe C
Tune/scroll knob: Selecting an
iPod menu/song or displays
song list
Displays text message
Shuffle playback or back button
Repeat playPlayback
iPod menu mode
Selecting a song, fast-forward-
ing or rewinding
Adjusting the volume or turn-
ing the audio system on or off1
2
3
4
5
6
7
8

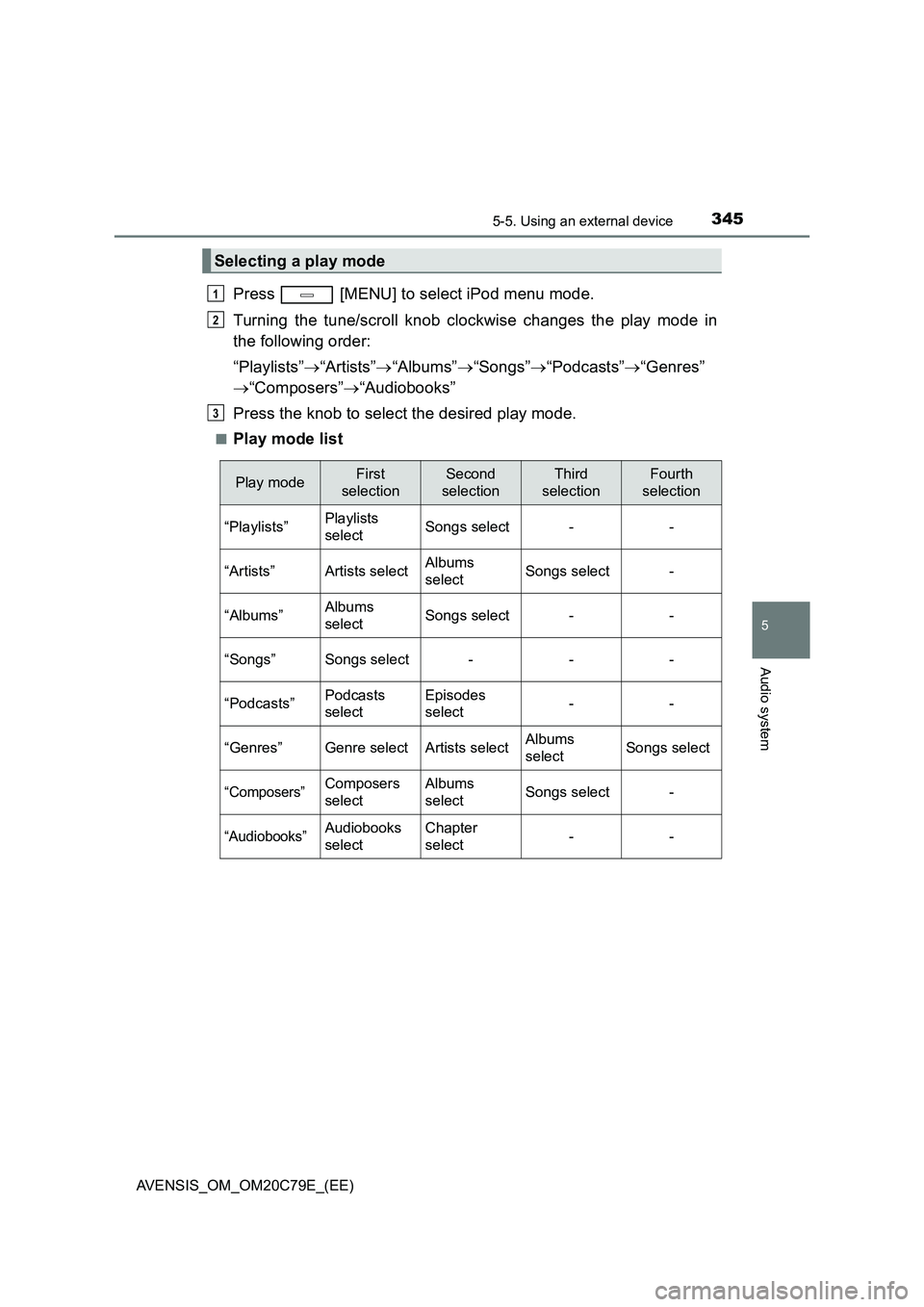

3455-5. Using an external device
5
Audio system
AVENSIS_OM_OM20C79E_(EE)
Press [MENU] to select iPod menu mode.
Turning the tune/scroll knob clockwise changes the play mode in
the following order:
“Playlists”“Artists”“Albums”“Songs”“Podcasts”“Genres”
“Composers”“Audiobooks”
Press the knob to select the desired play mode.
■Play mode list
Selecting a play mode
1
2
3
Play modeFirst
selectionSecond
selectionThird
selectionFourth
selection
“Playlists”Playlists
selectSongs select--
“Artists”Artists selectAlbums
selectSongs select-
“Albums”Albums
selectSongs select--
“Songs”Songs select---
“Podcasts”Podcasts
selectEpisodes
select--
“Genres”Genre selectArtists selectAlbums
selectSongs select
“Composers”Composers
selectAlbums
selectSongs select-
“Audiobooks”Audiobooks
selectChapter
select--

3465-5. Using an external device
AVENSIS_OM_OM20C79E_(EE)

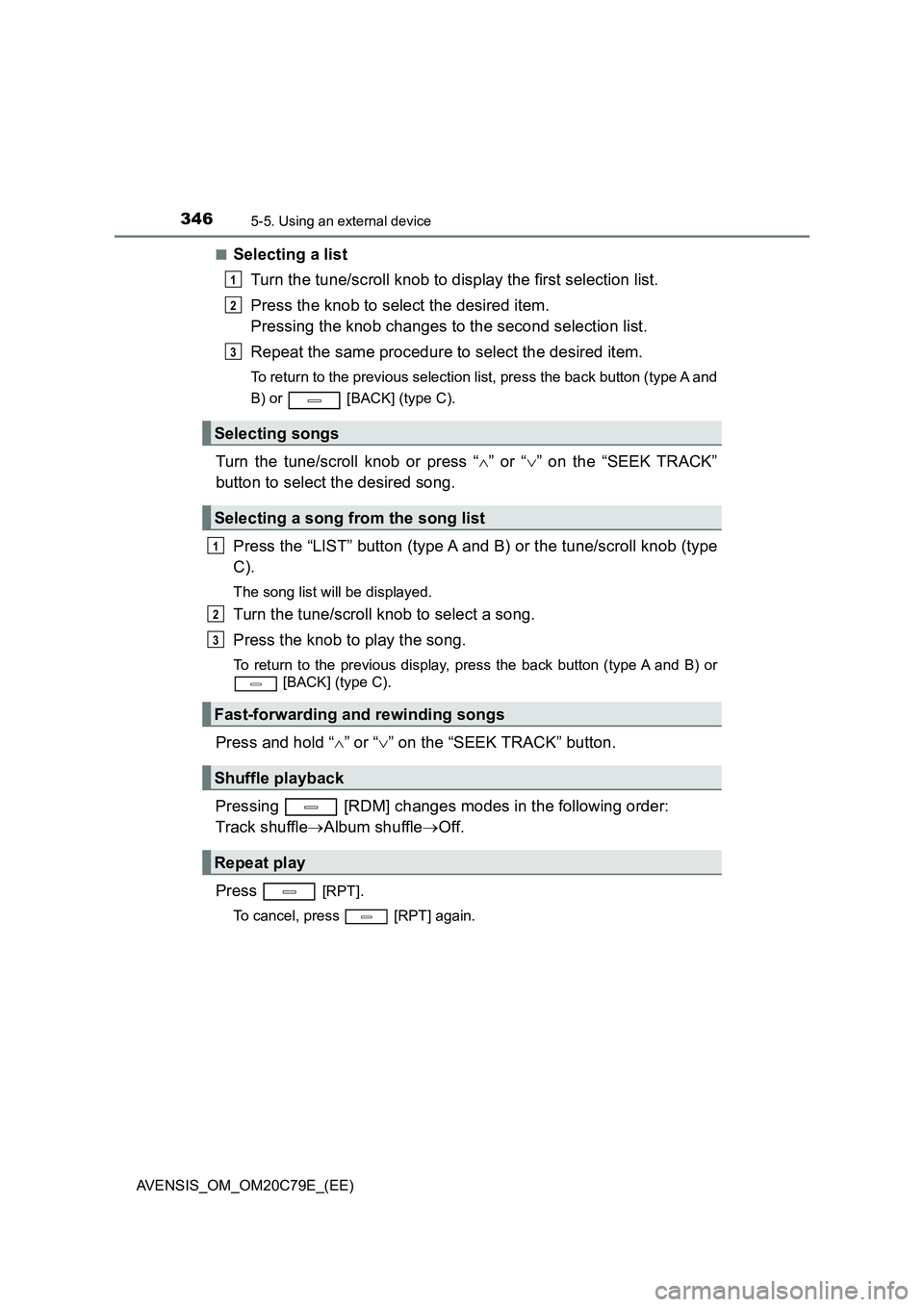

■Selecting a list
Turn the tune/scroll knob to display the first selection list.
Press the knob to select the desired item.
Pressing the knob changes to the second selection list.
Repeat the same procedure to select the desired item.
To return to the previous selection list, press the back button (type A and
B) or [BACK] (type C).
Turn the tune/scroll knob or press “ ” or “” on the “SEEK TRACK”
button to select the desired song.
Press the “LIST” button (type A and B) or the tune/scroll knob (type
C).
The song list will be displayed.
Turn the tune/scroll knob to select a song.
Press the knob to play the song.
To return to the previous display, press the back button (type A and B) or
[BACK] (type C).
Press and hold “ ” or “” on the “SEEK TRACK” button.
Pressing [RDM] changes modes in the following order:
Track shuffle Album shuffleOff.
Press [RPT].
To cancel, press [RPT] again.
Selecting songs
Selecting a song from the song list
Fast-forwarding and rewinding songs
Shuffle playback
Repeat play
1
2
3
1
2
3

3475-5. Using an external device
5
Audio system
AVENSIS_OM_OM20C79E_(EE)

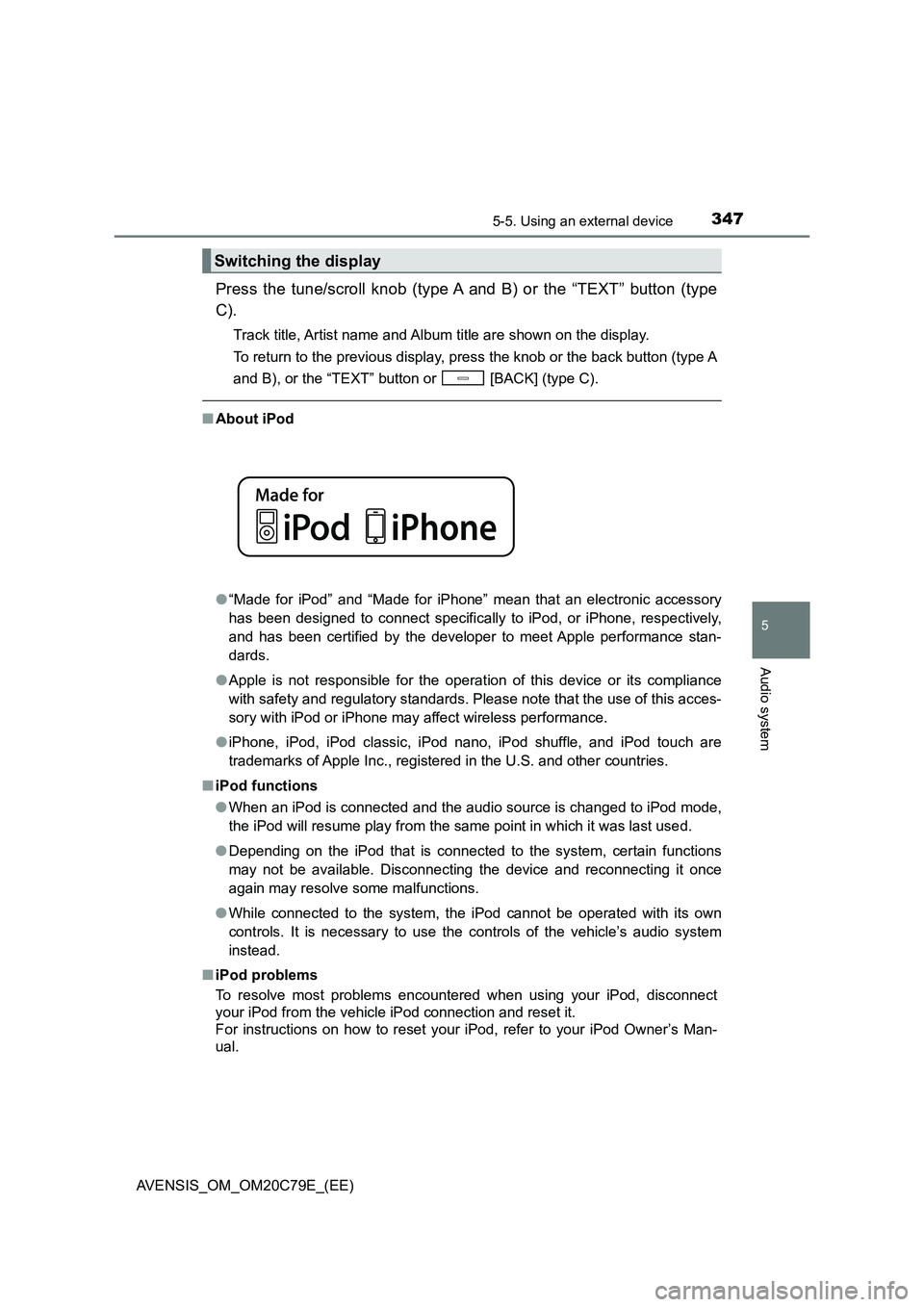

Press the tune/scroll knob (type A and B) or the “TEXT” button (type
C).
Track title, Artist name and Album title are shown on the display.
To return to the previous display, press the knob or the back button (type A
and B), or the “TEXT” button or [BACK] (type C).
■ About iPod
● “Made for iPod” and “Made for iPhone” mean that an electronic accessory
has been designed to connect specifically to iPod, or iPhone, respectively,
and has been certified by the developer to meet Apple performance stan-
dards.
● Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this acces-
sory with iPod or iPhone may affect wireless performance.
● iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other countries.
■ iPod functions
● When an iPod is connected and the audio source is changed to iPod mode,
the iPod will resume play from the same point in which it was last used.
● Depending on the iPod that is connected to the system, certain functions
may not be available. Disconnecting the device and reconnecting it once
again may resolve some malfunctions.
● While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
■ iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.
Switching the display

3485-5. Using an external device

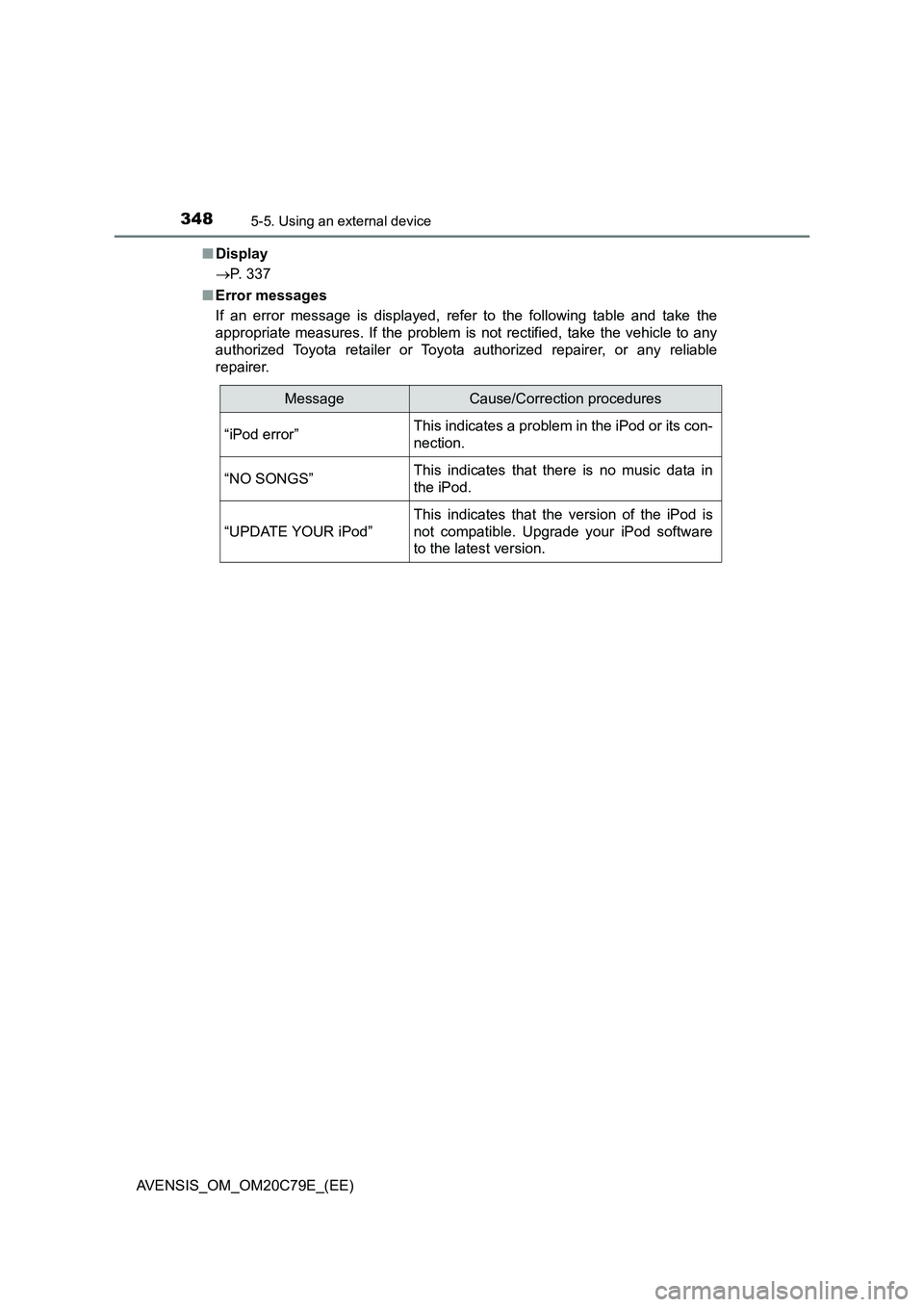

AVENSIS_OM_OM20C79E_(EE)■Display
P. 337
■Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
MessageCause/Correction procedures
“iPod error”This indicates a problem in the iPod or its con-
nection.
“NO SONGS”This indicates that there is no music data in
the iPod.
“UPDATE YOUR iPod”
This indicates that the version of the iPod is
not compatible. Upgrade your iPod software
to the latest version.

3495-5. Using an external device
5
Audio system

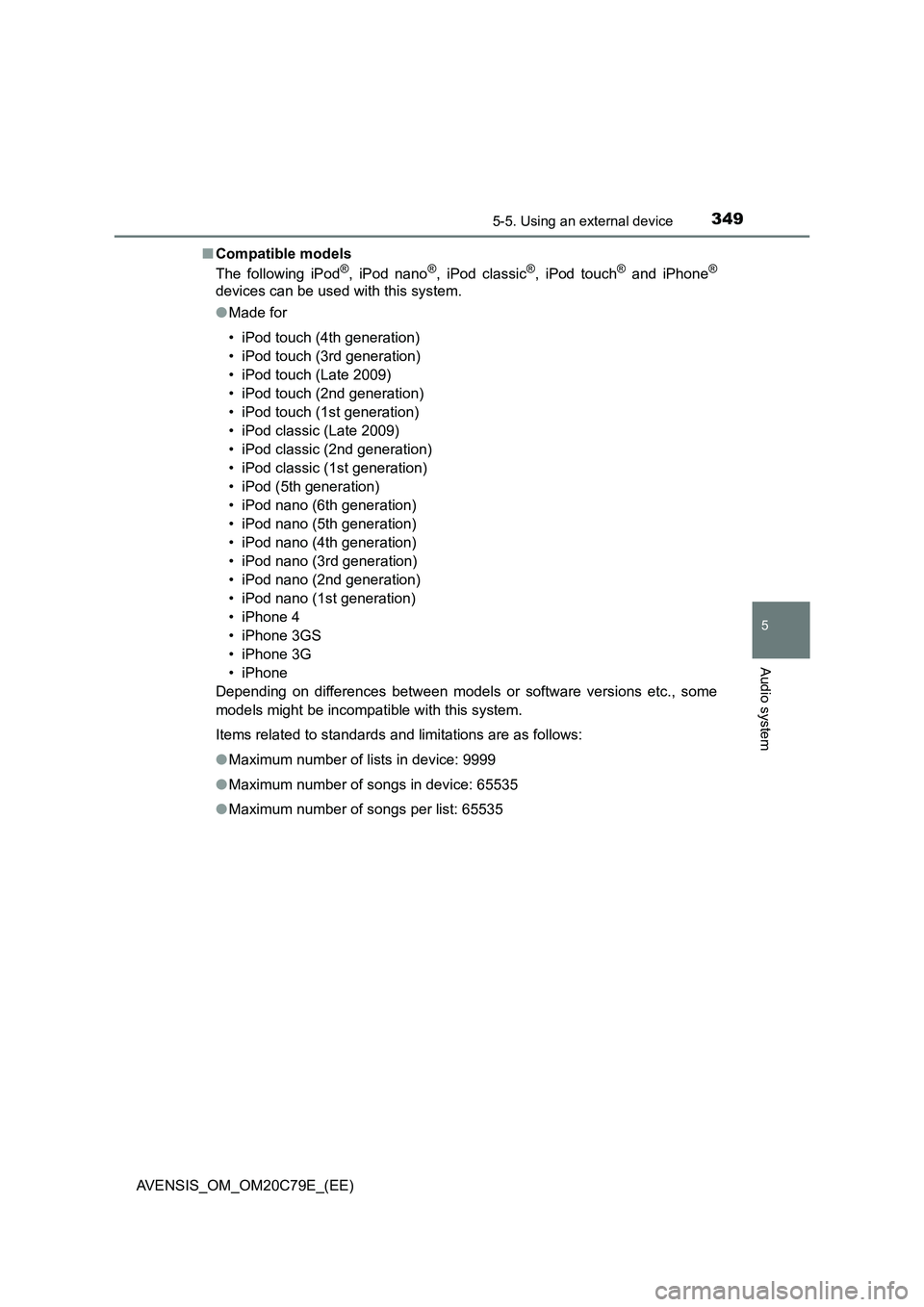

AVENSIS_OM_OM20C79E_(EE)■Compatible models
The following iPod
®, iPod nano®, iPod classic®, iPod touch® and iPhone®
devices can be used with this system.
●Made for
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (Late 2009)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic (Late 2009)
• iPod classic (2nd generation)
• iPod classic (1st generation)
• iPod (5th generation)
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
Depending on differences between models or software versions etc., some
models might be incompatible with this system.
Items related to standards and limitations are as follows:
●Maximum number of lists in device: 9999
●Maximum number of songs in device: 65535
●Maximum number of songs per list: 65535

3505-5. Using an external device
AVENSIS_OM_OM20C79E_(EE)

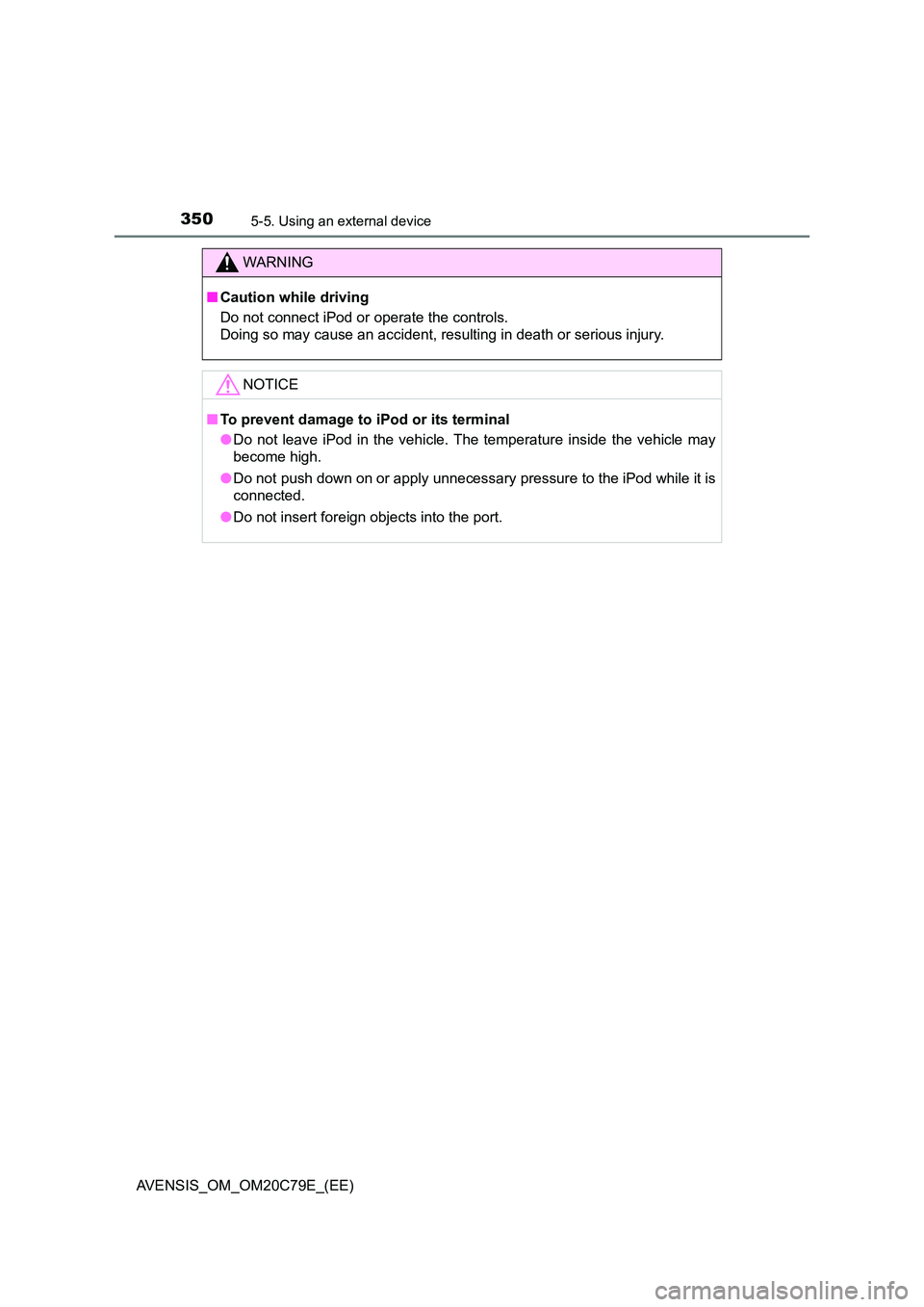

WARNING
■Caution while driving
Do not connect iPod or operate the controls.
Doing so may cause an accident, resulting in death or serious injury.
NOTICE
■ To prevent damage to iPod or its terminal
● Do not leave iPod in the vehicle. The temperature inside the vehicle may
become high.
● Do not push down on or apply unnecessary pressure to the iPod while it is
connected.
● Do not insert foreign objects into the port.
