TOYOTA AYGO 2014 Owners Manual (in English)

161 2-5. Driving information
2
When driving
AYGO_WE_99G80E
Tire chain installation
Observe the following precautions when installing and removing chains:
Install and remove tire chains in a safe location.
Install tire chains on the front tires only. Do not install tire chains on the
rear tires.
Install tire chains on front tires as tightly as possible. Retighten chains
after driving 0.5  1.0 km (1/4  1/2 mile).
Install tire chains following the instructions provided with the tire chains.
If wheel ornaments are used, they will be scratched by the chain band,
so remove the ornaments before putting on the chains. (P. 321)
CAUTION
Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
Use tires of the specified size.
Maintain the recommended level of air pressure.
Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
Use snow tires on all, not just some wheels.
Do not use tires of noticeably different wear level.

162 2-5. Driving information
AYGO_WE_99G80E
CAUTION
Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
Avoid driving on bumpy road surfaces or over potholes.
Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.

163
2-5. Driving information
2
When driving
AYGO_WE_99G80E

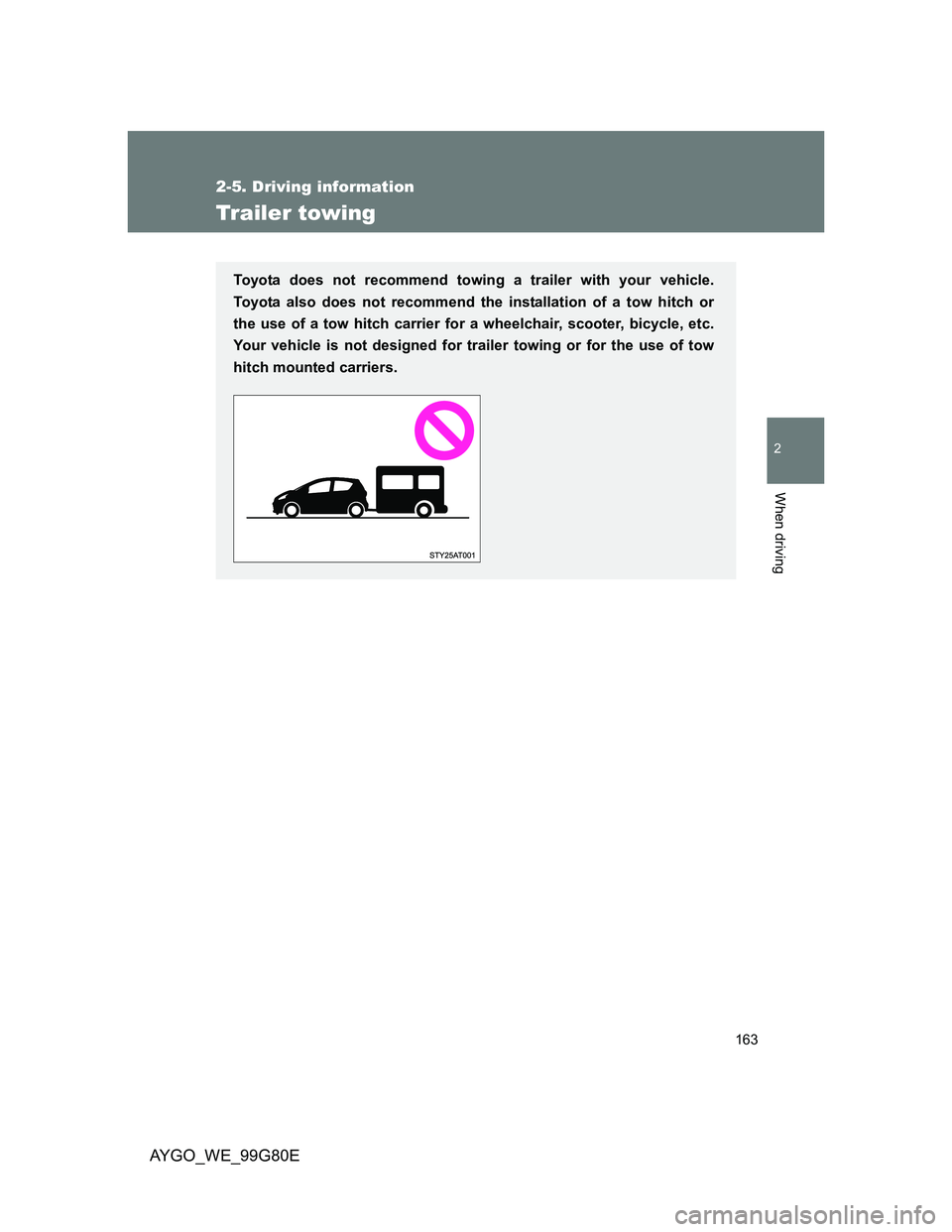

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your vehicle is not designed for trailer towing or for the use of tow
hitch mounted carriers.

164 2-5. Driving information
AYGO_WE_99G80E

3Interior features
165
AYGO_WE_99G80E
3-1. Using the air conditioning
system and defogger
Air conditioning system..... 166
Rear window defogger...... 174
3-2. Using the audio system
(Type A)
Audio system types .......... 175
Using the radio ................. 177
Using the CD player ......... 181
Optimal use of the audio
system ............................ 187
Using the AUX port ........... 189
3-3. Using the audio system
(Type B)
Audio system types .......... 190
Using the radio ................. 192
Using the CD player ......... 196
Operating a USB memory/
iPod ................................ 202
Using the AUX port ........... 208
Using the Bluetooth
® audio
streaming ........................ 209
Using the telephone.......... 212
Audio settings ................... 220
Configuration .................... 222
Frequently asked
questions ........................ 2243-4. Using the interior lights
Interior lights list ................ 228
• Interior light ..................... 228
3-5. Using the storage features
List of storage features ..... 229
• Cup holders .................... 230
3-6. Other interior features
Sun visors ......................... 231
Vanity mirrors.................... 232
Clock ................................. 233
Power outlet ...................... 236
Floor mat........................... 237
Luggage compartment
features........................... 239

166
AYGO_WE_99G80E
3-1. Using the air conditioning system and defogger
Air conditioning system
Vehicles without a cooling and dehumidification function on/
off button
Air outlet selection lever Temperature control lever
Fan speed control dial

167 3-1. Using the air conditioning system and defogger
3
Interior features
AYGO_WE_99G80E
Vehicles with a cooling and dehumidification function on/off
button
Fan speed control dialCooling and dehumidification
function on/off button
Outside/recirculated
air mode lever
Air outlet selection lever Temperature control lever

168 3-1. Using the air conditioning system and defogger
AYGO_WE_99G80E

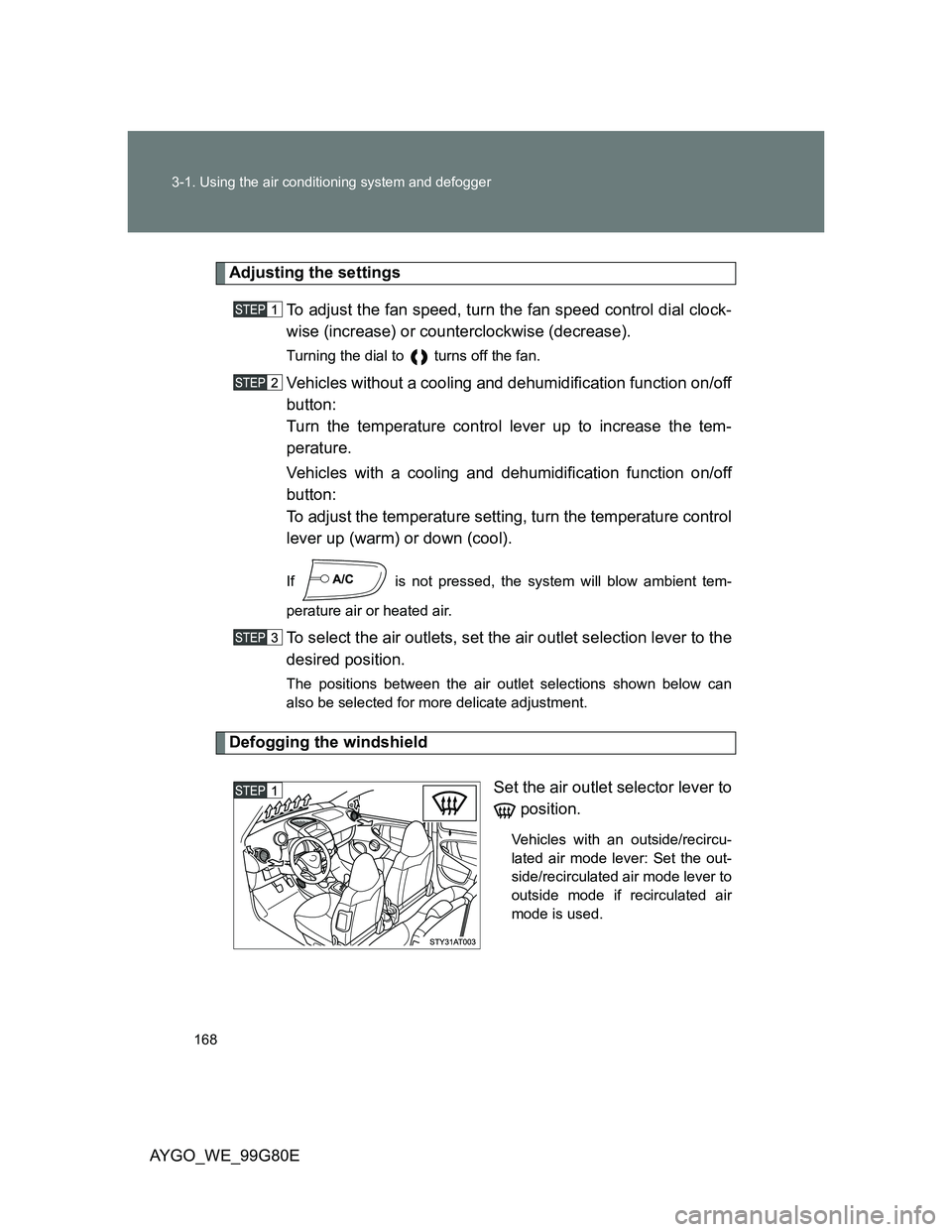

Adjusting the settings
To adjust the fan speed, turn the fan speed control dial clock-
wise (increase) or counterclockwise (decrease).
Turning the dial to turns off the fan.
Vehicles without a cooling and dehumidification function on/off
button:
Turn the temperature control lever up to increase the tem-
perature.
Vehicles with a cooling and dehumidification function on/off
button:
To adjust the temperature setting, turn the temperature control
lever up (warm) or down (cool).
If is not pressed, the system will blow ambient tem-
perature air or heated air.
To select the air outlets, set the air outlet selection lever to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
Defogging the windshield
Set the air outlet selector lever to
position.
Vehicles with an outside/recircu-
lated air mode lever: Set the out-
side/recirculated air mode lever to
outside mode if recirculated air
mode is used.

169 3-1. Using the air conditioning system and defogger
3
Interior features
AYGO_WE_99G80EPerform the following operations accordingly:
To adjust the fan speed, turn the fan speed control dial.
To adjust the temperature setting, turn the temperature con-
trol lever.
If the dehumidification function is not operating, press
to operate the dehumidification function.
To defog the windshield and the side windows early, turn the air flow
and temperature up.
Air outlets and air flow
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models

170 3-1. Using the air conditioning system and defogger
AYGO_WE_99G80EAir flows mainly to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
Vehicles with an outside/recircu-
lated air mode lever: Use the out-
side/recirculated air mode lever at
(outside air mode).
: Some models
Switching between outside air and recirculated air modes
(vehicles with an outside/recirculated air mode lever)
Turn the outside/recirculated air mode lever to (outside air
mode) or (recirculated air mode).
