TOYOTA AYGO 2014 Owners Manual (in English)

171 3-1. Using the air conditioning system and defogger
3
Interior features
AYGO_WE_99G80E
Adjusting the position of and opening and closing the air outlets
Direct air flow to the left or right,
up or down.
Open the vent.
Close the vent.
Fogging up of the windows (vehicles with a cooling and dehumidifica-
tion function on/off button)
The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog
the windshield effectively.
If you turn off, the windows may fog up more easily.
The windows may fog up if the recirculated air mode is used.

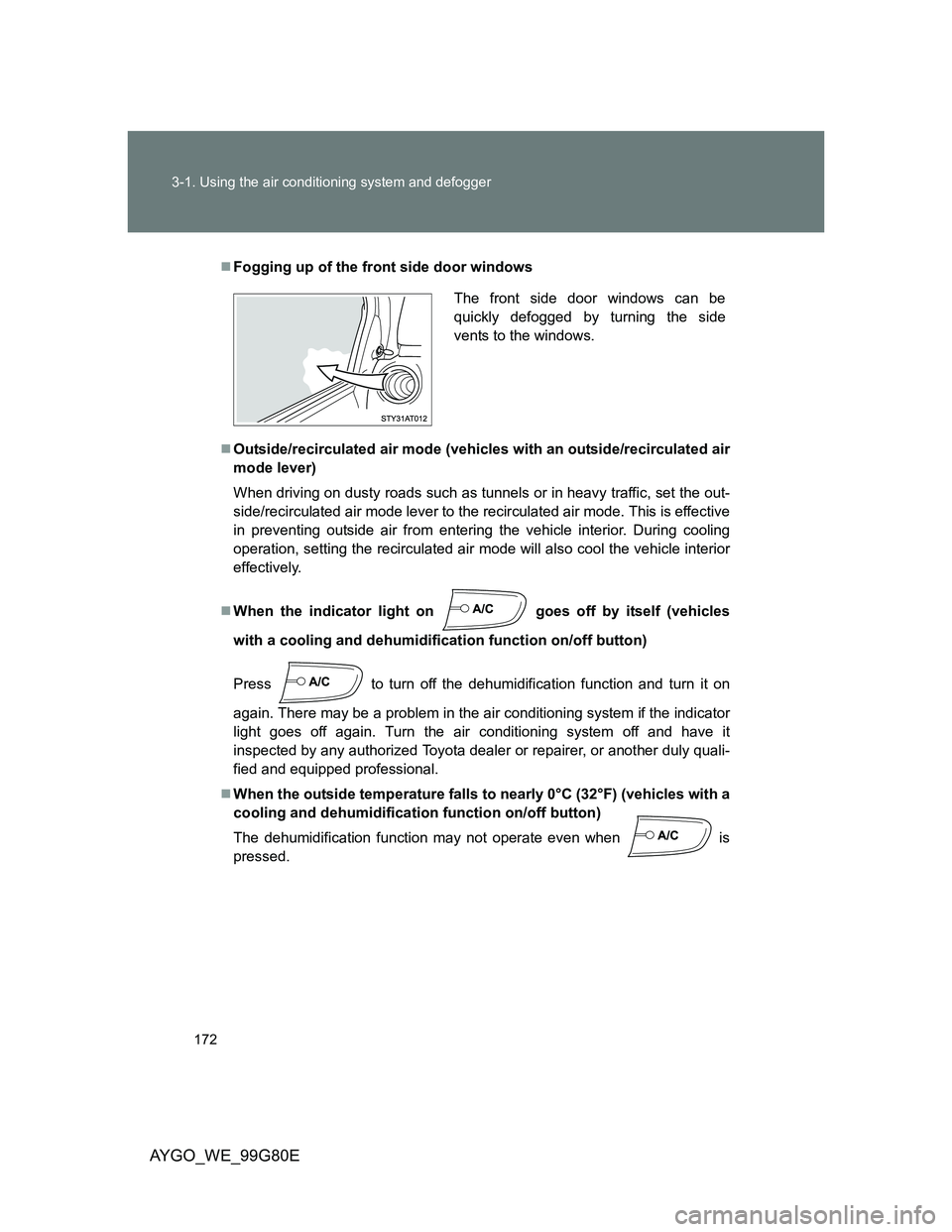

172 3-1. Using the air conditioning system and defogger
AYGO_WE_99G80E
Fogging up of the front side door windows
Outside/recirculated air mode (vehicles with an outside/recirculated air
mode lever)
When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode lever to the recirculated air mode. This is effective
in preventing outside air from entering the vehicle interior. During cooling
operation, setting the recirculated air mode will also cool the vehicle interior
effectively.
When the indicator light on goes off by itself (vehicles
with a cooling and dehumidification function on/off button)
Press to turn off the dehumidification function and turn it on
again. There may be a problem in the air conditioning system if the indicator
light goes off again. Turn the air conditioning system off and have it
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
When the outside temperature falls to nearly 0°C (32°F) (vehicles with a
cooling and dehumidification function on/off button)
The dehumidification function may not operate even when is
pressed.
The front side door windows can be
quickly defogged by turning the side
vents to the windows.

173 3-1. Using the air conditioning system and defogger
3
Interior features
AYGO_WE_99G80E
Air conditioning odors
During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
Air conditioning filter (vehicles with a cooling and dehumidification
function on/off button)
P. 279
CAUTION
To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather. The
difference between the temperature of the outside air and that of the wind-
shield can cause the outer surface of the windshield to fog up, blocking your
vision.
NOTICE
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

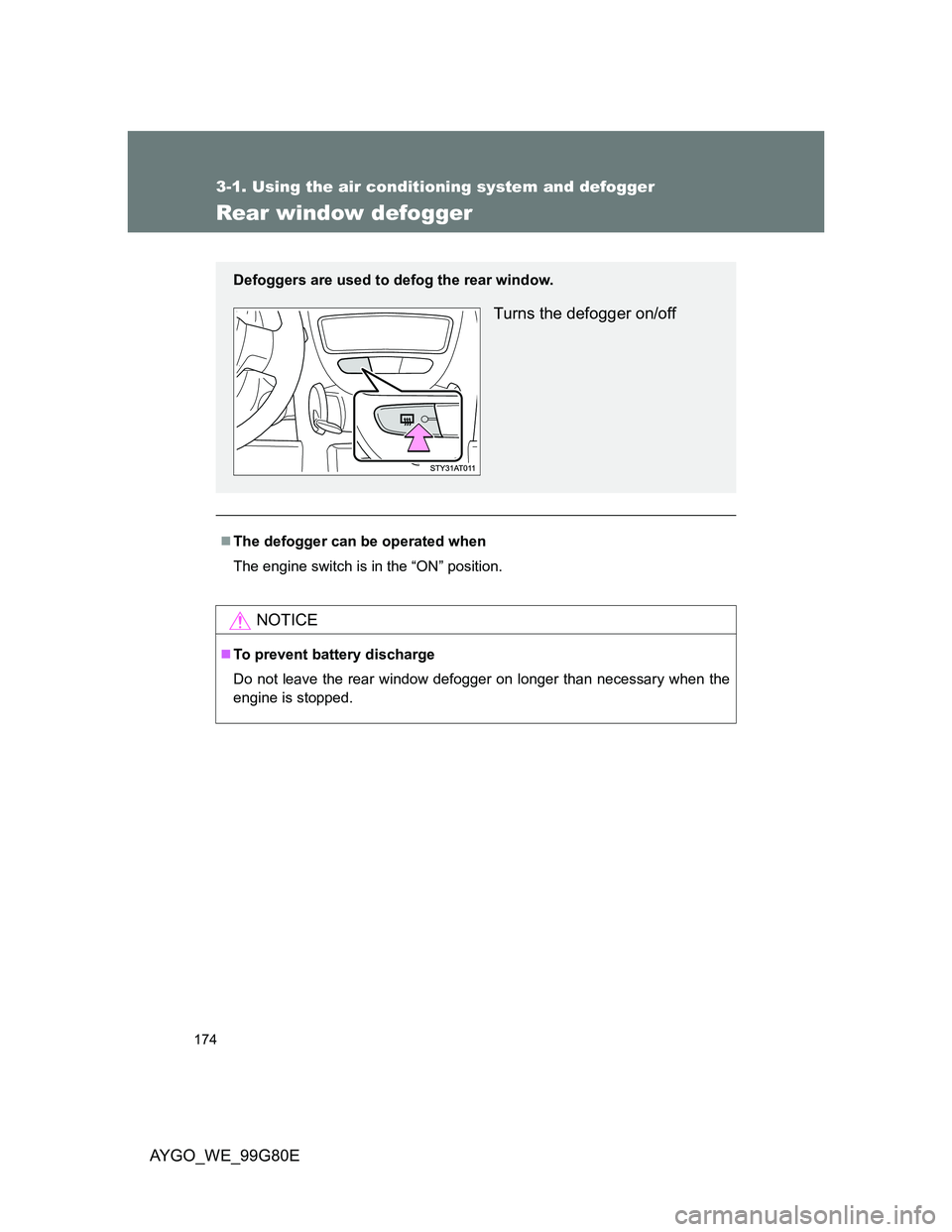

174
3-1. Using the air conditioning system and defogger
AYGO_WE_99G80E
Rear window defogger
The defogger can be operated when
The engine switch is in the “ON” position.
NOTICE
To prevent battery discharge
Do not leave the rear window defogger on longer than necessary when the
engine is stopped.
Defoggers are used to defog the rear window.
Turns the defogger on/off

175
3
Interior features
AYGO_WE_99G80E
3-2. Using the audio system (Type A)
Audio system types
: If equipped
Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
Ty p e A
CD player with external CD changer controller and AM/FM radio
Ty p e B
CD player and AM/FM radio with Bluetooth
®
P. 190
TitlePage
Using the radioP. 177
Using the CD playerP. 181
Optimal use of the audio systemP. 187
Using the AUX portP. 189

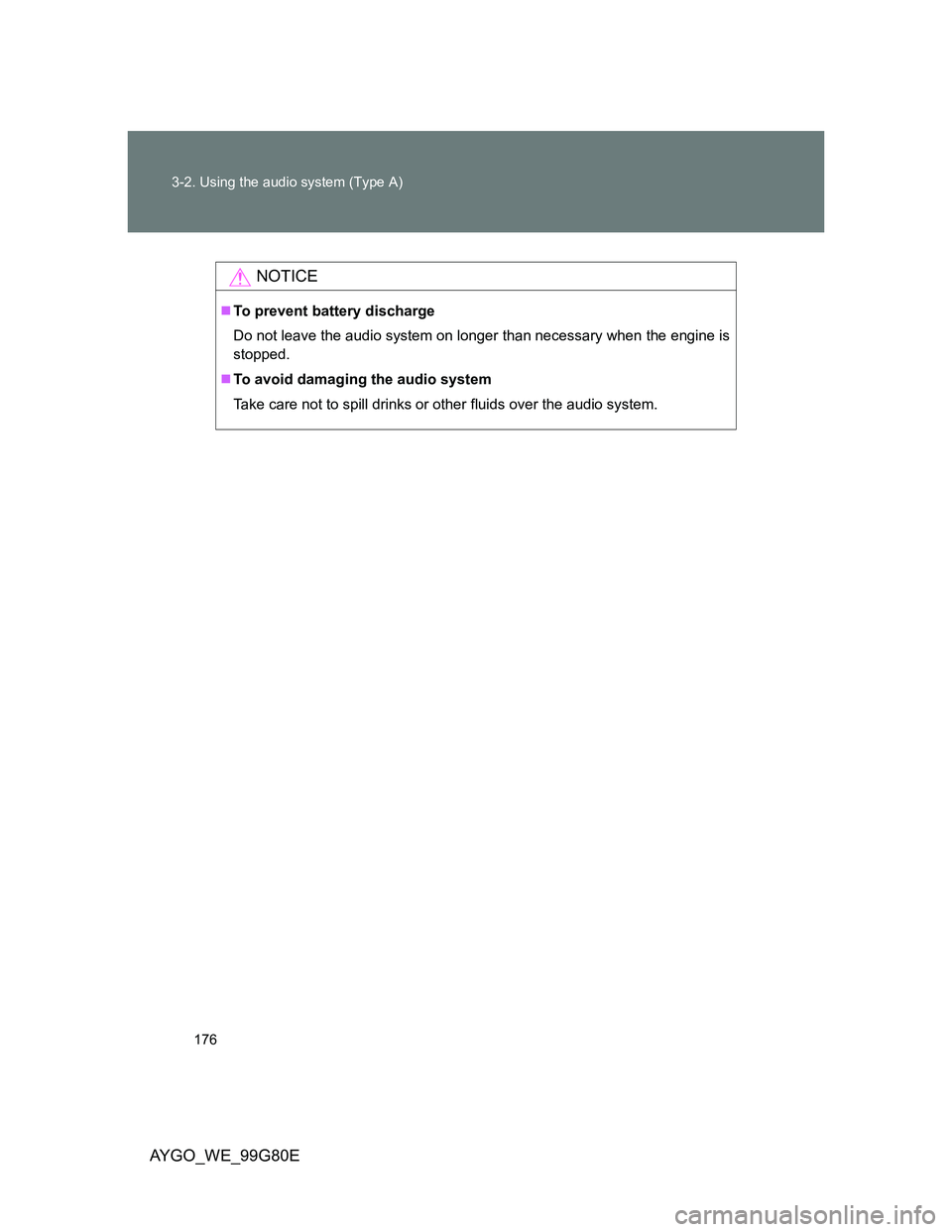

176 3-2. Using the audio system (Type A)
AYGO_WE_99G80E
NOTICE
To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is
stopped.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

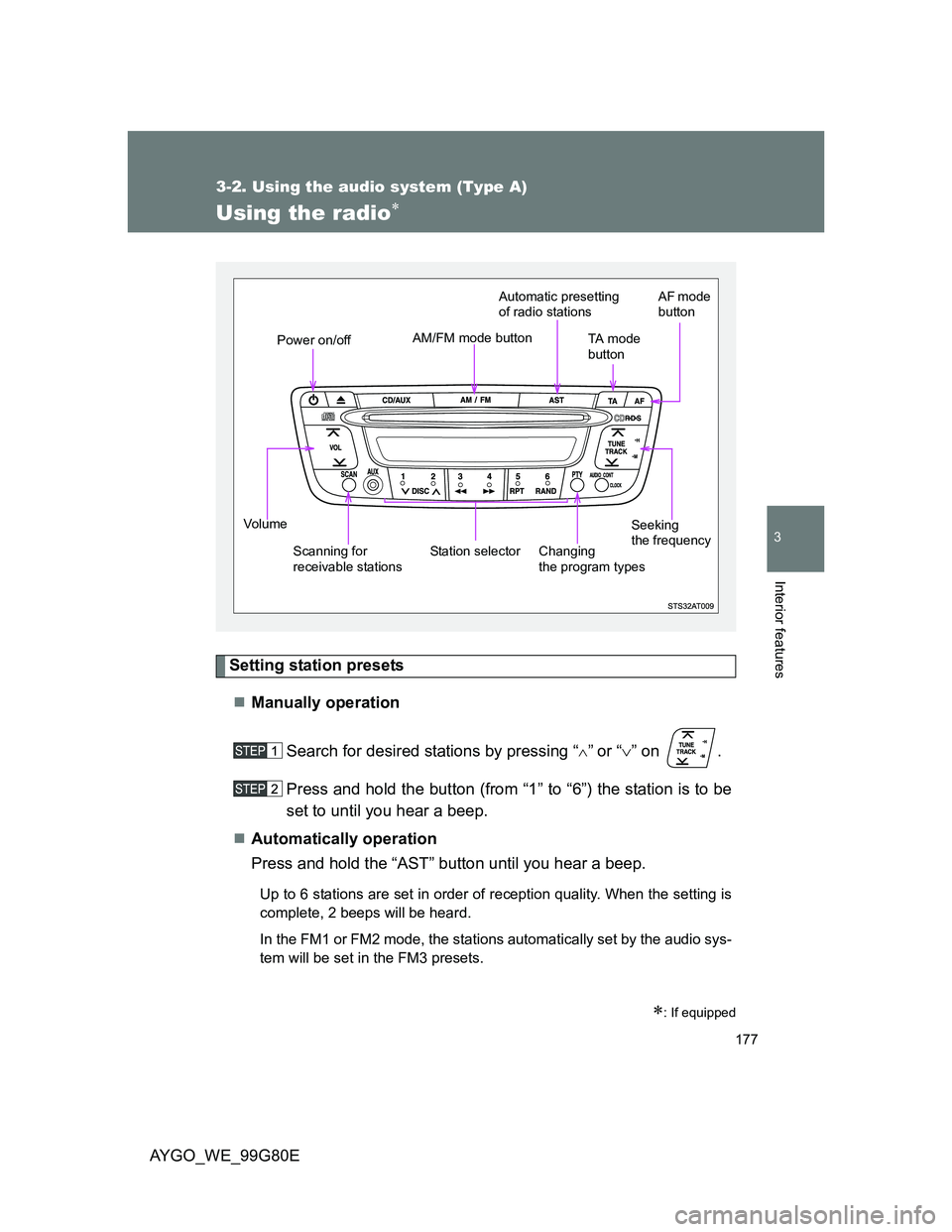

177
3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99G80E
Using the radio
Setting station presets
Manually operation
Search for desired stations by pressing “
”or “” on .
Press and hold the button (from “1” to “6”) the station is to be
set to until you hear a beep.
Automatically operation
Press and hold the “AST” button until you hear a beep.
Up to 6 stations are set in order of reception quality. When the setting is
complete, 2 beeps will be heard.
In the FM1 or FM2 mode, the stations automatically set by the audio sys-
tem will be set in the FM3 presets.
: If equipped
Vo l u m e
Scanning for
receivable stationsStation selectorSeeking
the frequency AM/FM mode button
Power on/offTA m o d e
button
Changing
the program types
AF mode
buttonAutomatic presetting
of radio stations

178 3-2. Using the audio system (Type A)
AYGO_WE_99G80E
Scanning radio stations
Scanning the preset radio stations
Press and hold the “SCAN” button until you hear a beep.
Preset stations will be played for 5 seconds each.
When the desired station is reached, press the button again.
Scanning all the radio stations within range
Press the “SCAN” button.
All the stations with reception will be played for 5 seconds each.
When the desired station is reached, press the button again.
RDS (Radio Data System)
This feature allows your radio to receive station and program informa-
tion (classical, news, etc.) from radio stations which broadcast this
information.
Listening to stations of the same network
Press the “AF” button.
AF-ON, REG-OFF modes: A station among those of the same
network with strong reception is
selected.
AF-ON, REG-ON modes: A station among those of the same
network with strong reception and
broadcasting the same program is
selected.
Each time the “AF” button is pressed, the mode changes in the following
order: AF-ON, REG-OFF  AF-ON, REG-ON  AF-OFF, REG-OFF.

179 3-2. Using the audio system (Type A)
3
Interior features
AYGO_WE_99G80ESelecting program type
Press the “PTY” button.
Each time the “PTY” button is pressed, the program type changes in the
following order: “NEWS”  “SPORTS”  “TALK”  “POP”  “CLAS-
SICS”.
Traffic information
Press the “TA” button.
TP mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received.
The station returns to the previous one when the traffic
information ends.
TA mode: Traffic information can be heard only when a signal is
received. The system switches to the mute mode when
a signal is not received. In CD mode, the system auto-
matically switches to traffic information when a signal is
received.
The audio system returns to the mute, CD mode when the
traffic information ends.
Audio system mode changes as follows each time the “TA” button
is pressed:
FM modes: “TP”  “TA”  off
Modes other than the radio modes: “TA”
 off
Emergency broadcast reception mode
“ALARM” appears in the display in the event that an emergency
broadcast is received, and the emergency broadcast is aired.

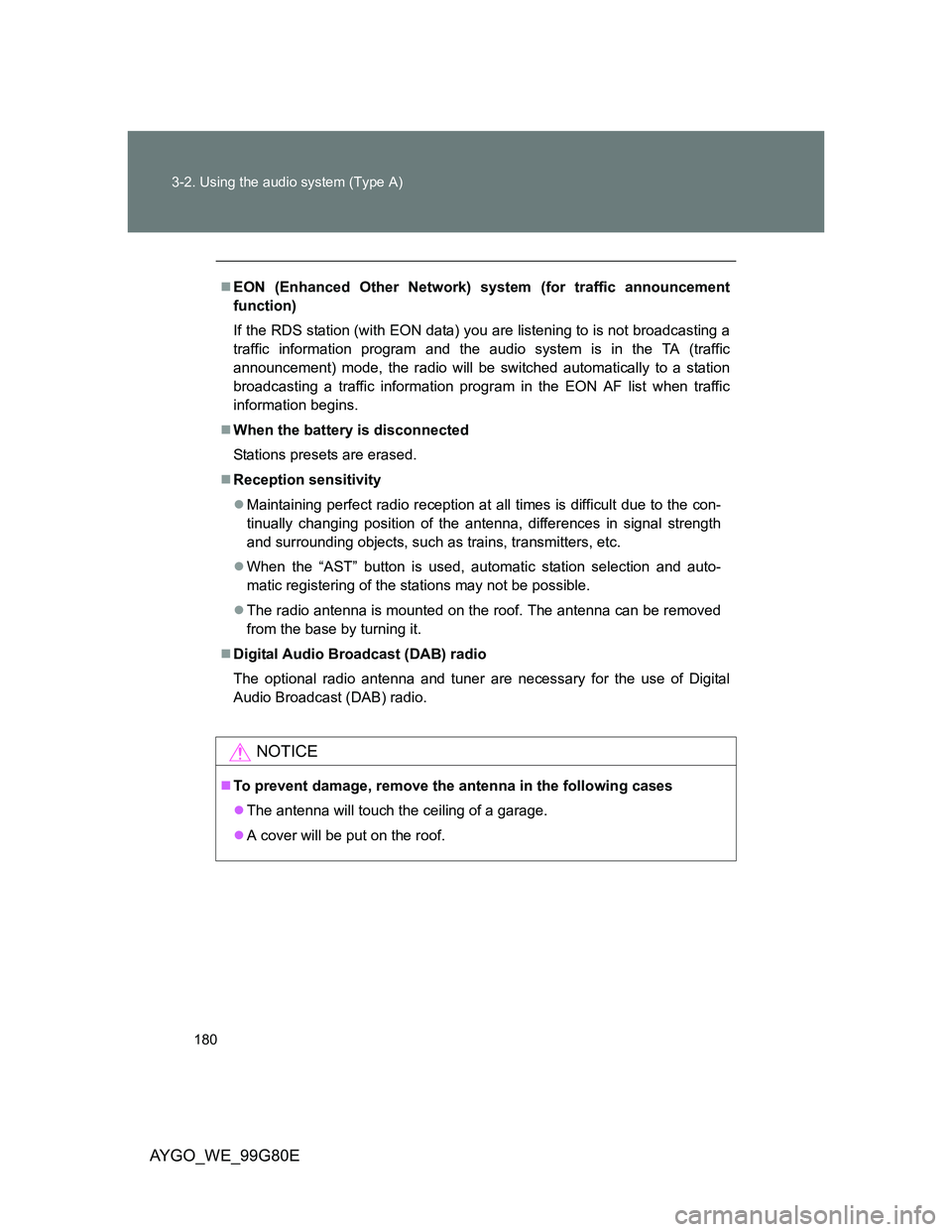

180 3-2. Using the audio system (Type A)
AYGO_WE_99G80E
EON (Enhanced Other Network) system (for traffic announcement
function)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
When the battery is disconnected
Stations presets are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
When the “AST” button is used, automatic station selection and auto-
matic registering of the stations may not be possible.
The radio antenna is mounted on the roof. The antenna can be removed
from the base by turning it.
Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.
NOTICE
To prevent damage, remove the antenna in the following cases
The antenna will touch the ceiling of a garage.
A cover will be put on the roof.
