sensor TOYOTA AYGO 2015 Owners Manual (in English)

351-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E

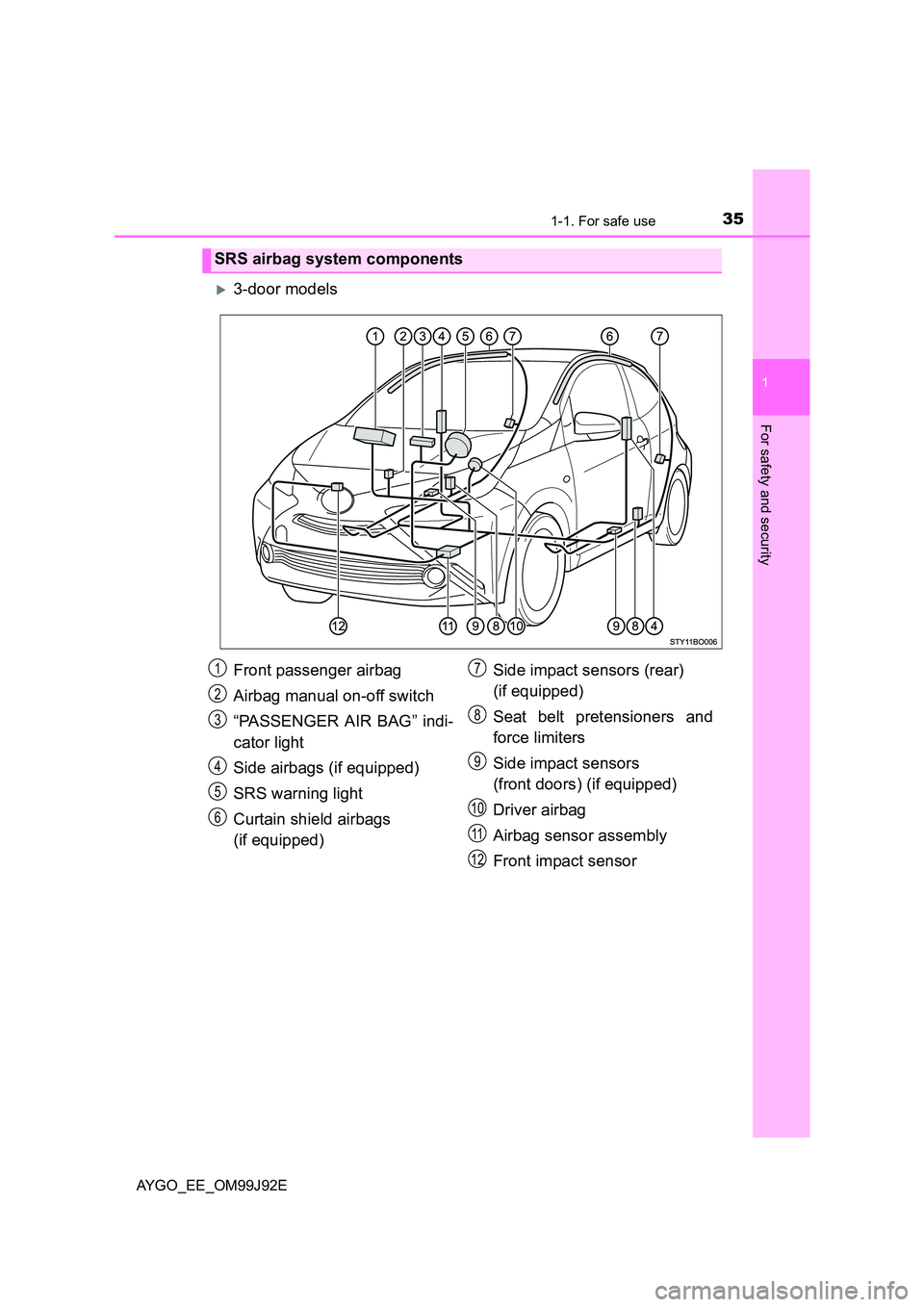

X3-door models
SRS airbag system components
Front passenger airbag
Airbag manual on-off switch
“PASSENGER AIR BAG” indi-
cator light
Side airbags (if equipped)
SRS warning light
Curtain shield airbags
(if equipped)
Side impact sensors (rear)
(if equipped)
Seat belt pretensioners and
force limiters
Side impact sensors
(front doors) (if equipped)
Driver airbag
Airbag sensor assembly
Front impact sensor
1
2
3
4
5
6
7
8
9
10
11
12

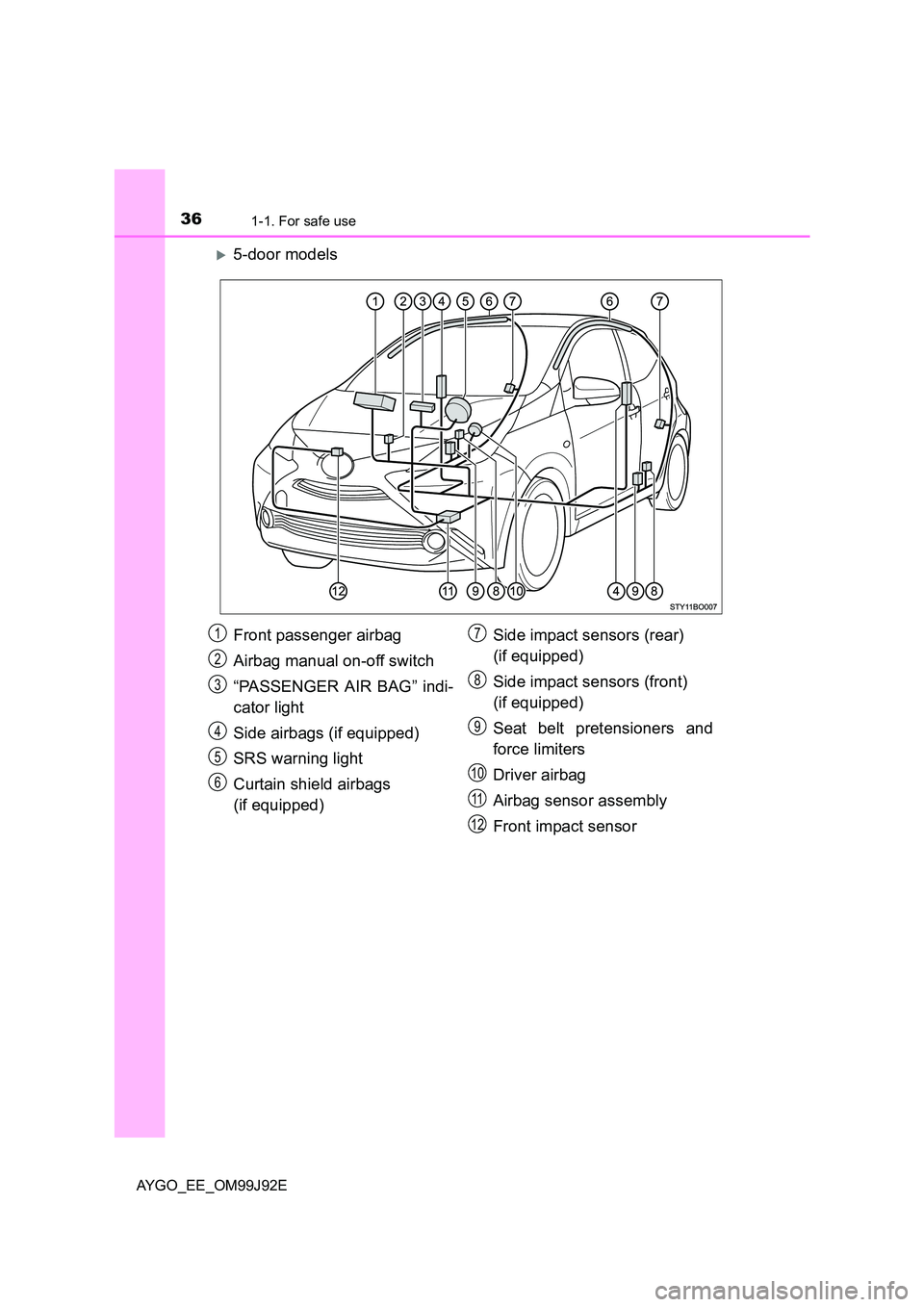

361-1. For safe use
AYGO_EE_OM99J92E
X5-door models
Front passenger airbag
Airbag manual on-off switch
“PASSENGER AIR BAG” indi-
cator light
Side airbags (if equipped)
SRS warning light
Curtain shield airbags
(if equipped)
Side impact sensors (rear)
(if equipped)
Side impact sensors (front)
(if equipped)
Seat belt pretensioners and
force limiters
Driver airbag
Airbag sensor assembly
Front impact sensor
1
2
3
4
5
6
7
8
9
10
11
12

371-1. For safe use
1
For safety and security
AYGO_EE_OM99J92E

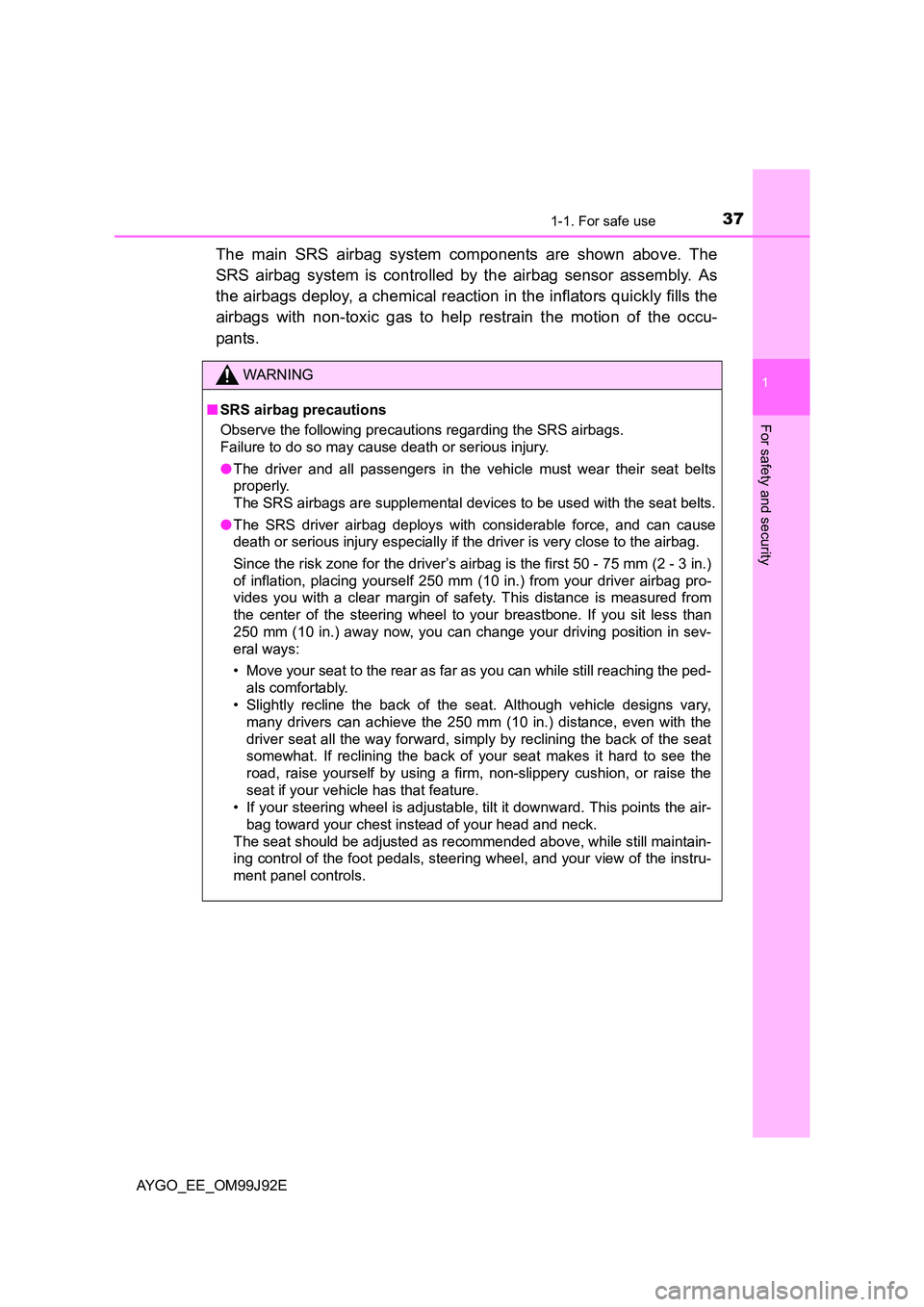

The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
WARNING
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.)
of inflation, placing yourself 250 mm ( 10 in.) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
250 mm (10 in.) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the ped-
als comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary,
many drivers can achieve the 250 mm (10 in.) distance, even with the
driver seat all the way forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes it hard to see the
road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the air-
bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintain-
ing control of the foot pedals, steering wheel, and your view of the instru-
ment panel controls.

1694-3. Operating the lights and wipers
4
Driving
AYGO_EE_OM99J92E

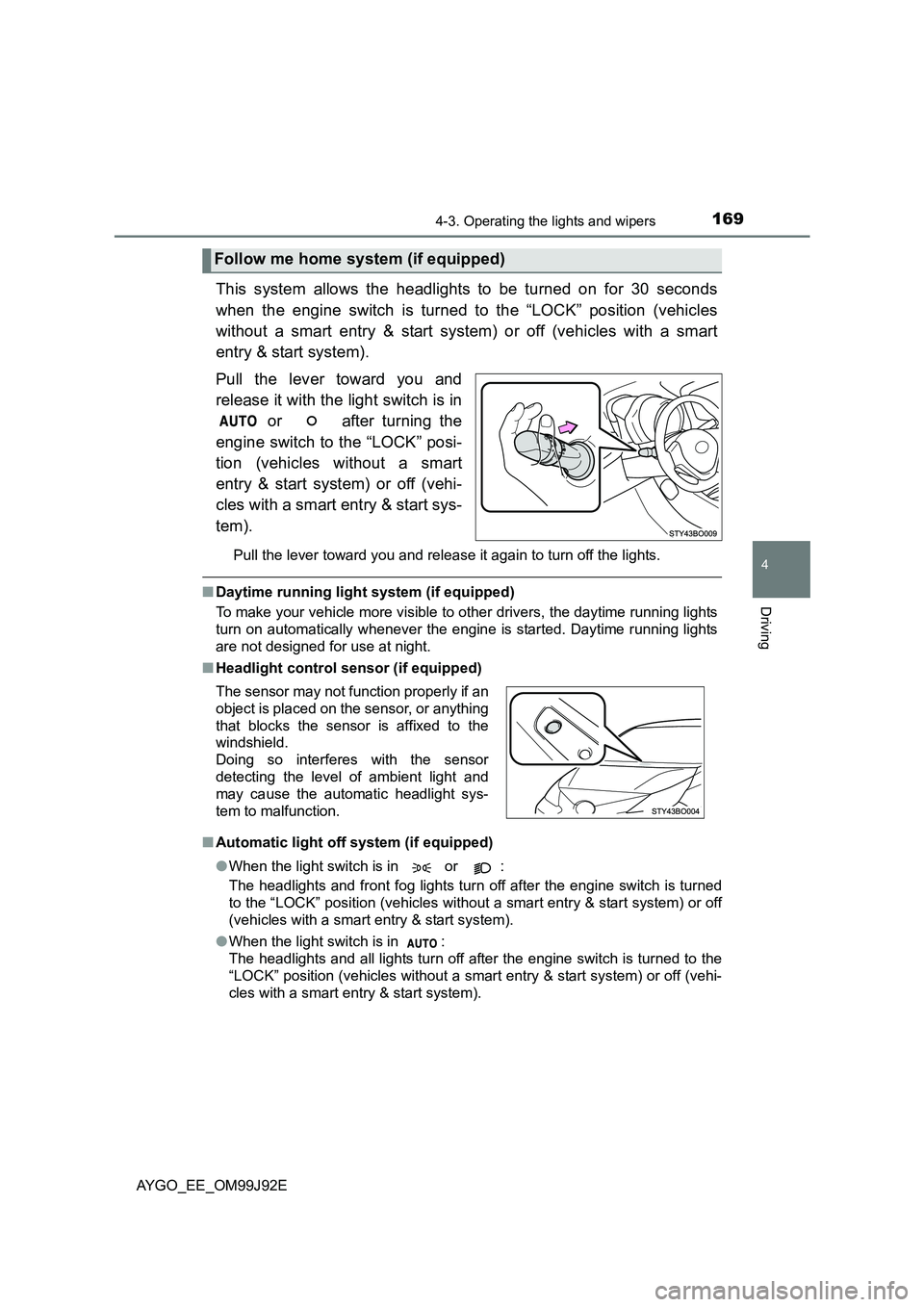

This system allows the headlights to be turned on for 30 seconds
when the engine switch is turned to the “LOCK” position (vehicles
without a smart entry & start system) or off (vehicles with a smart
entry & start system).
Pull the lever toward you and
release it with the light switch is in
or after turning the
engine switch to the “LOCK” posi-
tion (vehicles without a smart
entry & start system) or off (vehi-
cles with a smart entry & start sys-
tem).
Pull the lever toward you and release it again to turn off the lights.
■ Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the daytime running lights
turn on automatically whenever the engine is started. Daytime running lights
are not designed for use at night.
■ Headlight control sensor (if equipped)
■ Automatic light off system (if equipped)
● When the light switch is in or :
The headlights and front fog lights turn off after the engine switch is turned
to the “LOCK” position (vehicles without a smart entry & start system) or off
(vehicles with a smart entry & start system).
● When the light switch is in :
The headlights and all lights turn off after the engine switch is turned to the
“LOCK” position (vehicles without a smart entry & start system) or off (vehi-
cles with a smart entry & start system).
Follow me home system (if equipped)
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

3097-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_EE_OM99J92E

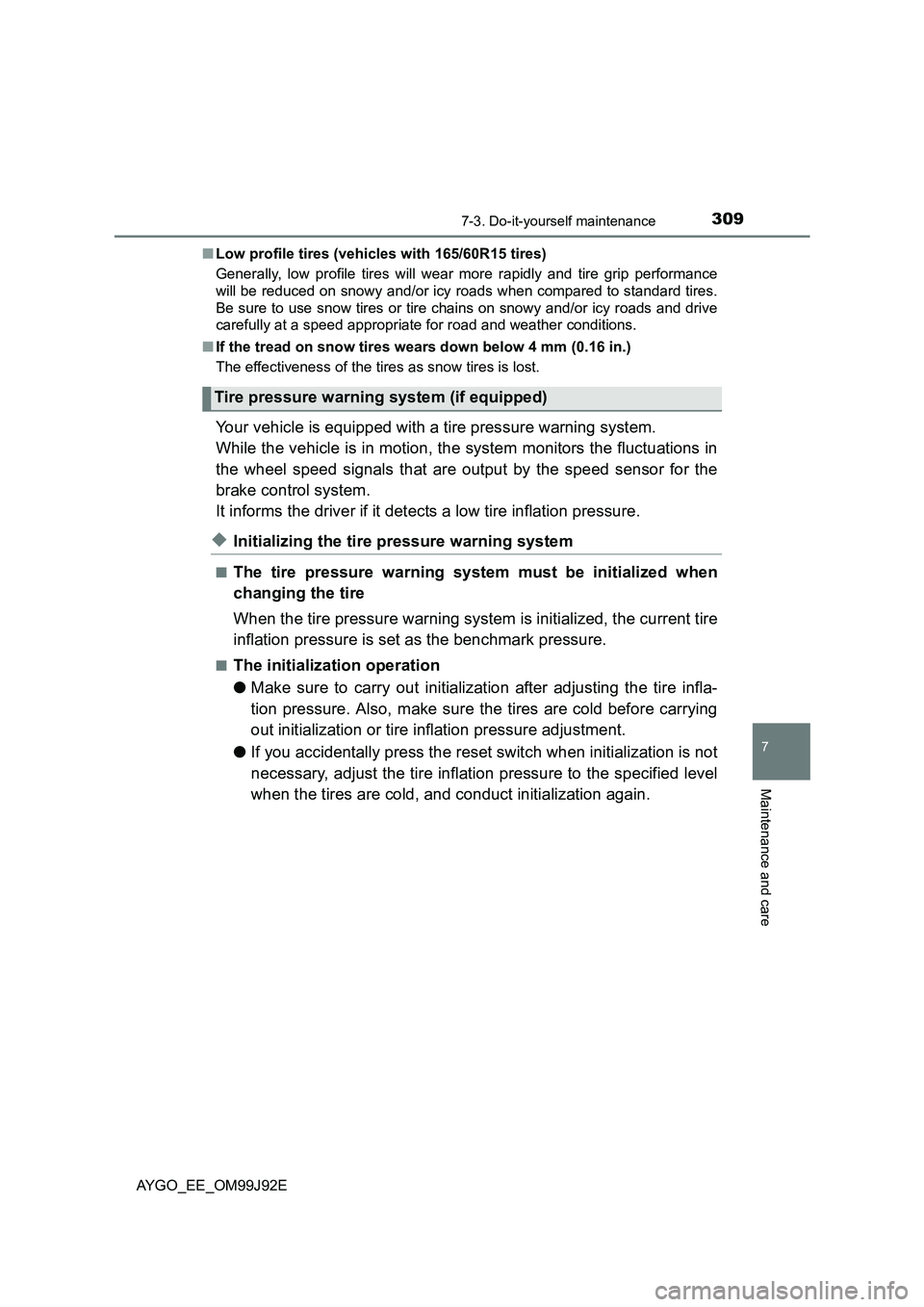

■ Low profile tires (vehicles with 165/60R15 tires)
Generally, low profile tires will wear more rapidly and tire grip performance
will be reduced on snowy and/or icy roads when compared to standard tires.
Be sure to use snow tires or tire chains on snowy and/or icy roads and drive
carefully at a speed appropriate for road and weather conditions.
■ If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.
Your vehicle is equipped with a tire pressure warning system.
While the vehicle is in motion, the system monitors the fluctuations in
the wheel speed signals that are output by the speed sensor for the
brake control system.
It informs the driver if it detects a low tire inflation pressure.
◆Initializing the tire pressure warning system
■The tire pressure warning system must be initialized when
changing the tire
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
■The initialization operation
● Make sure to carry out initialization after adjusting the tire infla-
tion pressure. Also, make sure the tires are cold before carrying
out initialization or tire inflation pressure adjustment.
● If you accidentally press the reset switch when initialization is not
necessary, adjust the tire inflation pressure to the specified level
when the tires are cold, and conduct initialization again.
Tire pressure warning system (if equipped)

3578-2. Steps to take in an emergency
8
When trouble arises
AYGO_EE_OM99J92E

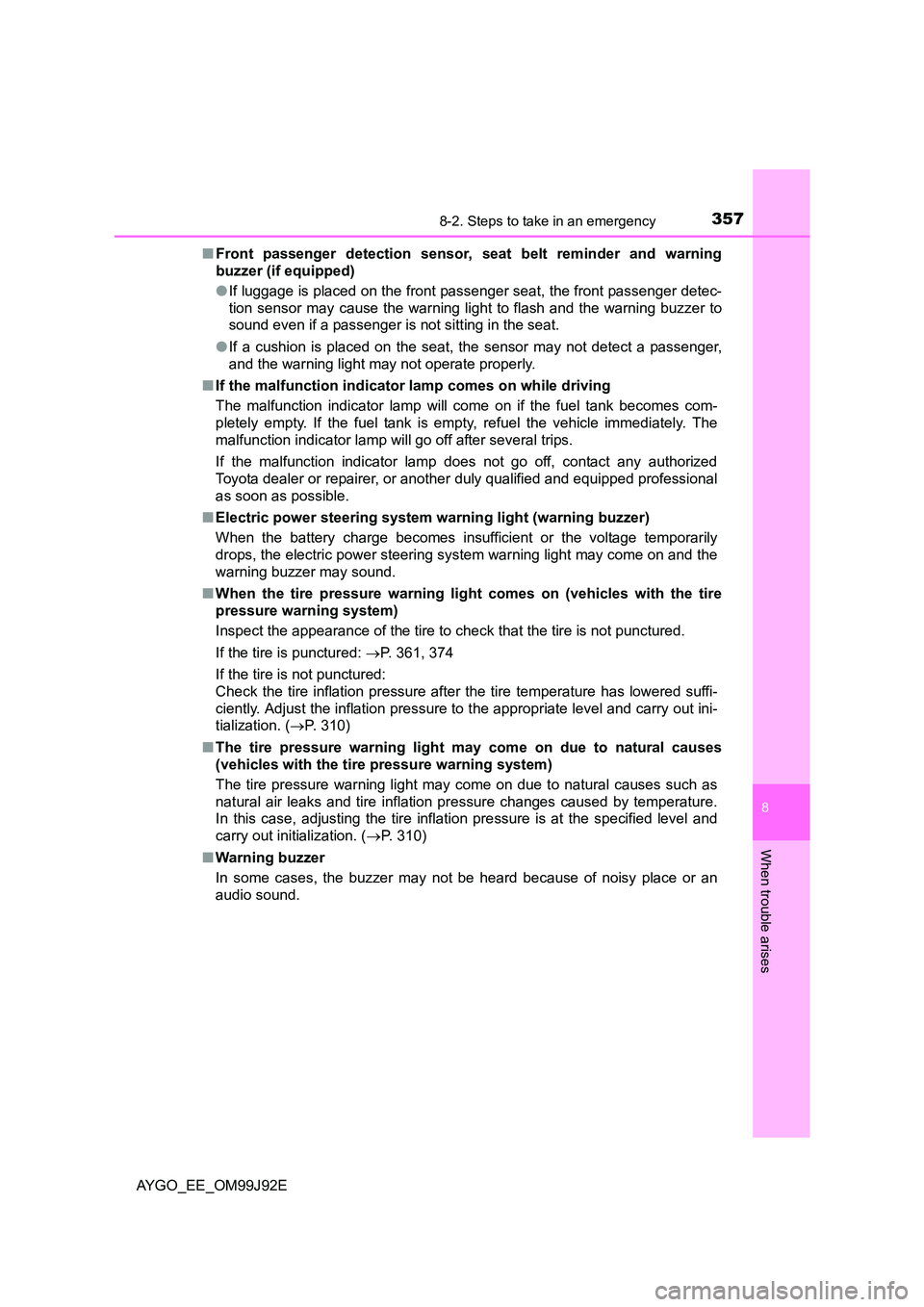

■ Front passenger detection sensor, seat belt reminder and warning
buzzer (if equipped)
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empt y, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
■ Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
■ When the tire pressure warning light comes on (vehicles with the tire
pressure warning system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: →P. 361, 374
If the tire is not punctured:
Check the tire inflation pressure after the tire temperature has lowered suffi-
ciently. Adjust the inflation pressure to the appropriate level and carry out ini-
tialization. ( →P. 310)
■ The tire pressure warning light may come on due to natural causes
(vehicles with the tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure is at the specified level and
carry out initialization. ( →P. 310)
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

4219-2. Customization
9
Vehicle specifications
AYGO_EE_OM99J92E

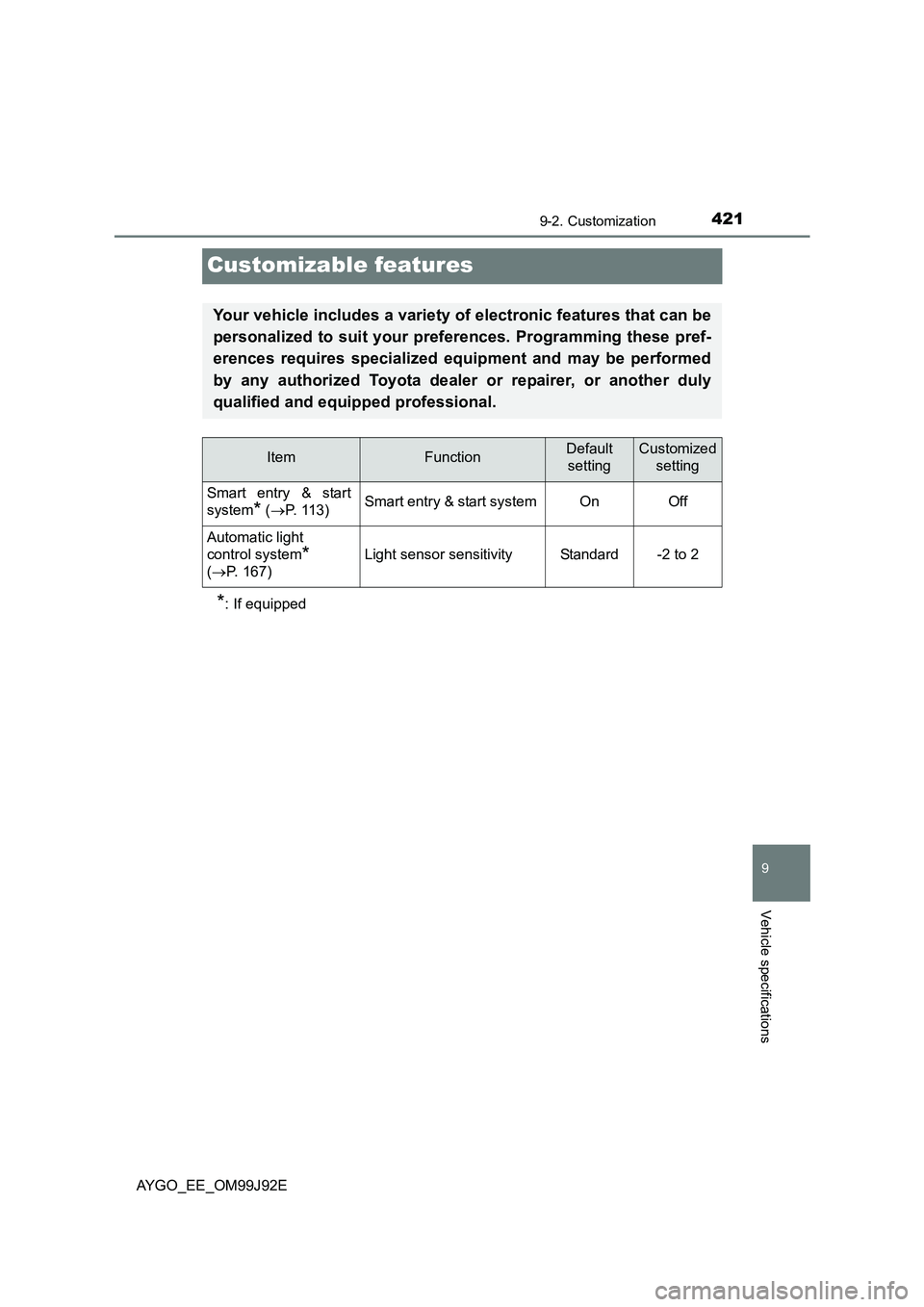

Customizable features
*: If equipped
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
ItemFunctionDefault
setting
Customized
setting
Smart entry & start
system* ( →P. 113)Smart entry & start systemOnOff
Automatic light
control system*
( →P. 167)
Light sensor sensitivityStandard-2 to 2

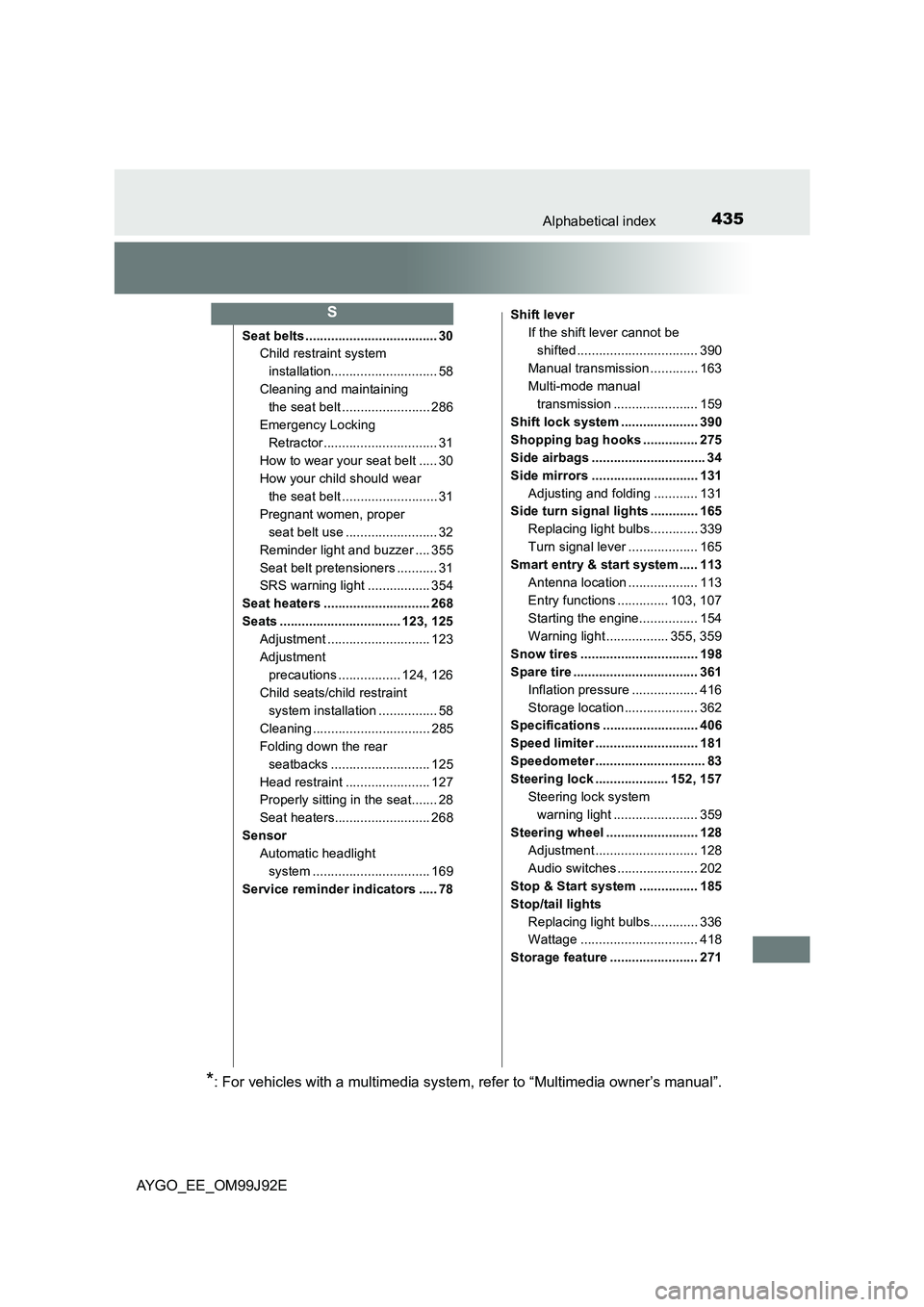

435Alphabetical index
AYGO_EE_OM99J92E
Seat belts .................................... 30
Child restraint system
installation............................. 58
Cleaning and maintaining
the seat belt ........................ 286
Emergency Locking
Retractor............................... 31
How to wear your seat belt ..... 30
How your child should wear
the seat belt .......................... 31
Pregnant women, proper
seat belt use ......................... 32
Reminder light and buzzer .... 355
Seat belt pretensioners ........... 31
SRS warning light ................. 354
Seat heaters ............................. 268
Seats ................................. 123, 125
Adjustment ............................ 123
Adjustment
precautions ................. 124, 126
Child seats/child restraint
system installation ................ 58
Cleaning ................................ 285
Folding down the rear
seatbacks ........................... 125
Head restraint ....................... 127
Properly sitting in the seat....... 28
Seat heaters.......................... 268
Sensor
Automatic headlight
system ................................ 169
Service reminder indicators ..... 78
Shift lever
If the shift lever cannot be
shifted ................................. 390
Manual transmission ............. 163
Multi-mode manual
transmission ....................... 159
Shift lock system ..................... 390
Shopping bag hooks ............... 275
Side airbags ............................... 34
Side mirrors ............................. 131
Adjusting and folding ............ 131
Side turn signal lights ............. 165
Replacing light bulbs............. 339
Turn signal lever ................... 165
Smart entry & start system ..... 113
Antenna location ................... 113
Entry functions .............. 103, 107
Starting the engine................ 154
Warning light ................. 355, 359
Snow tires ................................ 198
Spare tire .................................. 361
Inflation pressure .................. 416
Storage location .................... 362
Specifications .......................... 406
Speed limiter ............................ 181
Speedometer .............................. 83
Steering lock .................... 152, 157
Steering lock system
warning light ....................... 359
Steering wheel ......................... 128
Adjustment ............................ 128
Audio switches ...................... 202
Stop & Start system ................ 185
Stop/tail lights
Replacing light bulbs............. 336
Wattage ................................ 418
Storage feature ........................ 271
S
*: For vehicles with a multimedia system , refer to “Multimedia owner’s manual”.
