bluetooth TOYOTA AYGO 2017 (in English) Owner's Manual

281
5
5-8. Bluetooth® Phone
Audio system
AYGO_OM_Europe_OM99Q24E
Speaking on the phone
A call can be transferred between the cellular phone and system while
dialing, receiving a call, or during a call. Use one of the following
methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation
of the phone.
b. Press the (Phone).*
*: This operation can be performed only when transferring a call from the
cellular phone to the system during a call.
Press (Mute).
Press (0-9) and use the “MENU” knob to input the desired dig-
its.
• To send the input digits press (Send).
• When finished, press (Exit) to return to the previous screen.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
: If equipped
Transferring a call
Muting your voice
Inputting digits
Setting call volume

2825-8. Bluetooth® Phone
AYGO_OM_Europe_OM99Q24E
■When talking on the phone
● Do not talk simultaneously with the other party.
● Keep the volume of the received voice down. Otherwise, voice echo will
increase.
■ Automatic volume adjustment
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■ Phone call system functions
Depending on the cellular phone, certain functions may not be available.
■ Situations where the system may not recognize your voice
● When driving on a rough road
● When driving at high speeds
● When air is blowing out of the vents onto the microphone
● When the air conditioning fan emits a loud noise

283
5
5-9. Bluetooth®
Audio system
AYGO_OM_Europe_OM99Q24E
Bluetooth®
■When using the Bluetooth® audio/phone
● In the following situations, the system may not function.
• The portable player does not support Bluetooth®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or
console box, or metal material covers or touches the device
● There may be a delay if a cellular phone connection is made
during Bluetooth® audio play.
● Depending on the type of portable audio player that is connected
to the system, operation may differ slightly and certain functions
may not be available.
: If equipped

2845-9. Bluetooth®
AYGO_OM_Europe_OM99Q24E
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 272)
■ About Bluetooth®
■Compatible models
● Bluetooth® specifications:
Ver. 1.1, or higher (Recommended: Ver. 2.1 + EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher (recom-
mended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recom-
mended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth® audio/phone. However, please note that some
functions may be limited depending on the type of portable player.
● Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0
The Bluetooth word mark and logos are
registered trademarks owned by Blue-
tooth SIG, Inc. and any use of such marks
by Panasonic Corporation is under
license. Other trademarks and trade
names are those of their respective own-
ers.

2855-9. Bluetooth®
5
Audio system
AYGO_OM_Europe_OM99Q24E
■ Certification

2865-9. Bluetooth®
AYGO_OM_Europe_OM99Q24E

2875-9. Bluetooth®
5
Audio system
AYGO_OM_Europe_OM99Q24E
WARNING
■While driving
Do not use the portable audio player, cellular phone or connect a device to
the Bluetooth® system.
■ Caution regarding interference with electronic devices
● Your audio unit is fitted with Bluetooth® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth® antennas. The radio waves
may affect the operation of such devices.
● Before using Bluetooth® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ When leaving the vehicle
Do not leave portable audio player or cellular phone in the vehicle. The
inside of the vehicle may become hot, causing damage to the portable
audio player or cellular phone.

2885-9. Bluetooth®
AYGO_OM_Europe_OM99Q24E

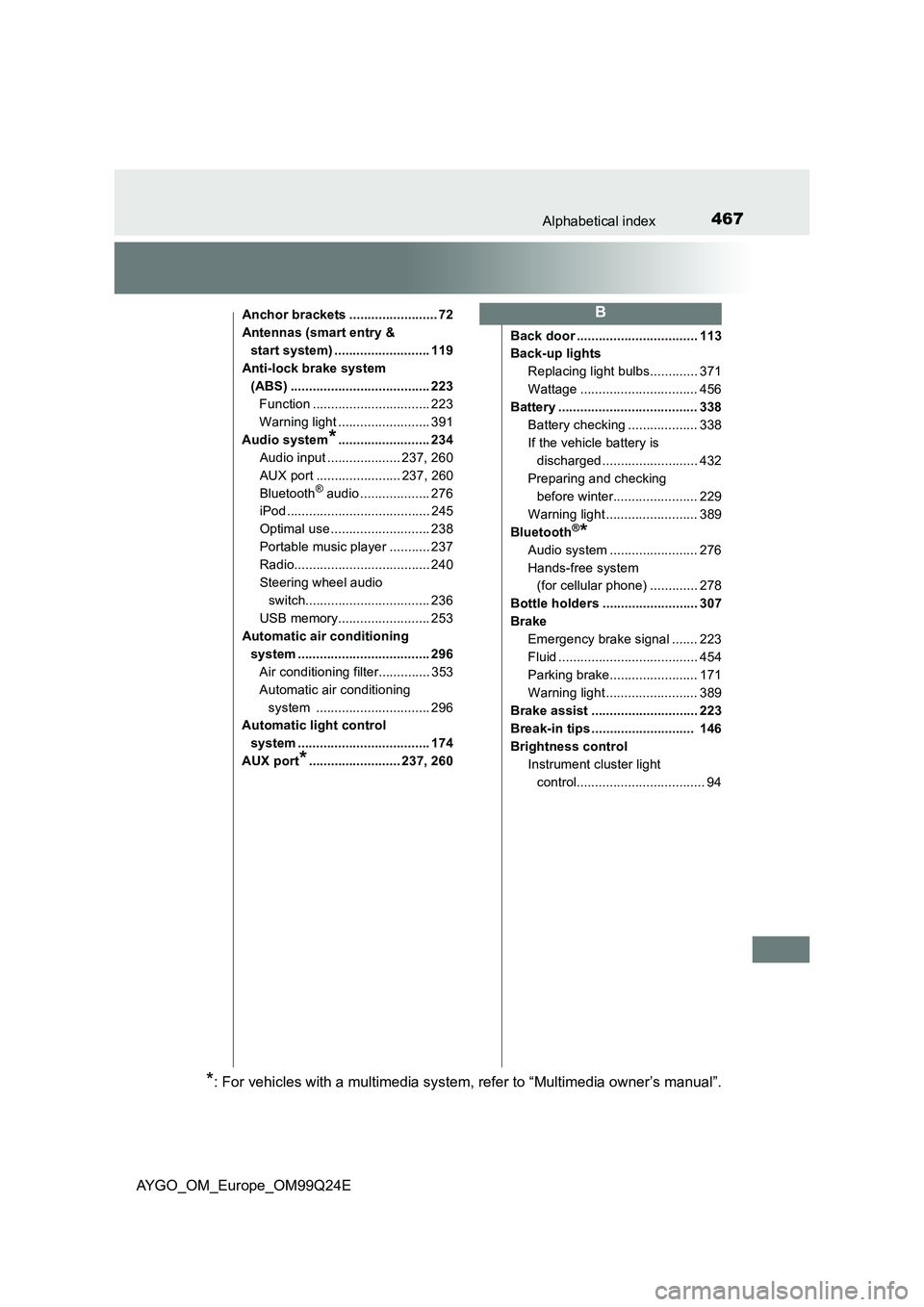

467Alphabetical index
AYGO_OM_Europe_OM99Q24E
Anchor brackets ........................ 72
Antennas (smart entry &
start system) .......................... 119
Anti-lock brake system
(ABS) ...................................... 223
Function ................................ 223
Warning light ......................... 391
Audio system*......................... 234
Audio input .................... 237, 260
AUX port ....................... 237, 260
Bluetooth® audio ................... 276
iPod ....................................... 245
Optimal use ........................... 238
Portable music player ........... 237
Radio..................................... 240
Steering wheel audio
switch.................................. 236
USB memory......................... 253
Automatic air conditioning
system .................................... 296
Air conditioning filter.............. 353
Automatic air conditioning
system ............................... 296
Automatic light control
system .................................... 174
AUX port*......................... 237, 260
Back door ................................. 113
Back-up lights
Replacing light bulbs............. 371
Wattage ................................ 456
Battery ...................................... 338
Battery checking ................... 338
If the vehicle battery is
discharged .......................... 432
Preparing and checking
before winter....................... 229
Warning light ......................... 389
Bluetooth®*
Audio system ........................ 276
Hands-free system
(for cellular phone) ............. 278
Bottle holders .......................... 307
Brake
Emergency brake signal ....... 223
Fluid ...................................... 454
Parking brake........................ 171
Warning light ......................... 389
Brake assist ............................. 223
Break-in tips ............................ 146
Brightness control
Instrument cluster light
control................................... 94
B
*: For vehicles with a multimedia system , refer to “Multimedia owner’s manual”.
