TOYOTA AYGO 2017 Owners Manual (in English)

3517-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E

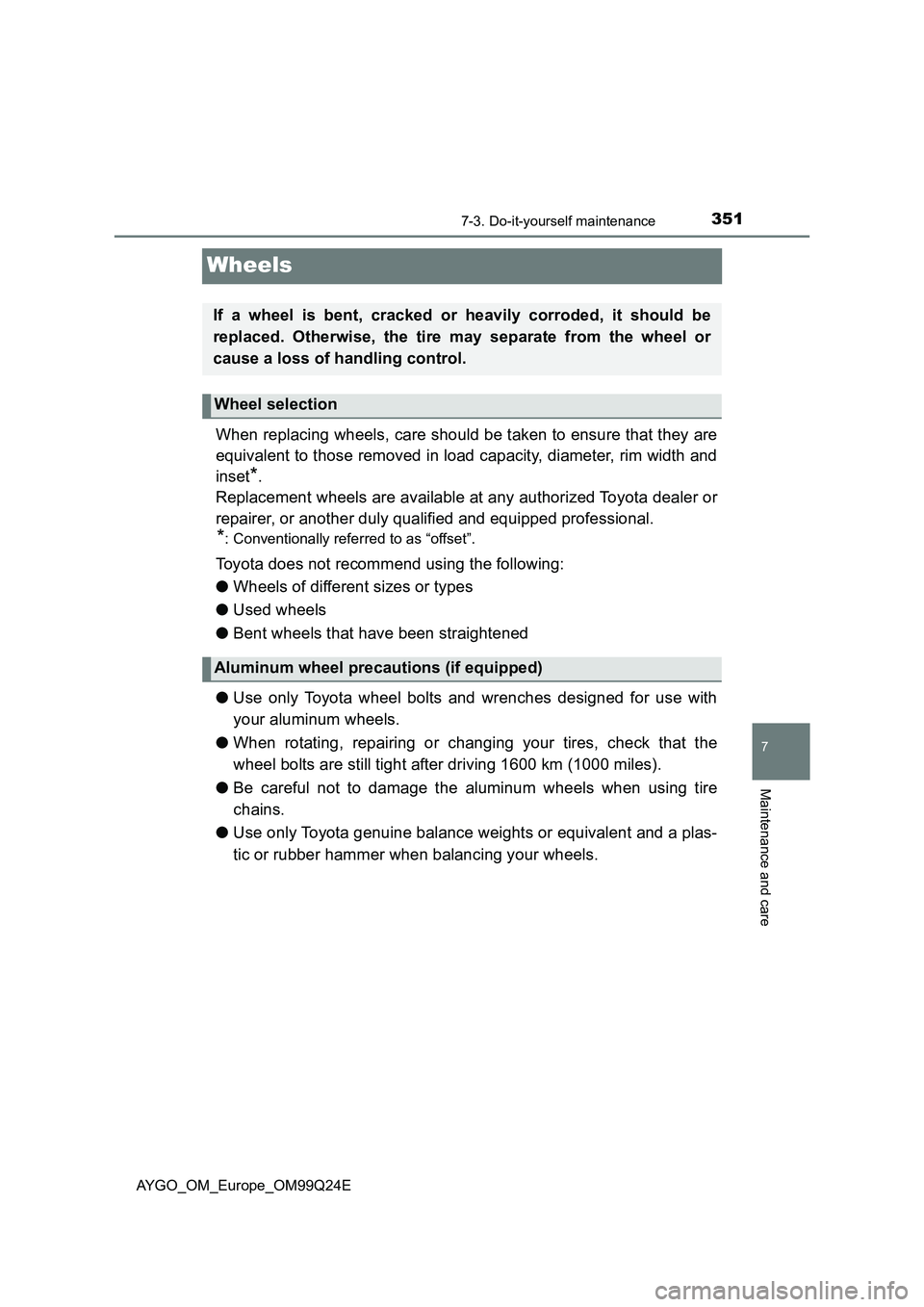

Wheels
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset*.
Replacement wheels are available at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
*: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
● Use only Toyota wheel bolts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel bolts are still tight after driving 1600 km (1000 miles).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.
Wheel selection
Aluminum wheel precautions (if equipped)

3527-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
WARNING

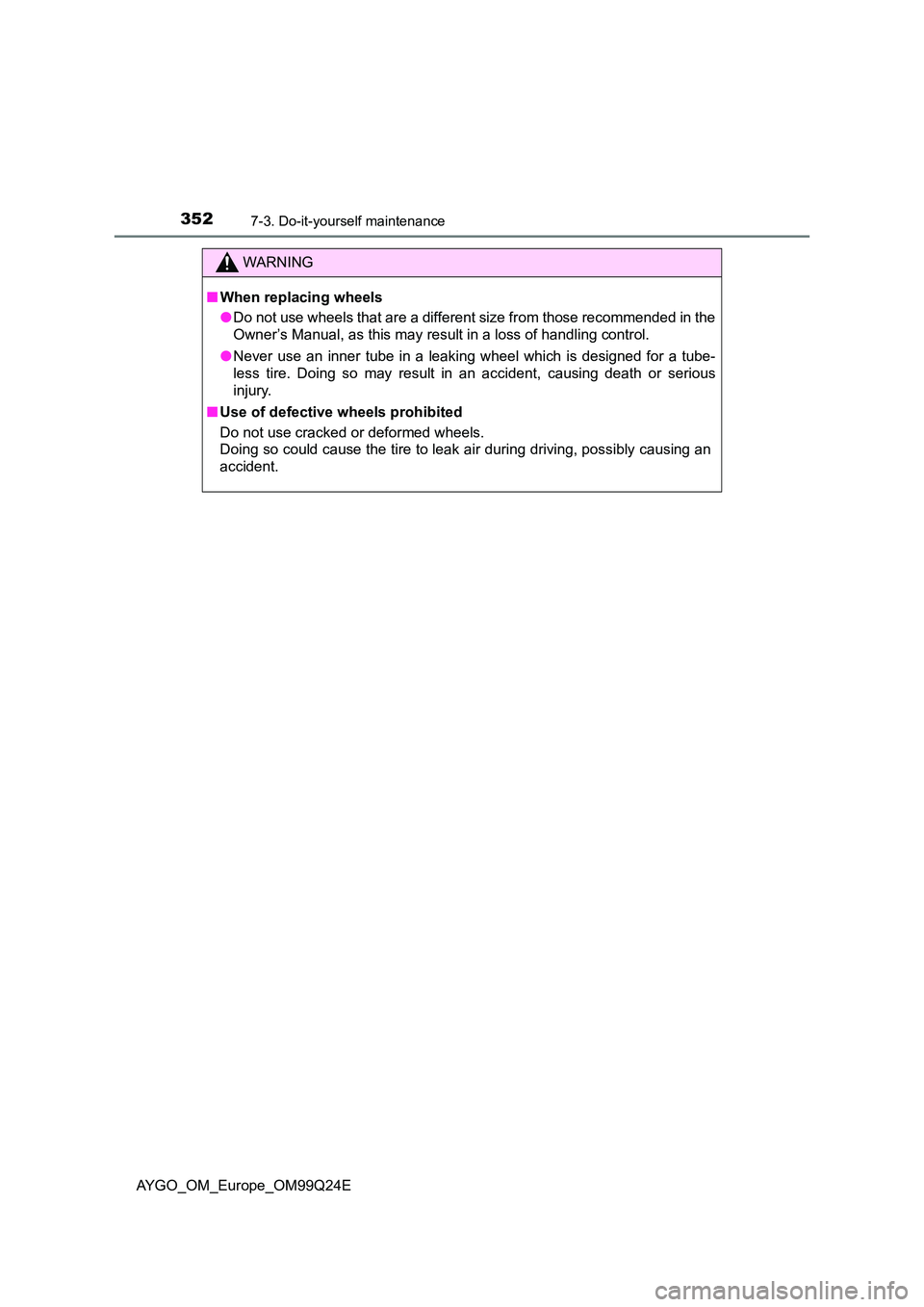

■When replacing wheels
● Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
● Never use an inner tube in a leaking wheel which is designed for a tube-
less tire. Doing so may result in an accident, causing death or serious
injury.
■ Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an
accident.

3537-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E
Air conditioning filter
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with a smart entry & start system:
Turn the engine switch off.
Pull out the air conditioning filter
as shown in the illustration.
Replace it with a new one.
■ Changing interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Toyota Service Booklet” or “Toyota Warranty Booklet”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
NOTICE
■ When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditi oning system without a filter may cause damage to the
system.

3547-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E

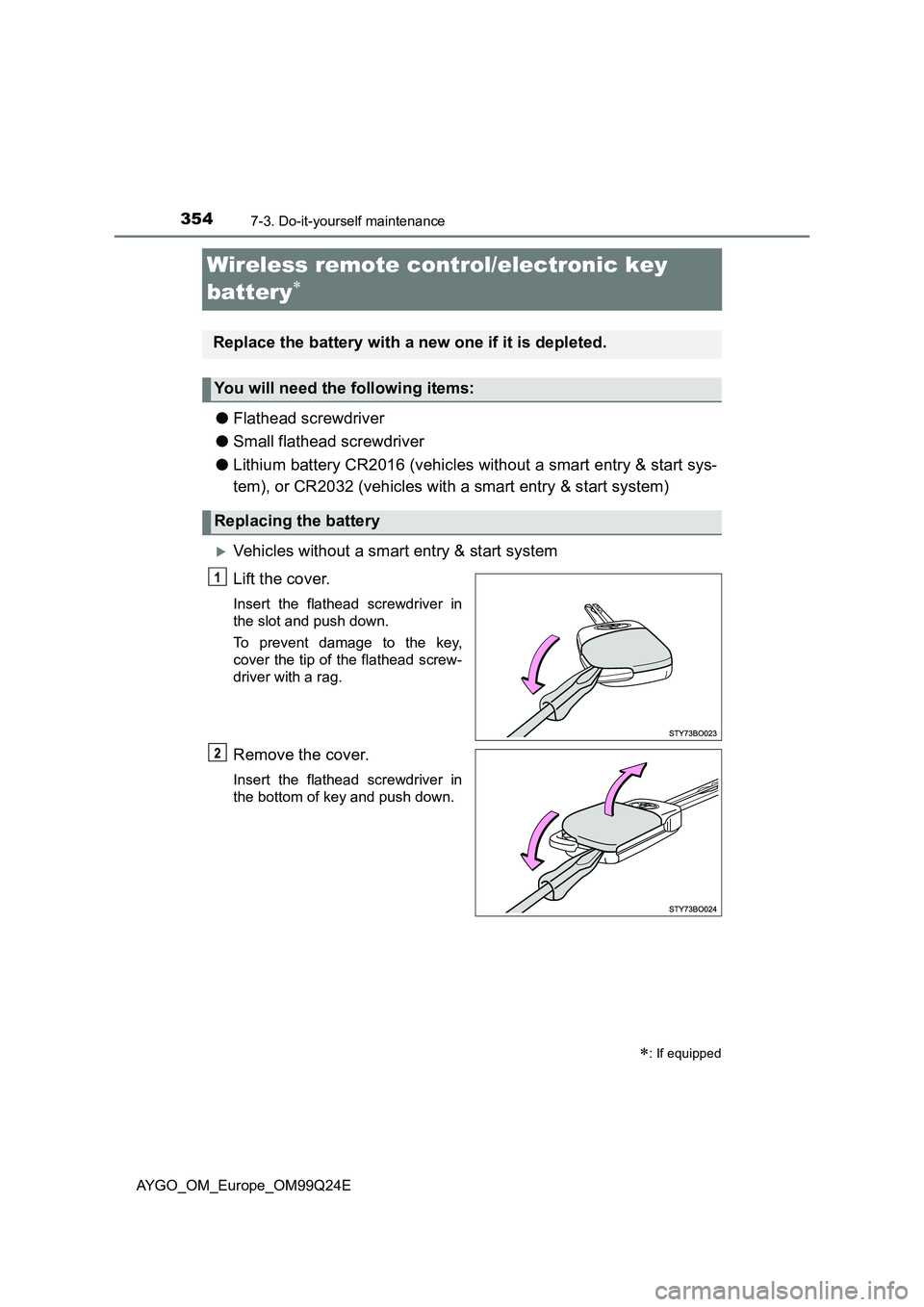

Wireless remote control/electronic key
battery
● Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2016 (vehicles without a smart entry & start sys-
tem), or CR2032 (vehicles with a smart entry & start system)
Vehicles without a smart entry & start system
Lift the cover.
Insert the flathead screwdriver in
the slot and push down.
To prevent damage to the key,
cover the tip of the flathead screw-
driver with a rag.
Remove the cover.
Insert the flathead screwdriver in
the bottom of key and push down.
: If equipped
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery

3557-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Vehicles with a smart entry & start system
Remove the cover.
To prevent damage to the key,
cover the tip of the flathead screw-
driver with a tape.
Remove the battery cover.
Pull the knob of the battery cover
to remove.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Knob

3567-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E

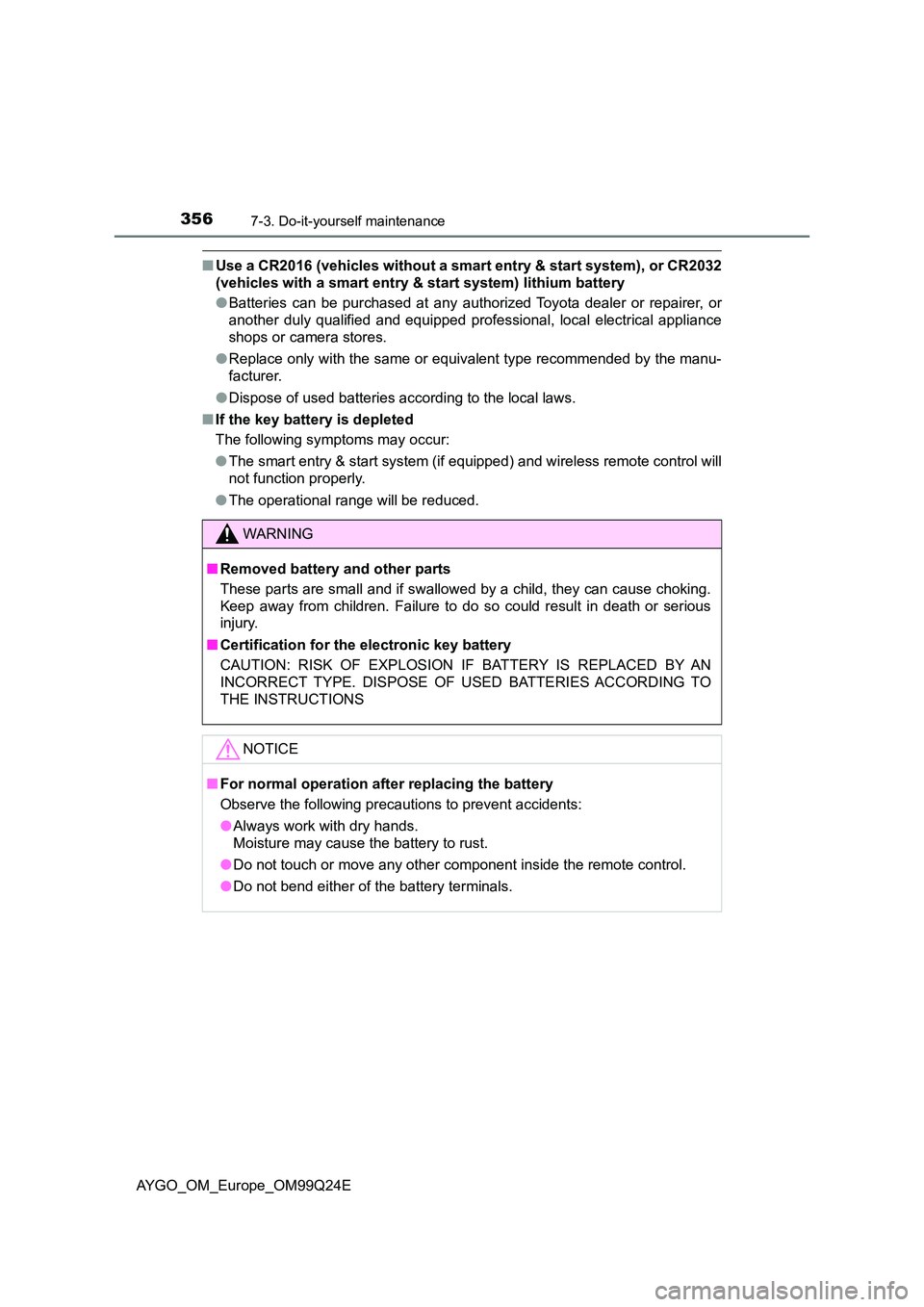

■Use a CR2016 (vehicles without a smart entry & start system), or CR2032
(vehicles with a smart entry & start system) lithium battery
● Batteries can be purchased at any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to the local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart entry & start system (if equipped) and wireless remote control will
not function properly.
● The operational range will be reduced.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
■ Certification for the electronic key battery
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

3577-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E
Checking and replacing fuses
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with a smart entry & start system:
Turn the engine switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. ( P. 359)
Open the fuse box cover.
Engine compartment
Push the tabs in and lift the
cover off.
Driver’s side instrument panel
Remove the cover.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

3587-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E

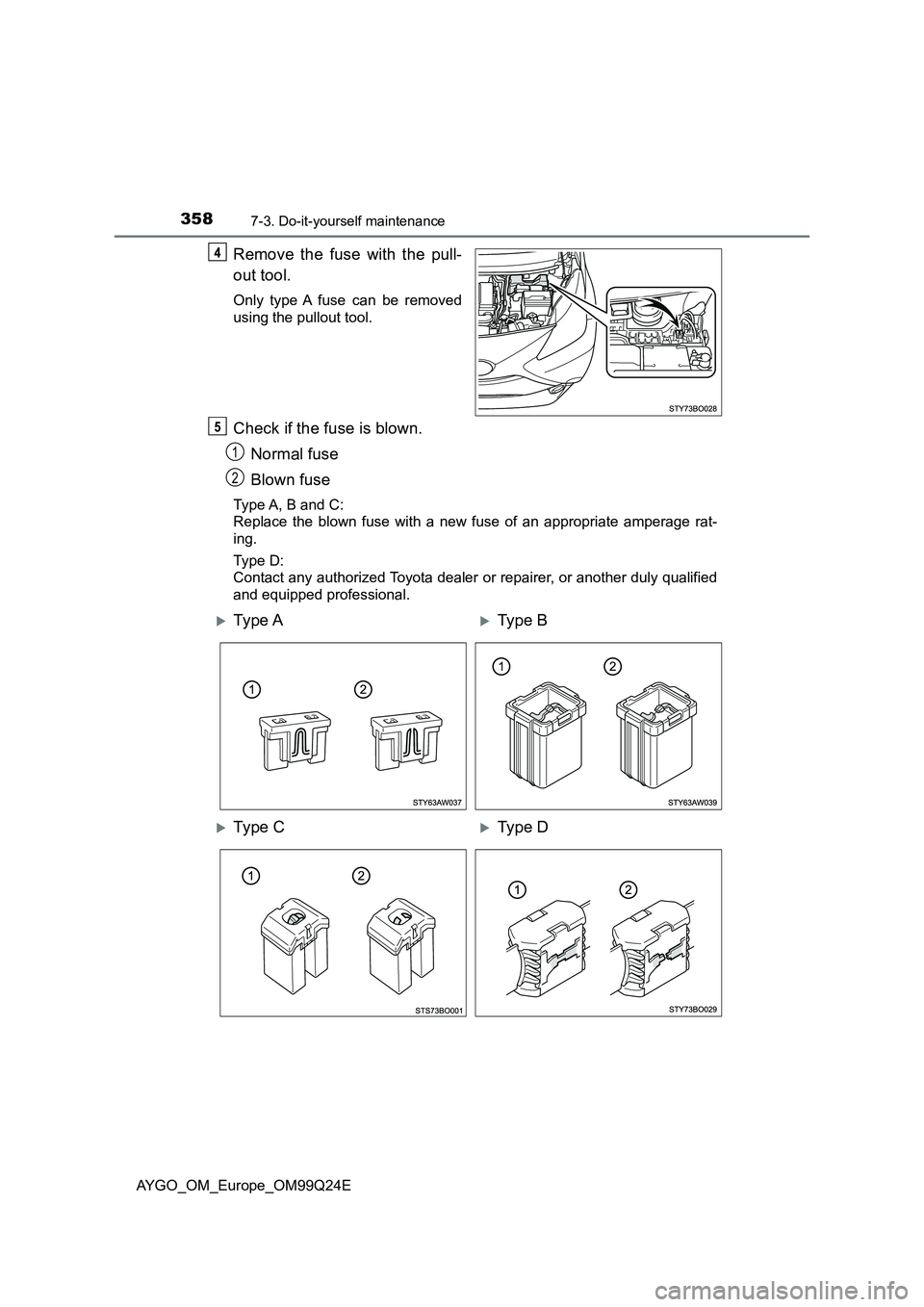

Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
Check if the fuse is blown.
Normal fuse
Blown fuse
Type A, B and C:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing.
Type D:
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
1
2
Ty pe AType B
Ty pe CType D

3597-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E
■Engine compartment

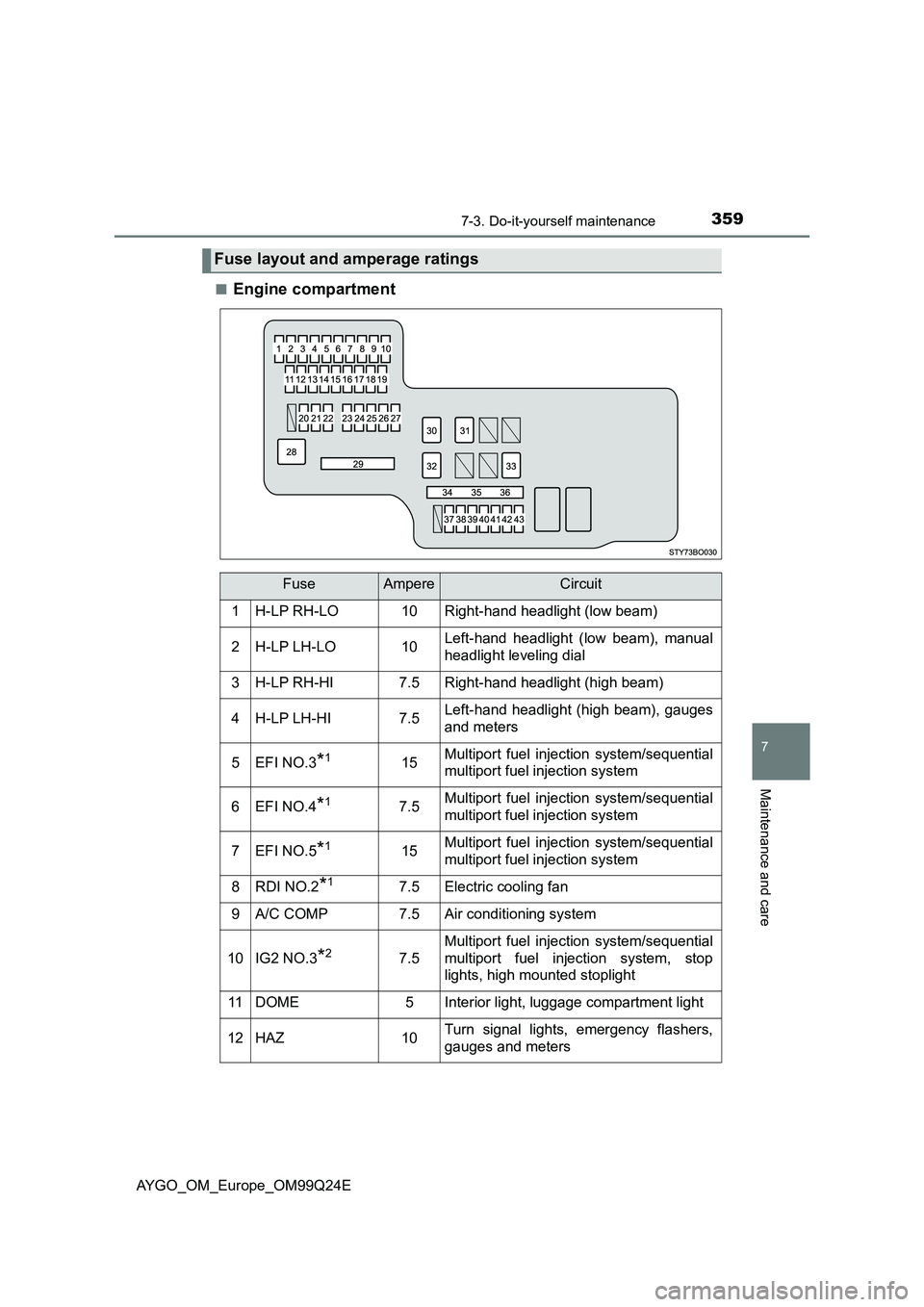

Fuse layout and amperage ratings
FuseAmpereCircuit
1H-LP RH-LO10Right-hand headlight (low beam)
2H-LP LH-LO10Left-hand headlight (low beam), manual
headlight leveling dial
3H-LP RH-HI7.5Right-hand headlight (high beam)
4H-LP LH-HI7.5Left-hand headlight (high beam), gauges
and meters
5EFI NO.3*115Multiport fuel injection system/sequential
multiport fuel injection system
6EFI NO.4*17.5Multiport fuel injection system/sequential
multiport fuel injection system
7EFI NO.5*115Multiport fuel injection system/sequential
multiport fuel injection system
8RDI NO.2*17.5Electric cooling fan
9A/C COMP7.5Air conditioning system
10IG2 NO.3*27.5
Multiport fuel injection system/sequential
multiport fuel injection system, stop
lights, high mounted stoplight
11DOME5Interior light, luggage compartment light
12HAZ10Turn signal lights, emergency flashers,
gauges and meters

3607-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
13HORN10Horn
14D/C CUT30ECU-B NO.1, ECU-B NO.2, ECU-B NO.3
15ECU-B NO.4*27.5Multi-mode manual transmission
16AM2 NO.27.5Multiport fuel injection system/sequential
multiport fuel injection system
17AM2 NO.37.5Smart entry & start system
18ICS*27.5Charging system
19EFI-MAIN*125EFI NO.3, EFI NO.4, EFI NO.5, RDI
NO.2
20ST30Starting system
21STRG LOCK7.5Steering lock system
22H-LP-MAIN25H-LP RH-LO, H-LP LH-LO, H-LP RH-HI,
H-LP LH-HI
23WIPER-S*27.5Multiport fuel injection system/sequential
multiport fuel injection system
24STA7.5
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, multi-mode manual transmis-
sion, Stop & Start system
25ECU-B NO.315Audio system, smart entry & start system
26ECU-B NO.17.5Gauges and meters
27ECU-B NO.27.5Vehicle stability control system
28J/B60Instrument fuse box
29ALT*2125
DEF, S/HTR F/R, S/HTR F/L, CANVAS
TOP, ABS NO.1, ABS NO.2, RDI NO.1,
FOG FR, DRL
30AMT*350Multi-mode manual transmission
BBC*440Stop & Start system
31EPS50Electric power steering system
32RDI NO.1
50*1
Electric cooling fan30*5
40*5
FuseAmpereCircuit
