Engine immobilizer system
Vehicles without a smart entry & start system
The system begins operating after the engine switch is turned from
the “ON” to the “LOCK” position.
The system is canceled after the registered key has been inserted into
the engine switch and turned to the “ON” position.
Vehicles with a smart entry & start system
The system begins operating after the engine switch has been turned
off.
The system is canceled after the engine switch has been turned to
IGNITION ON mode.
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

771-3. Theft deterrent system
1
For safety and security
AYGO_OM_Europe_OM99Q24E
■ Certifications for the engine immobilizer system
Vehicles without a smart entry & start system
The DECLARATION of CONFORMITY (DoC) is available at the following address:
http://www.tokai-rika.co.jp/pc/

1213-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_OM_Europe_OM99Q24E

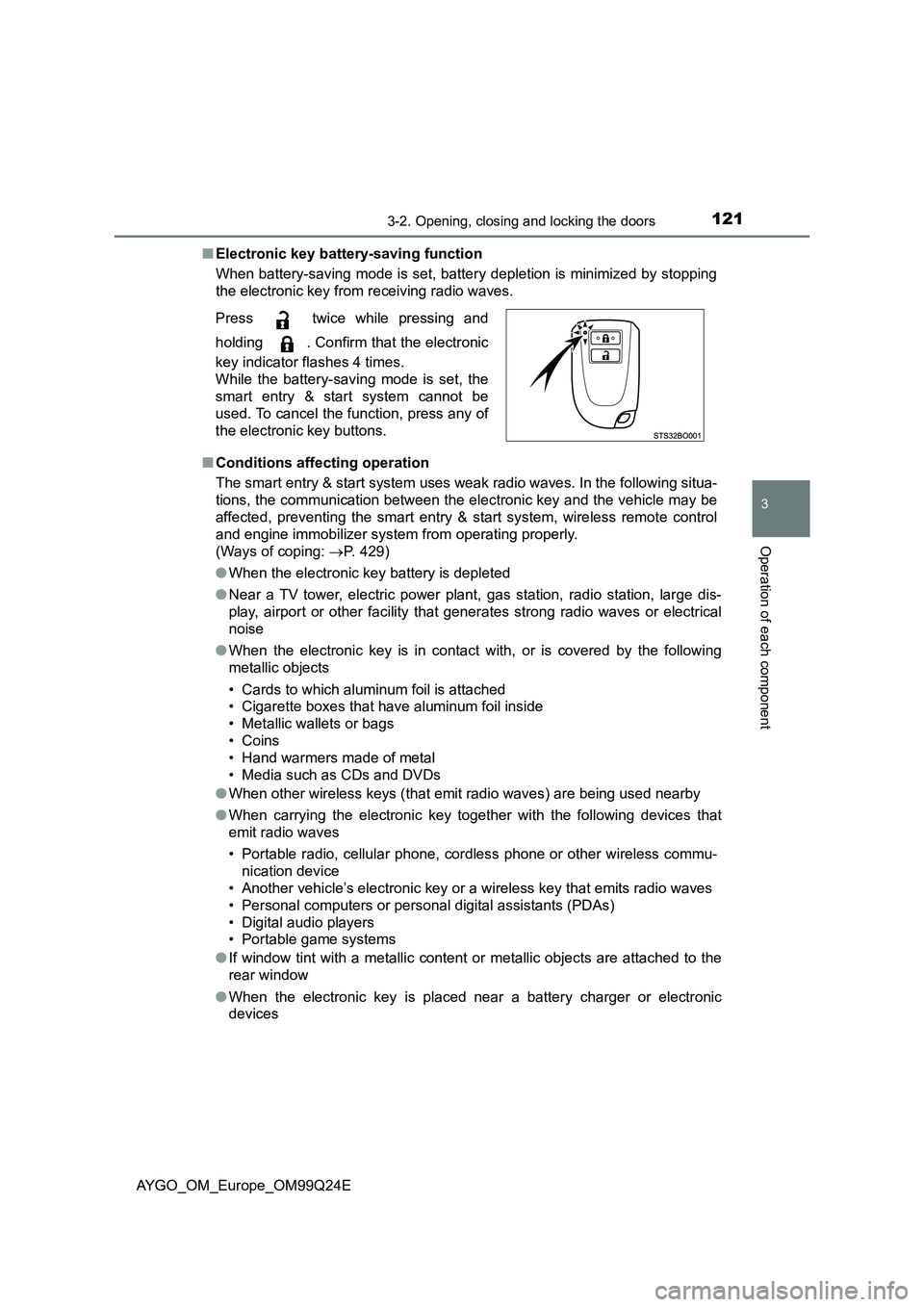

■ Electronic key battery-saving function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
■ Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the el ectronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and engine immobilizer system from operating properly.
(Ways of coping: P. 429)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Portable radio, cellular phone, cordless phone or other wireless commu-
nication device
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or pers onal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.

1564-2. Driving procedures
AYGO_OM_Europe_OM99Q24E

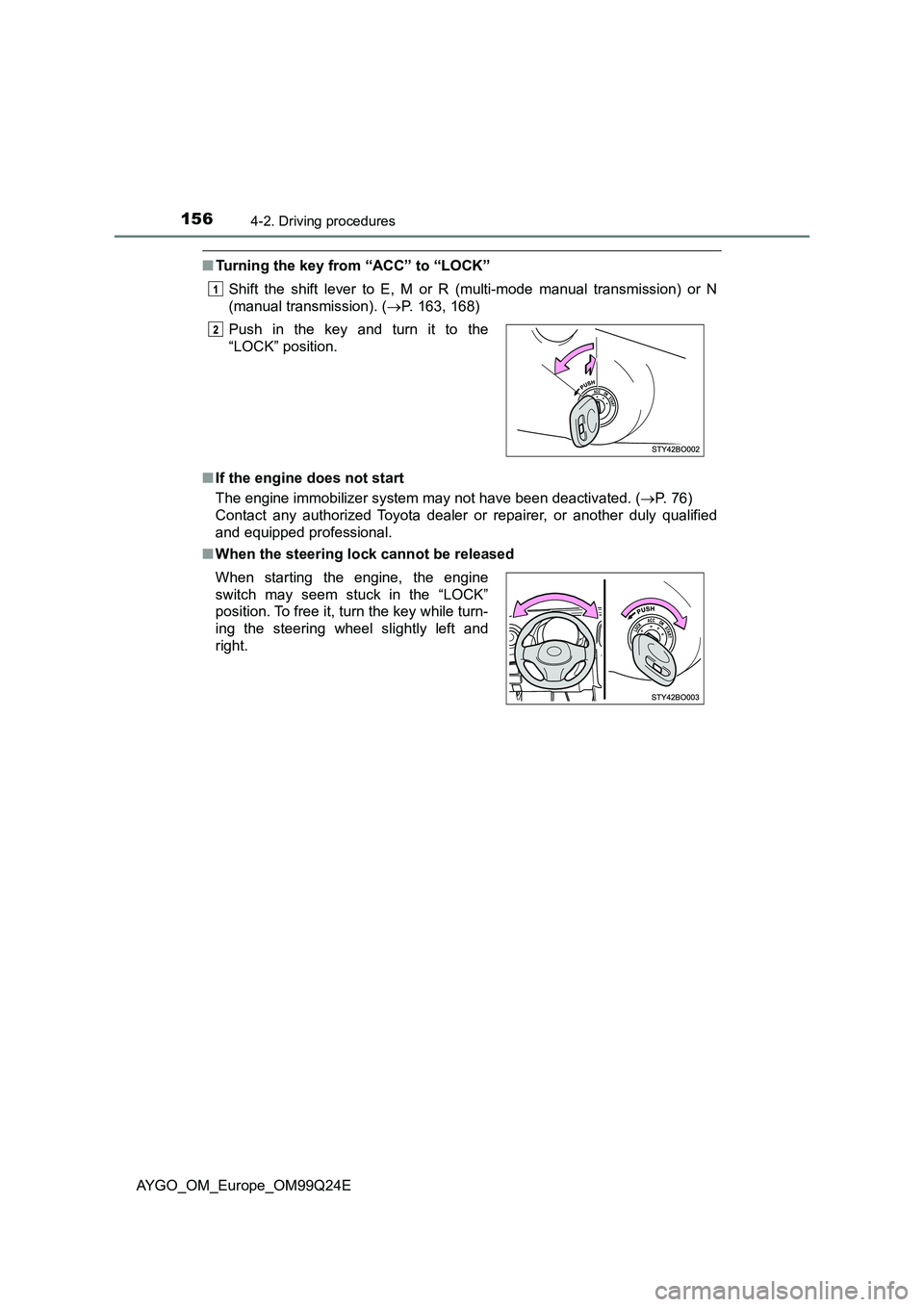

■Turning the key from “ACC” to “LOCK”
Shift the shift lever to E, M or R (multi-mode manual transmission) or N
(manual transmission). ( P. 163, 168)
■ If the engine does not start
The engine immobilizer system may not have been deactivated. ( P. 76)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
■ When the steering lock cannot be released
Push in the key and turn it to the
“LOCK” position.
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly left and
right.

1604-2. Driving procedures
AYGO_OM_Europe_OM99Q24E

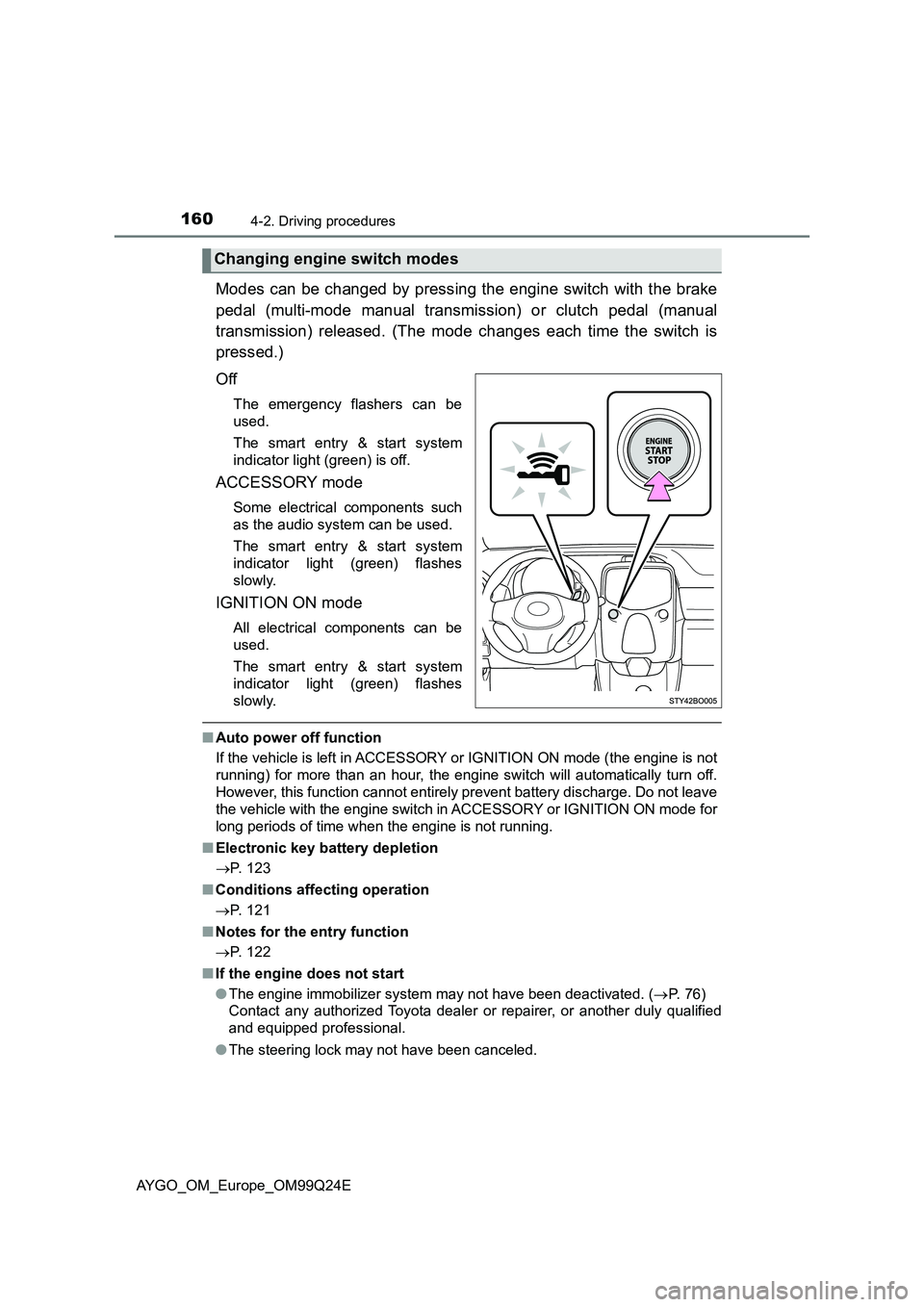

Modes can be changed by pressing the engine switch with the brake
pedal (multi-mode manual transmission) or clutch pedal (manual
transmission) released. (The mode changes each time the switch is
pressed.)
Off
The emergency flashers can be
used.
The smart entry & start system
indicator light (green) is off.
ACCESSORY mode
Some electrical components such
as the audio system can be used.
The smart entry & start system
indicator light (green) flashes
slowly.
IGNITION ON mode
All electrical components can be
used.
The smart entry & start system
indicator light (green) flashes
slowly.
■ Auto power off function
If the vehicle is left in ACCESSORY or IGNITION ON mode (the engine is not
running) for more than an hour, the engine switch will automatically turn off.
However, this function cannot entirely prevent battery discharge. Do not leave
the vehicle with the engine switch in ACCESSORY or IGNITION ON mode for
long periods of time when the engine is not running.
■ Electronic key battery depletion
 P. 123
■ Conditions affecting operation
 P. 121
■ Notes for the entry function
 P. 122
■ If the engine does not start
● The engine immobilizer system may not have been deactivated. (P. 7 6 )
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● The steering lock may not have been canceled.
Changing engine switch modes

4268-2. Steps to take in an emergency
AYGO_OM_Europe_OM99Q24E

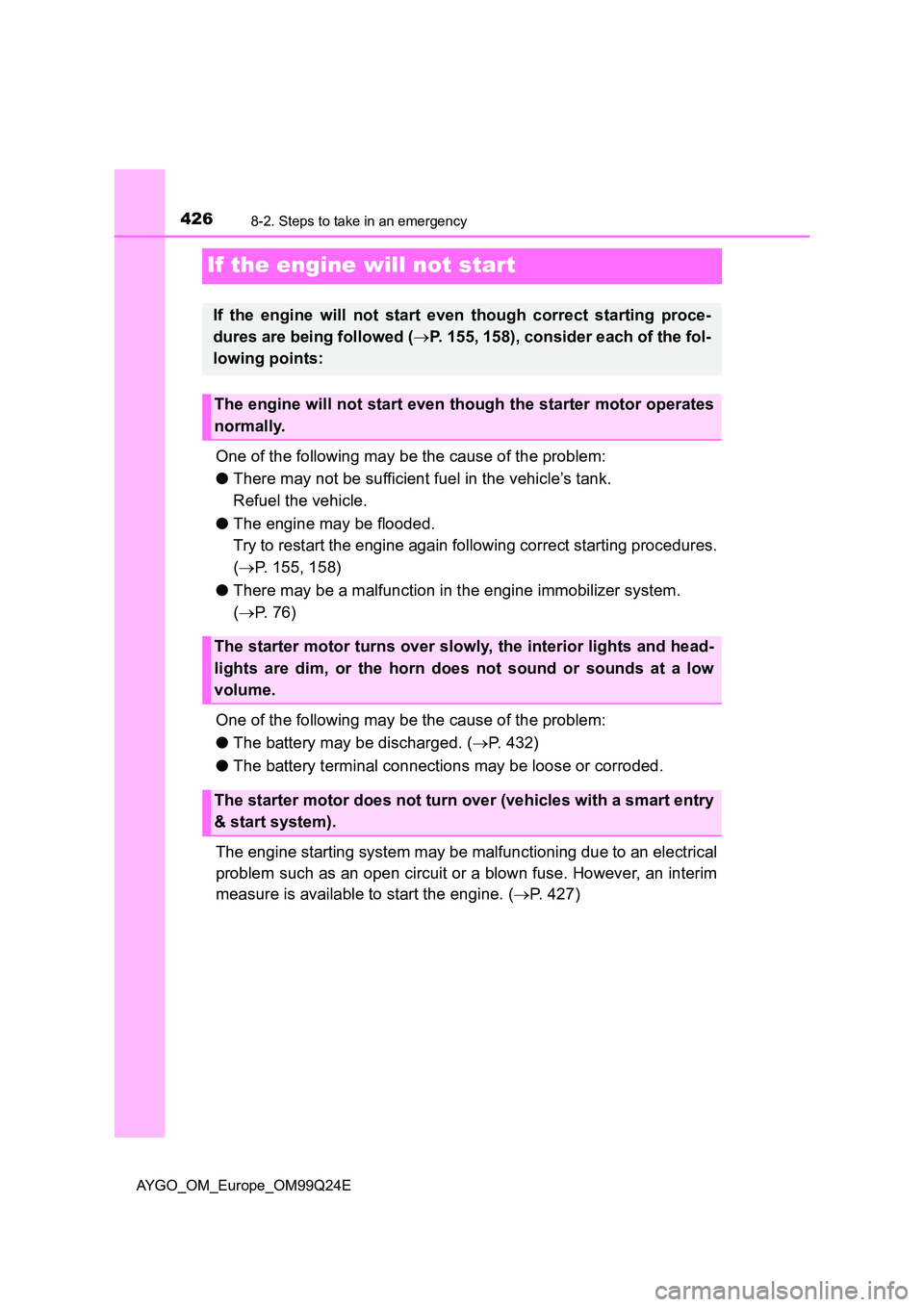

If the engine will not start
One of the following may be the cause of the problem:
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting procedures.
( P. 155, 158)
● There may be a malfunction in the engine immobilizer system.
( P. 7 6 )
One of the following may be the cause of the problem:
● The battery may be discharged. (P. 432)
● The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as an open circuit or a blown fuse. However, an interim
measure is available to start the engine. ( P. 427)
If the engine will not start even though correct starting proce-
dures are being followed ( P. 155, 158), consider each of the fol-
lowing points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor does not turn over (vehicles with a smart entry
& start system).

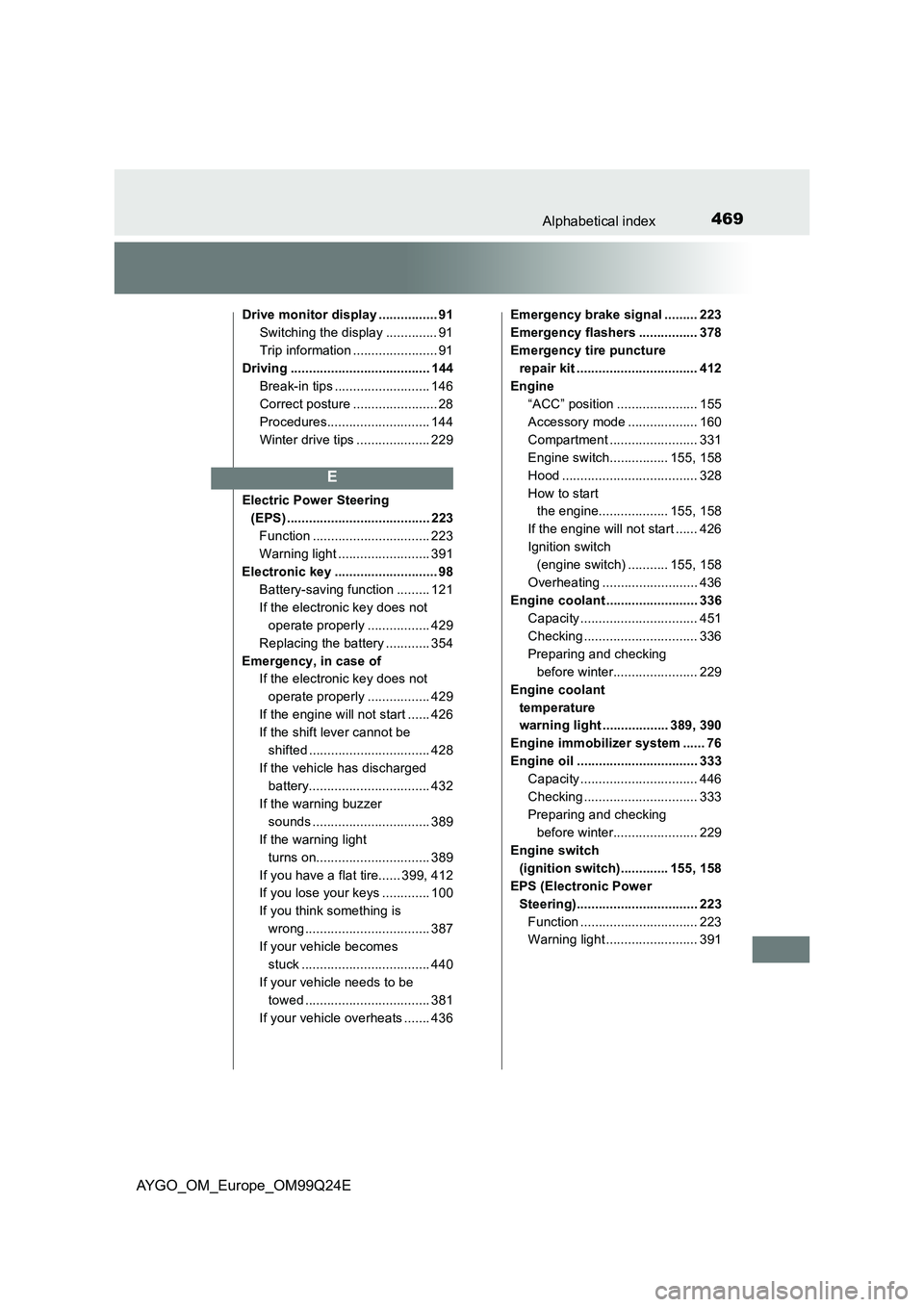

469Alphabetical index
AYGO_OM_Europe_OM99Q24E
Drive monitor display ................ 91
Switching the display .............. 91
Trip information ....................... 91
Driving ...................................... 144
Break-in tips .......................... 146
Correct posture ....................... 28
Procedures............................ 144
Winter drive tips .................... 229
Electric Power Steering
(EPS) ....................................... 223
Function ................................ 223
Warning light ......................... 391
Electronic key ............................ 98
Battery-saving function ......... 121
If the electronic key does not
operate properly ................. 429
Replacing the battery ............ 354
Emergency, in case of
If the electronic key does not
operate properly ................. 429
If the engine will not start ...... 426
If the shift lever cannot be
shifted ................................. 428
If the vehicle has discharged
battery................................. 432
If the warning buzzer
sounds ................................ 389
If the warning light
turns on............................... 389
If you have a flat tire...... 399, 412
If you lose your keys ............. 100
If you think something is
wrong .................................. 387
If your vehicle becomes
stuck ................................... 440
If your vehicle needs to be
towed .................................. 381
If your vehicle overheats ....... 436
Emergency brake signal ......... 223
Emergency flashers ................ 378
Emergency tire puncture
repair kit ................................. 412
Engine
“ACC” position ...................... 155
Accessory mode ................... 160
Compartment ........................ 331
Engine switch................ 155, 158
Hood ..................................... 328
How to start
the engine................... 155, 158
If the engine will not start ...... 426
Ignition switch
(engine switch) ........... 155, 158
Overheating .......................... 436
Engine coolant ......................... 336
Capacity ................................ 451
Checking ............................... 336
Preparing and checking
before winter....................... 229
Engine coolant
temperature
warning light .................. 389, 390
Engine immobilizer system ...... 76
Engine oil ................................. 333
Capacity ................................ 446
Checking ............................... 333
Preparing and checking
before winter....................... 229
Engine switch
(ignition switch)............. 155, 158
EPS (Electronic Power
Steering)................................. 223
Function ................................ 223
Warning light ......................... 391
E

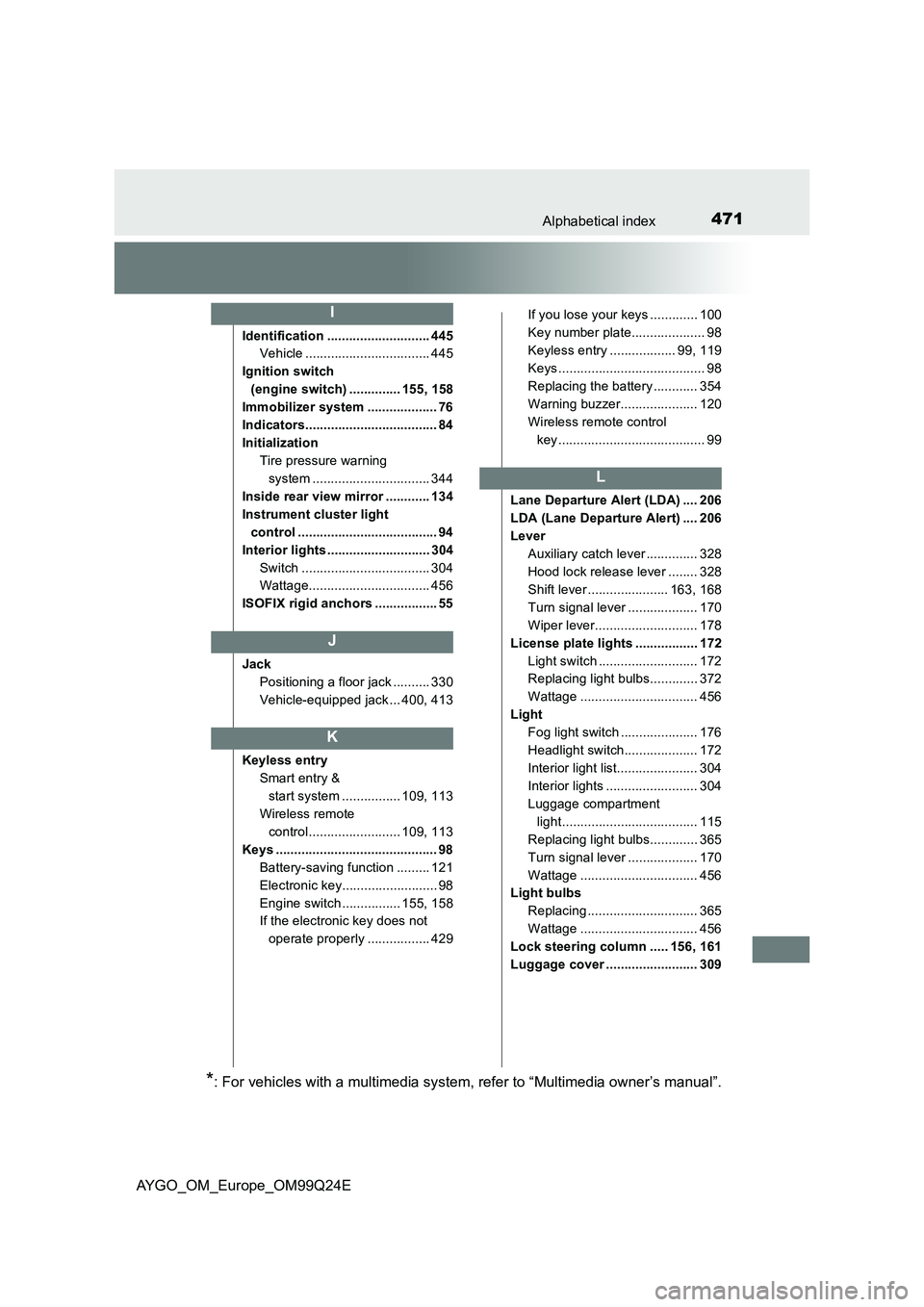

471Alphabetical index
AYGO_OM_Europe_OM99Q24E
Identification ............................ 445
Vehicle .................................. 445
Ignition switch
(engine switch) .............. 155, 158
Immobilizer system ................... 76
Indicators.................................... 84
Initialization
Tire pressure warning
system ................................ 344
Inside rear view mirror ............ 134
Instrument cluster light
control ...................................... 94
Interior lights ............................ 304
Switch ................................... 304
Wattage................................. 456
ISOFIX rigid anchors ................. 55
Jack
Positioning a floor jack .......... 330
Vehicle-equipped jack ... 400, 413
Keyless entry
Smart entry &
start system ................ 109, 113
Wireless remote
control......................... 109, 113
Keys ............................................ 98
Battery-saving function ......... 121
Electronic key.......................... 98
Engine switch ................ 155, 158
If the electronic key does not
operate properly ................. 429
If you lose your keys ............. 100
Key number plate.................... 98
Keyless entry .................. 99, 119
Keys ........................................ 98
Replacing the battery ............ 354
Warning buzzer..................... 120
Wireless remote control
key........................................ 99
Lane Departure Alert (LDA) .... 206
LDA (Lane Departure Alert) .... 206
Lever
Auxiliary catch lever .............. 328
Hood lock release lever ........ 328
Shift lever ...................... 163, 168
Turn signal lever ................... 170
Wiper lever............................ 178
License plate lights ................. 172
Light switch ........................... 172
Replacing light bulbs............. 372
Wattage ................................ 456
Light
Fog light switch ..................... 176
Headlight switch.................... 172
Interior light list...................... 304
Interior lights ......................... 304
Luggage compartment
light..................................... 115
Replacing light bulbs............. 365
Turn signal lever ................... 170
Wattage ................................ 456
Light bulbs
Replacing .............................. 365
Wattage ................................ 456
Lock steering column ..... 156, 161
Luggage cover ......................... 309
I
J
K
L
*: For vehicles with a multimedia system , refer to “Multimedia owner’s manual”.
