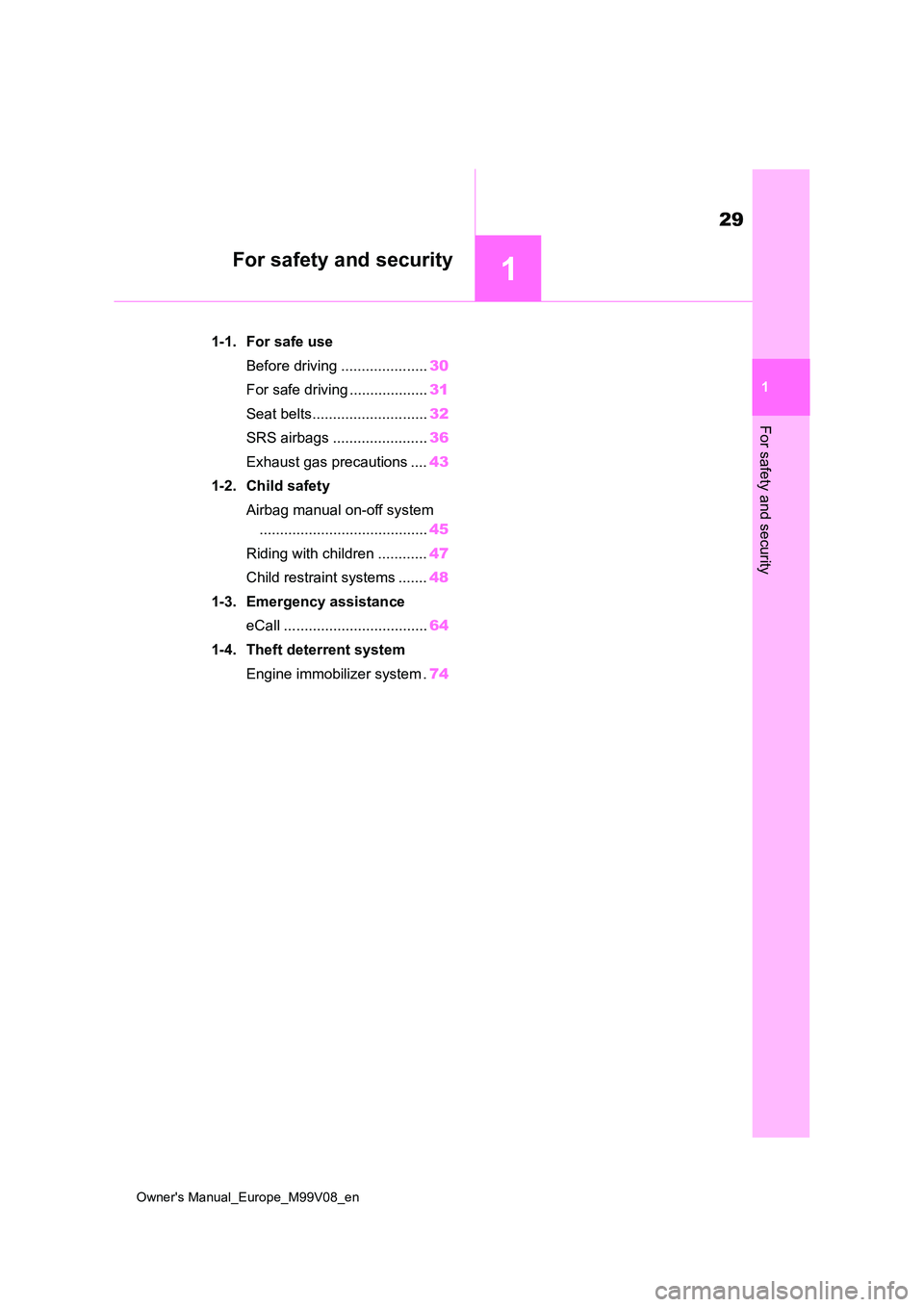

For safety and security
For safety and security
1-1. For safe use
Before driving ..................... 30
For safe driving ................... 31
Seat belts............................ 32
SRS airbags ....................... 36
Exhaust gas precautions .... 43
1-2. Child safety
Airbag manual on-off system
......................................... 45
Riding with children ............ 47
Child restraint systems ....... 48
1-3. Emergency assistance
eCall ................................... 64
1-4. Theft deterrent system
Engine immobilizer system . 74

30
Owner's Manual_Europe_M99V08_en
1-1. For safe use
1-1.For s afe us e

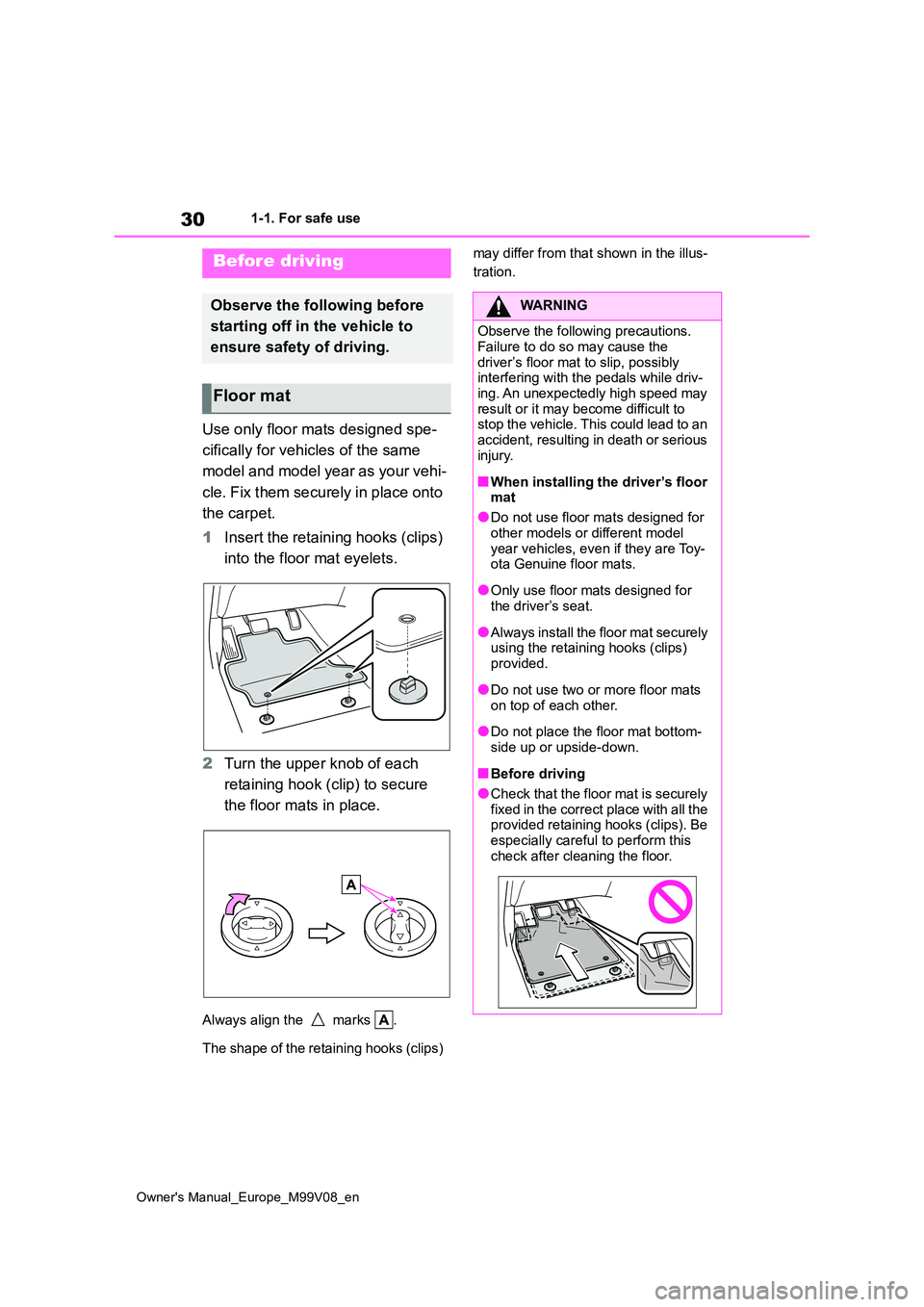

Use only floor mats designed spe-
cifically for vehicles of the same
model and model year as your vehi-
cle. Fix them securely in place onto
the carpet.
1 Insert the retaining hooks (clips)
into the floor mat eyelets.
2 Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
Always align the marks .
The shape of the retaining hooks (clips)
may differ from that shown in the illus-
tration.Before driving
Observe the following before
starting off in t he vehicle to
ensure safety of driving.
Floor mat
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the pedals while driv-
ing. An unexpectedly high speed may result or it may become difficult to stop the vehicle. This could lead to an
accident, resulting in death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for
other models or different model year vehicles, even if they are Toy-ota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips)
provided.
●Do not use two or more floor mats
on top of each other.
●Do not place the floor mat bottom-
side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in the correct place with all the provided retaining hooks (clips). Be
especially careful to perform this check after cleaning the floor.

31
1
Owner's Manual_Europe_M99V08_en
1-1. For safe use
For safety and security

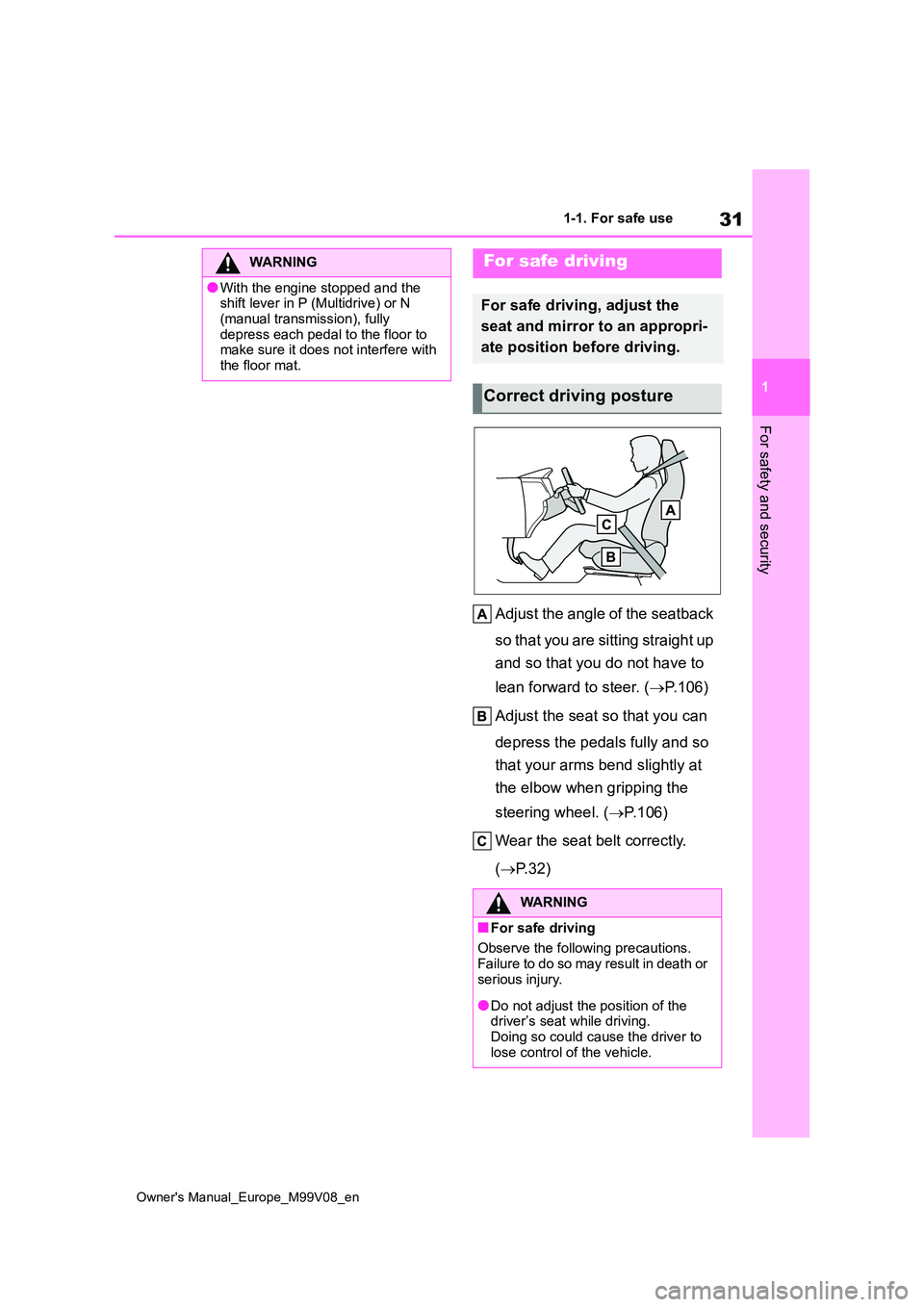

Adjust the angle of the seatback
so that you are sitting straight up
and so that you do not have to
lean forward to steer. ( P.106)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P.106)
Wear the seat belt correctly.
( P. 3 2 )
WARNING
●With the engine stopped and the shift lever in P (Multidrive) or N
(manual transmission), fully depress each pedal to the floor to make sure it does not interfere with
the floor mat.
For safe driving
For safe driving, adjust the
seat and mirror to an appropri-
ate position before driving.
Correct driving posture
WARNING
■For safe driving
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.Doing so could cause the driver to
lose control of the vehicle.

32
Owner's Manual_Europe_M99V08_en
1-1. For safe use

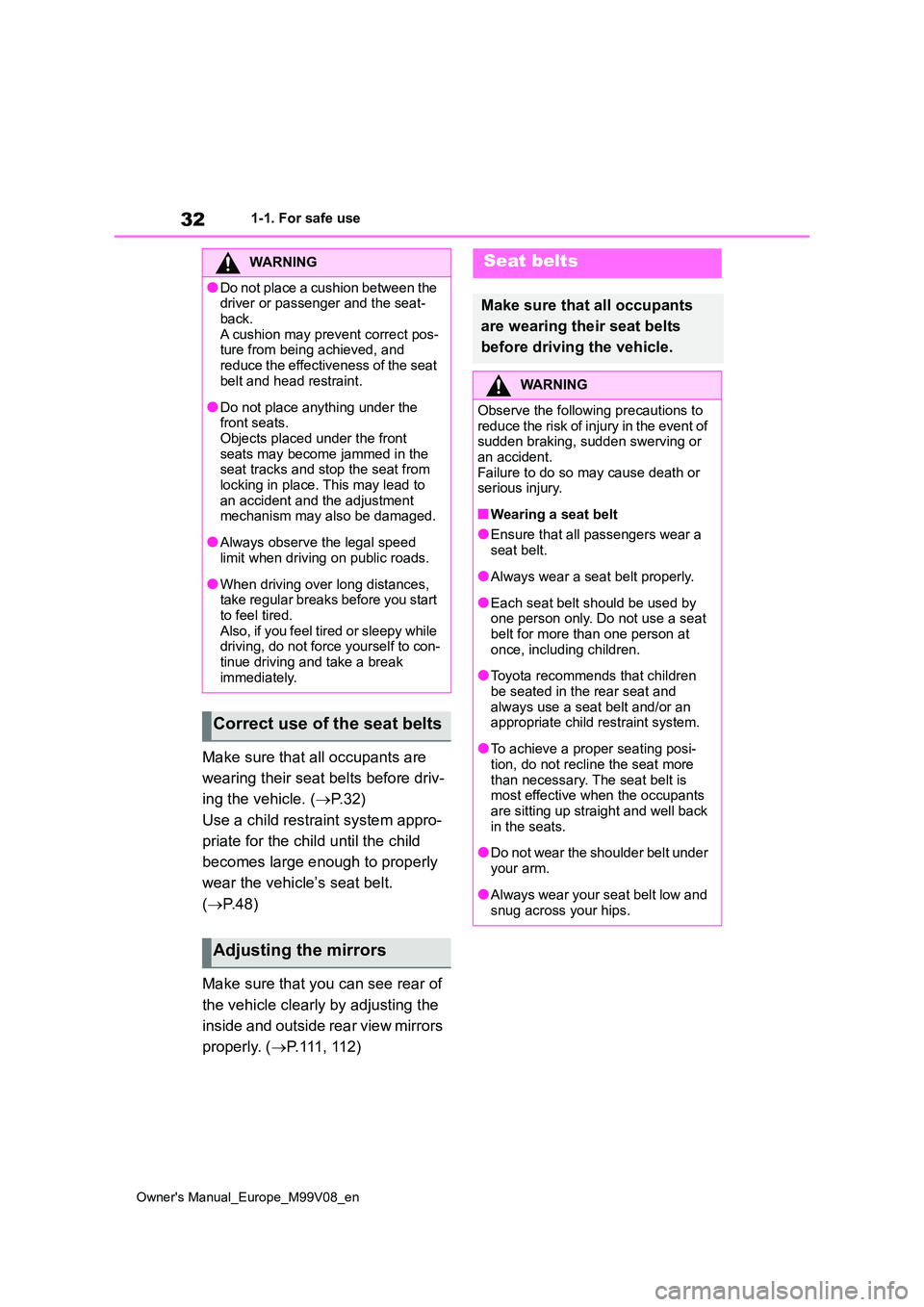

Make sure that all occupants are
wearing their seat belts before driv-
ing the vehicle. ( P.32)
Use a child restraint system appro-
priate for the child until the child
becomes large enough to properly
wear the vehicle’s seat belt.
( P. 4 8 )
Make sure that you can see rear of
the vehicle clearly by adjusting the
inside and outside rear view mirrors
properly. ( P. 111 , 11 2 )
WARNING
●Do n ot p la ce a cu s hi on b et we en t he driver or passenger and the seat-
back. A cushion may prevent correct pos-ture from being achieved, and
reduce the effectiveness of the seat belt and head restraint.
●Do not place anything under the front seats.Objects placed under the front
seats may become jammed in the seat tracks and stop the seat from locking in place. This may lead to
an accident and the adjustment mechanism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-tinue driving and take a break
immediately.
Correct use of the seat belts
Adjusting the mirrors
Seat belts
Make sure that all occupants
are wearing their seat belts
before driving the vehicle.
WARNING
Observe the following precautions to
re d uc e t he r i sk of i n ju r y in t he e ve n t of sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more than one person at
once, including children.
●Toyota recommends that children
be seated in the rear seat and always use a seat belt and/or an appropriate child restraint system.
●To achieve a proper seating posi-tion, do not recline the seat more
than necessary. The seat belt is most effective when the occupants are sitting up straight and well back
in the seats.
●Do not wear the shoulder belt under
your arm.
●Always wear your seat belt low and
snug across your hips.

33
1
Owner's Manual_Europe_M99V08_en
1-1. For safe use
For safety and security

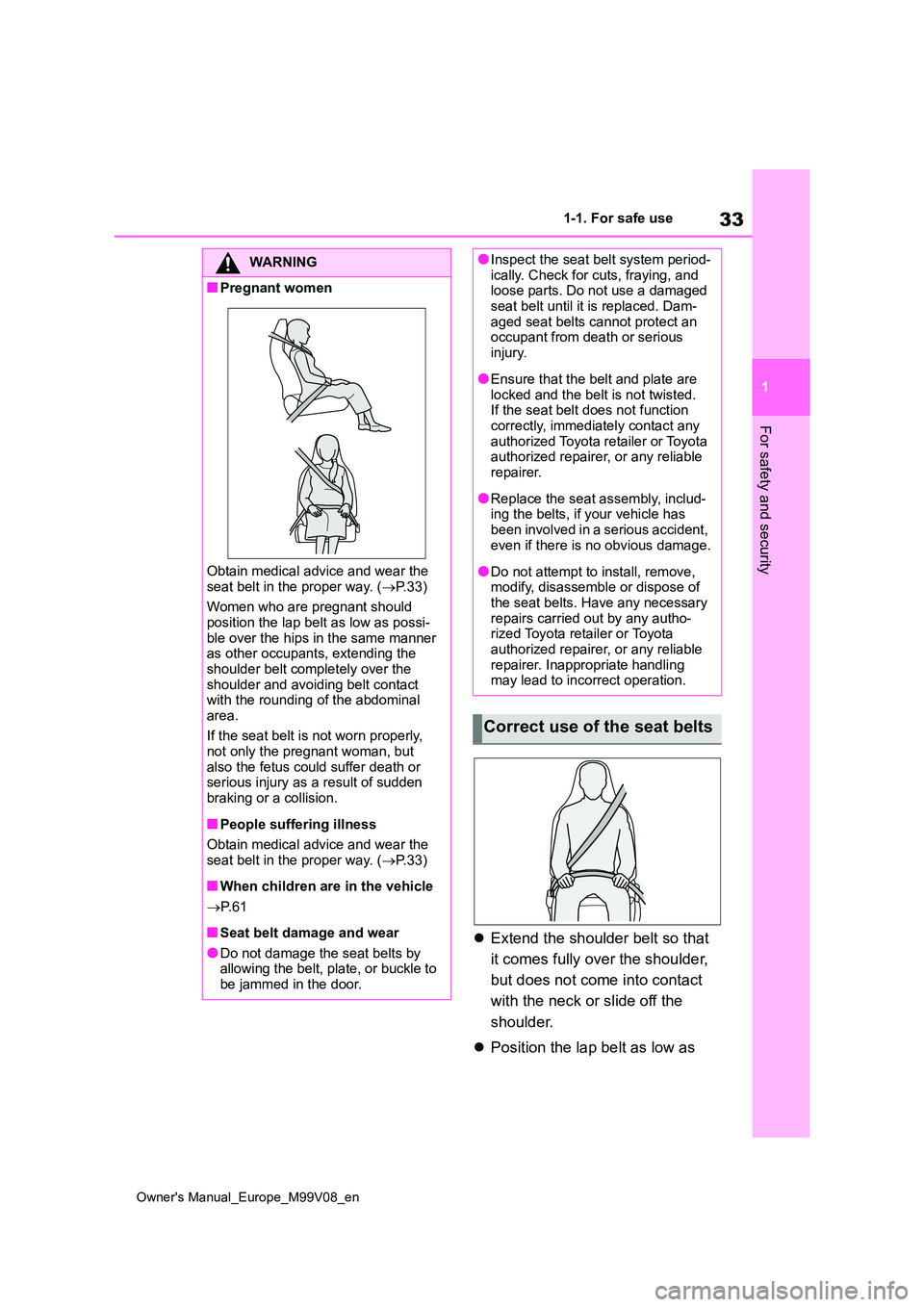

Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
 Position the lap belt as low as
WARNING
■Pregnant women
Obtain medical advice and wear the
seat belt in the proper way. ( P.33)
Women who are pregnant should
position the lap belt as low as possi- ble over the hips in the same manner as other occupants, extending the
shoulder belt completely over the shoulder and avoiding belt contact with the rounding of the abdominal
area.
If the seat belt is not worn properly, not only the pregnant woman, but
also the fetus could suffer death or serious injury as a result of sudden braking or a collision.
■People suffering illness
Obtain medical advice and wear the
seat belt in the proper way. ( P.33)
■When children are in the vehicle
 P. 6 1
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in the door.
●Inspect the seat belt system period-ically. Check for cuts, fraying, and loose parts. Do not use a damaged
seat belt until it is replaced. Dam- aged seat belts cannot protect an occupant from death or serious
injury.
●Ensure that the belt and plate are
locked and the belt is not twisted. If the seat belt does not function correctly, immediately contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Replace the seat assembly, includ-ing the belts, if your vehicle has
been involved in a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts. Have any necessary
repairs carried out by any autho- rized Toyota retailer or Toyota authorized repairer, or any reliable
repairer. Inappropriate handling may lead to incorrect operation.
Correct use of the seat belts

34
Owner's Manual_Europe_M99V08_en
1-1. For safe use

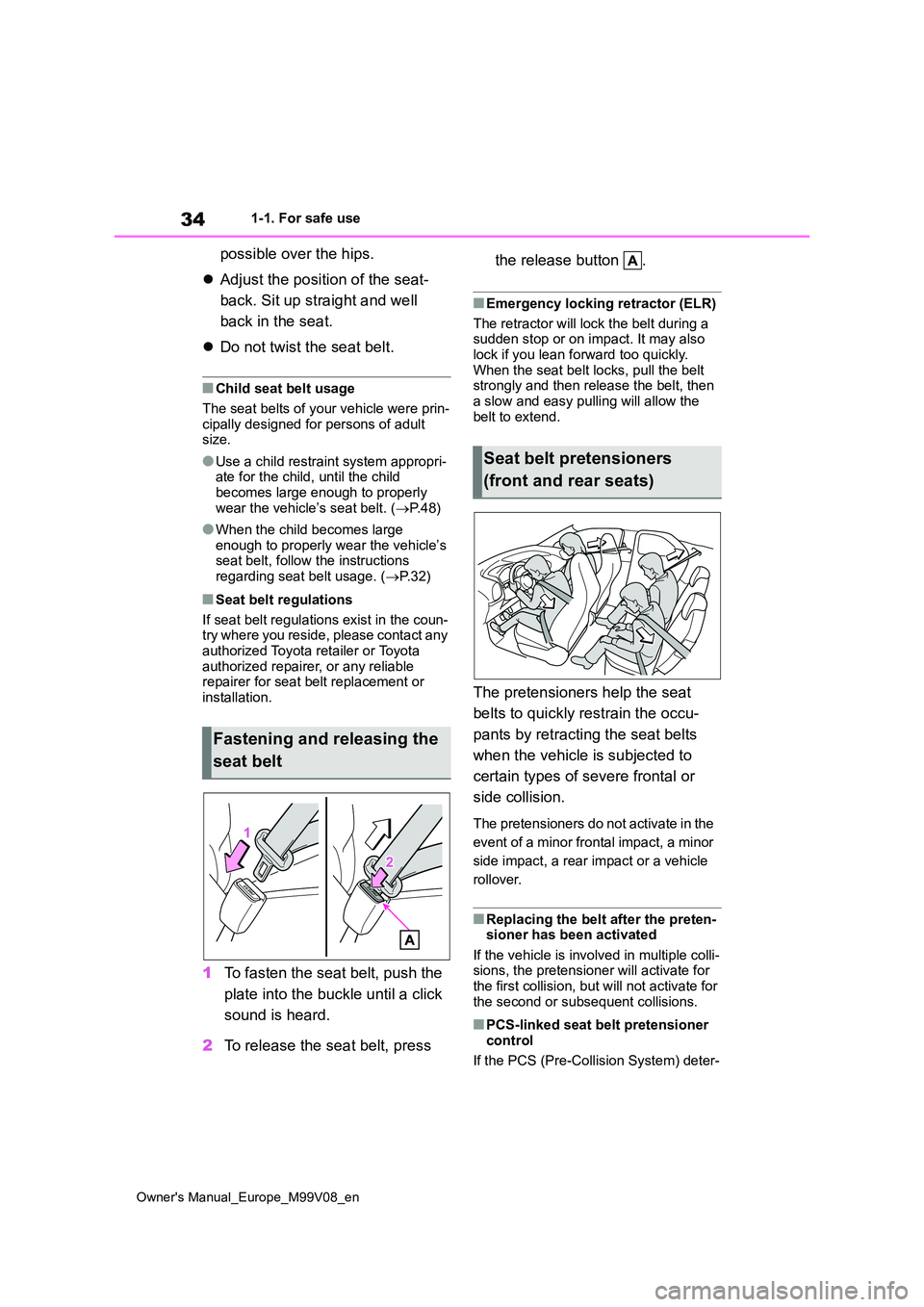

possible over the hips.
 Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
 Do not twist the seat belt.
■Child seat belt usage
The seat belts of your vehicle were prin- cipally designed for persons of adult size.
●Use a child restraint system appropri-ate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. ( P. 4 8 )
●When the child becomes large enough to properly wear the vehicle’s seat belt, follow the instructions
regarding seat belt usage. ( P. 3 2 )
■Seat belt regulations
If seat belt regulations exist in the coun- try where you reside, please contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer for seat belt replacement or
installation.
1 To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
2 To release the seat belt, press
the release button .
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. When the seat belt locks, pull the belt strongly and then release the belt, then
a slow and easy pulling will allow the belt to extend.
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle
rollover.
■Replacing the belt after the preten- sioner has been activated
If the vehicle is involved in multiple colli- sions, the pretensioner will activate for the first collision, but will not activate for
the second or subsequent collisions.
■PCS-linked seat belt pretensioner control
If the PCS (Pre-Collision System) deter-
Fastening and releasing the
seat belt
Seat belt pretensioners
(front and rear seats)

35
1
Owner's Manual_Europe_M99V08_en
1-1. For safe use
For safety and security

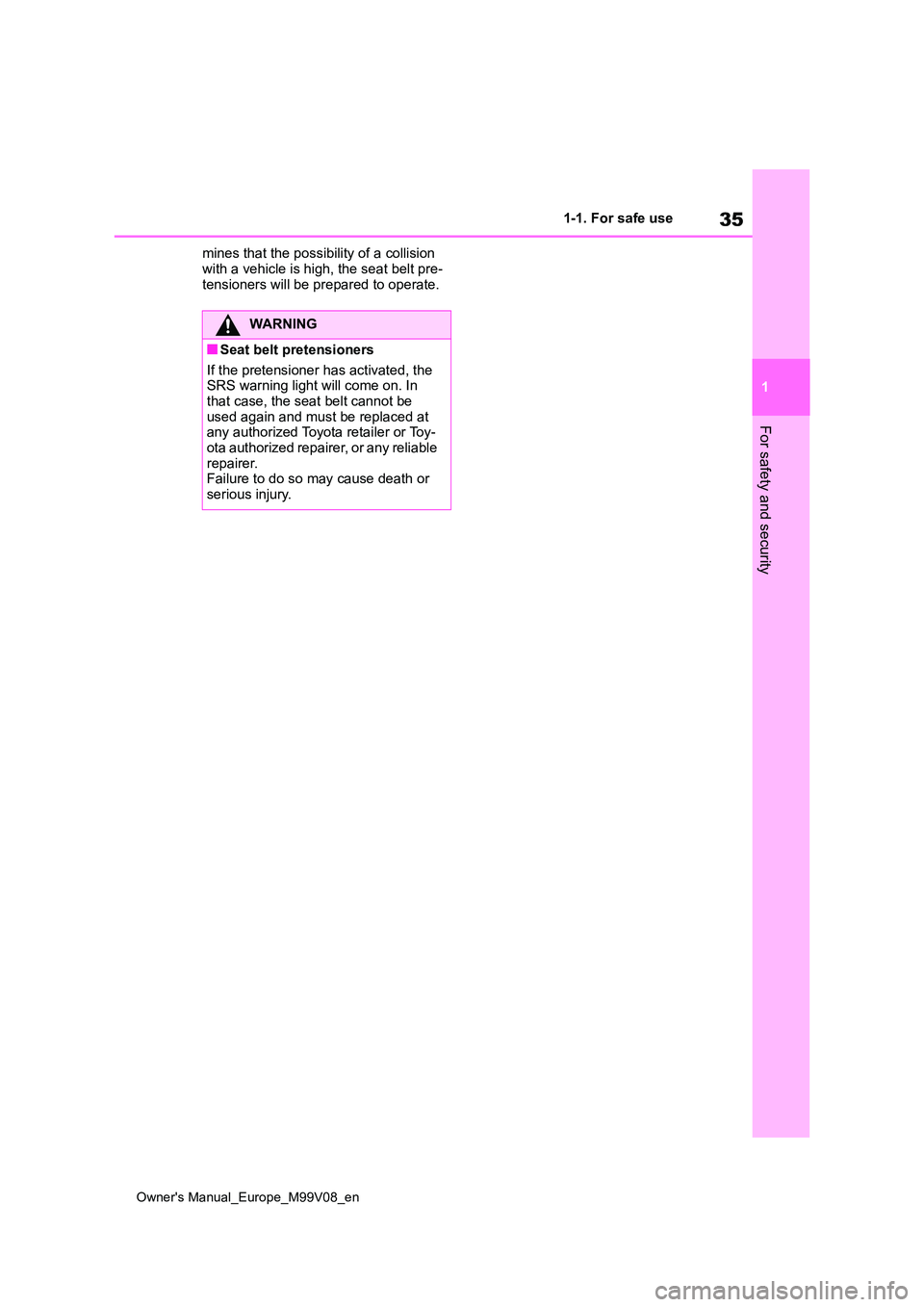

mines that the possibility of a collision
with a vehicle is high, the seat belt pre- tensioners will be prepared to operate.
WARNING
■Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that case, the seat belt cannot be
used again and must be replaced at any authorized Toyota retailer or Toy-ota authorized repairer, or any reliable
repairer. Failure to do so may cause death or serious injury.

36
Owner's Manual_Europe_M99V08_en
1-1. For safe use

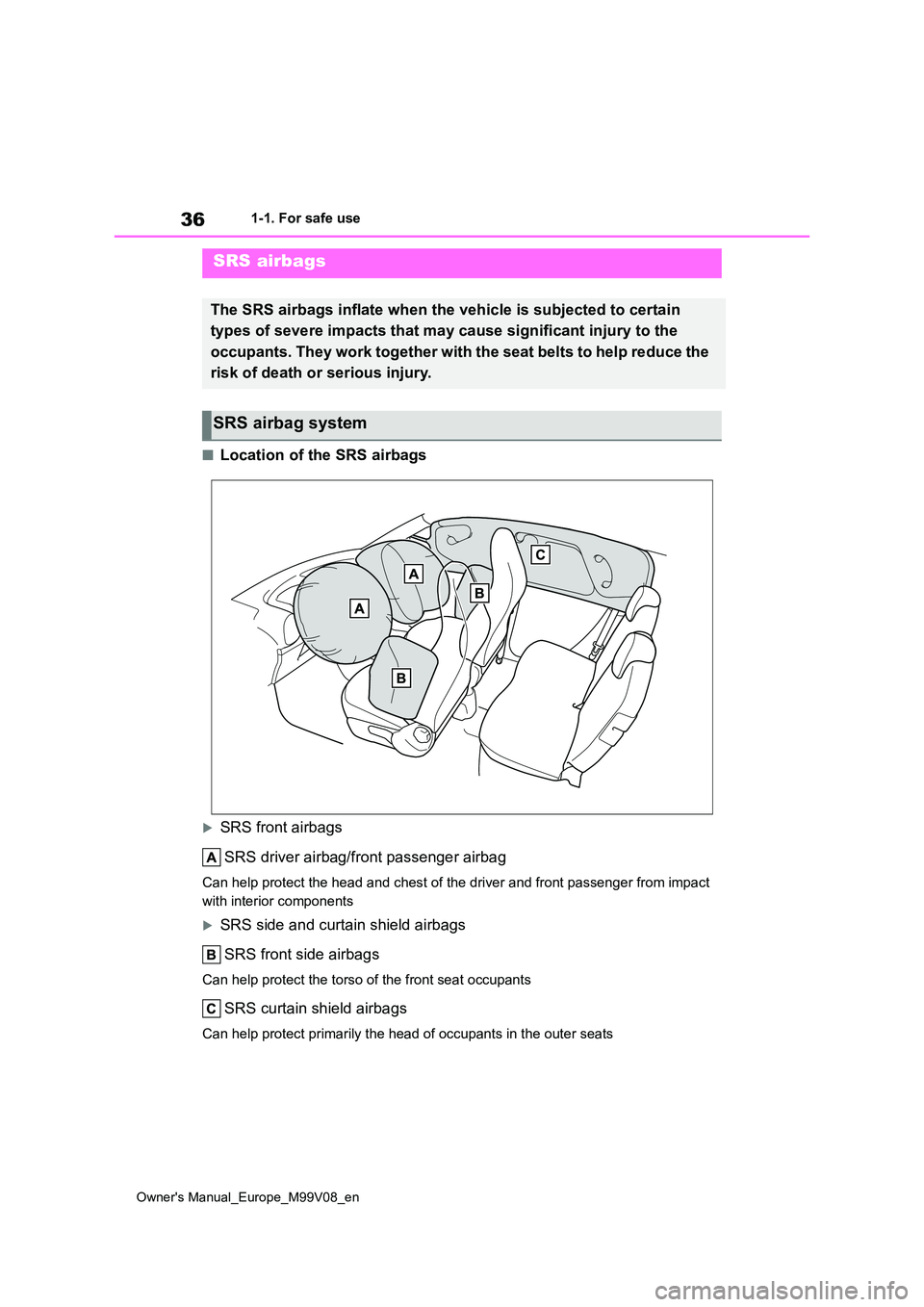

■Location of the SRS airbags
SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front pas senger from impact
with interior components
SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
Can help protect primarily the head of occupants in the outer s eats
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to th e
occupants. They work together with the seat belts to help reduc e the
risk of death or serious injury.
SRS airbag system

37
1
Owner's Manual_Europe_M99V08_en
1-1. For safe use
For safety and security

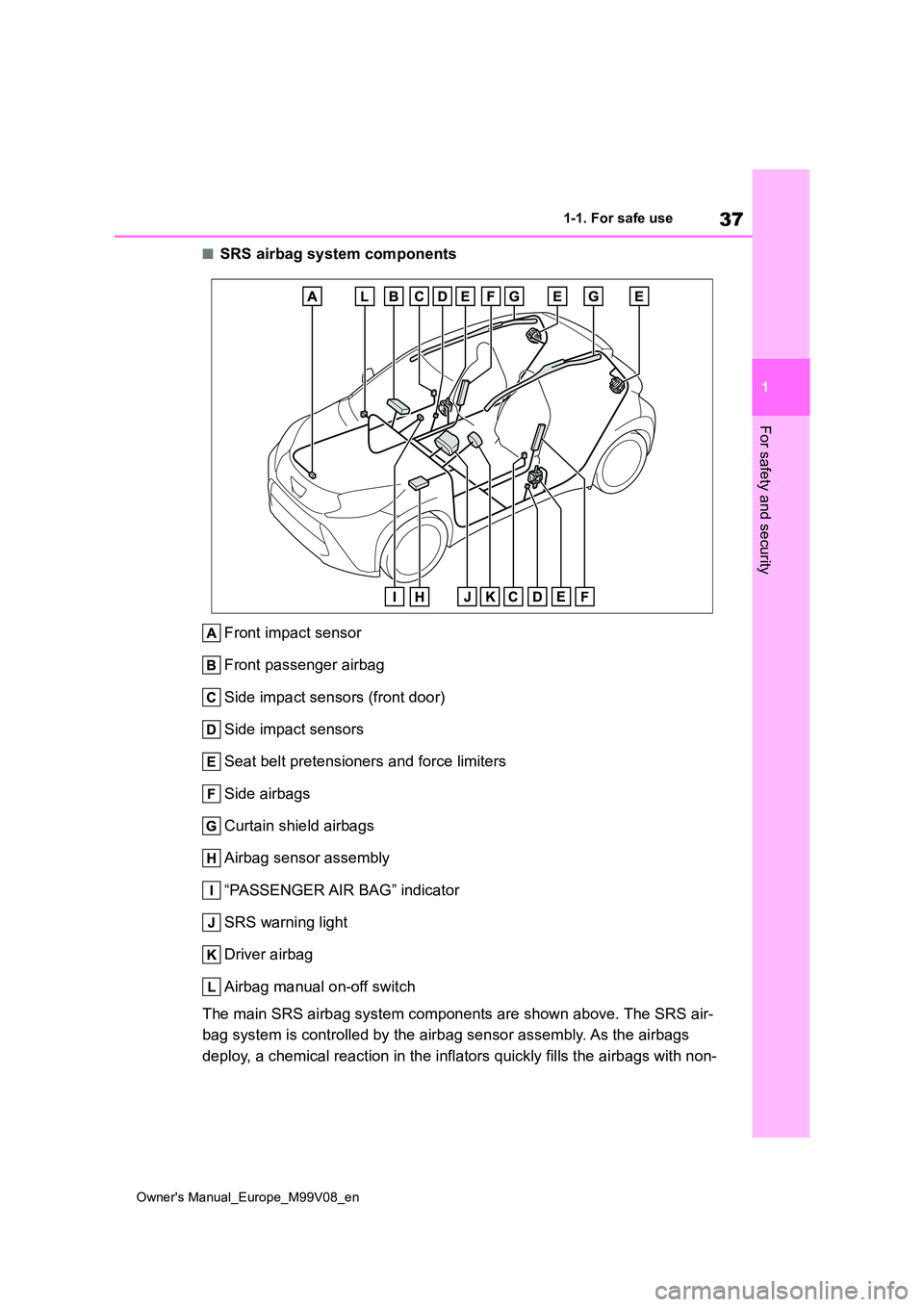

■SRS airbag system components
Front impact sensor
Front passenger airbag
Side impact sensors (front door)
Side impact sensors
Seat belt pretensioners and force limiters
Side airbags
Curtain shield airbags
Airbag sensor assembly
“PASSENGER AIR BAG” indicator
SRS warning light
Driver airbag
Airbag manual on-off switch
The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airbag sensor assembly. As the airbags
deploy, a chemical reaction in the inflators quickly fills the airbags with non-

38
Owner's Manual_Europe_M99V08_en
1-1. For safe use

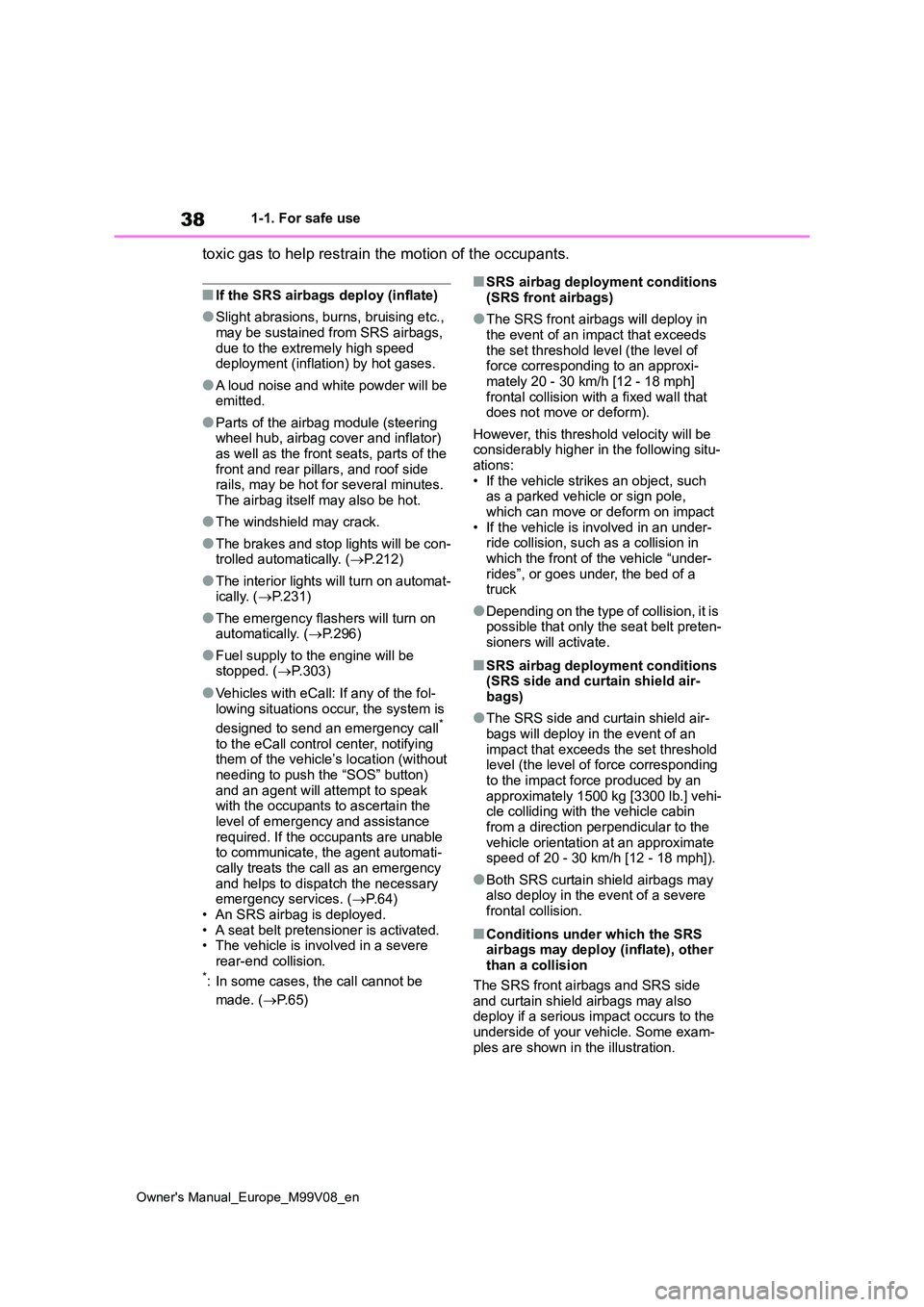

toxic gas to help restrain the motion of the occupants.
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the front seats, parts of the
front and rear pillars, and roof side rails, may be hot for several minutes. The airbag itself may also be hot.
●The windshield may crack.
●The brakes and stop lights will be con-trolled automatically. ( P.212)
●The interior lights will turn on automat- ically. ( P.231)
●The emergency flashers will turn on automatically. ( P.296)
●Fuel supply to the engine will be stopped. ( P.303)
●Vehicles with eCall: If any of the fol-
lowing situations occur, the system is
designed to send an emergency call*
to the eCall control center, notifying them of the vehicle’s location (without needing to push the “SOS” button)
and an agent will attempt to speak with the occupants to ascertain the
level of emergency and assistance required. If the occupants are unable to communicate, the agent automati-
cally treats the call as an emergency and helps to dispatch the necessary emergency services. ( P.64)
• An SRS airbag is deployed. • A seat belt pretensioner is activated.• The vehicle is involved in a severe
rear-end collision.*: In some cases, the call cannot be
made. ( P. 6 5 )
■SRS airbag deployment conditions
(SRS front airbags)
●The SRS front airbags will deploy in
the event of an impact that exceeds the set threshold level (the level of force corresponding to an approxi-
mately 20 - 30 km/h [12 - 18 mph] frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be considerably higher in the following situ-
ations: • If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact • If the vehicle is involved in an under-ride collision, such as a collision in
which the front of the vehicle “under- rides”, or goes under, the bed of a truck
●Depending on the type of collision, it is possible that only the seat belt preten-
sioners will activate.
■SRS airbag deployment conditions (SRS side and curtain shield air-bags)
●The SRS side and curtain shield air-bags will deploy in the event of an
impact that exceeds the set threshold level (the level of force corresponding to the impact force produced by an
approximately 1500 kg [3300 lb.] vehi- cle colliding with the vehicle cabin from a direction perpendicular to the
vehicle orientation at an approximate speed of 20 - 30 km/h [12 - 18 mph]).
●Both SRS curtain shield airbags may also deploy in the event of a severe frontal collision.
■Conditions under which the SRS airbags may deploy (inflate), other than a collision
The SRS front airbags and SRS side and curtain shield airbags may also deploy if a serious impact occurs to the
underside of your vehicle. Some exam- ples are shown in the illustration.
