fuse box TOYOTA AYGO X 2022 Owners Manual (in English)

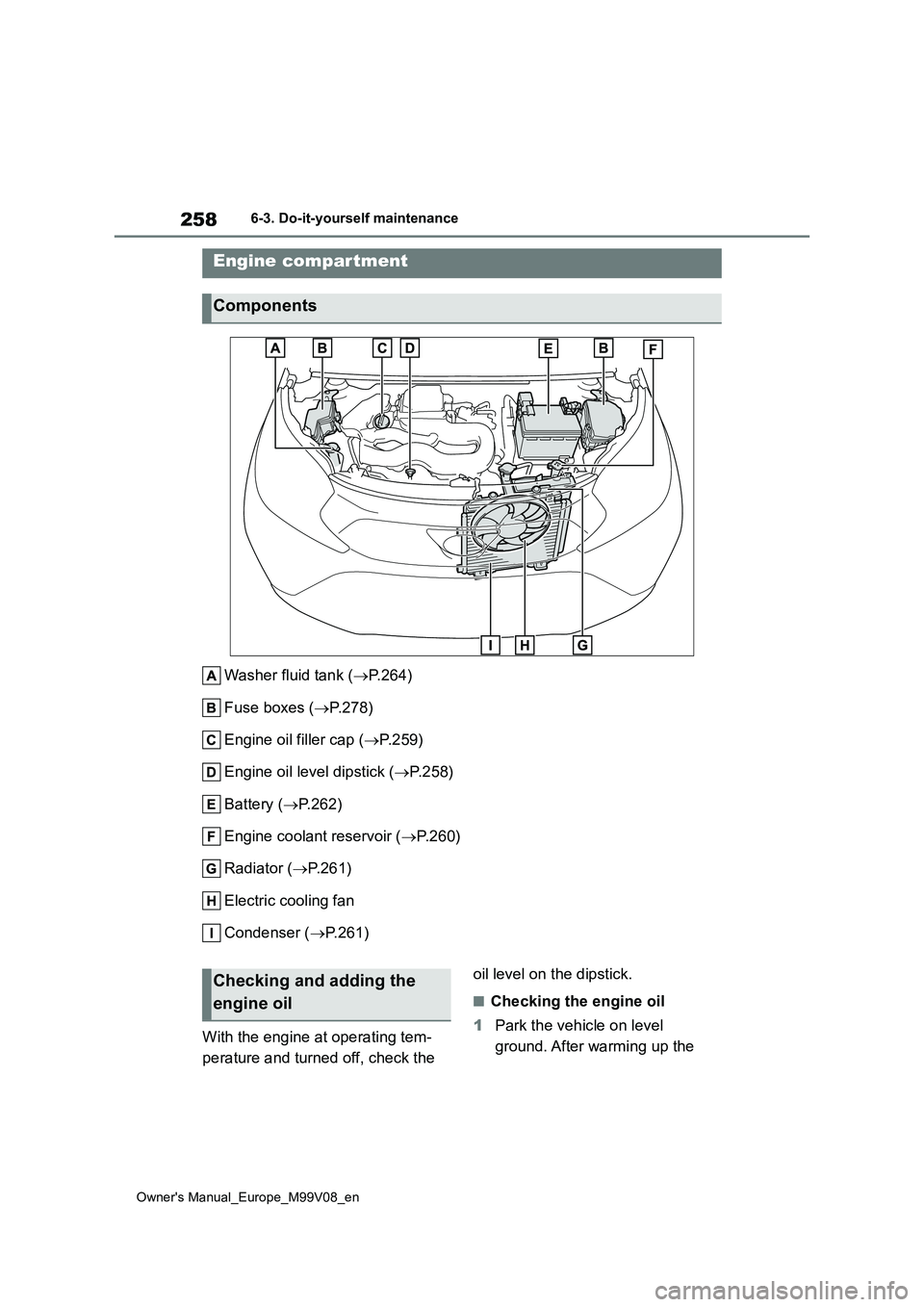

258
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Washer fluid tank (P.264)
Fuse boxes ( P.278)
Engine oil filler cap ( P.259)
Engine oil level dipstick ( P.258)
Battery ( P.262)
Engine coolant reservoir ( P. 2 6 0 )
Radiator ( P.261)
Electric cooling fan
Condenser ( P.261)
With the engine at operating tem-
perature and turned off, check the
oil level on the dipstick.
■Checking the engine oil
1 Park the vehicle on level
ground. After warming up the
Engine compartment
Components
Checking and adding the
engine oil

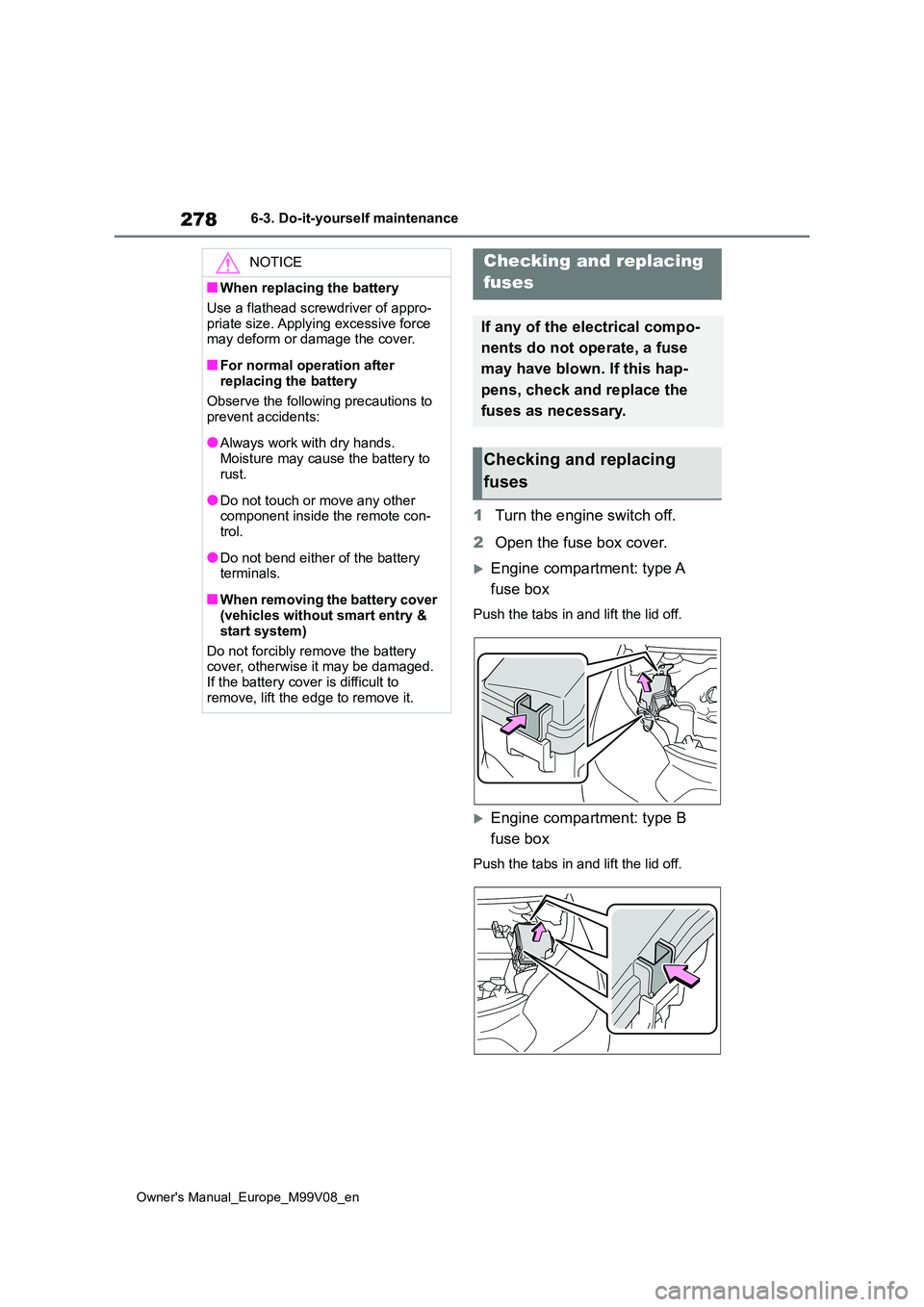

278
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
1Turn the engine switch off.
2 Open the fuse box cover.
Engine compartment: type A
fuse box
Push the tabs in and lift the lid off.
Engine compartment: type B
fuse box
Push the tabs in and lift the lid off.
NOTICE
■When replacing the battery
Use a flathead screwdriver of appro-
priate size. Applying excessive force may deform or damage the cover.
■For normal operation after replacing the battery
Observe the following precautions to
prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other component inside the remote con-trol.
●Do not bend either of the battery terminals.
■When removing the battery cover (vehicles without smart entry &
start system)
Do not forcibly remove the battery cover, otherwise it may be damaged.
If the battery cover is difficult to remove, lift the edge to remove it.
Checking and replacing
fuses
If any of the electrical compo-
nents do not operate, a fuse
may have blown. If this hap-
pens, check and replace the
fuses as necessary.
Checking and replacing
fuses

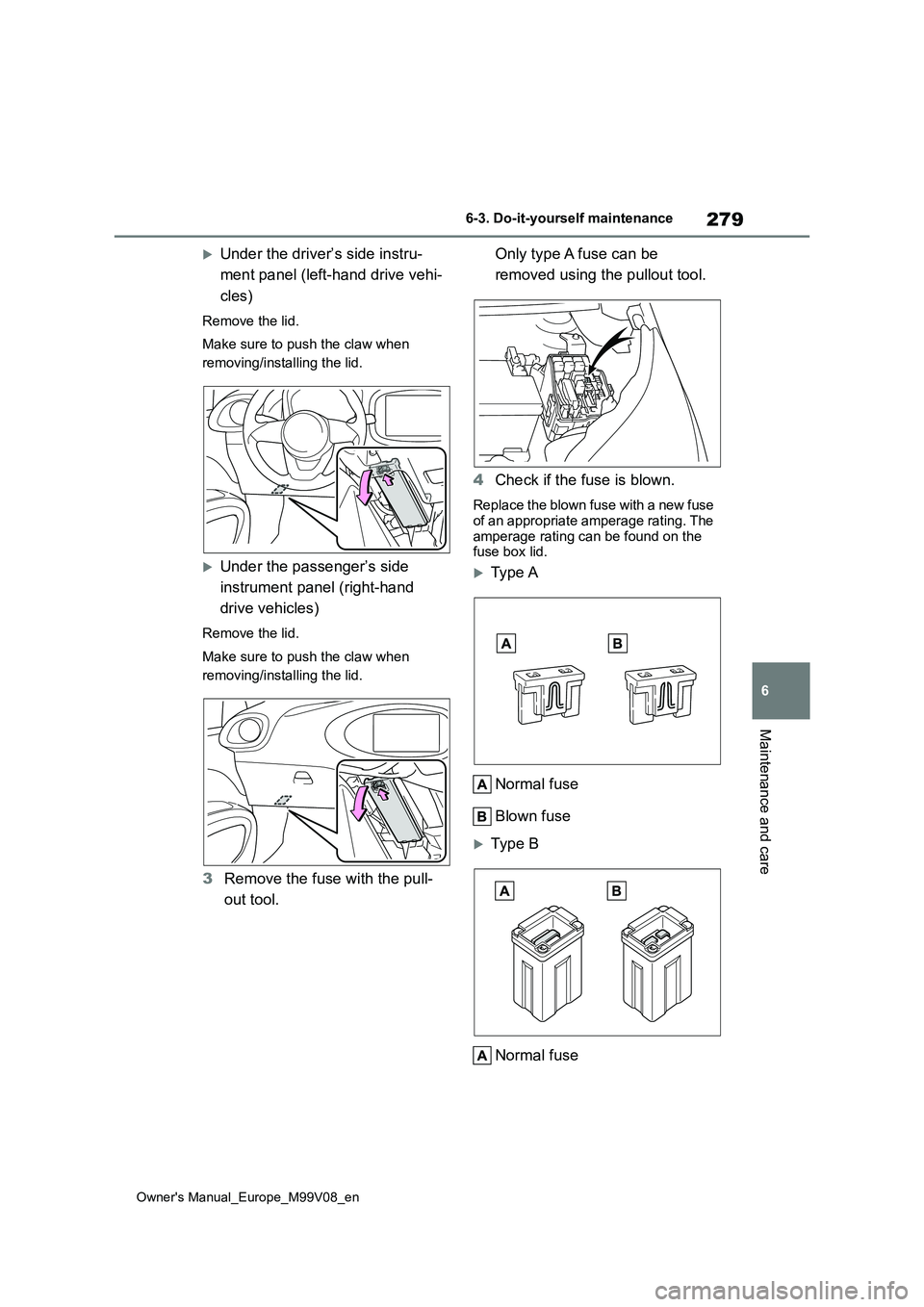

279
6
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Maintenance and care
Under the driver’s side instru-
ment panel (left-hand drive vehi-
cles)
Remove the lid.
Make sure to push the claw when
removing/installing the lid.
Under the passenger’s side
instrument panel (right-hand
drive vehicles)
Remove the lid.
Make sure to push the claw when
removing/installing the lid.
3 Remove the fuse with the pull-
out tool.
Only type A fuse can be
removed using the pullout tool.
4 Check if the fuse is blown.
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Typ e A
Normal fuse
Blown fuse
Typ e B
Normal fuse

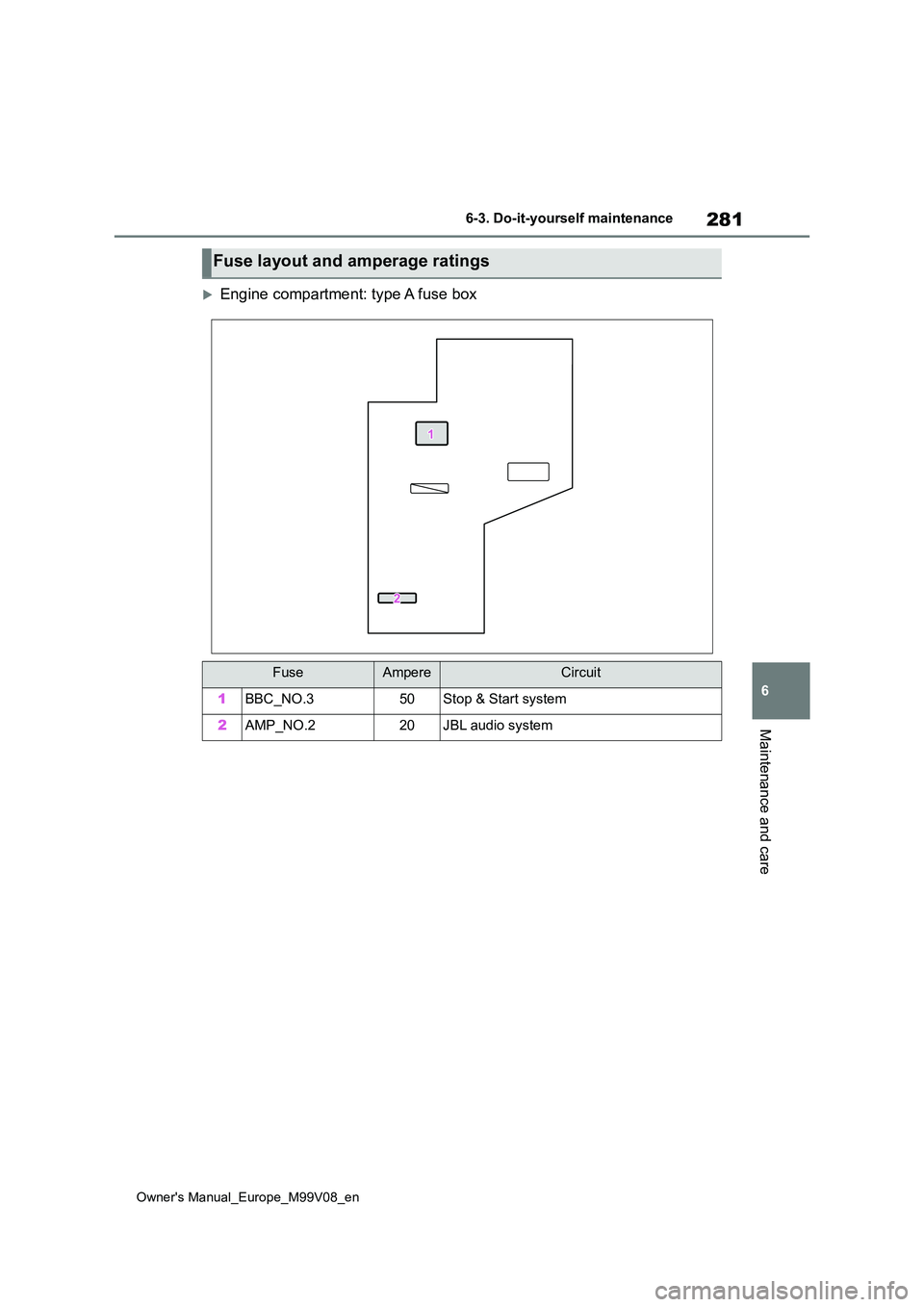

281
6
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Maintenance and care
Engine compartment: type A fuse box
Fuse layout and amperage ratings
FuseAmpereCircuit
1BBC_NO.350Stop & Start system
2AMP_NO.220JBL audio system

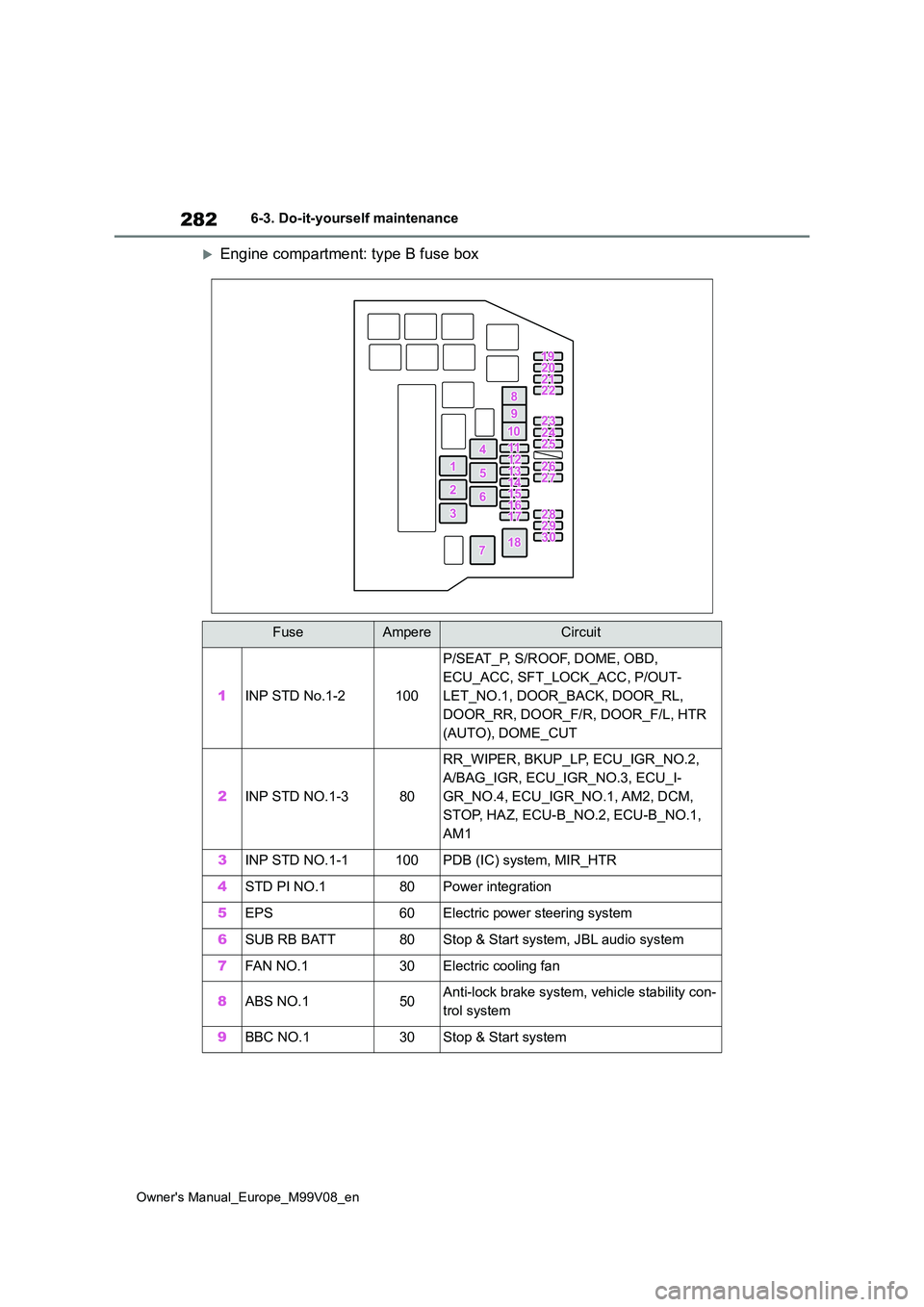

282
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
Engine compartment: type B fuse box
FuseAmpereCircuit
1INP STD No.1-2100
P/SEAT_P, S/ROOF, DOME, OBD,
ECU_ACC, SFT_LOCK_ACC, P/OUT-
LET_NO.1, DOOR_BACK, DOOR_RL,
DOOR_RR, DOOR_F/R, DOOR_F/L, HTR
(AUTO), DOME_CUT
2INP STD NO.1-380
RR_WIPER, BKUP_LP, ECU_IGR_NO.2,
A/BAG_IGR, ECU_IGR_NO.3, ECU_I-
GR_NO.4, ECU_IGR_NO.1, AM2, DCM,
STOP, HAZ, ECU-B_NO.2, ECU-B_NO.1,
AM1
3INP STD NO.1-1100PDB (IC) system, MIR_HTR
4STD PI NO.180Power integration
5EPS60Electric power steering system
6SUB RB BATT80Stop & Start system, JBL audio system
7FA N N O. 130Electric cooling fan
8ABS NO.150Anti-lock brake system, vehicle stability con-
trol system
9BBC NO.130Stop & Start system

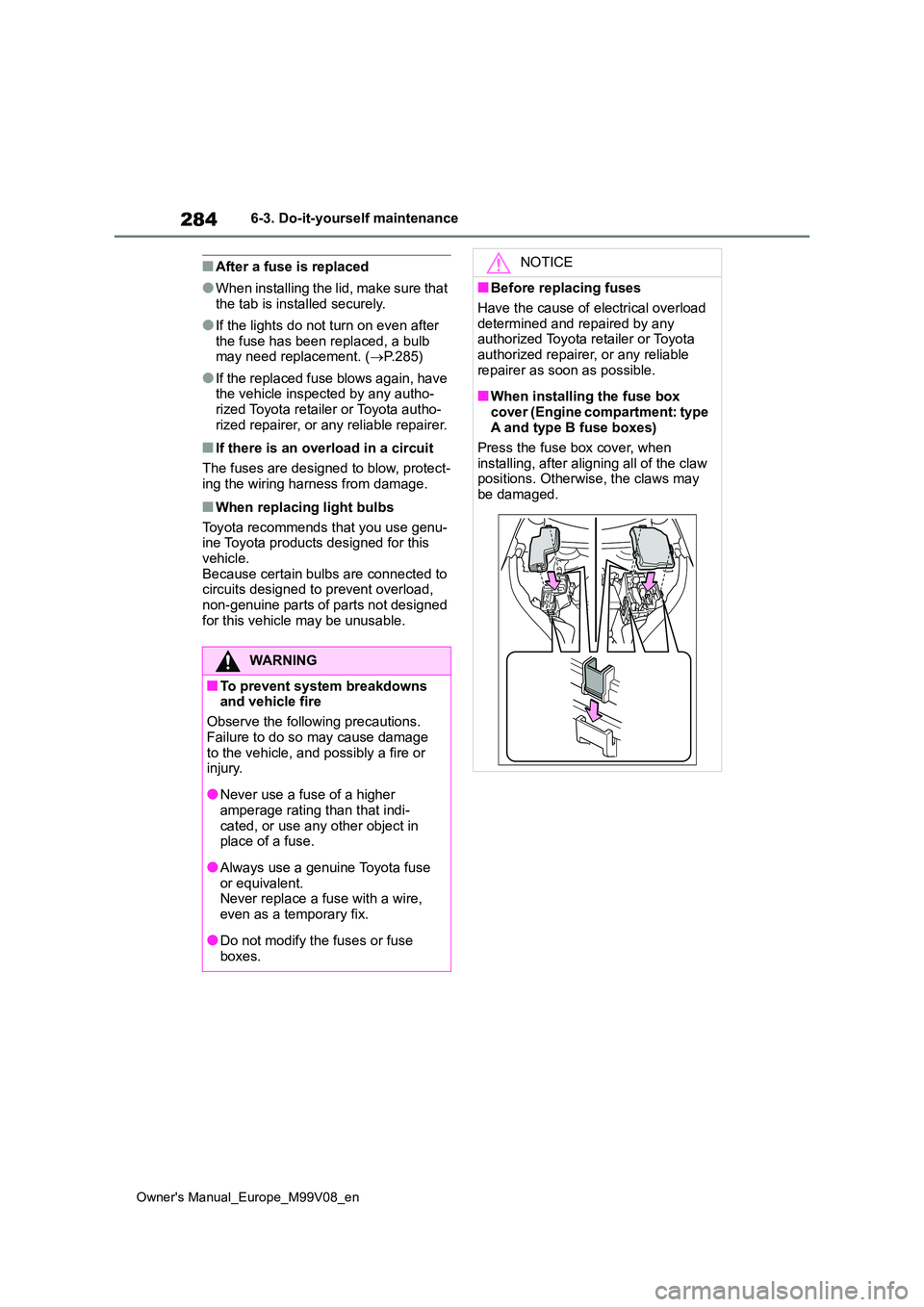

284
Owner's Manual_Europe_M99V08_en
6-3. Do-it-yourself maintenance
■After a fuse is replaced
●When installing the lid, make sure that the tab is installed securely.
●If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement. ( P.285)
●If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota autho- rized repairer, or any reliable repairer.
■If there is an overload in a circuit
The fuses are designed to blow, protect-
ing the wiring harness from damage.
■When replacing light bulbs
Toyota recommends that you use genu- ine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent overload,
non-genuine parts of parts not designed for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indi-
cated, or use any other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.Never replace a fuse with a wire,
even as a temporary fix.
●Do not modify the fuses or fuse
boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
■When installing the fuse box
cover (Engine compartment: type A and type B fuse boxes)
Press the fuse box cover, when
installing, after aligning all of the claw positions. Otherwise, the claws may be damaged.

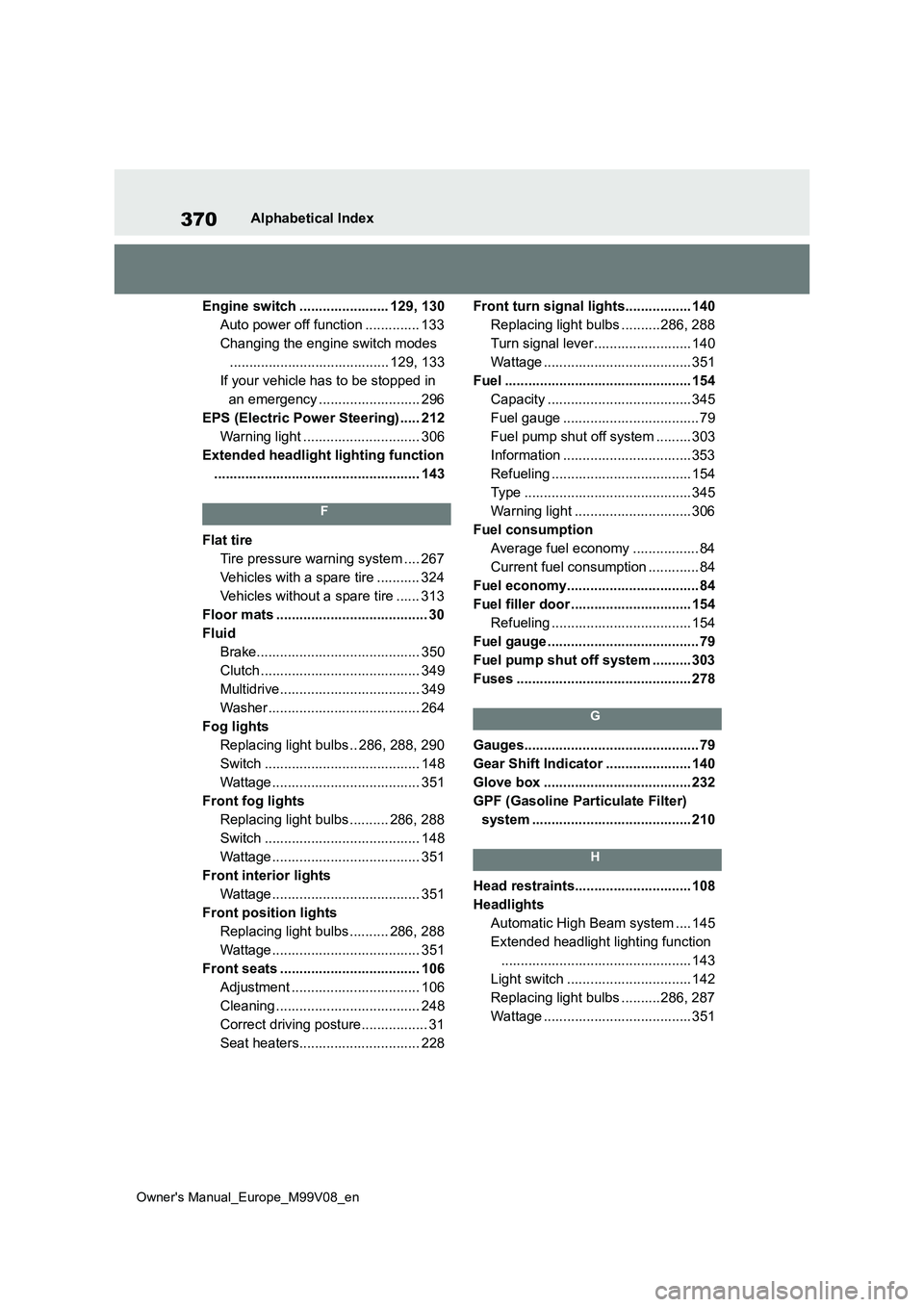

370
Owner's Manual_Europe_M99V08_en
Alphabetical Index
Engine switch ....................... 129, 130
Auto power off function .............. 133
Changing the engine switch modes
......................................... 129, 133
If your vehicle has to be stopped in
an emergency .......................... 296
EPS (Electric Power Steering) ..... 212
Warning light .............................. 306
Extended headlight lighting function
..................................................... 143
F
Flat tire
Tire pressure warning system .... 267
Vehicles with a spare tire ........... 324
Vehicles without a spare tire ...... 313
Floor mats ....................................... 30
Fluid
Brake.......................................... 350
Clutch ......................................... 349
Multidrive.................................... 349
Washer ....................................... 264
Fog lights
Replacing light bulbs .. 286, 288, 290
Switch ........................................ 148
Wattage ...................................... 351
Front fog lights
Replacing light bulbs .......... 286, 288
Switch ........................................ 148
Wattage ...................................... 351
Front interior lights
Wattage ...................................... 351
Front position lights
Replacing light bulbs .......... 286, 288
Wattage ...................................... 351
Front seats .................................... 106
Adjustment ................................. 106
Cleaning ..................................... 248
Correct driving posture................. 31
Seat heaters............................... 228
Front turn signal lights................. 140
Replacing light bulbs ..........286, 288
Turn signal lever ......................... 140
Wattage ...................................... 351
Fuel ................................................ 154
Capacity ..................................... 345
Fuel gauge ................................... 79
Fuel pump shut off system ......... 303
Information ................................. 353
Refueling .................................... 154
Type ........................................... 345
Warning light .............................. 306
Fuel consumption
Average fuel economy ................. 84
Current fuel consumption ............. 84
Fuel economy.................................. 84
Fuel filler door ............................... 154
Refueling .................................... 154
Fuel gauge ....................................... 79
Fuel pump shut off system .......... 303
Fuses ............................................. 278
G
Gauges............................................. 79
Gear Shift Indicator ...................... 140
Glove box ...................................... 232
GPF (Gasoline Particulate Filter)
system ......................................... 210
H
Head restraints.............................. 108
Headlights
Automatic High Beam system .... 145
Extended headlight lighting function
................................................. 143
Light switch ................................ 142
Replacing light bulbs ..........286, 287
Wattage ...................................... 351
