5-4. Using the driving support systems
GreenGreenGreen
LTA is operating
Orange Flash- ingOrange Flash-ingGreen
The vehicle is departing the lane toward
the side which the lane display is flash-
ing

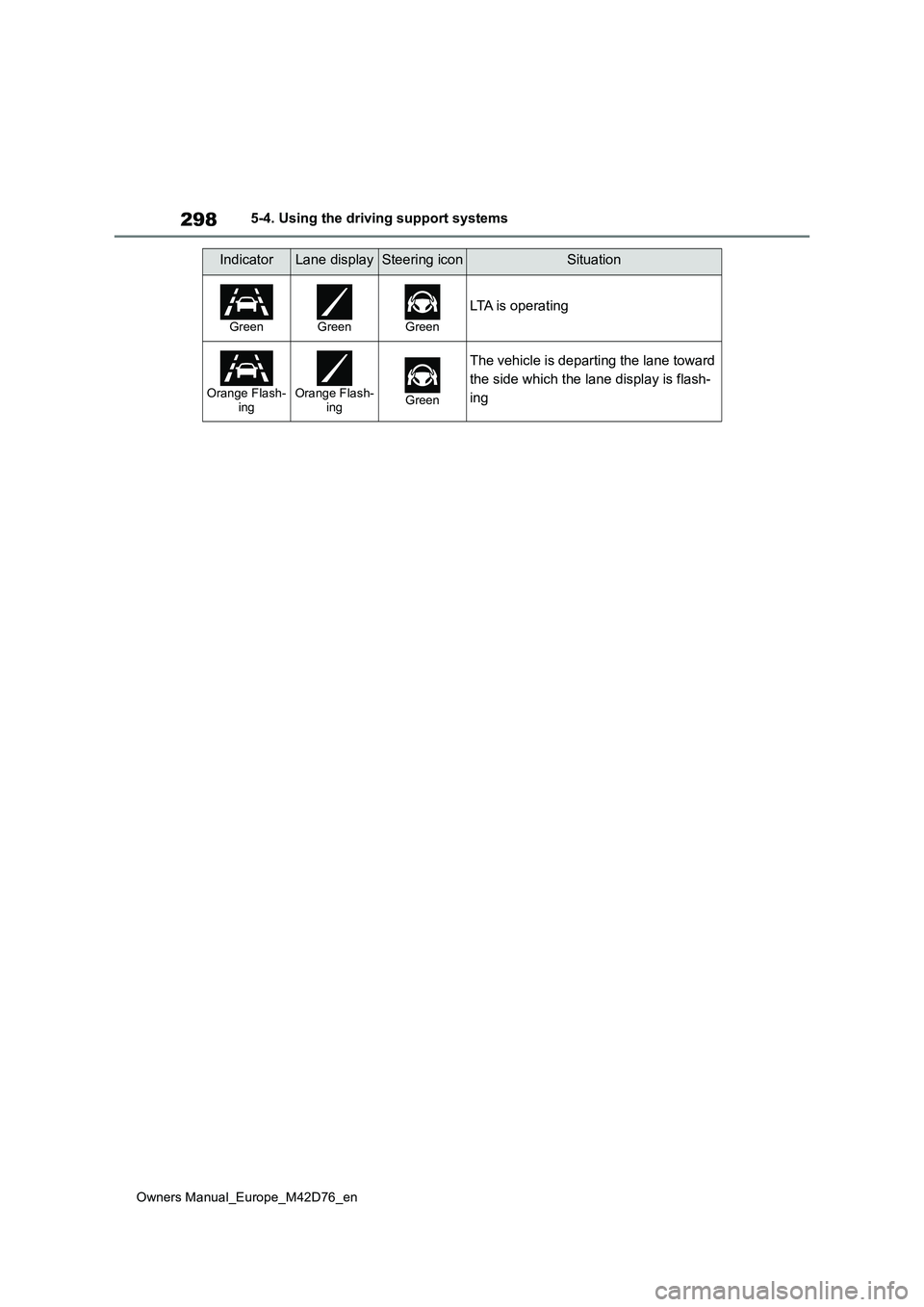

IndicatorLane displaySteering iconSituation

299
5
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Driving

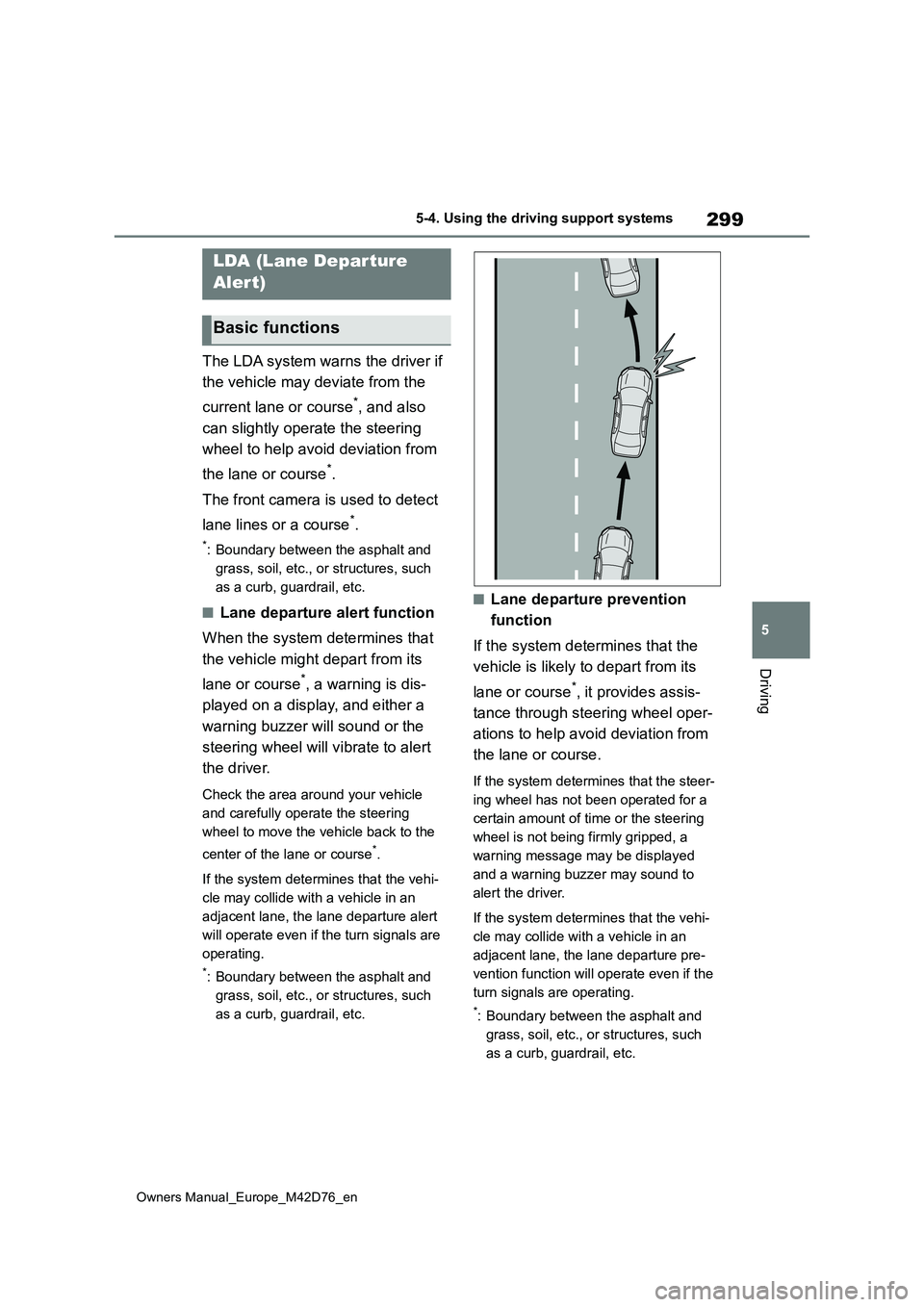

The LDA system warns the driver if
the vehicle may deviate from the
current lane or course*, and also
can slightly operate the steering
wheel to help avoid deviation from
the lane or course*.
The front camera is used to detect
lane lines or a course*.
*: Boundary between the asphalt and
grass, soil, etc., or structures, such
as a curb, guardrail, etc.
■Lane departure alert function
When the system determines that
the vehicle might depart from its
lane or course*, a warning is dis-
played on a display, and either a
warning buzzer will sound or the
steering wheel will vibrate to alert
the driver.
Check the area around your vehicle
and carefully operate the steering
wheel to move the vehicle back to the
center of the lane or course*.
If the system determines that the vehi-
cle may collide with a vehicle in an
adjacent lane, the lane departure alert
will operate even if the turn signals are
operating.
*: Boundary between the asphalt and
grass, soil, etc., or structures, such
as a curb, guardrail, etc.
■Lane departure prevention
function
If the system determines that the
vehicle is likely to depart from its
lane or course*, it provides assis-
tance through steering wheel oper-
ations to help avoid deviation from
the lane or course.
If the system determines that the steer-
ing wheel has not been operated for a
certain amount of time or the steering
wheel is not being firmly gripped, a
warning message may be displayed
and a warning buzzer may sound to
alert the driver.
If the system determines that the vehi-
cle may collide with a vehicle in an
adjacent lane, the lane departure pre-
vention function will operate even if the
turn signals are operating.
*: Boundary between the asphalt and
grass, soil, etc., or structures, such
as a curb, guardrail, etc.
LDA (Lane Departure
Alert)
Basic functions

300
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems

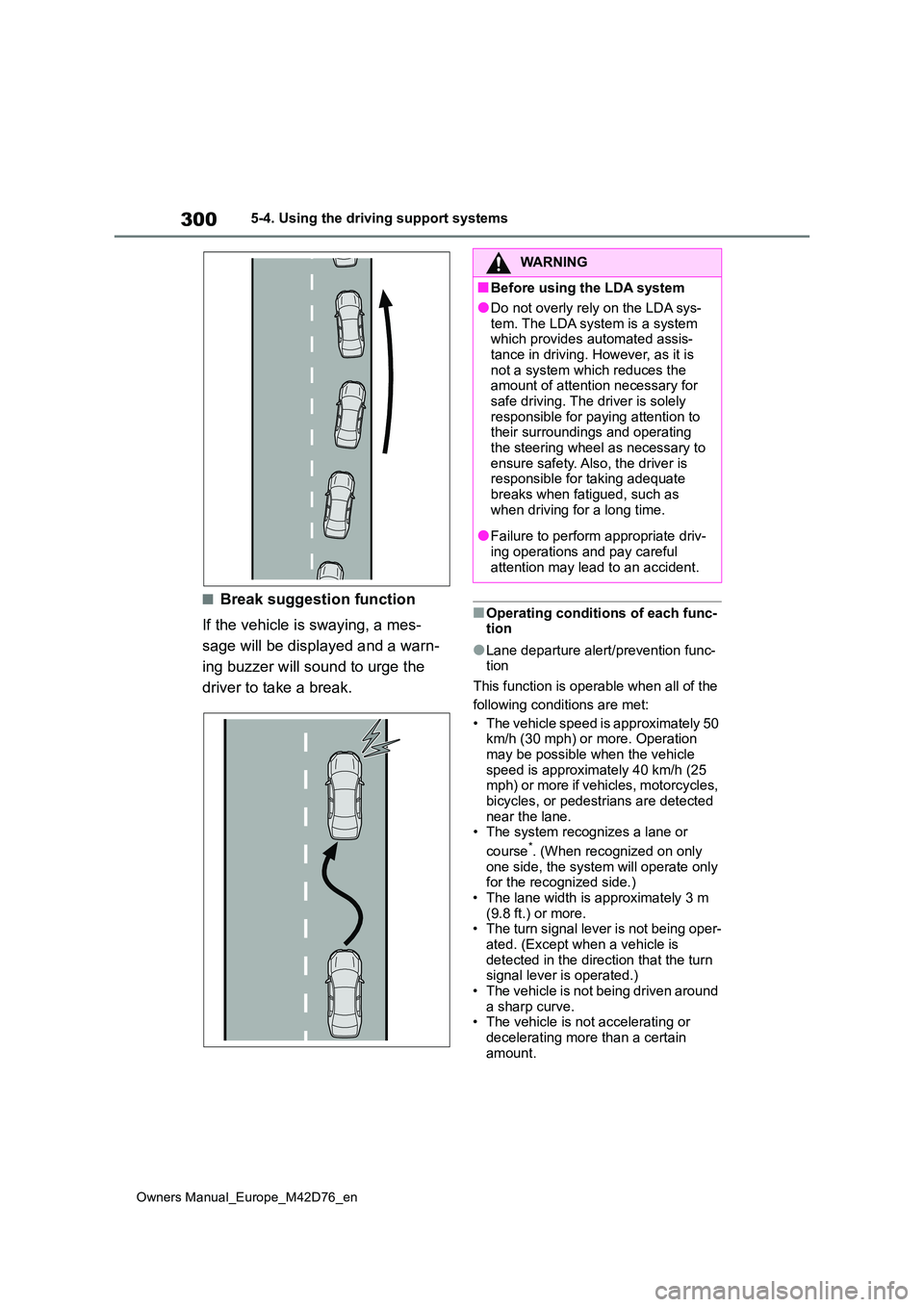

■Break suggestion function
If the vehicle is swaying, a mes-
sage will be displayed and a warn-
ing buzzer will sound to urge the
driver to take a break.
■Operating conditions of each func- tion
●Lane departure alert/prevention func-tion
This function is operable when all of the
following conditions are met:
• The vehicle speed is approximately 50 km/h (30 mph) or more. Operation may be possible when the vehicle
speed is approximately 40 km/h (25 mph) or more if vehicles, motorcycles, bicycles, or pedestrians are detected
near the lane. • The system recognizes a lane or
course*. (When recognized on only
one side, the system will operate only for the recognized side.)• The lane width is approximately 3 m
(9.8 ft.) or more. • The turn signal lever is not being oper-ated. (Except when a vehicle is
detected in the direction that the turn signal lever is operated.)• The vehicle is not being driven around
a sharp curve. • The vehicle is not accelerating or decelerating more than a certain
amount.
WARNING
■Before using the LDA system
●Do not overly rely on the LDA sys-
tem. The LDA system is a system which provides automated assis-tance in driving. However, as it is
not a system which reduces the amount of attention necessary for safe driving. The driver is solely
responsible for paying attention to their surroundings and operating the steering wheel as necessary to
ensure safety. Also, the driver is responsible for taking adequate breaks when fatigued, such as
when driving for a long time.
●Failure to perform appropriate driv-
ing operations and pay careful attention may lead to an accident.

301
5
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Driving
• The steering wheel is not being turned
sufficiently to perform a lane change.*: Boundary between the asphalt and
grass, soil, etc., or structures, such as
a curb, guardrail, etc.
●Break suggestion function
This function is operable when all of the
following conditions are met:
• The vehicle speed is approximately 50 km/h (32 mph) or more.• The lane width is approximately 3 m
(9.8 ft.) or more.
■Temporary cancelation of functions
When the operating conditions are no longer met, a function may be temporar-
ily canceled. However, when the opera- tion conditions are met again, operation of the function will automatically be
restored. ( P.300)
■Operation of the lane departure alert function/lane departure pre-vention function
●Depending on the vehicle speed, road conditions, lane departure angle, etc.,
operation of the lane departure pre- vention function may not be felt or the function may not operate.
●Depending on the conditions, the warning buzzer may operate even if
vibration is selected through a cus- tomize setting.
●If a course* is not clear or straight, the
lane departure alert function or lane
departure prevention function may not operate.
●The lane departure alert function or lane departure prevention function may not operate if the system judges
that the vehicle is intentionally being steered to avoid a pedestrian or parked vehicle.
●It may not be possible for the system to judge if there is danger of a collision
with a vehicle in an adjacent lane.
●The steering assist operation of the
lane departure prevention function can be overridden by the steering
wheel operation of the driver.*: Boundary between the asphalt and
grass, soil, etc., or structures, such as
a curb, guardrail, etc.
■Hands off steering wheel warning
operation
In the following situations, a message urging the driver to operate the steering
wheel and an icon will be displayed and a buzzer will sound to warn the driver. When using the system, make sure to
grip the steering wheel firmly, regardless of whether the warning is operating or not.
●When the system determines that the driver is not securely holding the
steering wheel, or the steering wheel is not being operated when the steer-ing assist operation of the lane depar-
ture prevention function is operating
The length of time that the warning buzzer operates will become longer as
the frequency of the steering assist operating increases. Even if the system judges that the steering wheel has been
operated, the warning buzzer will sound for a certain amount of time.
■Break suggestion function
If the vehicle is swaying, a message will
be displayed and a warning buzzer will sound to urge the driver to take a break.

302
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Depending on the condition of the vehi-
cle and road surface, the break sugges- tion function may not operate.
 The LDA system can be
enabled/disabled through a cus-
tomize setting. ( P.568)
 The settings of the LDA can be
changed through on the custom-
ize settings. ( P.568)
The operating state of the lane departure alert function and st eering assist
operation of the lane departure prevention function are indicat ed.
Changing LDA settings
WARNING
■Situations in which the LDA should not be used
In the following situations, disable the LDA system. Failure to do so may lead to an accident.
●When it is necessary to disable the system: P.275
■Situations in which the system may not operate properly
In the following situations, the system
may not operate properly and the vehicle may depart from its lane. Do not overly rely on these functions. The
driver is solely responsible for paying attention to their surroundings and operating the steering wheel as nec-
essary to ensure safety.
●When the boundary between the
asphalt and grass, soil, etc., or structures, such as a curb, guard-rail, etc. is not clear or straight
●When the vehicle is struck by a crosswind or the turbulence of other
nearby vehicles
●Situations in which the lane may not
be detected: P. 2 8 1
●Situations in which the sensors may
not operate properly: P.279
●Situations in which some or all of
the functions of the system cannot operate: P. 2 8 1
Displays and system operation

303
5
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Driving

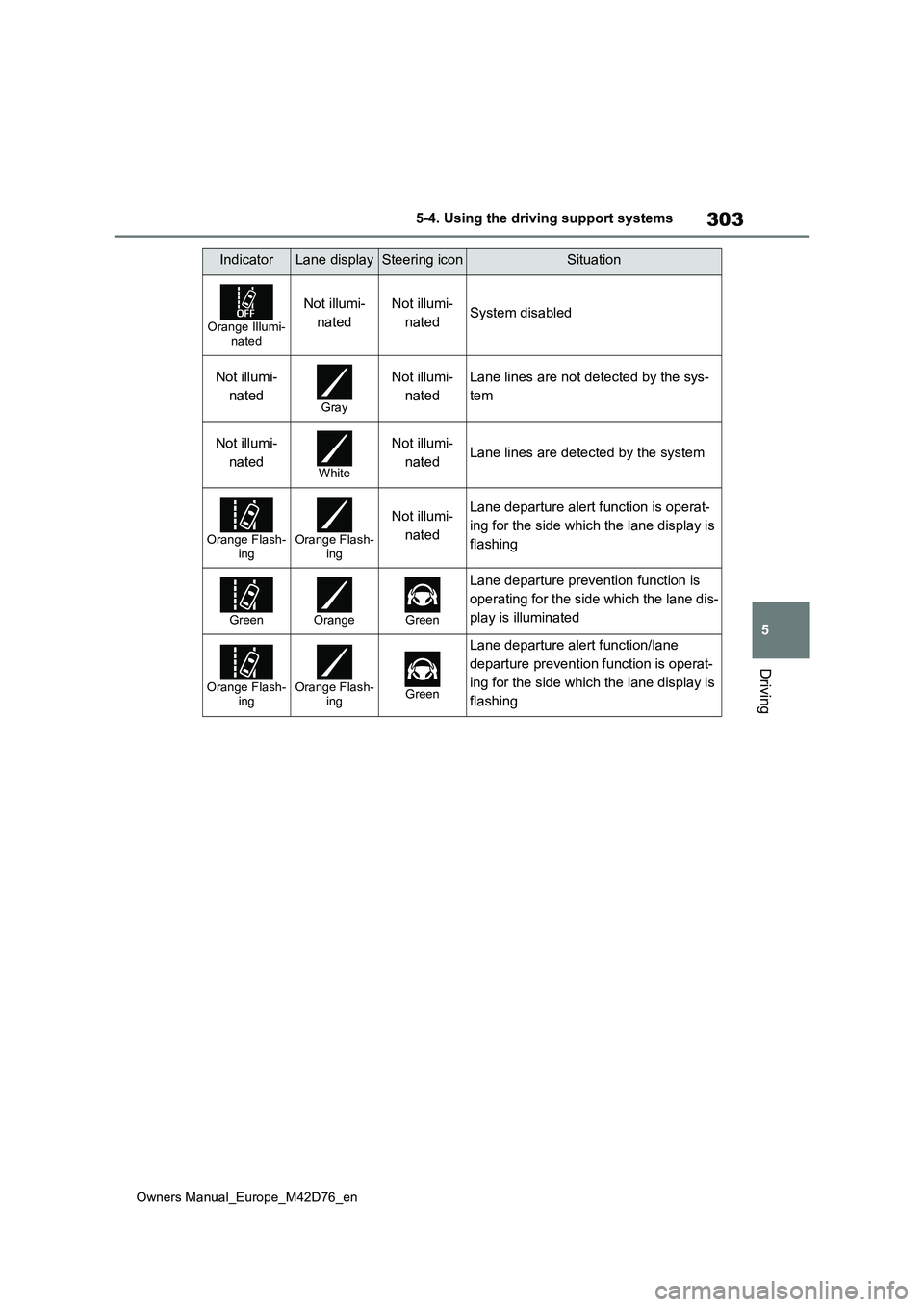

IndicatorLane displaySteering iconSituation
Orange Illumi- nated
Not illumi-
nated
Not illumi-
natedSystem disabled
Not illumi-
natedGray
Not illumi-
nated
Lane lines are not detected by the sys-
tem
Not illumi-
natedWhite
Not illumi-
natedLane lines are detected by the system
Orange Flash- ingOrange Flash-ing
Not illumi-
nated
Lane departure alert function is operat-
ing for the side which the lane display is
flashing
GreenOrangeGreen
Lane departure prevention function is
operating for the side which the lane dis-
play is illuminated
Orange Flash- ingOrange Flash-ingGreen
Lane departure alert function/lane
departure prevention function is operat-
ing for the side which the lane display is
flashing

304
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
When the front camera detects a
sign or information of a sign is
available from the navigation
system (if equipped), the sign will
be displayed on the display.
 Multiple signs can be displayed.
Depending on the specifications of the
vehicle, the number of displayed signs
may be limited.

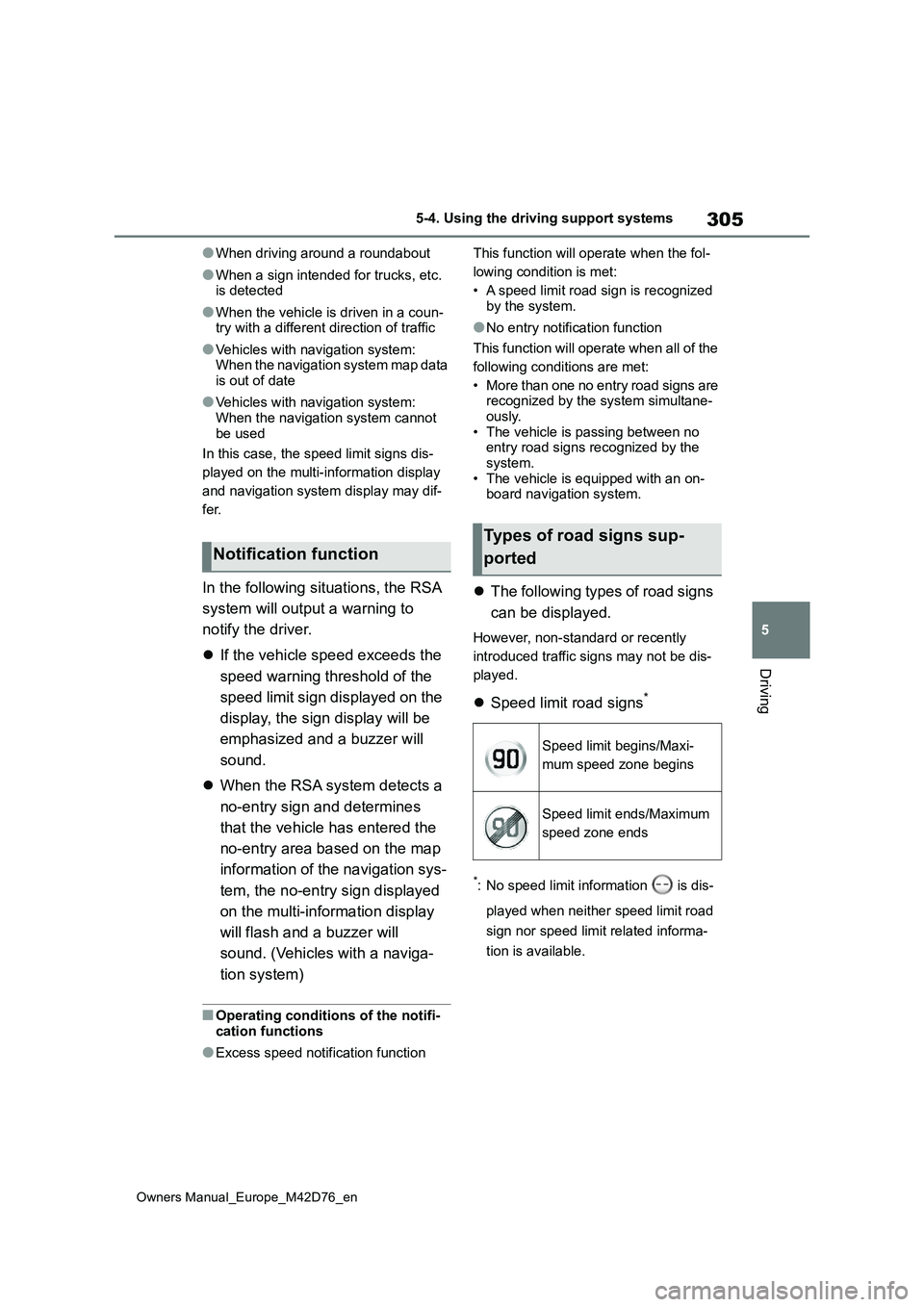

■Operating conditions of sign dis- play
Signs will be displayed when the follow-
ing conditions are met:
●The system has detected a sign
In the following situations, a displayed sign may stop being displayed:
●When a new sign has not been detected for a certain distance
●When the system determines that the road being driven on has changed, such as after a left or right turn
■Situations in which the display
function may not operate properly
In the following situations, the RSA sys- tem may not operate properly and may
not detect signs or may display the incorrect sign. However, this does not indicate a malfunction.
●When a sign is dirty, faded, tilted or bent
●When the contrast of an electronic sign is low
●When all or part of a sign is hidden by a tree, utility pole, etc.
●When a sign is detected by the front
camera for a short amount of time
●When the driving state (turning,
changing lanes, etc.) is judged incor- rectly
●When a sign is immediately after a freeway junction or in an adjacent lane just before merging
●When stickers are attached to the rear of a preceding vehicle
●When a sign similar to a system com-patible sign is detected as a system
compatible sign
●When a speed limit sign for a frontage
road is within detection range of the front camera

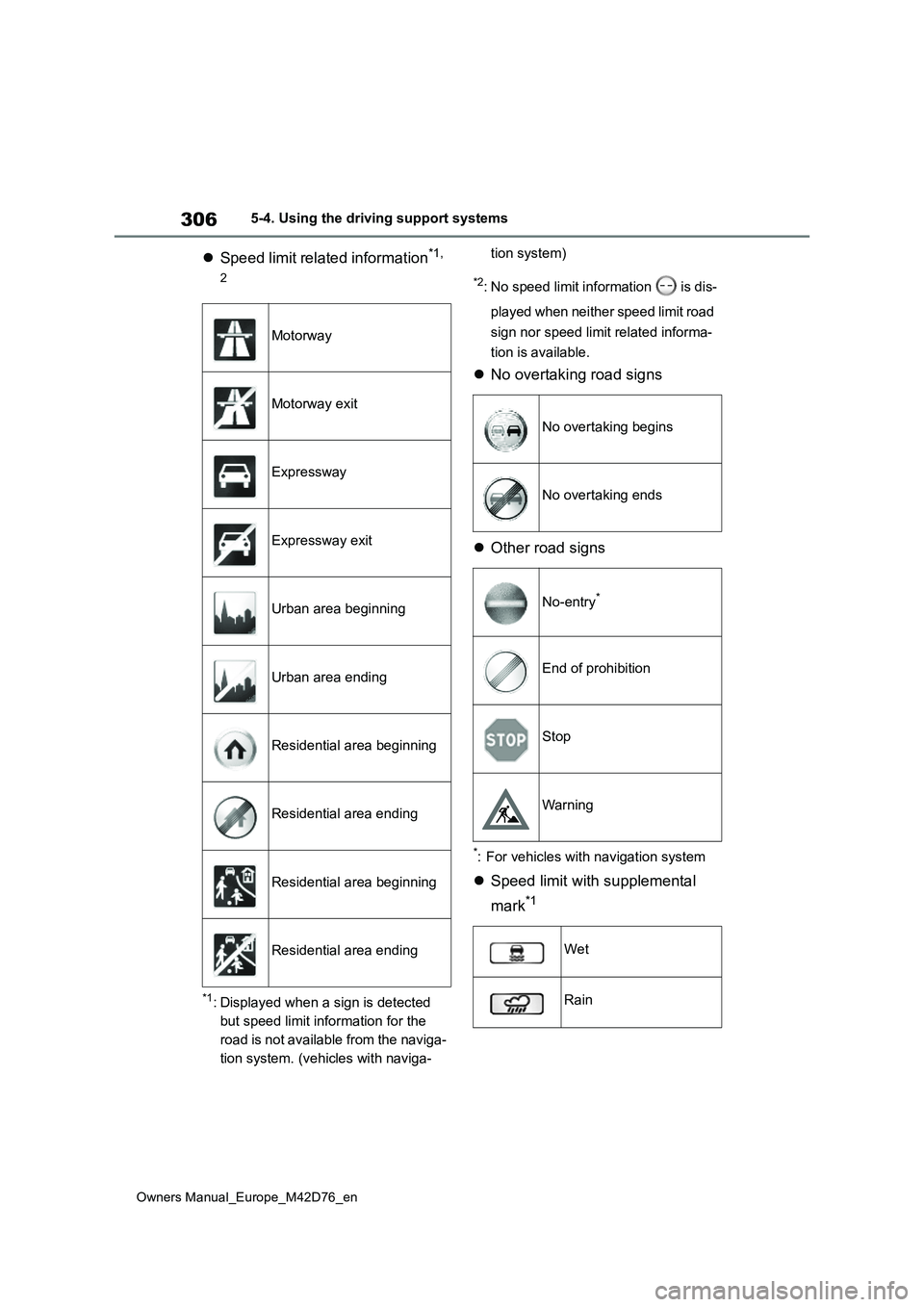

RSA (Road Sign Assist)
The RSA system detects spe-
cific road signs using the front
camera and/or navigation sys-
tem (if equipped) (when speed
limit information is available)
and warns the driver via dis-
plays and buzzers.
WARNING
■For safe use
●Driving safely is solely the responsi- bility of the driver. Pay careful atten-tion to the surrounding conditions in
order to ensure safe driving.
●Do not rely solely upon the RSA.
The RSA assists the driver by pro- viding road sign information, but it is not a replacement for the driver’s
own vision and awareness. Driving safely is solely the responsibility of the driver. Pay careful attention to
the surrounding conditions in order to ensure safe driving.
■Situations in which the RSA should not be used
When it is necessary to disable the
system: P. 2 7 5
■Situations in which the system
may not operate properly
Situations in which the sensors may not operate properly: P. 2 7 9
Display Function

305
5
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Driving
●When driving around a roundabout
●When a sign intended for trucks, etc. is detected
●When the vehicle is driven in a coun-try with a different direction of traffic
●Vehicles with navigation system: When the navigation system map data
is out of date
●Vehicles with navigation system:
When the navigation system cannot be used
In this case, the speed limit signs dis-
played on the multi-information display
and navigation system display may dif-
fer.
In the following situations, the RSA
system will output a warning to
notify the driver.
 If the vehicle speed exceeds the
speed warning threshold of the
speed limit sign displayed on the
display, the sign display will be
emphasized and a buzzer will
sound.
 When the RSA system detects a
no-entry sign and determines
that the vehicle has entered the
no-entry area based on the map
information of the navigation sys-
tem, the no-entry sign displayed
on the multi-information display
will flash and a buzzer will
sound. (Vehicles with a naviga-
tion system)
■Operating conditions of the notifi- cation functions
●Excess speed notification function
This function will operate when the fol-
lowing condition is met:
• A speed limit road sign is recognized
by the system.
●No entry notification function
This function will operate when all of the
following conditions are met:
• More than one no entry road signs are recognized by the system simultane-ously.
• The vehicle is passing between no entry road signs recognized by the system.
• The vehicle is equipped with an on- board navigation system.
 The following types of road signs
can be displayed.
However, non-standard or recently
introduced traffic signs may not be dis-
played.
 Speed limit road signs*
*: No speed limit information is dis-
played when neither speed limit road
sign nor speed limit related informa-
tion is available.
Notification function
Types of road signs sup-
ported
Speed limit begins/Maxi-
mum speed zone begins
Speed limit ends/Maximum
speed zone ends

306
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Speed limit related information*1,
2
*1: Displayed when a sign is detected
but speed limit information for the
road is not available from the naviga-
tion system. (vehicles with naviga-
tion system)
*2: No speed limit information is dis-
played when neither speed limit road
sign nor speed limit related informa-
tion is available.
 No overtaking road signs
 Other road signs
*: For vehicles with navigation system
Speed limit with supplemental
mark*1
Motorway
Motorway exit
Expressway
Expressway exit
Urban area beginning
Urban area ending
Residential area beginning
Residential area ending
Residential area beginning
Residential area ending
No overtaking begins
No overtaking ends
No-entry*
End of prohibition
Stop
Warning
Wet
Rain

307
5
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Driving
*1: Displayed simultaneously with a
speed limit sign.
*2: Content not recognized.
*3: If the turn signal indicators are not
operated when changing lanes, this
mark will not be displayed.
 Depending on the specifications
of the vehicle, signs may be dis-
played overlapping.
The following settings of the RSA
can be changed through customize
settings. ( P. 5 6 9 )
Ice
Supplemental mark
exists*2
Exit ramp on right*3
Exit ramp on left*3
Time
Duplicate display example
Changing RSA settings
Dynamic radar cruise
control
This dynamic radar cruise con-
trol detects the presence of
vehicles ahead, determines the
current vehicle-to -vehicle dis-
tance, and operates to main-
tain a suitable distance from
the vehicle ahead. The desired
vehicle-to-vehicle distance can
be set by operating the vehi-
cle-to-vehicle distance switch.
Use the dynamic radar cruise
control only on highways and
expressways.
WARNING
■For safe use
●Driving safely is solely the responsi- bility of the driver. Do not overly rely
on this system, and pay careful attention to the surrounding condi-tions in order to ensure safe driving.
●The dynamic radar cruise control provides driving assistance to
reduce the driver’s burden. How- ever, there are limitations to the assistance provided. Read the fol-
lowing items carefully. Do not overly rely on this system and always drive carefully.
Conditions under which the system may not operate correctly: P.313
●Set the speed appropriately accord- ing to the speed limit, traffic flow,
road conditions, weather condi- tions, etc. The driver is responsible for confirming the set speed.
