551
8
Owners Manual_Europe_M42D76_en

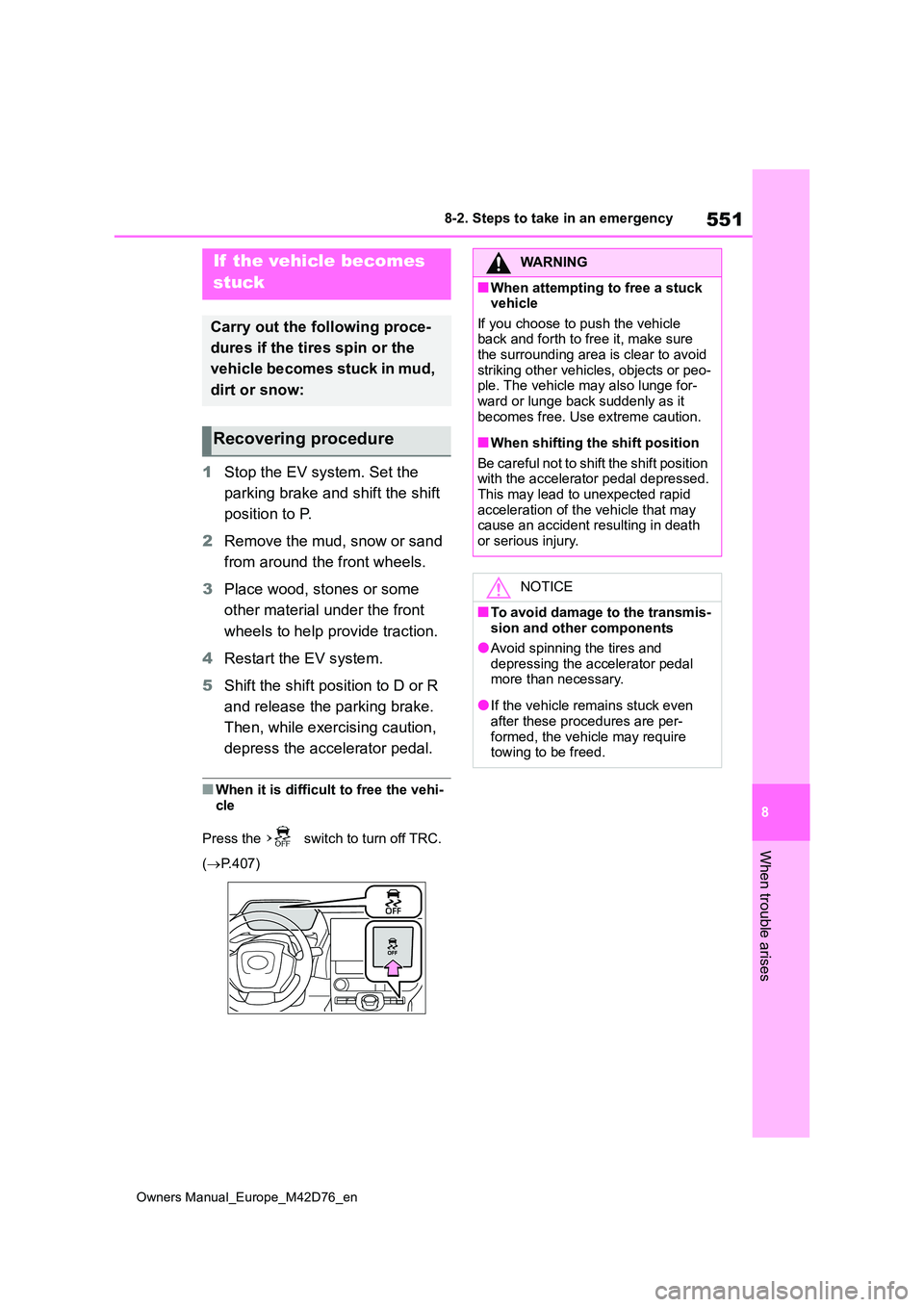

8-2. Steps to take in an emergency
When trouble arises
1Stop the EV system. Set the
parking brake and shift the shift
position to P.
2 Remove the mud, snow or sand
from around the front wheels.
3 Place wood, stones or some
other material under the front
wheels to help provide traction.
4 Restart the EV system.
5 Shift the shift position to D or R
and release the parking brake.
Then, while exercising caution,
depress the accelerator pedal.
■When it is difficult to free the vehi-
cle
Press the switch to turn off TRC.
( P.407)
If the vehicle becomes
stuck
Carry out the following proce-
dures if the tires spin or the
vehicle becomes stuck in mud,
dirt or snow:
Recovering procedure
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding area is clear to avoid
striking other vehicles, objects or peo- ple. The vehicle may also lunge for-ward or lunge back suddenly as it
becomes free. Use extreme caution.
■When shifting the shift position
Be careful not to shift the shift position with the accelerator pedal depressed.This may lead to unexpected rapid
acceleration of the vehicle that may cause an accident resulting in death or serious injury.
NOTICE
■To avoid damage to the transmis-sion and other components
●Avoid spinning the tires and depressing the accelerator pedal more than necessary.
●If the vehicle remains stuck even
after these procedures are per- formed, the vehicle may require towing to be freed.

563
9
Owners Manual_Europe_M42D76_en

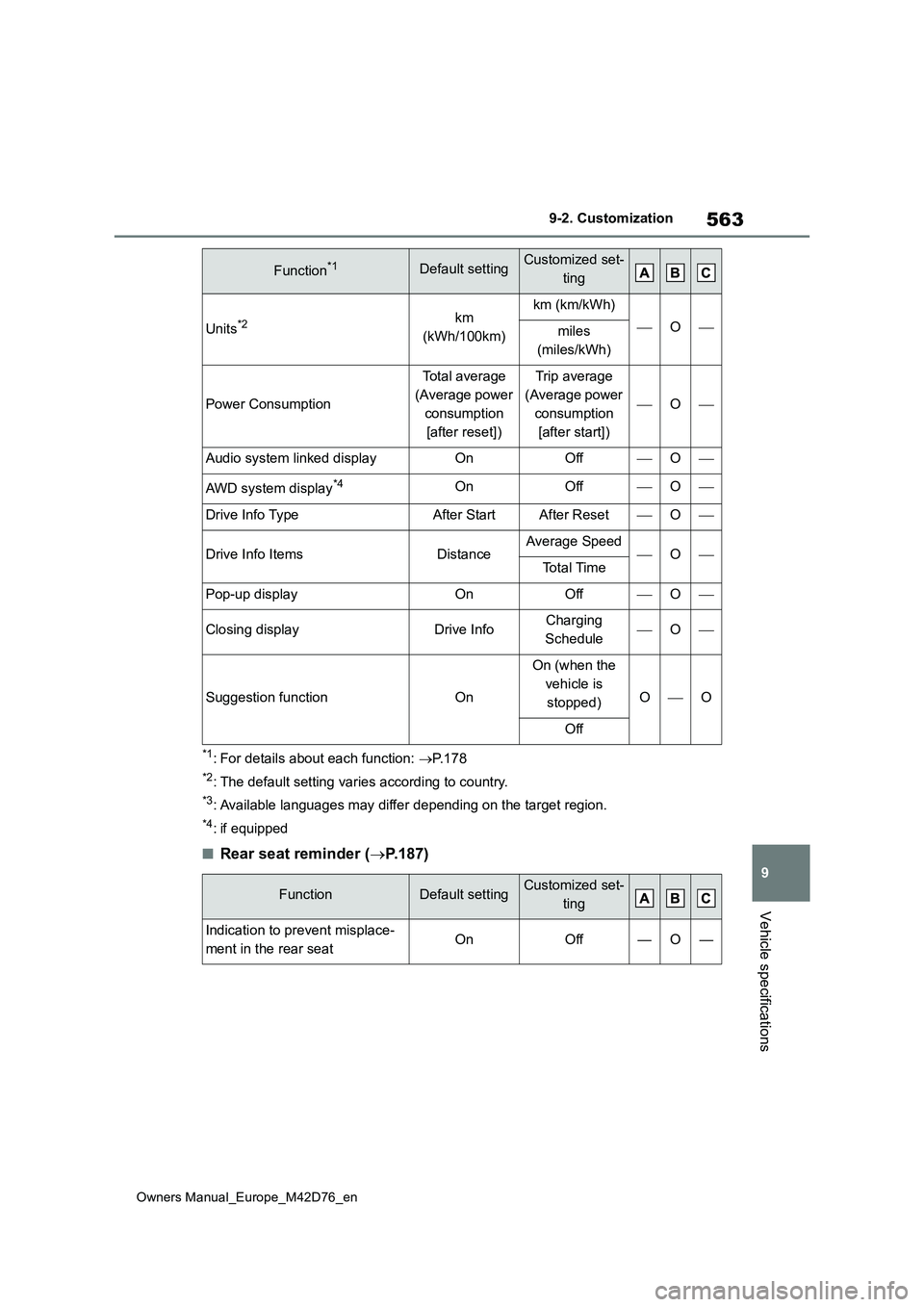

9-2. Customization
Vehicle specifications
*1: For details about each function: P.178
*2: The default setting varies according to country.
*3: Available languages may differ depending on the target region.
*4: if equipped
■Rear seat reminder (P.187)
Units*2km
(kWh/100km)
km (km/kWh)
Omiles
(miles/kWh)
Power Consumption
Total average
(Average power
consumption
[after reset])
Trip average
(Average power
consumption
[after start])
O
Audio system linked displayOnOffO
AWD system display*4OnOffO
Drive Info TypeAfter StartAfter ResetO
Drive Info ItemsDistanceAverage SpeedOTo t a l T i m e
Pop-up displayOnOffO
Closing displayDrive InfoCharging
ScheduleO
Suggestion functionOn
On (when the
vehicle is
stopped)OO
Off
FunctionDefault settingCustomized set-
ting
Indication to prevent misplace-
ment in the rear seatOnOff—O—
Function*1Default settingCustomized set-
ting

572
Owners Manual_Europe_M42D76_en
9-2. Customization
■Remote Air Conditioning System (P.427)
■Illumination (P.431)
*: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking function are both on, the door
lock operates as follows. • When shifting the shift position to any
position other than P, all the doors will be locked.• If the vehicle is started with all the
FunctionDefault settingCustomized set-
ting
Operation using the “A/C” button
on the wireless remote control
Press and
hold for 0.8
seconds
Press once
O
Press twice
Press and hold for
2.4 seconds
Off
Stopping the operation using the
“A/C” button on the wireless
remote control
Press twice
Press once
O
Press and hold for
0.8 seconds
Press and hold for
2.4 seconds
Off
FunctionDefault settingCustomized set-
ting
Time elapsed before the interior
lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation after the power switch
is turned offOnOffO
Operation when the doors are
unlockedOnOffO
Operation when you approach
the vehicle with the electronic
key on your person
OnOffO
Rear interior light and footwell
lights*OnOffO

577
Owners Manual_Europe_M42D76_en
What to do if... (Troubleshooting)
weak or depleted?
In this case, the EV system can
be started in a temporary way.
( P.543)
 Is the 12-volt battery dis-
charged? ( P.544)
 Is the window lock switch
pressed?
The power window except for the
one at the driver’s seat cannot
be operated if the window lock
switch is pressed. ( P.221)
 The auto power off function will
be operated if the vehicle is left
in ACC or ON (the EV system is
not operating) for a period of
time. ( P.246)
 The seat belt reminder light is
flashing
Are the driver and the passen-
gers wearing the seat belts?
( P.517)
 The parking brake indicator is on
Is the parking brake released?
( P.256)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.515, 523)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( P.77)
To stop the alarm, start the EV sys-
tem.
 Is the message displayed on the
multi-information display?
Check the message on the multi-
information display. ( P.523)
 When a warning light turns on or
a warning message is displayed,
refer to P.515, 523.
 Stop the vehicle in a safe place
and repair the flat tire temporarily
with the emergency tire puncture
The windows do not open or
close by operating the
power window switches
The power switch is turned
off automatically
A warning buzzer sounds
during driving
An alarm is activated and the
horn sounds (vehicles with
alarm)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire

583
Owners Manual_Europe_M42D76_en

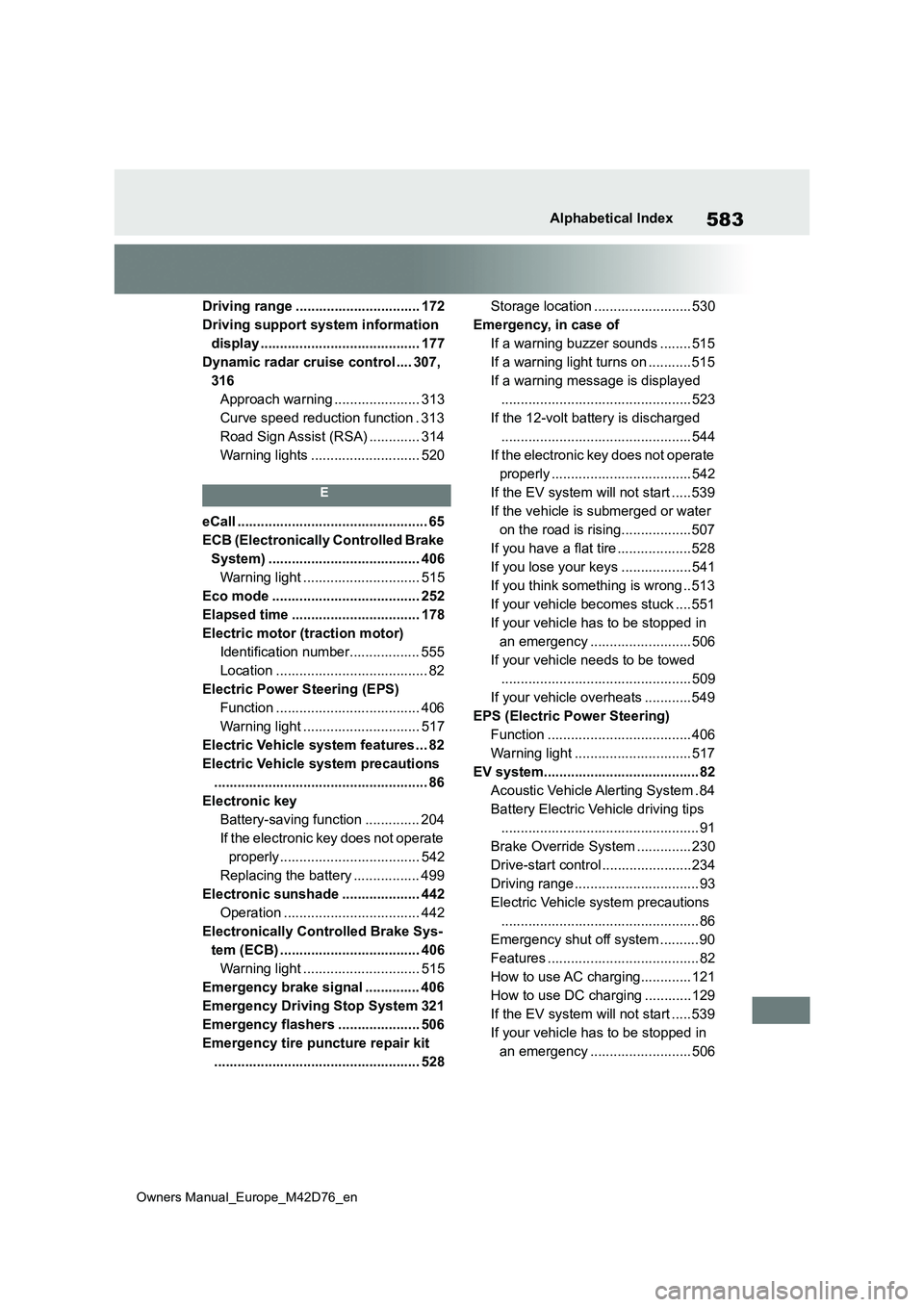

Alphabetical Index
Driving range ................................ 172
Driving support system information
display ......................................... 177
Dynamic radar cruise control .... 307,
316
Approach warning ...................... 313
Curve speed reduction function . 313
Road Sign Assist (RSA) ............. 314
Warning lights ............................ 520
E
eCall ................................................. 65
ECB (Electronically Controlled Brake
System) ....................................... 406
Warning light .............................. 515
Eco mode ...................................... 252
Elapsed time ................................. 178
Electric motor (traction motor)
Identification number.................. 555
Location ....................................... 82
Electric Power Steering (EPS)
Function ..................................... 406
Warning light .............................. 517
Electric Vehicle system features ... 82
Electric Vehicle system precautions
....................................................... 86
Electronic key
Battery-saving function .............. 204
If the electronic key does not operate
properly.................................... 542
Replacing the battery ................. 499
Electronic sunshade .................... 442
Operation ................................... 442
Electronically Controlled Brake Sys-
tem (ECB) .................................... 406
Warning light .............................. 515
Emergency brake signal .............. 406
Emergency Driving Stop System 321
Emergency flashers ..................... 506
Emergency tire puncture repair kit
..................................................... 528
Storage location ......................... 530
Emergency, in case of
If a warning buzzer sounds ........ 515
If a warning light turns on ........... 515
If a warning message is displayed
................................................. 523
If the 12-volt battery is discharged
................................................. 544
If the electronic key does not operate
properly .................................... 542
If the EV system will not start ..... 539
If the vehicle is submerged or water
on the road is rising..................507
If you have a flat tire ................... 528
If you lose your keys ..................541
If you think something is wrong .. 513
If your vehicle becomes stuck .... 551
If your vehicle has to be stopped in
an emergency .......................... 506
If your vehicle needs to be towed
................................................. 509
If your vehicle overheats ............549
EPS (Electric Power Steering)
Function ..................................... 406
Warning light .............................. 517
EV system........................................ 82
Acoustic Vehicle Alerting System . 84
Battery Electric Vehicle driving tips
................................................... 91
Brake Override System .............. 230
Drive-start control .......................234
Driving range ................................ 93
Electric Vehicle system precautions
................................................... 86
Emergency shut off system .......... 90
Features ....................................... 82
How to use AC charging............. 121
How to use DC charging ............129
If the EV system will not start ..... 539
If your vehicle has to be stopped in
an emergency .......................... 506

585
Owners Manual_Europe_M42D76_en
Alphabetical Index
Retaining hooks (floor mat) .......... 32
Horn ............................................... 215
I
Identification
Electric motor (traction motor).... 555
Vehicle ....................................... 554
If the charging port lids cannot be
opened ........................................ 541
If your vehicle overheats ............. 549
Ignition switch (Power switch) .... 243
Auto power off function .............. 246
Changing power switch modes .. 246
If your vehicle has to be stopped in
an emergency .......................... 506
Starting the EV system .............. 243
Illuminated entry system ............. 431
Immobilizer system ........................ 75
Indicators ...................................... 169
Charging cable ........................... 102
Charging indicator ........................ 97
Charging indicator (CCID).......... 102
Error warning indicator ............... 102
Power indicator .......................... 102
Initialization
Electronic sunshade................... 442
Items to initialize ........................ 574
Parking Support Brake ............... 356
Power back door ........................ 198
Power window ............................ 219
Inside door handle lights ............. 431
Inside rear view mirror ................. 216
Interior lights ................................ 431
Intrusion sensor ............................. 78
Intrusion sensor and tilt sensor.... 78
ISOFIX lower anchorage ................ 62
J
Jack
Positioning a floor jack ............... 468
Vehicle-equipped jack ................ 489
Jack handle ...................................489
Jam protection function
Power back door ........................ 196
Power windows .......................... 219
K
Keyless entry ................................ 203
Smart entry & start system ......... 203
Wireless remote control ............. 183
Keys ............................................... 182
Battery-saving function............... 204
Electronic key .............................182
If the electronic key does not operate
properly .................................... 542
If you lose your keys ..................541
Key number plate .......................182
Keyless entry...................... 183, 203
Mechanical key .................. 182, 184
Power switch .............................. 243
Replacing the battery ................. 499
Warning buzzer .......................... 203
Wireless remote control ............. 183
L
Lane Departure Alert (LDA) ......... 299
Operation ...................................299
Warning lights.............................518
Lane Tracing Assist (LTA) ............294
Operation ...................................294
Warning lights.............................518
Language (multi-information dis-
play) ............................................. 178
LDA (Lane Departure Alert).......... 299
Operation ...................................299
Warning lights.............................518
Lever
Auxiliary catch lever ................... 467
Hood lock release lever.............. 467
Turn signal lever ......................... 253

587
Owners Manual_Europe_M42D76_en
Alphabetical Index
N
Navigation system-linked display177
O
Odometer ...................................... 174
Odometer and trip meter display
Display items.............................. 174
Open tray ....................................... 437
Opener
Back door ................................... 191
Hood .......................................... 467
Outer foot lights............................ 431
Outside rear view mirrors ............ 217
Adjustment ................................. 217
BSM (Blind Spot Monitor) .......... 324
Folding and extending................ 218
Linked mirror function when revers-
ing ............................................ 218
Mirror position memory .............. 222
Outside rear view mirror defoggers
................................................. 422
RCTA (Rear Crossing Traffic Alert)
................................................. 343
SEA (Safe Exit Assist) ................ 328
Outside temperature .................... 172
P
Parking assist sensors (Toyota park-
ing assist-sensor) ...................... 333
Parking brake ................................ 254
Operation ................................... 254
Parking brake engaged warning
buzzer ...................................... 256
Warning light .............................. 521
Warning message ...................... 256
Parking Support Brake (PKSB) ... 352
Enabling/disabling the system ... 354
PCS (Pre-Collision System) ......... 283
Enabling/disabling the system ... 293
Function ..................................... 283
Warning light .............................. 520
Personal lights ...................... 431, 433
Switch......................................... 433
PKSB (Parking Support Brake) ... 352
Enabling/disabling the system.... 354
Moving Vehicle Rear of the Vehicle
................................................. 359
Pedestrians Rear of the Vehicle .361
Static Objects Around the Vehicle
................................................. 363
Static Objects Front and Rear of the
vehicle ...................................... 357
Power back door ........................... 192
Power back door switch ............. 193
Power back door opener and closer
..................................................... 193
Power back door switch............... 193
Power consumption ..................... 176
Average power consumption...... 176
Current power consumption ....... 176
Power control unit coolant
Checking .................................... 470
Preparing and checking before win-
ter ............................................. 411
Radiator...................................... 471
Power easy access system.......... 222
Power meter .................................. 172
Power outlet .................................. 444
Power sources that can be used . 112
Power steering (Electric Power
Steering system) ........................ 406
Power steering (Electric power
steering system)
Warning light .............................. 517
Power switch ................................. 243
Auto power off function .............. 246
Changing power switch modes .. 246
If your vehicle has to be stopped in
an emergency .......................... 506
Starting the EV system............... 243
