5-4. Using the driving support systems

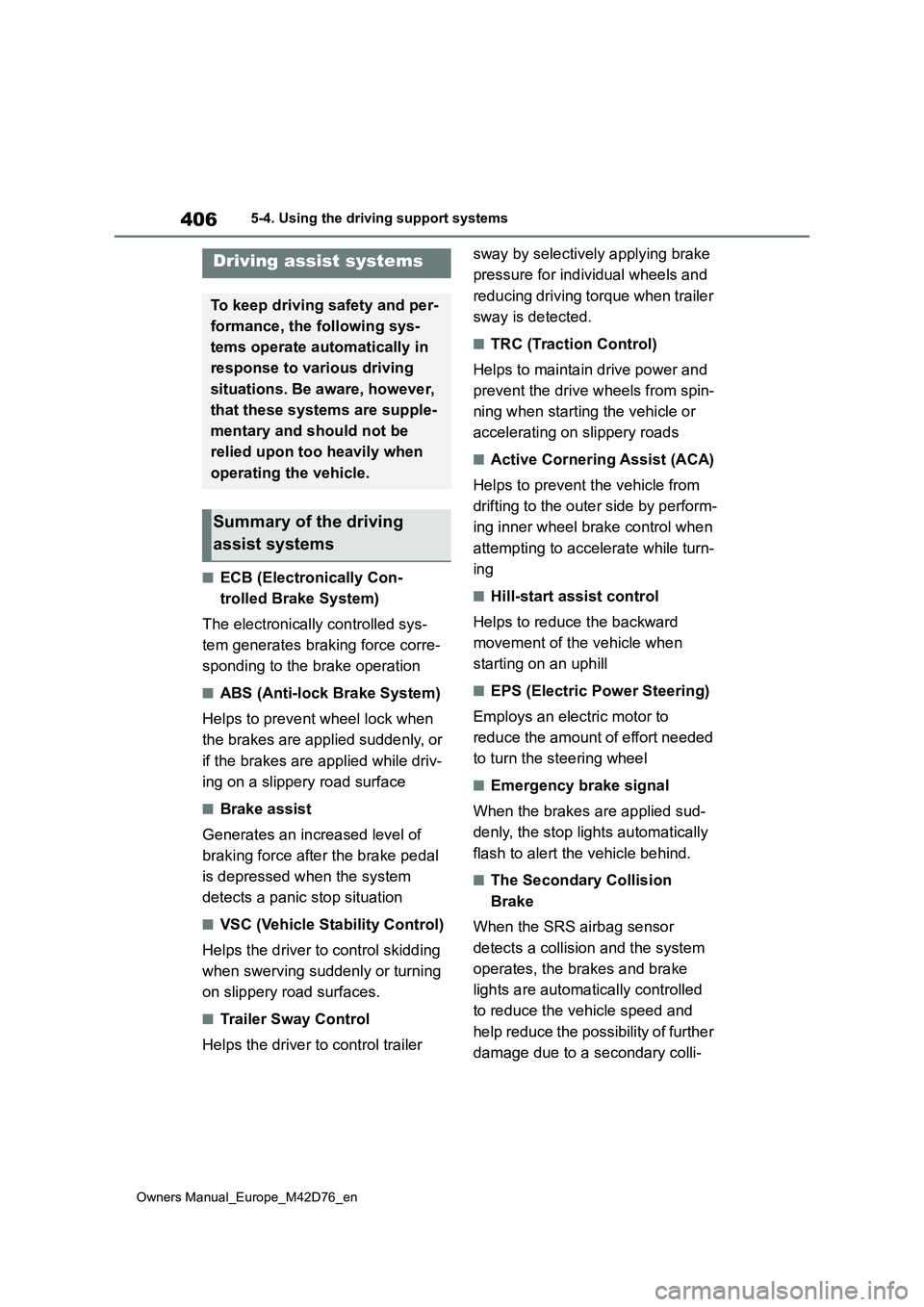

■ECB (Electronically Con-
trolled Brake System)
The electronically controlled sys-
tem generates braking force corre-
sponding to the brake operation
■ABS (Anti-lock Brake System)
Helps to prevent wheel lock when
the brakes are applied suddenly, or
if the brakes are applied while driv-
ing on a slippery road surface
■Brake assist
Generates an increased level of
braking force after the brake pedal
is depressed when the system
detects a panic stop situation
■VSC (Vehicle Stability Control)
Helps the driver to control skidding
when swerving suddenly or turning
on slippery road surfaces.
■Trailer Sway Control
Helps the driver to control trailer
sway by selectively applying brake
pressure for individual wheels and
reducing driving torque when trailer
sway is detected.
■TRC (Traction Control)
Helps to maintain drive power and
prevent the drive wheels from spin-
ning when starting the vehicle or
accelerating on slippery roads
■Active Cornering Assist (ACA)
Helps to prevent the vehicle from
drifting to the outer side by perform-
ing inner wheel brake control when
attempting to accelerate while turn-
ing
■Hill-start assist control
Helps to reduce the backward
movement of the vehicle when
starting on an uphill
■EPS (Electric Power Steering)
Employs an electric motor to
reduce the amount of effort needed
to turn the steering wheel
■Emergency brake signal
When the brakes are applied sud-
denly, the stop lights automatically
flash to alert the vehicle behind.
■The Secondary Collision
Brake
When the SRS airbag sensor
detects a collision and the system
operates, the brakes and brake
lights are automatically controlled
to reduce the vehicle speed and
help reduce the possibility of further
damage due to a secondary colli-
Driving assist systems
To keep driving safety and per-
formance, the f ollowing sys-
tems operate automatically in
response to various driving
situations. Be aware, however,
that these systems are supple-
mentary and should not be
relied upon too heavily when
operating the vehicle.
Summary of the driving
assist systems

409
5
Owners Manual_Europe_M42D76_en

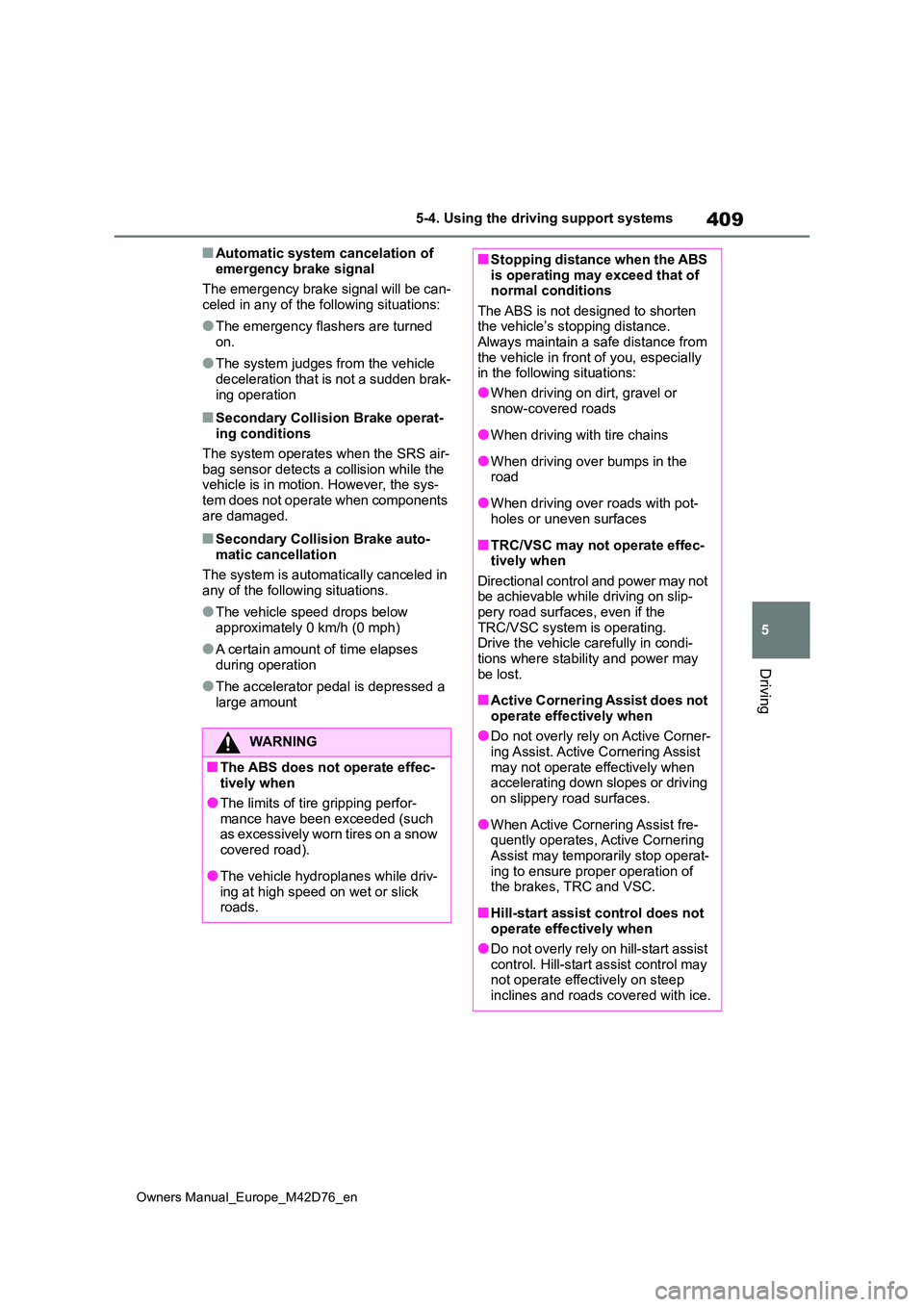

5-4. Using the driving support systems
Driving
■Automatic system cancelation of
emergency brake signal
The emergency brake signal will be can- celed in any of the following situations:
●The emergency flashers are turned on.
●The system judges from the vehicle deceleration that is not a sudden brak-
ing operation
■Secondary Collision Brake operat- ing conditions
The system operates when the SRS air-
bag sensor detects a collision while the vehicle is in motion. However, the sys-tem does not operate when components
are damaged.
■Secondary Collision Brake auto- matic cancellation
The system is automatically canceled in
any of the following situations.
●The vehicle speed drops below
approximately 0 km/h (0 mph)
●A certain amount of time elapses
during operation
●The accelerator pedal is depressed a
large amount
WARNING
■The ABS does not operate effec- tively when
●The limits of tire gripping perfor-mance have been exceeded (such as excessively worn tires on a snow
covered road).
●The vehicle hydroplanes while driv-
ing at high speed on wet or slick roads.
■Stopping distance when the ABS is operating may exceed that of normal conditions
The ABS is not designed to shorten the vehicle’s stopping distance. Always maintain a safe distance from
the vehicle in front of you, especially in the following situations:
●When driving on dirt, gravel or
snow-covered roads
●When driving with tire chains
●When driving over bumps in the road
●When driving over roads with pot-holes or uneven surfaces
■TRC/VSC may not operate effec-tively when
Directional control and power may not be achievable while driving on slip-pery road surfaces, even if the
TRC/VSC system is operating. Drive the vehicle carefully in condi-tions where stability and power may
be lost.
■Active Cornering Assist does not
operate effectively when
●Do not overly rely on Active Corner- ing Assist. Active Cornering Assist
may not operate effectively when accelerating down slopes or driving on slippery road surfaces.
●When Active Cornering Assist fre-quently operates, Active Cornering
Assist may temporarily stop operat- ing to ensure proper operation of the brakes, TRC and VSC.
■Hill-start assist control does not operate effectively when
●Do not overly rely on hill-start assist control. Hill-start assist control may not operate effectively on steep
inclines and roads covered with ice.

432
Owners Manual_Europe_M42D76_en
6-2. Using the interior lights
doors are opened/closed.
●If the interior lights remain on when the power switch is turned off, the
lights will go off automatically after 20 minutes.
■The interior lights will turn on auto-matically when
If any of the SRS airbags deploy (inflate) or in the event of a strong rear impact, the interior lights will turn on automati-
cally. The interior lights will turn off auto- matically after approximately 20 minutes.
The interior lights can be turned off man- ually. However, in order to help prevent further collisions, it is recommended that
they be left on until safety can be ensured.
(The interior lights may not turn on auto-
matically depending on the force of the impact and conditions of the collision.)
■Customization
Setting (e.g. the time elapsed before the
lights turn off) can be changed. (Customizable features: P.572)
■Front interior lights
1 Turns the door-linked function
off
2 Turns the door-linked function
on (door position)
The lights turn on/off according to the
opening/closing of the doors.
3 Turns the lights on/off
Press the switch to turn on/off the front
interior lights/personal lights, and rear
interior lights.
■Rear interior lights
1 Turns the light on
2 Turns the door-linked function
on (door position)
NOTICE
■To prevent 12-volt battery dis-
charge
Do not leave the lights on longer than necessary when the EV system is off.
Operating interior lights

453
6
Owners Manual_Europe_M42D76_en
6-4. Using the other interior features
Interior features

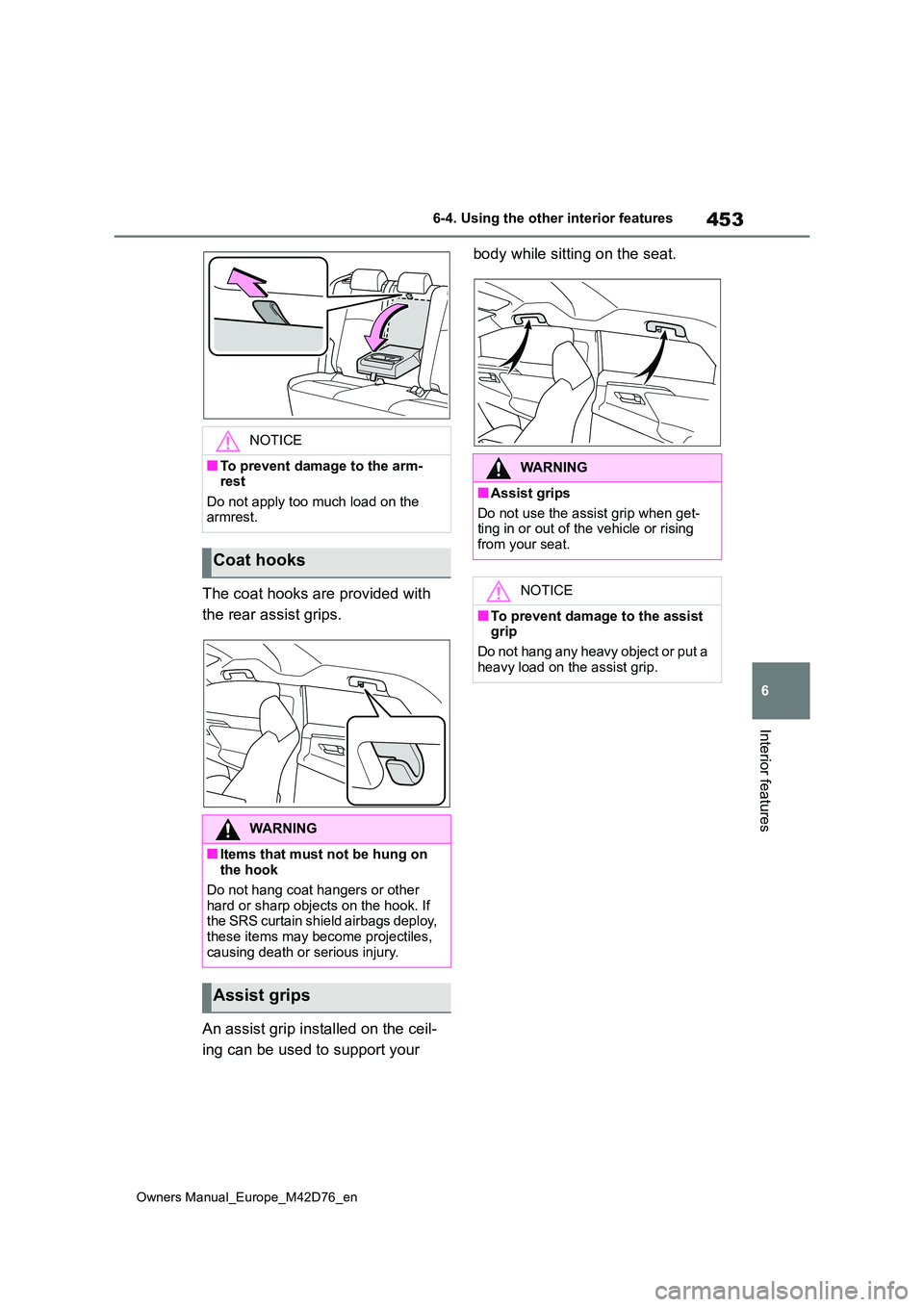

The coat hooks are provided with
the rear assist grips.
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
NOTICE
■To prevent damage to the arm- rest
Do not apply too much load on the armrest.
Coat hooks
WARNING
■Items that must not be hung on the hook
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy,
these items may become projectiles, causing death or serious injury.
Assist grips
WARNING
■Assist grips
Do not use the assist grip when get- ting in or out of the vehicle or rising
from your seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a
heavy load on the assist grip.

460
Owners Manual_Europe_M42D76_en
7-1. Maintenance and care
following:

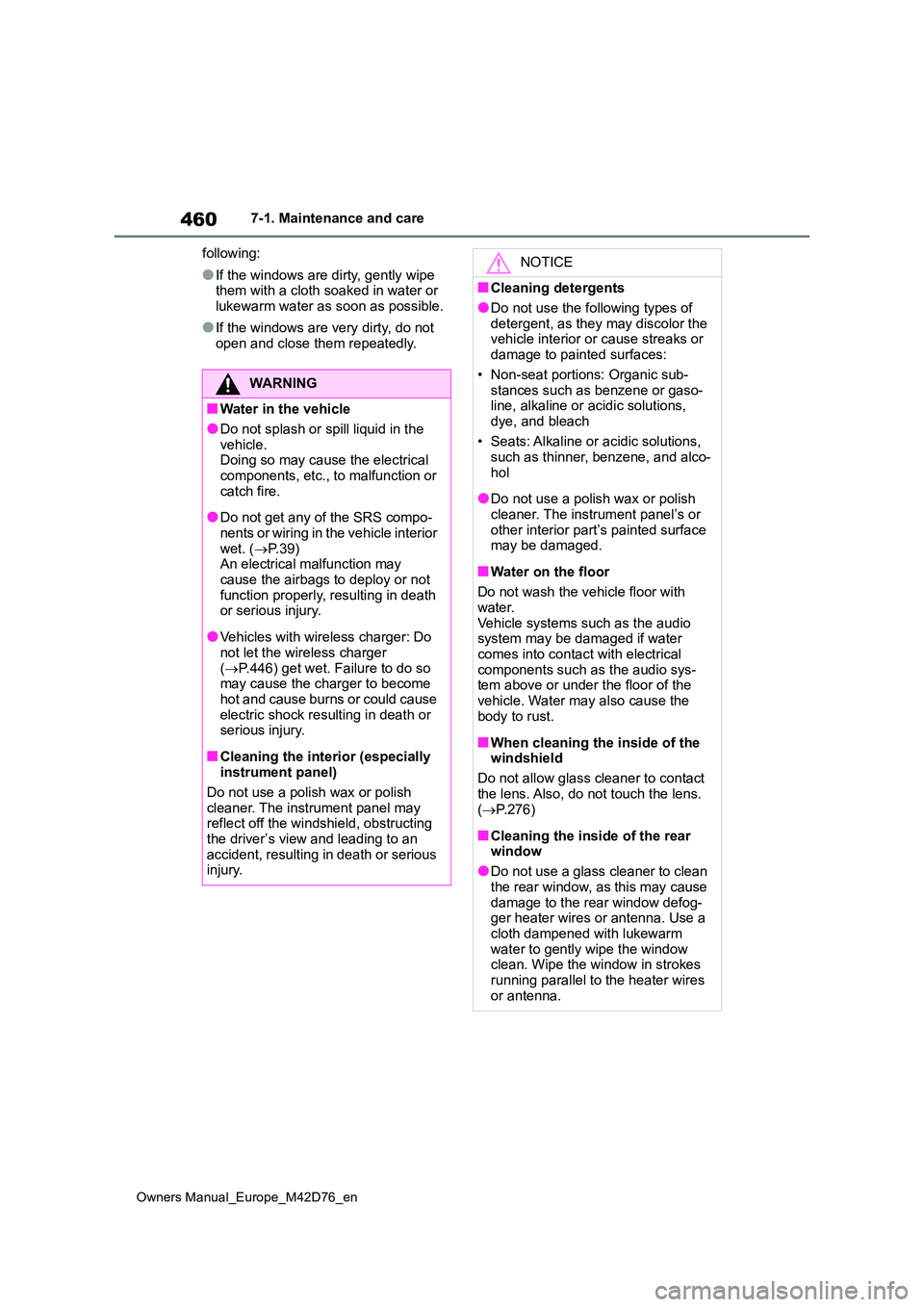

●If the windows are dirty, gently wipe them with a cloth soaked in water or
lukewarm water as soon as possible.
●If the windows are very dirty, do not
open and close them repeatedly.
WARNING
■Water in the vehicle
●Do not splash or spill liquid in the
vehicle. Doing so may cause the electrical components, etc., to malfunction or
catch fire.
●Do not get any of the SRS compo-
nents or wiring in the vehicle interior wet. ( P. 3 9 ) An electrical malfunction may
cause the airbags to deploy or not function properly, resulting in death or serious injury.
●Vehicles with wireless charger: Do not let the wireless charger
( P.446) get wet. Failure to do so may cause the charger to become hot and cause burns or could cause
electric shock resulting in death or serious injury.
■Cleaning the interior (especially instrument panel)
Do not use a polish wax or polish
cleaner. The instrument panel may reflect off the windshield, obstructing the driver’s view and leading to an
accident, resulting in death or serious injury.
NOTICE
■Cleaning detergents
●Do not use the following types of
detergent, as they may discolor the vehicle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic sub- stances such as benzene or gaso-line, alkaline or acidic solutions,
dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
●Do not use a polish wax or polish
cleaner. The instrument panel’s or other interior part’s painted surface may be damaged.
■Water on the floor
Do not wash the vehicle floor with
water. Vehicle systems such as the audio system may be damaged if water
comes into contact with electrical components such as the audio sys-tem above or under the floor of the
vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windshield
Do not allow glass cleaner to contact
the lens. Also, do not touch the lens. ( P.276)
■Cleaning the inside of the rear window
●Do not use a glass cleaner to clean
the rear window, as this may cause damage to the rear window defog-ger heater wires or antenna. Use a
cloth dampened with lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.

506

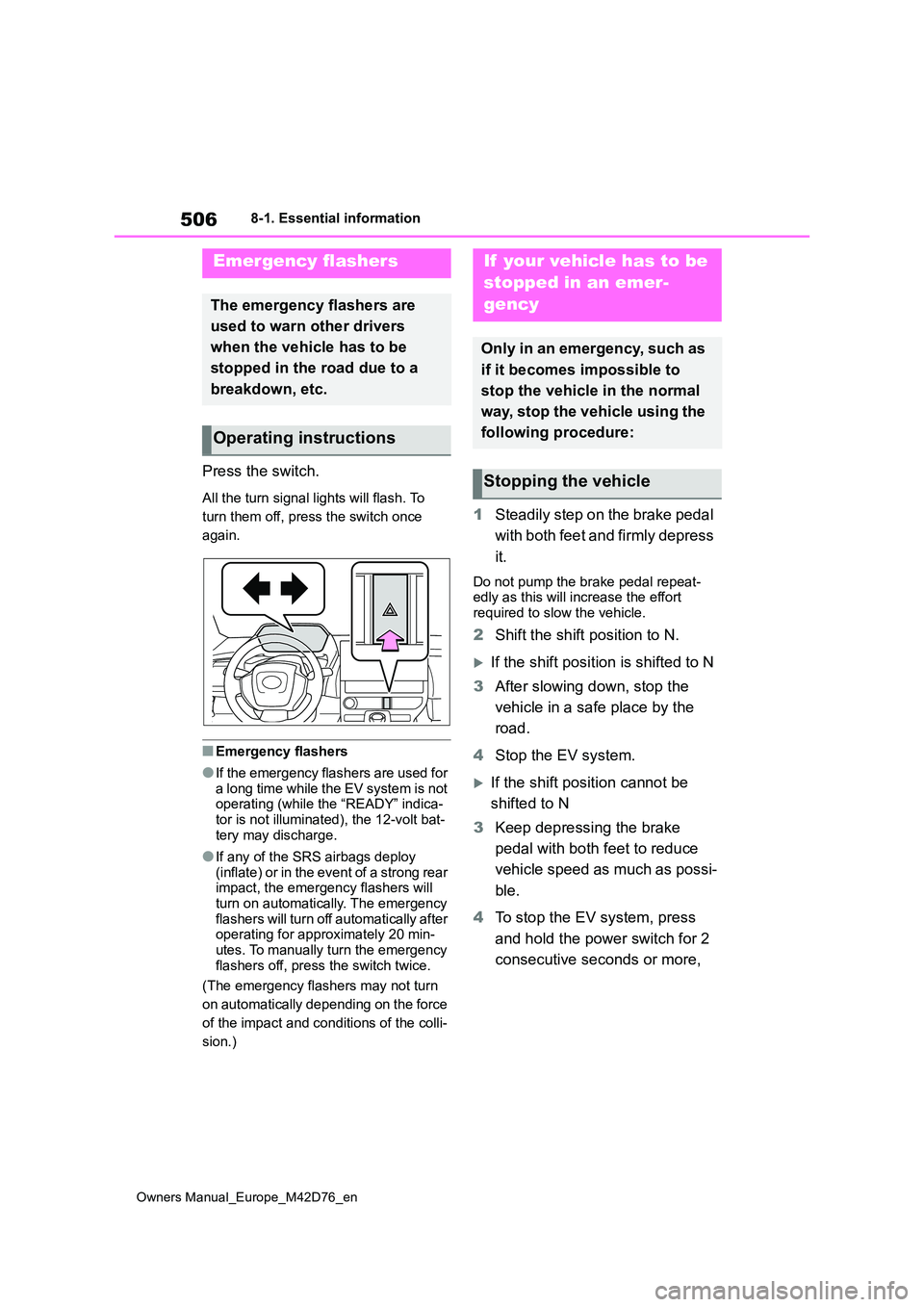

Owners Manual_Europe_M42D76_en
8-1. Essential information
8-1.Esse ntial informa tion
Press the switch.
All the turn signal lights will flash. To
turn them off, press the switch once
again.
■Emergency flashers
●If the emergency flashers are used for a long time while the EV system is not operating (while the “READY” indica-
tor is not illuminated), the 12-volt bat- tery may discharge.
●If any of the SRS airbags deploy (inflate) or in the event of a strong rear impact, the emergency flashers will
turn on automatically. The emergency flashers will turn off automatically after operating for approximately 20 min-
utes. To manually turn the emergency flashers off, press the switch twice.
(The emergency flashers may not turn
on automatically depending on the force
of the impact and conditions of the colli-
sion.)
1 Steadily step on the brake pedal
with both feet and firmly depress
it.
Do not pump the brake pedal repeat- edly as this will increase the effort required to slow the vehicle.
2 Shift the shift position to N.
If the shift position is shifted to N
3 After slowing down, stop the
vehicle in a safe place by the
road.
4 Stop the EV system.
If the shift position cannot be
shifted to N
3 Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as possi-
ble.
4 To stop the EV system, press
and hold the power switch for 2
consecutive seconds or more,
Emergency flashers
The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped in the road due to a
breakdown, etc.
Operating instructions
If your vehicle has to be
stopped in an emer-
gency
Only in an emergency, such as
if it becomes impossible to
stop the vehicle in the normal
way, stop the vehicle using the
following procedure:
Stopping the vehicle

516
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency

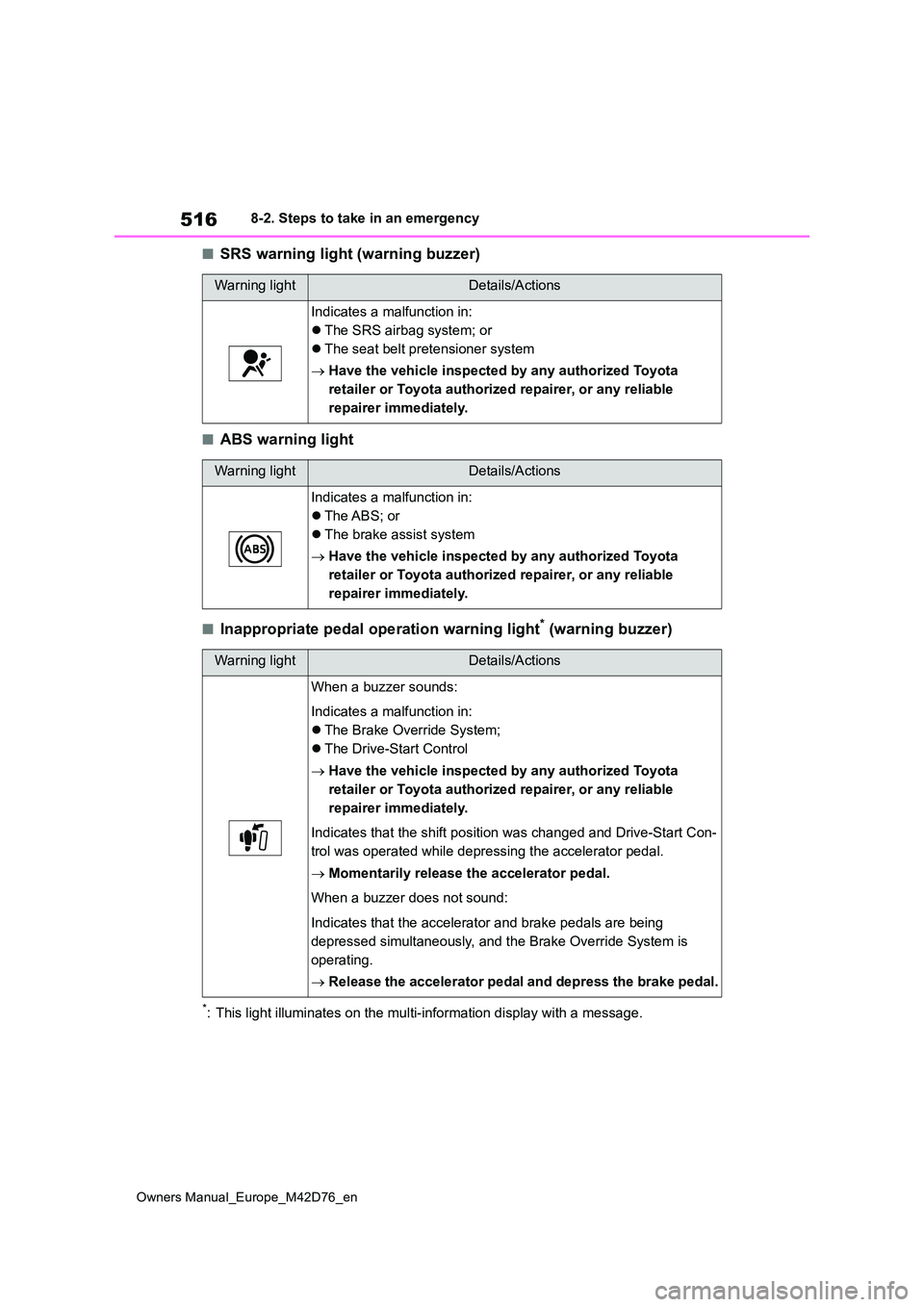

■SRS warning light (warning buzzer)
■ABS warning light
■Inappropriate pedal operation warning light* (warning buzzer)
*: This light illuminates on the multi-information display with a message.
Warning lightDetails/Actions
Indicates a malfunction in:
 The SRS airbag system; or
 The seat belt pretensioner system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightDetails/Actions
Indicates a malfunction in:
 The ABS; or
 The brake assist system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightDetails/Actions
When a buzzer sounds:
Indicates a malfunction in:
 The Brake Override System;
 The Drive-Start Control
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Indicates that the shift position was changed and Drive-Start C on-
trol was operated while depressing the accelerator pedal.
 Momentarily release the accelerator pedal.
When a buzzer does not sound:
Indicates that the accelerator and brake pedals are being
depressed simultaneously, and the Brake Override System is
operating.
 Release the accelerator pedal and depress the brake pedal.

538
Owners Manual_Europe_M42D76_en

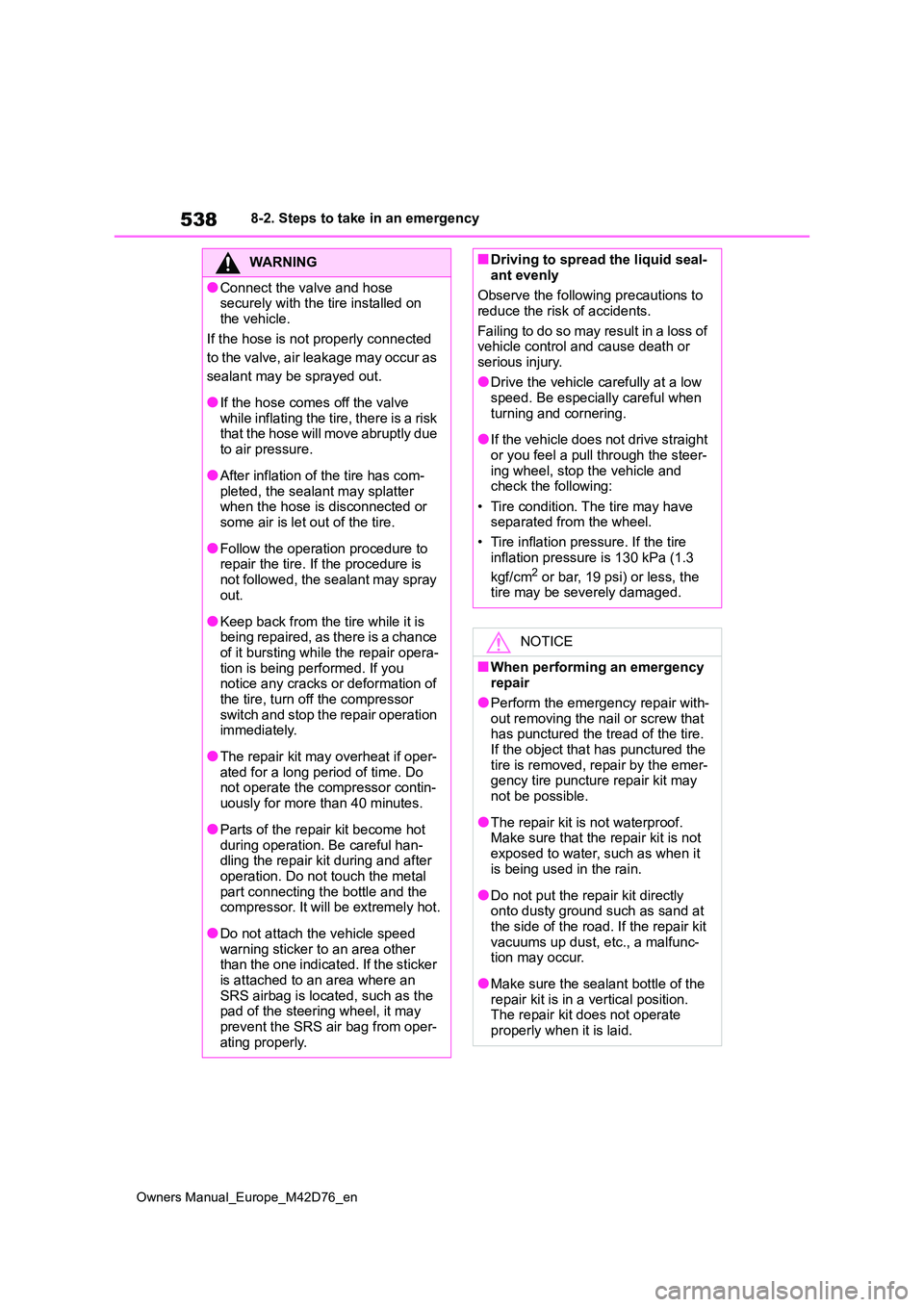

8-2. Steps to take in an emergency
WARNING
●Connect the valve and hose securely with the tire installed on
the vehicle.
If the hose is not properly connected
to the valve, air leakage may occur as
sealant may be sprayed out.
●If the hose comes off the valve while inflating the tire, there is a risk that the hose will move abruptly due
to air pressure.
●After inflation of the tire has com-
pleted, the sealant may splatter when the hose is disconnected or some air is let out of the tire.
●Follow the operation procedure to repair the tire. If the procedure is
not followed, the sealant may spray out.
●Keep back from the tire while it is being repaired, as there is a chance of it bursting while the repair opera-
tion is being performed. If you notice any cracks or deformation of the tire, turn off the compressor
switch and stop the repair operation immediately.
●The repair kit may overheat if oper-ated for a long period of time. Do not operate the compressor contin-
uously for more than 40 minutes.
●Parts of the repair kit become hot
during operation. Be careful han- dling the repair kit during and after operation. Do not touch the metal
part connecting the bottle and the compressor. It will be extremely hot.
●Do not attach the vehicle speed warning sticker to an area other than the one indicated. If the sticker
is attached to an area where an SRS airbag is located, such as the pad of the steering wheel, it may
prevent the SRS air bag from oper- ating properly.
■Driving to spread the liquid seal-ant evenly
Observe the following precautions to
reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
●Drive the vehicle carefully at a low speed. Be especially careful when
turning and cornering.
●If the vehicle does not drive straight
or you feel a pull through the steer- ing wheel, stop the vehicle and check the following:
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If the tire
inflation pressure is 130 kPa (1.3
kgf/cm2 or bar, 19 psi) or less, the tire may be severely damaged.
NOTICE
■When performing an emergency repair
●Perform the emergency repair with-
out removing the nail or screw that has punctured the tread of the tire. If the object that has punctured the
tire is removed, repair by the emer- gency tire puncture repair kit may not be possible.
●The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
●Do not put the repair kit directly onto dusty ground such as sand at the side of the road. If the repair kit
vacuums up dust, etc., a malfunc- tion may occur.
●Make sure the sealant bottle of the repair kit is in a vertical position. The repair kit does not operate
properly when it is laid.

579
Owners Manual_Europe_M42D76_en
Alphabetical Index
Alphabetical Index
A
A/C ................................................. 420
Air conditioning filter................... 496
Automatic air conditioning system
................................................. 420
Front seat concentrated airflow
mode (S-FLOW) ...................... 425
Heated Windshield Defroster ..... 426
My Room Mode.......................... 145
Remote Air Conditioning System427
“SYNC”mode.............................. 423
ABS (Anti-lock Brake System) .... 406
Function ..................................... 406
Warning light .............................. 516
AC charging .................................. 121
AC charging cable .......................... 98
AC charging cable types ............ 100
CCID (Charging Circuit Interrupting
Device) .................................... 100
If the charging connector cannot be
unlocked .................................. 111
Indicator ..................................... 102
Maintenance .............................. 106
Replacing the plug-cord ............. 104
Safety functions ......................... 101
ACA (Active Cornering Assist) .... 406
Acoustic Vehicle Alerting System. 84
Active Cornering Assist (ACA) .... 406
Adaptive High-beam System (AHS)
..................................................... 262
AHB (Automatic High Beam) ....... 265
AHS (Adaptive High-beam System)
..................................................... 262
Air conditioning filter ................... 496
Air conditioning system............... 420
Air conditioning filter................... 496
Automatic air conditioning system
................................................. 420
Front seat concentrated airflow
mode (S-FLOW) ...................... 425
Heated Windshield Defroster ..... 426
Remote Air Conditioning System427
“SYNC” mode .............................423
Airbag manual on-off system ........ 47
Airbags ............................................ 39
Airbag manual on-off system ....... 47
Airbag operating conditions.......... 41
Airbag precautions for your child.. 44
Correct driving posture ................. 33
Curtain shield airbag operating con-
ditions......................................... 41
Curtain shield airbag precautions. 44
Front seat center airbag operating
conditions ................................... 41
General airbag precautions .......... 44
Locations of airbags ..................... 39
Modification and disposal of airbags
................................................... 46
Side airbag operating conditions .. 41
Side airbag precautions ............... 44
Side and curtain shield airbags oper-
ating conditions .......................... 41
Side and curtain shield airbags pre-
cautions...................................... 44
SRS airbags ................................. 39
SRS warning light.......................516
Alarm
Alarm ............................................ 77
Warning buzzer .......................... 515
ALL AUTO (“ECO”) control .......... 418
Antenna (smart entry & start system)
..................................................... 203
Anti-lock Brake System (ABS)..... 406
Function ..................................... 406
Warning light .............................. 516
Approach warning ........................ 313
Armrest .......................................... 452
Assist grips ...................................453
Audio system-linked display ....... 177
Automatic air conditioning system
..................................................... 420

588
Owners Manual_Europe_M42D76_en
Alphabetical Index
Power windows
Door lock linked window operation
................................................. 220
Jam protection function .............. 219
Operation ................................... 219
Window lock switch .................... 221
Pre-Collision System (PCS) ......... 283
Enabling/disabling the system ... 293
Function ..................................... 283
Warning light .............................. 520
R
Radar cruise control .................... 316
Radar cruise control (dynamic radar
cruise control) ............................ 307
RCD (Rear Camera Detection) ..... 348
Enabling/disabling the system ... 349
RCTA (Rear Crossing Traffic Alert)
..................................................... 343
Enabling/disabling the system ... 344
Rear Camera Detection (RCD) ..... 348
Enabling/disabling the system ... 349
Rear Crossing Traffic Alert (RCTA)
..................................................... 343
Enabling/disabling the system ... 344
Rear eAxle
Fluid ........................................... 558
Rear electric motor (traction motor)
Specification............................... 556
Rear fog light
Replacing light bulbs .................. 504
Switch ........................................ 268
Rear interior lights ....................... 432
Rear seat
Folding down the rear seatbacks210
Rear seats ..................................... 209
Adjustment ................................. 209
Head restraints........................... 211
Rear turn signal lights
Replacing light bulbs .................. 504
Turn signal lever ........................ 253
Rear view mirror
Inside rear view mirror................ 216
Outside rear view mirrors ........... 217
Rear window defogger ................. 422
Regenerative braking ..................... 83
Warning lights.............................515
Remote Air Conditioning System 427
Replacing
Electronic key battery ................. 499
Fuses ......................................... 501
Light bulbs .................................. 504
Tires ........................................... 488
Replacing the tire.......................... 488
Road Sign Assist (RSA) ............... 304
Roof luggage carrier..................... 235
RSA (Road Sign Assist) ............... 304
S
Safe Exit Assist (SEA)
Enabling/disabling the system.... 330
SEA (Safe Exit Assist) ..................328
Enabling/disabling the system.... 330
Seat belt reminder light ................ 517
Seat belt shoulder anchor height
Adjustment ................................... 37
Seat belts ......................................... 35
Adjusting the seat belt shoulder
anchor height ............................. 37
Child restraint system installation. 49
Cleaning and maintaining the seat
belt ........................................... 459
Emergency Locking Retractor ...... 37
How to wear your seat belt..... 34, 36
How your child should wear the seat
belt ............................................. 36
Pregnant women, proper seat belt
use ............................................. 35
Reminder light and buzzer ......... 517
Seat belt pretensioners ................ 37
SRS warning light.......................516
Seat heaters .................................. 429
