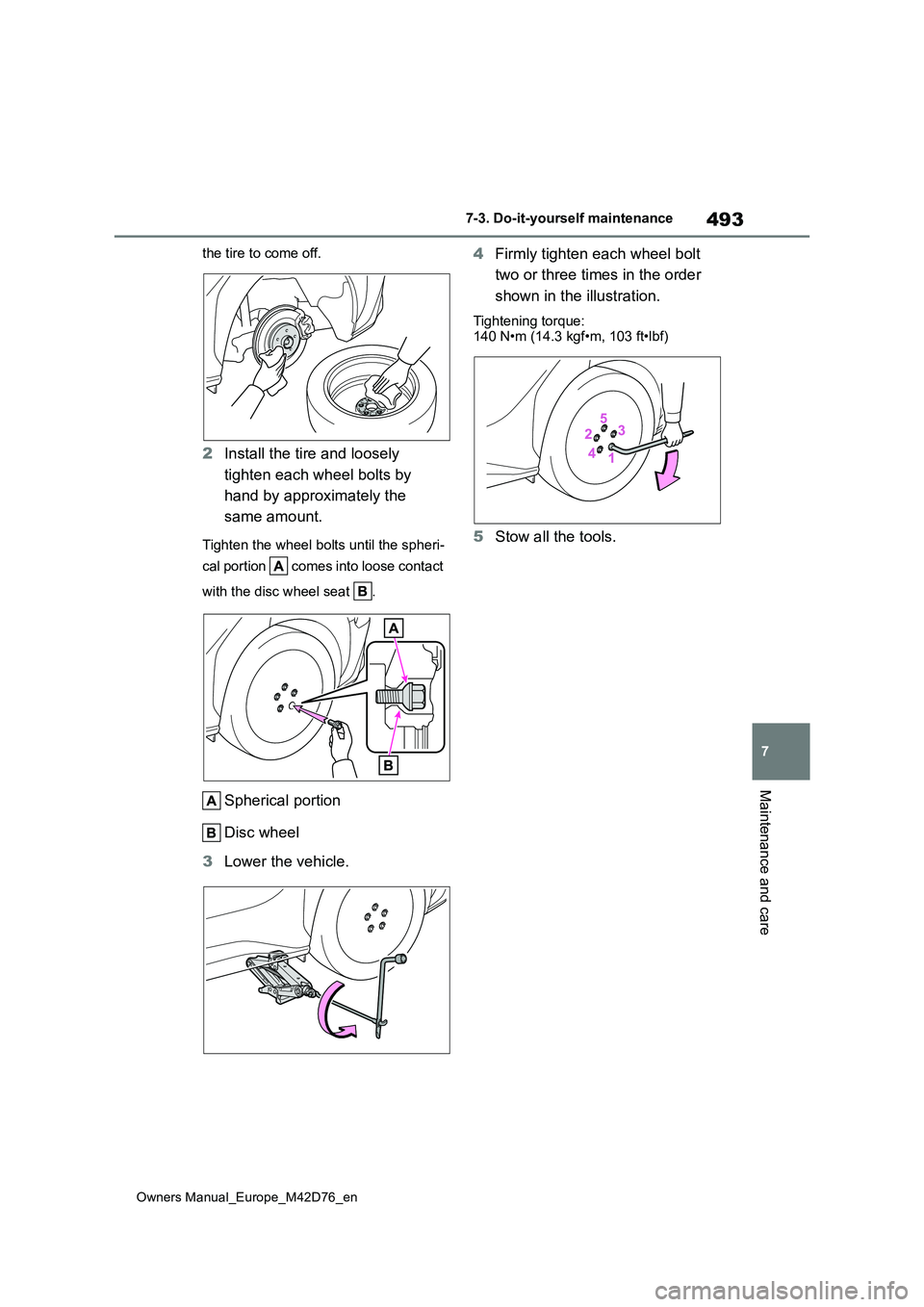

7-3. Do-it-yourself maintenance
Maintenance and care
the tire to come off.
2Install the tire and loosely
tighten each wheel bolts by
hand by approximately the
same amount.
Tighten the wheel bolts until the spheri-
cal portion comes into loose contact
with the disc wheel seat .
Spherical portion
Disc wheel
3 Lower the vehicle.
4 Firmly tighten each wheel bolt
two or three times in the order
shown in the illustration.
Tightening torque: 140 N•m (14.3 kgf•m, 103 ft•lbf)
5 Stow all the tools.

498
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
ter case and replace it with a
new one.
Install so that the arrow points to the rear of the vehicle.
10 When installing, reverse the
steps listed.
■When installing the filter cover
Slide the recessed part of the filter
cover on the upper surface of the upper
filter case as shown in the figure,
and attach it so that it is lifted toward the
insertion part of the cover attachment.
Left-hand drive vehicles
Right-hand drive vehicles
■Checking interval
Inspect and replace the air conditioning
filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement may be required. (For scheduled main-
tenance information, please refer to the “Toyota Service Booklet” or “Toyota War-ranty Booklet”.)
■If air flow from the vents decreases
dramatically
The filter may be clogged. Check the fil- ter and replace if necessary.
WARNING
■When replacing the air condition-ing filter
Observe the following precautions.
Failure to do so may result in the air conditioning system operating during the procedure, possibly resulting in
injury.
●Check that the charging connector is not connected
●Do not use the Remote Air Condi-tioning System
NOTICE
■When using the air conditioning
system
●Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.
●The filter is replaceable. When cleaning the filter, do not clean with
water or an air gun.

500
Owners Manual_Europe_M42D76_en
7-3. Do-it-yourself maintenance
1Remove the lock and take out
the mechanical key.
2 Remove the cover.
Use a screwdriver of an appropriate size. Forcedly prying may cause the cover damaged.
To prevent damage to the key, cover the tip of the flathead screwdriver with a rag.
3 Remove the depleted battery
using a small flathead screw-
driver.
When removing the cover, the elec- tronic key module may stick to the cover and the battery may not be visi-
ble.
In this case, remove the electronic key module in order to remove the battery.
When removing the battery, use a screwdriver of an appropriate size.
Insert a new battery with the “+” termi-
nal facing up.
4 When installing the key cover
and mechanical key, install by
conducting step 2 and step 1
with the directions reversed.
Replacing the battery
WARNING
■Battery precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not swallow the battery. Doing
so may cause chemical burns.
●A coin battery or button battery is
used in the electronic key. If a bat- tery is swallowed, it may cause severe chemical burns in as little as
2 hours and may result in death or serious injury.
●Keep away new and removed bat-teries from children.
●If the cover cannot be firmly closed, stop using the electronic key and stow the key in the place where
children cannot reach, and then contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
●If you accidentally swallow a battery
or put a battery into a part of your body, get emergency medical atten-tion immediately.

8
505
Owners Manual_Europe_M42D76_en
8
When trouble arises
When trouble arises
8-1. Essential information
Emergency flashers .......... 506
If your vehicle has to be
stopped in an emergency 506
If the vehicle is submerged or
water on the road is rising
....................................... 507
8-2. Steps to take in an emer-
gency
If your vehicle needs to be
towed .............................. 509
If you think something is wrong
....................................... 513
If a warning light turns on or a
warning buzzer sounds... 515
If a warning message is dis-
played ............................. 523
If you have a flat tire ......... 528
If the EV system will not start
....................................... 539
If you lose your keys ......... 541
If the charging port lids cannot
be opened ...................... 541
If the electronic key does not
operate properly ............. 542
If the 12-volt battery is dis-
charged .......................... 544
If your vehicle overheats... 549
If the vehicle becomes stuck
....................................... 551

509
8
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
When trouble arises
8-2.Ste ps to take in an emerg ency
In the following situations, it is not
possible to be towed by another
vehicle using cables or chains, as
the front wheels may be locked due
to the parking lock. Contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer or commercial towing ser-
vice.
 There is a malfunction in the shift
control system. ( P.245, 527)
 There is a malfunction in the
immobilizer system. ( P. 7 5 )
 There is a malfunction in the
smart entry & start system.
( P.542)
 The 12-volt battery is dis-
charged. ( P.544)
The following may indicate a prob-
lem with your transmission. Contact
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer or commercial tow-
ing service before towing.
 The EV system warning mes-
sage is shown on the multi-infor-
mation display and the vehicle
does not move.
 The vehicle makes an abnormal
sound.
From the front (2WD models)
Release the parking brake.
Turn automatic mode off. ( P.255)
If your vehicle needs to
be towed
If towing is necessary, we rec-
ommend having your vehicle
towed by any authorized
Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer or commercial
towing service, using a wheel-
lift type truck or flatbed truck.
Use a safety chain system for
all towing, and abide by all
state/provincial and local laws.
Situations when it is not
possible to be towed by
another vehicle
Situations when it is neces-
sary to contact dealers
before towing
Towing with a wheel-lift type
truck

510
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
From the front (AWD models)
Use a towing dolly under the rear
wheels.
From the rear
Use a towing dolly under the front
wheels.
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
2WD models
Be sure to transport the vehicle with
the front wheels raised or with all four
wheels raised off the ground. If the
vehicle is towed with the front wheels
contacting the ground, the drivetrain
and related parts may be damaged or
electricity generated by the operation
of the motor may cause a fire to occur
depending on the nature of the dam-
age or malfunction.

511
8
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
When trouble arises
When using a flat-bed truck to
transport the vehicle, use tire strap-
ping belts. Refer to the owner’s
manual of the flat-bed truck for the
tire strapping method.
In order to suppress vehicle move-
ment during transportation, set the
parking brake and turn the power
switch off.
If a tow truck is not available in an
emergency, your vehicle may be
temporarily towed using cables or
chains secured to the emergency
towing eyelets. This should only be
attempted on hard surfaced roads
for short distances at under 30
km/h (18 mph).
A driver must be in the vehicle to
steer and operate the brakes. The
vehicle’s wheels, drive train, axles,
steering and brakes must be in
good condition.
WARNING
AWD models
Be sure to transport the vehicle with
all four wheels raised off the ground. If
the vehicle is towed with the tires con-
tacting the ground, the drivetrain or
related parts may be damaged, the
vehicle may fly off the truck, or elec-
tricity generated by the operation of
the motor may cause a fire to occur
depending on the nature of the dam-
age or malfunction.
NOTICE
■To prevent damage to the vehicle
when towing using a wheel-lift type truck
●Right-hand drive vehicles: Do not
tow the vehicle from the rear when the power switch is OFF. The steer-ing lock mechanism is not strong
enough to hold the front wheels straight.
●When raising the vehicle, ensure adequate ground clearance for tow-ing at the opposite end of the raised
vehicle. Without adequate clear- ance, the vehicle could be dam-aged while being towed.
■Towing with a sling-type truck
Do not tow with a sling-type truck to prevent body damage.
Using a flatbed truck
Emergency towing

512
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
To have your vehicle towed by
another vehicle, the towing eyelet
must be installed to your vehicle.
Install the towing eyelet using the
following procedure.
1 Take out the wheel bolt wrench
and towing eyelet.
( P.489,530)
2 Remove the eyelet cover using
a flathead screwdriver.
To protect the bodywork, place a rag between the screwdriver and the vehi-cle body as shown in the illustration.
3 Insert the towing eyelet into the
hole and tighten partially by
hand.
4 Tighten down the towing eyelet
securely using a wheel bolt
wrench or hard metal bar.
5 Securely attach cables or chains
to the towing eyelet.
Take care not to damage the vehicle body.
6 Enter the vehicle being towed
and start the EV system.
If the EV system does not start, turn the power switch to ON.
7 Shift the shift position to N and
release the parking brake.
Turn automatic mode off. ( P.255)
■While towing
If the EV system is off, the power assist
for the brakes and steering will not func- tion, making steering and braking more difficult.
■Wheel bolt wrench
Wheel bolt wrench is installed in lug- gage compartment. ( P.489, 530)
Emergency towing proce-
dure
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.

513
8
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
When trouble arises
Fluid leaks under the vehicle
(Water dripping from the air con-
ditioning after use is normal.)
 Flat-looking tires or uneven tire
wear
 Excessive tire squeal when cor-
nering
 Strange noises related to the
suspension system
 Other noises related to the EV
system
 Stumbling or running roughly
 Appreciable loss of power
 Vehicle pulls heavily to one side
when braking
 Vehicle pulls heavily to one side
when driving on a level road
WARNING
■While towing
●When towing using cables or
chains, avoid sudden starts, etc., which place excessive stress on the towing eyelets, cables or chains.
The towing eyelets, cables or chains may become damaged, bro-ken debris may hit people, and
cause serious damage.
●Do not perform any of the following
as doing so may cause the parking lock mechanism to engage, locking the front wheels and possibly lead-
ing to an accident resulting in death or serious injury:
• Unfasten the driver’s seat belt and open the driver’s door.
• Turn the power switch off.
■Installing towing eyelets to the
vehicle
Make sure that towing eyelets are installed securely. If not securely
installed, towing eyelets may come loose during towing.
NOTICE
■To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the
suspension components.
If you think something is
wrong
If you notice any of the follow-
ing symptoms, your vehicle
probably needs adjustment or
repair. Contact any authorized
Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer as soon as possi-
ble.
Visible symptoms
Audible symptoms
Operational symptoms

530
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
Towing eyelet
Wheel bolt wrench
Emergency tire puncture repair kit
■Bottle
Sticker
Location of the emergency tire puncture repair kit and tools
Emergency tire puncture
repair kit components
