Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Driving
cameras, but then leaves the detec-
tion area of the side sensors or side cameras, the system will assume the object has not moved.
*: If equipped
The Advanced Park is a system
which assists in safely and
smoothly parking in a target parking
space by displaying the blind spots
around the vehicle and the parking
spot through a bird’s eye view,
delivering operation guidance
through displays and buzzer opera-
tion, and changing the shift posi-
tion, operating the steering wheel,
accelerator pedal, and brake pedal.
Additionally, the panoramic view
monitor can display the area in
front, behind, and from above the
vehicle, helping confirm the condi-
tion of the area around the vehicle.
For details on the panoramic view
monitor refer to “Multimedia
owner’s manual”.
Depending on the condition of the
road surface or the vehicle, the dis-
tance between the vehicle and a
parking space, etc., it may not be
possible to assist in parking in the
target space.
■Preparation before using
 P. 3 9 5
Toyota Teammate
Advanced Park*
Purpose of the Advanced
Park

368
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
WARNING
• Be careful so that a necktie, scarf, or arm does not get caught. Keep
your upper body away from the steering wheel. Also, keep children away from the steering wheel.
• Long fingernails may be caught and when the steering wheel is rotating,
leading to injury.
• In an emergency, depress the
brake pedal to stop the vehicle, and then press the Advanced Park main switch to disable the system.
●Do not allow anyone to put their hands outside of a window while
this system is operating.
■Precautions for the cameras and
sensors
●Due to the characteristics of the camera lens, the position of and
distance to people and objects dis- played on the screen may differ from the actual situation. For details
on the following, refer to “Multime- dia owner’s manual”.
●Make sure to observe the precau-tions for using the Toyota parking assist-sensor ( P.348), otherwise
a sensor may not operate correctly, possibly leading to an accident.
●In situations such as the following, the sensors may not operate cor-rectly, possibly leading to an acci-
dent. Proceed carefully.
• When there is a parked vehicle next
to the target parking space, if the displayed target parking space is far from the actual target parking
space, a sensor may be mis- aligned. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
• Do not install any accessories near the detection area of the sensors.
■To ensure correct operation of the Advanced Park
Observe the following precautions.
Failing to do so may result in the vehi- cle being unable to be driven safely and possibly leading to an accident.
●Do not use this system in situations such as the following:
• When in areas other than common parking spaces
• When the surface of the parking space is sand or gravel and is not
clearly defined with parking space lines
• When the parking space is not level, such as when on a slope or has differences in height
• Mechanical parking system
• Parking lot with a device which raises to contact the bottom of the vehicle
• When the road surface is frozen, slick, or covered with snow
• When it is extremely hot and the asphalt is melting
• When there is an object in front of the vehicle
• When there is an object between your vehicle and the target parking
spot or within the target parking spot (within the displayed blue box)
• When there is a gutter between your vehicle and the target parking space or within the target parking
spot (within the displayed blue box)
• When there is a hole or gutter in the
exit direction
• When in high pedestrian or vehicle
traffic areas
• When the parking space is in a
location that is difficult to park in (too narrow for your vehicle, etc.)

372
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Cameras and sensors are used to
detect parked vehicles, making it
easier to identify parking spaces.
Front camera
NOTICE
●While using Remote control func- tion, if the home button or power
button of the smartphone is pressed and the screen is locked, Remote control function will be sus-
pended. Assist can be resumed if the Remote Park app is reopened within 3 minutes. If 3 minutes or
more elapse, assist will be can- celed.
●Do not use the Remote Park app with devices other than those which operation has been confirmed by
the maker. Otherwise the system may not operate correctly.
●When the ambient temperature is low, it may take time for the system to start, due to 12-volt battery
charging.
●If the 12-volt battery voltage drops,
assistance will be canceled.
●When using Remote control func-
tion on a slope, the vehicle speed will be slower and the distance that the vehicle will approach objects
will become longer than when on a level road surface.
●If a system temporary failure occurs, after the vehicle is stopped by the electronic parking brake or
the shift position being changed to P, the power switch may turn off and the system may be canceled.
In this case, have the vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
●If a system malfunction occurs,
assistance may be temporarily sus- pended. If the system returns to normal, operation can be resumed.
Follow the content on the smart- phone screen to resume operation.
●Remote control function cannot be started if the EV system has been started using an aftermarket remote
starter.
●After Remote control function com-
pletes, the parking brake will be engaged as per regulations. As the parking brake may freeze and not
be able to be released, avoid using Remote control function in extremely cold areas. Also, if the
parking brake freezes, it may make a noise when it is released. How-ever, this does not indicate a mal-
function.
●Do not use the remote function with
an electronic key that has a depleted battery.
●The remote function cannot be started while the vehicle charging connector is connected. If support
is accidentally started, it may end abnormally.
Type of Advanced Park cam-
eras and sensors

373
5
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Driving
Side cameras
Rear camera
Sensors
 P. 3 3 3
■Camera images
As special cameras are used, the colors in displayed images may differ from the actual color.
■Precautions for use
For details on the following, refer to “Multimedia owner’s manual”.
●Displayable range of the screens
●Cameras
●Differences between displayed images and the actual road
●Differences between displayed images and the actual objects
■Detection range of the cameras and
sensors
●If a parked vehicle is behind the target
parking space and the distance between it and the vehicle becomes
far, it may no longer be able to be
detected. Depending on shape or con- dition of a parked vehicle, the detec-tion range may become short or the
vehicle may not be detected.
●Objects other than parked vehicles,
such as columns, walls, etc., may not be detected. Also, if they are detected, they may cause the target
parking space to be misaligned.
■Situations in which white parking space lines may not be recognized properly
●In situations such as the following, parking space lines on the road sur-
face may not be detected: • When the parking space does not use white lines (parking space boundaries
are marked with rope, blocks, etc.) • When the parking space lines are faded or dirty, making them unclear
• When the road surface is bright, such as concrete, and the contrast between it and the white parking space lines is
small • When the parking space lines are any color other than yellow or white
• When the area surrounding the park- ing space is dark, such as at night, in an underground parking lot, parking
garage, etc. • When it is raining or has rained and the road surface is wet and reflective
or there are puddles • When the sun is shining directly into a camera, such as in the early morning
or evening • When the parking space is covered with snow or de-icing agent
• When there marks from repairs or other marks on the road surface, or there is a traffic bollard, or other object
on the road surface • When the color or brightness of the road surface is uneven
• When a camera has been splashed by hot or cold water and the lens has fogged up
• When the appearance of the parking space is affected by the shadow of the vehicle or trees

374
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
• When a camera lens is dirty or cov-
ered with water droplets
●In situations such as the following, the
target parking space may not be rec- ognized correctly:• When there marks from repairs or
other marks on the road surface, or there is a parking block, traffic bollard, or other object on the road surface
• When it is raining or has rained and the road surface is wet and reflective or there are puddles
• When the area around the vehicle is dark or backlit• When the color or brightness of the
road surface is uneven • When the parking space is on a slope• When there are diagonal lines (access
aisle) near the parking space • When the appearance of the parking space is affected by the shadow of a
parked vehicle (such as shadows from the grille, side step, etc.)• When accessories which obstruct the
view of the camera are installed • When the parking space lines are faded or dirty, making them unclear
• When the appearance of the parking space is affected by the shadow of the vehicle or trees
■Sensor detection information
 P. 3 3 5
■Objects which the sensor may not be properly detected
 P. 3 3 5
■Situations in which the sensor may
not operate properly
 P. 3 3 5
■Situations in which parking assis- tance may not operate even if there
is no possibility of a collision
 P. 3 3 6
Press the Advanced Park main
switch.
If the switch is pressed while assistance
is being performed, the assistance will
be canceled.
■Operating conditions of the
Advanced Park
Assistance will begin when all of the fol- lowing conditions are met:
●The brake pedal is depressed
●The vehicle is stopped
●The driver’s seat belt is fastened
●The steering wheel is not being oper-ated
●The accelerator pedal is not depressed
●All of the doors are closed
●The outside rear view mirrors are not folded
●The parking brake is not engaged
●The dynamic radar cruise control are
not operating
●ABS, VSC, TRAC, PCS and PKSB
are not operating
●The vehicle is not on a steep slope
●The VSC and TRAC are not turned off
If assistance cannot be started, check
the message displayed on the multime-
dia display ( P.400)Turning the Advanced Park
on/off

376
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
Guidance screen (When revers-
ing)
Operation icon
Displayed when the Advanced Park is
operating.
Guide lines (yellow and red)
Display points from the center of the
edge of the front or rear bumper to the
target stopping position (yellow)* and
approximately 0.3 m (1 ft.) (red) from
the vehicle.
Moving object warning icon
Emergency support brake con-
trol operation display
“BRAKE!” is displayed.
Toyota parking assist-sensor
display
 P. 3 3 3
*: When the target stop position is 2.5
m (8.2 ft.) or more, the horizontal line
(yellow) will be hidden.
■Toyota parking assist-sensor pop- up display
Regardless of whether the Toyota park- ing assist-sensor is off or on ( P.334), if an object is detected by the Toyota park-
ing assist-sensor when the Advanced Park is operating, the Toyota parking assist-sensor pop up display will auto-
matically be displayed over the guid-
ance display.
■Brake control operation when Advanced Park is operating
While the Advanced Park is operating, if
the system determines that the possibil- ity of collision with detected moving or stationary object is high, the EV system
output restriction control and brake con- trol will operate.
If brake control operates, Advanced
Park operation will be suspended and a message will be displayed on the multi-information display.
■Buzzer
Depending on surrounding sounds or sounds from other systems, it may be difficult to hear the buzzer of this sys-
tem.
■If a black screen is displayed on the multimedia display when the Advanced Park is operating
The system is being affected by radio waves or may be malfunctioning. If a radio antenna is installed near a cam-
era, move it to a location as far from the cameras as possible. If a radio antenna is not installed near a camera, and the
screen does not return to normal after turning the power switch off and then starting the EV system again, have the
vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■Function description
The perpendicular parking (for-
ward/reverse) function can be used
if the target parking space can be
detected when the vehicle is
stopped close and perpendicular to
the center of the parking space.
Advanced Park Perpendicu-
lar parking (for-
ward/reverse) function

381
5
Owners Manual_Europe_M42D76_en

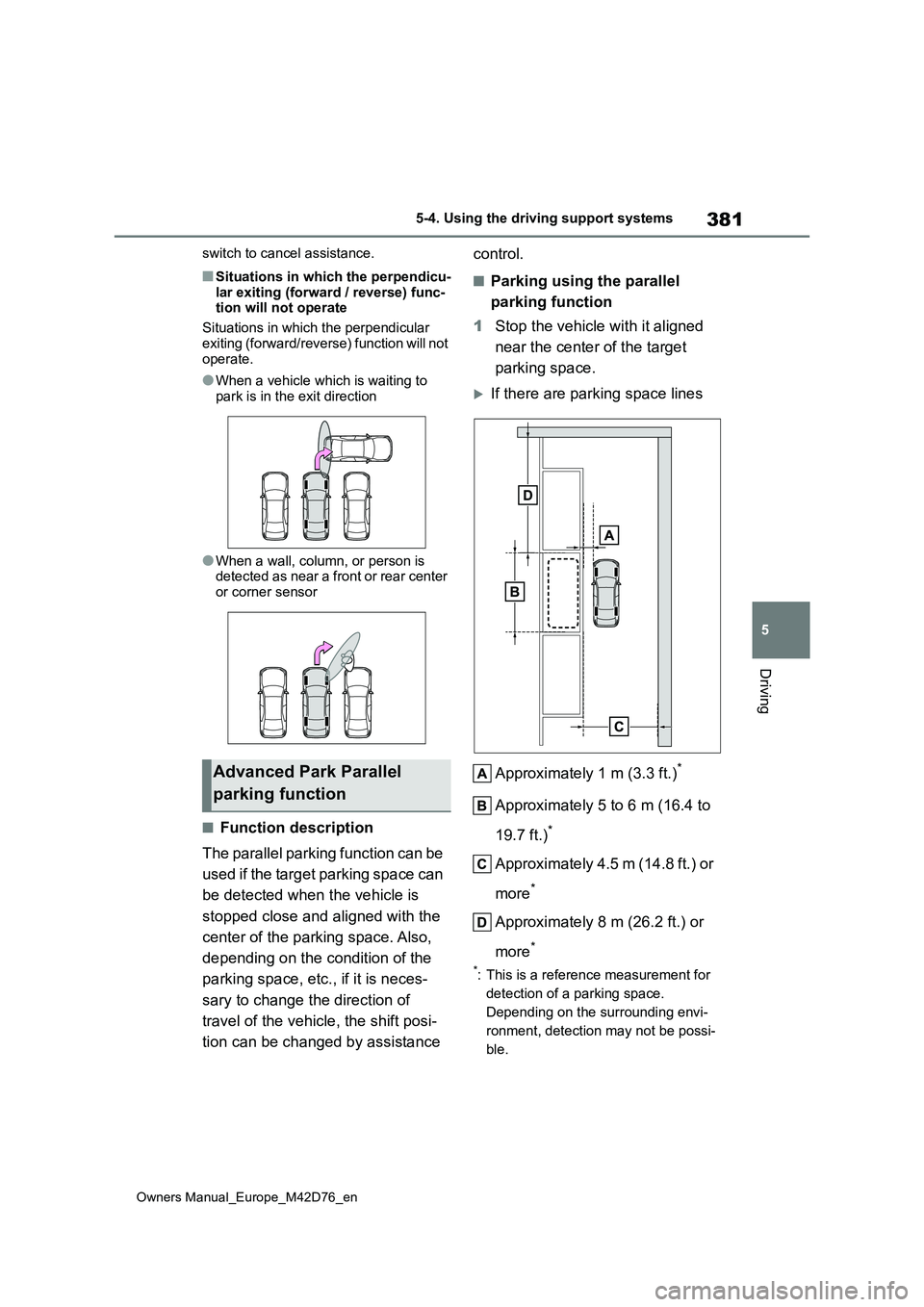

5-4. Using the driving support systems
Driving
switch to cancel assistance.
■Situations in which the perpendicu-
lar exiting (forward / reverse) func- tion will not operate
Situations in which the perpendicular
exiting (forward/reverse) function will not operate.
●When a vehicle which is waiting to park is in the exit direction
●When a wall, column, or person is detected as near a front or rear center or corner sensor
■Function description
The parallel parking function can be
used if the target parking space can
be detected when the vehicle is
stopped close and aligned with the
center of the parking space. Also,
depending on the condition of the
parking space, etc., if it is neces-
sary to change the direction of
travel of the vehicle, the shift posi-
tion can be changed by assistance
control.
■Parking using the parallel
parking function
1 Stop the vehicle with it aligned
near the center of the target
parking space.
If there are parking space lines
Approximately 1 m (3.3 ft.)*
Approximately 5 to 6 m (16.4 to
19.7 ft.)*
Approximately 4.5 m (14.8 ft.) or
more*
Approximately 8 m (26.2 ft.) or
more*
*: This is a reference measurement for
detection of a parking space.
Depending on the surrounding envi-
ronment, detection may not be possi-
ble.
Advanced Park Parallel
parking function

386
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
nal in the exit direction
●When a vehicle is stopped in the area behind where the vehicle will exit
●When a wall, column, or person is detected as near a front or rear side
sensor
●When the vehicle has been parked on
a curb and a side sensor detects the road surface
●When a vehicle is not parked in front of the vehicle
●When there is excessive space between the front of the vehicle and a parked vehicle
■Function description
The memory function can be used
to park in a previously registered
parking space, even if there are no
parking space lines or adjacent
parked vehicles.
Up to 3 parking spaces can be reg-
istered.
■Registering a parking space
1 Stop the vehicle with it aligned
near the center of the target
parking space.
Approximately 1 m (3.3 ft.)
2 Press the main switch and then
select
If the Advanced Park main switch is
pressed at a parking space without
parking lines or any adjacent parked
vehicles, “No available parking space”
may be displayed. Continuously select
Advanced Park Memory
function

396
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
■Assistance will be canceled
when
In situations such as the following,
Advanced Park operation will be
canceled.
As system operation has been can-
celed, begin the operation again or con-
tinue parking manually, using the
NOTICE
●When using Remote control func- tion, make sure carry an electronic
key in your pocket, etc.
●If an electronic key is held together
with a smartphone, etc., the elec- tronic key may not be able to be detected.
●When entering the vehicle after using Remote control function,
make sure that the electronic key is brought into the vehicle and all of the doors are closed.
●Vehicles with the Power Easy Access System: After getting in the
vehicle and deactivating the remote function, the seat return is done by wearing the seat belt or stepping on
the brake. Be sure to be carrying the elec-tronic key.
●If the power switch is turned off when Remote control function oper-
ation has finished or been can- celed, the doors will be locked automatically. However, if a door is
open, it may not be locked. Check the vehicle condition after Remote control function operation has fin-
ished.
●When the doors are locked after
Remote control function operation has finished or been canceled, an alarm may sound if someone is
detected inside the vehicle.
■Situations in which the function
may not operate correctly
●When the functions of the smart entry & start system may not oper-
ate correctly: P. 2 0 6
●When the vehicle is near fluores-
cent lights
■Radio wave interference
 P. 2 0 7
■Electronic key battery consump- tion
●When Remote control function is
being used, the electronic key bat- tery will be used as the electronic key will continuously send and
receive radio waves.
●If the electronic key battery is
depleted: P.499
■Situations in which the sensors
may not operate properly
 P. 3 3 5
●When using Remote control func-
tion, visibility of the area around the vehicle may be limited. Make sure to check the following when using
Remote control function.
• The vehicle and area around the
vehicle are clearly visible
• There are no people, animals, or
objects in the path of the vehicle
• An appropriate distance from the
vehicle can be maintained and the safety of yourself and others can be ensured
• Caution for the area around the vehicle is always maintained and
there is no potential for danger
• You can cancel Remote control
function immediately if necessary
Advanced Park cancel-
ation/suspension

400
Owners Manual_Europe_M42D76_en
5-4. Using the driving support systems
deleted. Parking space information
cannot be deleted when assis-
tance is being performed or when
registering parking space informa-
tion to the memory function.
■Toyota parking assist-sensor
warning sound ON/OFF
(Smartphone setting)
The warning sounds of the Toyota
parking assist-sensor from smart-
phone application can be turned
on/off using the Remote Park app.
■Toyota parking assist-sensor
warning sound volume adjust-
ment (Smartphone setting)
The volume of the warning sounds
of the Toyota parking assist-sensor
from smartphone application can
be adjusted using the Remote Park
app.
The operating state, assistance
operation, etc. of the Advanced
Park is displayed on the multimedia
display. If a message is displayed,
respond according to the content
displayed.
■If “No available parking space” is
displayed
Move the vehicle to a location where a parking space or parking lines can be
detected.
■If “Unavailable in current condi-
tion” is displayed
Move the vehicle to another location and use the system.
■If “Not enough space to exit” is dis-
played
The parallel parking exit function cannot be used due to a situation such as the
distance between your vehicle and vehi- cles parked in front of and behind your vehicle being short, the existence of an
object in the exit direction, etc.
Check the conditions of the area around your vehicle and exit from the parking
space manually.
■If “Cannot control speed” is dis- played
The system judged that it cannot adjust
the speed of the vehicle when using the system in an area with a slope or step and assistance was canceled.
Use the system in a level location.
■If “Obstacle detected” is displayed
The emergency support brake operated and assistance was suspended.
Check the condition of the surrounding area. To resume assistance, select the “Start” button on the multimedia display.
■If “No available parking space to
register” is displayed
This message is displayed when is
selected at a parking space that cannot
be detected.
Operate the system at a parking space where differences in the road surface can be recognized. ( P.386)
Changing the Remote Park
app settings
Advanced Park Displayed
messages
