8-2. Steps to take in an emergency
vehicles, etc., nearby.

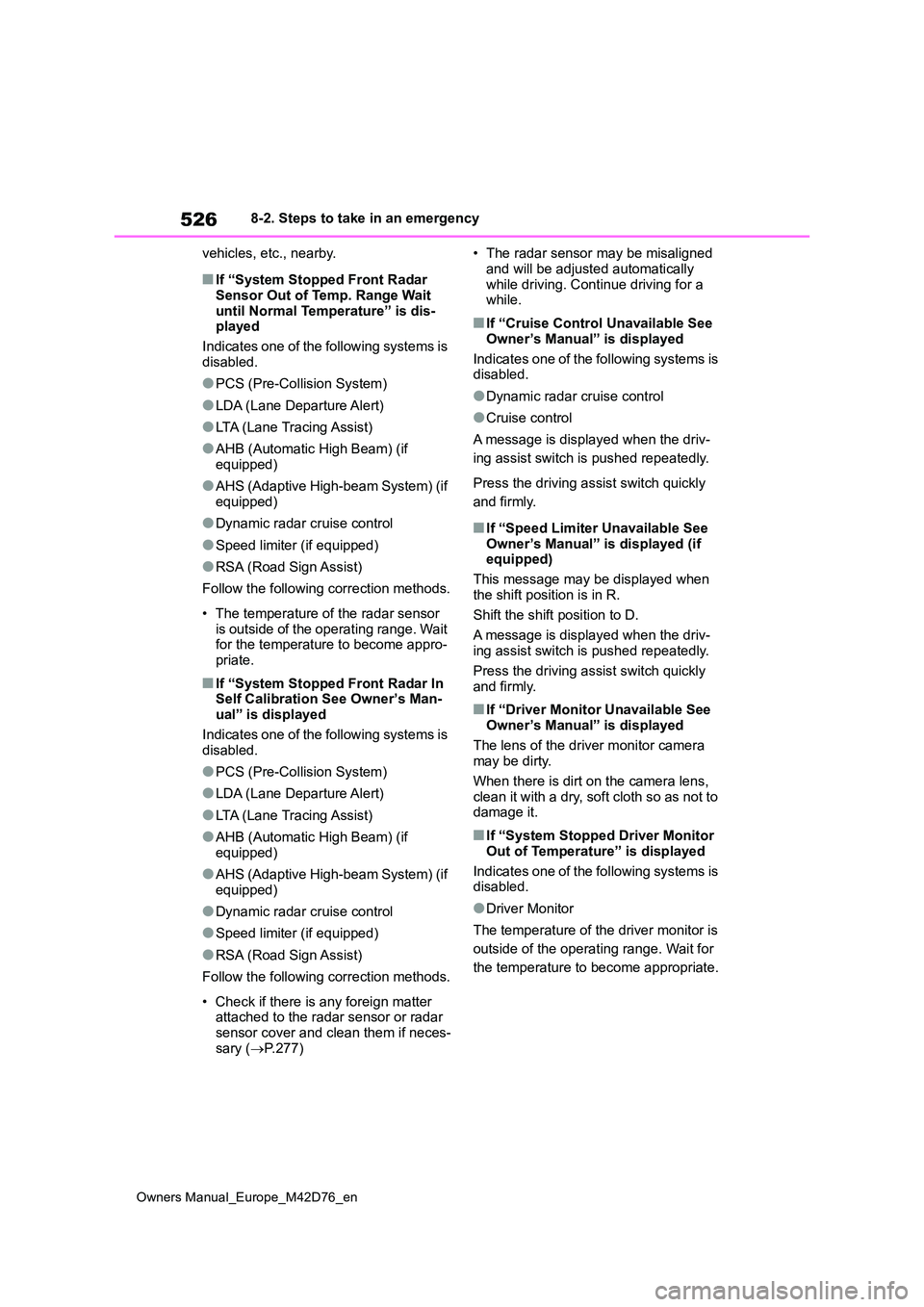

■If “System Stopped Front Radar Sensor Out of Temp. Range Wait
until Normal Temperature” is dis- played
Indicates one of the following systems is
disabled.
●PCS (Pre-Collision System)
●LDA (Lane Departure Alert)
●LTA (Lane Tracing Assist)
●AHB (Automatic High Beam) (if
equipped)
●AHS (Adaptive High-beam System) (if
equipped)
●Dynamic radar cruise control
●Speed limiter (if equipped)
●RSA (Road Sign Assist)
Follow the following correction methods.
• The temperature of the radar sensor is outside of the operating range. Wait for the temperature to become appro-
priate.
■If “System Stopped Front Radar In Self Calibration See Owner’s Man-ual” is displayed
Indicates one of the following systems is disabled.
●PCS (Pre-Collision System)
●LDA (Lane Departure Alert)
●LTA (Lane Tracing Assist)
●AHB (Automatic High Beam) (if equipped)
●AHS (Adaptive High-beam System) (if equipped)
●Dynamic radar cruise control
●Speed limiter (if equipped)
●RSA (Road Sign Assist)
Follow the following correction methods.
• Check if there is any foreign matter attached to the radar sensor or radar
sensor cover and clean them if neces- sary ( P.277)
• The radar sensor may be misaligned
and will be adjusted automatically while driving. Continue driving for a while.
■If “Cruise Control Unavailable See
Owner’s Manual” is displayed
Indicates one of the following systems is disabled.
●Dynamic radar cruise control
●Cruise control
A message is displayed when the driv-
ing assist switch is pushed repeatedly.
Press the driving assist switch quickly
and firmly.
■If “Speed Limiter Unavailable See
Owner’s Manual” is displayed (if equipped)
This message may be displayed when
the shift position is in R.
Shift the shift position to D.
A message is displayed when the driv-
ing assist switch is pushed repeatedly.
Press the driving assist switch quickly and firmly.
■If “Driver Monitor Unavailable See
Owner’s Manual” is displayed
The lens of the driver monitor camera may be dirty.
When there is dirt on the camera lens, clean it with a dry, soft cloth so as not to damage it.
■If “System Stopped Driver Monitor
Out of Temperature” is displayed
Indicates one of the following systems is disabled.
●Driver Monitor
The temperature of the driver monitor is
outside of the operating range. Wait for
the temperature to become appropriate.

564
Owners Manual_Europe_M42D76_en
9-2. Customization

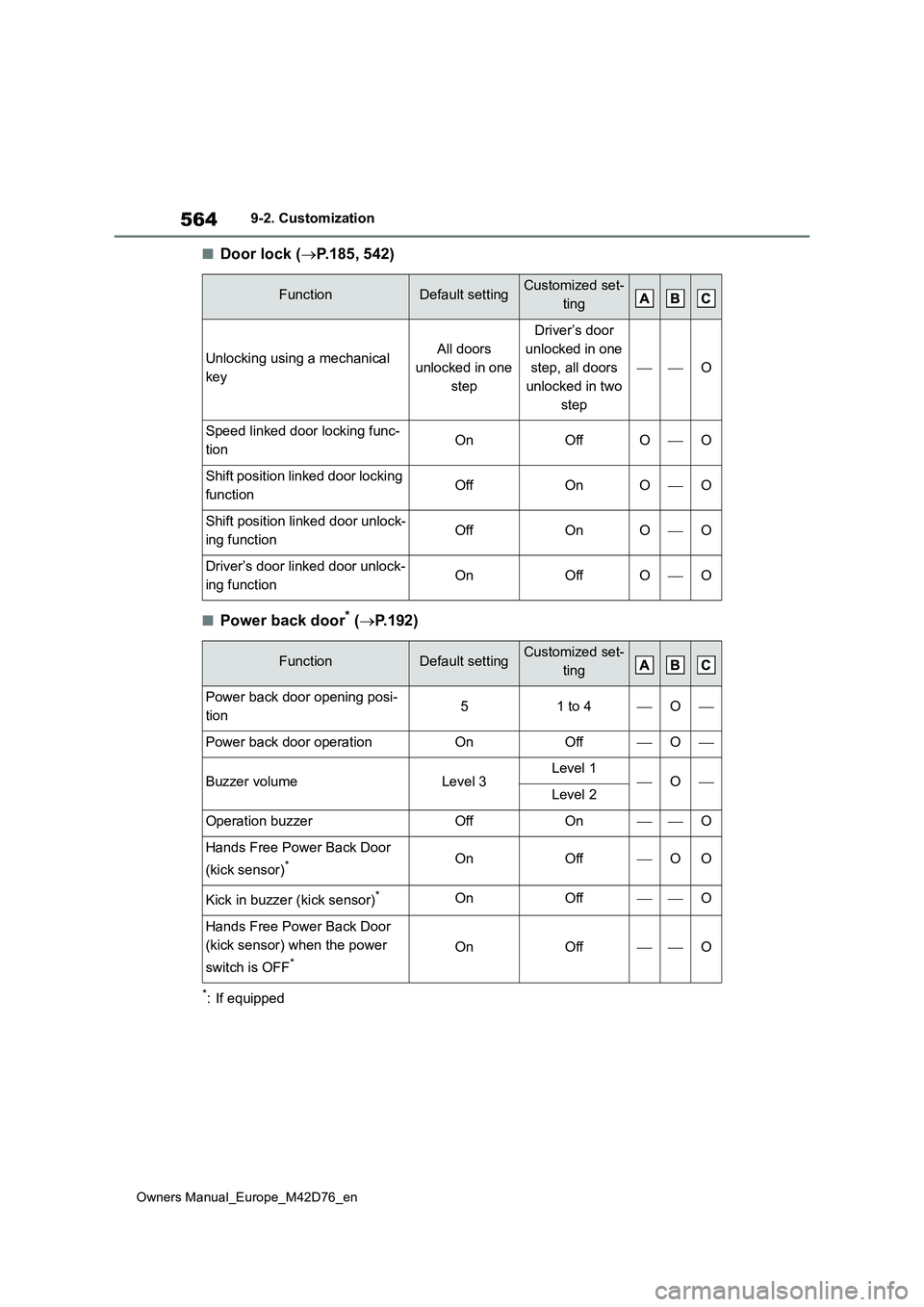

■Door lock (P.185, 542)
■Power back door* (P.192)
*: If equipped
FunctionDefault settingCustomized set-
ting
Unlocking using a mechanical
key
All doors
unlocked in one
step
Driver’s door
unlocked in one
step, all doors
unlocked in two
step
O
Speed linked door locking func-
tionOnOffOO
Shift position linked door locking
functionOffOnOO
Shift position linked door unlock-
ing functionOffOnOO
Driver’s door linked door unlock-
ing functionOnOffOO
FunctionDefault settingCustomized set-
ting
Power back door opening posi-
tion51 to 4O
Power back door operationOnOffO
Buzzer volumeLevel 3Level 1OLevel 2
Operation buzzerOffOnO
Hands Free Power Back Door
(kick sensor)*OnOffOO
Kick in buzzer (kick sensor)*OnOffO
Hands Free Power Back Door
(kick sensor) when the power
switch is OFF*OnOffO

567
9
Owners Manual_Europe_M42D76_en
9-2. Customization
Vehicle specifications
■Reverse warning buzzer
■Power switch (P.246)
■Automatic light control system (P.259)
■Lights (P.259)
■AHS (Adaptive High-beam System)*1 (P.262)
FunctionDefault settingCustomized set-
ting
Signal (buzzer) when the shift
position is in RContinualMuteO
FunctionCustomized setting
ACC modeON/OFFOO
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before headlights
turn off (Extended Headlight
Lighting system)
30 seconds
60 seconds
O90 seconds
120 seconds
FunctionDefault settingCustomized set-
ting
Light reminder buzzerOnOffO
FunctionCustomized setting
Adaptive High-beam SystemOn/OffO
Brightness and illuminated area
adjustment of the high beams
according to the vehicle speed
15 km/h (9 mph)/30 km/h (19
mph)/60 km/h (37 mph)O
Intensity adjustment of the high
beams when driving around a
curve (illuminates the area in the
direction vehicle is turning more
brightly)
On/OffO

570
Owners Manual_Europe_M42D76_en
9-2. Customization

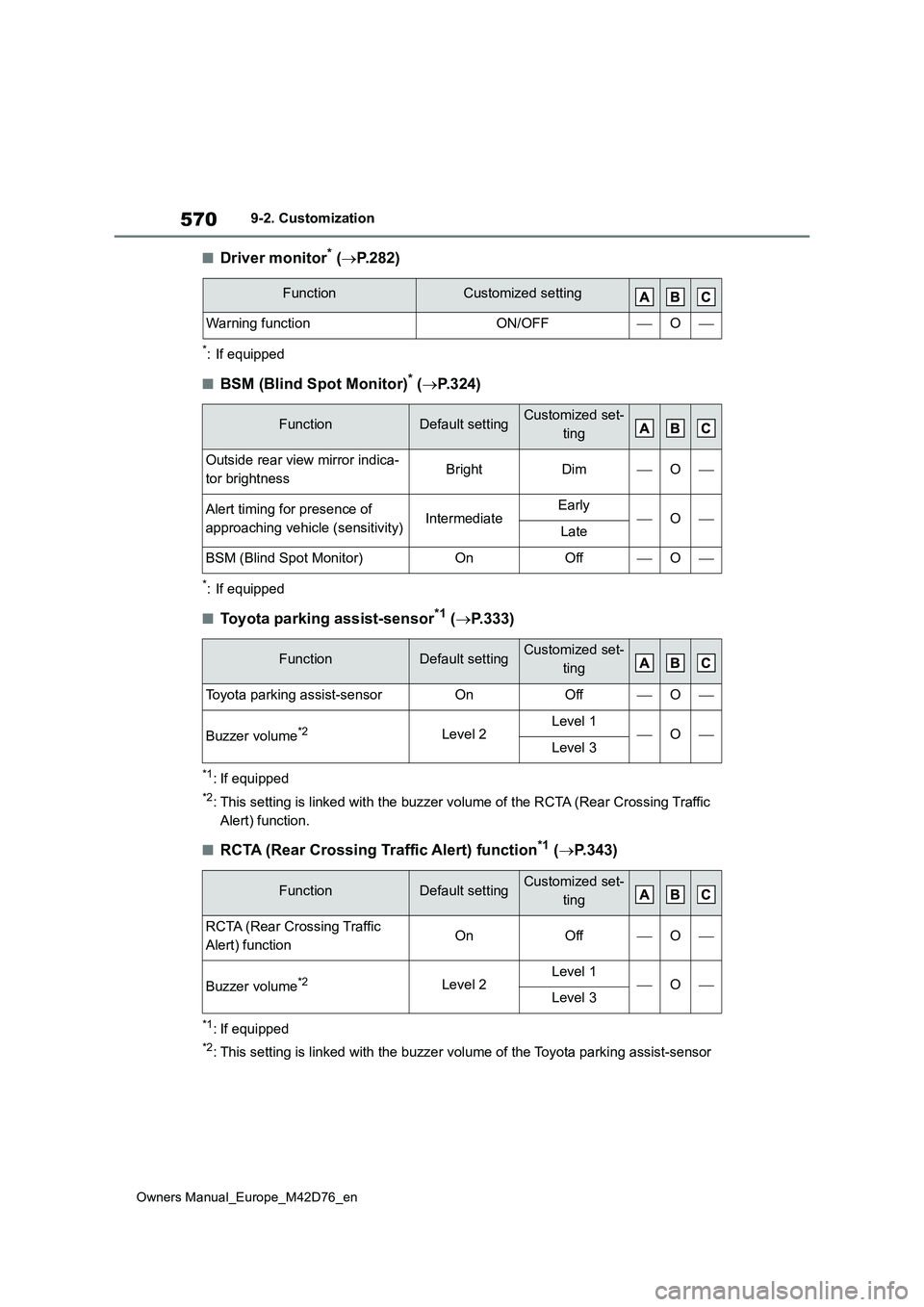

■Driver monitor* (P.282)
*: If equipped
■BSM (Blind Spot Monitor)* (P.324)
*: If equipped
■Toyota parking assist-sensor*1 (P.333)
*1: If equipped
*2: This setting is linked with the buzzer volume of the RCTA (Rear Crossing Traffic
Alert) function.
■RCTA (Rear Crossing Traffic Alert) function*1 ( P.343)
*1: If equipped
*2: This setting is linked with the buzzer volume of the Toyota parking assist-sensor
FunctionCustomized setting
Warning functionON/OFFO
FunctionDefault settingCustomized set-
ting
Outside rear view mirror indica-
tor brightnessBrightDimO
Alert timing for presence of
approaching vehicle (sensitivity)IntermediateEarlyOLate
BSM (Blind Spot Monitor)OnOffO
FunctionDefault settingCustomized set-
ting
Toyota parking assist-sensorOnOffO
Buzzer volume*2Level 2Level 1OLevel 3
FunctionDefault settingCustomized set-
ting
RCTA (Rear Crossing Traffic
Alert) functionOnOffO
Buzzer volume*2Level 2Level 1OLevel 3

577
Owners Manual_Europe_M42D76_en
What to do if... (Troubleshooting)
weak or depleted?
In this case, the EV system can
be started in a temporary way.
( P.543)
 Is the 12-volt battery dis-
charged? ( P.544)
 Is the window lock switch
pressed?
The power window except for the
one at the driver’s seat cannot
be operated if the window lock
switch is pressed. ( P.221)
 The auto power off function will
be operated if the vehicle is left
in ACC or ON (the EV system is
not operating) for a period of
time. ( P.246)
 The seat belt reminder light is
flashing
Are the driver and the passen-
gers wearing the seat belts?
( P.517)
 The parking brake indicator is on
Is the parking brake released?
( P.256)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.515, 523)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( P.77)
To stop the alarm, start the EV sys-
tem.
 Is the message displayed on the
multi-information display?
Check the message on the multi-
information display. ( P.523)
 When a warning light turns on or
a warning message is displayed,
refer to P.515, 523.
 Stop the vehicle in a safe place
and repair the flat tire temporarily
with the emergency tire puncture
The windows do not open or
close by operating the
power window switches
The power switch is turned
off automatically
A warning buzzer sounds
during driving
An alarm is activated and the
horn sounds (vehicles with
alarm)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire

582
Owners Manual_Europe_M42D76_en
