4456-4. Using the other interior features
Owners Manual_USA_M42C01_en
6
Interior features
To recall the previous door oper-
ation status, press and release
either HomeLink
® buttons
and or and (vehicles
with auto anti-glare inside rear
view mirror), and
or and (vehicles
with Digital R ear-view Mirror)
simultaneously. The last
recorded status will be dis-
played for 3 seconds.
Press and hold the 2 outside
buttons for 10 seconds until the
HomeLink
® indicator light
changes from continuously lit
(orange) to rapidly flashing
(green).
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
® memory.
Erasing the entire Home-
Link
® memory (all three
codes)

4487-1. Maintenance and care
Owners Manual_USA_M42C01_en
7-1.Maintenance and care
Working from top to bottom,
liberally apply water to the
vehicle body, wheel wells and
underside of the vehicle to
remove any dirt and dust.
 Wash the vehicle body using
a sponge or soft cloth, such
as a chamois.
 For hard-to-remove marks,
use car wash soap and rinse
thoroughly with water.
 Wipe away any water.
 Wax the vehicle when the
waterproof coating deterio-
rates.
If water does not bead on a clean
surface, apply wax when the vehi-
cle body is cool.
■Self-restoring coat
The vehicle body has a self-restor-
ing coating that is resistant to small
surface scratches caused in a car
wash, etc.
●The coating lasts for 5 to 8 years
from when the vehicle is delivered
from the plant.
●The restoration time differs
depending on t he depth of the scratch and outside temperature.
The restoration time may become
shorter when the coating is
warmed by applying warm water.
●Deep scratches caused by keys,
coins, etc., cannot be restored.
●Do not use wax that contain abra-
sives.
■Automatic car washes
●Before washing the vehicle:
• Fold the mirrors
• Turn off the power back door (if equipped)
Start washing from the front of the
vehicle. Make sure to extend the
mirrors before driving.
●Brushes used in automatic car
washes may scratch the vehicle
surface, parts (wheel, etc.) and
harm your vehicle’s paint.
●Rear spoiler may not be washable
in some automatic car washes.
There may also be an increased
risk of damage to vehicle.
●When the shift position needs to
be held in N, refer to P.239.
■High pressure car washes
As water may enter the cabin, do
not bring the nozzle tip near the
gaps around the doors or perimeter
of the windows, or spray these
areas continuously.
■Note for a smart key system
●If the door handle becomes wet
while the electronic key is within
the effective range, the door may
lock and unlock repeatedly. In that
case, follow the following correc-
tion procedures to wash the vehi-
cle:
• Place the key in a position 6 ft. (2 m) or more separate from the
vehicle while the vehicle is being
washed. (Take care to ensure that
the key is not stolen.)
• Set the electronic key to battery-
saving mode to disable the smart
key system. ( P.188)
Cleaning and protect-
ing the vehicle exte-
rior
Perform the following to
protect the vehicle and
maintain it in prime condi-
tion:
Cleaning instructions

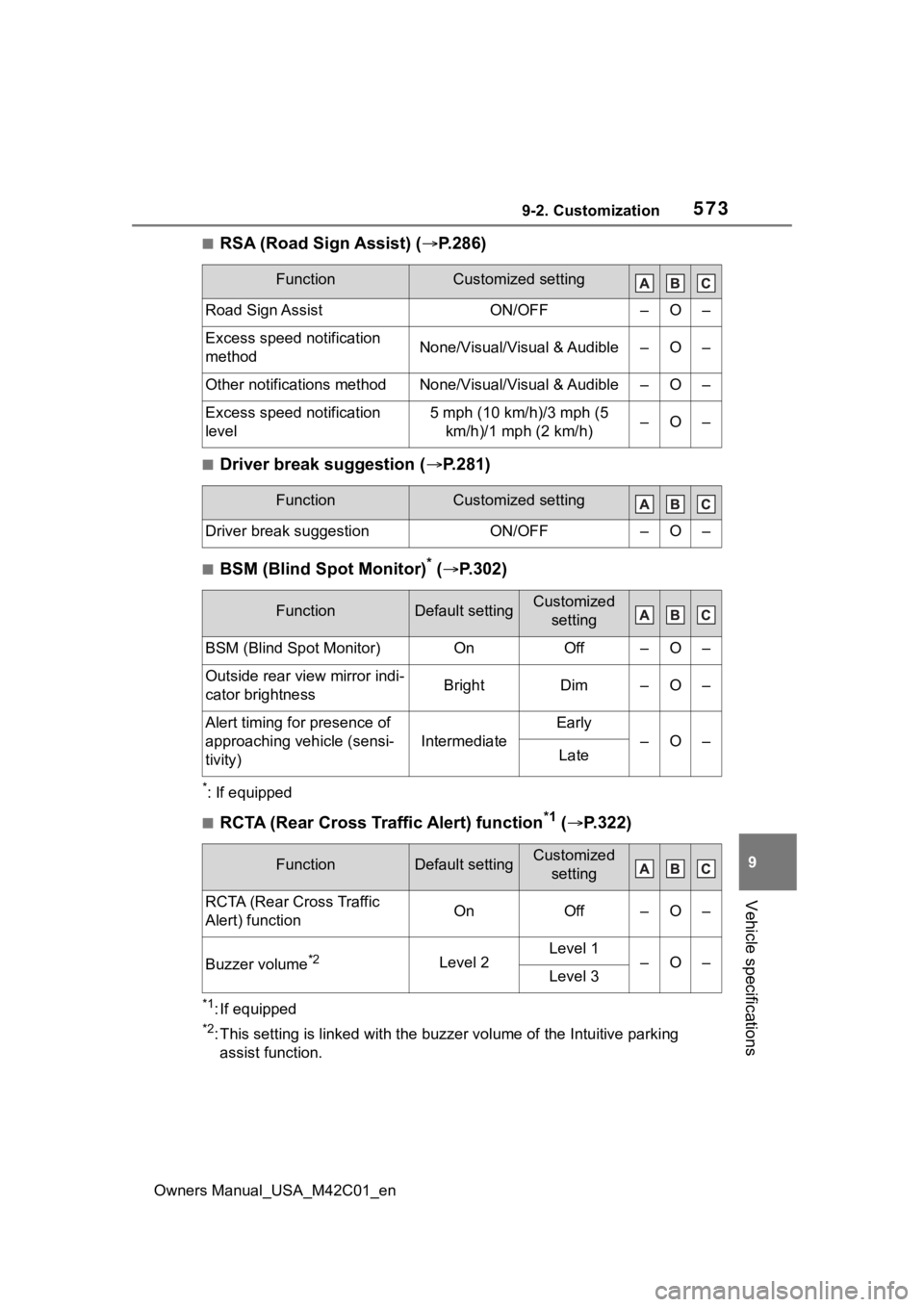

5739-2. Customization
Owners Manual_USA_M42C01_en
9
Vehicle specifications
■RSA (Road Sign Assist) ( P.286)
■Driver break suggestion ( P.281)
■BSM (Blind Spot Monitor)* ( P.302)
*: If equipped
■RCTA (Rear Cross Traffic Alert) function*1 ( P.322)
*1: If equipped
*2: This setting is linked with the buzzer volume of the Intuitive parking
assist function.
FunctionCustomized setting
Road Sign AssistON/OFF–O–
Excess speed notification
methodNone/Visual/Visual & Audible–O–
Other notifications methodNone/Visual/Visual & Audible–O–
Excess speed notification
level5 mph (10 km/h)/3 mph (5 km/h)/1 mph (2 km/h)–O–
FunctionCustomized setting
Driver break suggestionON/OFF–O–
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff–O–
Outside rear view mirror indi-
cator brightnessBrightDim–O–
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
–O–Late
FunctionDefault settingCustomized setting
RCTA (Rear Cross Traffic
Alert) functionOnOff–O–
Buzzer volume*2Level 2Level 1–O–Level 3

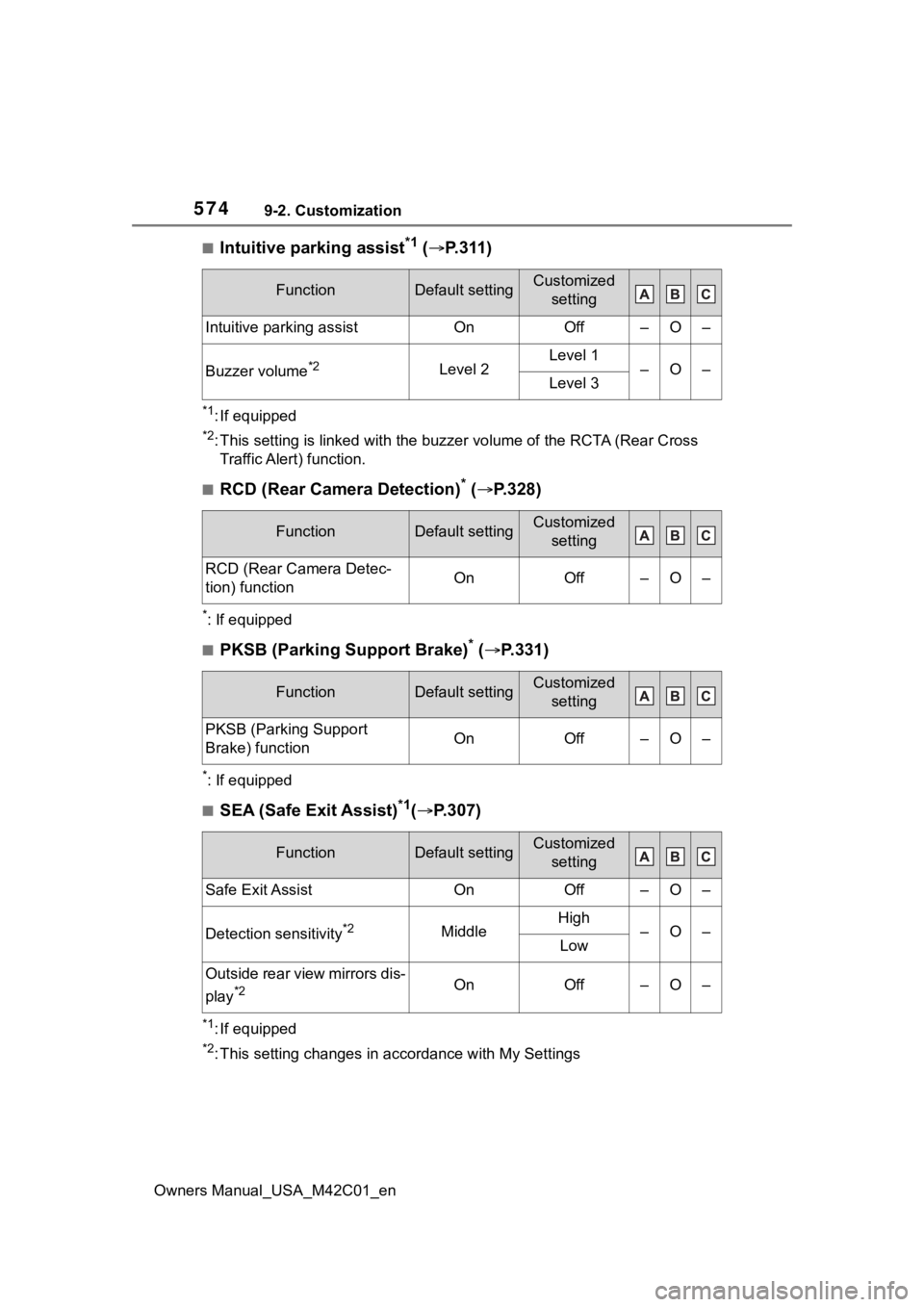

5749-2. Customization
Owners Manual_USA_M42C01_en
■Intuitive parking assist*1 ( P.311)
*1: If equipped
*2: This setting is linked with the buzzer volume of the RCTA (Rear Cross
Traffic Alert) function.
■RCD (Rear Camera Detection)* (  P.328)
*: If equipped
■PKSB (Parking Support Brake)* ( P.331)
*: If equipped
■SEA (Safe Exit Assist)*1( P.307)
*1: If equipped
*2: This setting changes in ac cordance with My Settings
FunctionDefault settingCustomized
setting
Intuitive parking assistOnOff–O–
Buzzer volume*2Level 2Level 1–O–Level 3
FunctionDefault settingCustomized setting
RCD (Rear Camera Detec-
tion) functionOnOff–O–
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff–O–
FunctionDefault settingCustomized setting
Safe Exit AssistOnOff–O–
Detection sensitivity*2MiddleHigh–O–Low
Outside rear view mirrors dis-
play
*2OnOff–O–

600Alphabetical Index
Owners Manual_USA_M42C01_en
Coat hooks .............................. 437
Console box ............................ 419
Coolant Capacity ............................... 552
Checking ...................... 465, 467
Preparing and c hecking before
winter.................................. 393
Cooling system EV system overheating ........ 545
Coussins gonflables Modification et é limination en fin
de vie des coussins gonflables ........................................... 589
Précautions avec les coussins gonflables latéraux ............. 585
Précautions avec les coussins gonflables latéraux et rideau........................................... 585
Précautions avec les coussins gonflables pour votre enfant........................................... 585
Précautions avec les coussins gonflables rideau ................ 585
Précautions générales avec les coussins gonflables ............ 585
Cruise control Dynamic radar cruise control................................... 288, 296
Warning lights....................... 517
Cup holders ............................ 419
Current Power consumption . 157
Curtain shield airbags ............. 34
Customizable features ........... 566
D
Daytime running light system248
Daytime running lights Replacing light bulbs ............ 502
DC charging ............................ 113
Deck board .............................. 422
Deck under tray ...................... 423
Defogger Outside rear view mirrors .....404
Rear window.........................404
Windshield ............................403
Digital key................................165
Digital Rear-view Mirror .........201
Dimension ...............................550
Dinghy towing .........................230
Display Charging101, 121, 129, 131, 140
Cruise control .......................297
Dynamic radar cruise control 291
Intuitive parking assist ..........312
Multi-information display.......155
Pedestrians Rear of the Vehicle ...........................................340
RCD (Rear Camera Detection) ...........................................328
Rear Camera Detection (RCD) ...........................................328
Warning message.................522
Do-it-yourself maintenance .455, 460
Door lock Back door .............................172
Side doors ............................167
Smart key system .................187
Wireless remote control........164
Door trim ornament lights .....415
Doors Automatic door locking and unlocking system ................171
Back door .............................172
Door glasses ........................212
Door lock ..............................167
Open door warning buzzer ...170
Outside rear view mirrors .....210
Rear door child-protectors ....171
Side doors ............................167
Drive distance .........................158
Drive information ....................158
Drive-start control ..................224
Driving .....................................219

Owners Manual_USA_M42C01_en
Alphabetical Index603
HeatersAutomatic air conditioning sys-tem ..................................... 402
Heated steering wheel ......... 412
Outside rear view mirrors ..... 404
Seat heaters ......................... 411
Traction battery heater ........... 99
Hill-start assist control .......... 387
Hood ........................................ 462
Hooks Cargo hooks ......................... 421
Coat hooks ........................... 437
Retaining hooks (floor mat) .... 26
Horn ......................................... 199
I
I/M test ..................................... 459
Identification Electric motor (traction motor)........................................... 551
Vehicle.................................. 550
If your vehicle ove rheats ....... 545
Ignition switch (power switch) ............................................... 231Auto power off function ........ 235
Changing the power switch modes ................................ 234
If your vehicle has to be stopped in an emergency................. 505
Starting the EV system......... 231
Illuminated entry system ....... 415
Immobilizer system .................. 68
Indicators ................................ 149 Charging cable ....................... 90
Charging indicator .................. 86
Charging indicator (CCID) ...... 90
Error warning indicator ........... 90
Power indicator ...................... 90
Initialization Electronic sunshade ............. 426
Items to initialize................... 577
Parking Support Brake ......... 335 Power back door ..................181
Power windows ....................212
Inside door handle lights .......415
Inside rear view m irror ...........200
Interior lights...........................415
Intuitive parking assist........... 311 Enabling/disabling the system...........................................312
Function................................ 311
Warning lights .......................517
J
Jack Positioning a floor jack .........464
Vehicle-equipped jack ..........486
Jack handle .............................486
Jam protection function Power back door ..................179
Power windows ....................212
K
Keyless entrySmart key system .................187
Wireless remote control........164
Keys .........................................162 Battery-saving function .........188
Digital key .............................165
Electronic key .......................162
If the electronic key does not operate properly .................539
If you lose your keys.............539
Key number plate .................162
Keyless entry ................164, 187
Mechanical key.....................164
Power switch ........................231
Replacing the battery ...........497
Warning buzzer ....................187
Wireless remote control key .164
Knee airbags .............................34

604Alphabetical Index
Owners Manual_USA_M42C01_en
L
Lane Departure A lert (LDA) ... 281
Operation ............................. 281
Warning lights....................... 516
Lane Tracing Assist (LTA)...... 276 Operation ............................. 276
Warning lights....................... 516
Language (multi-information dis- play) ............................... 158, 567
LATCH anchors ........................ 59
LDA (Lane Departure Alert) ... 281 Operation ............................. 281
Warning lights....................... 516
Lever Auxiliary catch lever ............. 462
Hood lock release lever........ 462
Turn signal lever ................... 242
Wiper lever ........................... 253
License plate lights Light switch .......................... 248
Replacing light bulbs ............ 502
Light bulbs Replacing ............................. 502
Lights Automatic High Beam (AHB) 250
Emergency flasher switch .... 504
Headlight switch ................... 248
Interior light list ..................... 415
Interior lights......................... 416
Luggage compartment light 174, 178
Personal lights...................... 417
Replacing light bulbs ............ 502
Turn signal lever ................... 242
Vanity lights .......................... 428
Load capacity ......................... 228
Locking and unlocking the AC charging c onnector................ 93
LTA (Lane Tracing Assist) ...... 276 Operation ............................. 276
Warning lights....................... 516 Luggage compartment light 174,
178
Luggage cover ........................423
M
Maintenance AC charging cable ..................92
Do-it-yourself maintenance ..460
General maintenance ...........456
Maintenance data .................550
Maintenance requirements ...455
Menu icons ..............................156
Meter Clock ....................................152
Indicators ..............................149
Instrument panel light control155
Meter control switches..........156
Meters ..................................152
Multi-information display.......155
Settings ........................158, 566
Units .....................................567
Warning lights .......................513
Warning message.................522
Mirrors Digital Rear-view Mirror ........201
Inside rear view mirror ..........200
Outside rear view mirror defog-gers ....................................404
Outside rear view mirrors .....210
Vanity mirrors........................428
Motor Compartment........................465
Multi-information display .......155
Audio system-linked display .157
Charging101, 121, 129, 131, 140
Clock ....................................154
Convenience Services (Sugges- tion function) .......................567
Cruise control .......................297
Driving information display ...157
Driving support system informa- tion display .........................157

Owners Manual_USA_M42C01_en
Alphabetical Index605
Dynamic radar cruise control 291
Language ............................. 567
LDA (Lane Departure Alert) .. 285
LTA (Lane Tracing Assist) ..... 280
Menu icons ........................... 156
Meter control switches ......... 156
Navigation system-linked display........................................... 157
Power consumption.............. 157
Settings ........................ 158, 566
Suggestion function.............. 159
Tire pressure ........................ 474
Units ..................................... 567
Vehicle information display... 158
Warning message ................ 522
My Room Mode ....................... 129 Display ................................. 129
Starting My Room Mode ...... 129
Warning messages............... 131
N
Navigation system-linked display............................................... 157
O
Odometer ................................ 154
Odometer and trip meter display Display items ........................ 154
Open tray ................................ 420
Opener Back door ..................... 174, 176
Garage door ......................... 439
Outer foot lights ..................... 415
Outside rear view mirrors ...... 210 Adjusting and folding ............ 210
BSM (Blind Spot Monitor)..... 302
Outside rear view mirror defog-gers .................................... 404
RCTA (Rear Cross Traffic Alert) ........................................... 322
SEA (Safe Exit Assist) .......... 307 Outside temperatur
e ..............152
P
Panic mode .............................164
Parking assist sens ors (intuitive
parking assist) ...................... 311
Parking brake ..........................243 Operation..............................243
Parking brake engaged warning buzzer.................................245
Warning light.........................518
Warning message.................245
Parking lights Light switch...........................248
Parking Support Brake (PKSB) ...............................................331Enabling/disabling the system ...........................................333
PCS (Pre-Collision System) ...265 Enabling/disabling the system...........................................275
Function................................265
Warning light.........................518
Personal lights ................415, 417 Switch ...................................417
PKSB (Parking Support Brake) ...............................................331Enabling/disabling the system ...........................................333
Moving Vehicle Rear of the Vehi- cle .......................................339
Pedestrians Rear of the Vehicle ...........................................340
Static Objects Around the Vehi- cle .......................................342
Static Objects Front and Rear of the vehicle ..........................336
Power back door... ..................175
Power back door switch ........176
Power consumption ...............157 Average power consumption 157
Current power consumption .157

606Alphabetical Index
Owners Manual_USA_M42C01_en
Power control unit coolant Checking .............................. 465
Preparing and c hecking before
winter.................................. 393
Radiator................................ 466
Power meter ............................ 152
Power outlets .......................... 428
Power sources .......................... 96
Power steering (Electric Power Steering system) .................. 387
Power steering (Electric power steering system)Warning light ........................ 515
Power switch .......................... 231 Auto power off function ........ 235
Changing the power switch modes ................................ 234
If your vehicle has to be stopped in an emergency................. 505
Starting the EV system......... 231
Power windows Catch protection function ..... 212
Door lock linked window opera-tion ..................................... 213
Jam protection function ........ 212
Operation ............................. 212
Window lock switch .............. 214
Pre-Collision System (PCS)... 265 Enabling/disabling the system........................................... 275
Function ............................... 265
Warning light ........................ 518
R
Radar cruise control .............. 296
Radar cruise control (dynamic radar cruise control) ............ 288
Radiant heaters ...................... 411
RCD (Rear Camera Detection) ............................................... 328Enabling/disabling the system ........................................... 329 RCTA (Rear Cross Traffic Alert)
...............................................322Enabling/disabling the system ...........................................323
Rear Camera Detection (RCD) ...............................................328Enabling/disabling the system ...........................................329
Rear Cross Traffic Alert (RCTA) ...............................................322Enabling/disabling the system ...........................................323
Rear eAxle Fluid......................................554
Rear electric motor (traction motor)Specification .........................552
Rear fog light Replacing light bulbs ............502
Rear interior lights..................416
Rear seat Folding down the rear seatbacks...........................................194
Rear seats ...............................193 Adjustment ...........................193
Head restraints .....................196
Seat heaters ......................... 411
Rear side marker lights Light switch...........................248
Rear turn signal lights Replacing light bulbs ............502
Turn signal lever ...................242
Rear view mirror Digital Rear-view Mirror ........201
Inside rear view mirror ..........200
Outside rear view mirrors .....210
Rear window defogger ...........404
Regeneration Boost Switch ...240
Regenerative braking ...............73 Warning lights .......................513
Remote Air Conditioning System ...............................................409

Owners Manual_USA_M42C01_en
Alphabetical Index607
ReplacingElectronic key battery ........... 497
Fuses ................................... 499
Light bulbs ............................ 502
Tires ..................................... 485
Replacing the tire ................... 485
Reporting safety defects for Canadian owners ................. 581
Reporting safety defects for U.S. owners................................... 580
Road Sign Assist (RSA) ......... 286
Roof luggage carri er .............. 225
RSA (Road Sign Assist) ......... 286
S
Safe Exit Assist (SEA) Enabling/disabling the system........................................... 308
Safety Connect ......................... 64
SEA (Safe Exit Assist) ............ 307 Enabling/disabling the system........................................... 308
Seat belt reminder light . 515, 516
Seat belts .................................. 29 Adjusting the seat belt shoulder anchor height ....................... 31
Automatic Locking Retractor (ALR) .................................... 31
Child restraint system installation ............................................. 54
Cleaning and maintaining the seat belt.............................. 451
Emergency Locking Retractor (ELR) .................................... 31
How to wear your seat belt..... 30
How your child should wear the seat belt................................ 30
Pregnant women, proper seat belt use................................. 29
Reminder light and buzzer . 515, 516
Seat belt extender .................. 30 Seat belt instructions for Cana-
dian owners ........................581
Seat belt pretensioners ..........32
SRS warning light .................514
Seat heaters ............................ 411
Seat ventilators .. ..................... 411
Seating capacity .............228, 550
Seats ................................192, 193 Adjustment ...................192, 193
Adjustment precautions ........193
Child seats/child restraint system installation ............................50
Cleaning ...............................451
Folding down the rear seatbacks ...........................................194
Head restraints .....................196
Properly sitting in the seat ......27
Seat heaters ......................... 411
Seat ventilators..................... 411
Secondary Collision Brake ....388
Sécurité de l’enfant Précautions avec les coussins gonflables ...........................585
Sensor Automatic headlight system .248
Automatic High Beam (AHB) 250
BSM (Blind Spot Monitor) ...303, 308
Digital Rear-view Mirror ........205
Dynamic radar cruise control 260
Inside rear view mirror ..........201
Intuitive parking assist .......... 311
LDA (Lane Departure Alert) ..281
LTA (Lane Tracing Assist) .....276
Moving Vehicle Rear of the Vehi- cle ...............................303, 308
Parking Support Brake function (static objects) .................... 311
PCS (Pre-Collisio n System) .260
Radar sensor ........................260
Rain-sensing windshield wipers ...........................................255
