TOYOTA C-HR 2016 Owners Manual

911-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E

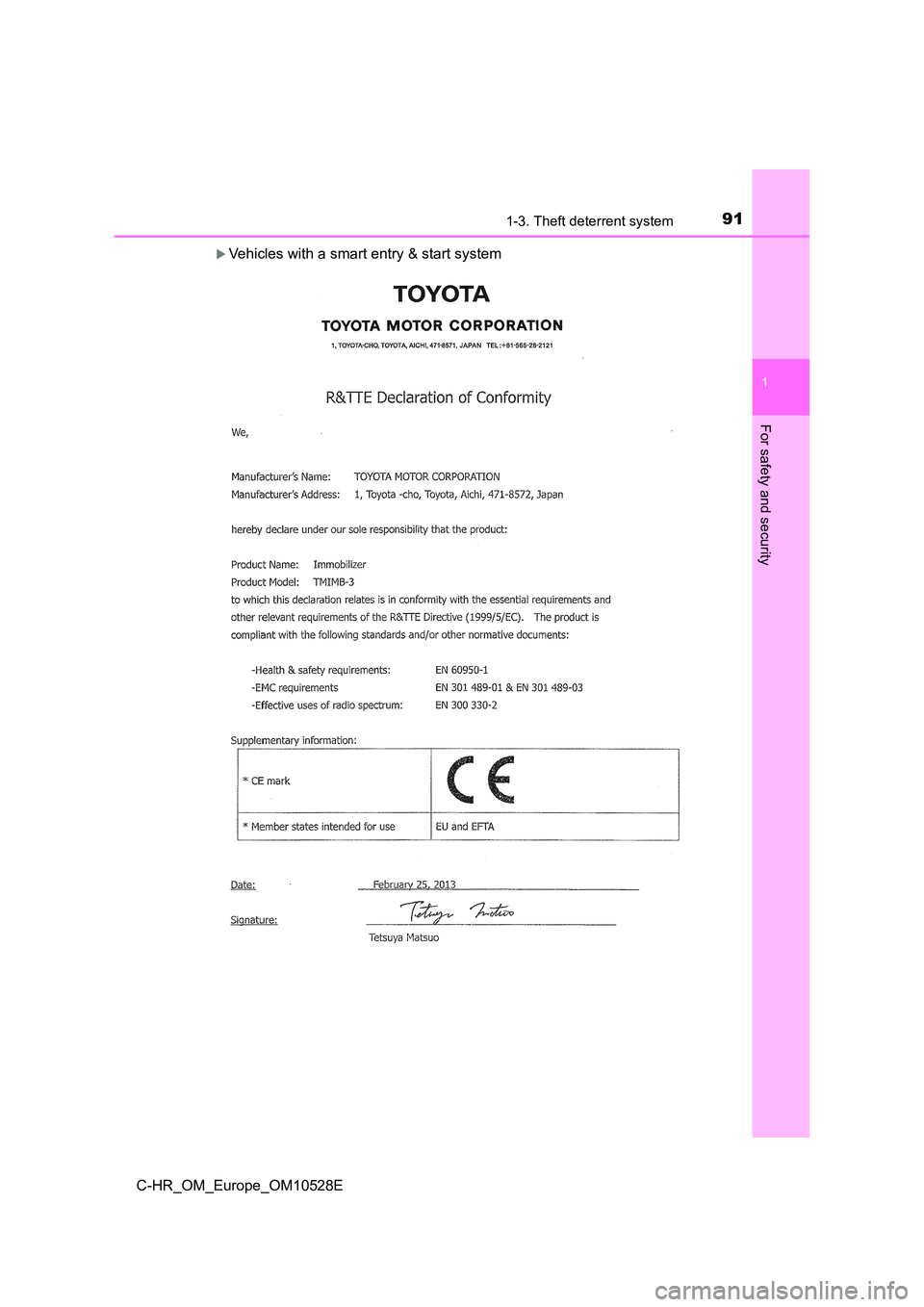

Vehicles with a smart entry & start system

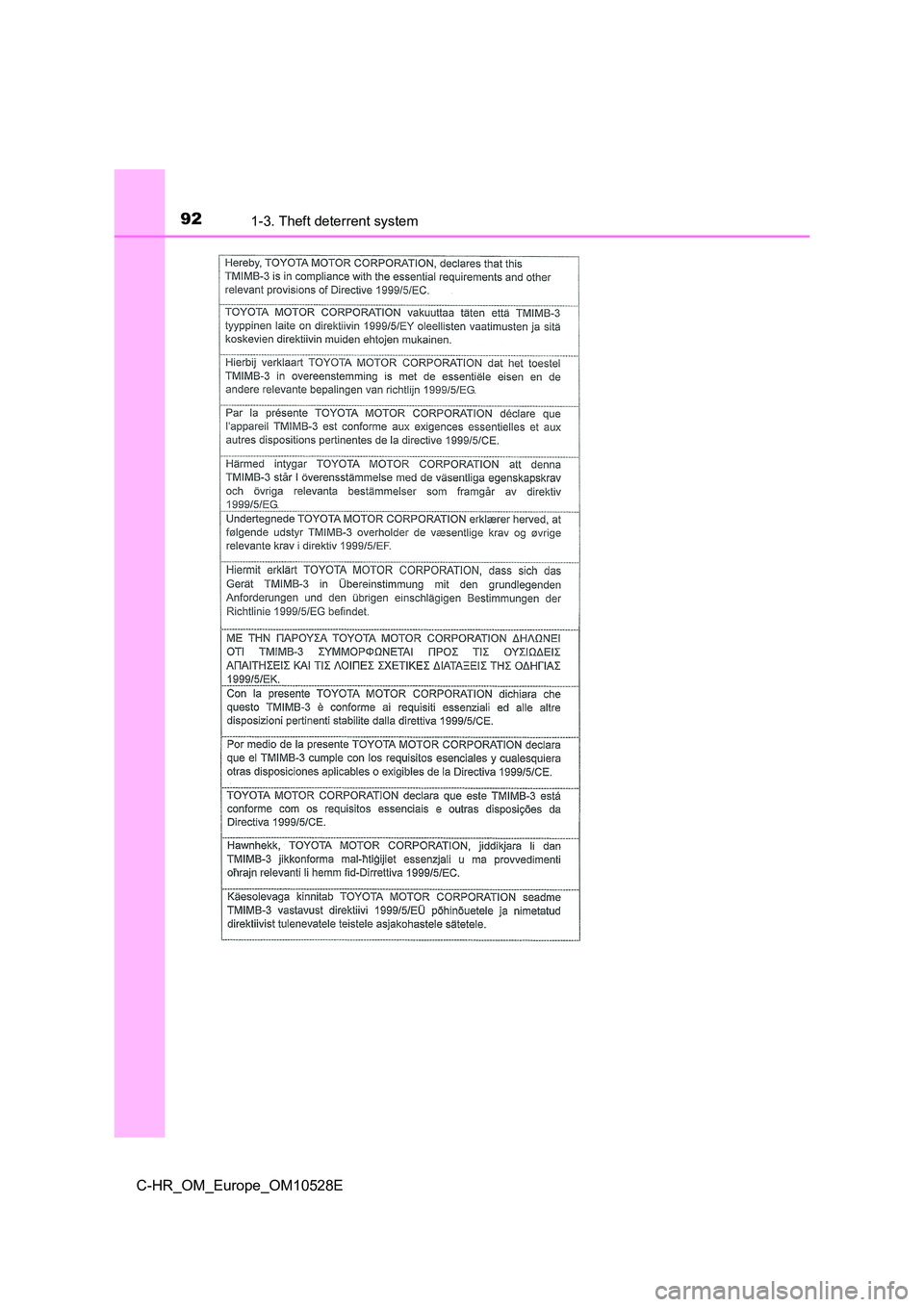

921-3. Theft deterrent system
C-HR_OM_Europe_OM10528E

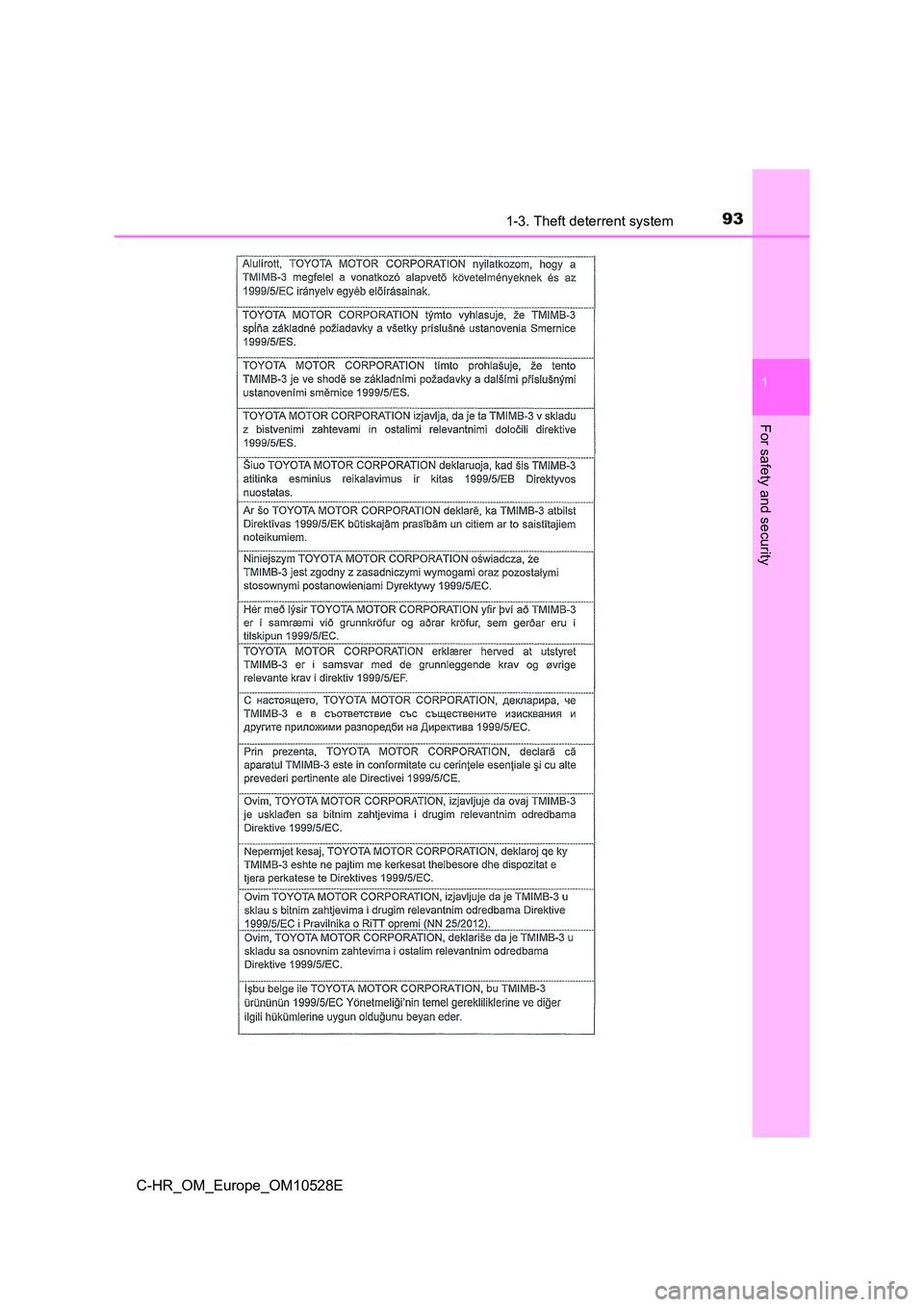

931-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E

941-3. Theft deterrent system
C-HR_OM_Europe_OM10528E

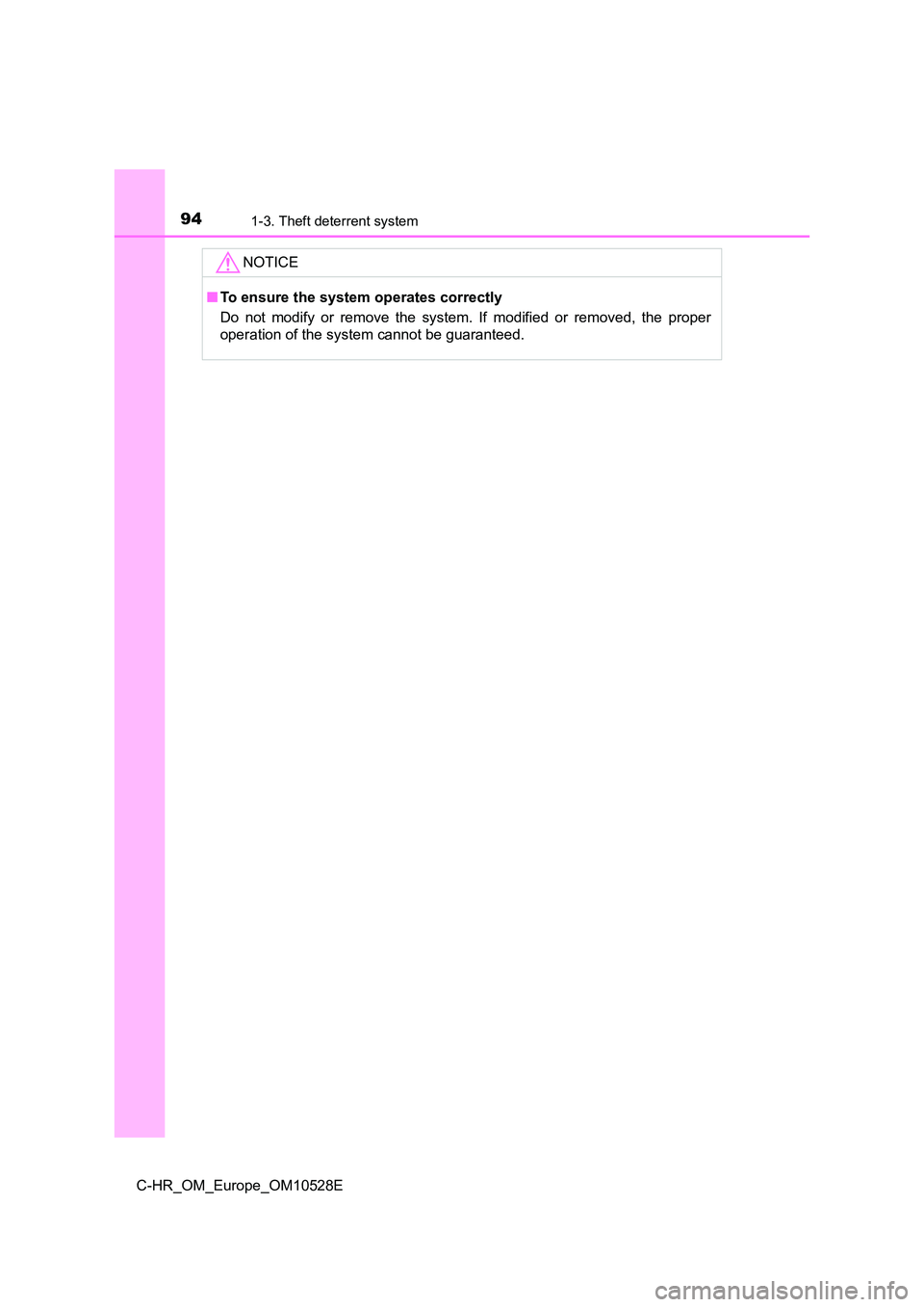

NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

951-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E
Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the engine switch off, have all the passengers exit the vehicle
and ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the front outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system

961-3. Theft deterrent system
C-HR_OM_Europe_OM10528E
Using the entry function (if equipped): Hold the front outside door han-
dle or press the back door opener button.
Using the wireless remote control: Press .
Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.

971-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E
Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function (if equipped) or wireless remote control. (The
doors will lock again automatically.)
● The hood is opened.
● Vehicles with the intrusion sensor: The intrusion sensor detects
something moving inside the vehicle. (An intruder gets in the vehi-
cle.)
● Vehicles with the glass breakage sensor: The back door window is
tapped or broken.
Close the doors and hood, and
lock all the doors using the entry
function (if equipped) or wireless
remote control. The system will be
set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
: If equipped
The alarm
Setting the alarm system

981-3. Theft deterrent system
C-HR_OM_Europe_OM10528E
Do one of the following to deactivate or stop the alarm:
● Unlock the doors using the entry function (if equipped) or wireless
remote control.
● Start the engine. (The alarm will be deactivated or stopped after a
few seconds.)
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
● Nobody is in the vehicle.
● The windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

991-3. Theft deterrent system
1
For safety and security
C-HR_OM_Europe_OM10528E

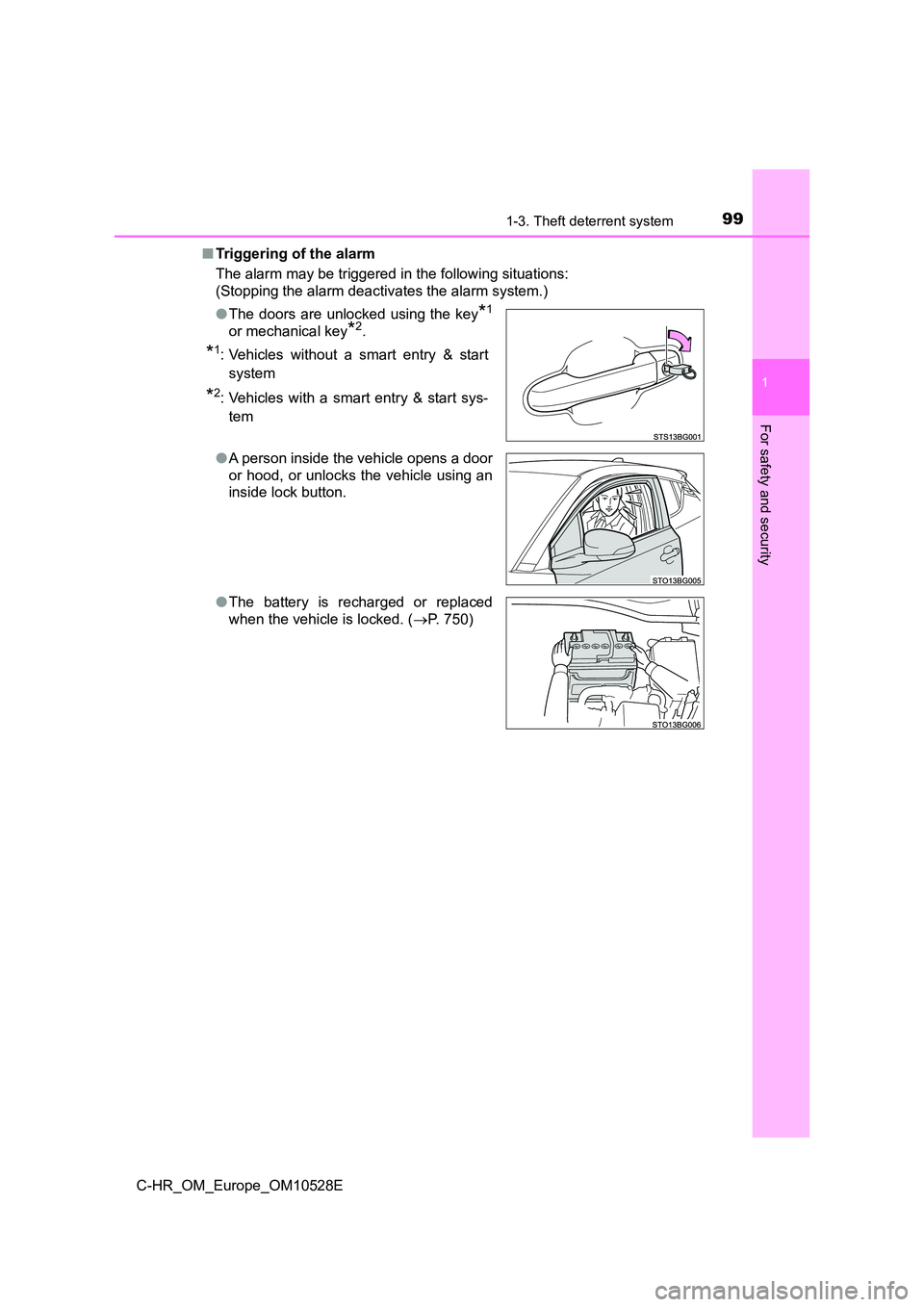

■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● The doors are unlocked using the key*1
or mechanical key*2.
*1: Vehicles without a smart entry & start
system
*2: Vehicles with a smart entry & start sys-
tem
● A person inside the vehicle opens a door
or hood, or unlocks the vehicle using an
inside lock button.
● The battery is recharged or replaced
when the vehicle is locked. ( P. 7 5 0 )

1001-3. Theft deterrent system
C-HR_OM_Europe_OM10528E
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the battery
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
