3-5. Opening and closing the windows
Operation of each component
C-HR_OM_Europe_OM10528E
Power windows

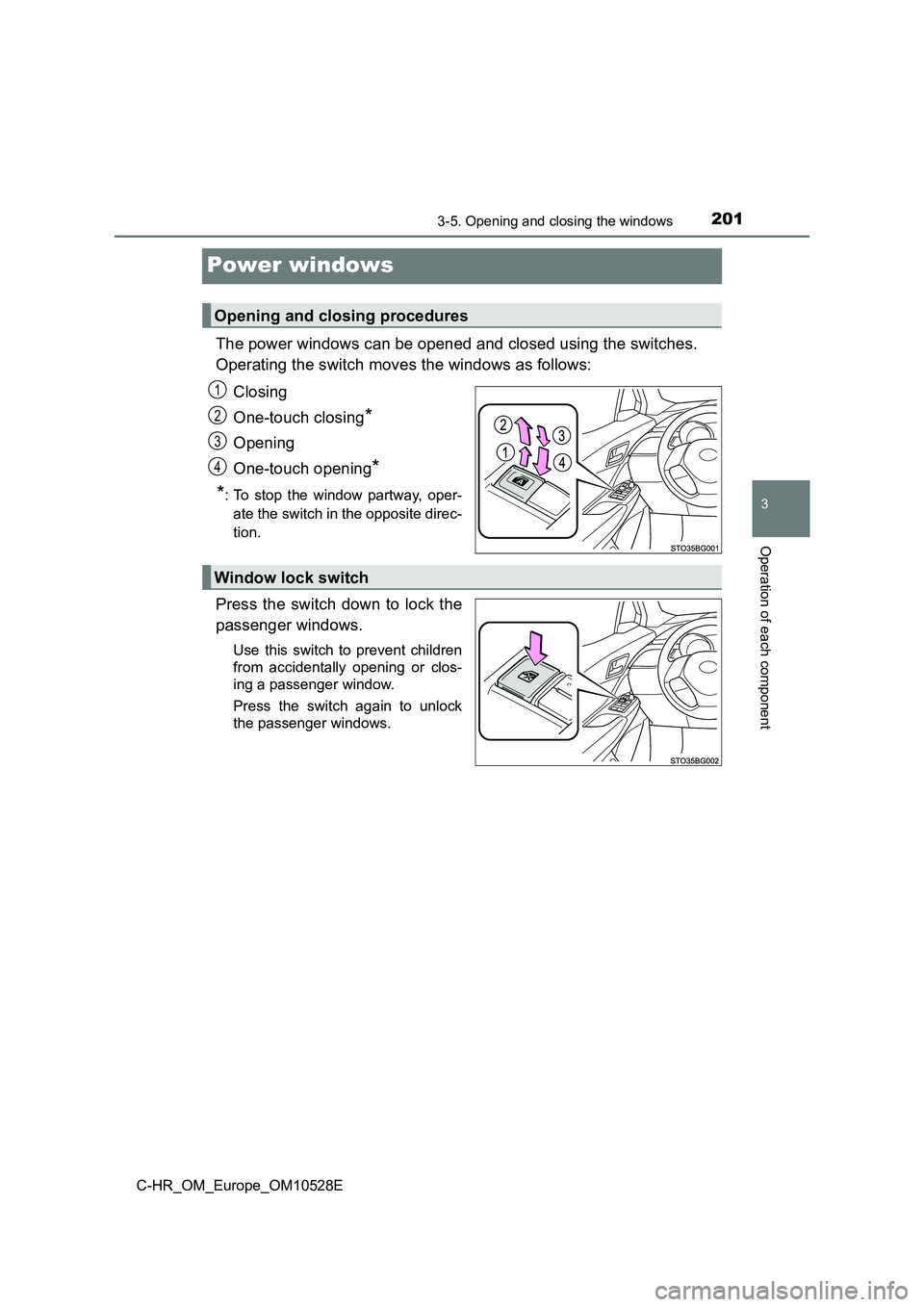

The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing*
Opening
One-touch opening*
*: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
Press the switch down to lock the
passenger windows.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Press the switch again to unlock
the passenger windows.
Opening and closing procedures
1
2
3
4
Window lock switch

2023-5. Opening and closing the windows
C-HR_OM_Europe_OM10528E

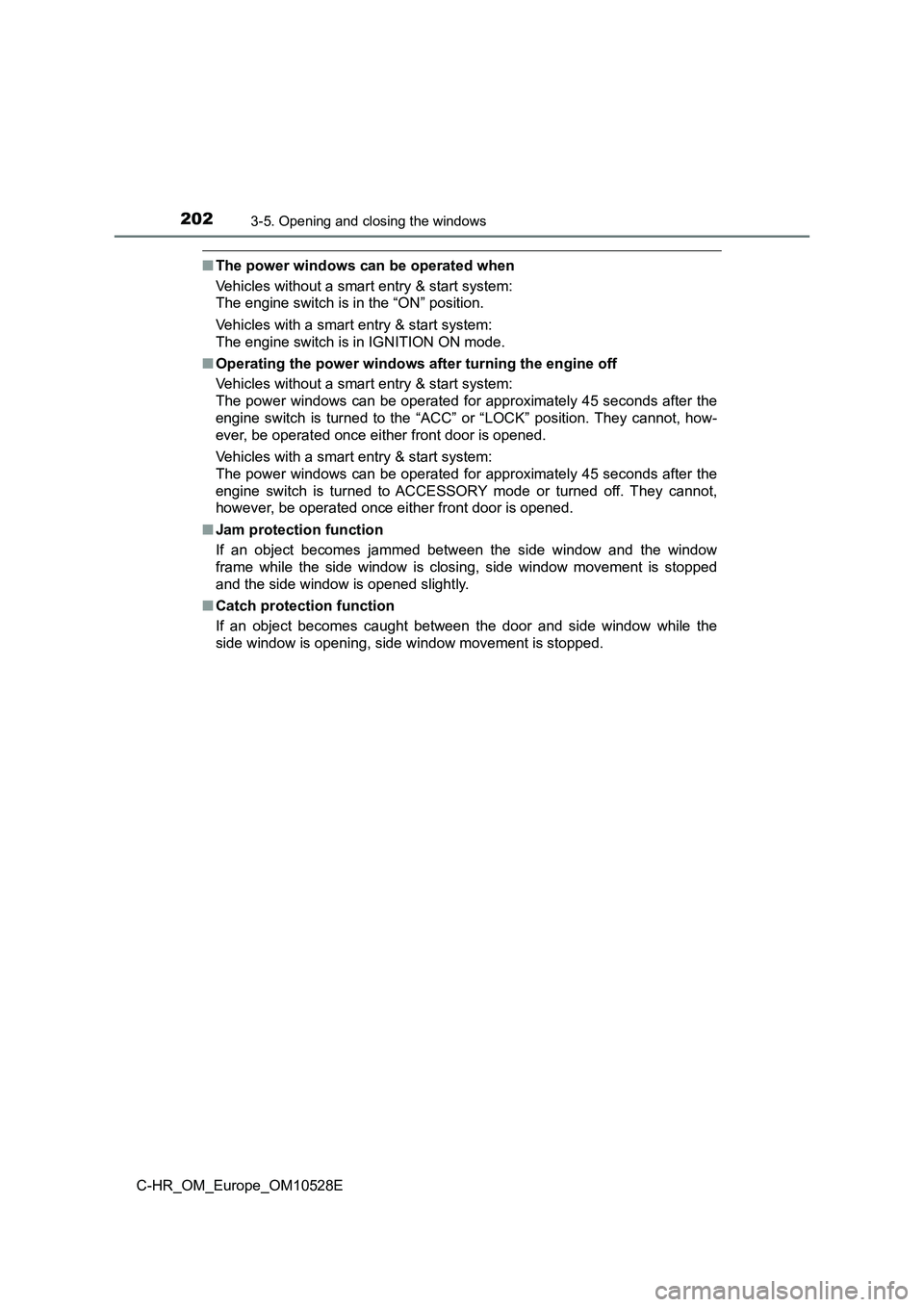

■The power windows can be operated when
Vehicles without a smart entry & start system:
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system:
The engine switch is in IGNITION ON mode.
■ Operating the power windows after turning the engine off
Vehicles without a smart entry & start system:
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. They cannot, how-
ever, be operated once either front door is opened.
Vehicles with a smart entry & start system:
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to ACCESSORY mode or turned off. They cannot,
however, be operated once either front door is opened.
■ Jam protection function
If an object becomes jammed between the side window and the window
frame while the side window is closing, side window movement is stopped
and the side window is opened slightly.
■ Catch protection function
If an object becomes caught between the door and side window while the
side window is opening, side window movement is stopped.

2033-5. Opening and closing the windows
3
Operation of each component
C-HR_OM_Europe_OM10528E

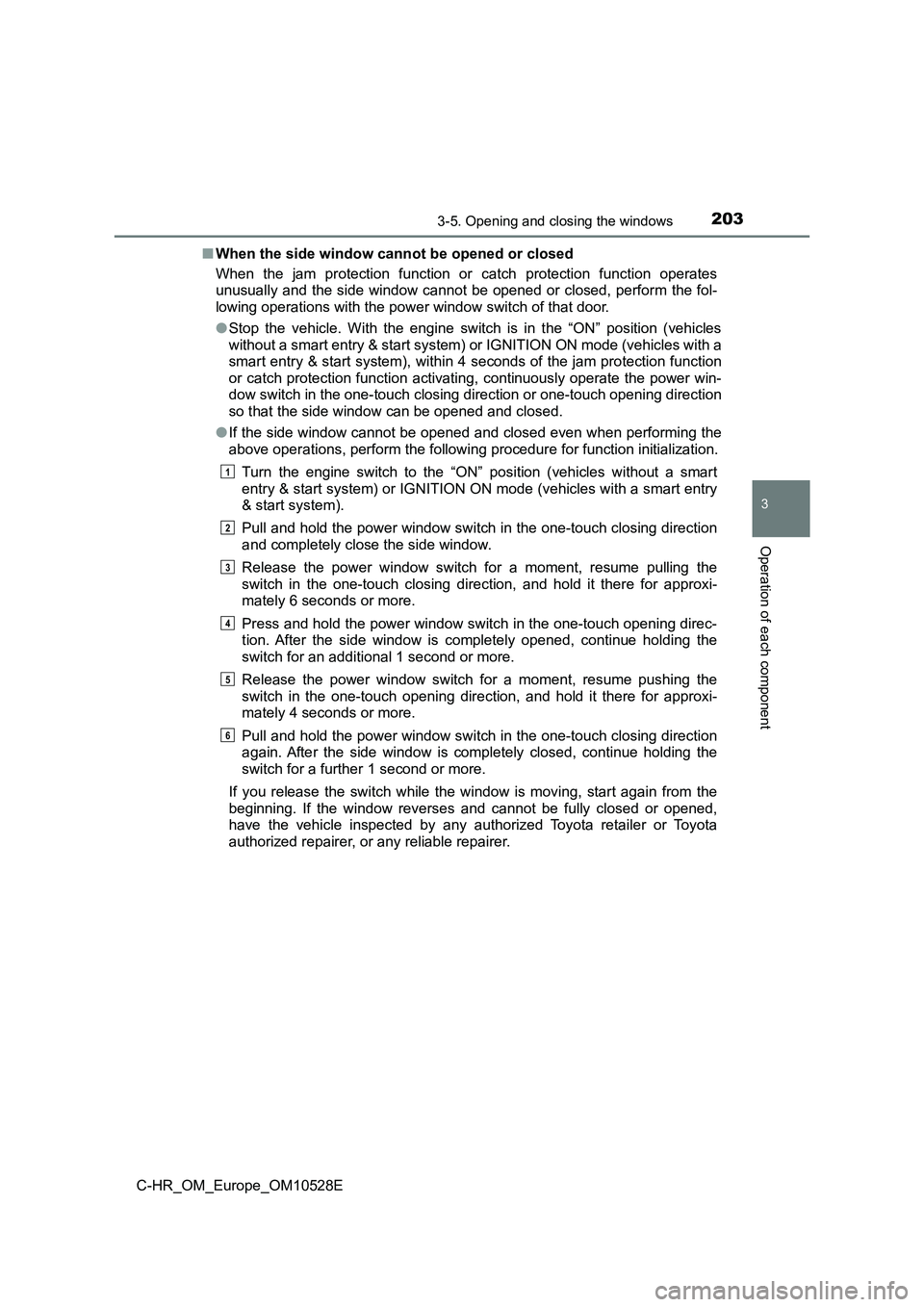

■ When the side window cannot be opened or closed
When the jam protection function or catch protection function operates
unusually and the side window cannot be opened or closed, perform the fol-
lowing operations with the power window switch of that door.
● Stop the vehicle. With the engine switch is in the “ON” position (vehicles
without a smart entry & start system) or IGNITION ON mode (vehicles with a
smart entry & start system), within 4 seconds of the jam protection function
or catch protection function activating, continuously operate the power win-
dow switch in the one-touch closing direction or one-touch opening direction
so that the side window can be opened and closed.
● If the side window cannot be opened and closed even when performing the
above operations, perform the following procedure for function initialization.
Turn the engine switch to the “ON” position (vehicles without a smart
entry & start system) or IGNITION ON mode (vehicles with a smart entry
& start system).
Pull and hold the power window switch in the one-touch closing direction
and completely close the side window.
Release the power window switch for a moment, resume pulling the
switch in the one-touch closing direction, and hold it there for approxi-
mately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direc-
tion. After the side window is completely opened, continue holding the
switch for an additional 1 second or more.
Release the power window switch for a moment, resume pushing the
switch in the one-touch opening direction, and hold it there for approxi-
mately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction
again. After the side window is completely closed, continue holding the
switch for a further 1 second or more.
If you release the switch while the window is moving, start again from the
beginning. If the window reverses and cannot be fully closed or opened,
have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
1
2
3
4
5
6

2043-5. Opening and closing the windows
C-HR_OM_Europe_OM10528E

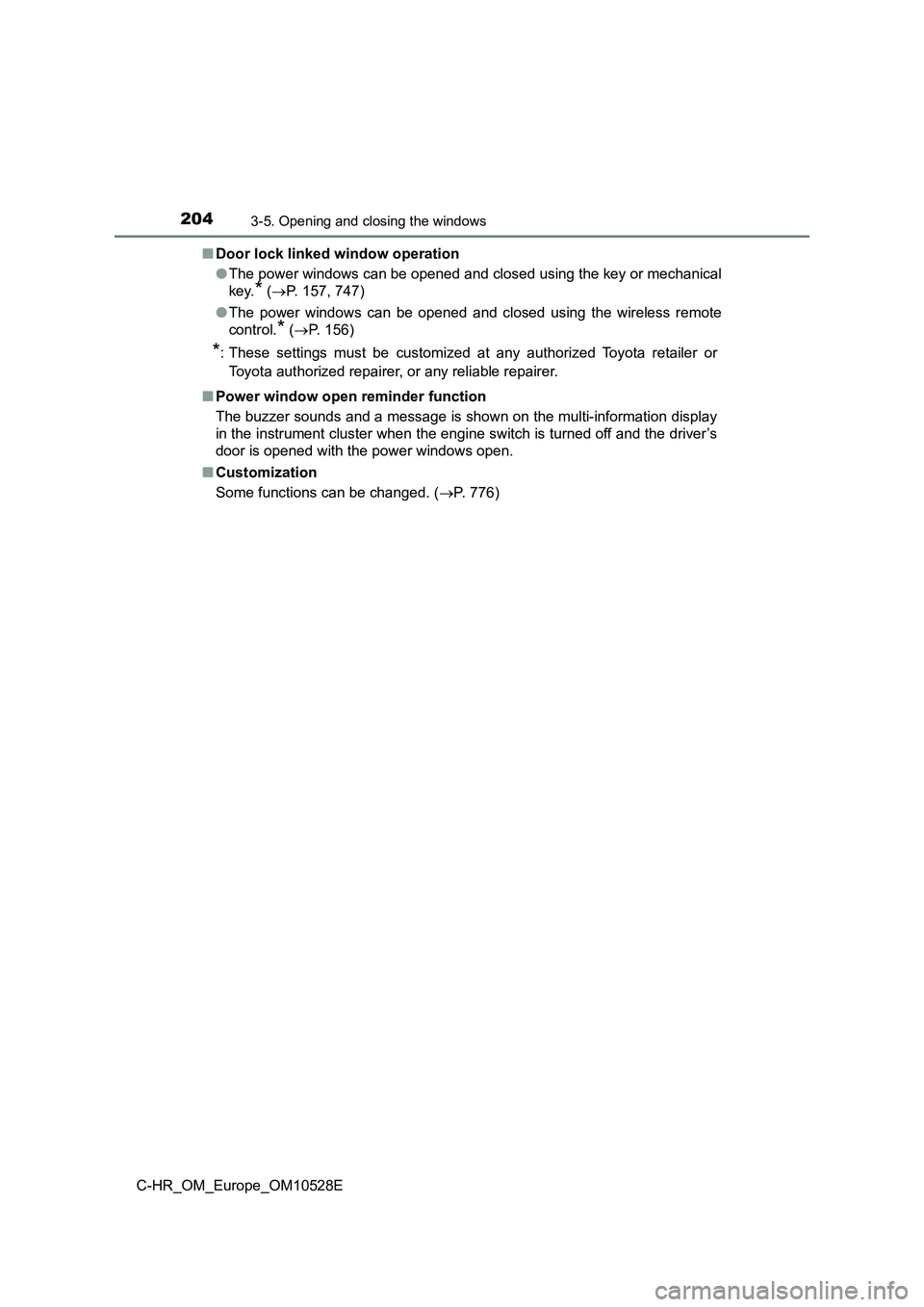

■ Door lock linked window operation
● The power windows can be opened and closed using the key or mechanical
key.* ( P. 157, 747)
● The power windows can be opened and closed using the wireless remote
control.* ( P. 156)
*: These settings must be customized at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■ Power window open reminder function
The buzzer sounds and a message is shown on the multi-information display
in the instrument cluster when the engine switch is turned off and the driver’s
door is opened with the power windows open.
■ Customization
Some functions can be changed. ( P. 776)

2053-5. Opening and closing the windows
3
Operation of each component
C-HR_OM_Europe_OM10528E
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the windows
● The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( P. 201)
● When using the wireless remote control, key or mechanical key (P. 144)
and operating the power windows, operate the power window after check-
ing to make sure that there is no possibility of any passenger having any of
their body parts caught in the side window. Also do not let a child operate
side window by the wireless remote control, key or mechanical key. It is
possible for children and other passengers to get caught in the power win-
dow.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. T here may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
● Check to make sure that all passengers
do not have any part of their body in a
position where it could be caught when
a side window is being operated.

2063-5. Opening and closing the windows
C-HR_OM_Europe_OM10528E
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.

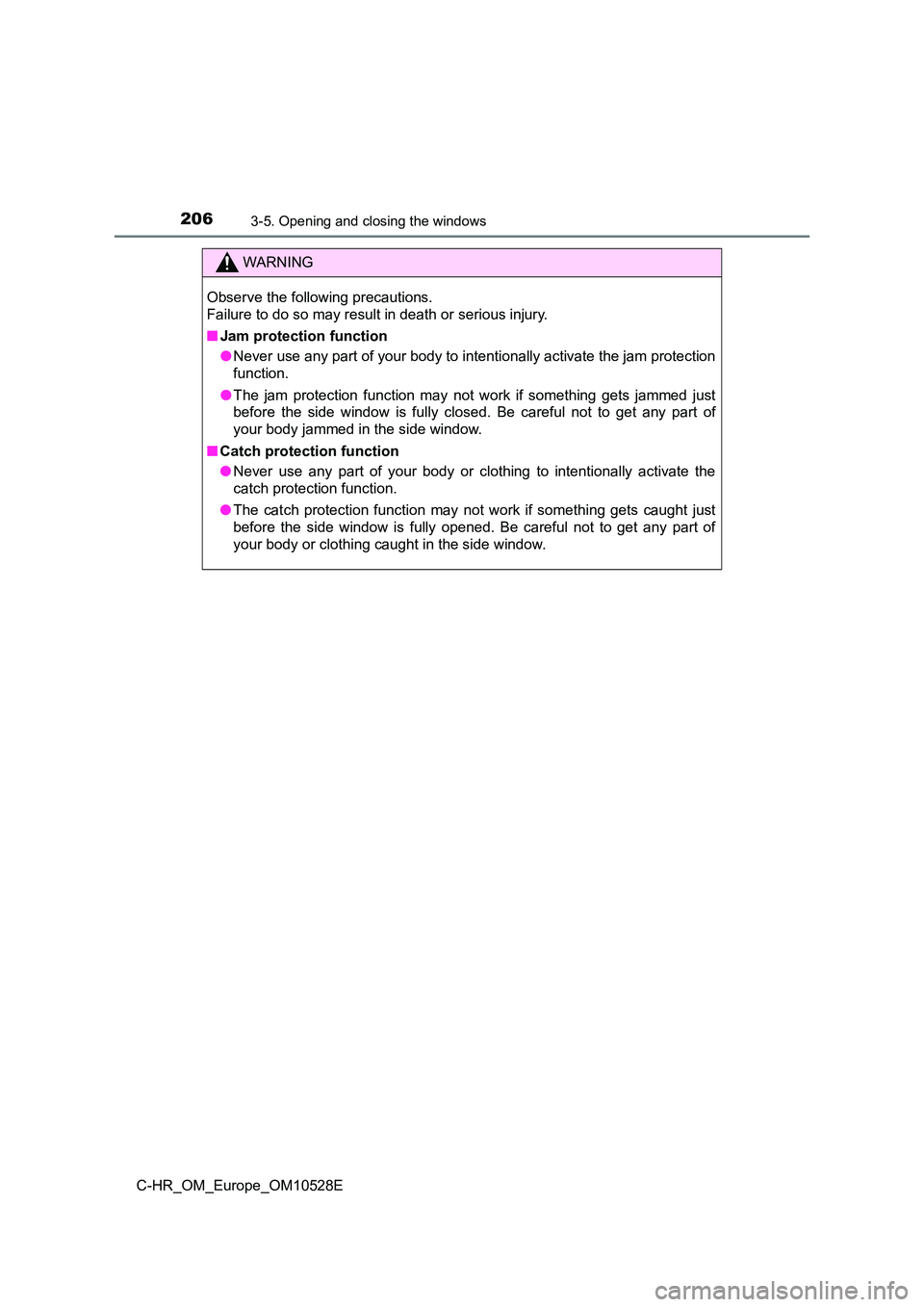

■ Jam protection function
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets jammed just
before the side window is fully closed. Be careful not to get any part of
your body jammed in the side window.
■ Catch protection function
● Never use any part of your body or clothing to intentionally activate the
catch protection function.
● The catch protection function may not work if something gets caught just
before the side window is fully opened. Be careful not to get any part of
your body or clothing caught in the side window.

207
4Driving
C-HR_OM_Europe_OM10528E
4-1. Before driving
Driving the vehicle ............. 208
Cargo and luggage ............ 222
Trailer towing ..................... 223
4-2. Driving procedures
Engine (ignition) switch
(vehicles without
a smart entry & start
system) ............................ 233
Engine (ignition) switch
(vehicles with a smart
entry & start system)........ 236
Multidrive ........................... 244
Manual transmission.......... 250
Turn signal lever ................ 255
Parking brake .................... 256
Brake hold ......................... 262
4-3. Operating the lights
and wipers
Headlight switch ................ 265
Automatic High Beam ........ 271
Fog light switch .................. 276
Windshield wipers
and washer ...................... 278
Rear window wiper
and washer ...................... 283
4-4. Refueling
Opening the fuel tank
cap ................................... 285
4-5. Using the driving
support systems
Toyota Safety Sense ......... 290
PCS (Pre-Collision
System) ........................... 298
LDA (Lane Departure
Alert with steering
control)............................. 315
RSA (Road Sign Assist)..... 330
Dynamic radar cruise
control with full-speed
range ............................... 336
Dynamic radar cruise
control .............................. 351
Cruise control..................... 369
Stop & Start system ........... 374
Driving mode select .......... 385
Speed limiter ...................... 387
BSM
(Blind Spot Monitor) ......... 392
• BSM function ................. 398
•RCTA function................ 403
Toyota parking
assist-sensor ................... 408
S-IPA (Simple Intelligent
Parking Assist System).... 420
Driving assist systems ....... 462
4-6. Driving tips
Winter driving tips .............. 470

2084-1. Before driving
C-HR_OM_Europe_OM10528E

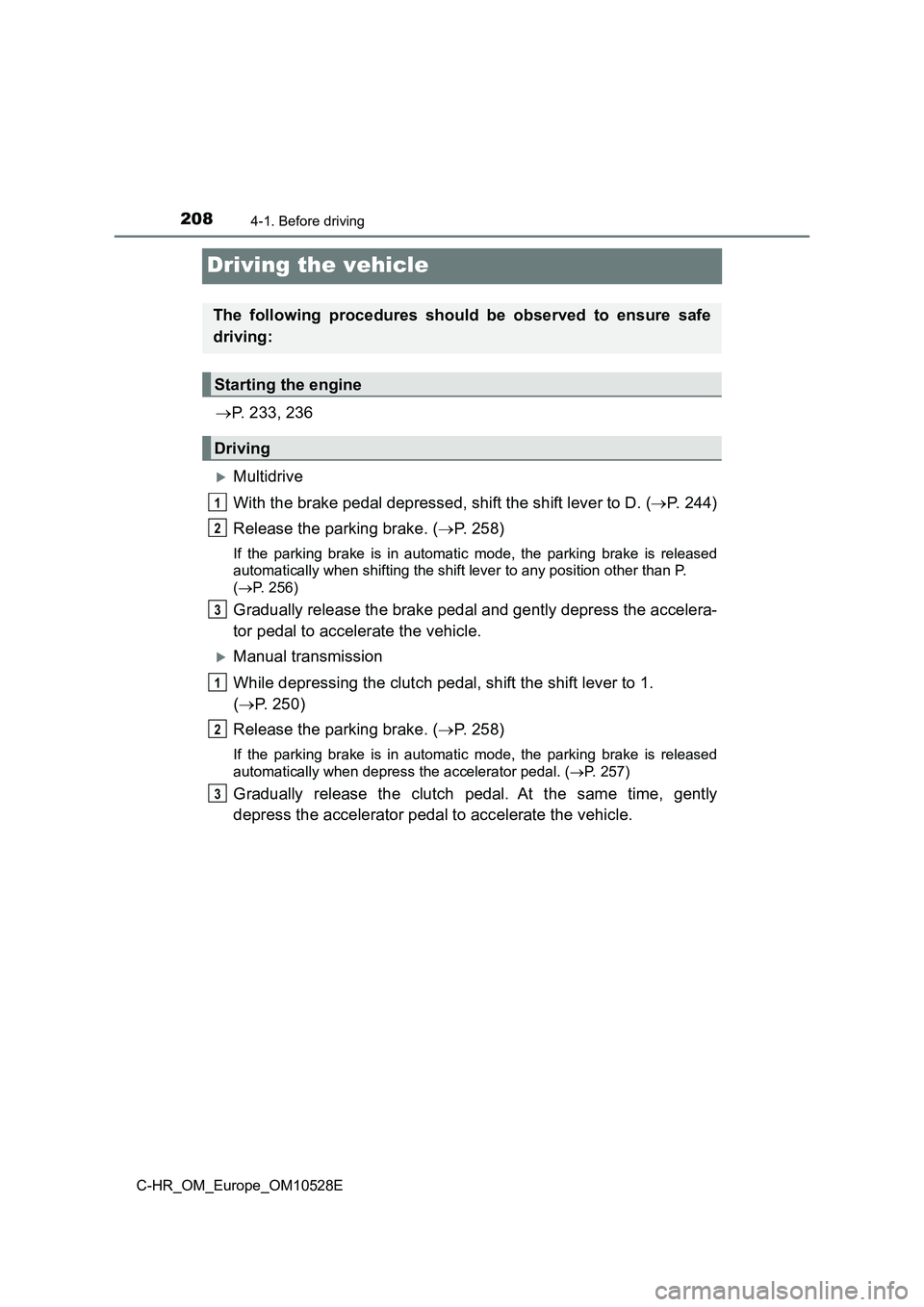

Driving the vehicle
P. 233, 236
Multidrive
With the brake pedal depressed, shift the shift lever to D. ( P. 244)
Release the parking brake. ( P. 258)
If the parking brake is in automatic mode, the parking brake is released
automatically when shifting the shift lever to any position other than P.
( P. 256)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
Manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
( P. 250)
Release the parking brake. ( P. 258)
If the parking brake is in automatic mode, the parking brake is released
automatically when depress the accelerator pedal. ( P. 257)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
The following procedures should be observed to ensure safe
driving:
Starting the engine
Driving
1
2
3
1
2
3

2094-1. Before driving
4
Driving
C-HR_OM_Europe_OM10528E
Multidrive
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. ( P. 244)
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to N. ( P. 250)
Vehicles with a Stop & Start system: If the Stop & Start system is enabled,
shifting the shift lever to N and releasing the clutch pedal will stop the
engine. ( P. 250)

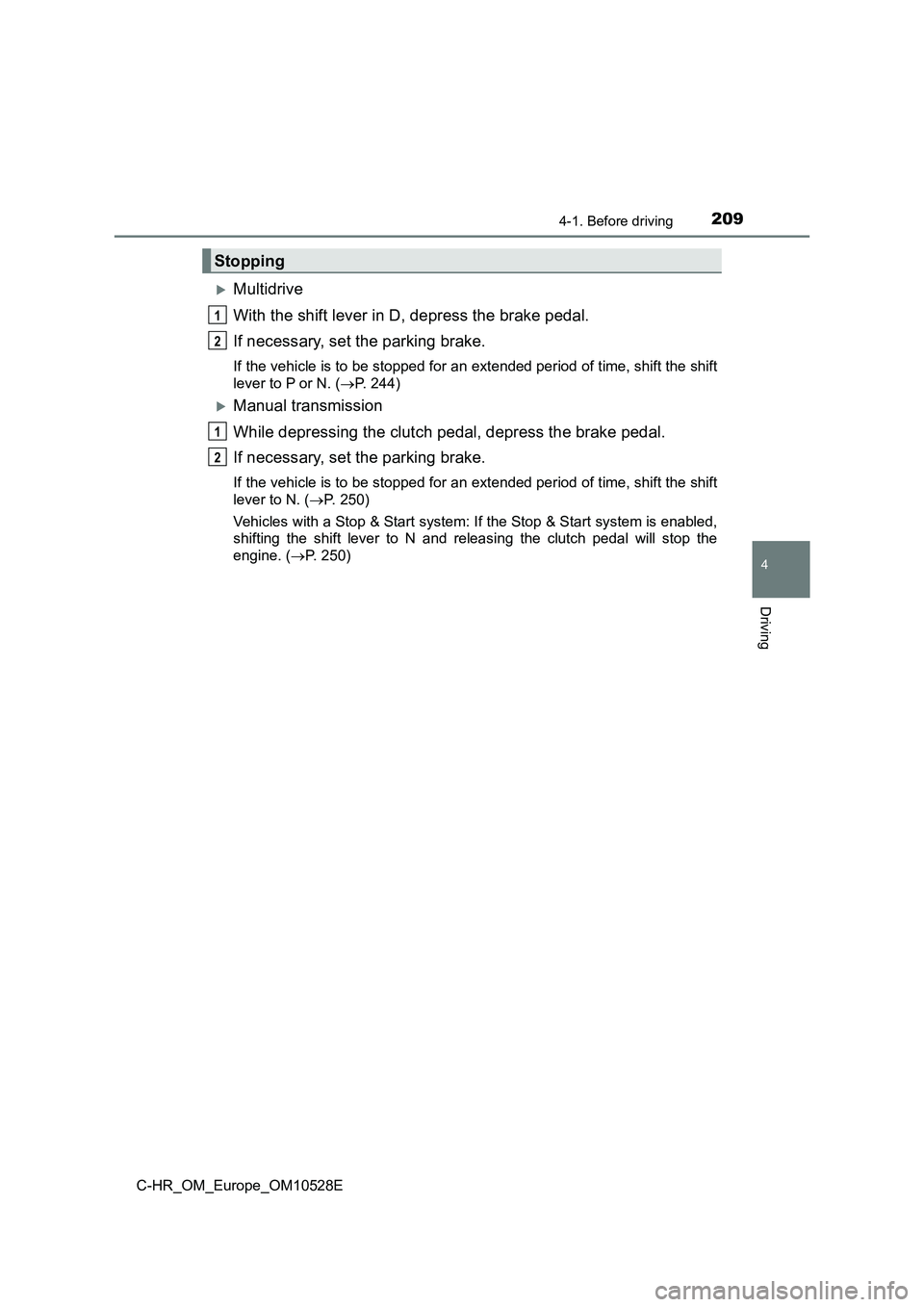

Stopping
1
2
1
2

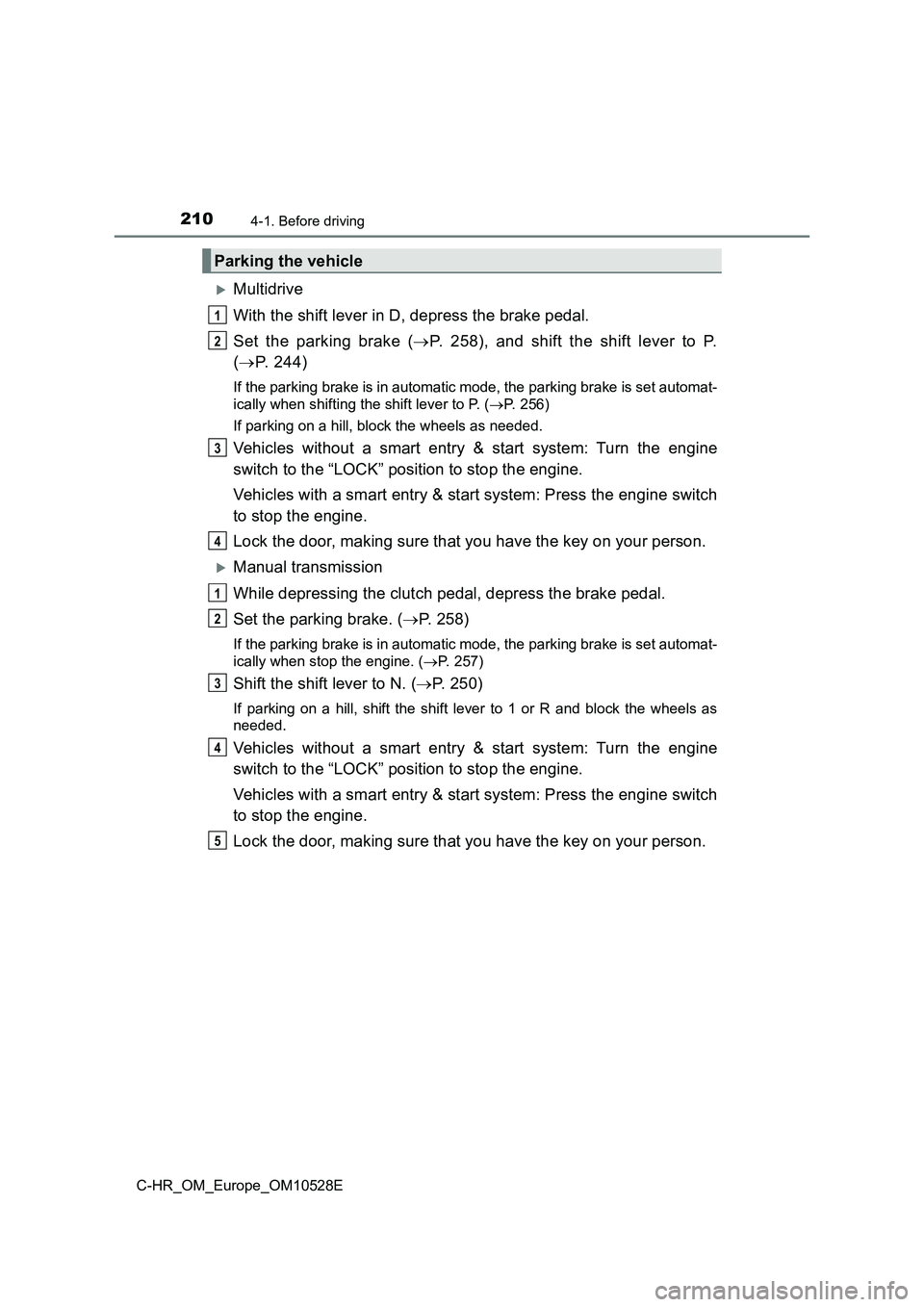

2104-1. Before driving
C-HR_OM_Europe_OM10528E
Multidrive
With the shift lever in D, depress the brake pedal.
Set the parking brake ( P. 258), and shift the shift lever to P.
( P. 244)
If the parking brake is in automatic mode, the parking brake is set automat-
ically when shifting the shift lever to P. ( P. 256)
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the key on your person.
Manual transmission
While depressing the clutch pedal, depress the brake pedal.
Set the parking brake. ( P. 258)
If the parking brake is in automatic mode, the parking brake is set automat-
ically when stop the engine. ( P. 257)
Shift the shift lever to N. (P. 250)
If parking on a hill, shift the shift lever to 1 or R and block the wheels as
needed.
Vehicles without a smart entry & start system: Turn the engine
switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the engine switch
to stop the engine.
Lock the door, making sure that you have the key on your person.
Parking the vehicle
1
2
3
4
1
2
3
4
5
