TOYOTA C-HR 2016 Owners Manual

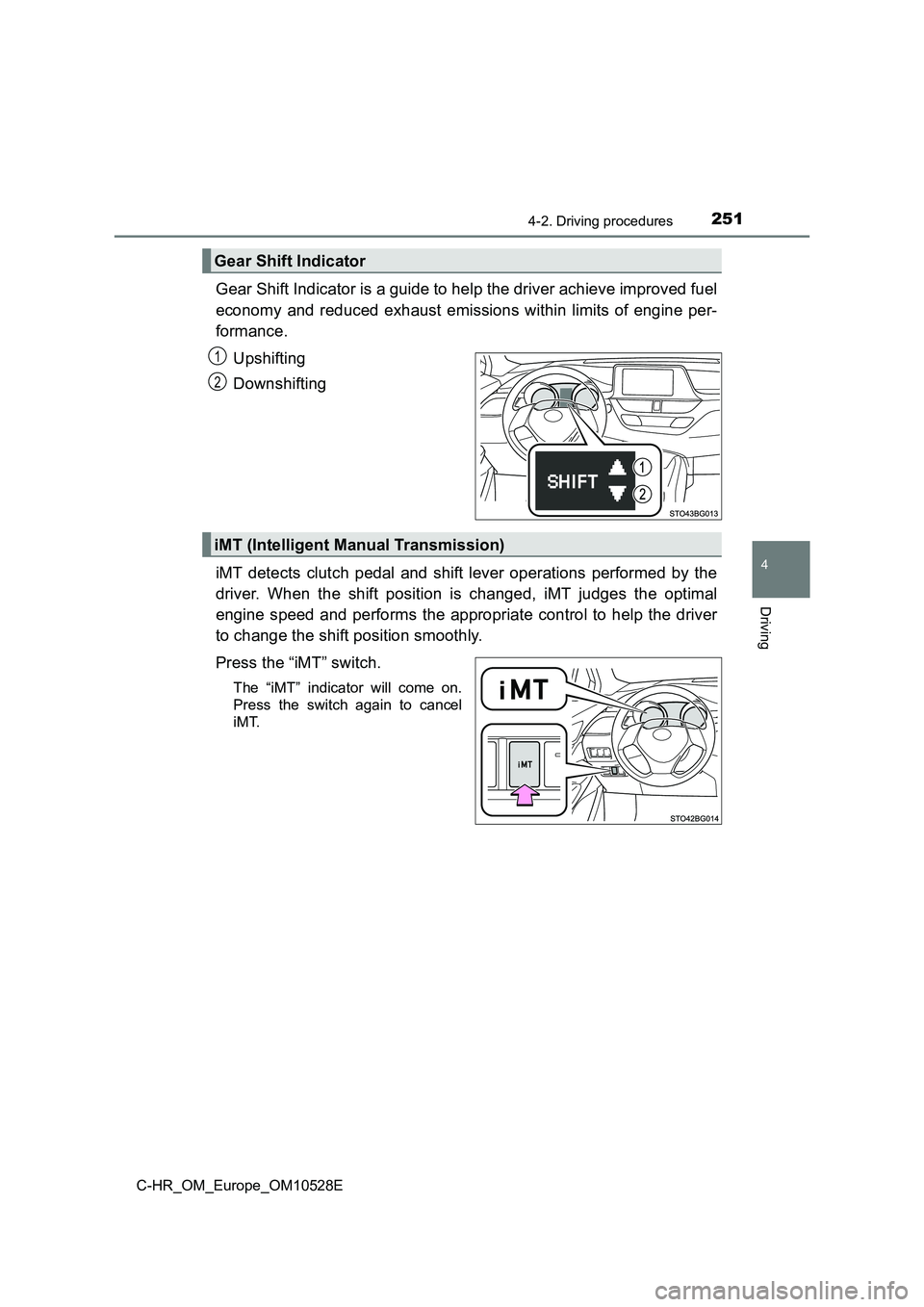

2514-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E
Gear Shift Indicator is a guide to help the driver achieve improved fuel
economy and reduced exhaust emissions within limits of engine per-
formance.
Upshifting
Downshifting
iMT detects clutch pedal and shift lever operations performed by the
driver. When the shift position is changed, iMT judges the optimal
engine speed and performs the appropriate control to help the driver
to change the shift position smoothly.
Press the “iMT” switch.
The “iMT” indicator will come on.
Press the switch again to cancel
iMT.
Gear Shift Indicator
1
2
iMT (Intelligent Manual Transmission)

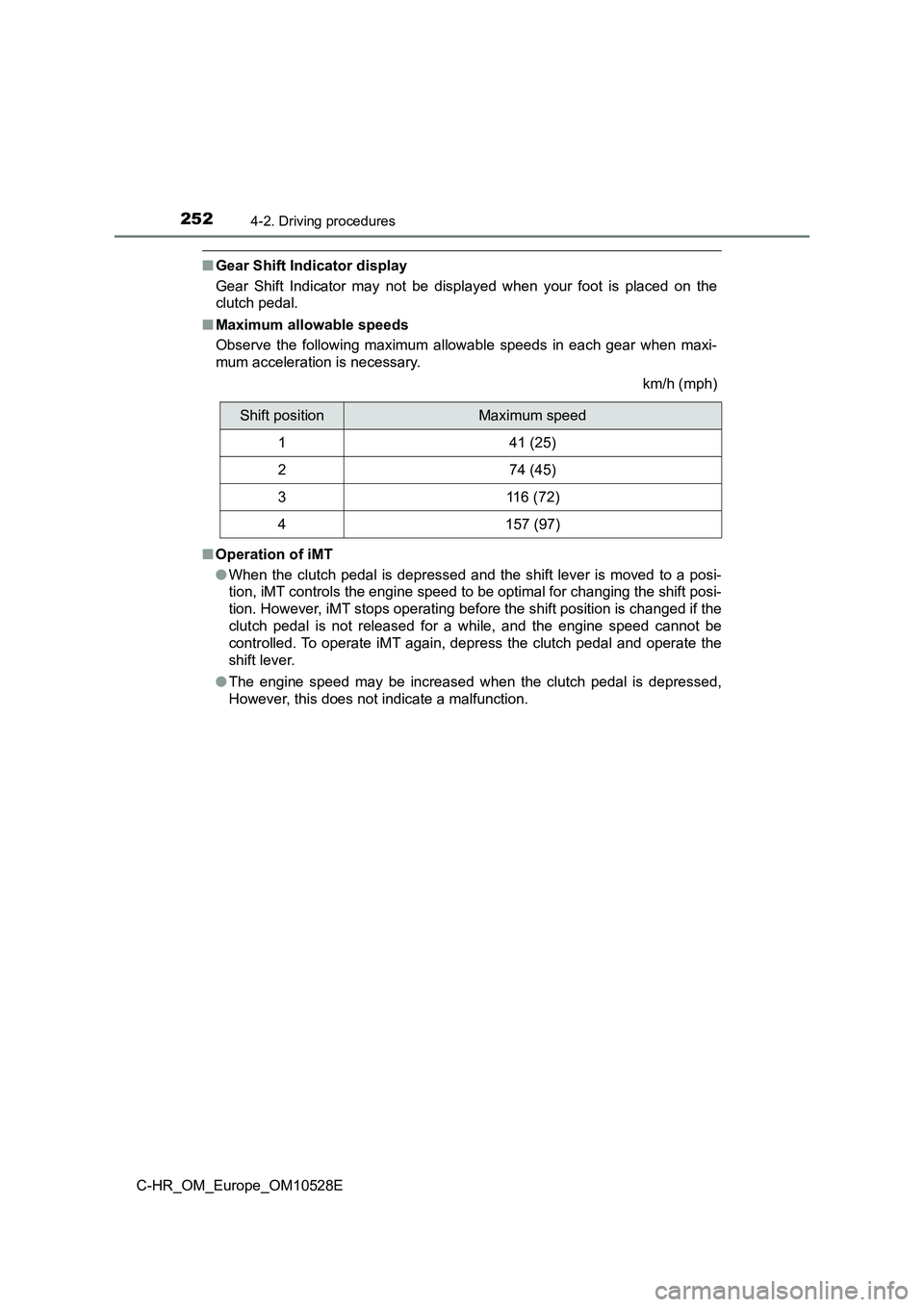

2524-2. Driving procedures
C-HR_OM_Europe_OM10528E
■Gear Shift Indicator display
Gear Shift Indicator may not be displayed when your foot is placed on the
clutch pedal.
■ Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
km/h (mph)
■ Operation of iMT
● When the clutch pedal is depressed and the shift lever is moved to a posi-
tion, iMT controls the engine speed to be optimal for changing the shift posi-
tion. However, iMT stops operating before the shift position is changed if the
clutch pedal is not released for a while, and the engine speed cannot be
controlled. To operate iMT again, depress the clutch pedal and operate the
shift lever.
● The engine speed may be increased when the clutch pedal is depressed,
However, this does not indicate a malfunction.
Shift positionMaximum speed
141 (25)
274 (45)
3116 (72)
4157 (97)

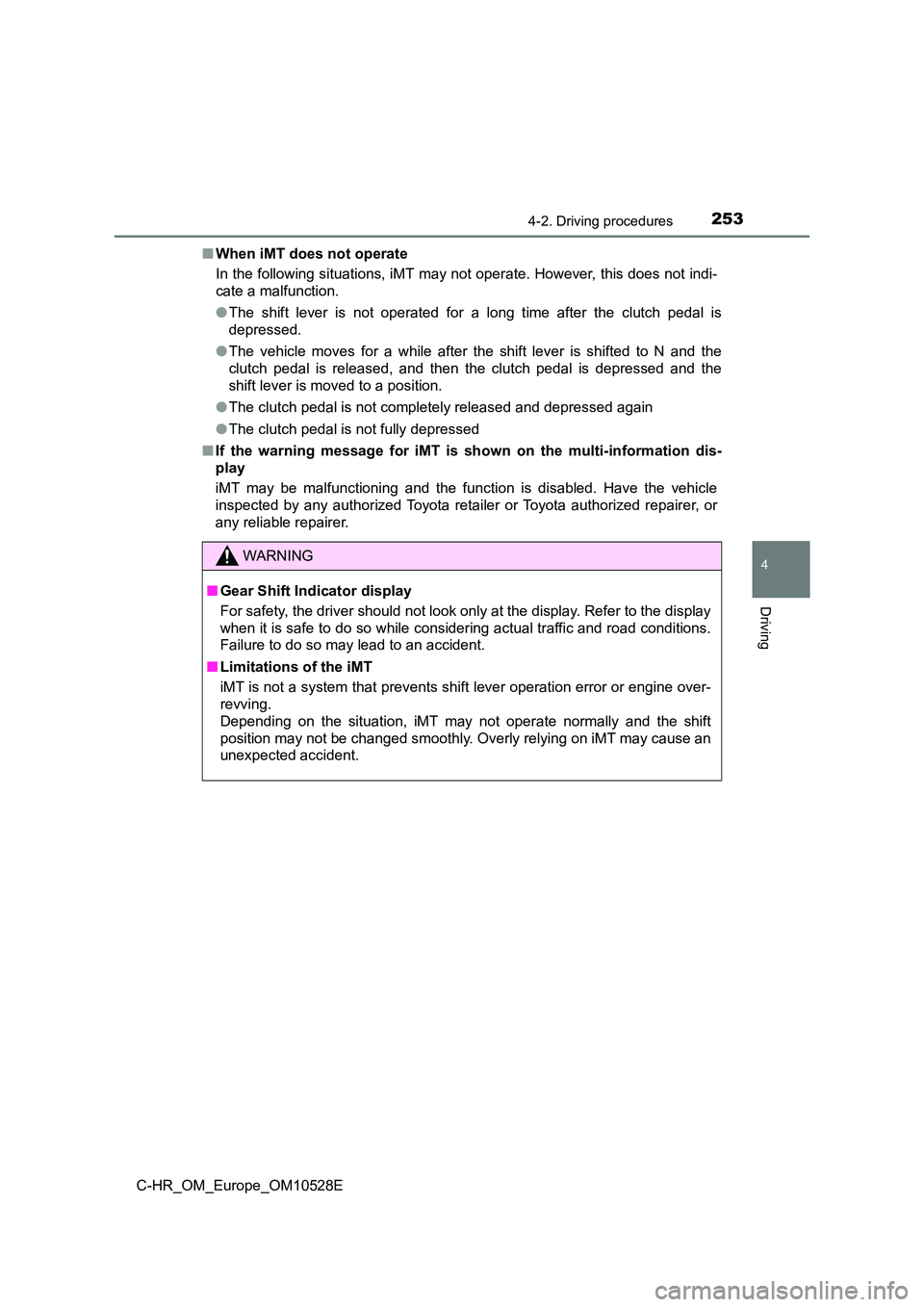

2534-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E
■ When iMT does not operate
In the following situations, iMT may not operate. However, this does not indi-
cate a malfunction.
● The shift lever is not operated for a long time after the clutch pedal is
depressed.
● The vehicle moves for a while after the shift lever is shifted to N and the
clutch pedal is released, and then the clutch pedal is depressed and the
shift lever is moved to a position.
● The clutch pedal is not completely released and depressed again
● The clutch pedal is not fully depressed
■ If the warning message for iMT is shown on the multi-information dis-
play
iMT may be malfunctioning and the function is disabled. Have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer.
WARNING
■ Gear Shift Indicator display
For safety, the driver should not look only at the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.
■ Limitations of the iMT
iMT is not a system that prevents shift lever operation error or engine over-
revving.
Depending on the situation, iMT may not operate normally and the shift
position may not be changed smoothly. Overly relying on iMT may cause an
unexpected accident.

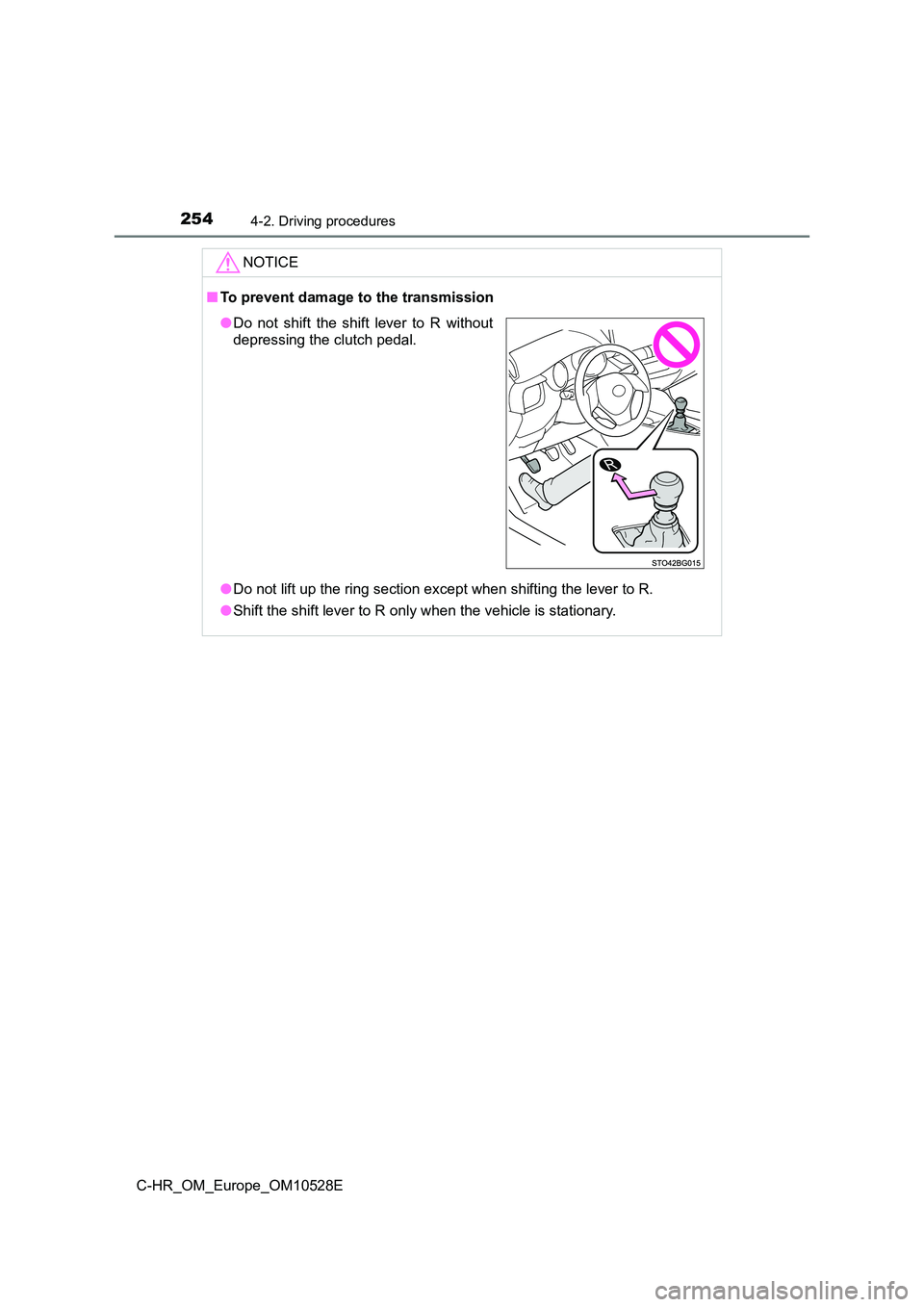

2544-2. Driving procedures
C-HR_OM_Europe_OM10528E
NOTICE
■To prevent damage to the transmission
● Do not lift up the ring section except when shifting the lever to R.
● Shift the shift lever to R only when the vehicle is stationary.
●Do not shift the shift lever to R without
depressing the clutch pedal.

255
4
4-2. Driving procedures
Driving
C-HR_OM_Europe_OM10528E
Turn signal lever
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
■ Turn signals can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■ If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
■ Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable feature P. 776)
Operating instructions
1
2
3
4

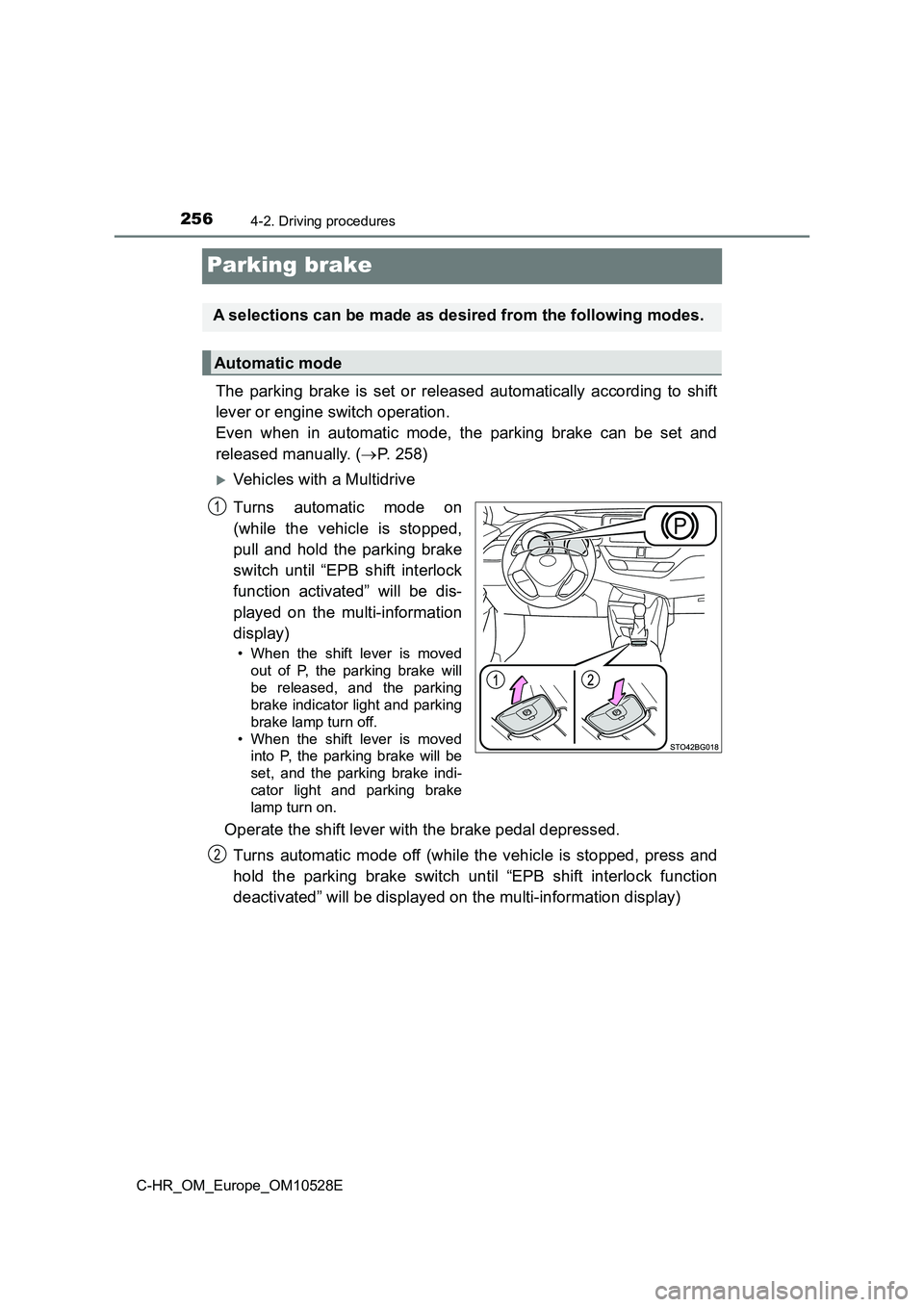

2564-2. Driving procedures
C-HR_OM_Europe_OM10528E
Parking brake
The parking brake is set or released automatically according to shift
lever or engine switch operation.
Even when in automatic mode, the parking brake can be set and
released manually. ( P. 258)
Vehicles with a Multidrive
Turns automatic mode on
(while the vehicle is stopped,
pull and hold the parking brake
switch until “EPB shift interlock
function activated” will be dis-
played on the multi-information
display)
• When the shift lever is moved
out of P, the parking brake will
be released, and the parking
brake indicator light and parking
brake lamp turn off.
• When the shift lever is moved
into P, the parking brake will be
set, and the parking brake indi-
cator light and parking brake
lamp turn on.
Operate the shift lever with the brake pedal depressed.
Turns automatic mode off (while the vehicle is stopped, press and
hold the parking brake switch until “EPB shift interlock function
deactivated” will be displayed on the multi-information display)
A selections can be made as desired from the following modes.
Automatic mode
1
2

2574-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E

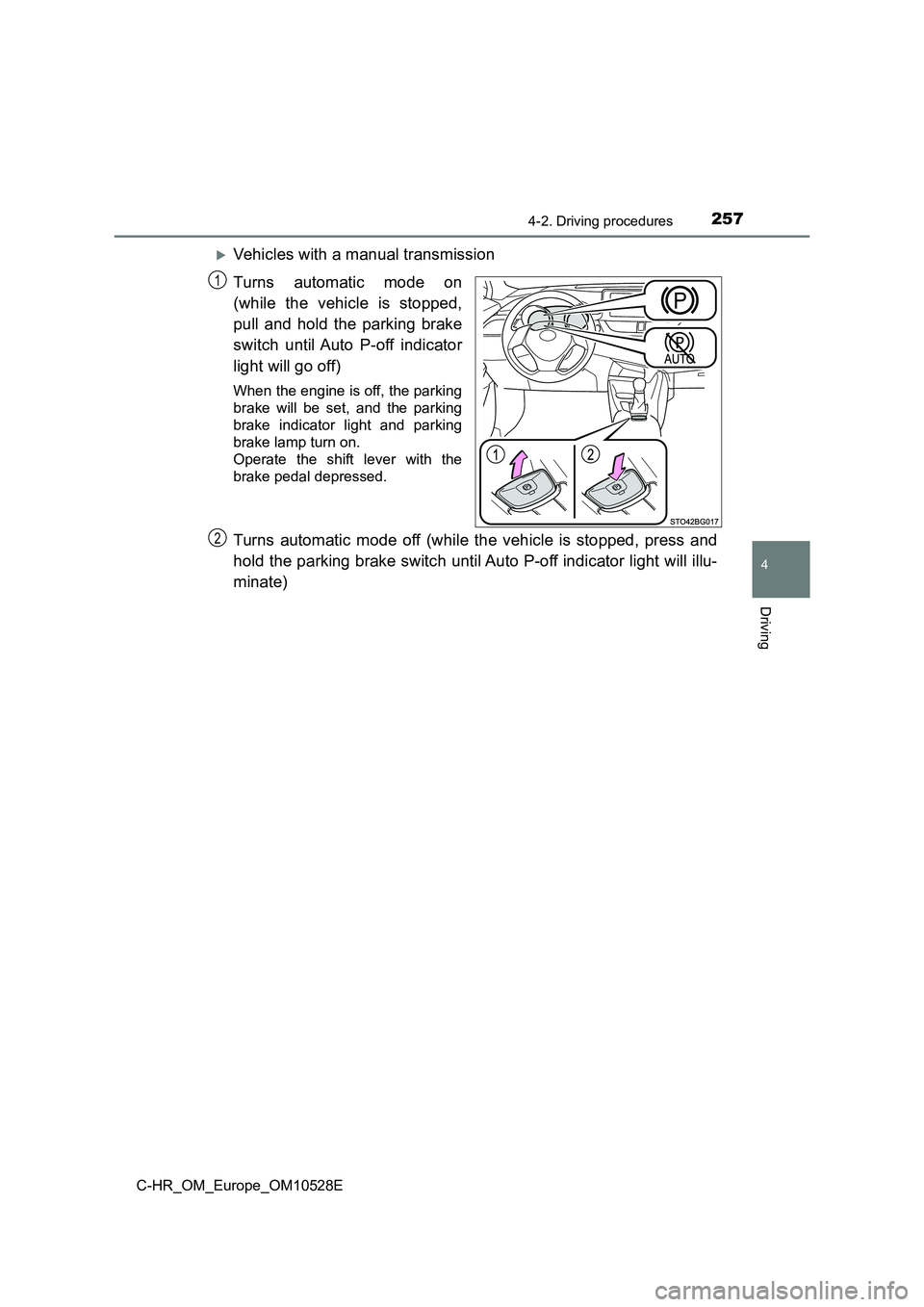

Vehicles with a manual transmission
Turns automatic mode on
(while the vehicle is stopped,
pull and hold the parking brake
switch until Auto P-off indicator
light will go off)
When the engine is off, the parking
brake will be set, and the parking
brake indicator light and parking
brake lamp turn on.
Operate the shift lever with the
brake pedal depressed.
Turns automatic mode off (while the vehicle is stopped, press and
hold the parking brake switch until Auto P-off indicator light will illu-
minate)
1
2

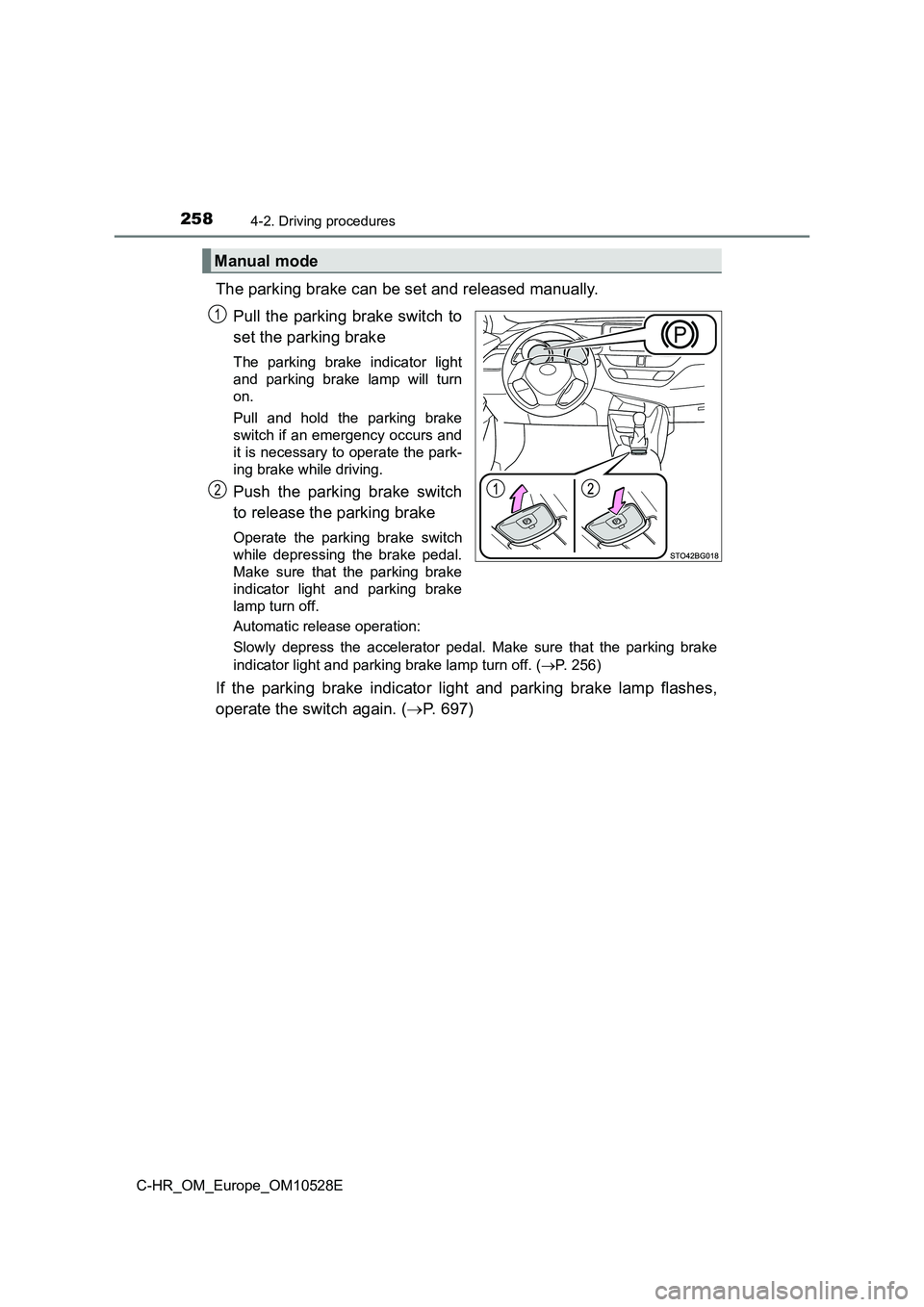

2584-2. Driving procedures
C-HR_OM_Europe_OM10528E
The parking brake can be set and released manually.
Pull the parking brake switch to
set the parking brake
The parking brake indicator light
and parking brake lamp will turn
on.
Pull and hold the parking brake
switch if an emergency occurs and
it is necessary to operate the park-
ing brake while driving.
Push the parking brake switch
to release the parking brake
Operate the parking brake switch
while depressing the brake pedal.
Make sure that the parking brake
indicator light and parking brake
lamp turn off.
Automatic release operation:
Slowly depress the accelerator pedal. Make sure that the parking brake
indicator light and parking brake lamp turn off. ( P. 2 5 6 )
If the parking brake indicator light and parking brake lamp flashes,
operate the switch again. ( P. 697)
Manual mode
1
2

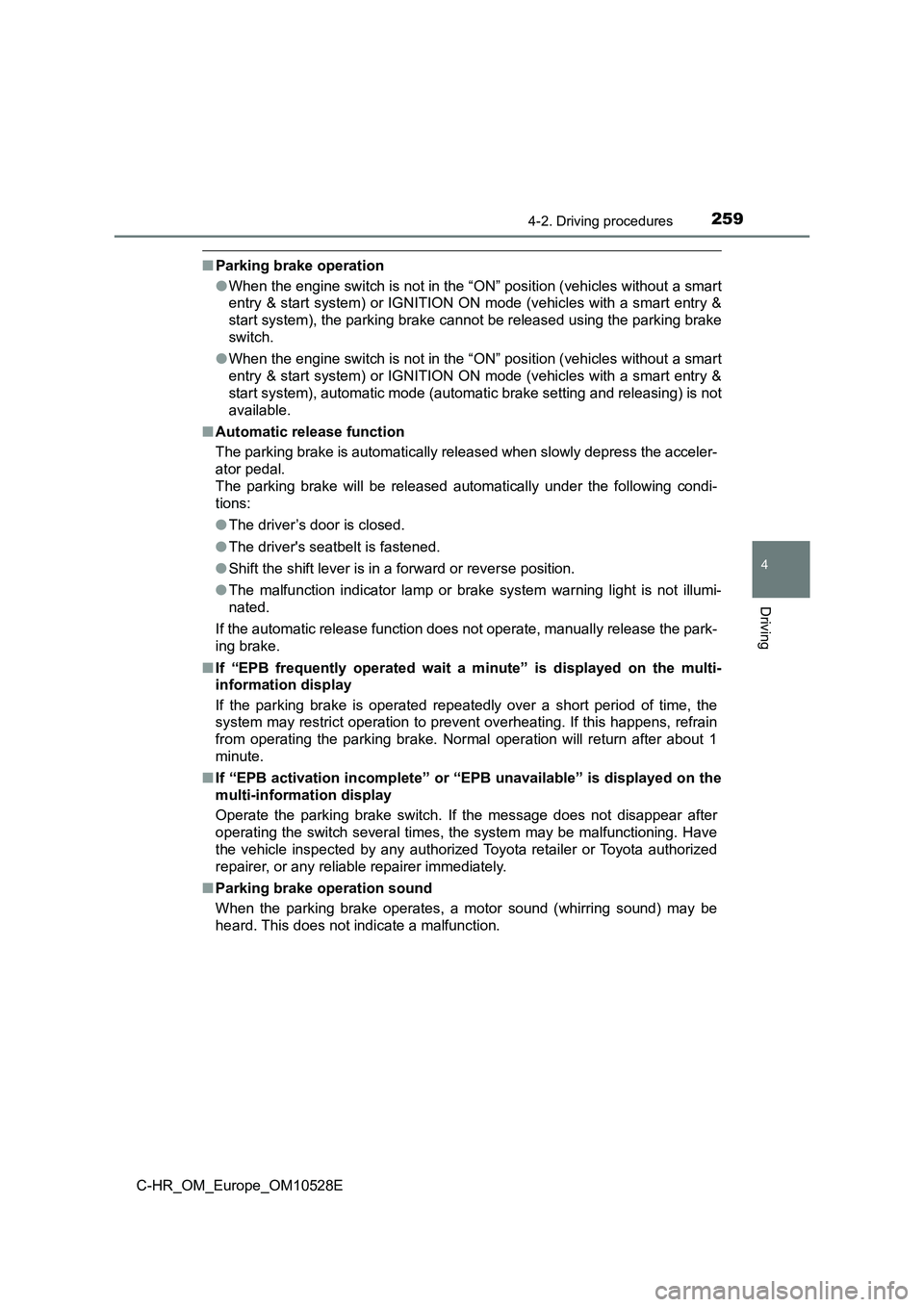

2594-2. Driving procedures
4
Driving
C-HR_OM_Europe_OM10528E
■Parking brake operation
● When the engine switch is not in the “ON” position (vehicles without a smart
entry & start system) or IGNITION ON mode (vehicles with a smart entry &
start system), the parking brake cannot be released using the parking brake
switch.
● When the engine switch is not in the “ON” position (vehicles without a smart
entry & start system) or IGNITION ON mode (vehicles with a smart entry &
start system), automatic mode (automatic brake setting and releasing) is not
available.
■ Automatic release function
The parking brake is automatically released when slowly depress the acceler-
ator pedal.
The parking brake will be released automatically under the following condi-
tions:
● The driver’s door is closed.
● The driver's seatbelt is fastened.
● Shift the shift lever is in a forward or reverse position.
● The malfunction indicator lamp or brake system warning light is not illumi-
nated.
If the automatic release function does not operate, manually release the park-
ing brake.
■ If “EPB frequently operated wait a minute” is displayed on the multi-
information display
If the parking brake is operated repeatedly over a short period of time, the
system may restrict operation to prevent overheating. If this happens, refrain
from operating the parking brake. Normal operation will return after about 1
minute.
■ If “EPB activation incomplete” or “EPB unavailable” is displayed on the
multi-information display
Operate the parking brake switch. If the message does not disappear after
operating the switch several times, the system may be malfunctioning. Have
the vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliabl e repairer immediately.
■ Parking brake operation sound
When the parking brake operates, a motor sound (whirring sound) may be
heard. This does not indicate a malfunction.

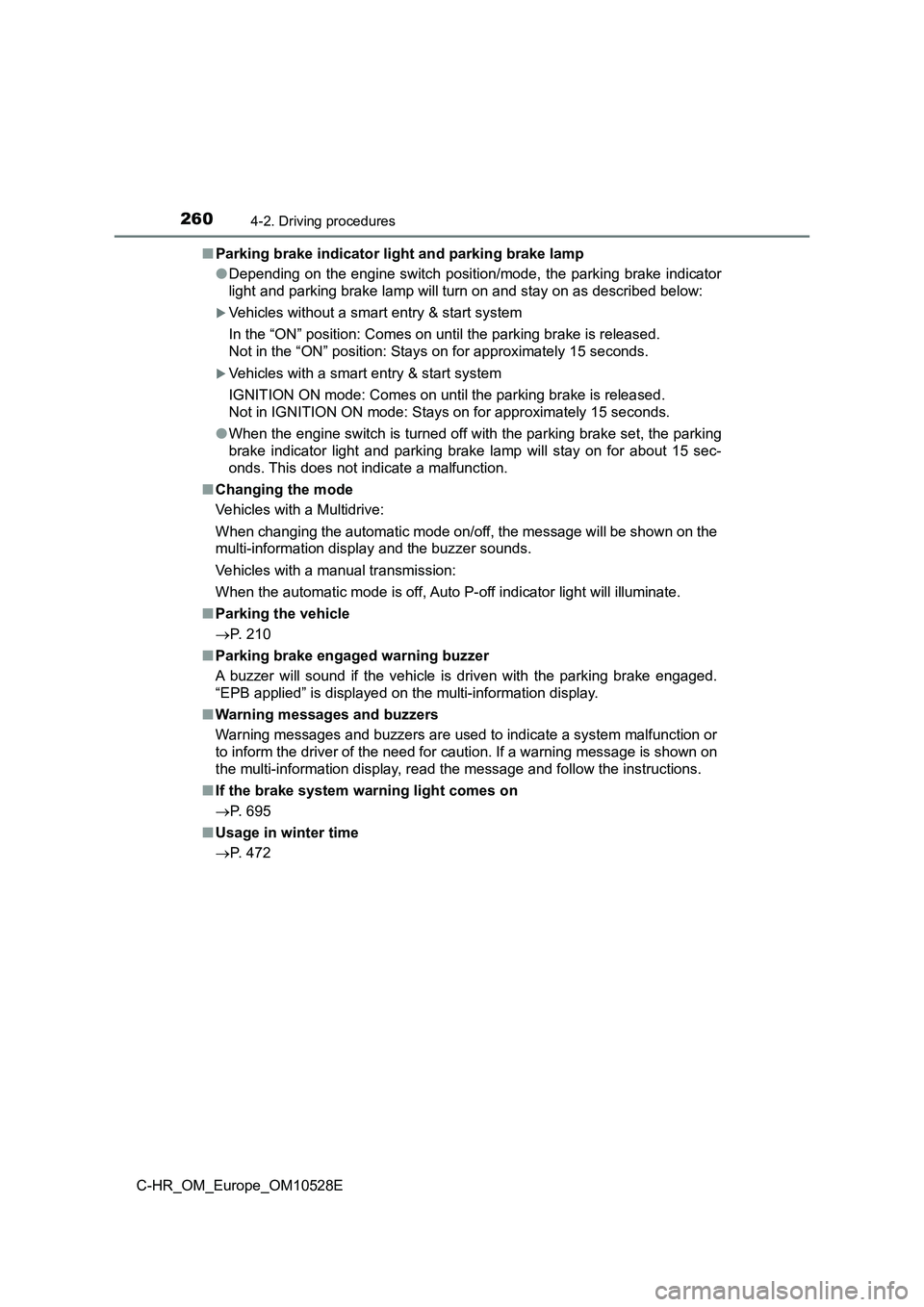

2604-2. Driving procedures
C-HR_OM_Europe_OM10528E
■ Parking brake indicator light and parking brake lamp
● Depending on the engine switch position/mode, the parking brake indicator
light and parking brake lamp will turn on and stay on as described below:
Vehicles without a smart entry & start system
In the “ON” position: Comes on until the parking brake is released.
Not in the “ON” position: Stays on for approximately 15 seconds.
Vehicles with a smart entry & start system
IGNITION ON mode: Comes on until the parking brake is released.
Not in IGNITION ON mode: Stays on for approximately 15 seconds.
● When the engine switch is turned off with the parking brake set, the parking
brake indicator light and parking brake lamp will stay on for about 15 sec-
onds. This does not indicate a malfunction.
■ Changing the mode
Vehicles with a Multidrive:
When changing the automatic mode on/off, the message will be shown on the
multi-information display and the buzzer sounds.
Vehicles with a manual transmission:
When the automatic mode is off, Auto P-off indicator light will illuminate.
■ Parking the vehicle
 P. 210
■ Parking brake engaged warning buzzer
A buzzer will sound if the vehicle is driven with the parking brake engaged.
“EPB applied” is displayed on the multi-information display.
■ Warning messages and buzzers
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution. If a warning message is shown on
the multi-information display, read the message and follow the instructions.
■ If the brake system warning light comes on
 P. 695
■ Usage in winter time
 P. 472
