3814-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E

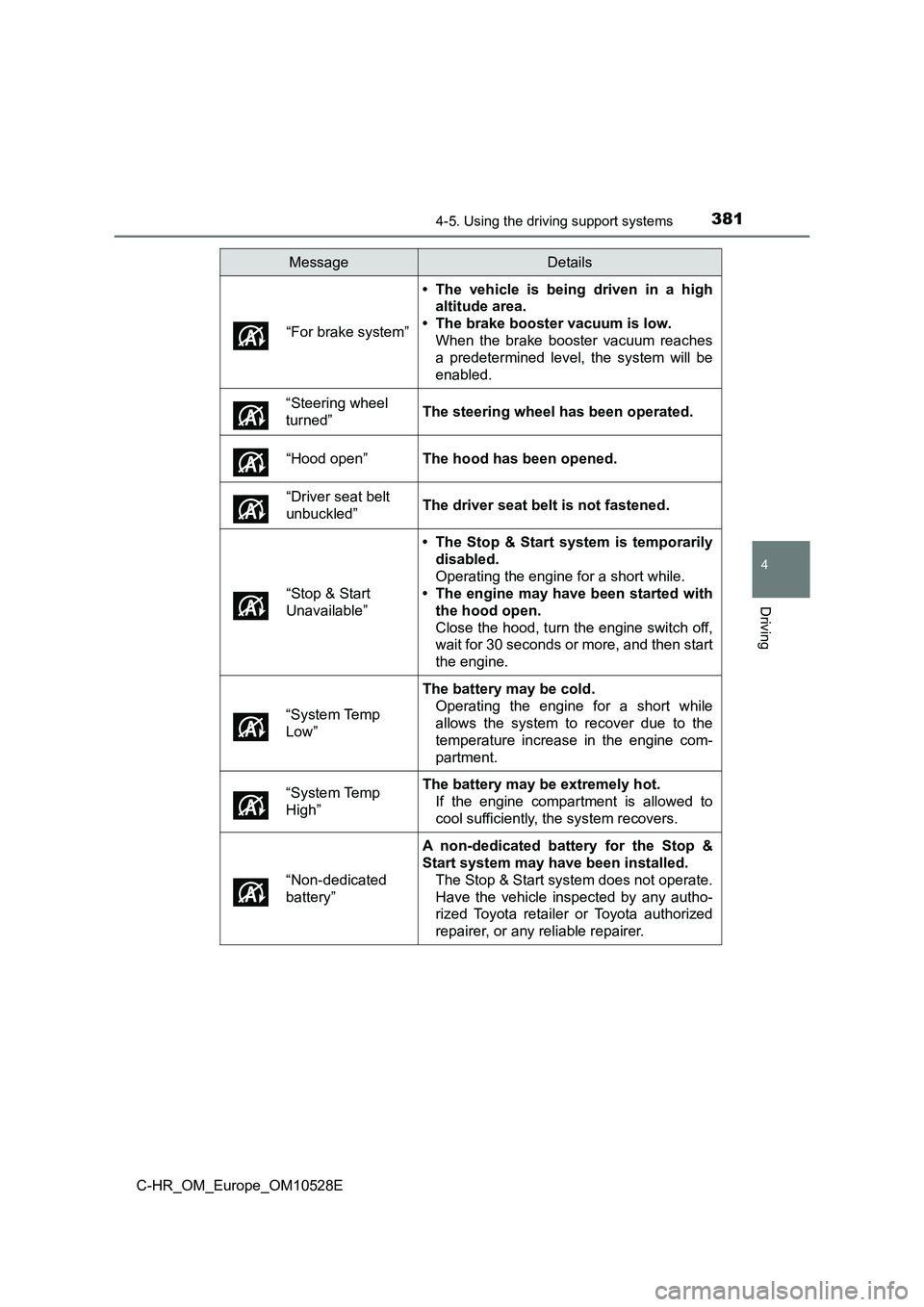

“For brake system”
• The vehicle is being driven in a high
altitude area.
• The brake booster vacuum is low.
When the brake booster vacuum reaches
a predetermined level, the system will be
enabled.
“Steering wheel
turned”The steering wheel h as been operated.
“Hood open”The hood has been opened.
“Driver seat belt
unbuckled”The driver seat belt is not fastened.
“Stop & Start
Unavailable”
• The Stop & Start system is temporarily
disabled.
Operating the engine for a short while.
• The engine may have been started with
the hood open.
Close the hood, turn the engine switch off,
wait for 30 seconds or more, and then start
the engine.
“System Temp
Low”
The battery may be cold.
Operating the engine for a short while
allows the system to recover due to the
temperature increase in the engine com-
partment.
“System Temp
High”
The battery may be extremely hot.
If the engine compartment is allowed to
cool sufficiently, the system recovers.
“Non-dedicated
battery”
A non-dedicated battery for the Stop &
Start system may have been installed.
The Stop & Start system does not operate.
Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
MessageDetails

3824-5. Using the driving support systems
C-HR_OM_Europe_OM10528E

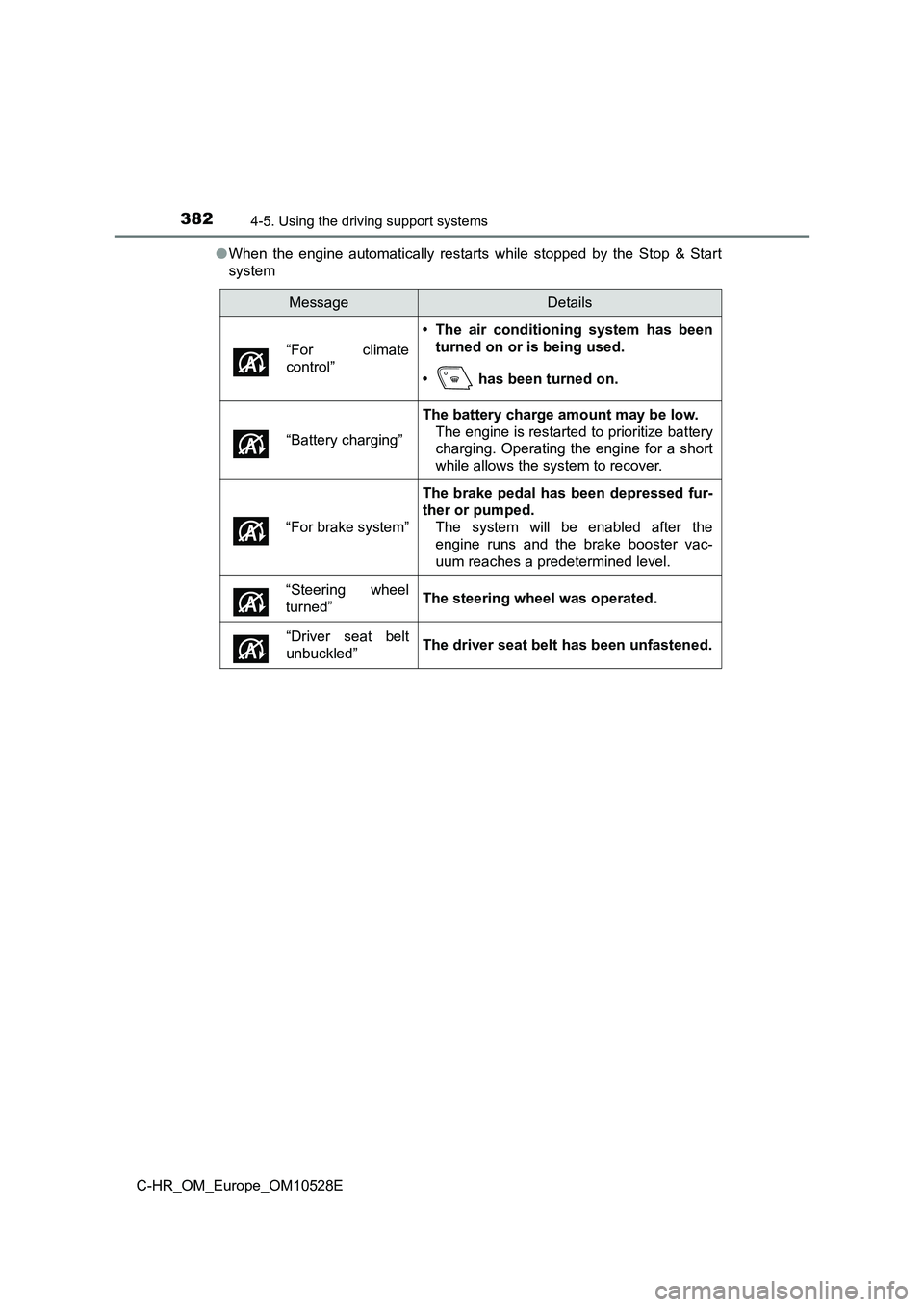

● When the engine automatically restarts while stopped by the Stop & Start
system
MessageDetails
“For climate
control”
• The air conditioning system has been
turned on or is being used.
• has been turned on.
“Battery charging”
The battery charge amount may be low.
The engine is restarted to prioritize battery
charging. Operating the engine for a short
while allows the system to recover.
“For brake system”
The brake pedal has been depressed fur-
ther or pumped.
The system will be enabled after the
engine runs and the brake booster vac-
uum reaches a predetermined level.
“Steering wheel
turned”The steering wheel was operated.
“Driver seat belt
unbuckled”The driver seat belt has been unfastened.

3834-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E

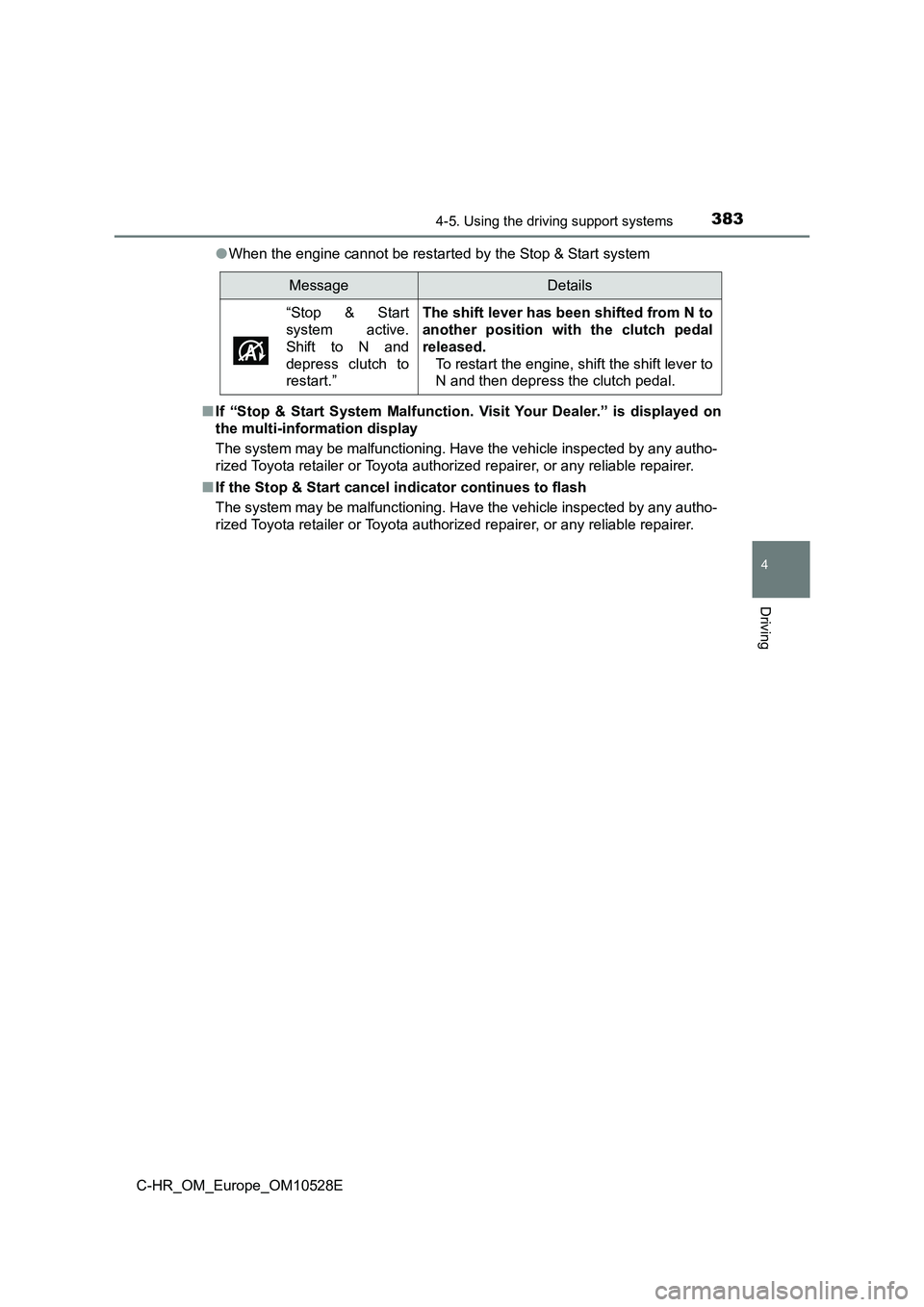

● When the engine cannot be restarted by the Stop & Start system
■ If “Stop & Start System Malfunction. Visit Your Dealer.” is displayed on
the multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ If the Stop & Start cancel indicator continues to flash
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
MessageDetails
“Stop & Start
system active.
Shift to N and
depress clutch to
restart.”
The shift lever has been shifted from N to
another position with the clutch pedal
released.
To restart the engine, shift the shift lever to
N and then depress the clutch pedal.

3844-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
WARNING
■When the Stop & Start system is operating
● Keep the shift lever in N and depress the brake pedal or apply the parking
brake while the engine is stopped by the Stop & Start system (while the
Stop & Start indicator is on).
● Do not allow anyone to leave the vehicle while the engine is stopped by
the Stop & Start system (while the Stop & Start indicator is on).
An accident may occur due to the automatic engine start function.
● Ensure that the engine is not stopped by the Stop & Start system while the
vehicle is in a poorly ventilated area. The engine may restart due to the
automatic engine start function, causing exhaust gases to collect and
enter the vehicle, possibly resulting in death or a serious health hazard.
NOTICE
■ To ensure the system operates correctly
If any of the following situations occur, the Stop & Start system may not
operate correctly. Have your vehicle checked by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
● While the driver’s seat belt is fastened, the driver’s and front passenger’s
seat belt reminder light flashes.
● Even though the driver’s seat belt is not fastened, the driver’s and front
passenger’s seat belt reminder light does not illuminate.
● Even though the driver’s door is closed, the open door warning is dis-
played on the multi-information display or the interior light is illuminated
when the interior light switch is in the door position.
● Even though the driver’s door is open, the open door warning is not dis-
played on the multi-information display or the interior light does not illumi-
nate when the interior light switch is in the door position.
■ When the engine stalled
If the system is operational, the engine can restart by pressing the clutch
pedal immediately.

385
4
4-5. Using the driving support systems
Driving
C-HR_OM_Europe_OM10528E

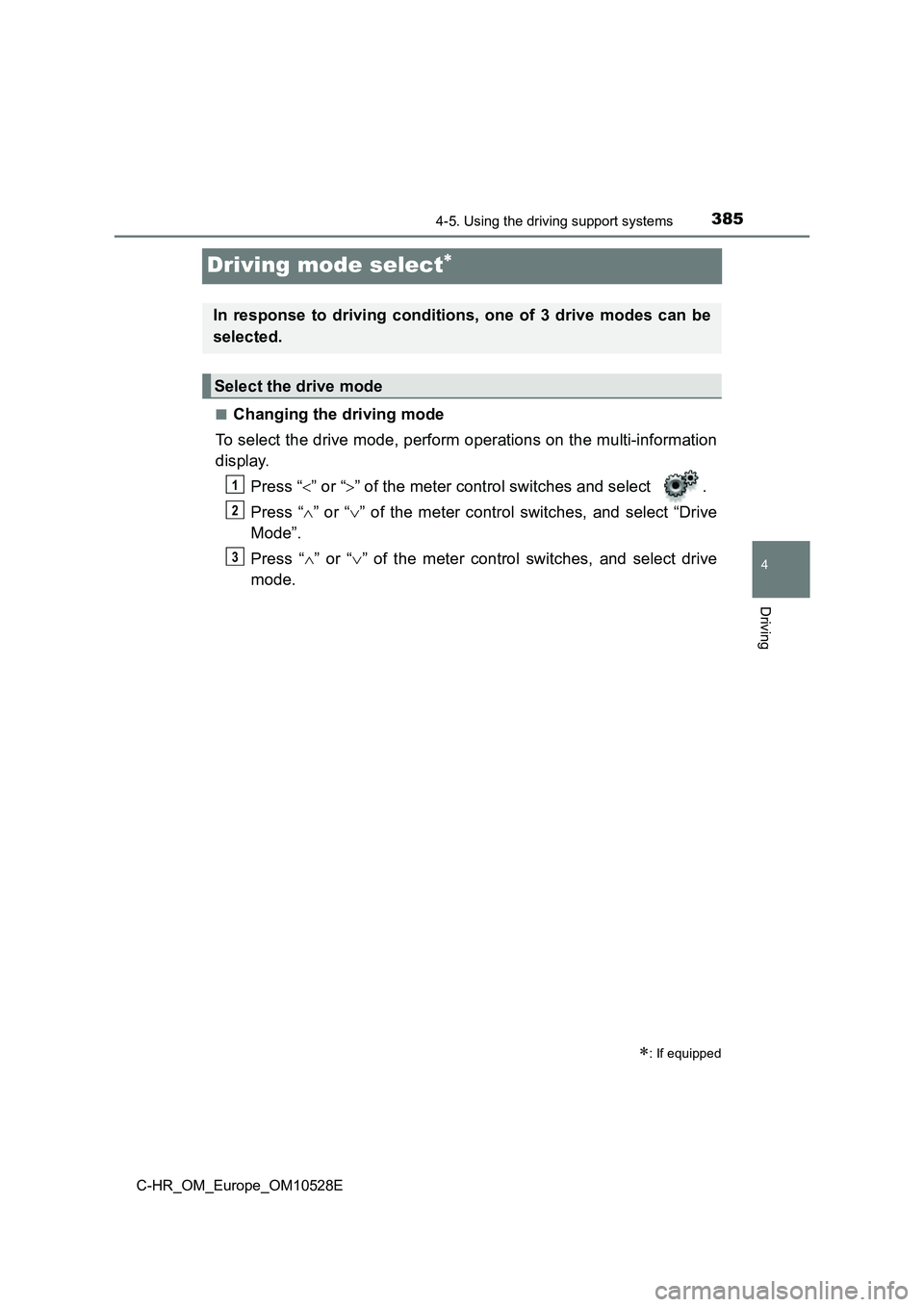

Driving mode select
■Changing the driving mode
To select the drive mode, perform operations on the multi-information
display.
Press “ ” or “” of the meter control switches and select .
Press “ ” or “” of the meter control switches, and select “Drive
Mode”.
Press “ ” or “” of the meter control switches, and select drive
mode.
: If equipped
In response to driving conditions, one of 3 drive modes can be
selected.
Select the drive mode
1
2
3

3864-5. Using the driving support systems
C-HR_OM_Europe_OM10528E

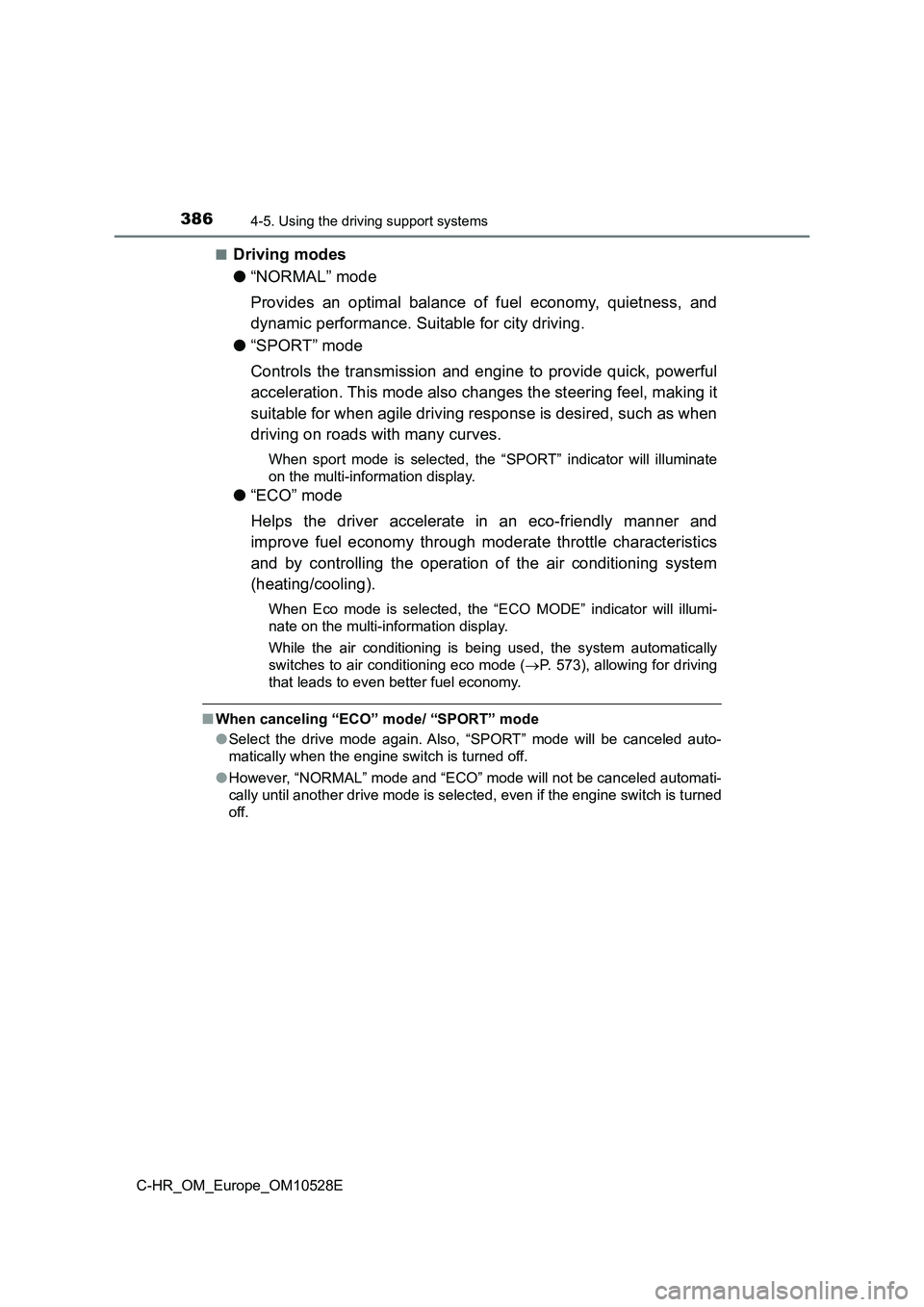

■Driving modes
● “NORMAL” mode
Provides an optimal balance of fuel economy, quietness, and
dynamic performance. Suitable for city driving.
● “SPORT” mode
Controls the transmission and engine to provide quick, powerful
acceleration. This mode also changes the steering feel, making it
suitable for when agile driving response is desired, such as when
driving on roads with many curves.
When sport mode is selected, the “SPORT” indicator will illuminate
on the multi-information display.
● “ECO” mode
Helps the driver accelerate in an eco-friendly manner and
improve fuel economy through moderate throttle characteristics
and by controlling the operation of the air conditioning system
(heating/cooling).
When Eco mode is selected, the “ECO MODE” indicator will illumi-
nate on the multi-information display.
While the air conditioning is being used, the system automatically
switches to air conditioning eco mode ( P. 573), allowing for driving
that leads to even better fuel economy.
■ When canceling “ECO” mode/ “SPORT” mode
● Select the drive mode again. Also, “SPORT” mode will be canceled auto-
matically when the engine switch is turned off.
● However, “NORMAL” mode and “ECO” mode will not be canceled automati-
cally until another drive mode is selected, even if the engine switch is turned
off.

387
4
4-5. Using the driving support systems
Driving
C-HR_OM_Europe_OM10528E

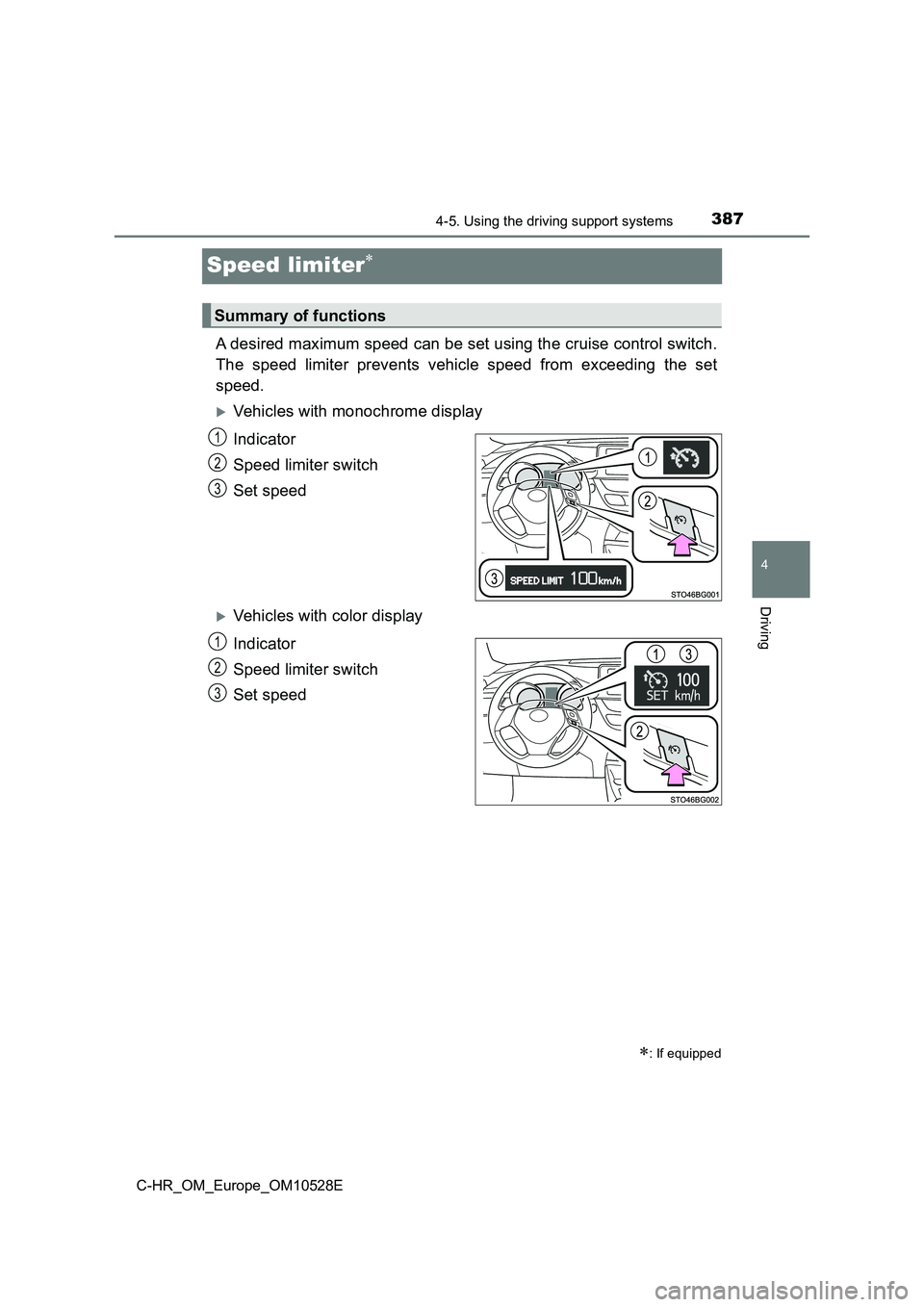

Speed limiter
A desired maximum speed can be set using the cruise control switch.
The speed limiter prevents vehicle speed from exceeding the set
speed.
Vehicles with monochrome display
Indicator
Speed limiter switch
Set speed
Vehicles with color display
Indicator
Speed limiter switch
Set speed
: If equipped
Summary of functions
1
2
3
1
2
3

3884-5. Using the driving support systems
C-HR_OM_Europe_OM10528E

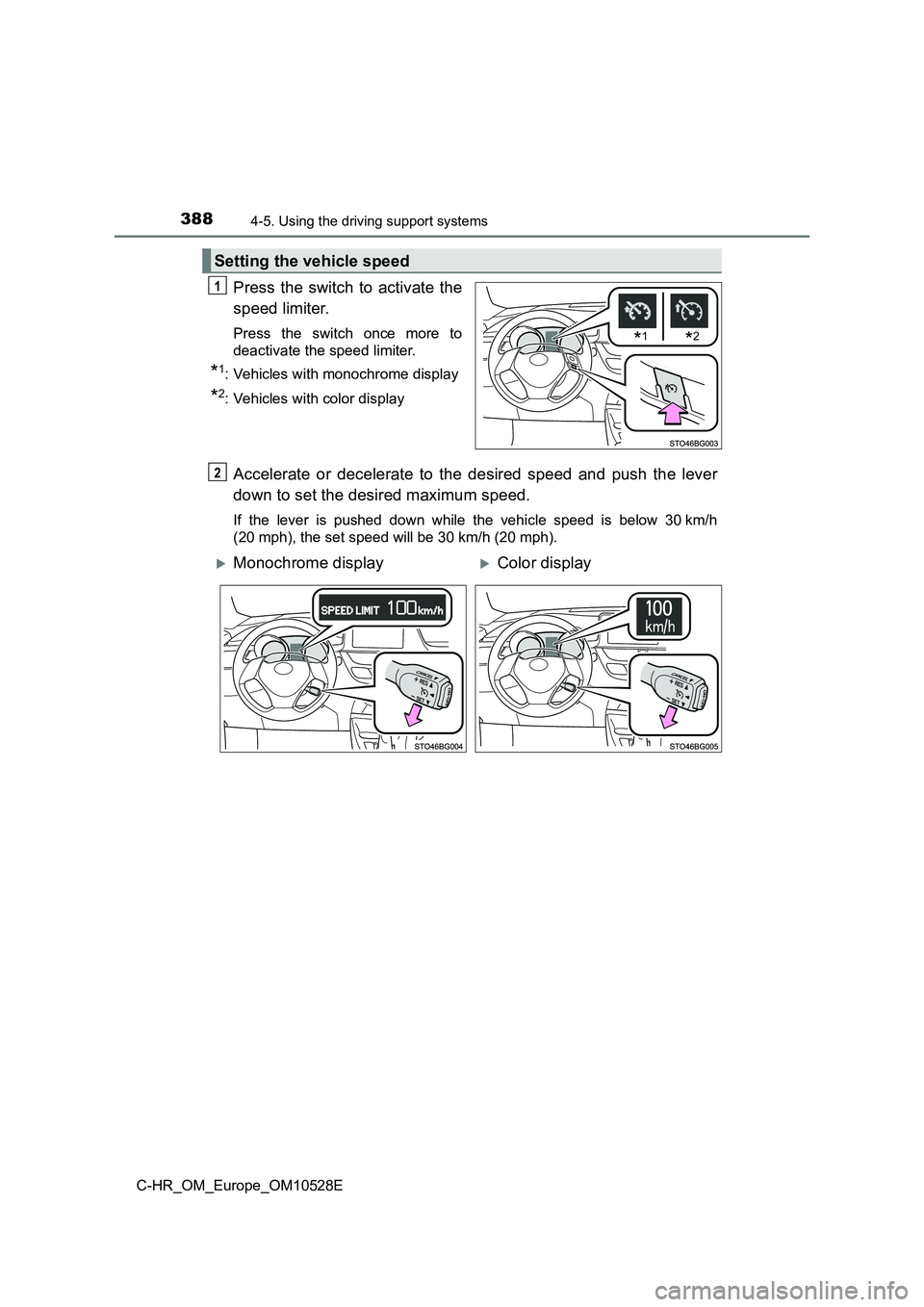

Press the switch to activate the
speed limiter.
Press the switch once more to
deactivate the speed limiter.
*1: Vehicles with monochrome display
*2: Vehicles with color display
Accelerate or decelerate to the desired speed and push the lever
down to set the desired maximum speed.
If the lever is pushed down while the vehicle speed is below 30 km/h
(20 mph), the set speed will be 30 km/h (20 mph).
Setting the vehicle speed
*1 *2
1
2
Monochrome displayColor display

3894-5. Using the driving support systems
4
Driving
C-HR_OM_Europe_OM10528E

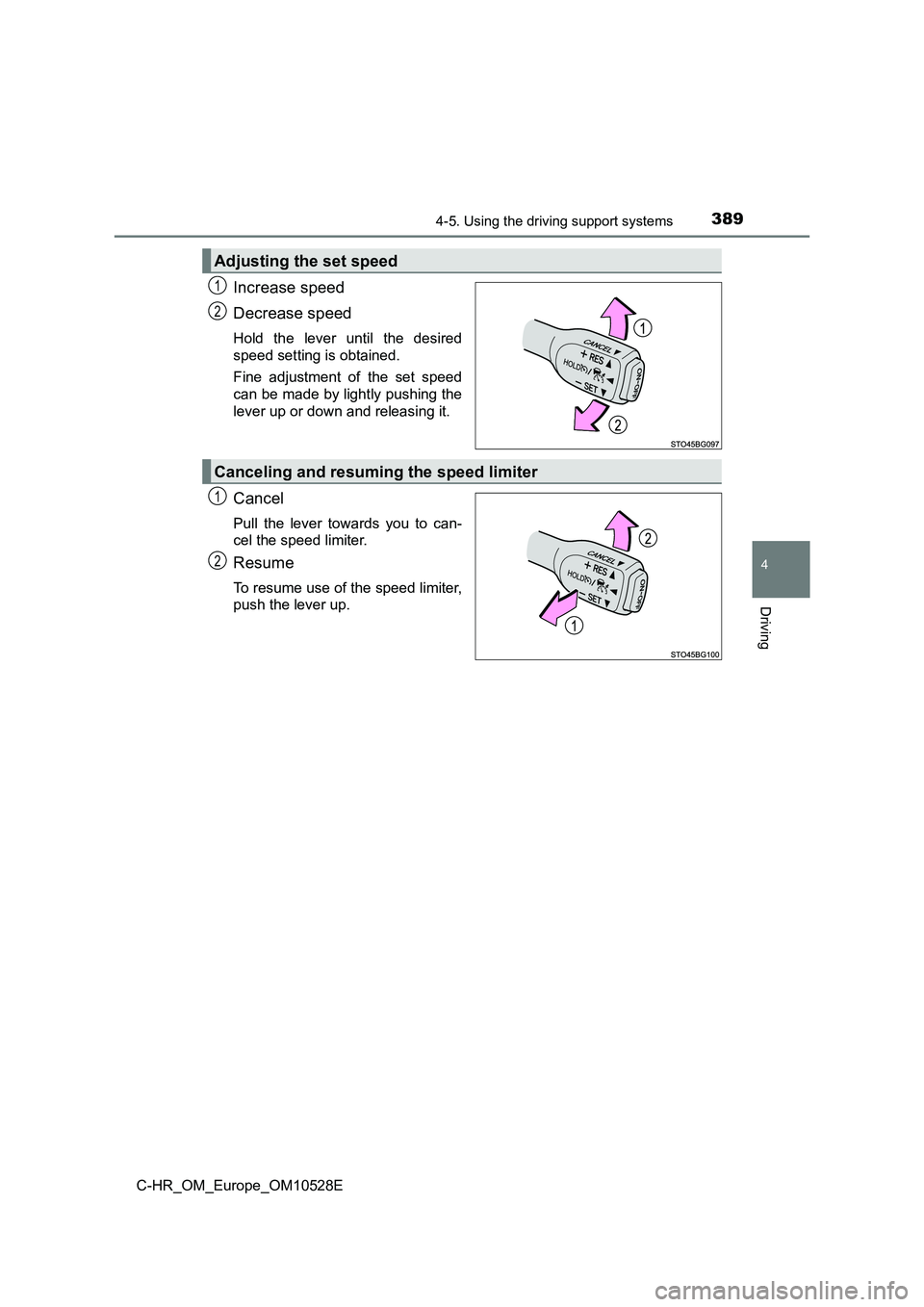

Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set speed
can be made by lightly pushing the
lever up or down and releasing it.
Cancel
Pull the lever towards you to can-
cel the speed limiter.
Resume
To resume use of the speed limiter,
push the lever up.
Adjusting the set speed
1
2
Canceling and resuming the speed limiter
1
2

3904-5. Using the driving support systems
C-HR_OM_Europe_OM10528E
■Exceeding the set speed
In the following situations, the vehicle speed exceeds the set speed and dis-
play characters will be highlighted:
■ Automatic speed limiter cancelation
The speed limiter is automatically canceled in any of the following situations:
● Cruise control is activated.
● When the VSC system and/or TRC system is turned off by pressing the
VSC off switch.
■ If the “Check speed limiter system” is displayed on the multi-information
display
Stop in a safe place, turn the engine switch off and back on again, and then
set the speed limiter. If the speed limiter cannot be set, the system may be
malfunctioning. Even though the vehicle can be driven normally, have the
vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
● When fully depressing the accelerator
pedal
● When driving down a slope (a buzzer
also sounds)
