4815-1. Basic Operations
5
Audio system
C-HR_OM_Europe_OM10528E

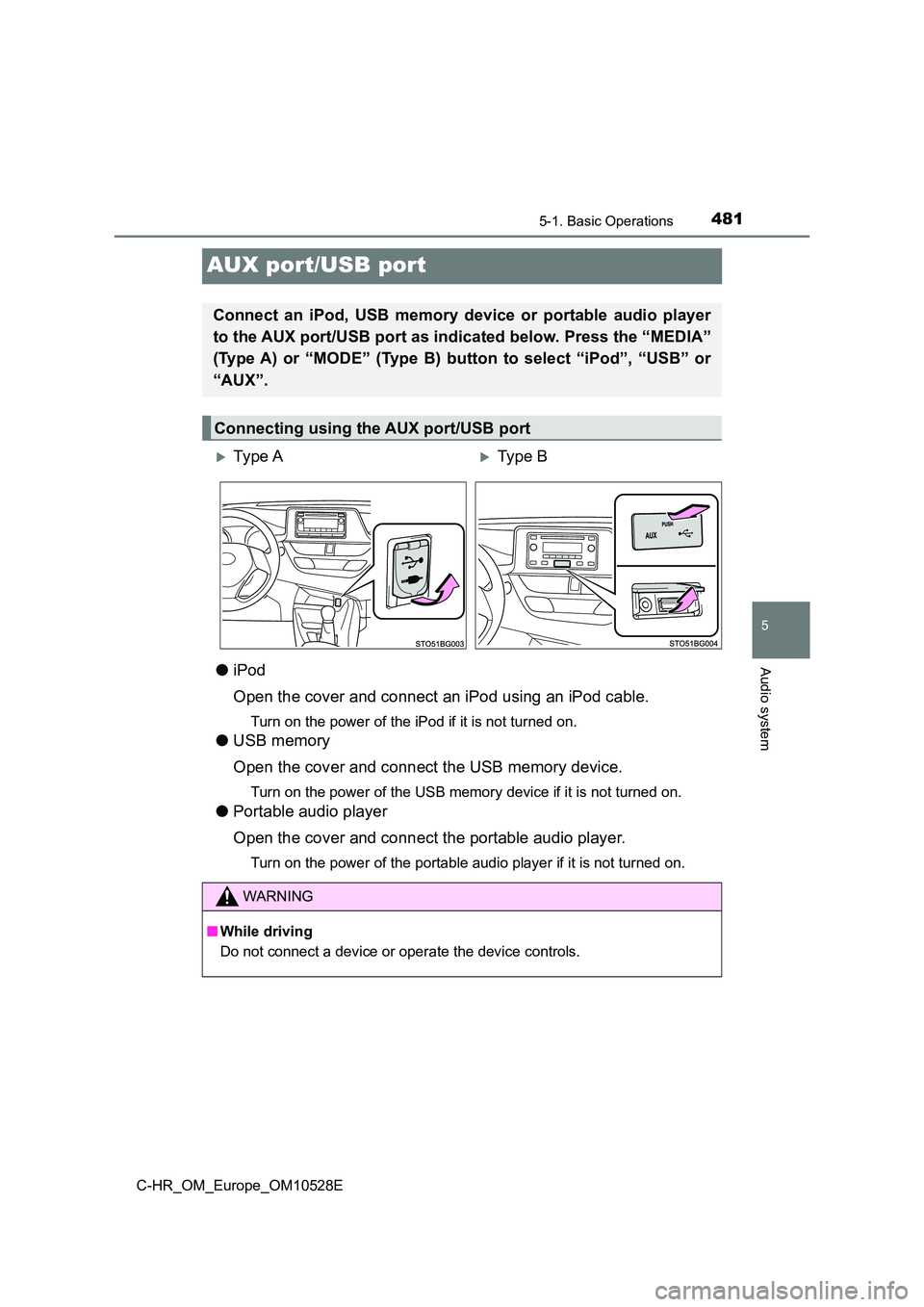

AUX port/USB port
●iPod
Open the cover and connect an iPod using an iPod cable.
Turn on the power of the iPod if it is not turned on.
● USB memory
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
● Portable audio player
Open the cover and connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MEDIA”
(Type A) or “MODE” (Type B) button to select “iPod”, “USB” or
“AUX”.
Connecting using the AUX port/USB port
Ty pe AType B
WARNING
■ While driving
Do not connect a device or operate the device controls.

4825-2. Using the audio system
C-HR_OM_Europe_OM10528E

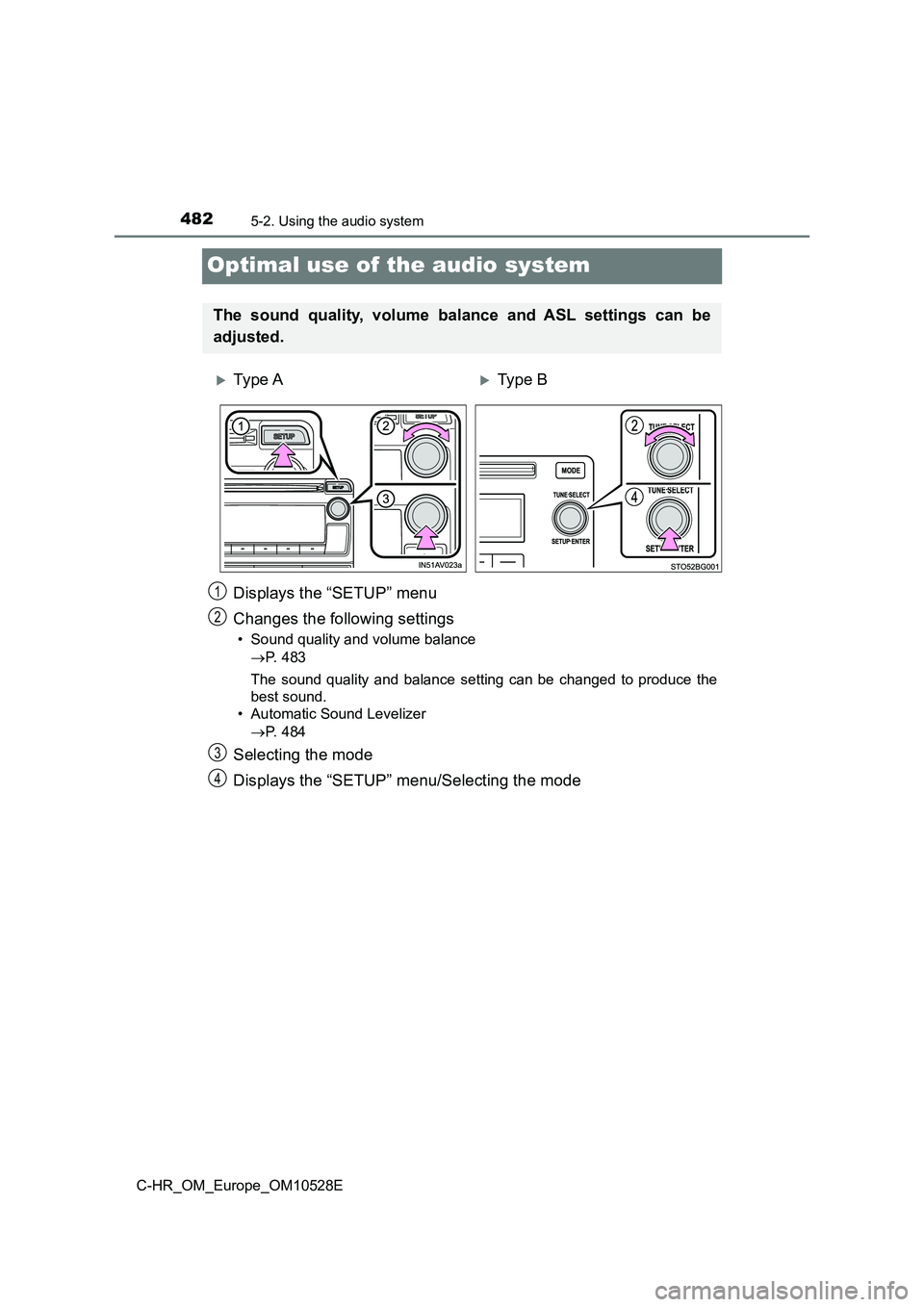

Optimal use of the audio system
Displays the “SETUP” menu
Changes the following settings
• Sound quality and volume balance
 P. 4 8 3
The sound quality and balance setting can be changed to produce the
best sound.
• Automatic Sound Levelizer
 P. 4 8 4
Selecting the mode
Displays the “SETUP” menu/Selecting the mode
The sound quality, volume balance and ASL settings can be
adjusted.
Ty pe AType B
1
2
3
4

4835-2. Using the audio system
5
Audio system
C-HR_OM_Europe_OM10528E

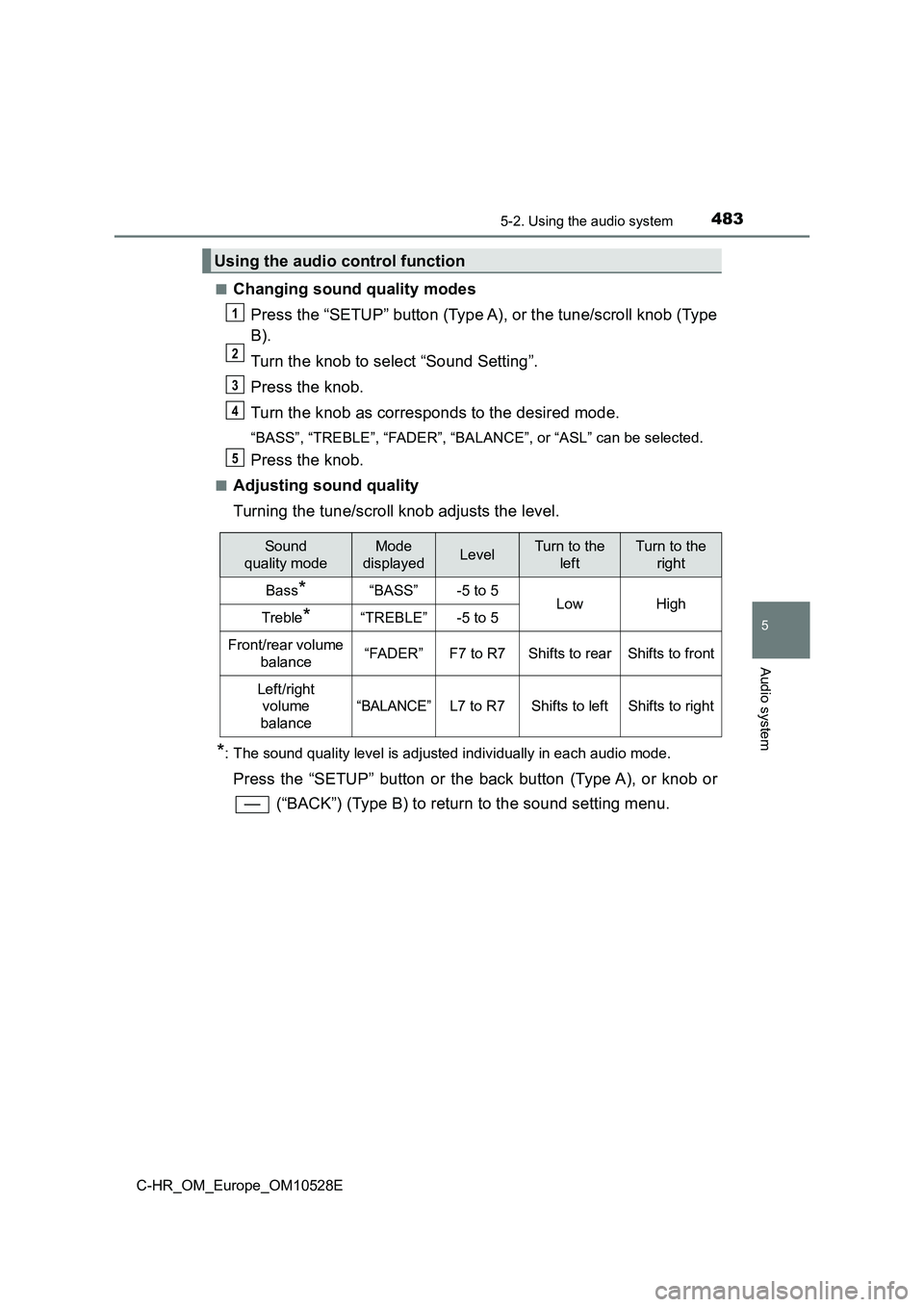

■Changing sound quality modes
Press the “SETUP” button (Type A), or the tune/scroll knob (Type
B).
Turn the knob to select “Sound Setting”.
Press the knob.
Turn the knob as corresponds to the desired mode.
“BASS”, “TREBLE”, “FADER”, “BAL ANCE”, or “ASL” can be selected.
Press the knob.
■Adjusting sound quality
Turning the tune/scroll knob adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.
Press the “SETUP” button or the back button (Type A), or knob or
(“BACK”) (Type B) to return to the sound setting menu.
Using the audio control function
1
2
3
4
5
Sound
quality mode
Mode
displayedLevelTurn to the
left
Turn to the
right
Bass*“BASS”-5 to 5LowHighTreble*“TREBLE”-5 to 5
Front/rear volume
balance“FADER”F7 to R7Shifts to rearShifts to front
Left/right
volume
balance
“BALANCE”L7 to R7Shifts to leftShifts to right

4845-2. Using the audio system
C-HR_OM_Europe_OM10528E

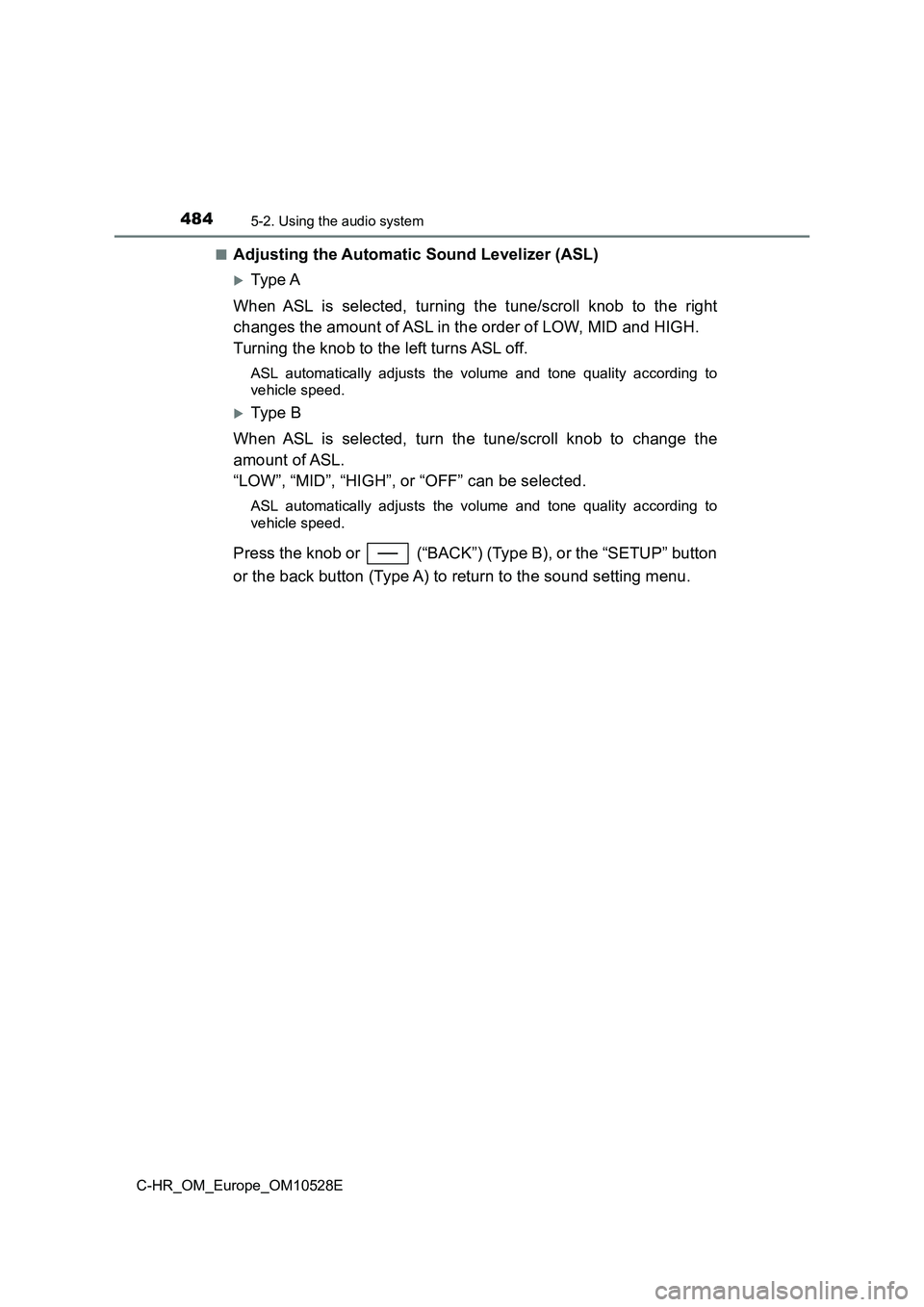

■Adjusting the Automatic Sound Levelizer (ASL)
Type A
When ASL is selected, turning the tune/scroll knob to the right
changes the amount of ASL in the order of LOW, MID and HIGH.
Turning the knob to the left turns ASL off.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Type B
When ASL is selected, turn the tune/scroll knob to change the
amount of ASL.
“LOW”, “MID”, “HIGH”, or “OFF” can be selected.
ASL automatically adjusts the volume and tone quality according to
vehicle speed.
Press the knob or (“BACK”) (Type B), or the “SETUP” button
or the back button (Type A) to return to the sound setting menu.

4855-3. Using the radio
5
Audio system
C-HR_OM_Europe_OM10528E
Radio operation
Ty pe A
Press the “RADIO” (Type A) or “MODE” (Type B) button until
“AM” or “FM” is displayed.
AF/region code/TA mode setup
Tune/scroll knob
Adjusting the frequency or
selecting items
Back button
Station selector buttons
AM/FM mode button
Displaying station list
Seeking the frequency
Power/volume knob
Press: Turning the audio sys-
tem on or off
Turn: Adjusting the volume
1
2
3
4
5
6
7
8

4865-3. Using the radio
C-HR_OM_Europe_OM10528E

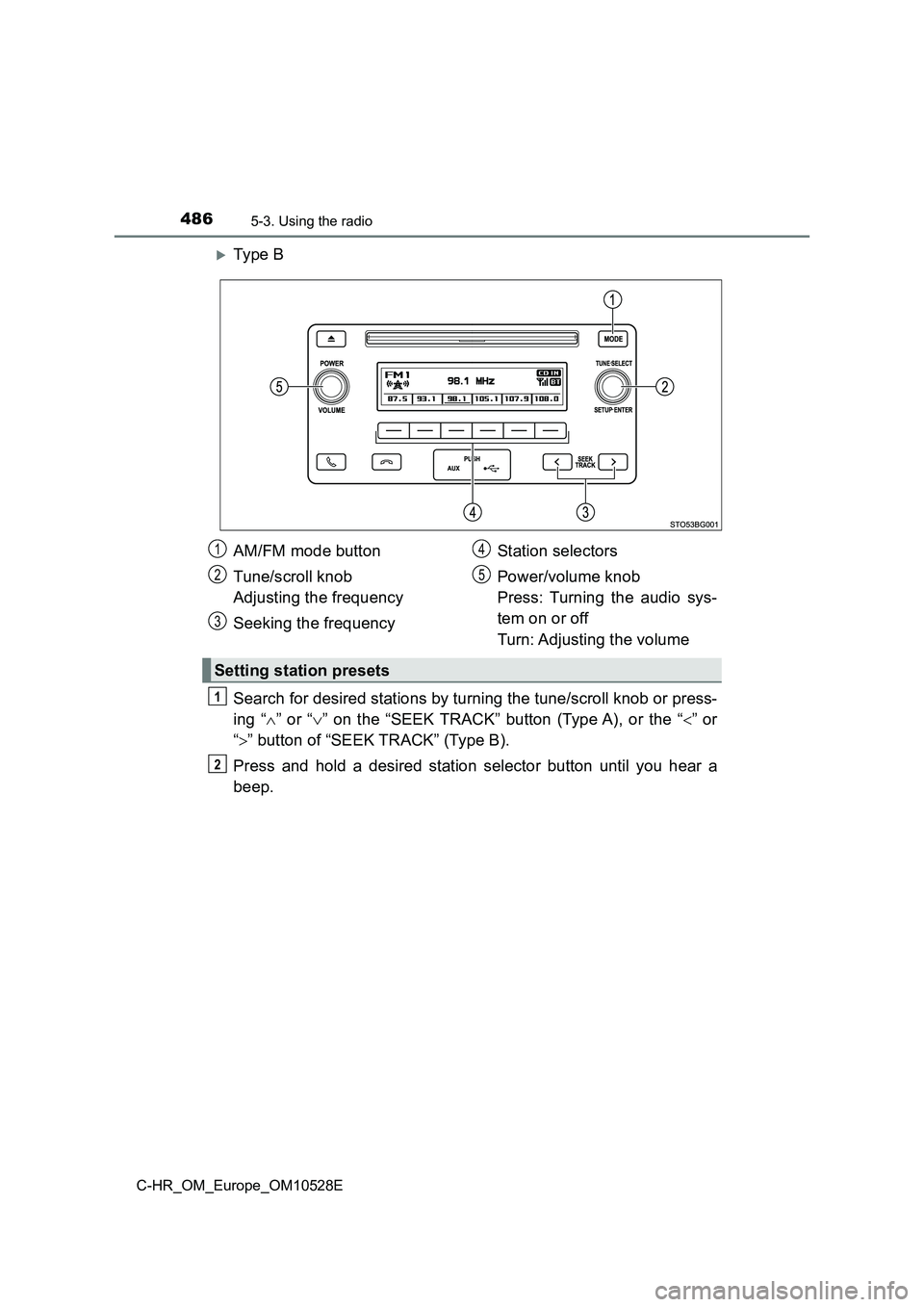

Ty pe B
Search for desired stations by turning the tune/scroll knob or press-
ing “ ” or “” on the “SEEK TRACK” button (Type A), or the “” or
“ ” button of “SEEK TRACK” (Type B).
Press and hold a desired station selector button until you hear a
beep.
AM/FM mode button
Tune/scroll knob
Adjusting the frequency
Seeking the frequency
Station selectors
Power/volume knob
Press: Turning the audio sys-
tem on or off
Turn: Adjusting the volume
Setting station presets
1
2
3
4
5
1
2

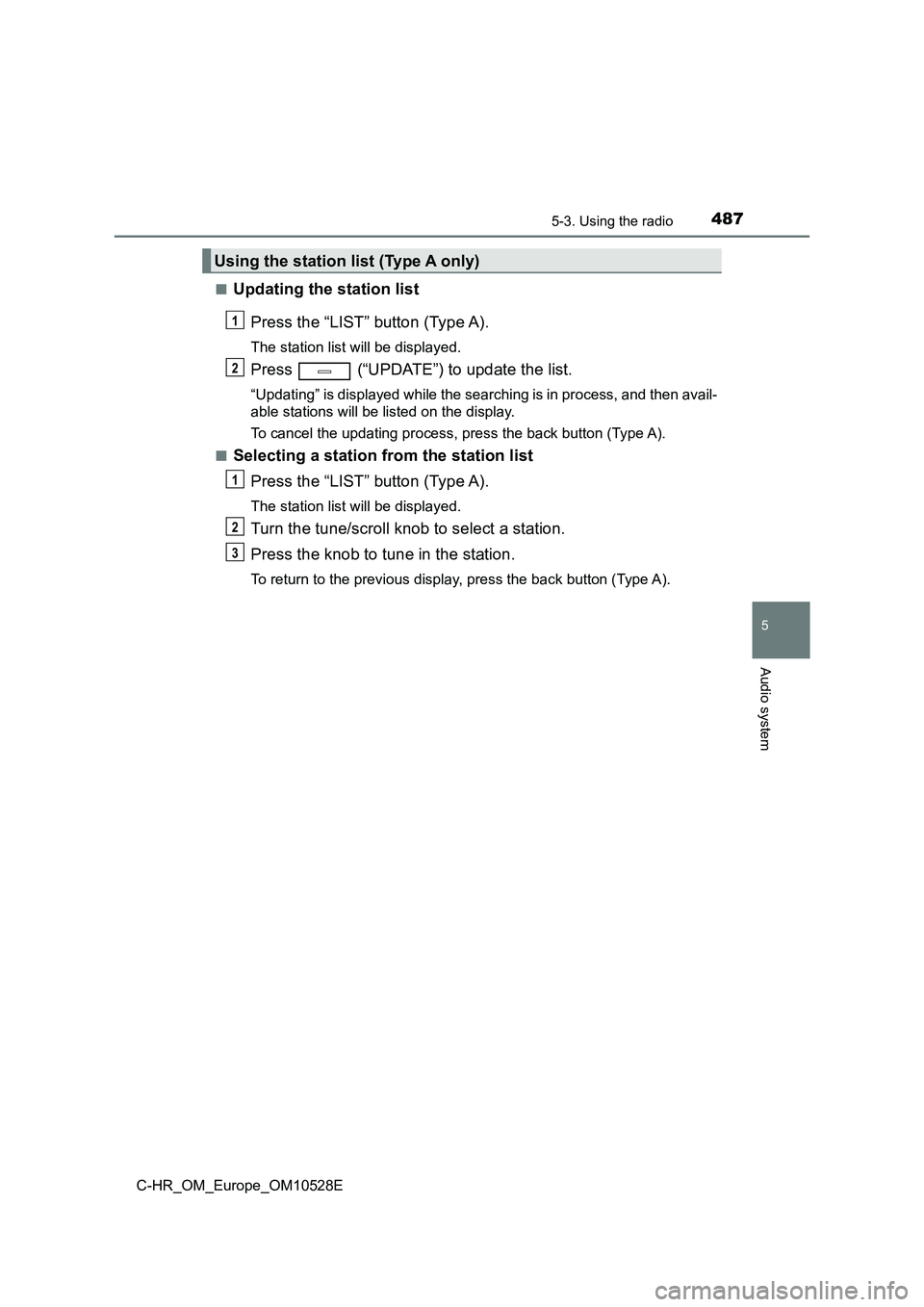

4875-3. Using the radio
5
Audio system
C-HR_OM_Europe_OM10528E
■Updating the station list
Press the “LIST” button (Type A).
The station list will be displayed.
Press (“UPDATE”) to update the list.
“Updating” is displayed while the searching is in process, and then avail-
able stations will be listed on the display.
To cancel the updating process, press the back button (Type A).
■Selecting a station from the station list
Press the “LIST” button (Type A).
The station list will be displayed.
Turn the tune/scroll knob to select a station.
Press the knob to tune in the station.
To return to the previous display, press the back button (Type A).
Using the station list (Type A only)
1
2
1
2
3

4885-3. Using the radio
C-HR_OM_Europe_OM10528E

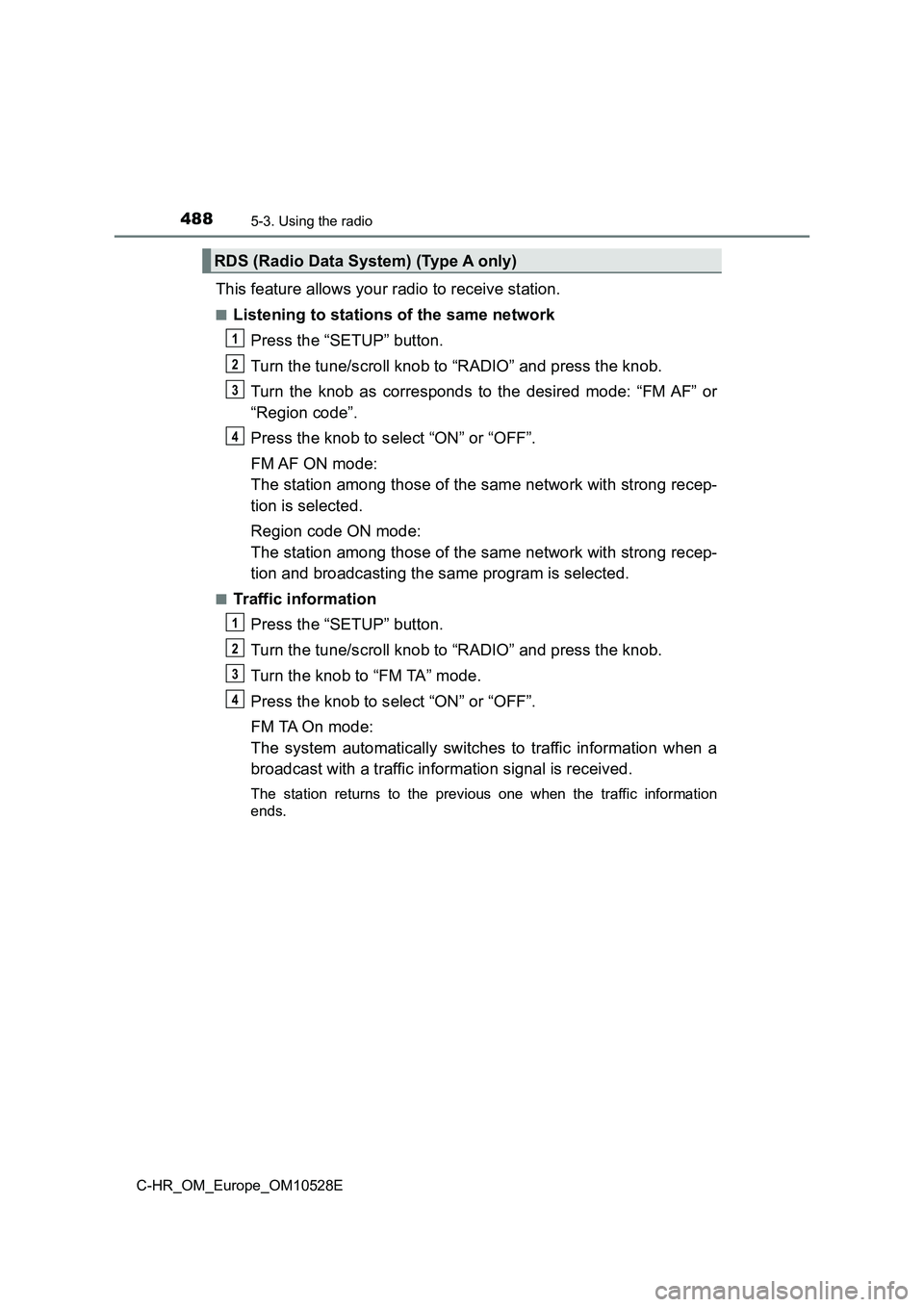

This feature allows your radio to receive station.
■Listening to stations of the same network
Press the “SETUP” button.
Turn the tune/scroll knob to “RADIO” and press the knob.
Turn the knob as corresponds to the desired mode: “FM AF” or
“Region code”.
Press the knob to select “ON” or “OFF”.
FM AF ON mode:
The station among those of the same network with strong recep-
tion is selected.
Region code ON mode:
The station among those of the same network with strong recep-
tion and broadcasting the same program is selected.
■Traffic information
Press the “SETUP” button.
Turn the tune/scroll knob to “RADIO” and press the knob.
Turn the knob to “FM TA” mode.
Press the knob to select “ON” or “OFF”.
FM TA On mode:
The system automatically switches to traffic information when a
broadcast with a traffic information signal is received.
The station returns to the previous one when the traffic information
ends.
RDS (Radio Data System) (Type A only)
1
2
3
4
1
2
3
4

4895-3. Using the radio
5
Audio system
C-HR_OM_Europe_OM10528E

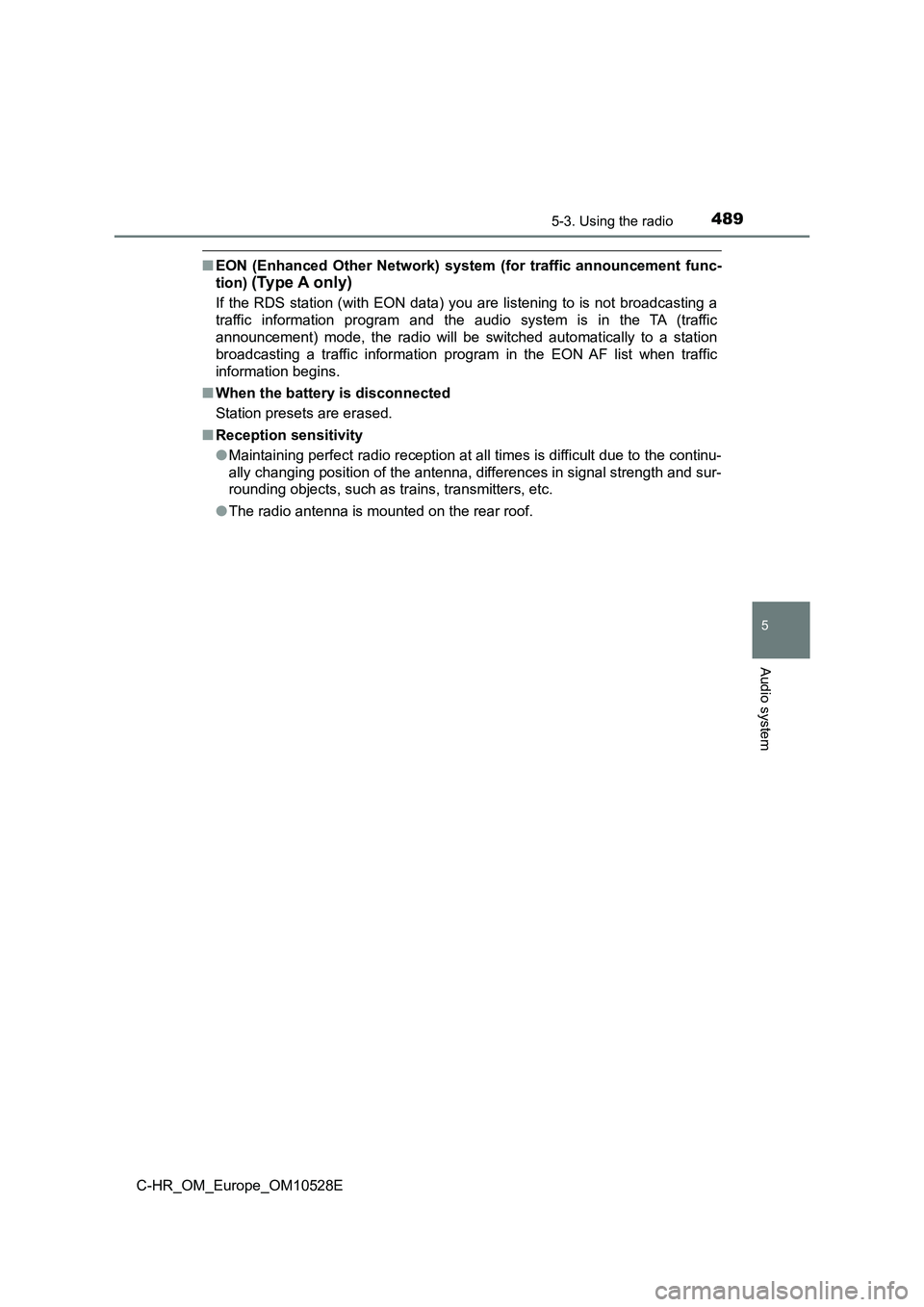

■EON (Enhanced Other Network) system (for traffic announcement func-
tion) (Type A only)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
■ When the battery is disconnected
Station presets are erased.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the rear roof.

4905-4. Playing an audio CD and MP3/WMA discs
C-HR_OM_Europe_OM10528E

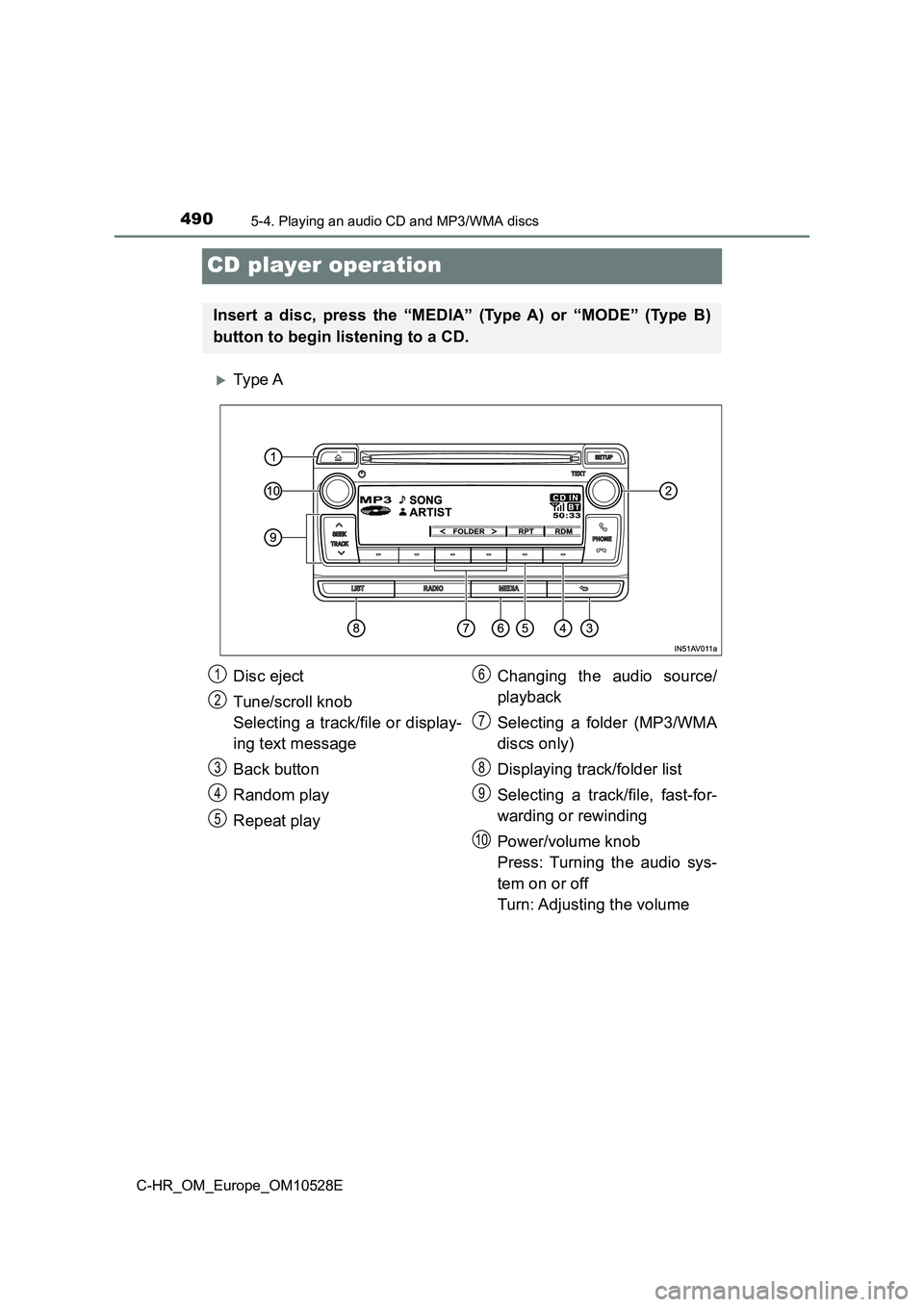

CD player operation
Ty pe A
Insert a disc, press the “MEDIA” (Type A) or “MODE” (Type B)
button to begin listening to a CD.
Disc eject
Tune/scroll knob
Selecting a track/file or display-
ing text message
Back button
Random play
Repeat play
Changing the audio source/
playback
Selecting a folder (MP3/WMA
discs only)
Displaying track/folder list
Selecting a track/file, fast-for-
warding or rewinding
Power/volume knob
Press: Turning the audio sys-
tem on or off
Turn: Adjusting the volume
1
2
3
4
5
6
7
8
9
10
