4915-4. Playing an audio CD and MP3/WMA discs
5
Audio system
C-HR_OM_Europe_OM10528E

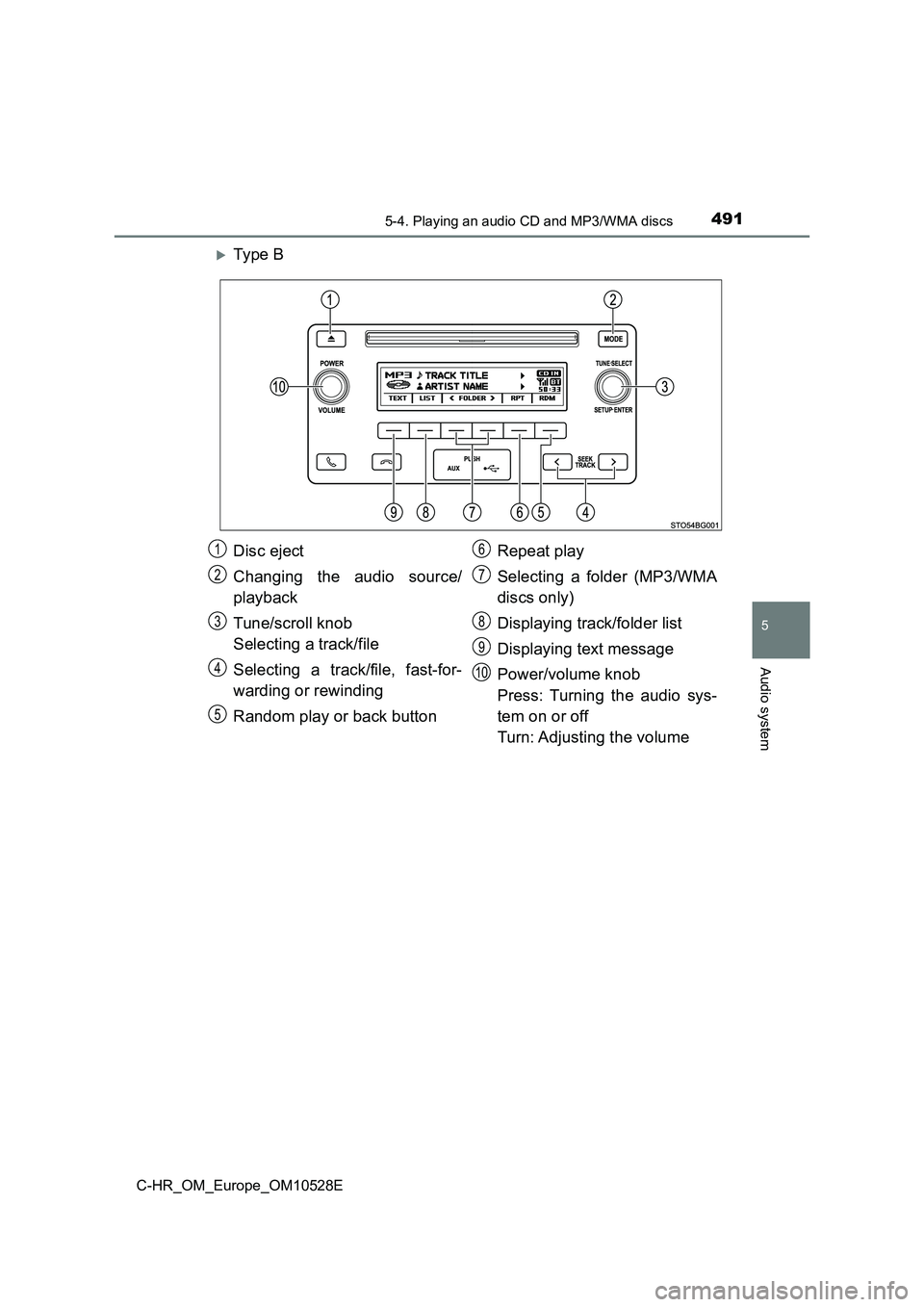

Ty pe B
Disc eject
Changing the audio source/
playback
Tune/scroll knob
Selecting a track/file
Selecting a track/file, fast-for-
warding or rewinding
Random play or back button
Repeat play
Selecting a folder (MP3/WMA
discs only)
Displaying track/folder list
Displaying text message
Power/volume knob
Press: Turning the audio sys-
tem on or off
Turn: Adjusting the volume
1
2
3
4
5
6
7
8
9
10
Page 492 of 812

4925-4. Playing an audio CD and MP3/WMA discs
C-HR_OM_Europe_OM10528E

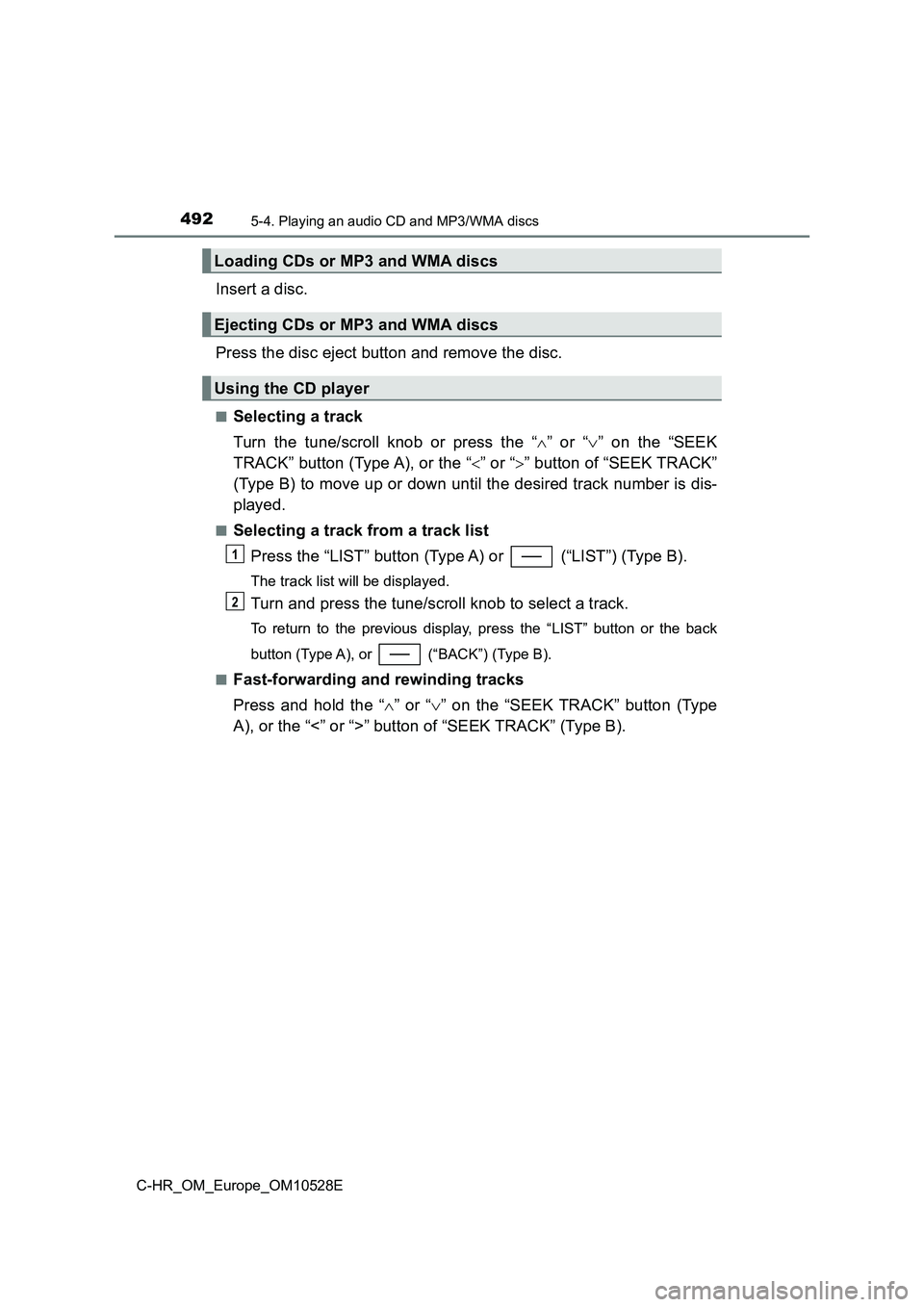

Insert a disc.
Press the disc eject button and remove the disc.
■Selecting a track
Turn the tune/scroll knob or press the “ ” or “” on the “SEEK
TRACK” button (Type A), or the “ ” or “” button of “SEEK TRACK”
(Type B) to move up or down until the desired track number is dis-
played.
■Selecting a track from a track list
Press the “LIST” button (Type A) or (“LIST”) (Type B).
The track list will be displayed.
Turn and press the tune/scroll knob to select a track.
To return to the previous display, press the “LIST” button or the back
button (Type A), or (“BACK”) (Type B).
■Fast-forwarding and rewinding tracks
Press and hold the “ ” or “” on the “SEEK TRACK” button (Type
A), or the “<” or “>” button of “SEEK TRACK” (Type B).
Loading CDs or MP3 and WMA discs
Ejecting CDs or MP3 and WMA discs
Using the CD player
1
2
Page 493 of 812

4935-4. Playing an audio CD and MP3/WMA discs
5
Audio system
C-HR_OM_Europe_OM10528E

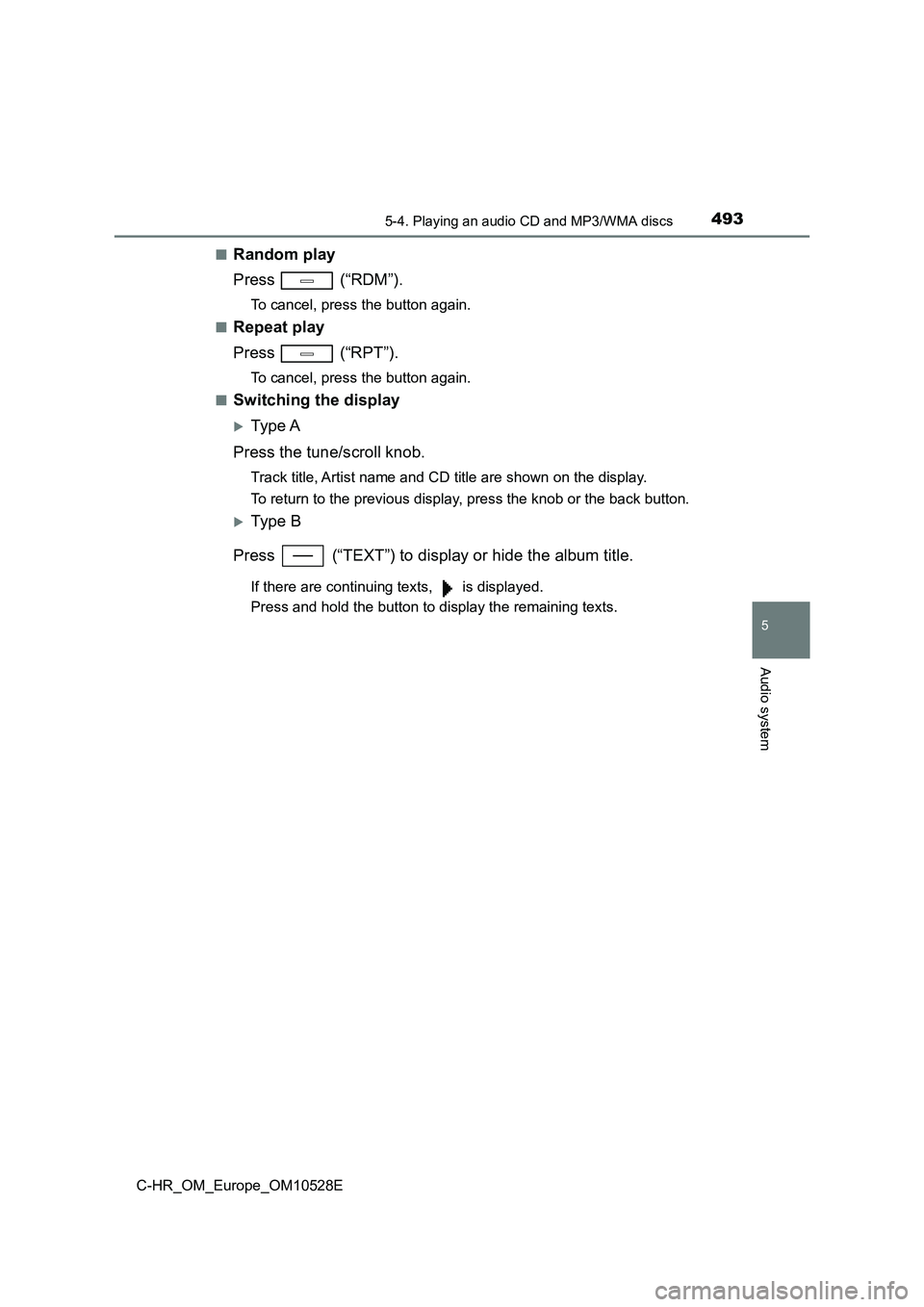

■Random play
Press (“RDM”).
To cancel, press the button again.
■Repeat play
Press (“RPT”).
To cancel, press the button again.
■Switching the display
Type A
Press the tune/scroll knob.
Track title, Artist name and CD title are shown on the display.
To return to the previous display, press the knob or the back button.
Type B
Press (“TEXT”) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
Page 494 of 812

4945-4. Playing an audio CD and MP3/WMA discs
C-HR_OM_Europe_OM10528E

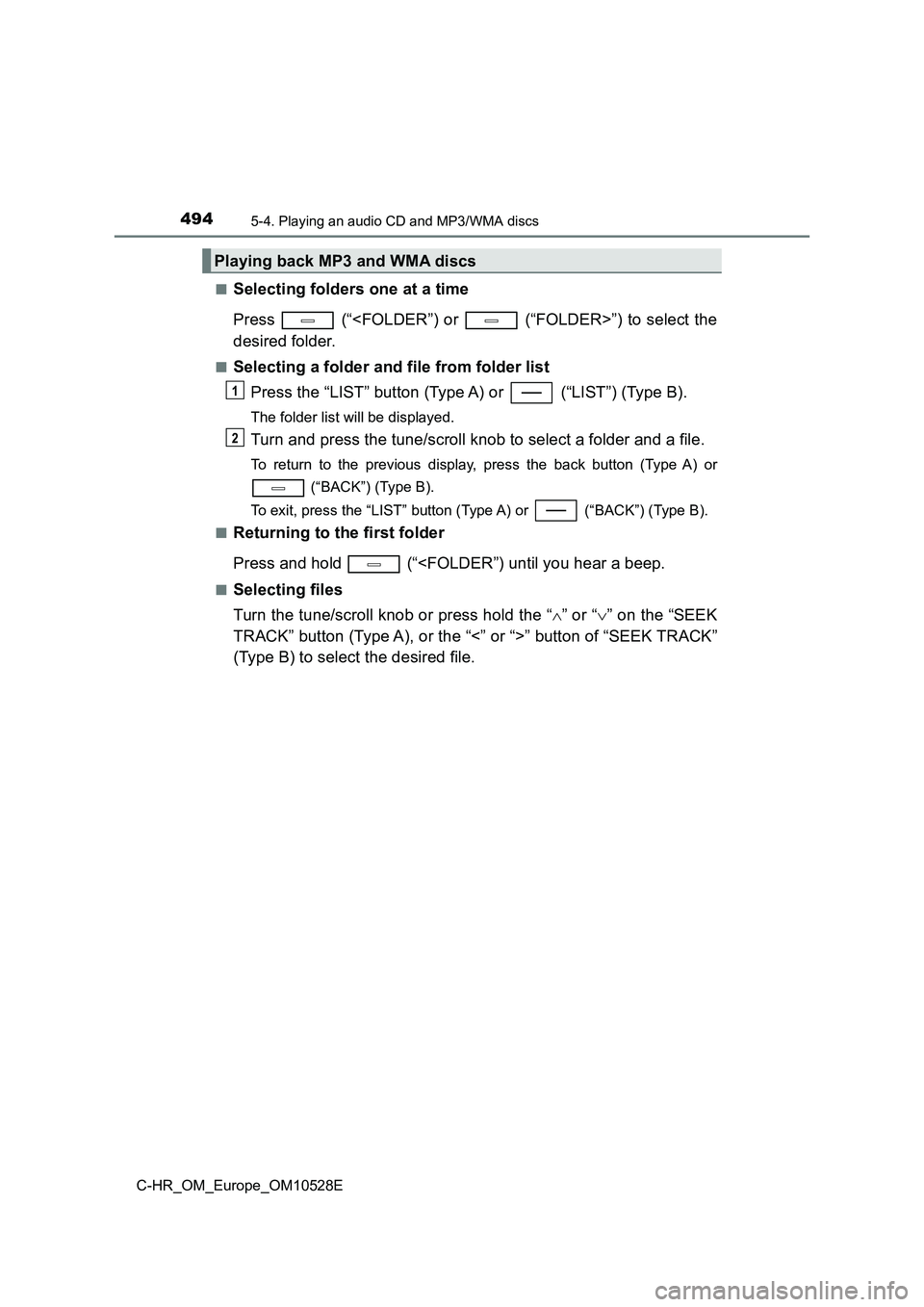

■Selecting folders one at a time
Press (“
desired folder.
■Selecting a folder and file from folder list
Press the “LIST” button (Type A) or (“LIST”) (Type B).
The folder list will be displayed.
Turn and press the tune/scroll knob to select a folder and a file.
To return to the previous display, press the back button (Type A) or
(“BACK”) (Type B).
To exit, press the “LIST” button (Type A) or (“BACK”) (Type B).
■Returning to the first folder
Press and hold (“
Turn the tune/scroll knob or press hold the “ ” or “” on the “SEEK
TRACK” button (Type A), or the “<” or “>” button of “SEEK TRACK”
(Type B) to select the desired file.
Playing back MP3 and WMA discs
1
2
Page 495 of 812

4955-4. Playing an audio CD and MP3/WMA discs
5
Audio system
C-HR_OM_Europe_OM10528E

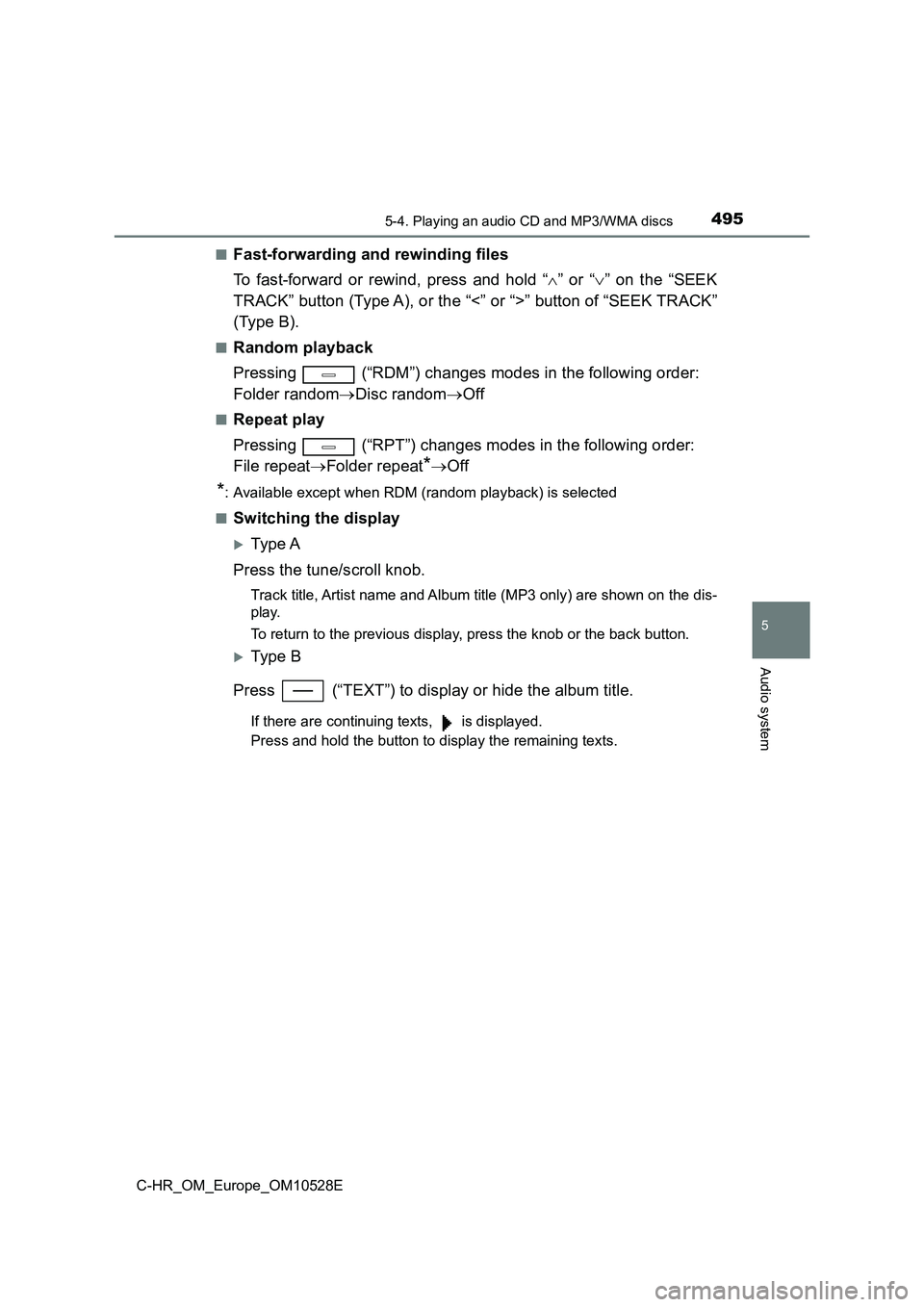

■Fast-forwarding and rewinding files
To fast-forward or rewind, press and hold “ ” or “” on the “SEEK
TRACK” button (Type A), or the “<” or “>” button of “SEEK TRACK”
(Type B).
■Random playback
Pressing (“RDM”) changes modes in the following order:
Folder random Disc randomOff
■Repeat play
Pressing (“RPT”) changes modes in the following order:
File repeat Folder repeat*Off
*: Available except when RDM (random playback) is selected
■Switching the display
Type A
Press the tune/scroll knob.
Track title, Artist name and Album title (MP3 only) are shown on the dis-
play.
To return to the previous display, press the knob or the back button.
Type B
Press (“TEXT”) to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
Page 496 of 812

4965-4. Playing an audio CD and MP3/WMA discs
C-HR_OM_Europe_OM10528E

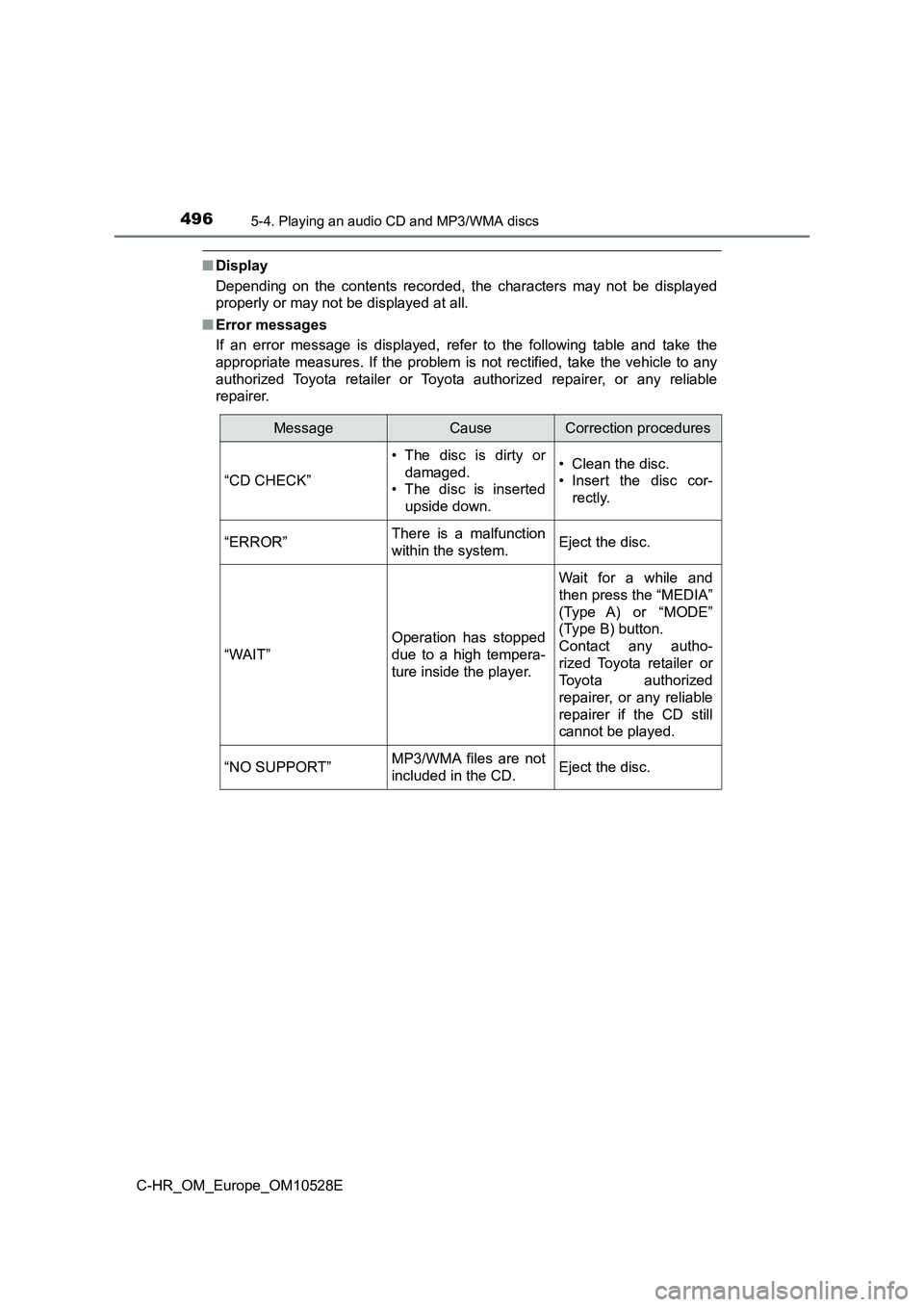

■Display
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
MessageCauseCorrection procedures
“CD CHECK”
• The disc is dirty or
damaged.
• The disc is inserted
upside down.
• Clean the disc.
• Insert the disc cor-
rectly.
“ERROR”There is a malfunction
within the system.Eject the disc.
“WAIT”
Operation has stopped
due to a high tempera-
ture inside the player.
Wait for a while and
then press the “MEDIA”
(Type A) or “MODE”
(Type B) button.
Contact any autho-
rized Toyota retailer or
Toyota authorized
repairer, or any reliable
repairer if the CD still
cannot be played.
“NO SUPPORT”MP3/WMA files are not
included in the CD.Eject the disc.
Page 497 of 812

4975-4. Playing an audio CD and MP3/WMA discs
5
Audio system
C-HR_OM_Europe_OM10528E
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
■ If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■ MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 for-
mat.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
Page 498 of 812

4985-4. Playing an audio CD and MP3/WMA discs
C-HR_OM_Europe_OM10528E

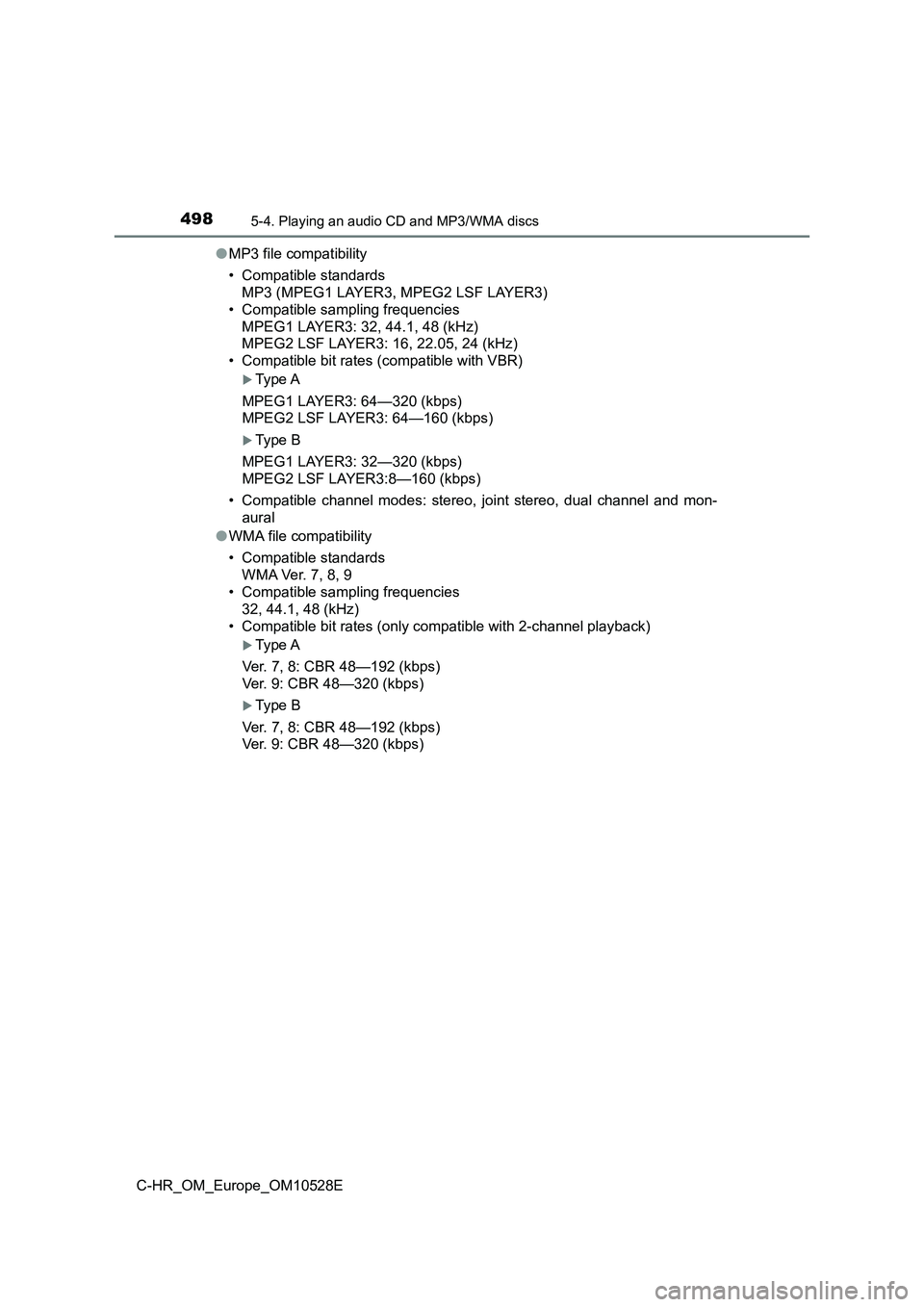

● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
Type A
MPEG1 LAYER3: 64—320 (kbps)
MPEG2 LSF LAYER3: 64—160 (kbps)
Type B
MPEG1 LAYER3: 32—320 (kbps)
MPEG2 LSF LAYER3:8—160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural
● WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Type A
Ver. 7, 8: CBR 48—192 (kbps)
Ver. 9: CBR 48—320 (kbps)
Type B
Ver. 7, 8: CBR 48—192 (kbps)
Ver. 9: CBR 48—320 (kbps)
Page 499 of 812

4995-4. Playing an audio CD and MP3/WMA discs
5
Audio system
C-HR_OM_Europe_OM10528E

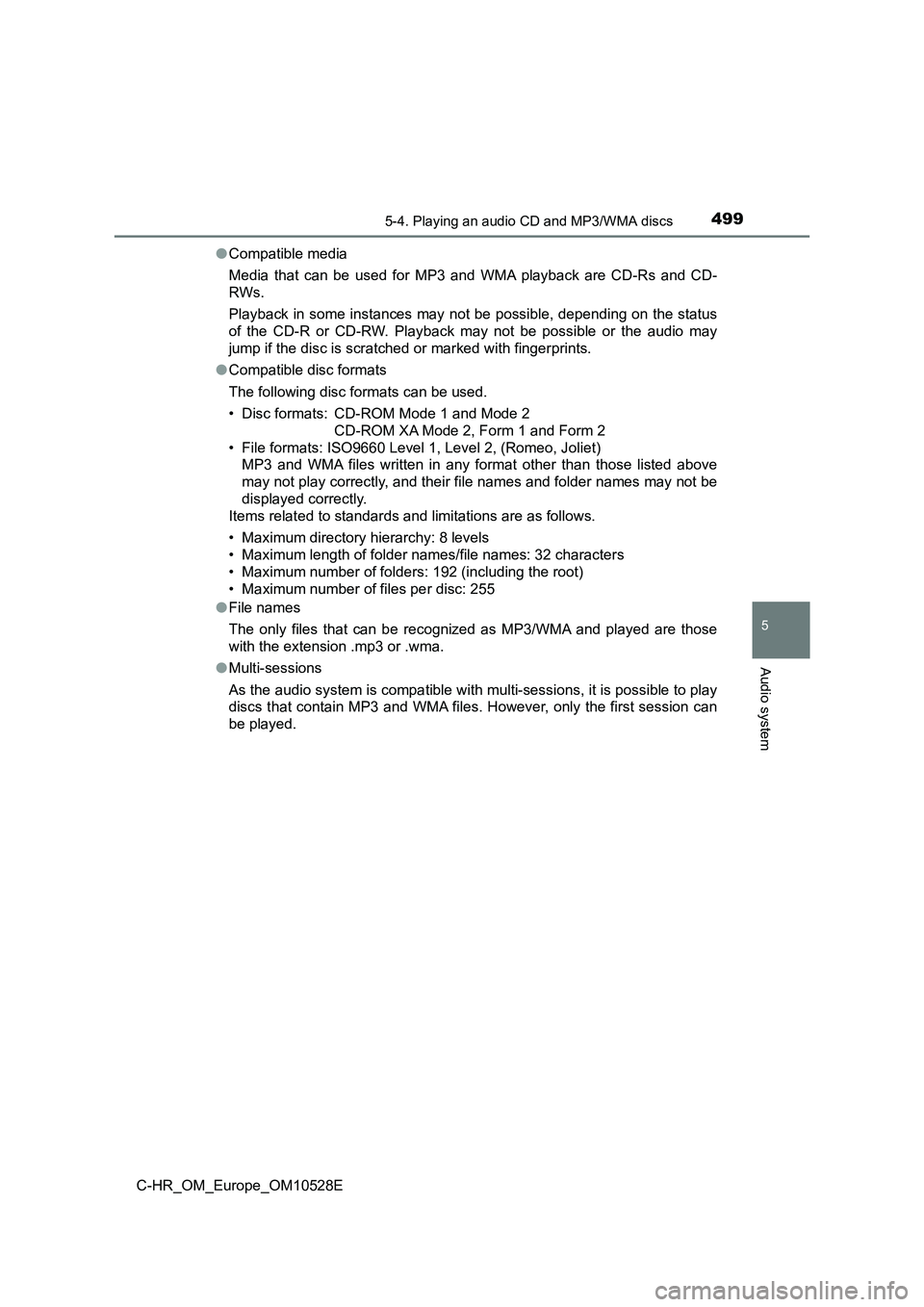

● Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-
RWs.
Playback in some instances may not be possible, depending on the status
of the CD-R or CD-RW. Playback may not be possible or the audio may
jump if the disc is scratched or marked with fingerprints.
● Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not be
displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
● File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
● Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
Page 500 of 812

5005-4. Playing an audio CD and MP3/WMA discs
C-HR_OM_Europe_OM10528E

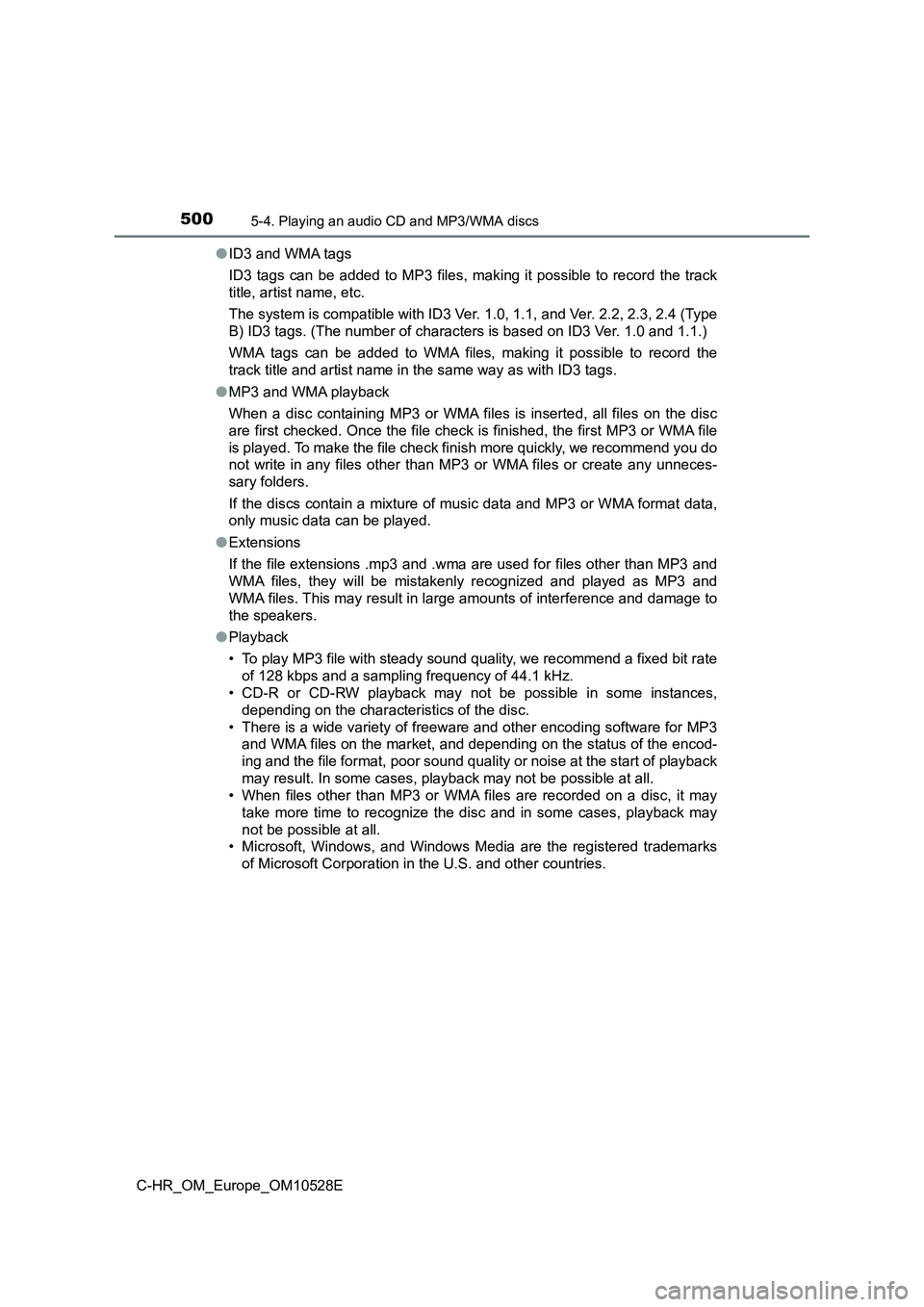

● ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3, 2.4 (Type
B) ID3 tags. (The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
● MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA file
is played. To make the file check finish more quickly, we recommend you do
not write in any files other than MP3 or WMA files or create any unneces-
sary folders.
If the discs contain a mixture of music data and MP3 or WMA format data,
only music data can be played.
● Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage to
the speakers.
● Playback
• To play MP3 file with steady sound quality, we recommend a fixed bit rate
of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances,
depending on the characteristics of the disc.
• There is a wide variety of freewar e and other encoding software for MP3
and WMA files on the market, and depending on the status of the encod-
ing and the file format, poor sound quality or noise at the start of playback
may result. In some cases, playback may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may
take more time to recognize the disc and in some cases, playback may
not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks
of Microsoft Corporation in the U.S. and other countries.
