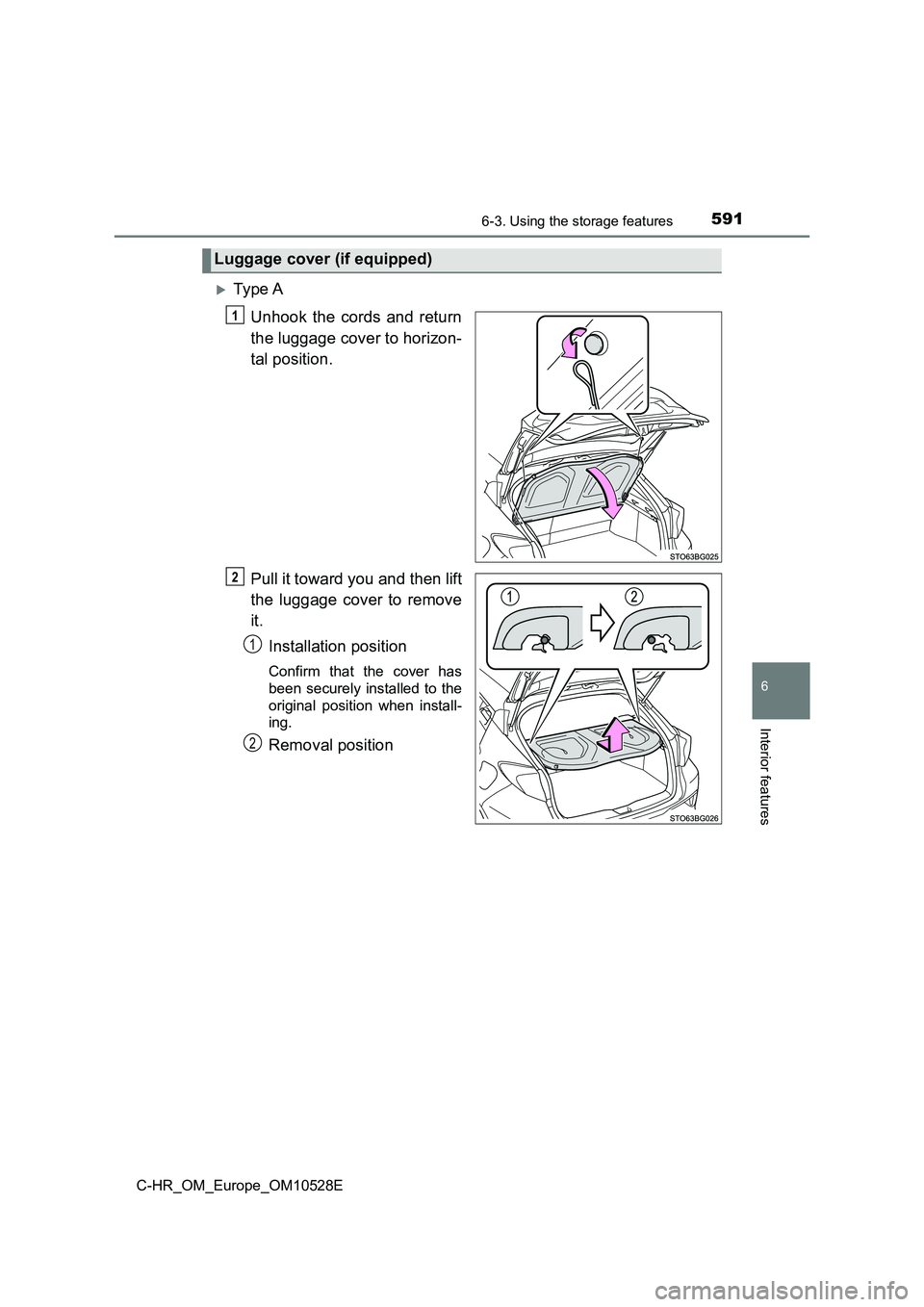

5916-3. Using the storage features
6
Interior features
C-HR_OM_Europe_OM10528E
Ty pe A
Unhook the cords and return
the luggage cover to horizon-
tal position.
Pull it toward you and then lift
the luggage cover to remove
it.
Installation position
Confirm that the cover has
been securely installed to the
original position when install-
ing.
Removal position
Luggage cover (if equipped)
1
2
1
2

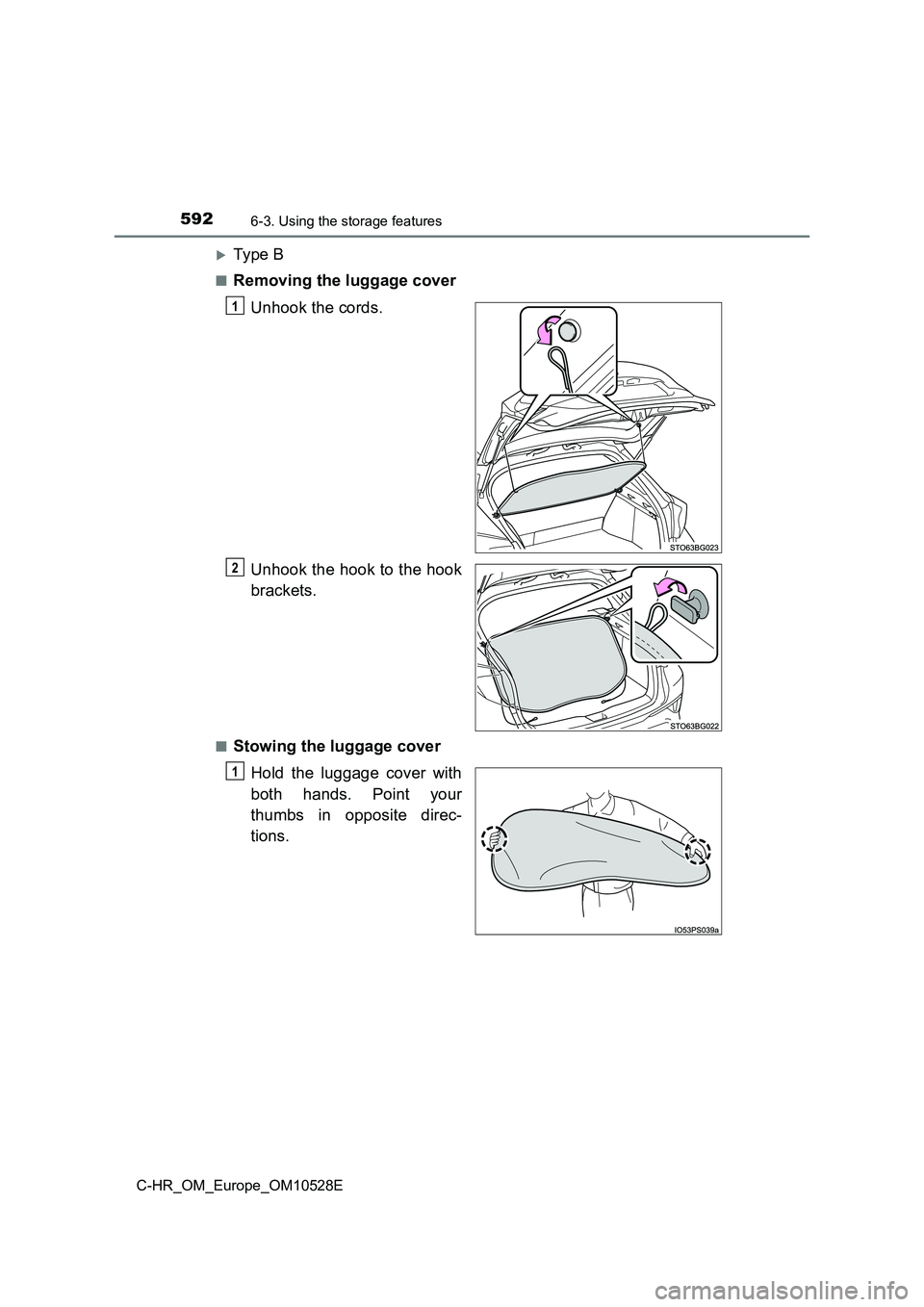

5926-3. Using the storage features
C-HR_OM_Europe_OM10528E
Ty pe B
■Removing the luggage cover
Unhook the cords.
Unhook the hook to the hook
brackets.
■Stowing the luggage cover
Hold the luggage cover with
both hands. Point your
thumbs in opposite direc-
tions.
1
2
1

5936-3. Using the storage features
6
Interior features
C-HR_OM_Europe_OM10528E
Bend one side of the cover
towards you.
Twist the other side in the
opposite direction, as shown
in the illustration.
Make a small circle, then fold
it inward.
Make sure the three circles
are side by side.
2
3
4
5

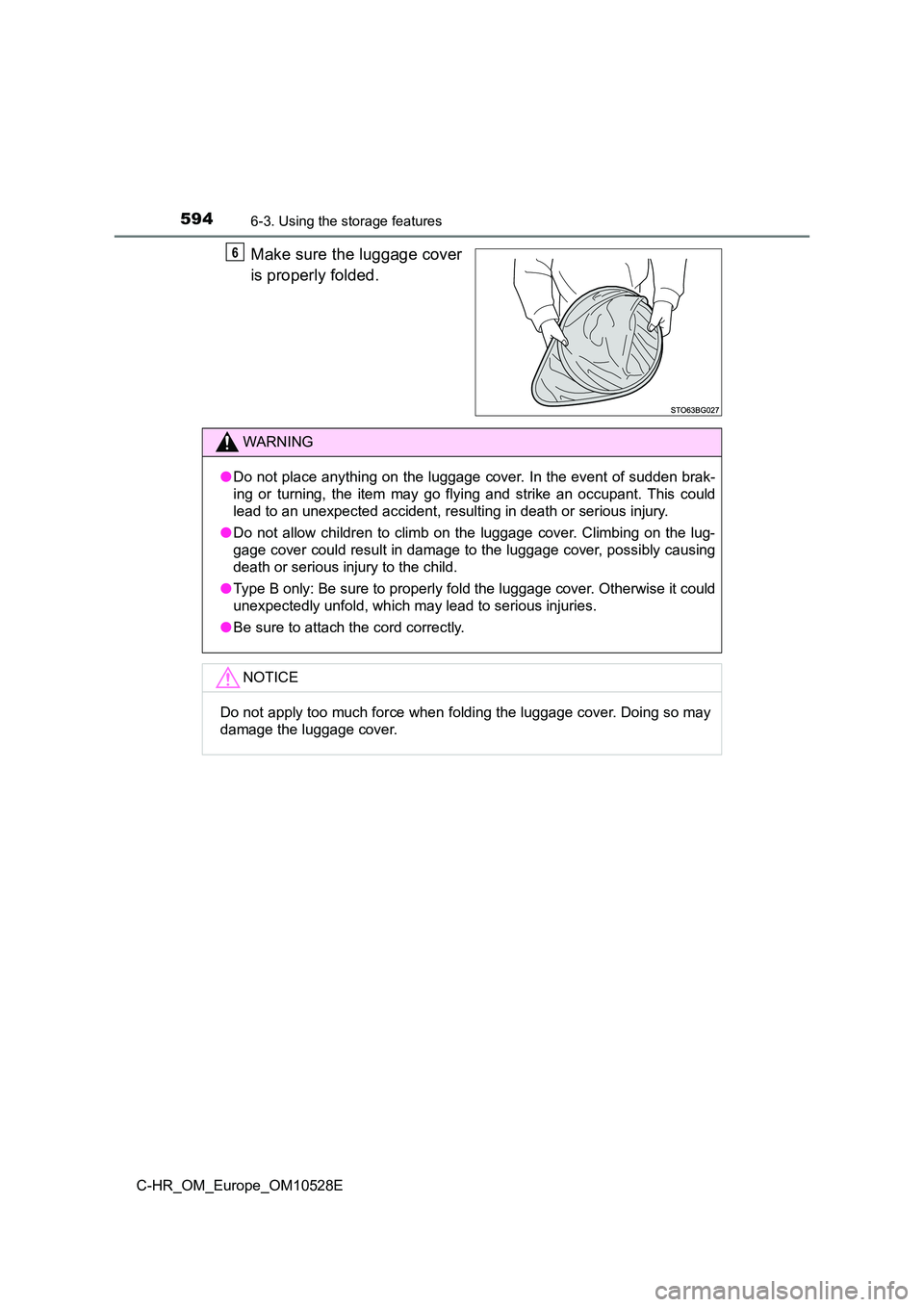

5946-3. Using the storage features
C-HR_OM_Europe_OM10528E
Make sure the luggage cover
is properly folded.
6
WARNING
● Do not place anything on the luggage cover. In the event of sudden brak-
ing or turning, the item may go flying and strike an occupant. This could
lead to an unexpected accident, resulting in death or serious injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
● Type B only: Be sure to properly fold the luggage cover. Otherwise it could
unexpectedly unfold, which may lead to serious injuries.
● Be sure to attach the cord correctly.
NOTICE
Do not apply too much force when folding the luggage cover. Doing so may
damage the luggage cover.

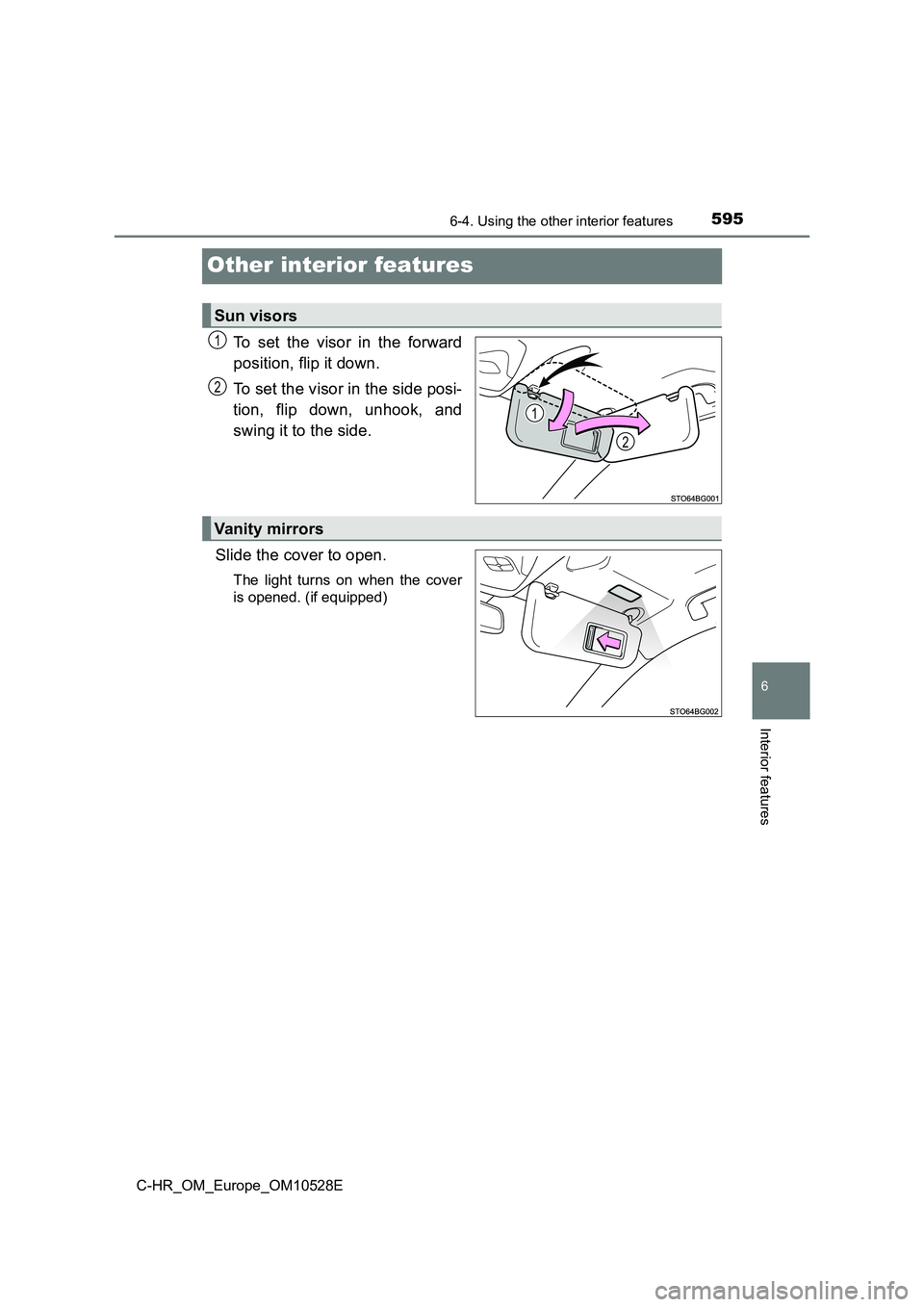

5956-4. Using the other interior features
6
Interior features
C-HR_OM_Europe_OM10528E
Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened. (if equipped)
Sun visors
2
1
1
2
Vanity mirrors

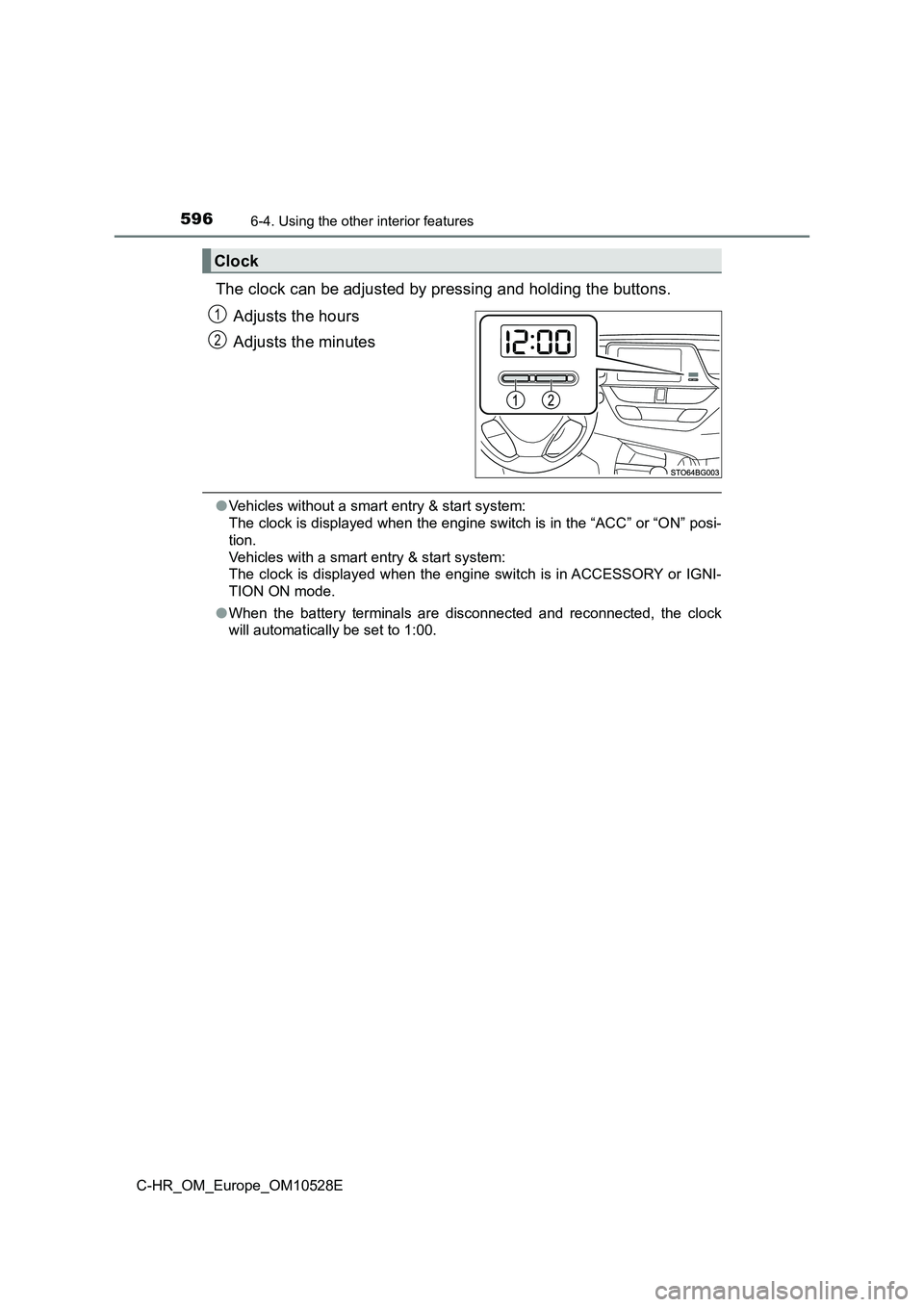

5966-4. Using the other interior features
C-HR_OM_Europe_OM10528E
The clock can be adjusted by pressing and holding the buttons.
Adjusts the hours
Adjusts the minutes
● Vehicles without a smart entry & start system:
The clock is displayed when the engine switch is in the “ACC” or “ON” posi-
tion.
Vehicles with a smart entry & start system:
The clock is displayed when the engine switch is in ACCESSORY or IGNI-
TION ON mode.
● When the battery terminals are disconnected and reconnected, the clock
will automatically be set to 1:00.
Clock
1
2

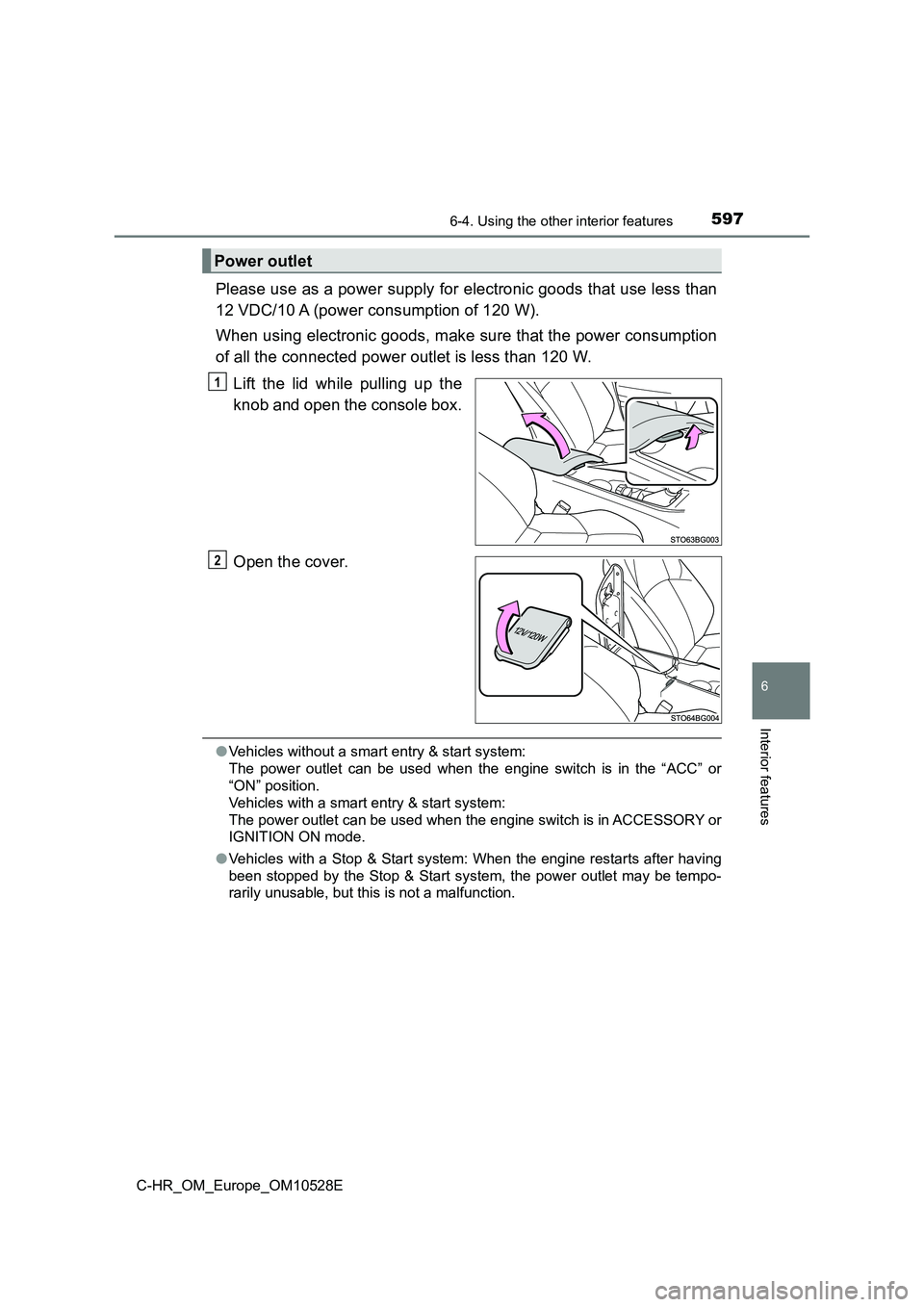

5976-4. Using the other interior features
6
Interior features
C-HR_OM_Europe_OM10528E
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
When using electronic goods, make sure that the power consumption
of all the connected power outlet is less than 120 W.
Lift the lid while pulling up the
knob and open the console box.
Open the cover.
● Vehicles without a smart entry & start system:
The power outlet can be used when the engine switch is in the “ACC” or
“ON” position.
Vehicles with a smart entry & start system:
The power outlet can be used when the engine switch is in ACCESSORY or
IGNITION ON mode.
● Vehicles with a Stop & Start system: When the engine restarts after having
been stopped by the Stop & Start system, the power outlet may be tempo-
rarily unusable, but this is not a malfunction.
Power outlet
1
2

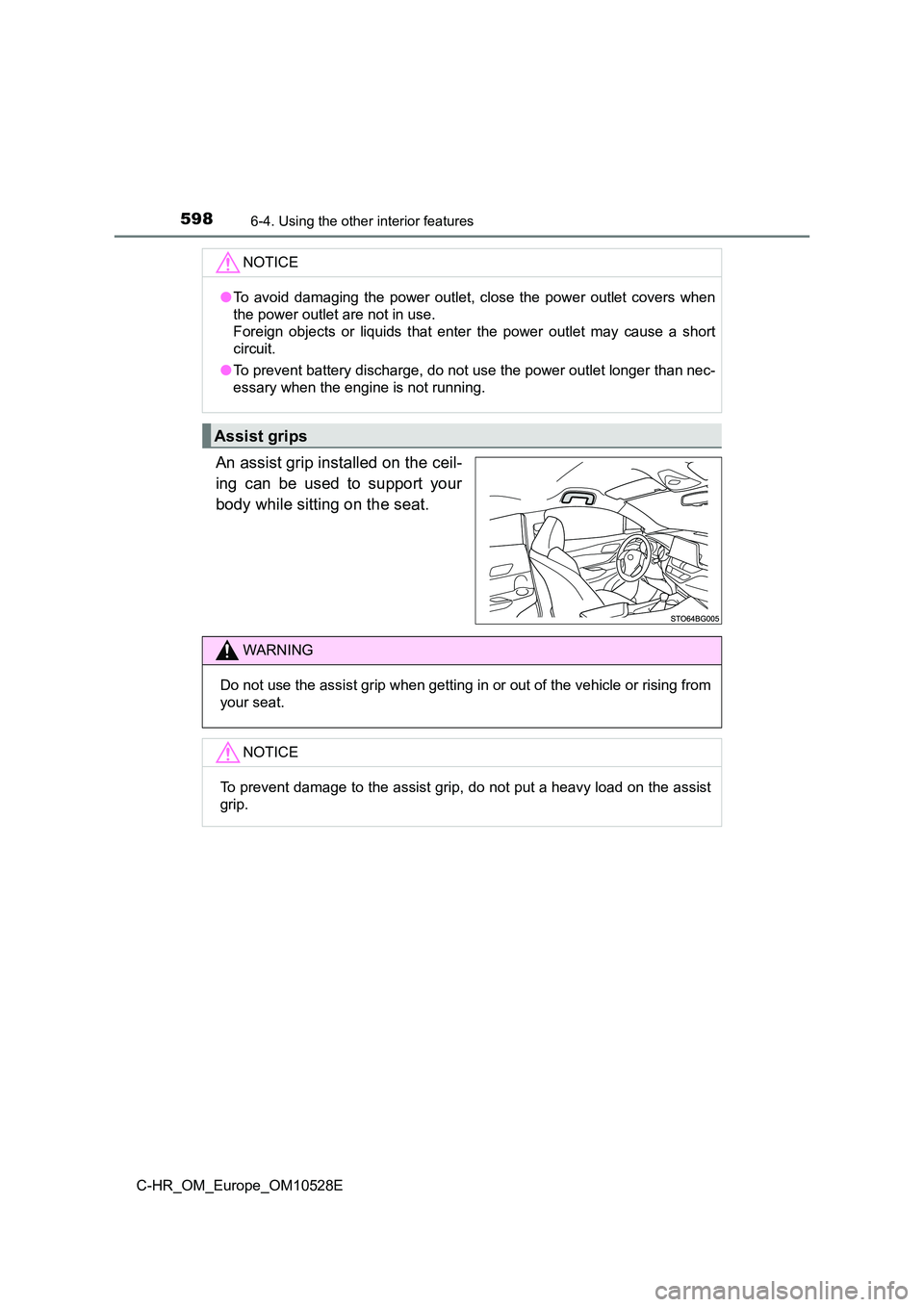

5986-4. Using the other interior features
C-HR_OM_Europe_OM10528E
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
NOTICE
● To avoid damaging the power outlet, close the power outlet covers when
the power outlet are not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.
● To prevent battery discharge, do not use the power outlet longer than nec-
essary when the engine is not running.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist
grip.

599
7Maintenance and care
C-HR_OM_Europe_OM10528E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 600
Cleaning and protecting
the vehicle interior ........... 605
7-2. Maintenance
Maintenance
requirements.................... 609
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ...................... 612
Hood .................................. 615
Positioning a floor jack ....... 617
Engine compartment.......... 618
Tires ................................... 631
Tire inflation pressure ........ 644
Wheels ............................... 646
Air conditioning filter .......... 649
Wireless remote control/
electronic key battery....... 652
Checking and
replacing fuses ................ 656
Light bulbs ......................... 661

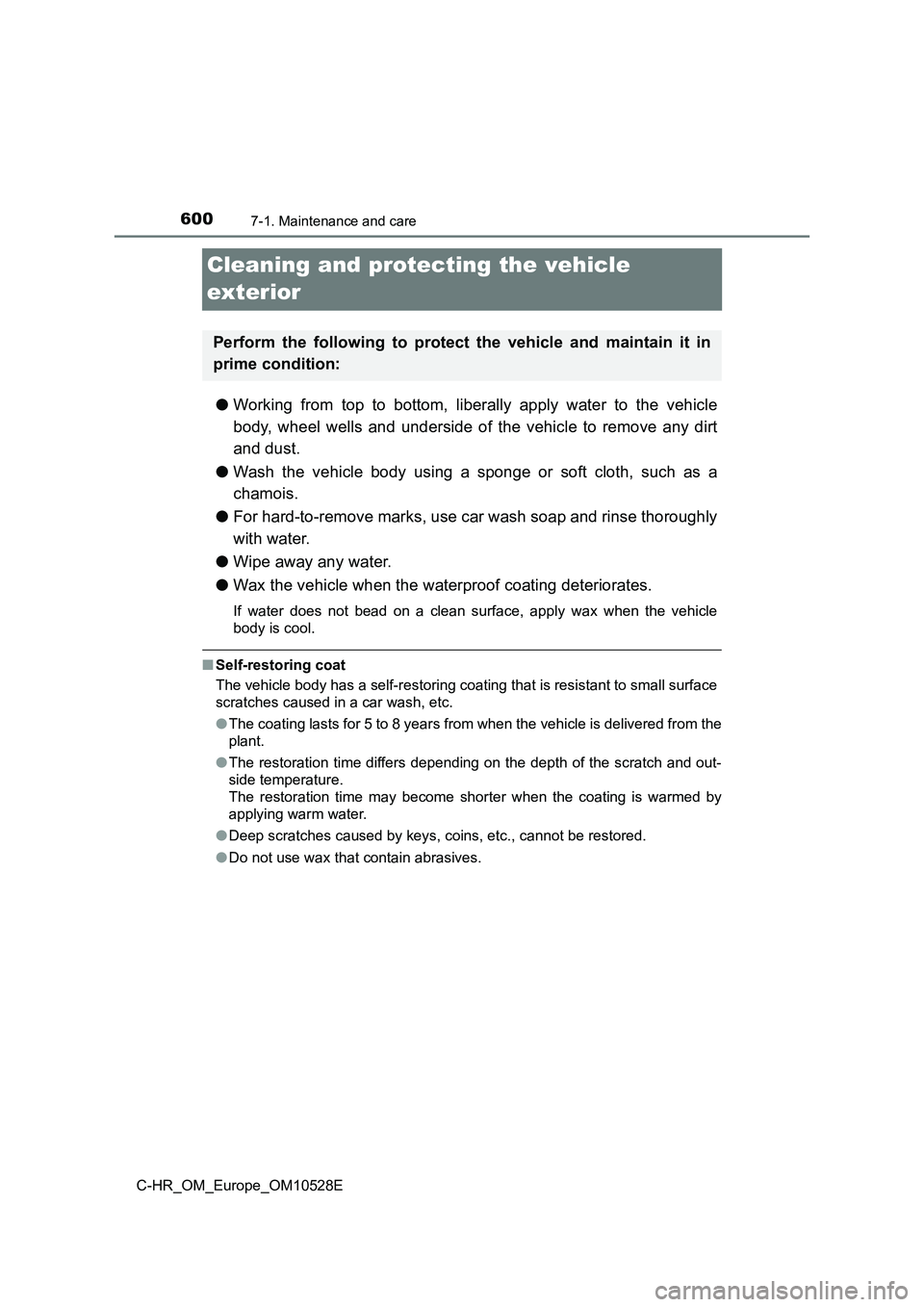

6007-1. Maintenance and care
C-HR_OM_Europe_OM10528E
Cleaning and protecting the vehicle
exterior
● Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■ Self-restoring coat
The vehicle body has a self-restoring coating that is resistant to small surface
scratches caused in a car wash, etc.
● The coating lasts for 5 to 8 years from when the vehicle is delivered from the
plant.
● The restoration time differs depending on the depth of the scratch and out-
side temperature.
The restoration time may become shorter when the coating is warmed by
applying warm water.
● Deep scratches caused by keys, coins, etc., cannot be restored.
● Do not use wax that contain abrasives.
Perform the following to protect the vehicle and maintain it in
prime condition:
