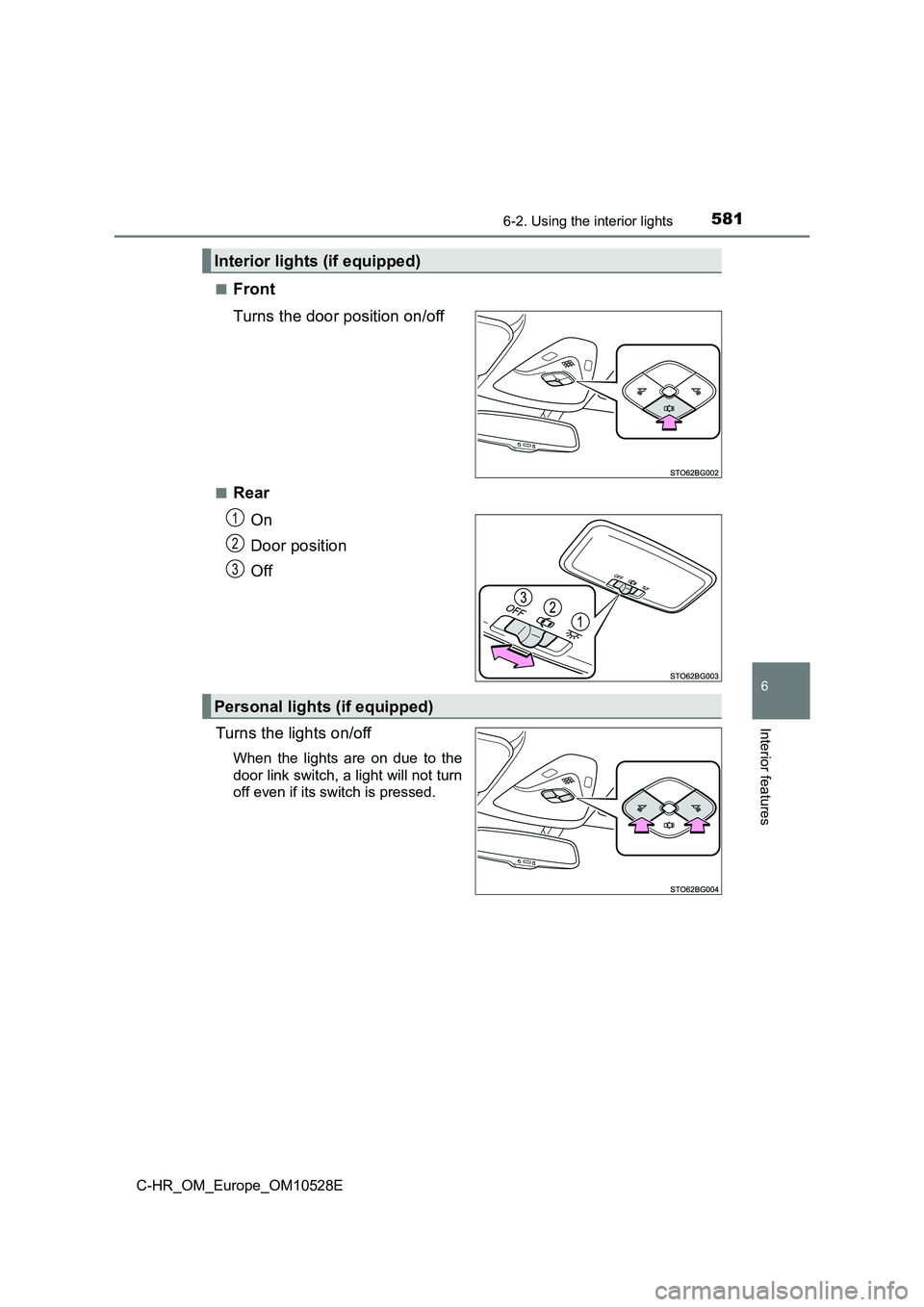

5816-2. Using the interior lights
6
Interior features
C-HR_OM_Europe_OM10528E
■Front
Turns the door position on/off
■Rear
On
Door position
Off
Turns the lights on/off
When the lights are on due to the
door link switch, a light will not turn
off even if its switch is pressed.
Interior lights (if equipped)
1
2
3
Personal lights (if equipped)

5826-2. Using the interior lights
C-HR_OM_Europe_OM10528E

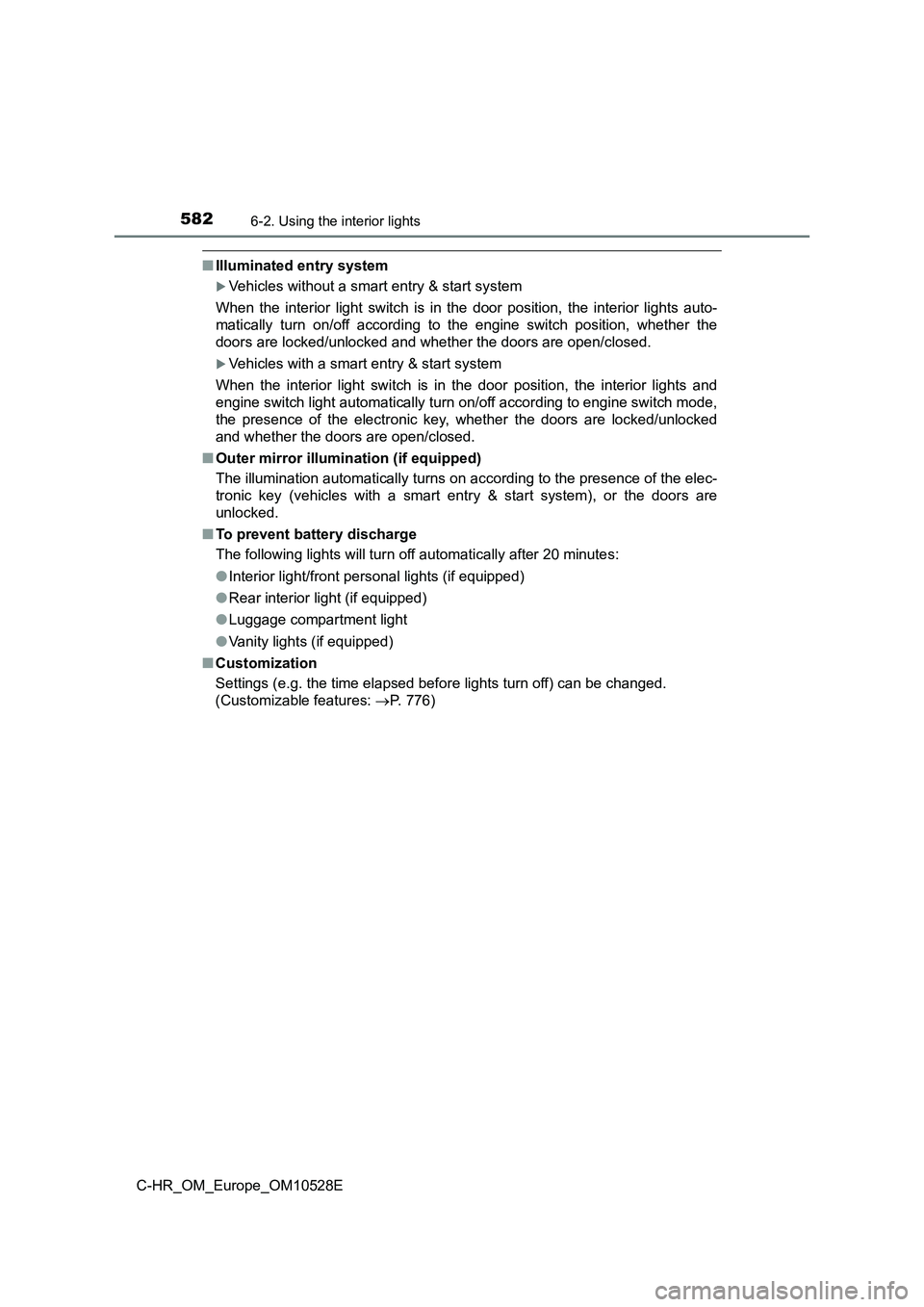

■Illuminated entry system
Vehicles without a smart entry & start system
When the interior light switch is in the door position, the interior lights auto-
matically turn on/off according to the engine switch position, whether the
doors are locked/unlocked and whether the doors are open/closed.
Vehicles with a smart entry & start system
When the interior light switch is in the door position, the interior lights and
engine switch light automatically turn on/off according to engine switch mode,
the presence of the electronic key, whether the doors are locked/unlocked
and whether the doors are open/closed.
■ Outer mirror illumination (if equipped)
The illumination automatically turns on according to the presence of the elec-
tronic key (vehicles with a smart entr y & start system), or the doors are
unlocked.
■ To prevent battery discharge
The following lights will turn off automatically after 20 minutes:
● Interior light/front personal lights (if equipped)
● Rear interior light (if equipped)
● Luggage compartment light
● Vanity lights (if equipped)
■ Customization
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 776)

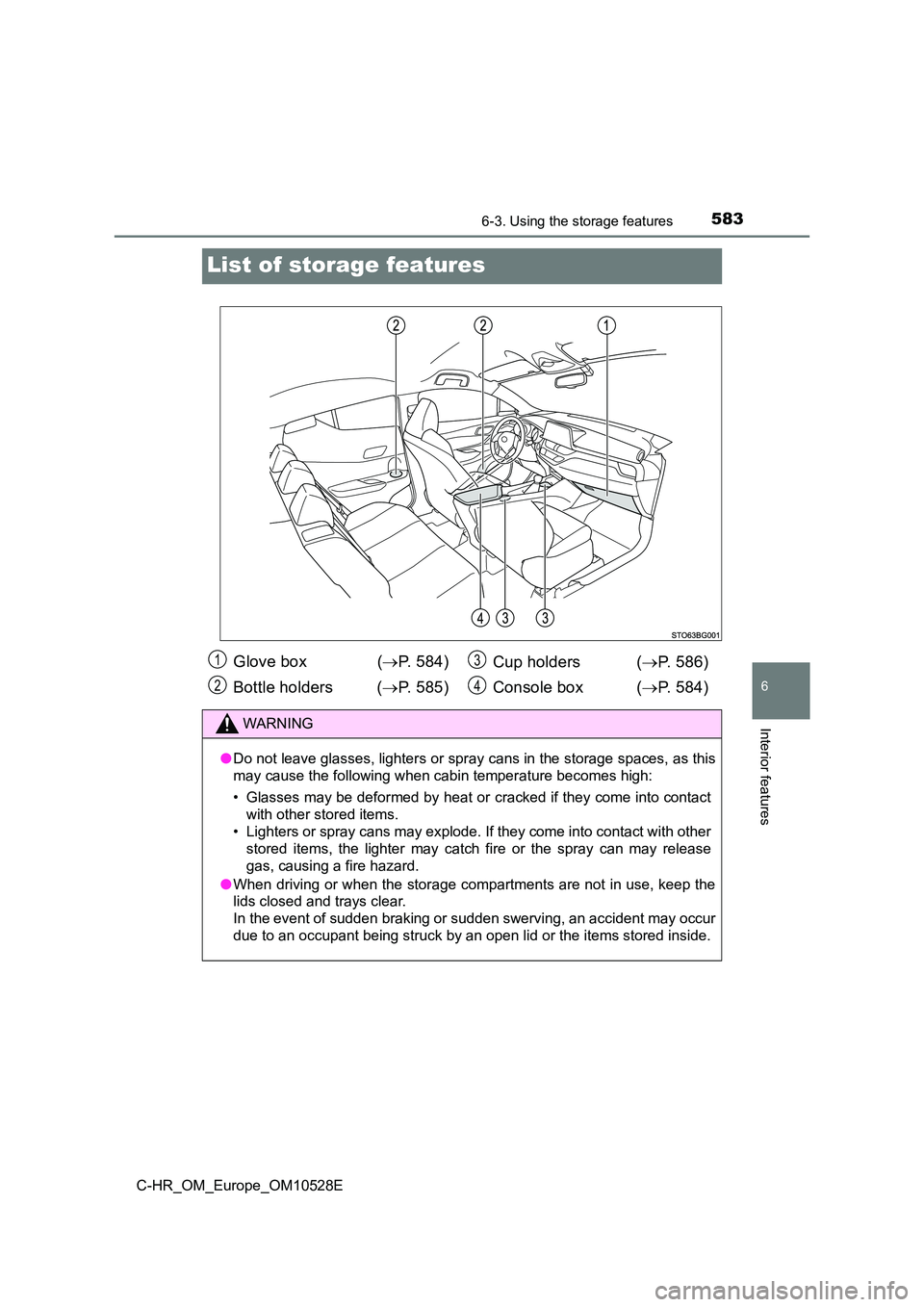

5836-3. Using the storage features
6
Interior features
C-HR_OM_Europe_OM10528E
List of storage features
Glove box (P. 584)
Bottle holders ( P. 585)
Cup holders ( P. 586)
Console box ( P. 584)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
● When driving or when the storage compartments are not in use, keep the
lids closed and trays clear.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4

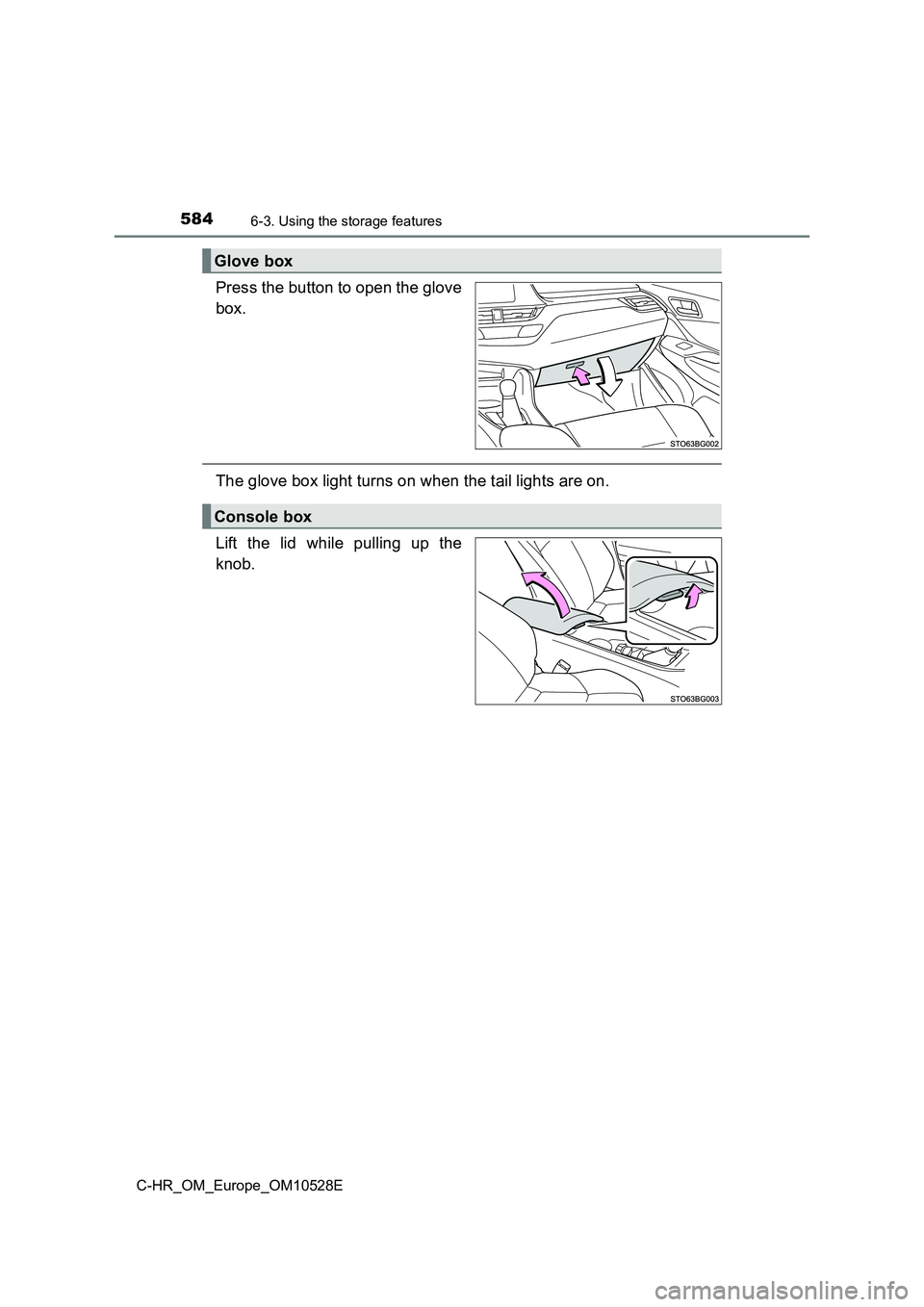

5846-3. Using the storage features
C-HR_OM_Europe_OM10528E
Press the button to open the glove
box.
The glove box light turns on when the tail lights are on.
Lift the lid while pulling up the
knob.
Glove box
Console box

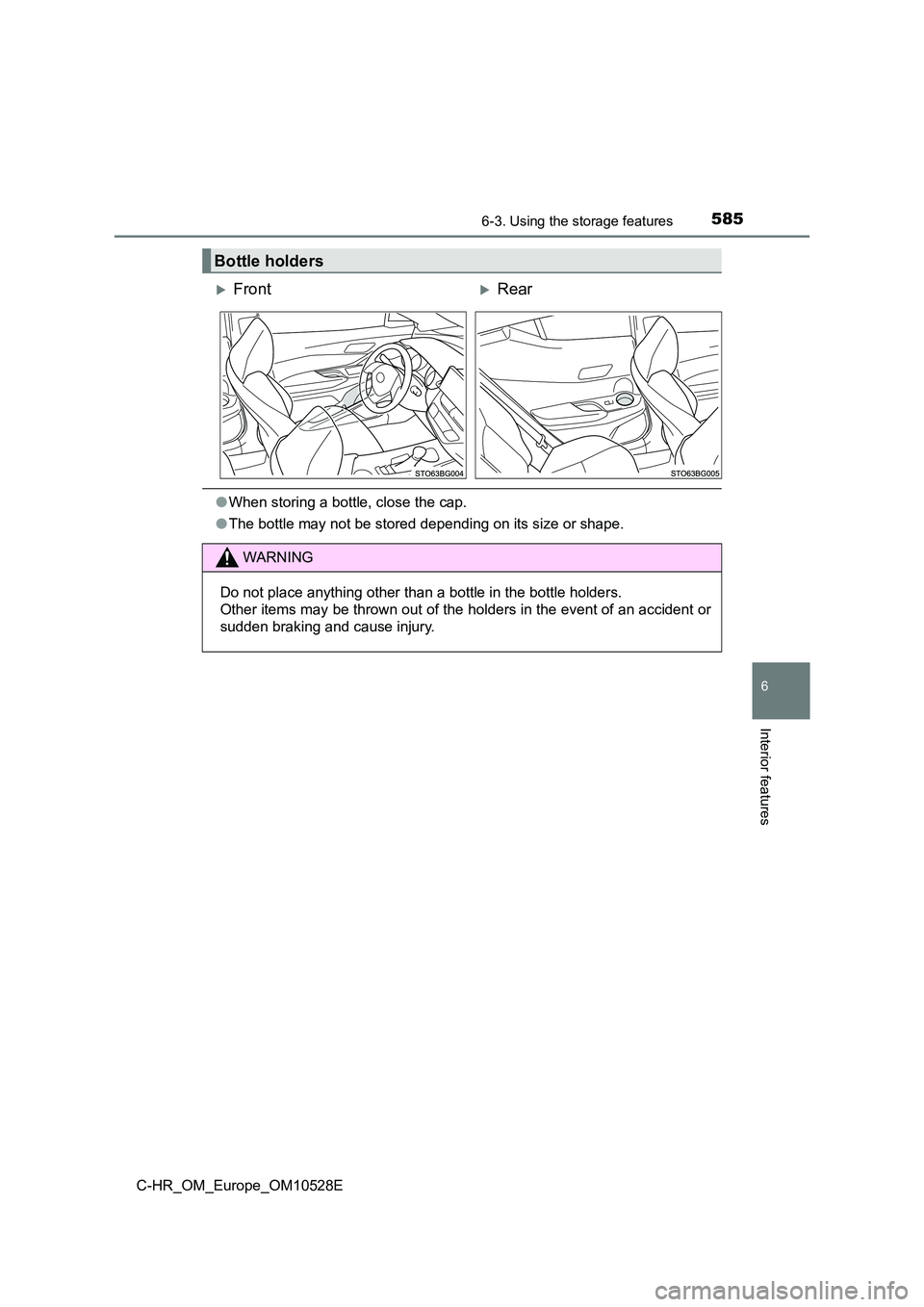

5856-3. Using the storage features
6
Interior features
C-HR_OM_Europe_OM10528E
●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
Bottle holders
FrontRear
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.

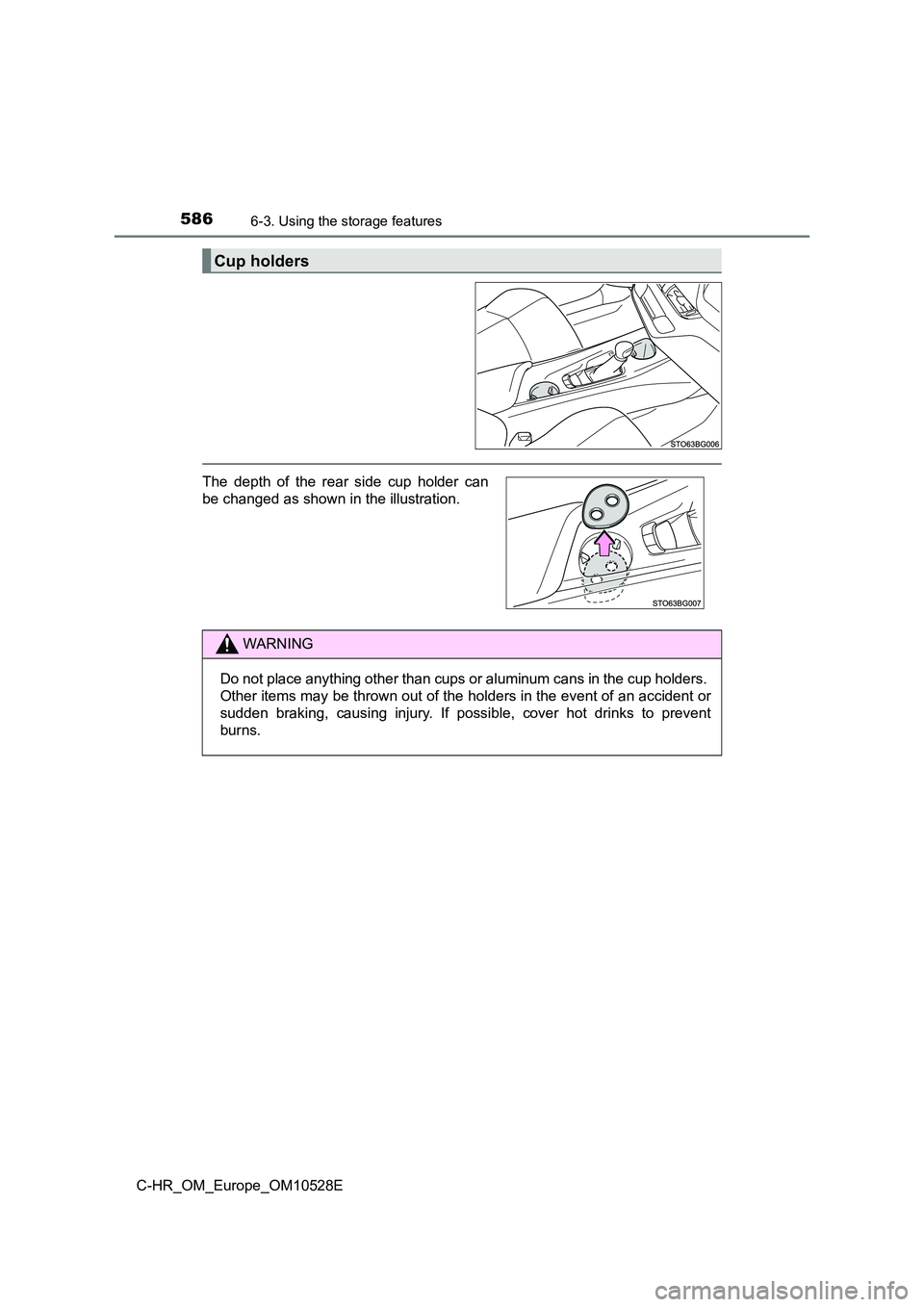

5866-3. Using the storage features
C-HR_OM_Europe_OM10528E
Cup holders
The depth of the rear side cup holder can
be changed as shown in the illustration.
WARNING
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.

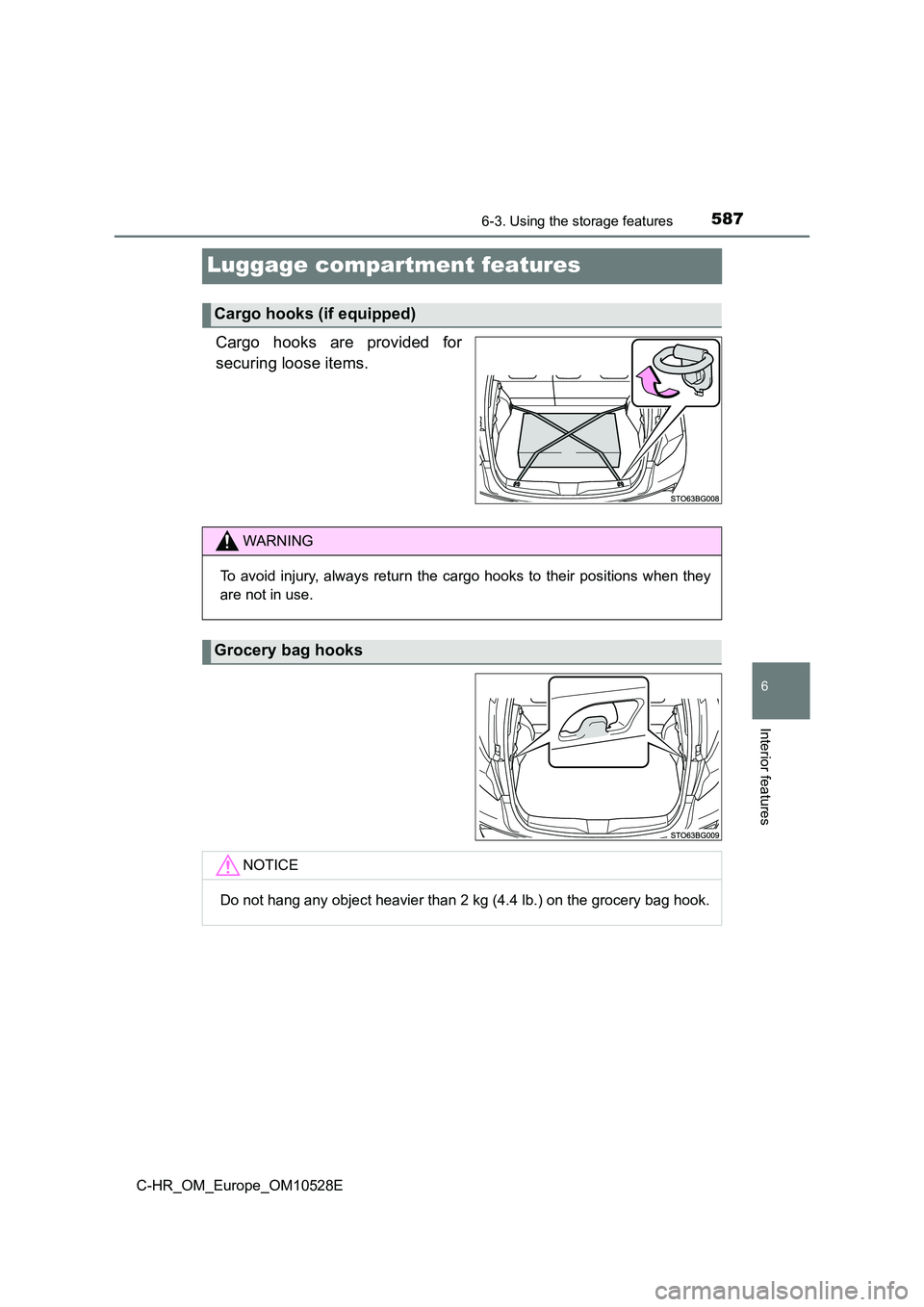

5876-3. Using the storage features
6
Interior features
C-HR_OM_Europe_OM10528E
Luggage compartment features
Cargo hooks are provided for
securing loose items.
Cargo hooks (if equipped)
WARNING
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 2 kg (4.4 lb.) on the grocery bag hook.

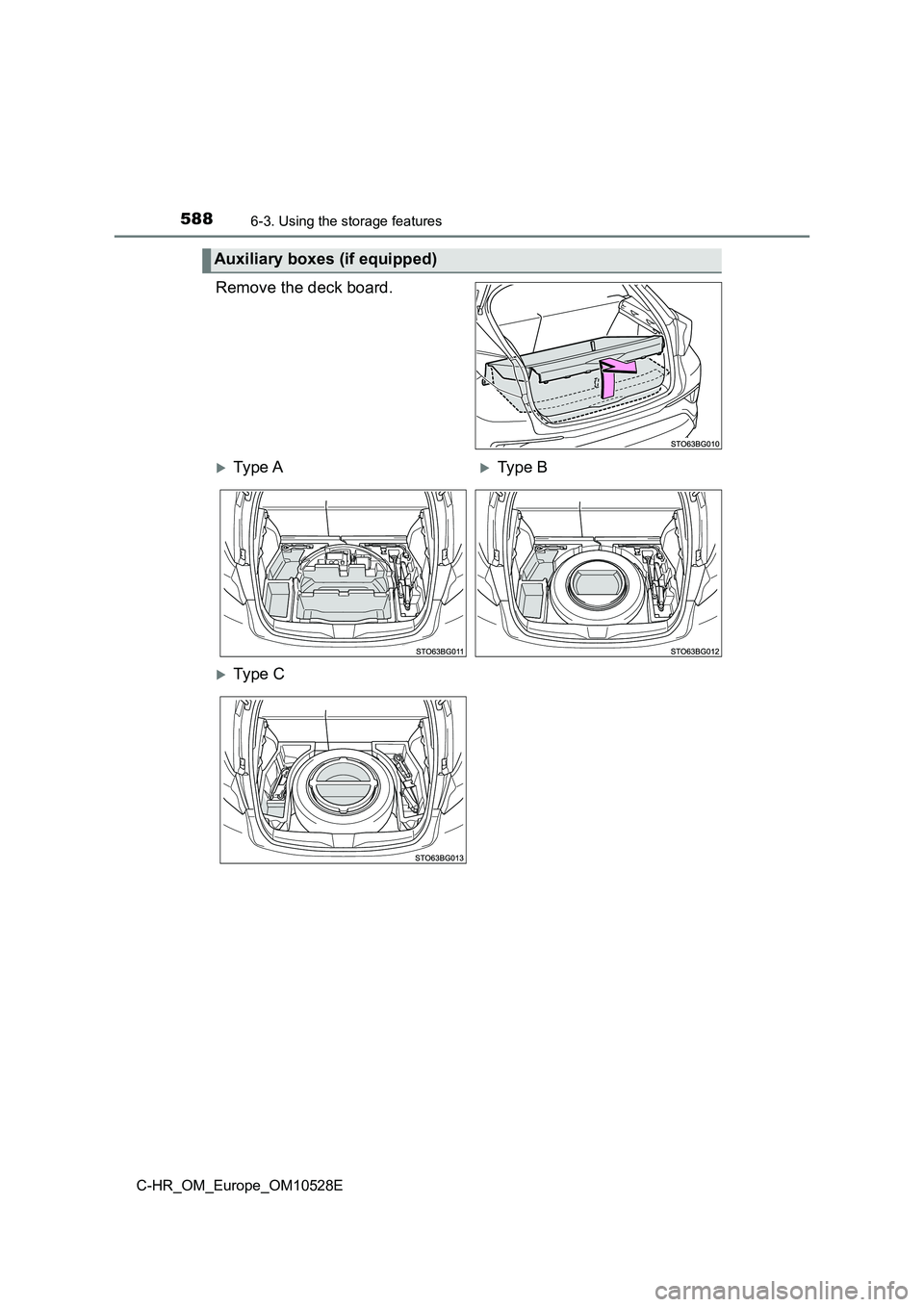

5886-3. Using the storage features
C-HR_OM_Europe_OM10528E
Remove the deck board.
Auxiliary boxes (if equipped)
Ty pe AType B
Ty pe C

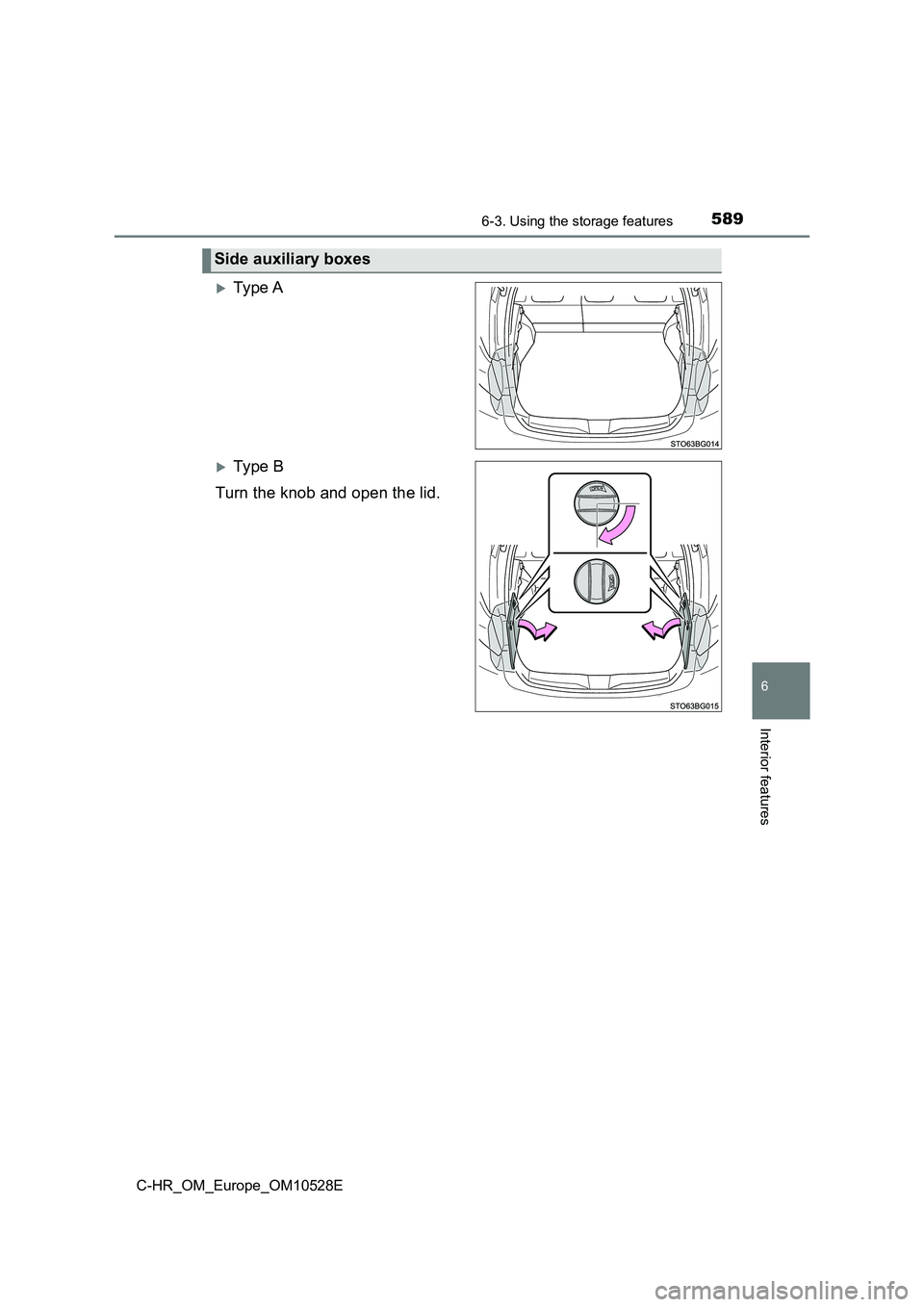

5896-3. Using the storage features
6
Interior features
C-HR_OM_Europe_OM10528E
Ty pe A
Ty pe B
Turn the knob and open the lid.
Side auxiliary boxes

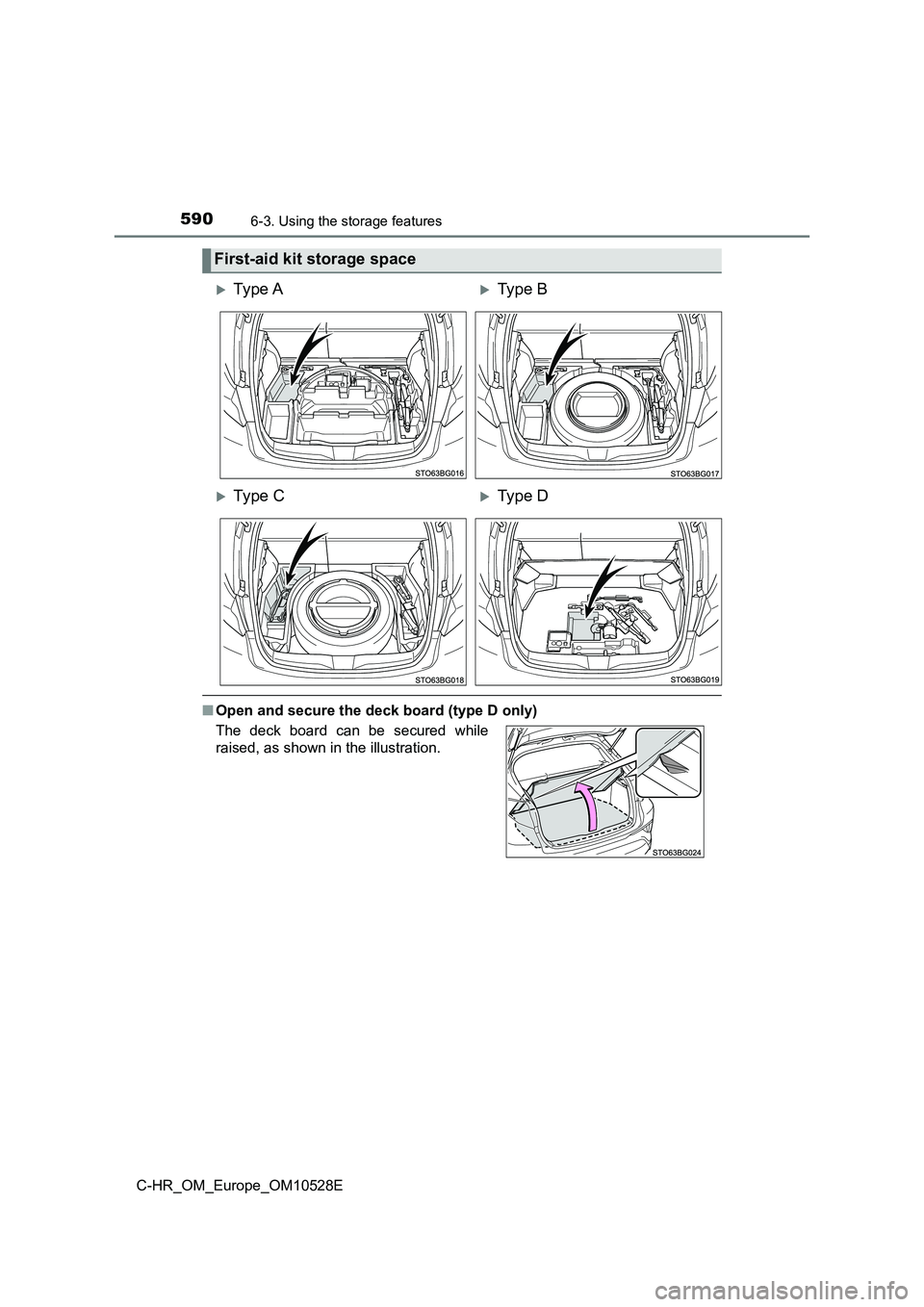

5906-3. Using the storage features
C-HR_OM_Europe_OM10528E
■Open and secure the deck board (type D only)
First-aid kit storage space
Ty pe AType B
Ty pe CType D
The deck board can be secured while
raised, as shown in the illustration.
