TOYOTA C-HR 2016 Owners Manual

6617-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

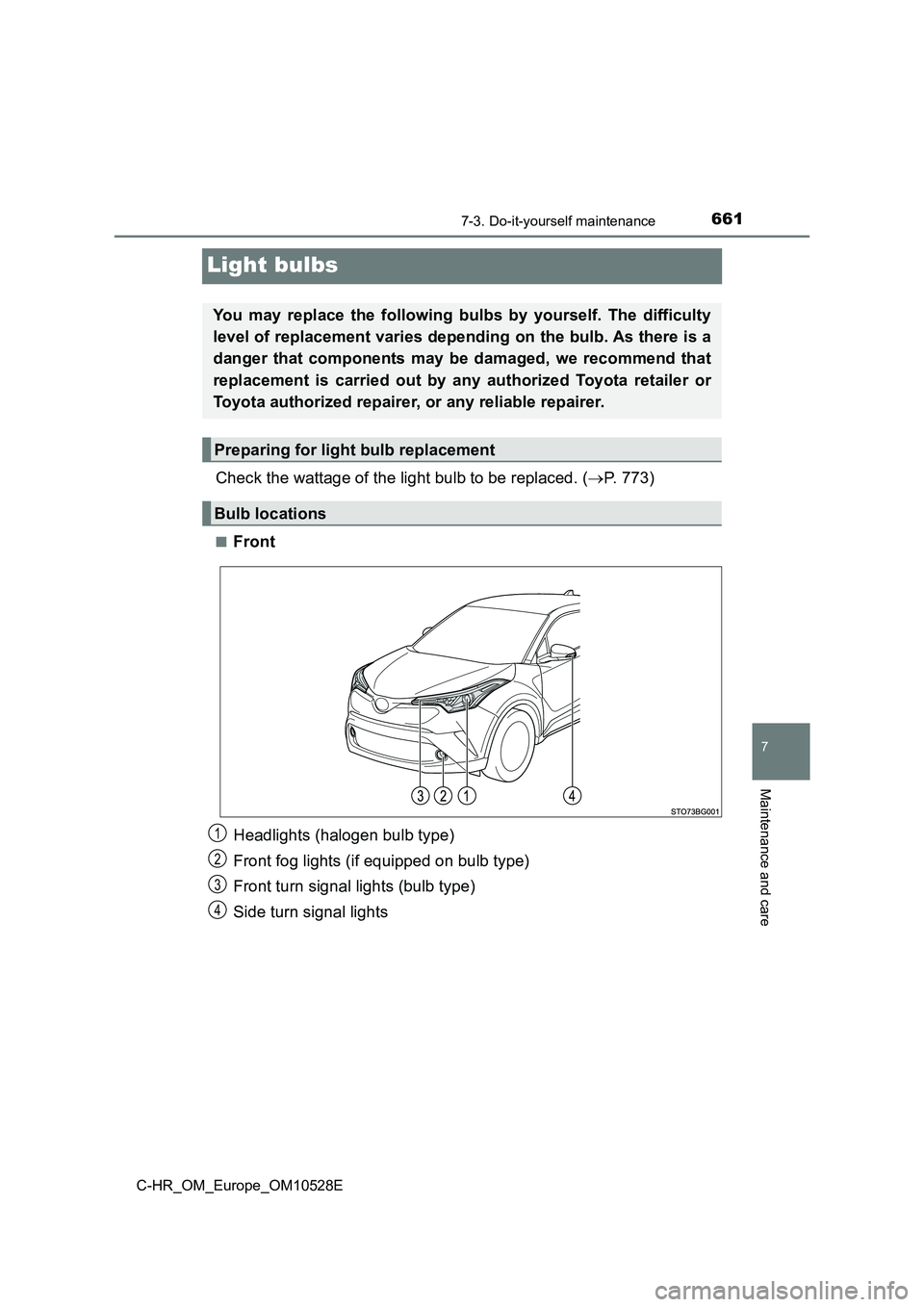

Light bulbs
Check the wattage of the light bulb to be replaced. (ï‚®P. 773)
â– Front
Headlights (halogen bulb type)
Front fog lights (if equipped on bulb type)
Front turn signal lights (bulb type)
Side turn signal lights
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Bulb locations
1
2
3
4

6627-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

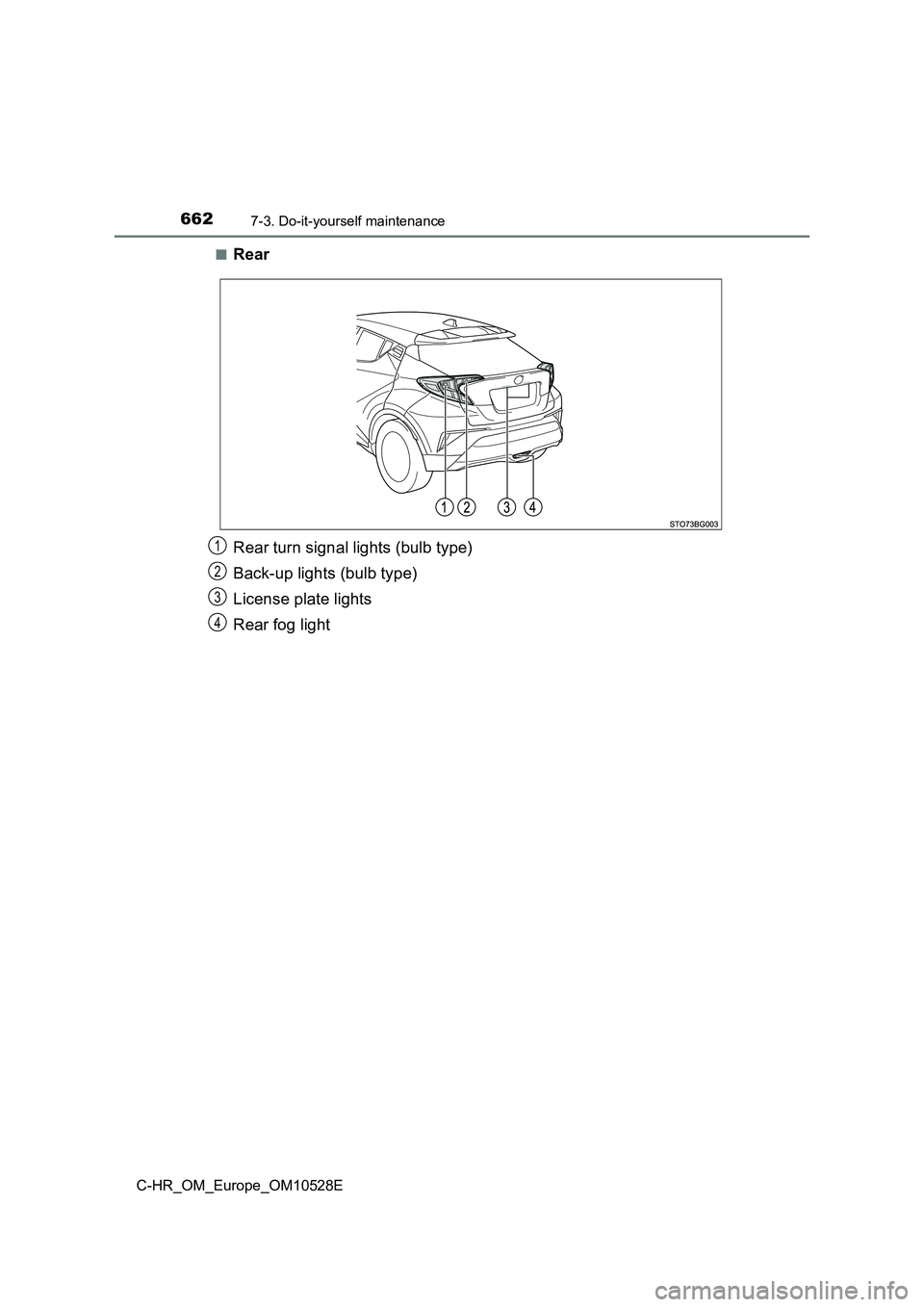

â– Rear
Rear turn signal lights (bulb type)
Back-up lights (bulb type)
License plate lights
Rear fog light
1
2
3
4

6637-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

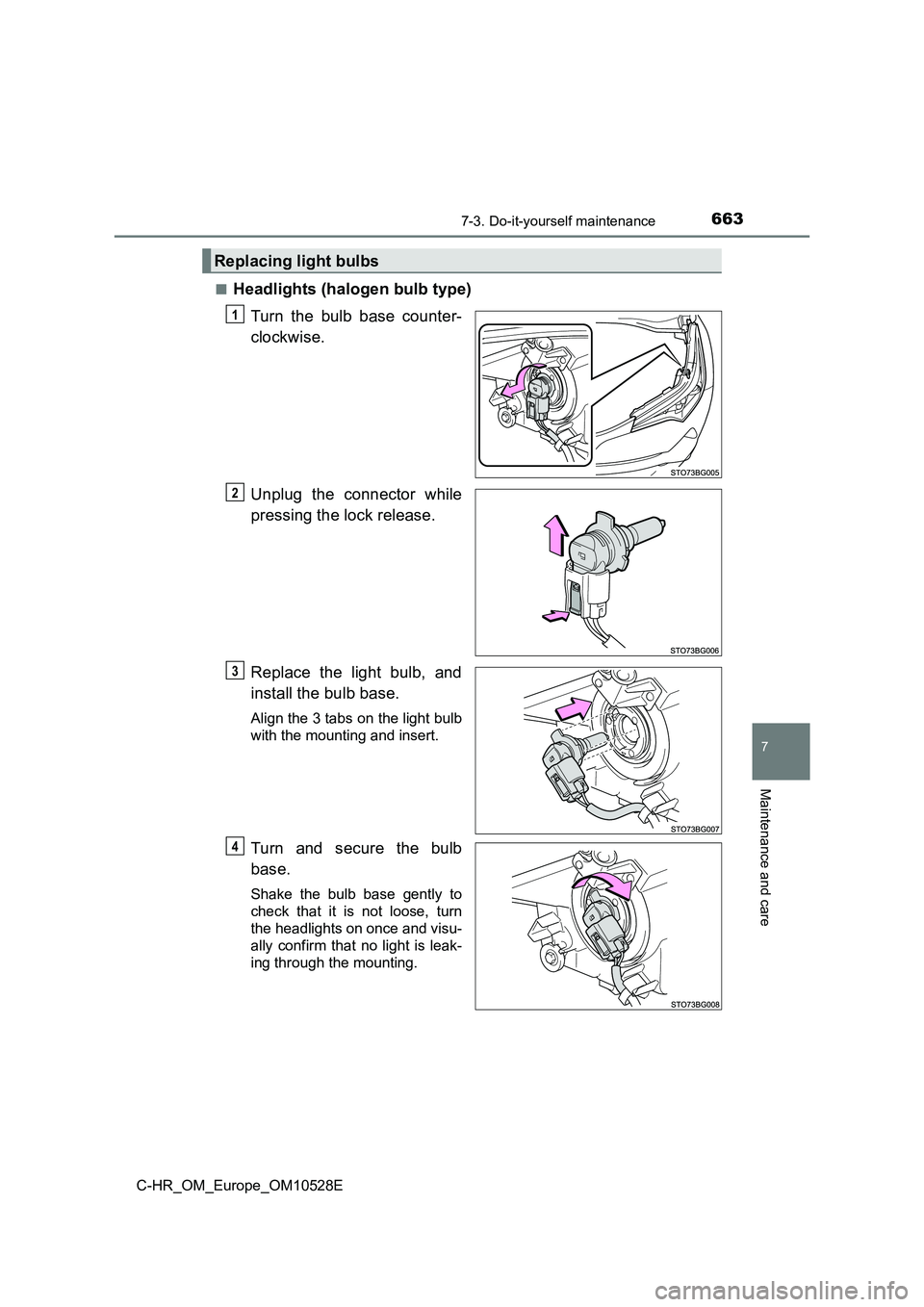

â– Headlights (halogen bulb type)
Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Replacing light bulbs
1
2
3
4

6647-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

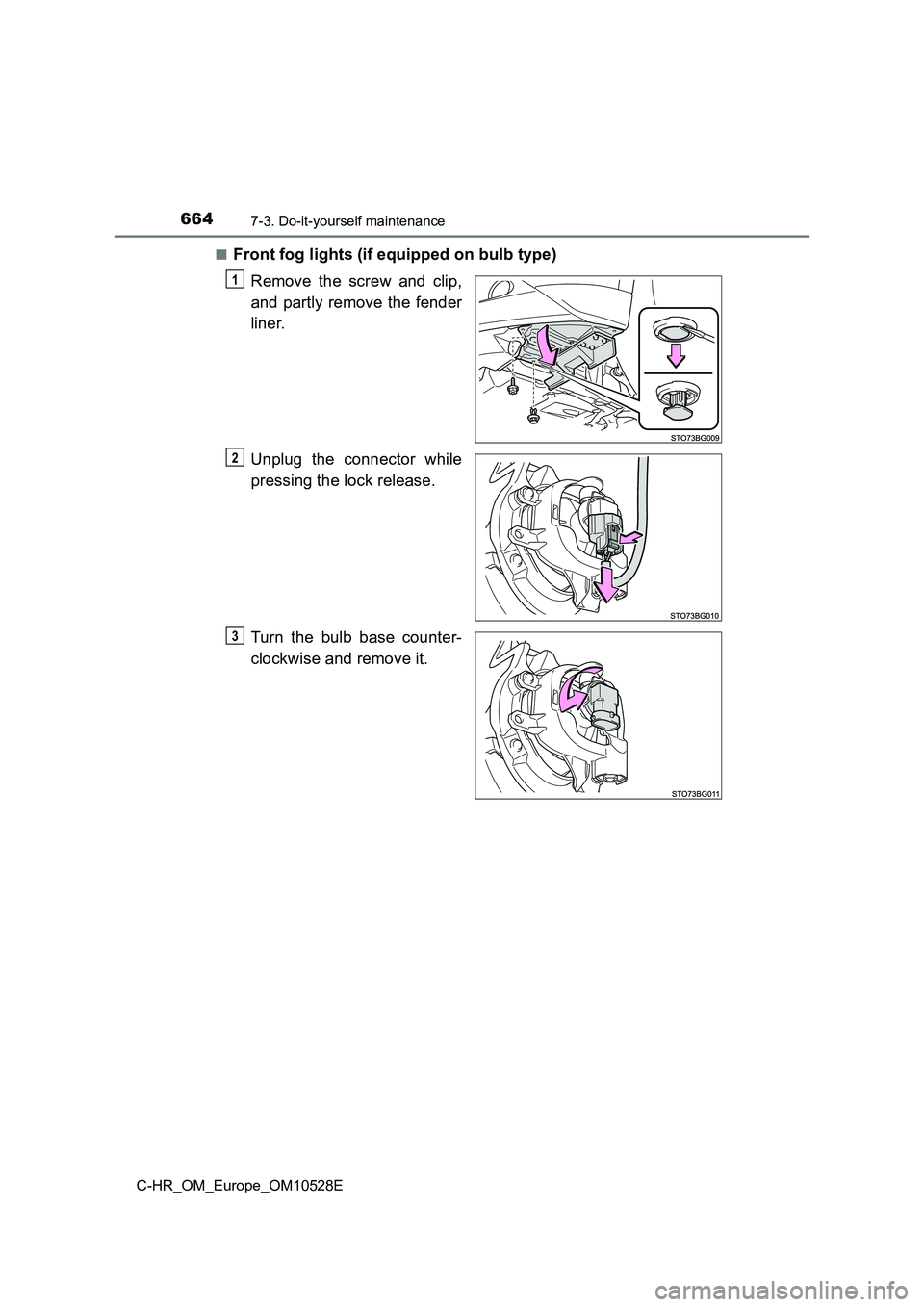

â– Front fog lights (if equipped on bulb type)
Remove the screw and clip,
and partly remove the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise and remove it.
1
2
3

6657-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

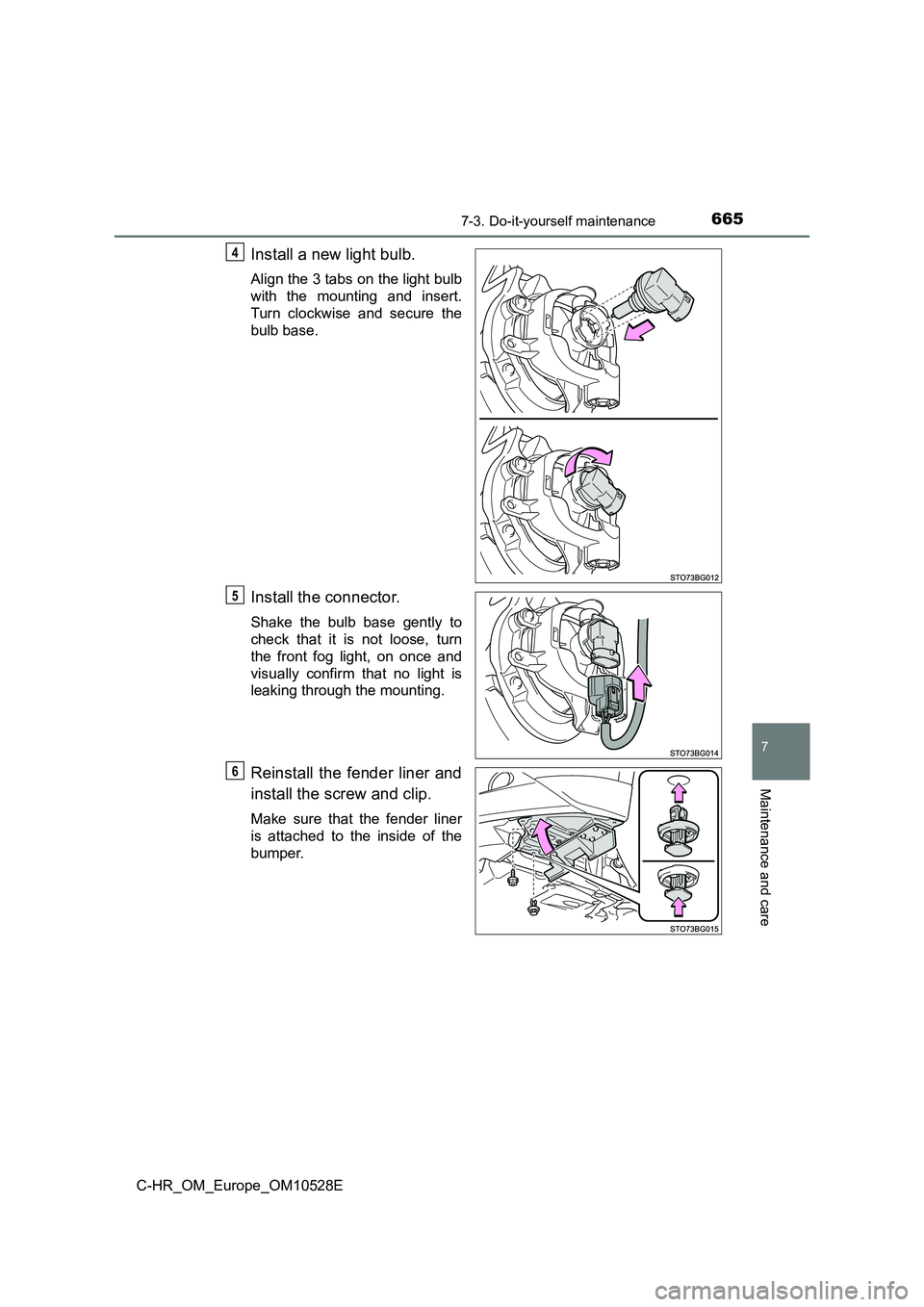

Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
Reinstall the fender liner and
install the screw and clip.
Make sure that the fender liner
is attached to the inside of the
bumper.
4
5
6

6667-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

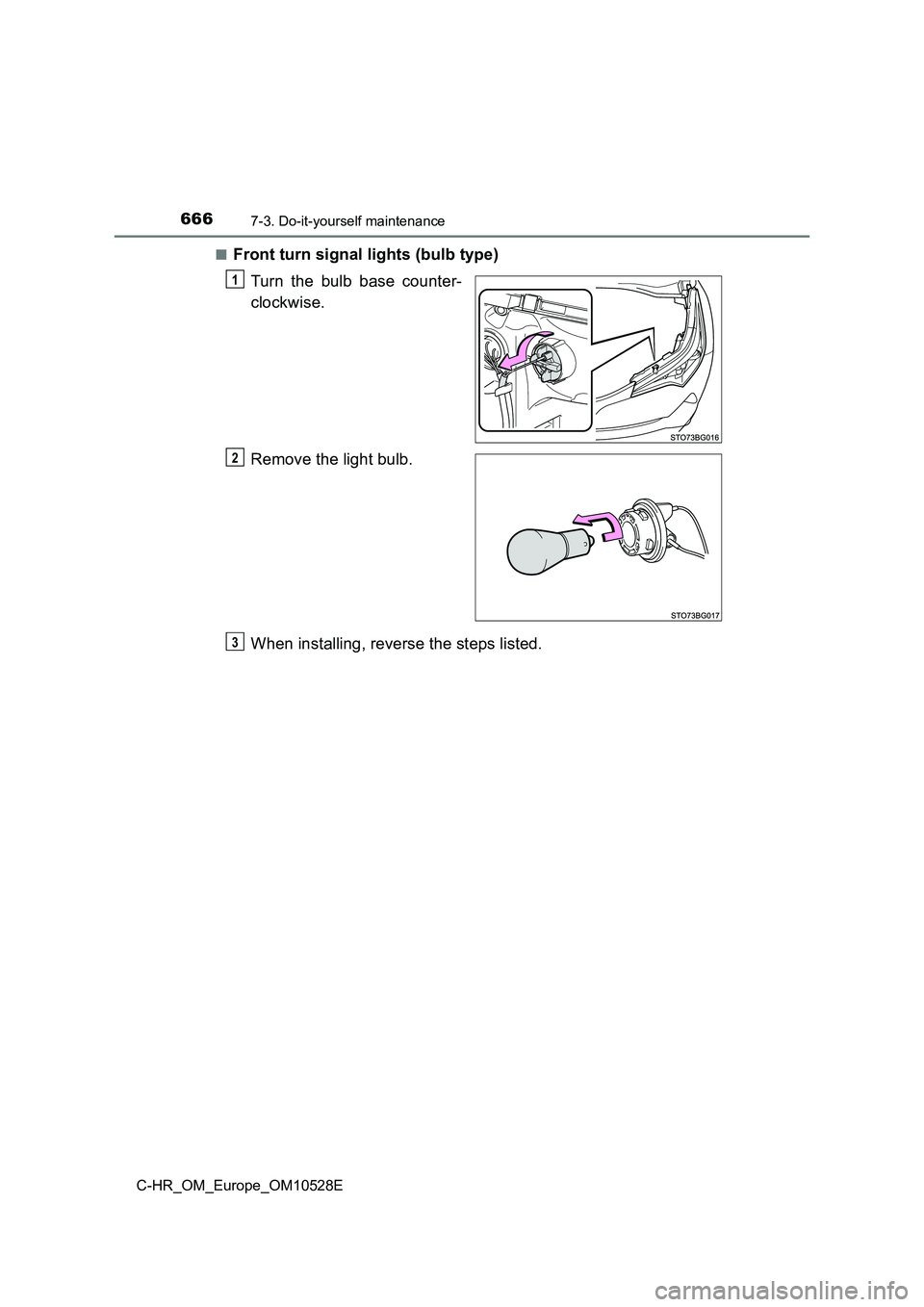

â– Front turn signal lights (bulb type)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3

6677-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

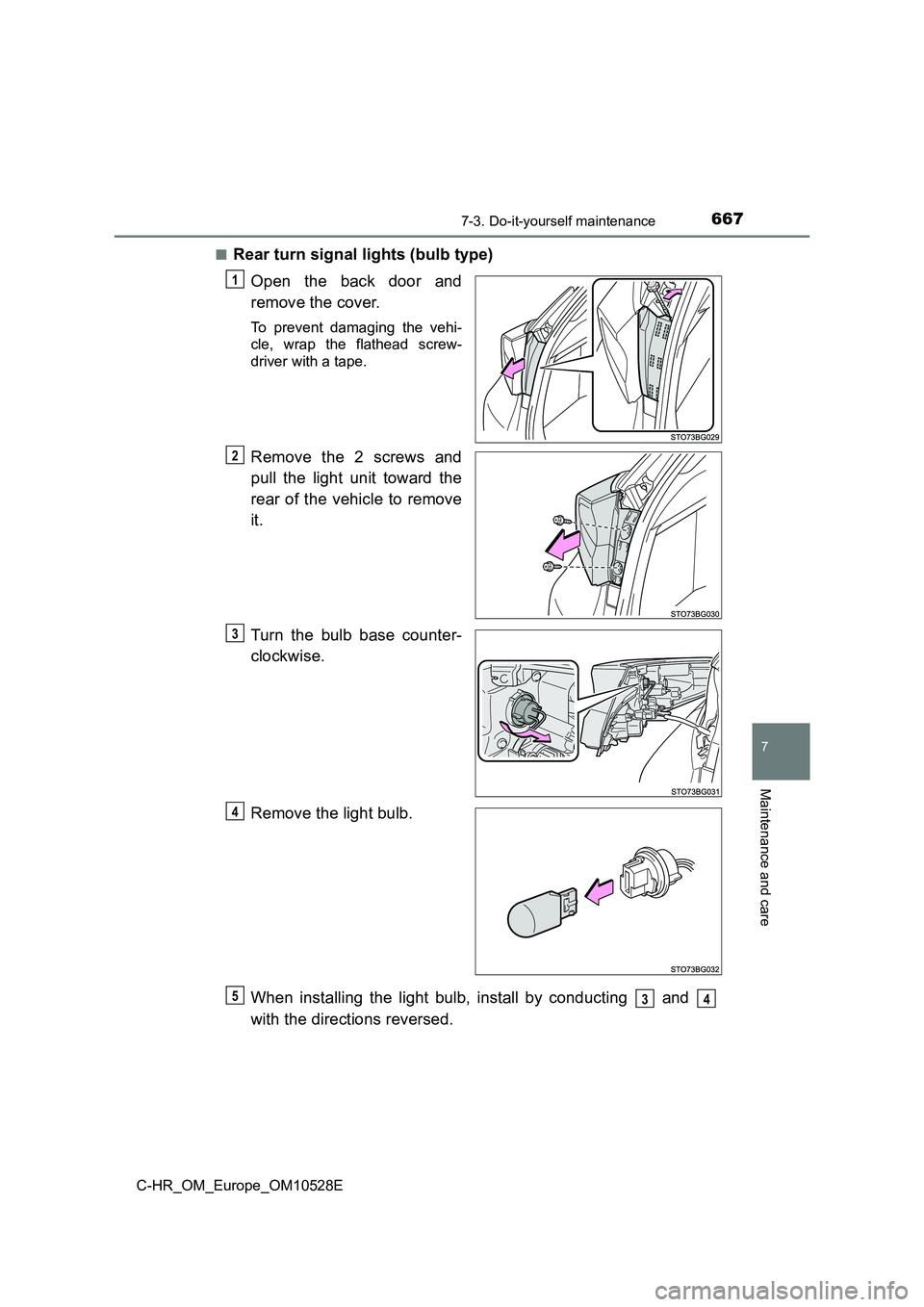

â– Rear turn signal lights (bulb type)
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Remove the 2 screws and
pull the light unit toward the
rear of the vehicle to remove
it.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the light bulb, install by conducting and
with the directions reversed.
1
2
3
4
534

6687-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

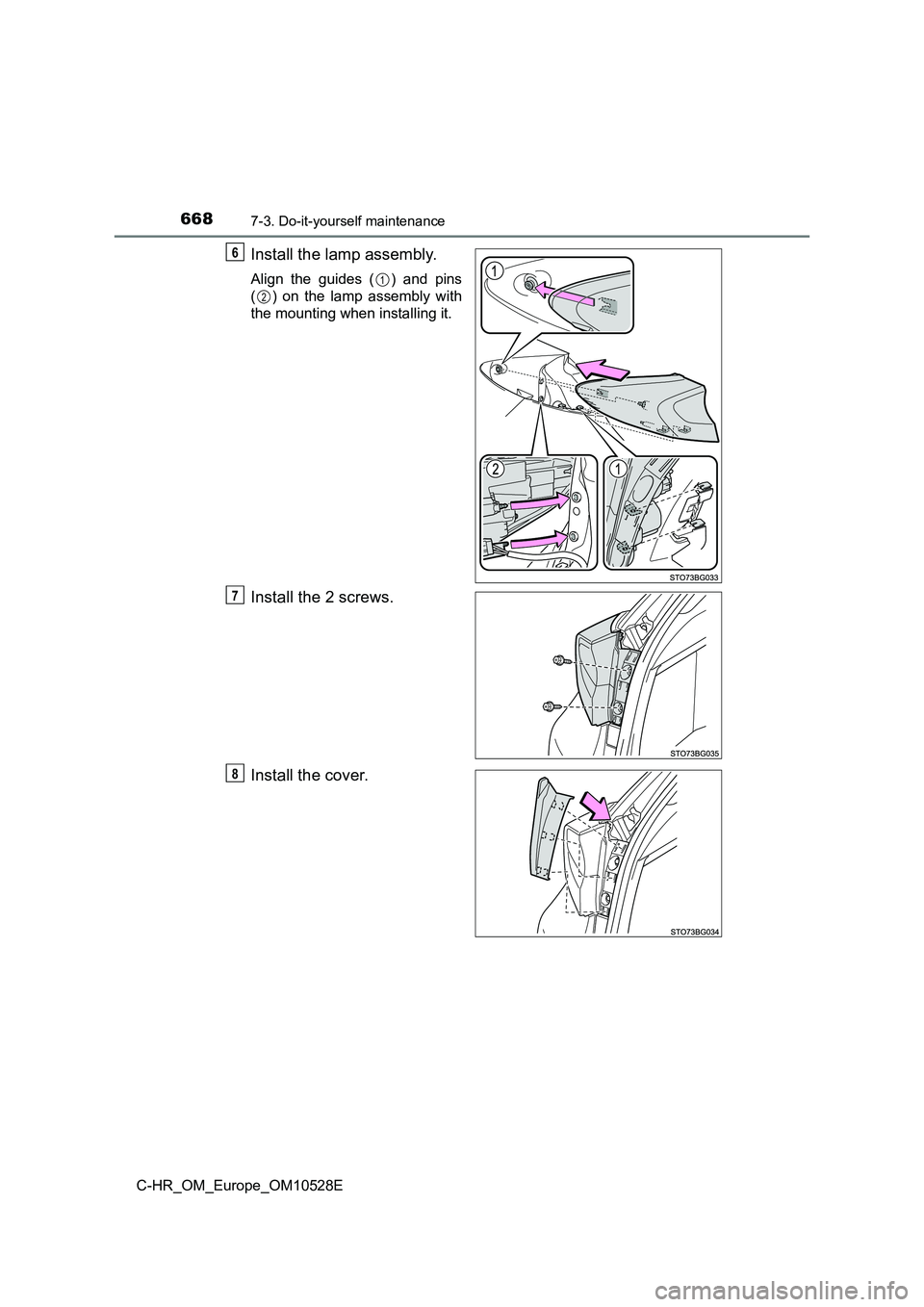

Install the lamp assembly.
Align the guides ( ) and pins
( ) on the lamp assembly with
the mounting when installing it.
Install the 2 screws.
Install the cover.
6
1
2
7
8

6697-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E

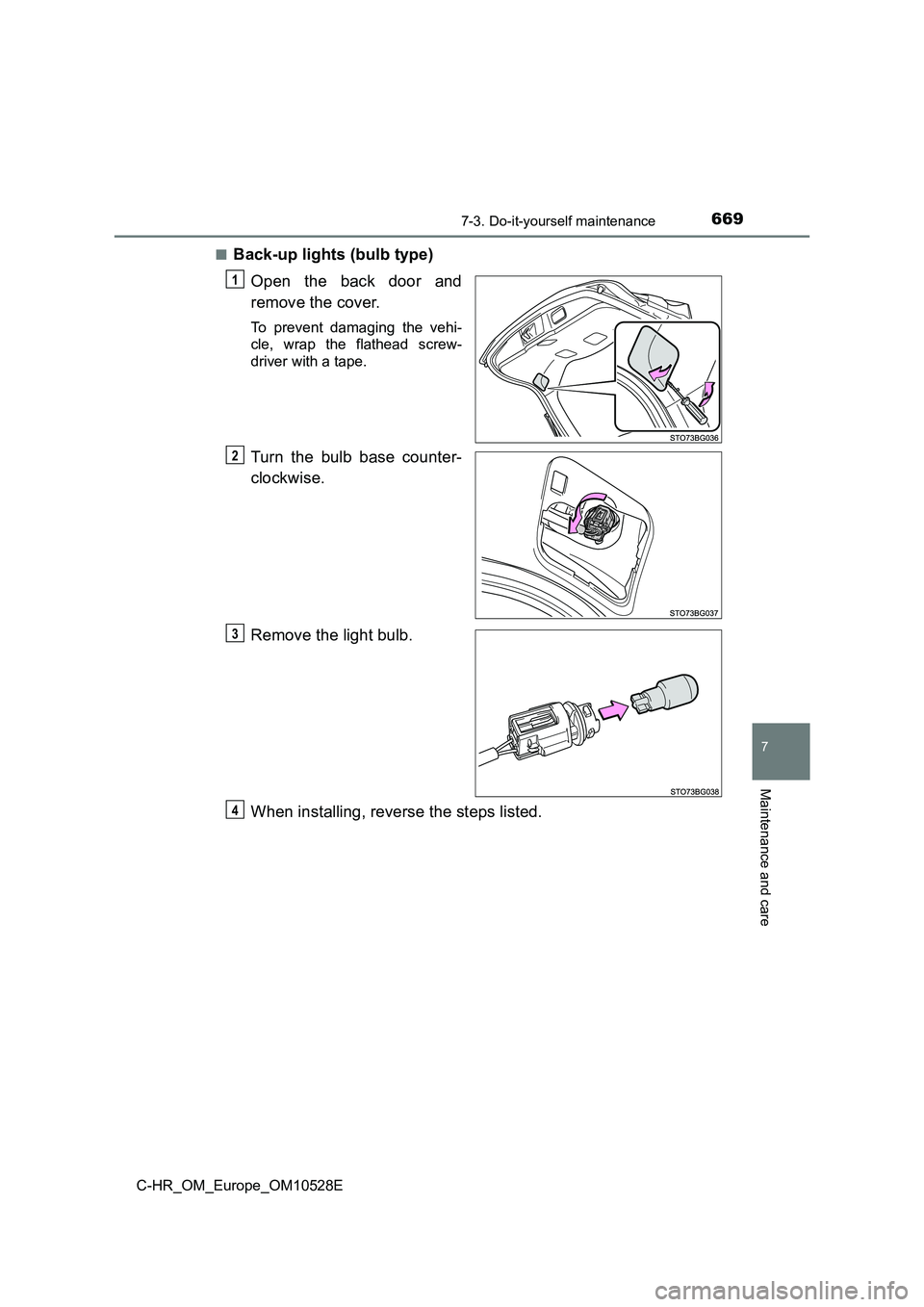

â– Back-up lights (bulb type)
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

6707-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E

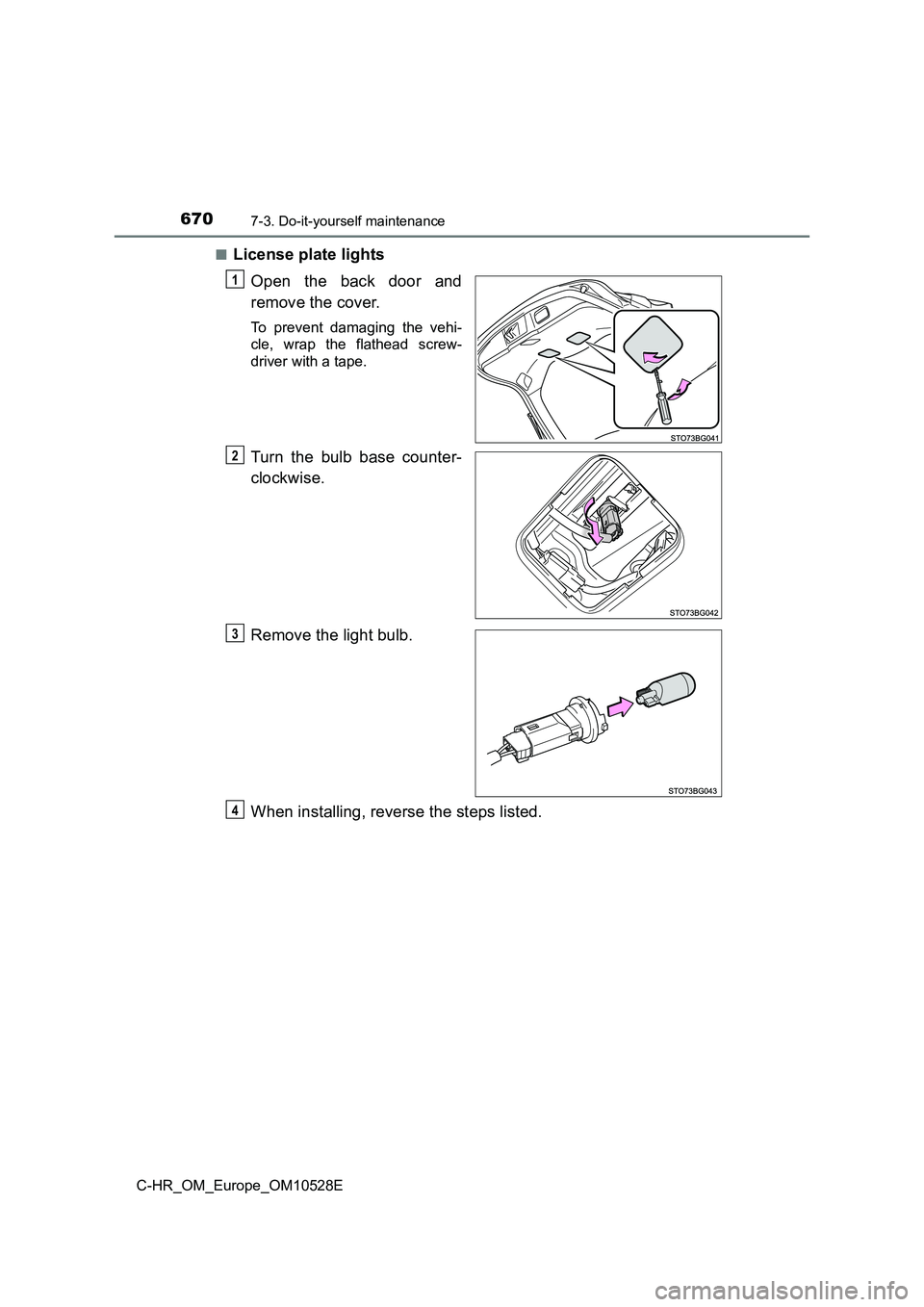

â– License plate lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
