7118-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (Multidrive) or N (manual transmission).
● Stop the engine.
● Turn on the emergency flashers. (P. 680)
● Check the degree of the tire damage.
A tire should only be repaired
with the emergency tire punc-
ture repair kit if the damage is
caused by a nail or screw pass-
ing through the tire tread.
• Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and make emer-
gency repair with the repair
kit impossible.
• To avoid sealant leakage, move the vehicle until the area of the
puncture, if known, is positioned at the top of the tire.
Before repairing the tire

7128-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E

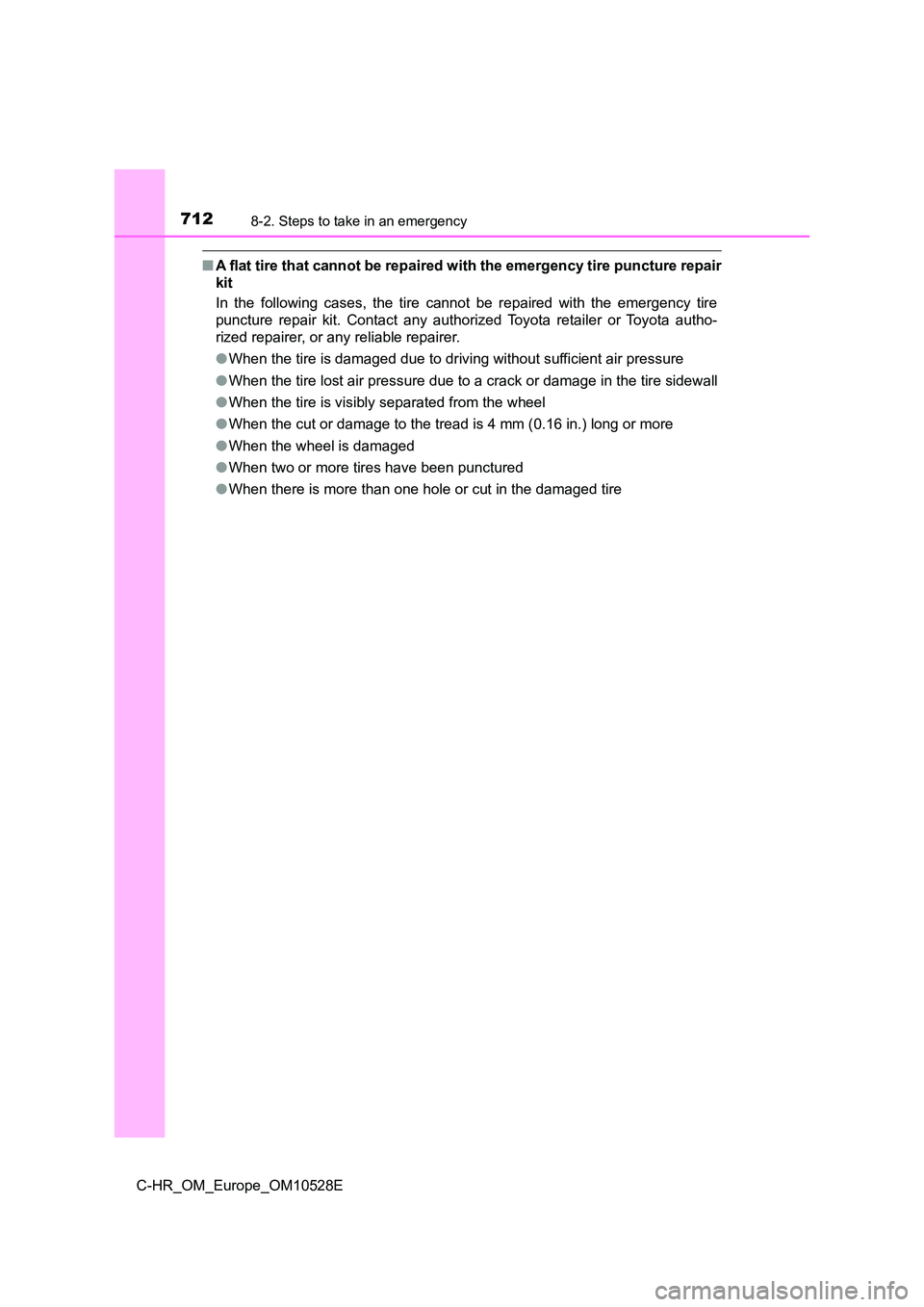

■A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire c annot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
● When the tire is damaged due to driving without sufficient air pressure
● When the tire lost air pressure due to a crack or damage in the tire sidewall
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
● When there is more than one hole or cut in the damaged tire

7138-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
Ty pe A
Towing eyelet
Jack handle (if equipped)*
Wheel nut wrench (if equipped)*
Jack (if equipped)*
Emergency tire puncture repair kit
*: A jack, jack handle and wheel nut wrench can be purchased at any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

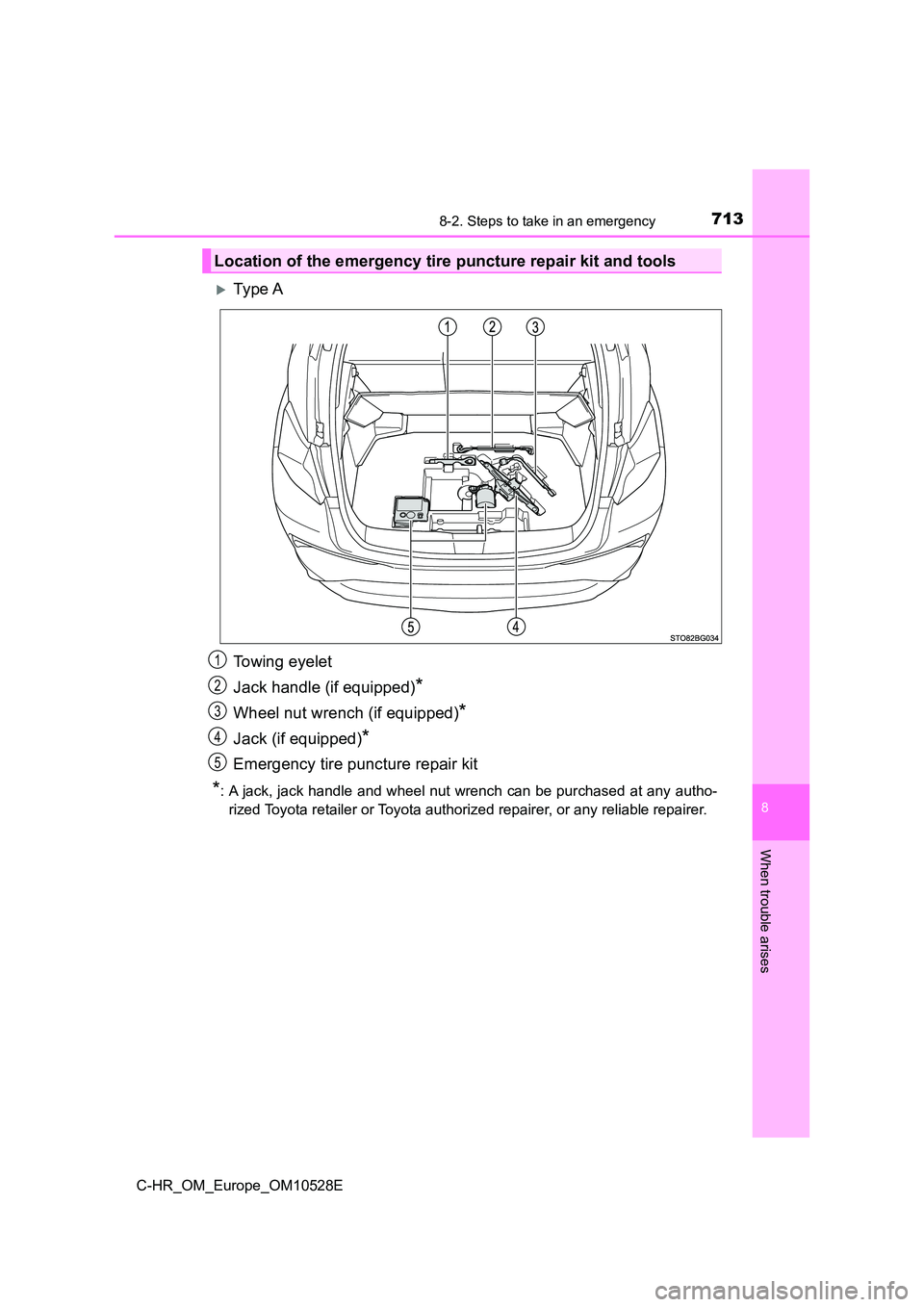

Location of the emergency tire puncture repair kit and tools
1
2
3
4
5

7148-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E

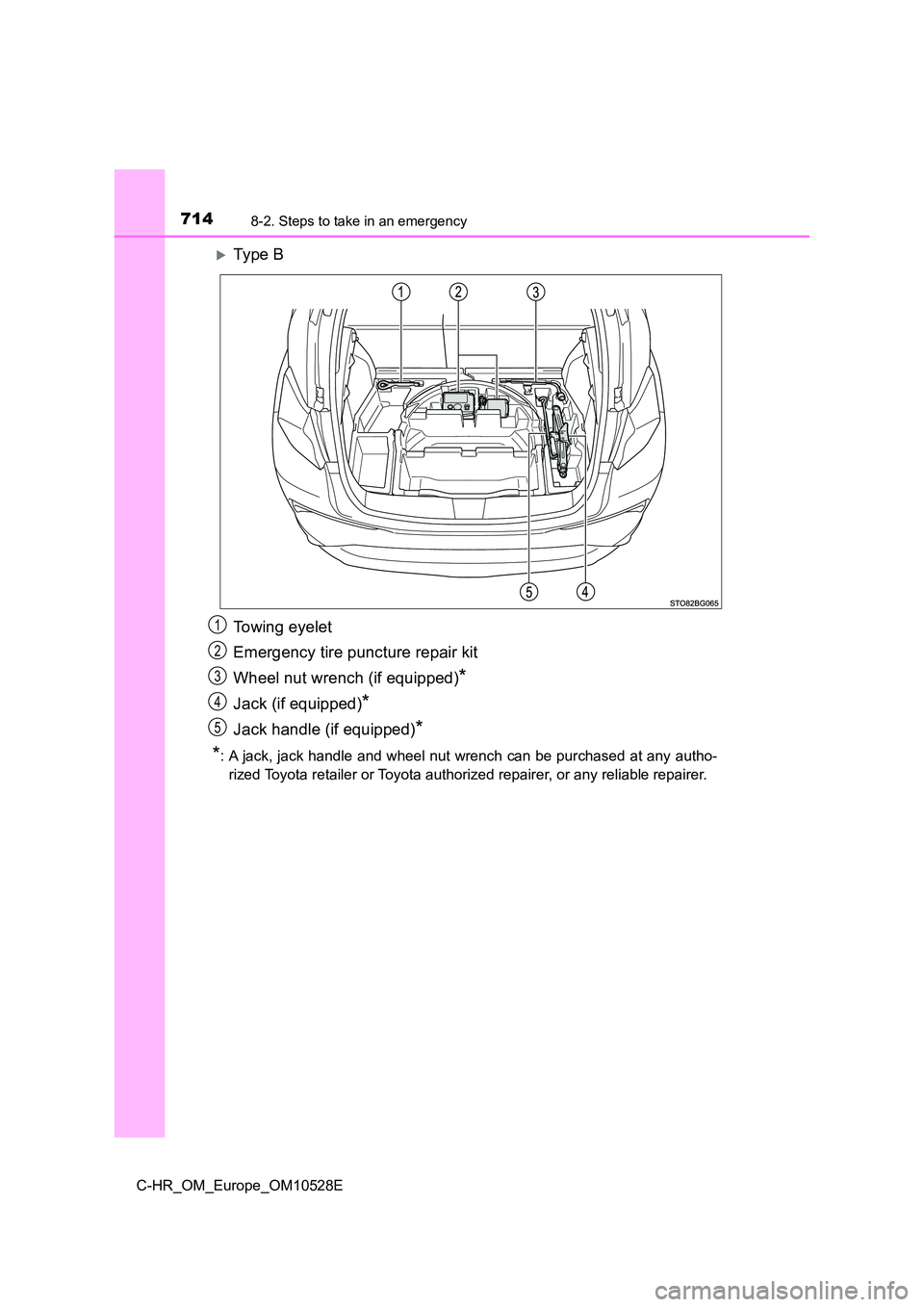

Ty pe B
Towing eyelet
Emergency tire puncture repair kit
Wheel nut wrench (if equipped)*
Jack (if equipped)*
Jack handle (if equipped)*
*: A jack, jack handle and wheel nut wrench can be purchased at any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
1
2
3
4
5

7158-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E

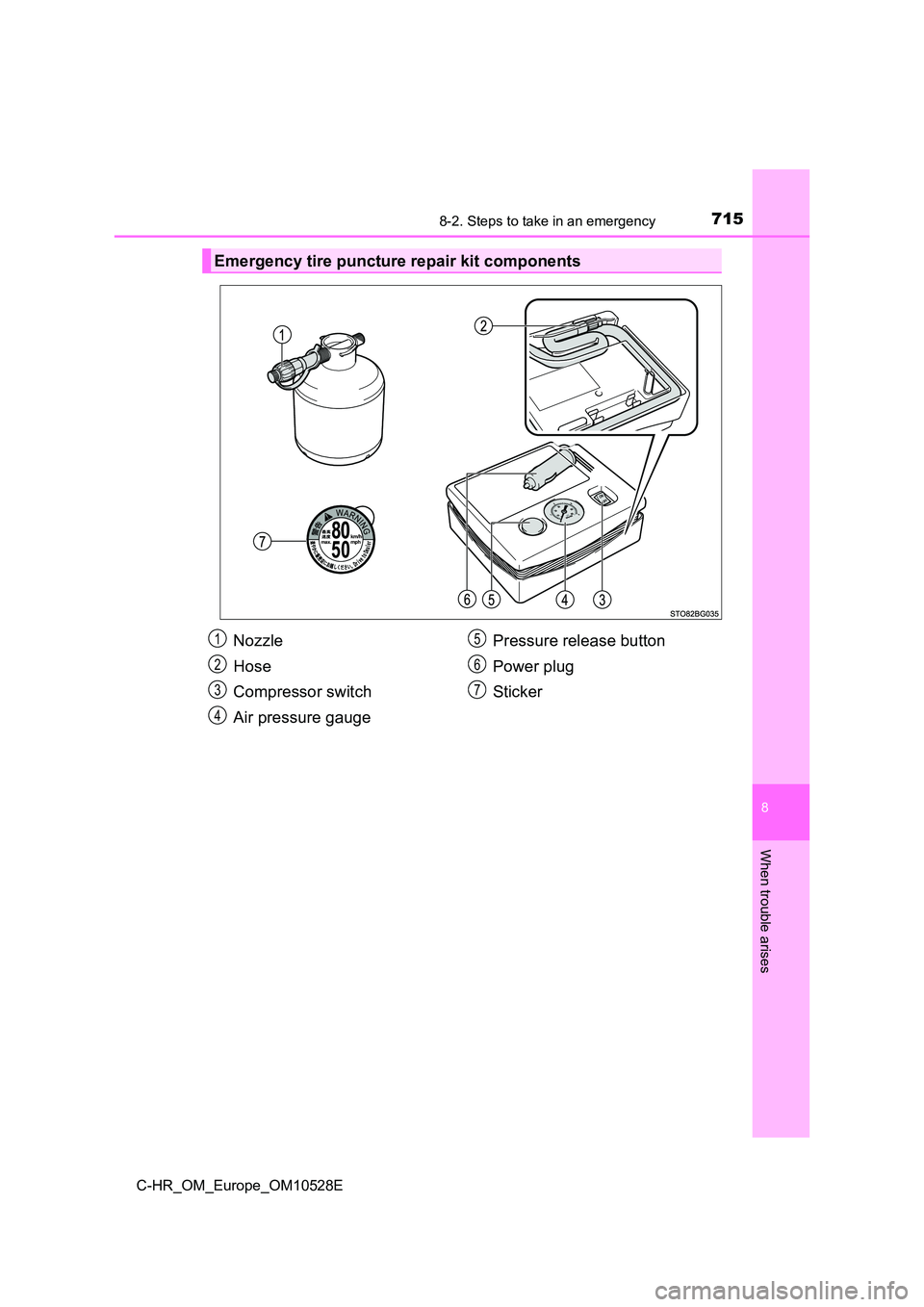

Emergency tire puncture repair kit components
Nozzle
Hose
Compressor switch
Air pressure gauge
Pressure release button
Power plug
Sticker
1
2
3
4
5
6
7

7168-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E

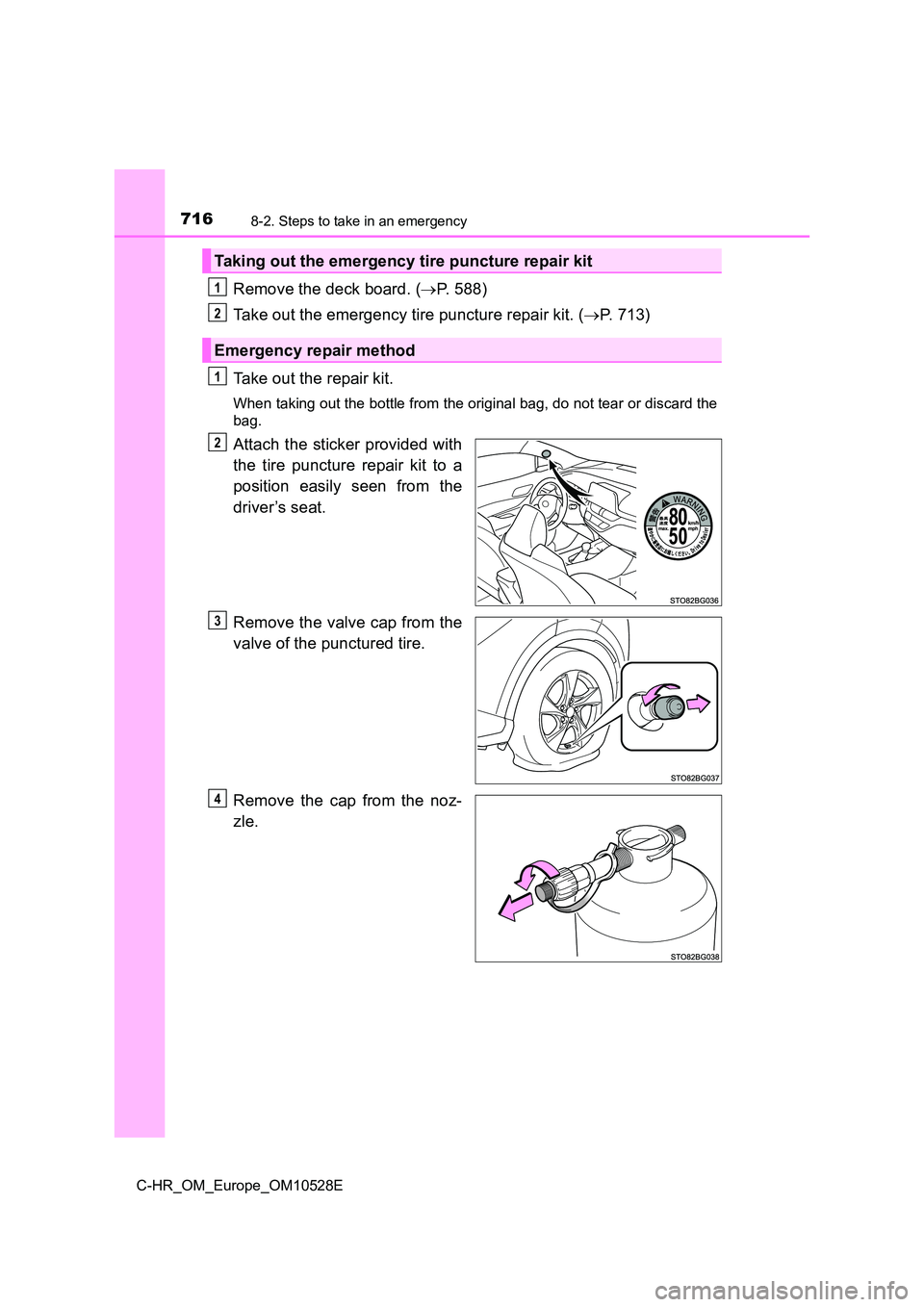

Remove the deck board. (P. 588)
Take out the emergency tire puncture repair kit. ( P. 713)
Take out the repair kit.
When taking out the bottle from the orig inal bag, do not tear or discard the
bag.
Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.
Remove the valve cap from the
valve of the punctured tire.
Remove the cap from the noz-
zle.
Taking out the emergency tire puncture repair kit
Emergency repair method
1
2
1
2
3
4

7178-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E

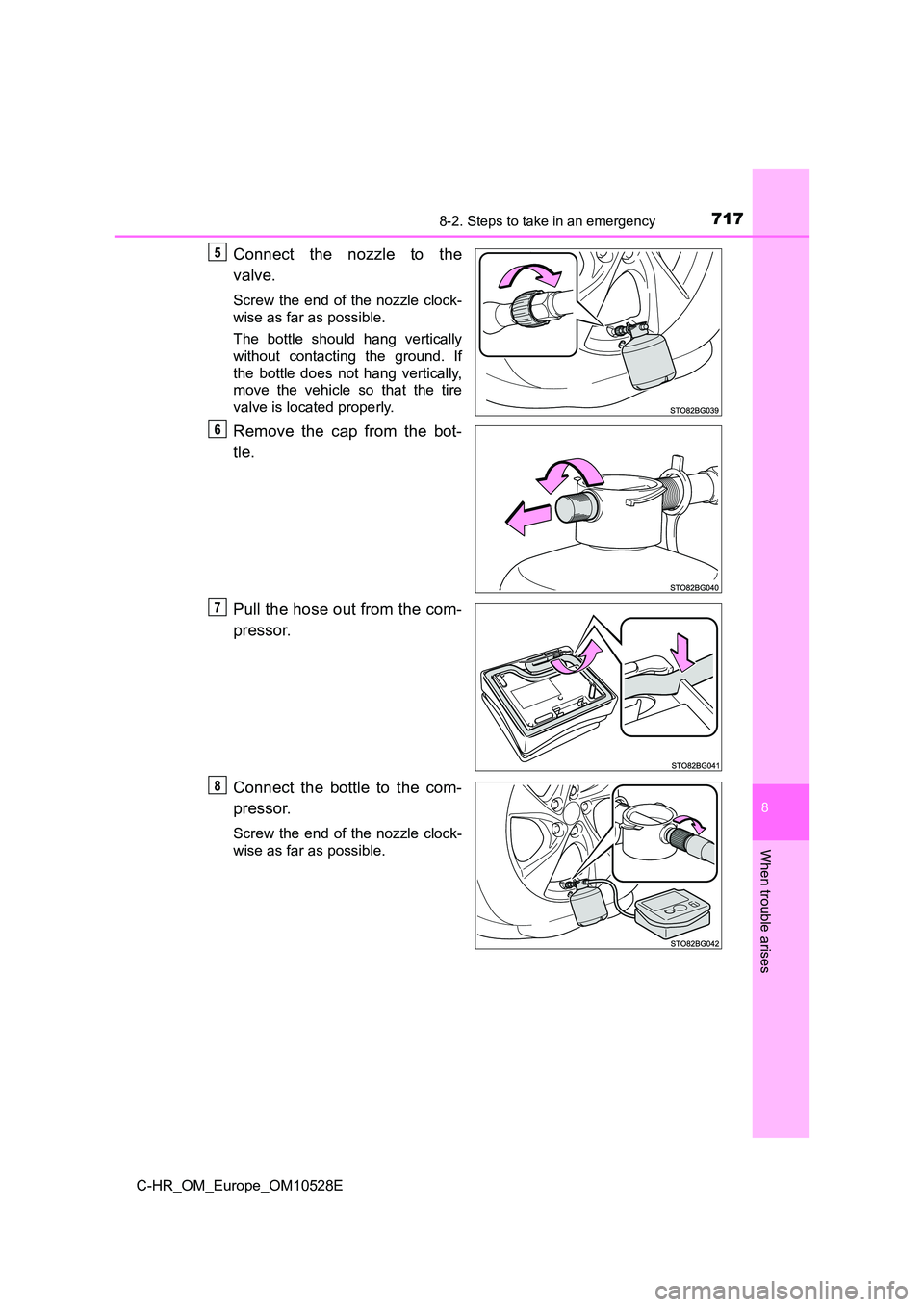

Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
Remove the cap from the bot-
tle.
Pull the hose out from the com-
pressor.
Connect the bottle to the com-
pressor.
Screw the end of the nozzle clock-
wise as far as possible.
5
6
7
8

7188-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E

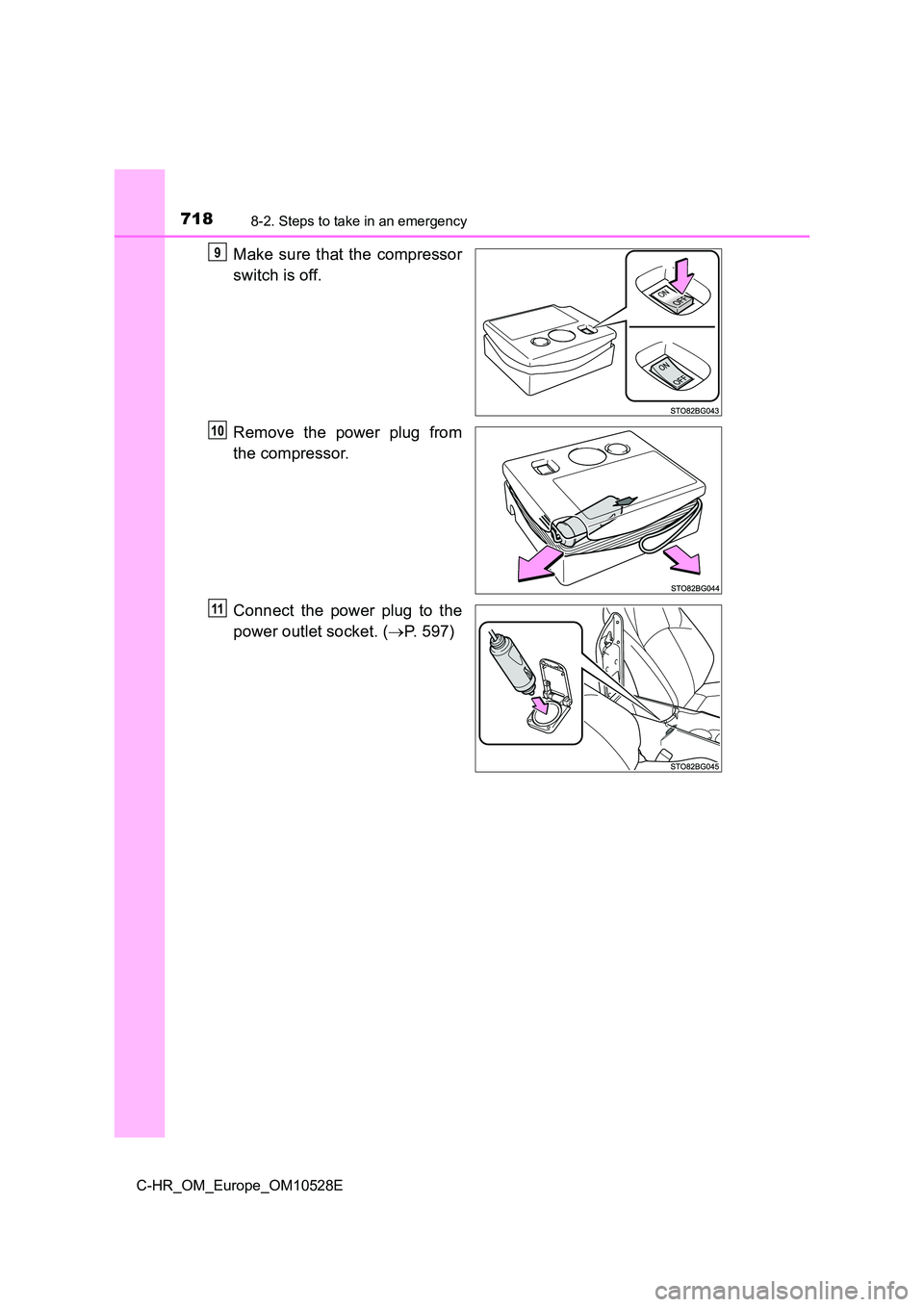

Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. ( P. 597)
9
10
11

7198-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 772)
Start the vehicle’s engine.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
12
Left-hand drive vehiclesRight-hand drive vehicles
13
14

7208-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E

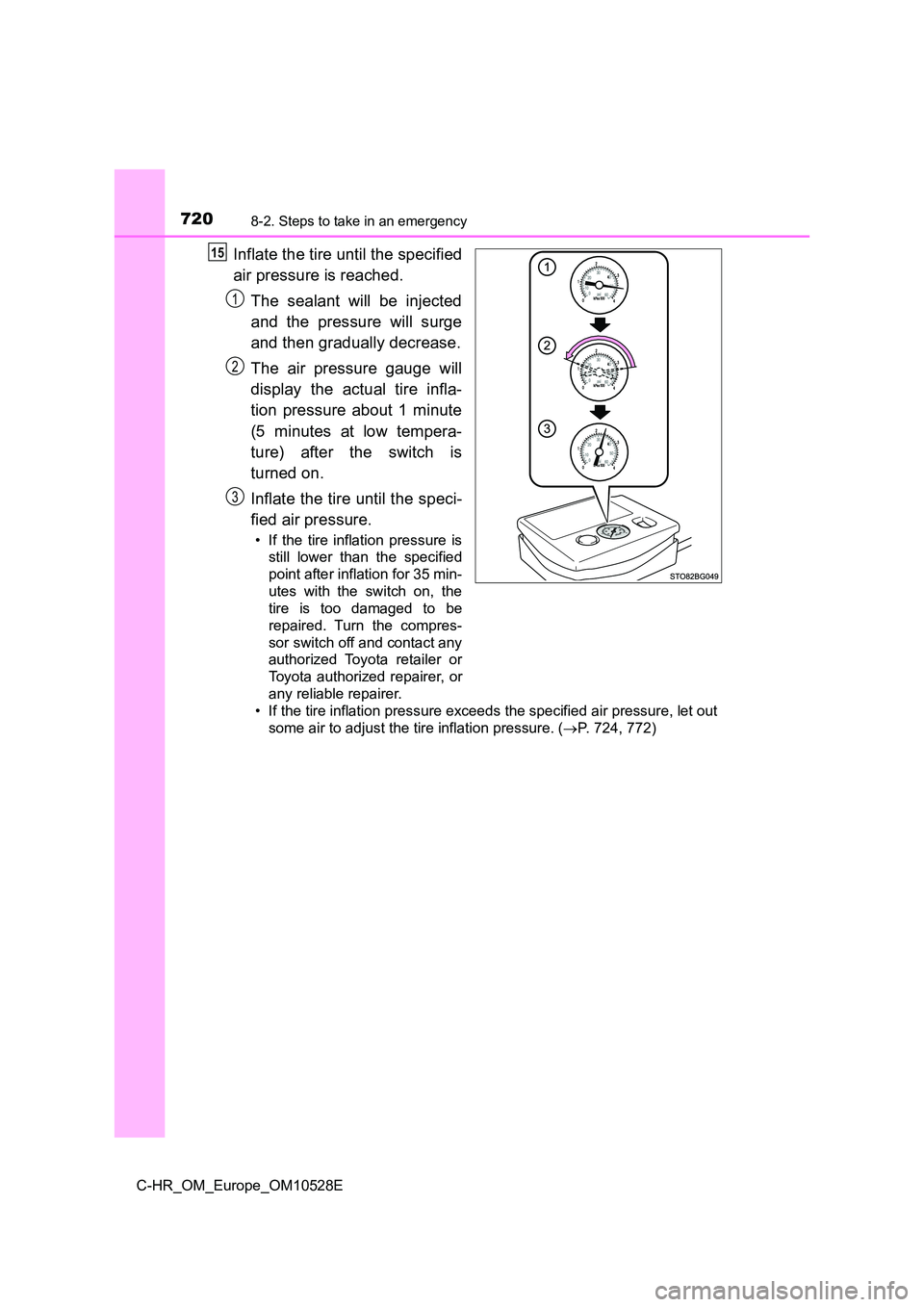

Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch on, the
tire is too damaged to be
repaired. Turn the compres-
sor switch off and contact any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
• If the tire inflation pressure exceeds the specified air pressure, let out
some air to adjust the tire inflation pressure. ( P. 724, 772)
15
1
2
3
