7318-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
Vehicles with a compact spare tire

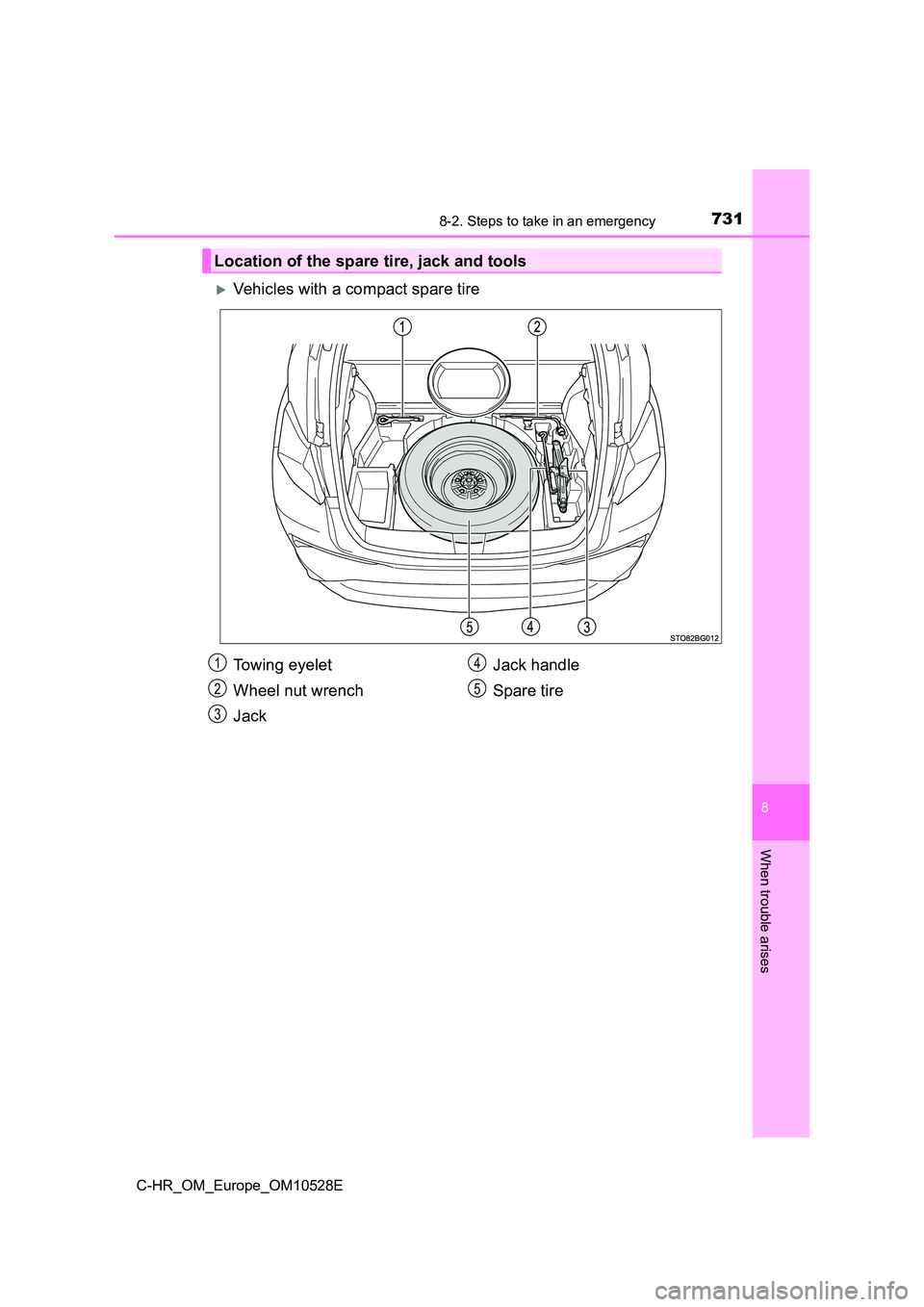

Location of the spare tire, jack and tools
Towing eyelet
Wheel nut wrench
Jack
Jack handle
Spare tire
1
2
3
4
5

7328-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E

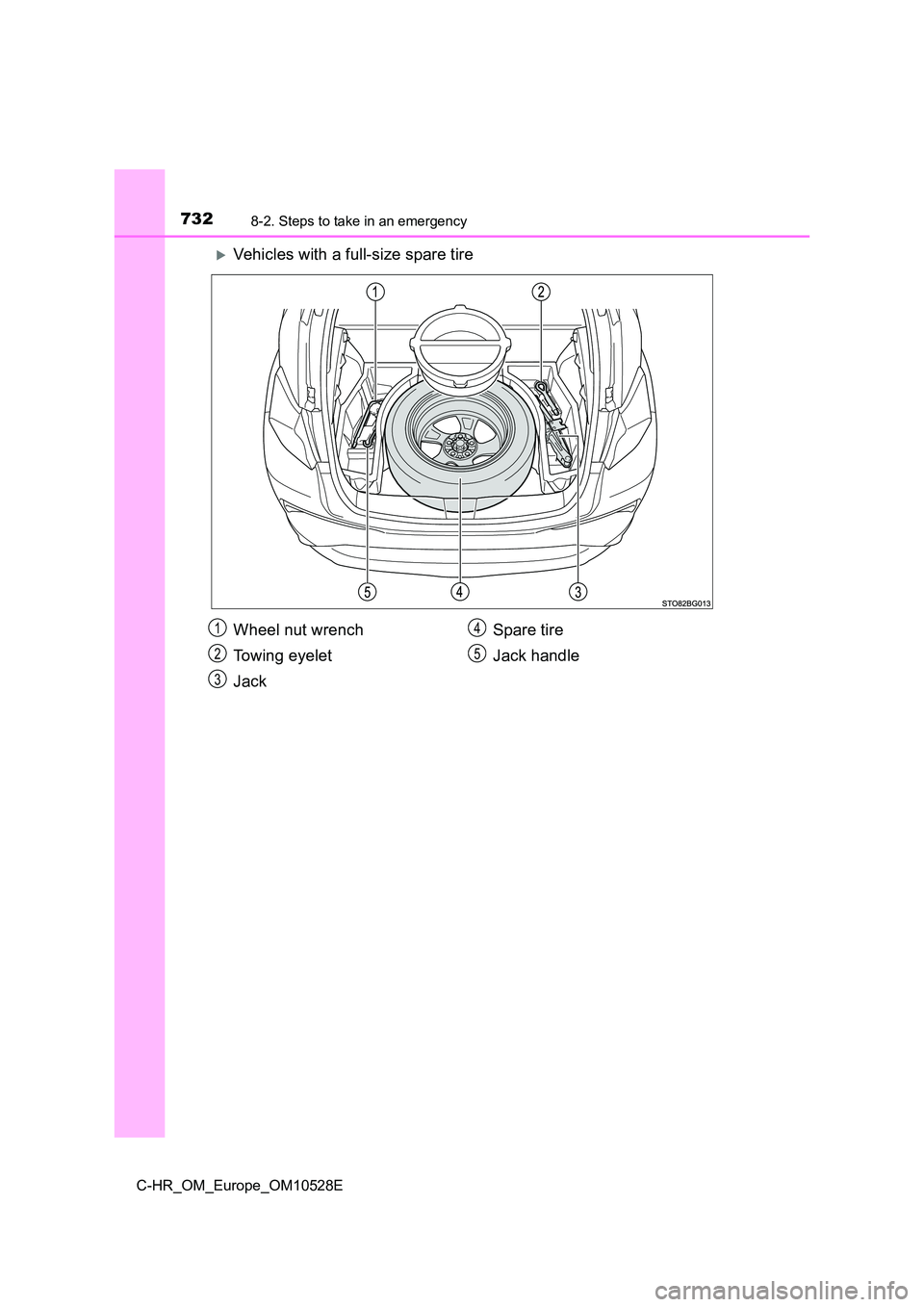

Vehicles with a full-size spare tire
Wheel nut wrench
Towing eyelet
Jack
Spare tire
Jack handle
1
2
3
4
5

7338-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E

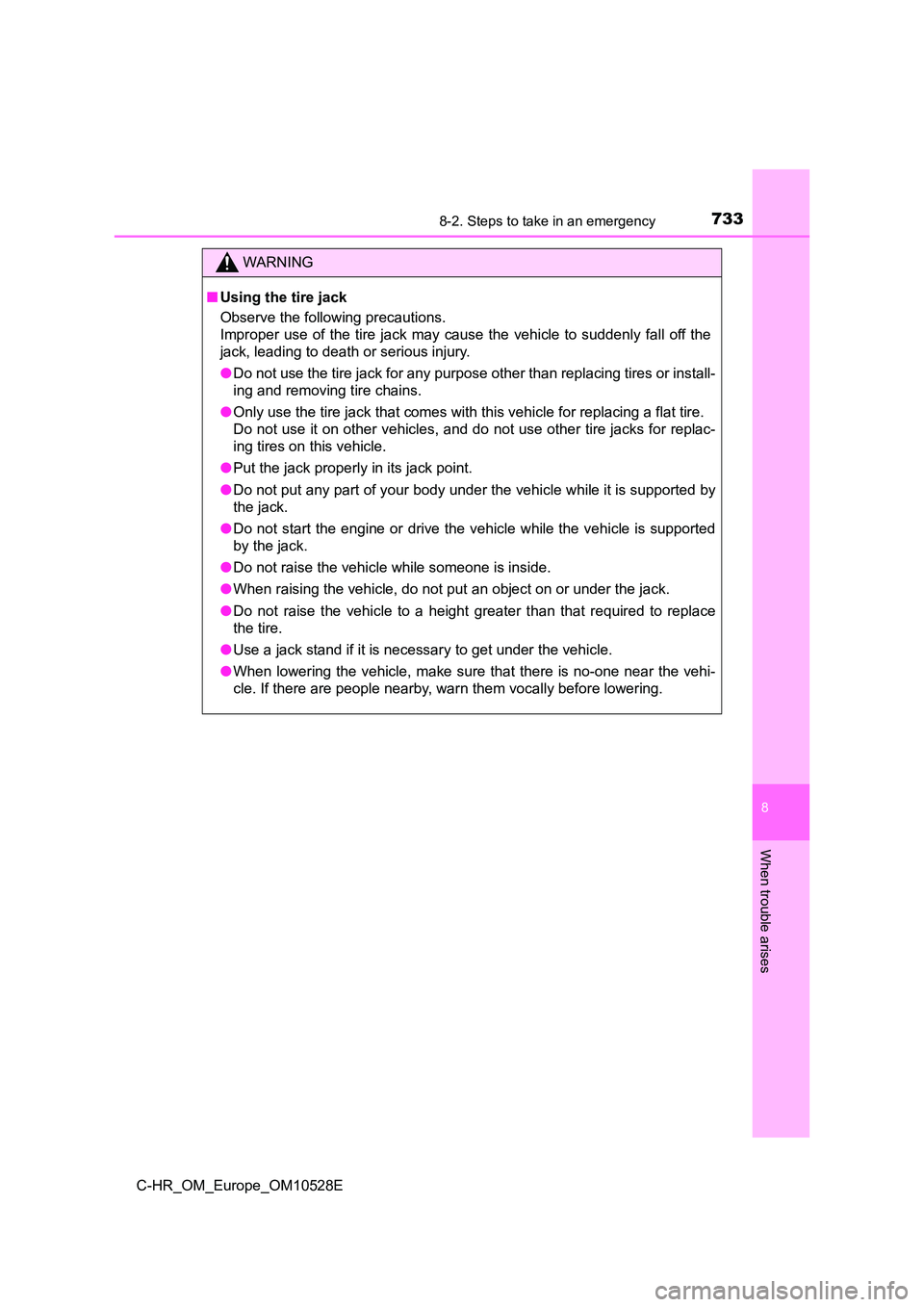

WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Put the jack properly in its jack point.
● Do not put any part of your body under the vehicle while it is supported by
the jack.
● Do not start the engine or drive the vehicle while the vehicle is supported
by the jack.
● Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.

7348-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E
Remove the deck board. (P. 588)
Take out the jack.
Remove the deck board. ( P. 588)
Remove the cushion.
Loosen the center fastener that
secures the spare tire.

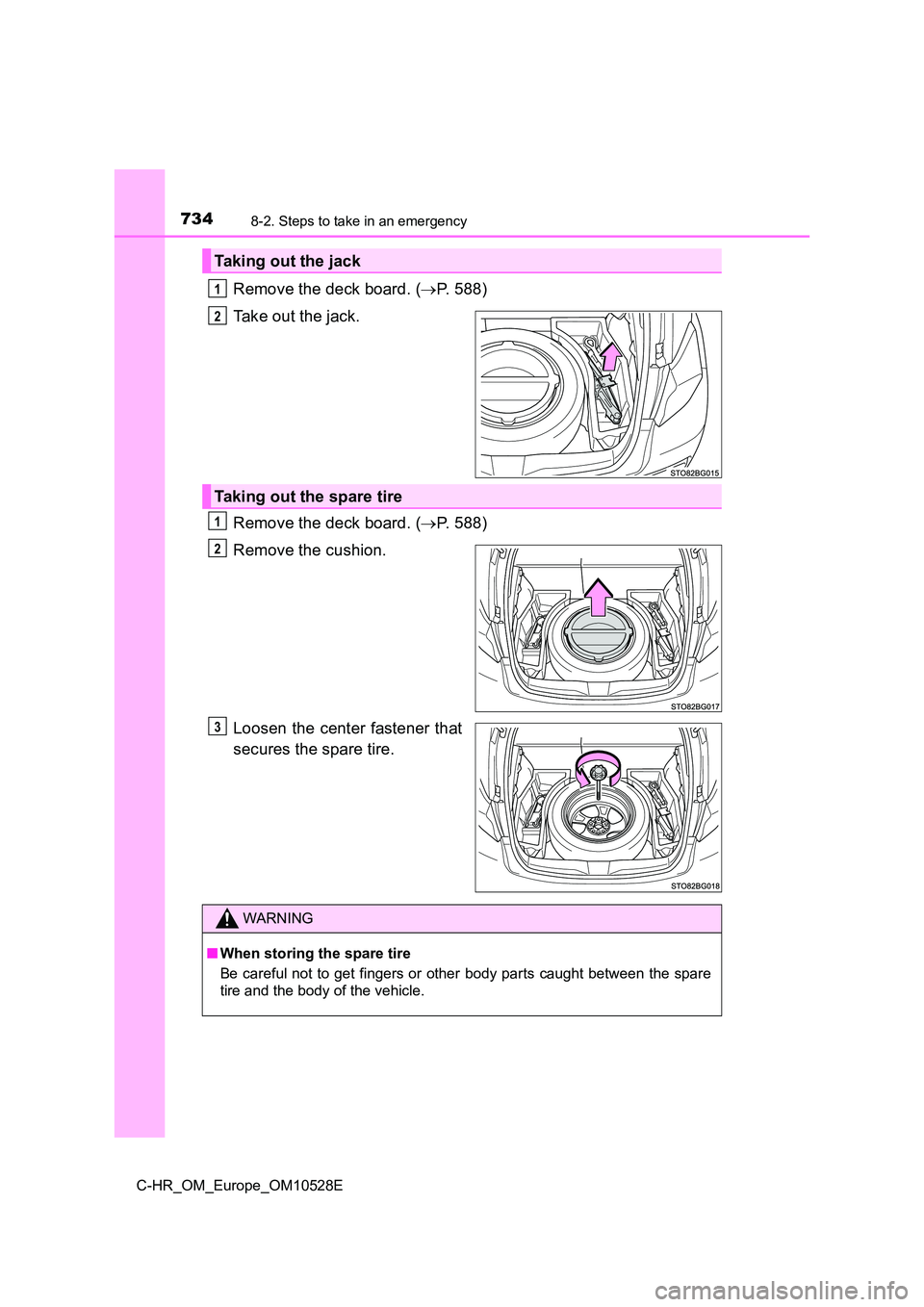

Taking out the jack
1
2
Taking out the spare tire
1
2
3
WARNING
■ When storing the spare tire
Be careful not to get fingers or other body parts caught between the spare
tire and the body of the vehicle.

7358-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E

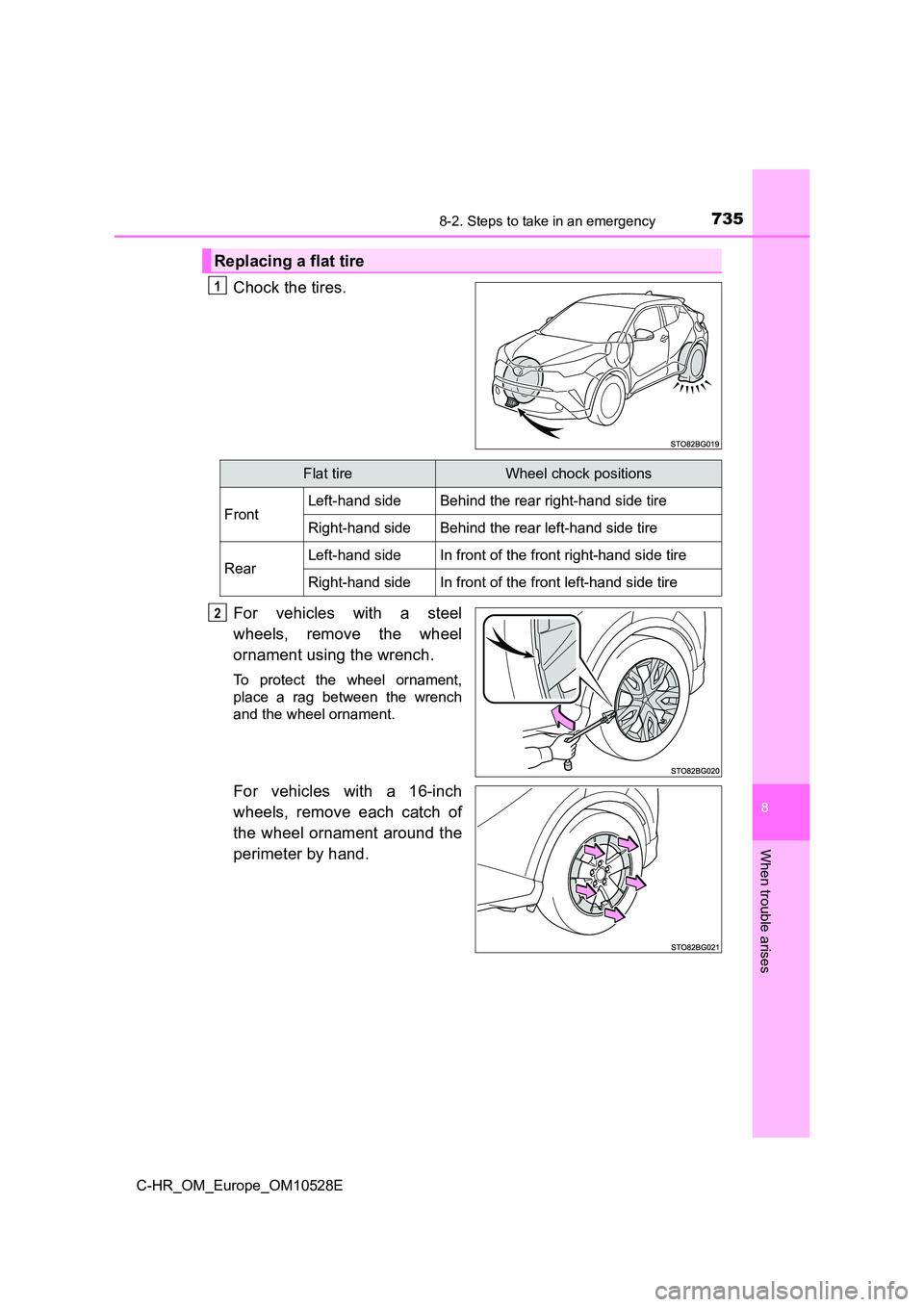

Chock the tires.
For vehicles with a steel
wheels, remove the wheel
ornament using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament.
For vehicles with a 16-inch
wheels, remove each catch of
the wheel ornament around the
perimeter by hand.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2

7368-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E

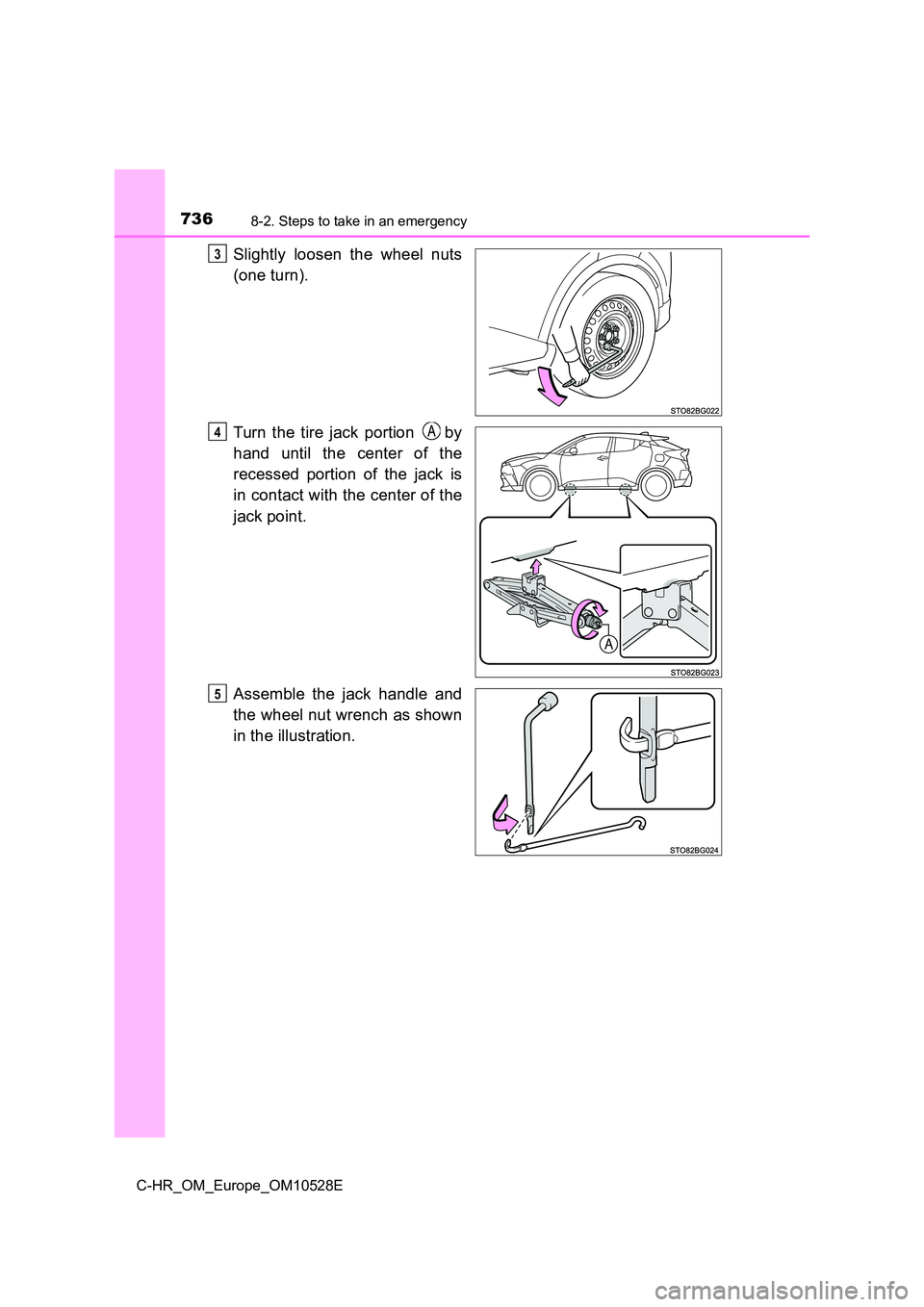

Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion by
hand until the center of the
recessed portion of the jack is
in contact with the center of the
jack point.
Assemble the jack handle and
the wheel nut wrench as shown
in the illustration.
3
4
5

7378-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E

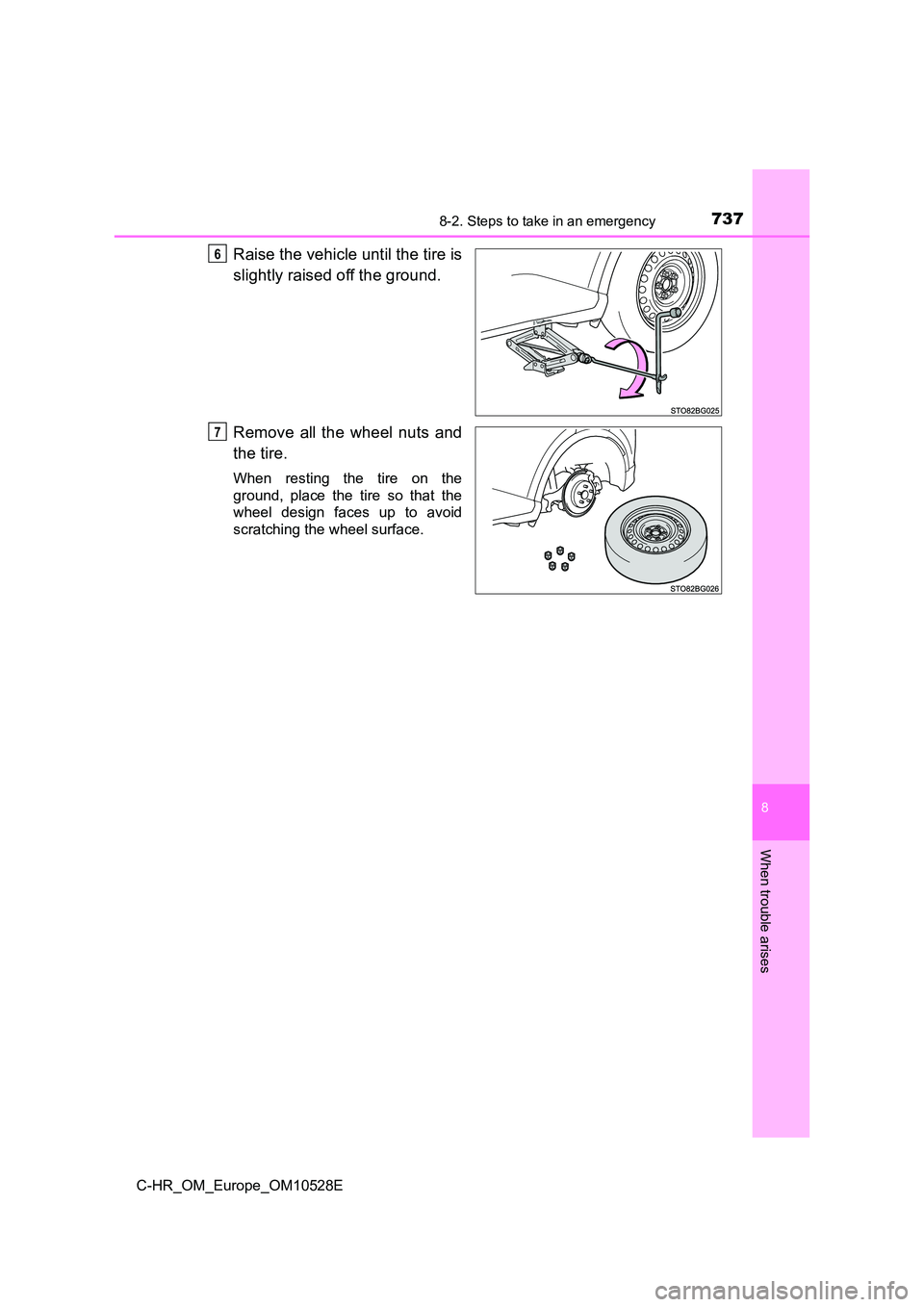

Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
6
7

7388-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E

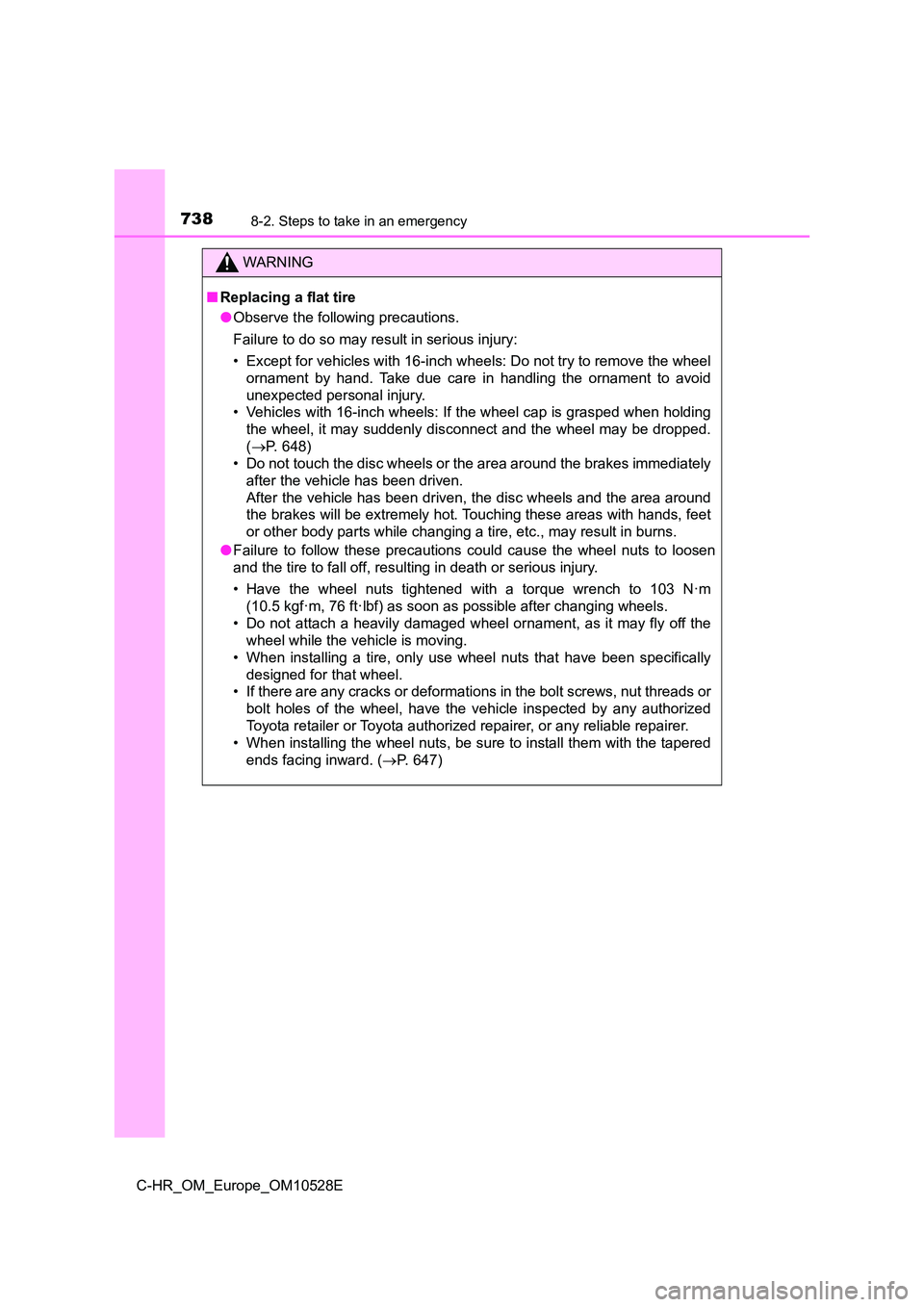

WARNING
■Replacing a flat tire
● Observe the following precautions.
Failure to do so may result in serious injury:
• Except for vehicles with 16-inch wheels: Do not try to remove the wheel
ornament by hand. Take due care in handling the ornament to avoid
unexpected personal injury.
• Vehicles with 16-inch wheels: If the wheel cap is grasped when holding
the wheel, it may suddenly disconnect and the wheel may be dropped.
( P. 648)
• Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven, the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc., may result in burns.
● Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota retailer or Toyota authoriz ed repairer, or any reliable repairer.
• When installing the wheel nuts, be sure to install them with the tapered
ends facing inward. ( P. 647)

7398-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.

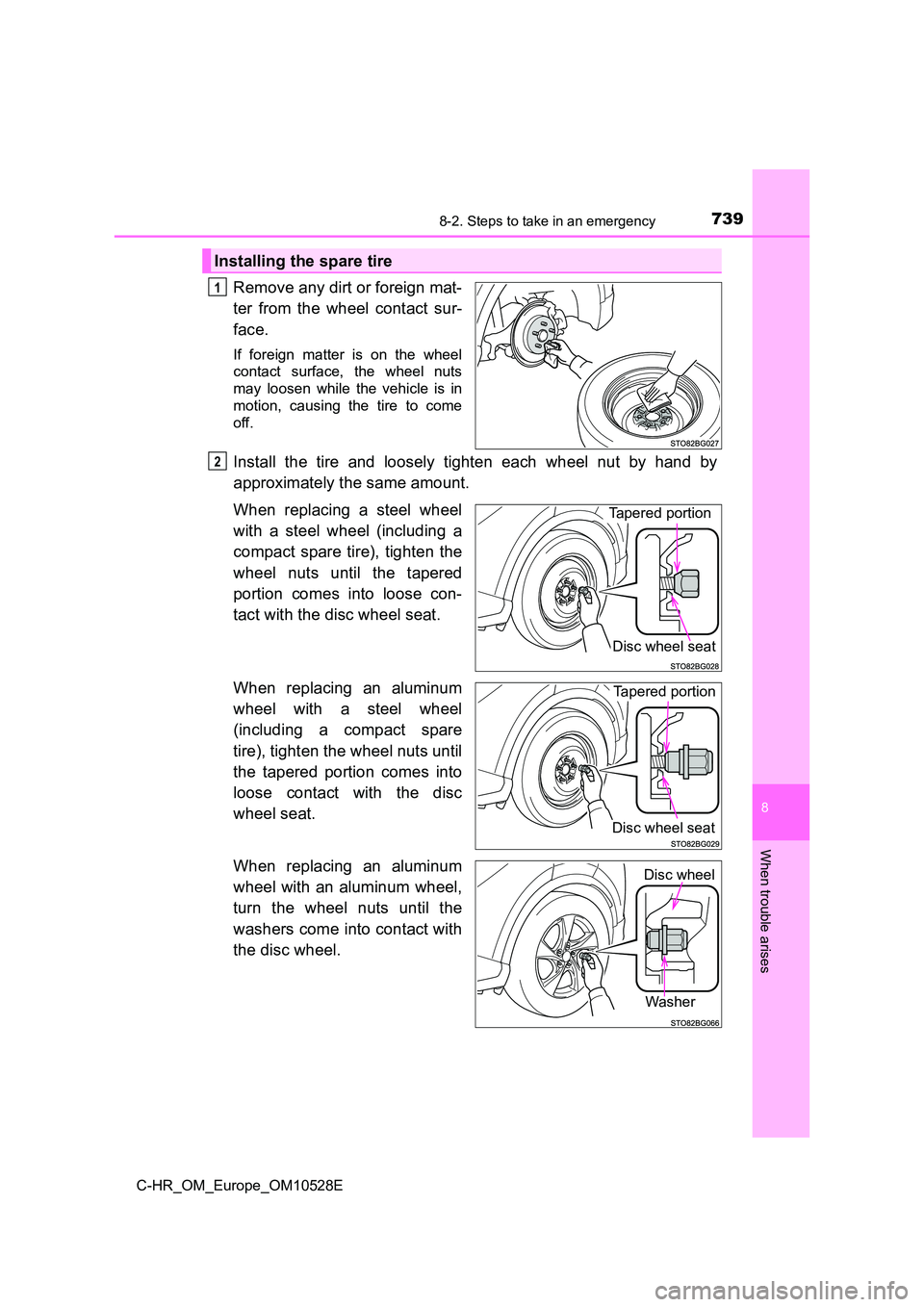

Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing a steel wheel
with a steel wheel (including a
compact spare tire), tighten the
wheel nuts until the tapered
portion comes into loose con-
tact with the disc wheel seat.
When replacing an aluminum
wheel with a steel wheel
(including a compact spare
tire), tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
When replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
Installing the spare tire
1
2
Tapered portion
Disc wheel seat
Tapered portion
Disc wheel seat
Washer
Disc wheel

7408-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E

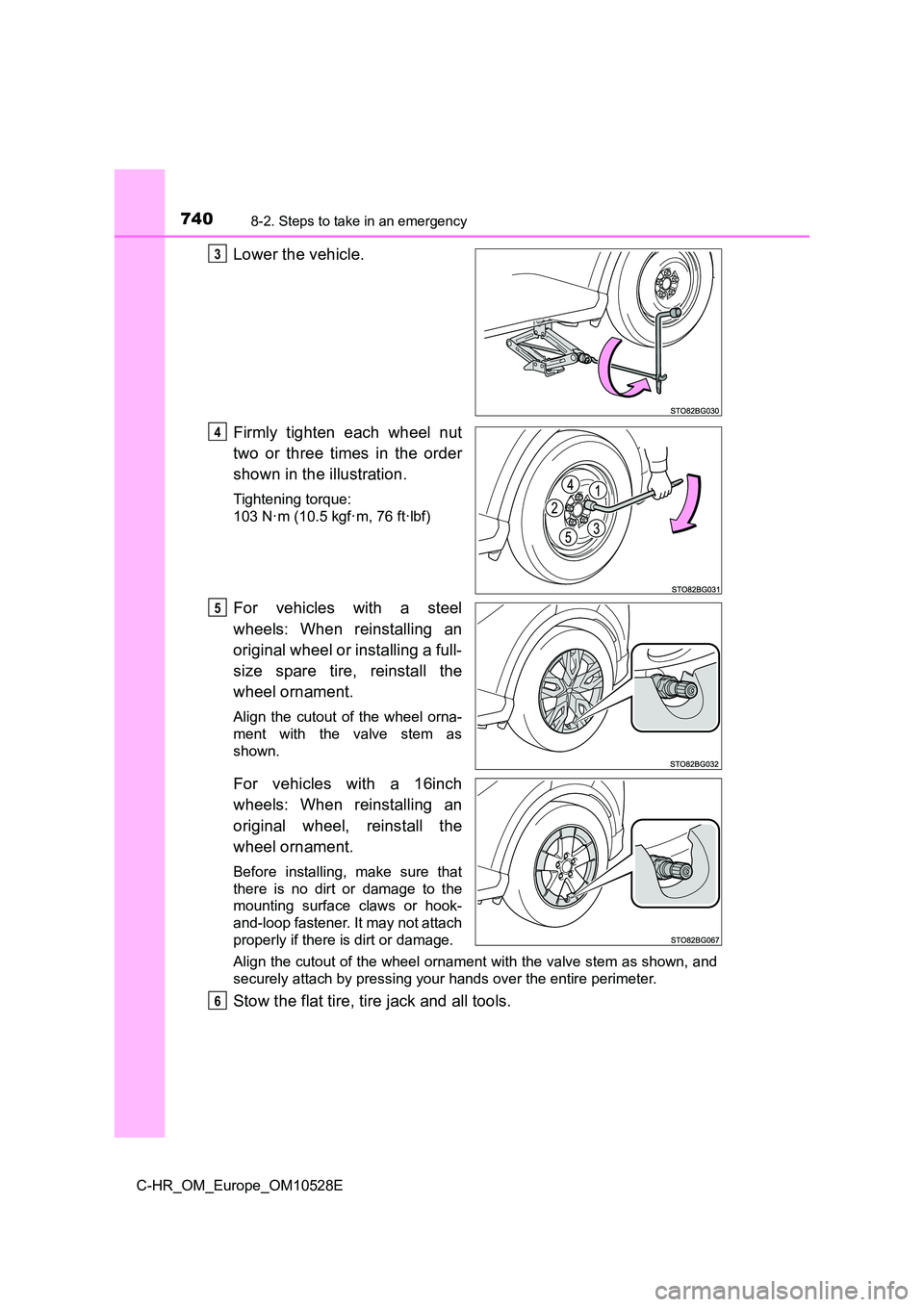

Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 N·m (10.5 kgf·m, 76 ft·lbf)
For vehicles with a steel
wheels: When reinstalling an
original wheel or installing a full-
size spare tire, reinstall the
wheel ornament.
Align the cutout of the wheel orna-
ment with the valve stem as
shown.
For vehicles with a 16inch
wheels: When reinstalling an
original wheel, reinstall the
wheel ornament.
Before installing, make sure that
there is no dirt or damage to the
mounting surface claws or hook-
and-loop fastener. It may not attach
properly if there is dirt or damage.
Align the cutout of the wheel ornament with the valve stem as shown, and
securely attach by pressing your hands over the entire perimeter.
Stow the flat tire, tire jack and all tools.
3
4
5
6
