812. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10526U
The indicators inform the driver of the operating state of the vehicle’s
various systems.

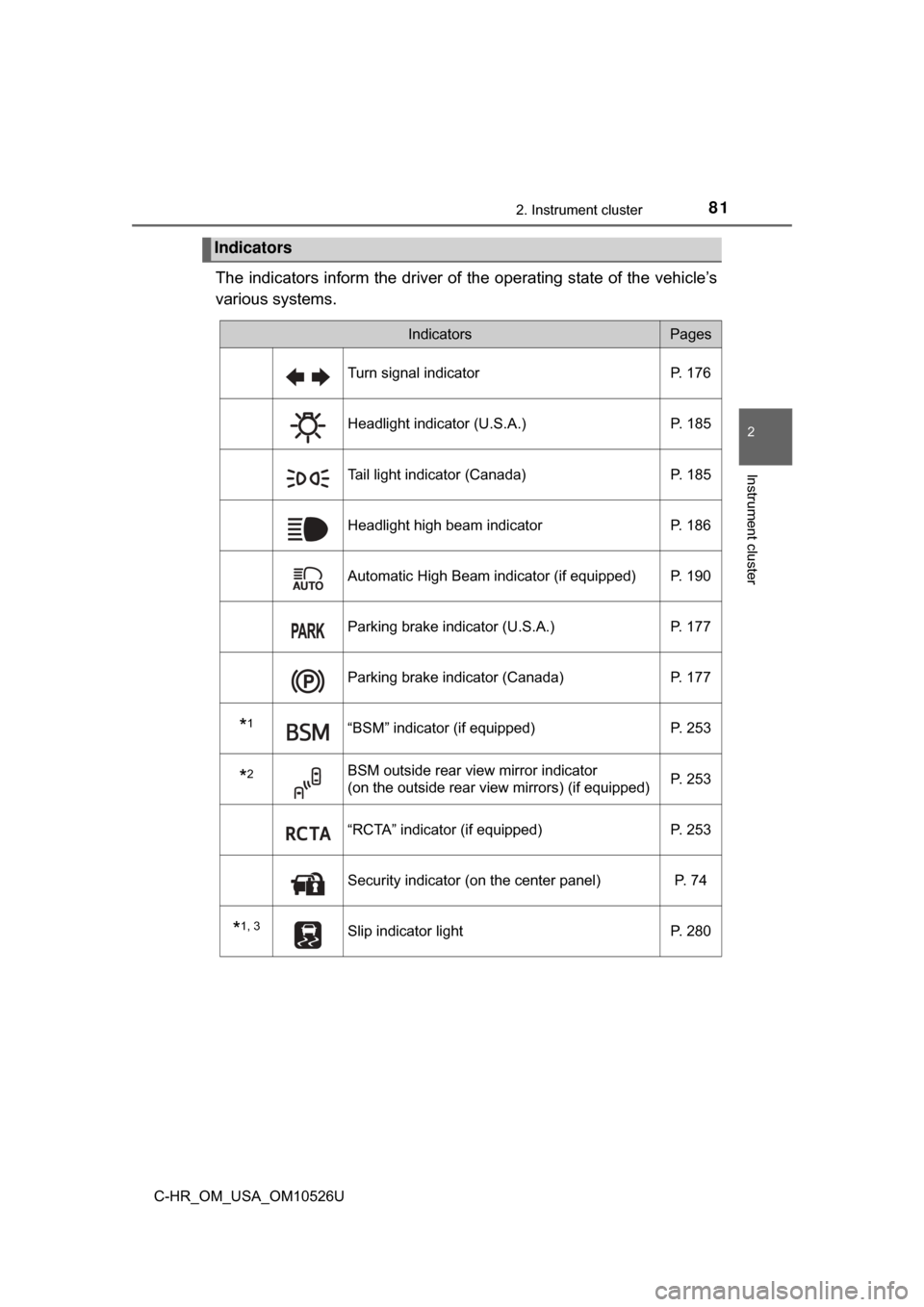

Indicators
IndicatorsPages
Turn signal indicator P. 176
Headlight indicator (U.S.A.) P. 185
Tail light indicator (Canada)P. 185
Headlight high beam indicatorP. 186
Automatic High Beam indicator (if equipped) P. 190
Parking brake indicator (U.S.A.)P. 177
Parking brake indicator (Canada)P. 177
*1“BSM” indicator (if equipped) P. 253
*2BSM outside rear view mirror indicator
(on the outside rear view mirrors) (if equipped)P. 253
“RCTA” indicator (if equipped)
P. 253
Security indicator (on the center panel) P. 74
*1, 3Slip indicator lightP. 280

822. Instrument cluster
C-HR_OM_USA_OM10526U
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*2: In order to confirm operation, the BS M outside rear view mirror indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles without a smart key system) or IGNITION ON mode (vehicles with a smart key
system), the BSM function is enabled on the screen of the multi-
information display.
• When the BSM function is enabled on the screen of the multi- information display, the engine switch is turned to the “ON” position
(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system).
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.
*3: The light flashes to indicate that the system is operating.
*4: The light turns on when the system is off.
*1VSC off indicator P. 280
*1, 4PCS warning light (if equipped) P. 215
*1“AIR BAG ON/OFF” indicator (on the center
panel) (if equipped) P. 4 6
IndicatorsPages

832. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10526U
*: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
Indicators and symbols displaye d on the multi-information dis-
play
IndicatorsPages
*Brake hold operated indicator P. 182
*Brake hold standby indicatorP. 182
LDA indicator P. 230
Cruise control indicator P. 236
Cruise control “SET” indicator P. 236
Radar cruise control indicator P. 236
“SPORT” indicator P. 251
“ECO MODE” indicator P. 251
Eco Driving Indicator Light P. 85
Low outside temperature indicator P. 86

842. Instrument cluster
C-HR_OM_USA_OM10526U
Symbols on multi-information displayPages
Charging system warning light P. 408
Low engine oil pressure warning light P. 408
High engine coolant temperature warning light P. 411
Smart key system (if equipped) P. 165
Brake Override System/Drive-Start Control P. 412

852. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10526U
■Eco Driving Indicator Light
Eco Driving Indicator Light will not operate in the following conditions:
●The shift lever is in anything other than D.
● The vehicle is being driven in “SPORT” mode ( →P. 251)
● The vehicle speed is approximately 80 mph (130 km/h) or higher.
During Eco-Friendly acceleration (Eco
driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds
Zone of Eco driving, and when the vehicle
is stopped, the light turns off.
Eco Driving Indicator Light availability can
be customized. The default setting is on.
(
→P. 475)
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and SRS airbag warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer.

862. Instrument cluster
C-HR_OM_USA_OM10526U
Gauges and meters
The units used on the speedometer may differ depending on the tar-
get region.Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
Presents the driver with a variety of driving-related data. ( →P. 89)
Displays warning messages in case of a malfunction. ( →P. 418)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Outside temperature display
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.

872. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10526U
Odometer and trip meter display
Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
Maintenance required information (U.S.A. only):
Displays the remaining distance until the engine oil should be changed. If
“-” is displayed before distance, it means oil maintenance is overdue. Have
the engine oil changed by your Toyota dealer.• Displays the maintenance required information when the engine switch is turned to the “ON” position (vehicles without smart key system) or in
IGNITION ON mode (vehicles with smart key system).
• Maintenance required information reset method (→P. 328)
Shift position and shift range display
Displays the selected shift position or selected shift range. ( →P. 171)
Engine coolant temperature gauge
Displays the engine coolant temperature.
Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
When the trip meter is displayed,
pressing and holding the “TRIP”
switch will reset the trip meter.
Changing the display

882. Instrument cluster
C-HR_OM_USA_OM10526U

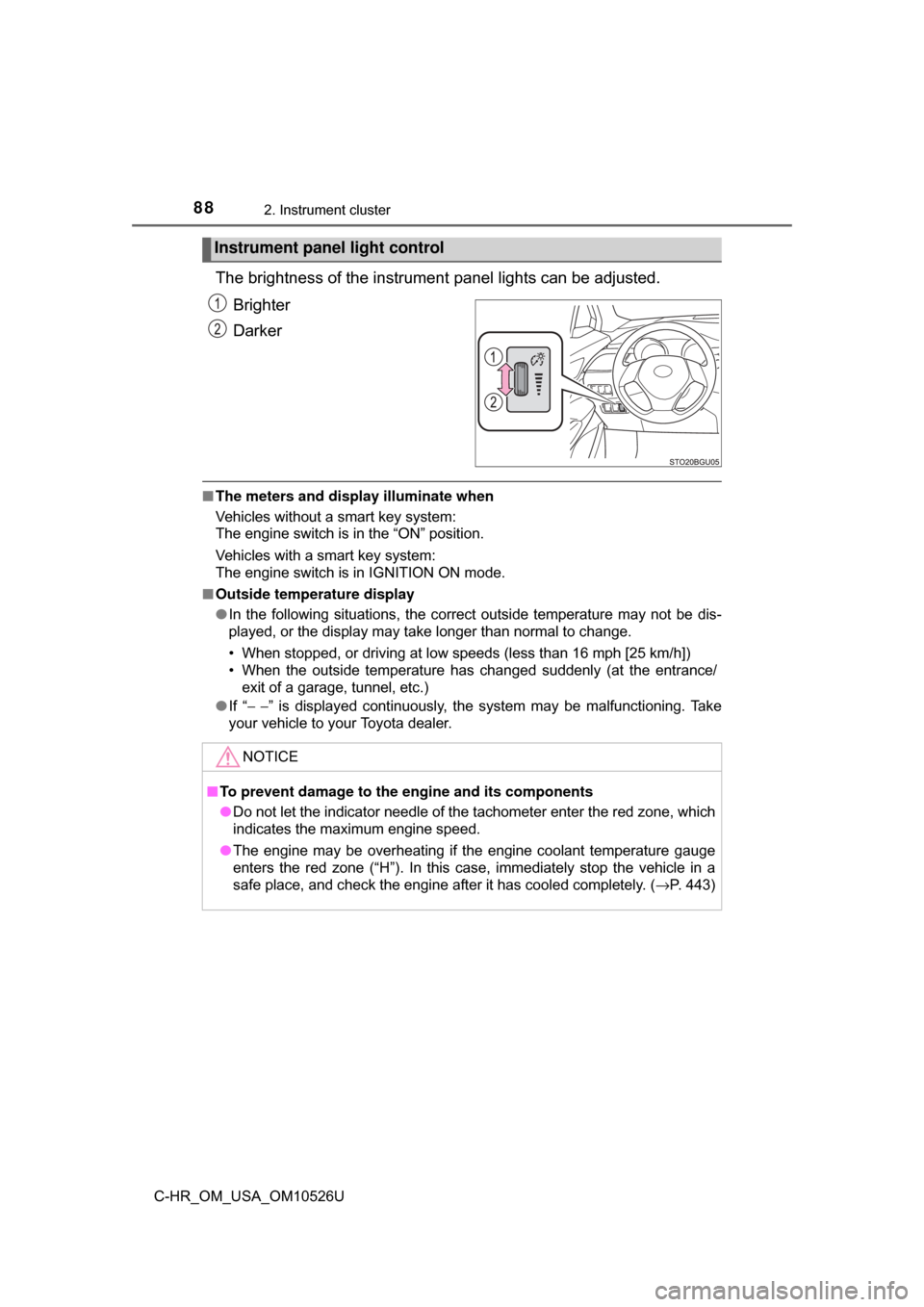

The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
■ The meters and display illuminate when
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The engine switch is in IGNITION ON mode.
■ Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 16 mph [25 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● If “ − −” is displayed continuously, the system may be malfunctioning. Take
your vehicle to your Toyota dealer.
Instrument panel light control
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge
enters the red zone (“H”). In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. ( →P. 443)

892. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10526U

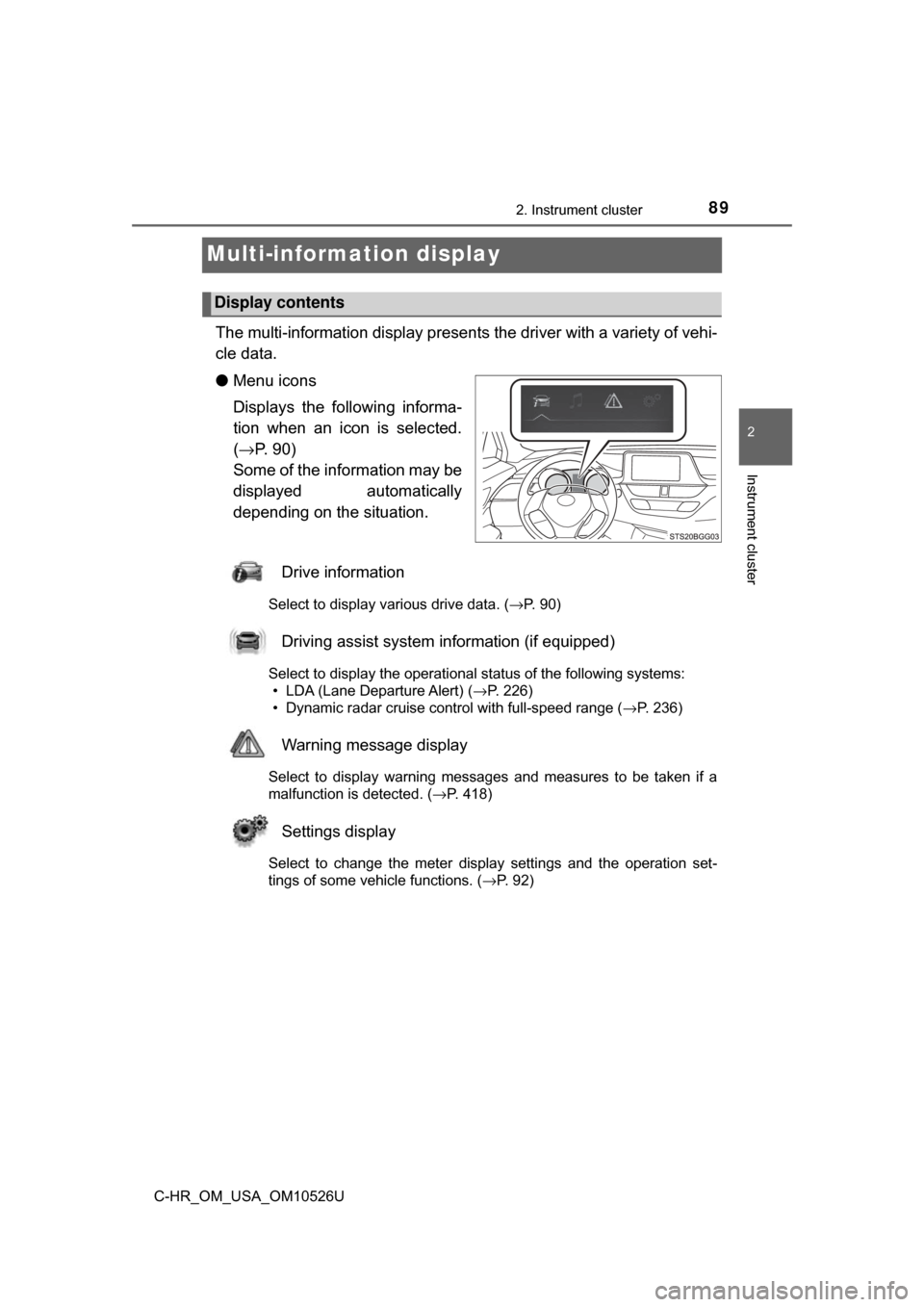

Multi-information display
The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons
Displays the following informa-
tion when an icon is selected.
(→ P. 90)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( →P. 90)
Driving assist system information (if equipped)
Select to display the operational status of the following systems:
• LDA (Lane Departure Alert) ( →P. 226)
• Dynamic radar cruise control with full-speed range ( →P. 236)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (→P. 418)
Settings display
Select to change the meter display settings and the operation set-
tings of some vehicle functions. ( →P. 92)
Display contents

902. Instrument cluster
C-HR_OM_USA_OM10526U
The multi-information display is
operated using the meter control
switches.Return to the previous screen
Enter/set
Select an item/change pages
● Current fuel consumption (zo ne display/numerical display)
*1
Displays the current rate of fuel consumption.
●Average fuel consumption (after reset*2/after start/after refuel)*1
Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.
●Average vehicle speed (after reset*2/after start)*1
Displays the average vehicle speed since the function was reset and the
engine was started, respectively
●Elapsed time (after reset*2/after start)*1
Displays the elapsed time since the function was reset and the engine was
started, respectively
Operating the meter control switches
Drive information
