711-2. Child safety
1
For safety and security
C-HR_OM_USA_OM10526U■
Fixing the top tether strap to the anchor bracket
Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.

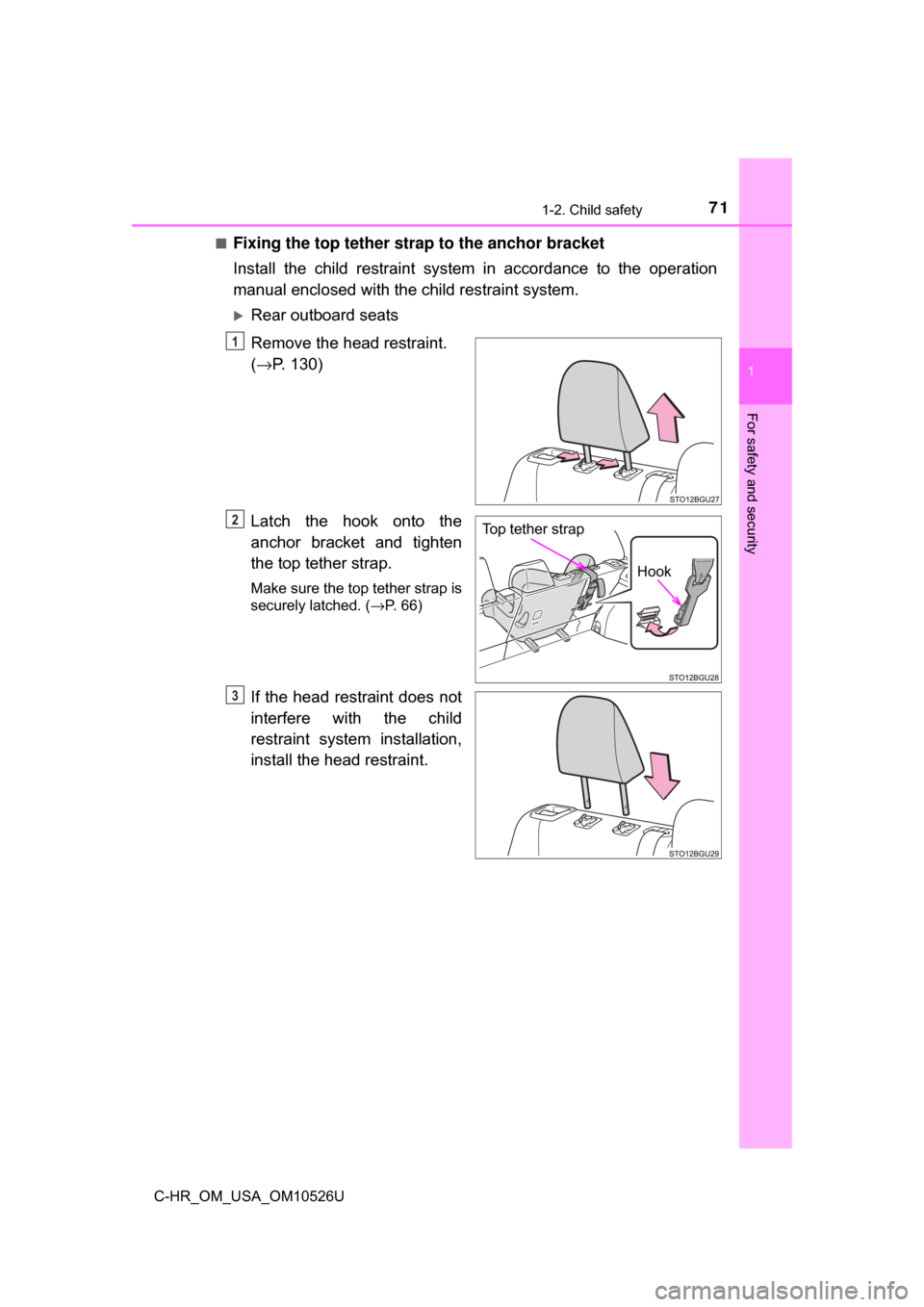

Rear outboard seats
Remove the head restraint.
(
→ P. 130)
Latch the hook onto the
anchor bracket and tighten
the top tether strap.
Make sure the top tether strap is
securely latched. ( →P. 66)
If the head restraint does not
interfere with the child
restraint system installation,
install the head restraint.
1
Top tether strap
Hook
2
3

721-2. Child safety
C-HR_OM_USA_OM10526U

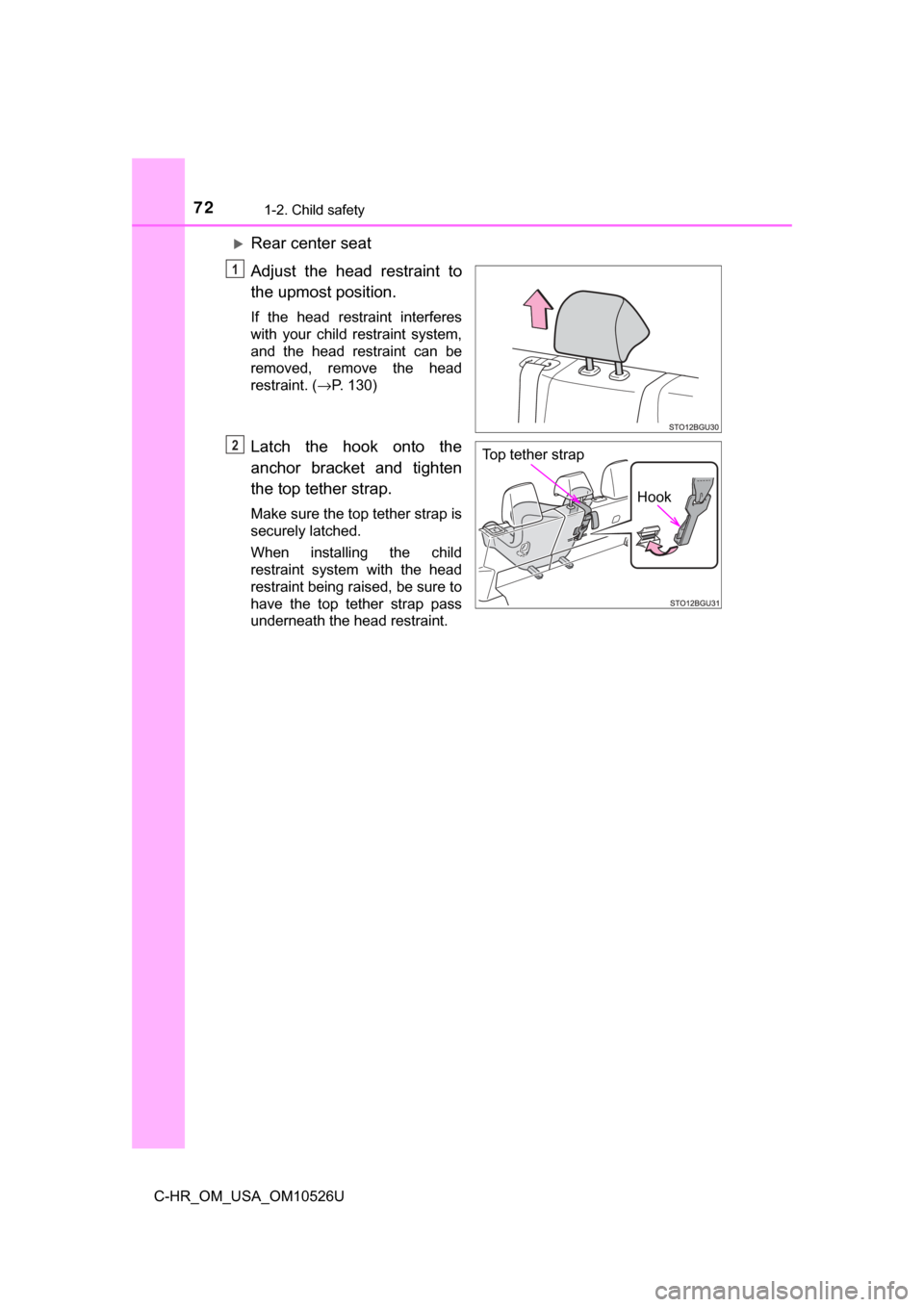

Rear center seat
Adjust the head restraint to
the upmost position.
If the head restraint interferes
with your child restraint system,
and the head restraint can be
removed, remove the head
restraint. (→P. 130)
Latch the hook onto the
anchor bracket and tighten
the top tether strap.
Make sure the top tether strap is
securely latched.
When installing the child
restraint system with the head
restraint being raised, be sure to
have the top tether strap pass
underneath the head restraint.
1
Top tether strap
Hook
2

731-2. Child safety
1
For safety and security
C-HR_OM_USA_OM10526U
■Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.
WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Firmly attach the top tether strap and make sure that the belt is not twisted.
● Do not attach the top tether strap to anything other than the anchor
bracket.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● Rear center seat: When installing the child restraint system with the head
restraint being raised, after the head restraint has been raised and then
the anchor bracket has been fixed, do not lower the head restraint.

741-3. Theft deterrent system
C-HR_OM_USA_OM10526U
Engine immobilizer system
Vehicles without a smart key sys-
tem:
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

751-3. Theft deterrent system
1
For safety and security
C-HR_OM_USA_OM10526U
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
■ Certifications for the engine immobilizer system
FCC ID: MOZRI-42BTY
For vehicles sold in the U.S.A.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
FCC ID: NI4TMIMB-3
For vehicles sold in the U.S.A.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence; and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSSs. Operation
is subject to the following two conditions: (1) This device may not cause inter-
ference; and (2) This device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

761-3. Theft deterrent system
C-HR_OM_USA_OM10526U

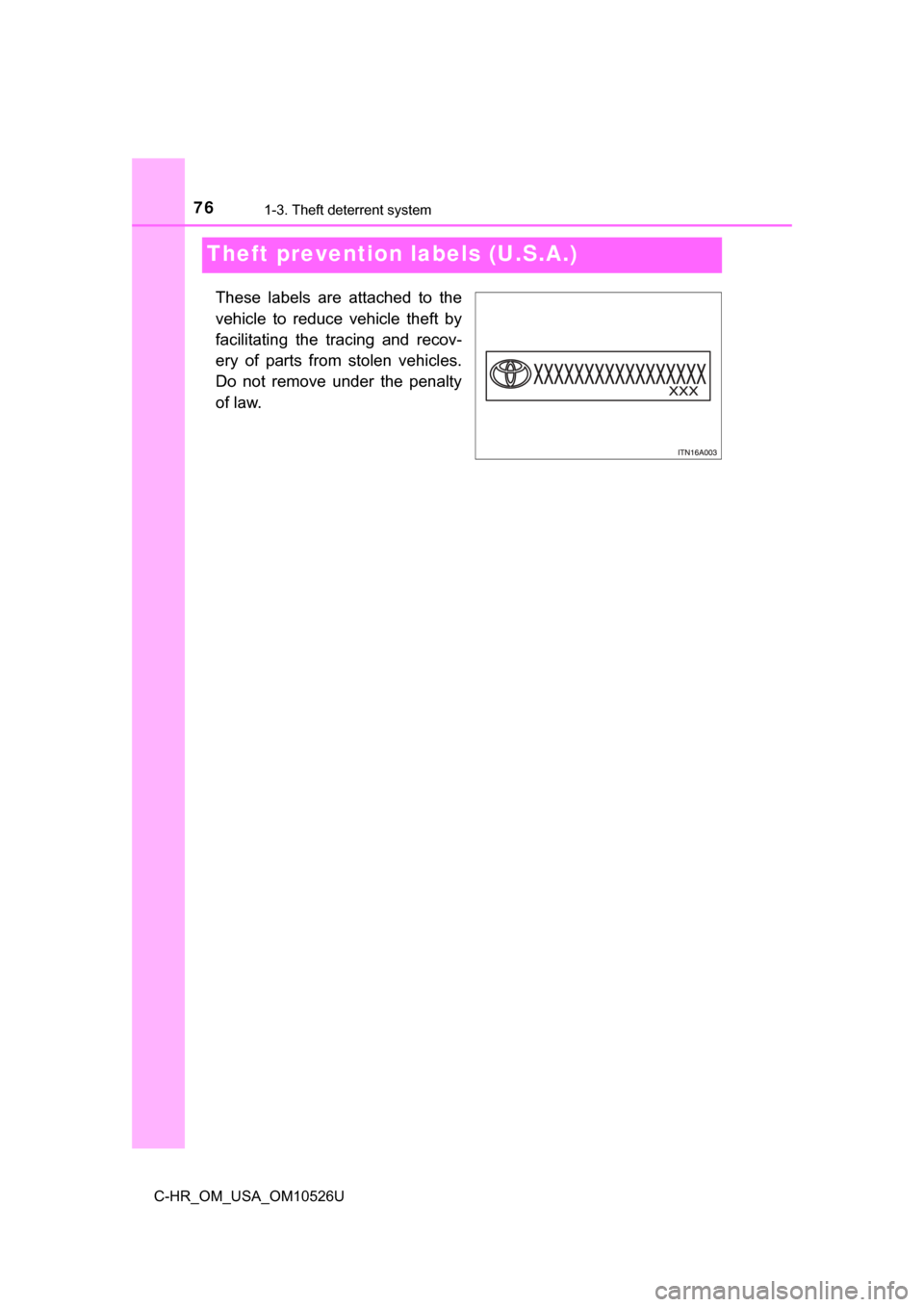

Theft prevention labels (U.S.A.)
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under the penalty
of law.

77
Instrument cluster2
C-HR_OM_USA_OM10526U2. Instrument cluster
Warning lights and indicators .......................... 78
Gauges and meters ............ 86
Multi-information display ..... 89

782. Instrument cluster
C-HR_OM_USA_OM10526U

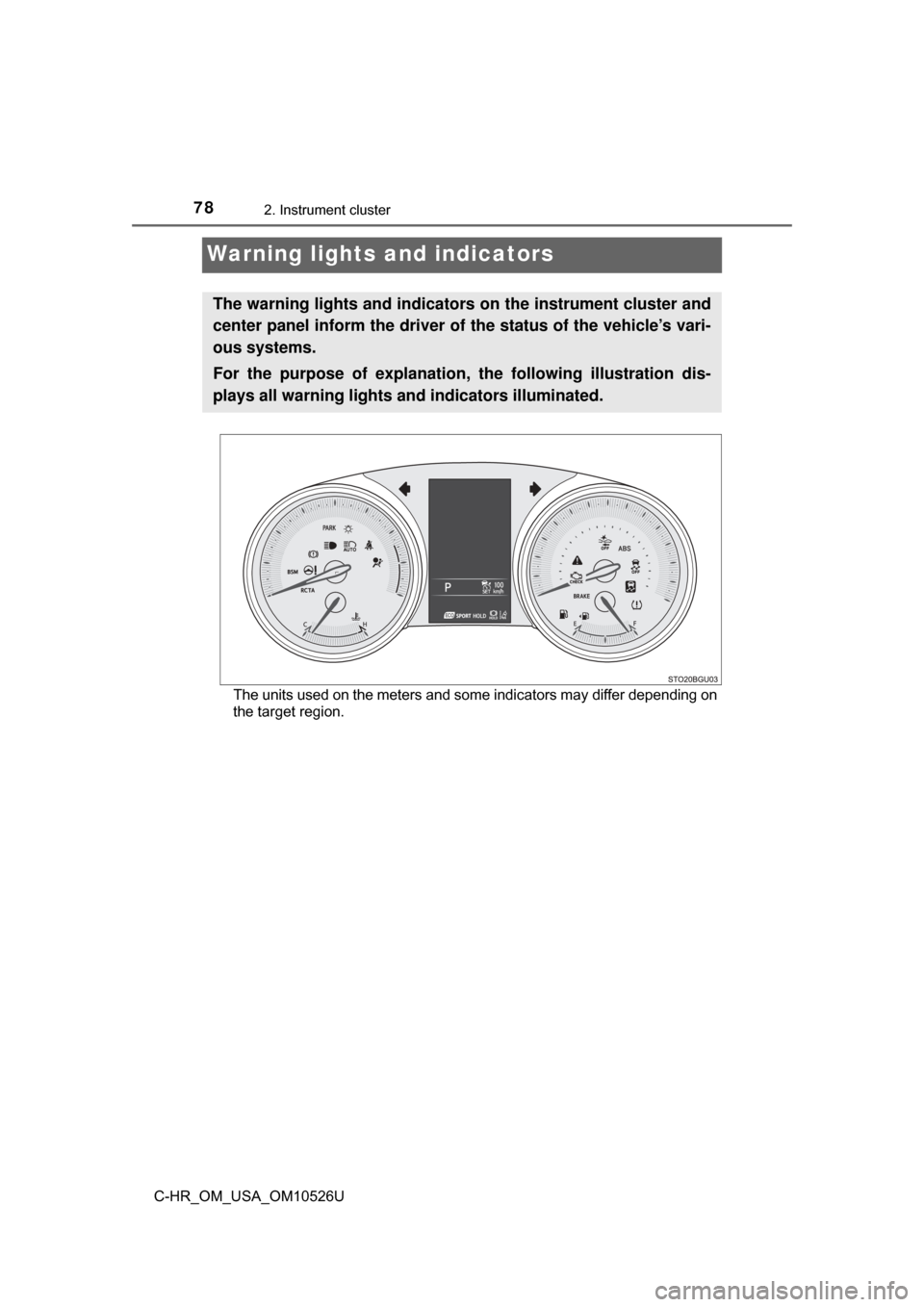

Warning lights and indicators
The units used on the meters and some indicators may differ depending on
the target region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights a nd indicators illuminated.

792. Instrument cluster
2
Instrument cluster
C-HR_OM_USA_OM10526U
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights

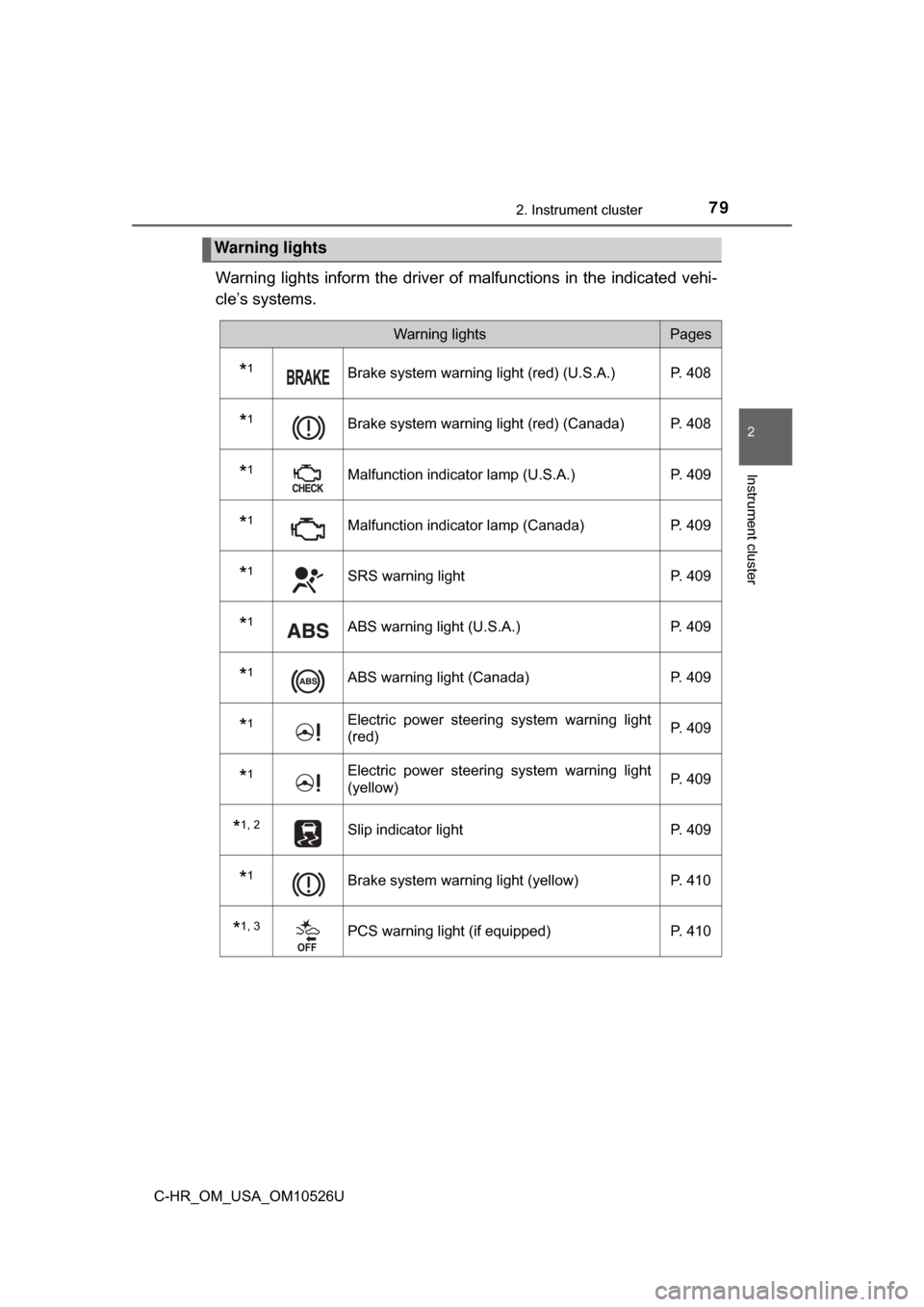

Warning lightsPages
*1Brake system warning light (red) (U.S.A.) P. 408
*1Brake system warning light (red) (Canada) P. 408
*1Malfunction indicator lamp (U.S.A.) P. 409
*1Malfunction indicator lamp (Canada)P. 409
*1SRS warning light P. 409
*1ABS warning light (U.S.A.)P. 409
*1ABS warning light (Canada)P. 409
*1Electric power steering system warning light
(red) P. 409
*1Electric power steering system warning light
(yellow)P. 409
*1, 2Slip indicator light
P. 409
*1Brake system warning light (yellow)P. 410
*1, 3PCS warning light (if equipped) P. 410

802. Instrument cluster
C-HR_OM_USA_OM10526U
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
*2: The light comes on to indicate a malfunction.
*3: The light flashes to indicate a malfunction.
*3Parking brake indicator (U.S.A.) P. 410
*3Parking brake indicator (Canada) P. 410
Low fuel level warning light P. 411
Driver’s and front passenger’s seat belt
reminder lightP. 4 1 1
Rear passengers’ seat belt reminder lights (on
the center panel)
P. 4 1 1
*1Tire pressure warning light
P. 411
*1Master warning lightP. 412
Warning lightsPages
