TOYOTA C-HR 2019 Accessories, Audio & Navigation (in English)

See the Navigation and Multimedia System Owner’s Manual for detailed \
information. You may also visit:
www.Toyota.com/entune where additional audio/multimedia resources and the Entune™ 3.0 Quick
Reference Guide are accessible.

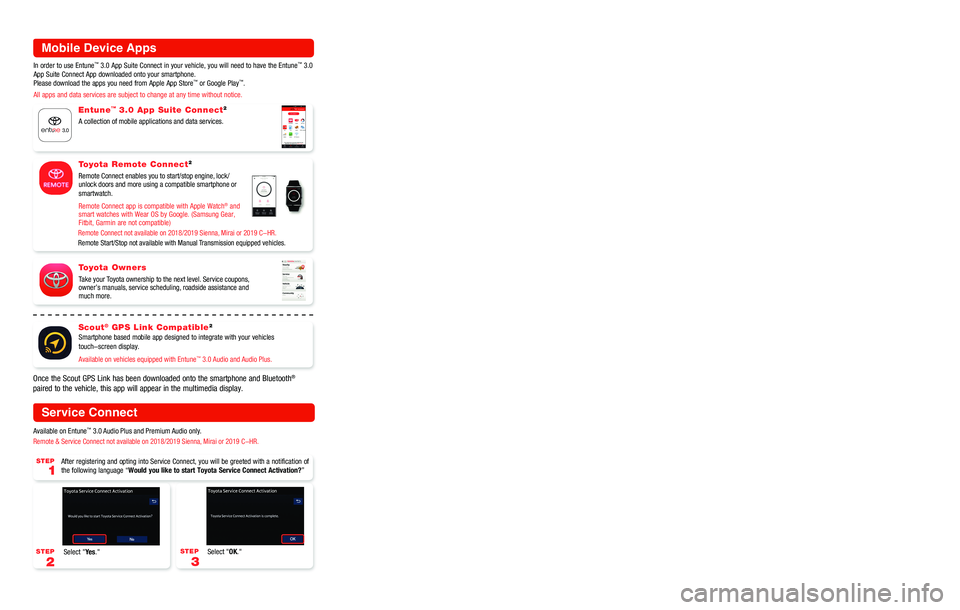

Mobile Device Apps
Service Connect
In order to use Entune™ 3.0 App Suite Connect in your vehicle, you will need to have the Entune\
™ 3.0
App Suite Connect App downloaded onto your smartphone.
Please download the apps you need from Apple App Store
™ or Google Play™.
All apps and data services are subject to change at any time without not\
ice.
Entune™ 3.0 App Suite Connect2
A collection of mobile applications and data services.
Smartphone based mobile app designed to integrate with your vehicles
touch-screen display.
Available on vehicles equipped with Entune
™ 3.0 Audio and Audio Plus.
Remote Connect enables you to start/stop engine, lock/
unlock doors and more using a compatible smartphone or
smartwatch.
Remote Connect app is compatible with Apple Watch
® and
smart watches with Wear OS by Google. (Samsung Gear,
Fitbit, Garmin are not compatible)
Take your Toyota ownership to the next level. Service coupons,
owner’s manuals, service scheduling, roadside assistance and
much more.
Scout® GPS Link Compatible2
Toyota Remote Connect2
Toyota Owners
After registering and opting into Service Connect, you will be greeted w\
ith a notification of
the following language “Would you like to start Toyota Service Connect Activation?”
Select "Ye s ." Select "OK."STEP
3
STEP
2
STEP
1

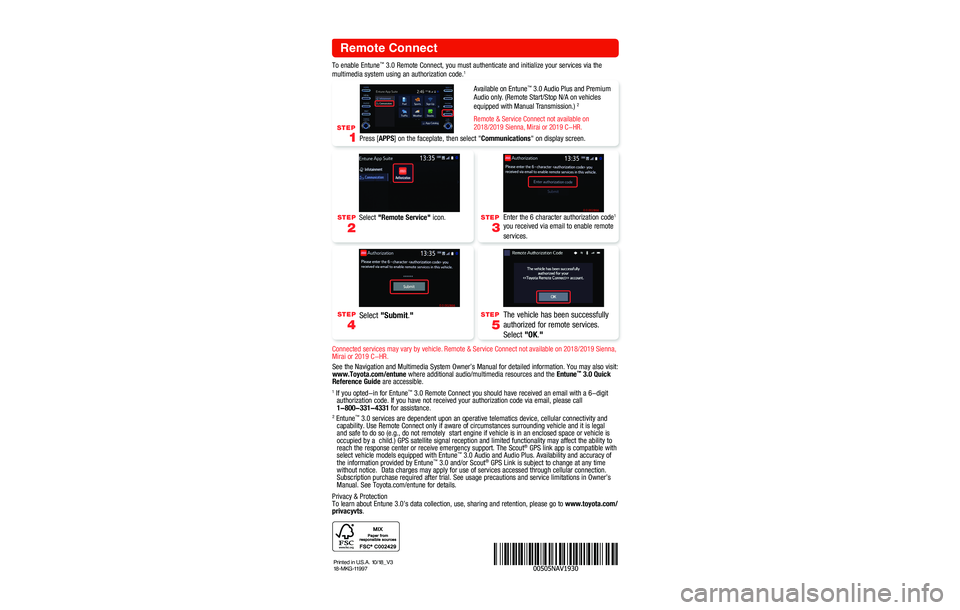

Remote Connect
To enable Entune™ 3.0 Remote Connect, you must authenticate and initialize your services \
via the
multimedia system using an authorization code.1
1
If you opted-in for Entune™ 3.0 Remote Connect you should have received an email with a 6-digit
authorization code. If you have not received your authorization code via\
email, please call
1-800-331-4331 for assistance.
Privacy & Protection
To learn about Entune 3.0’s data collection, use, sharing and retenti\
on, please go to www.toyota.com/
privacyvts. Select
"Remote Service" icon. Enter the 6 character authorization code
1
you received via email to enable remote
services.
Select "Submit." The vehicle has been successfully
authorized for remote services.
Select
"OK."
Press [APPS] on the faceplate, then select "Communications" on display screen.
STEP
3
STEP
5
STEP
2
STEP
4
STEP
1
Connected services may vary by vehicle. Remote & Service Connect not available on 2018/2019 Sienna,
Mirai or 2019 C-HR.
Bluetooth Pairing
Registration
Mobile Device Apps
Service Connect
Remote Connect

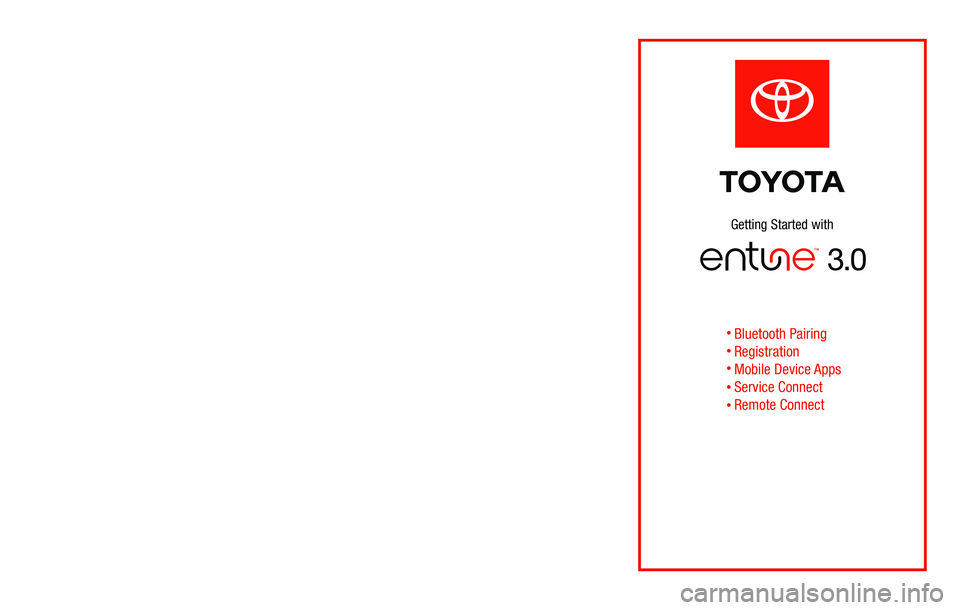

Getting Started with
Printe d in U.S .A. 10/1 8_V3
18 - M K G -11 997
2 Entune™ 3.0 services are dependent upon an operative telematics device, cellula\
r connectivity and
capability. Use Remote Connect only if aware of circumstances surroundin\
g vehicle and it is legal
and safe to do so (e.g., do not remotely start engine if vehicle is in\
an enclosed space or vehicle is
occupied by a child.) GPS satellite signal reception and limited funct\
ionality may affect the ability to
reach the response center or receive emergency support. The Scout
® GPS link app is compatible with
select vehicle models equipped with Entune™ 3.0 Audio and Audio Plus. Availability and accuracy of
the information provided by Entune™ 3.0 and/or Scout® GPS Link is subject to change at any time
without notice. Data charges may apply for use of services accessed thr\
ough cellular connection.
Subscription purchase required after trial. See usage precautions and se\
rvice limitations in Owner’s
Manual. See Toyota.com/entune for details.
Once the Scout GPS Link has been downloaded onto the smartphone and Blue\
tooth®
paired to the vehicle, this app will appear in the multimedia display.
Available on Entune™ 3.0 Audio Plus and Premium
Audio only. (Remote Start/Stop N/A on vehicles
equipped with Manual Transmission.)
2
Remote & Service Connect not available on
2018/2019 Sienna, Mirai or 2019 C-HR.
Remote Connect not available on 2018/2019 Sienna, Mirai or 2019 C-HR.
Remote Start/Stop not available with Manual Transmission equipped vehicles.
Available on Entune™ 3.0 Audio Plus and Premium Audio only.
Remote & Service Connect not available on 2018/2019 Sienna, Mirai or 2019 C-HR.

STEP
8.1
STEP
8.2

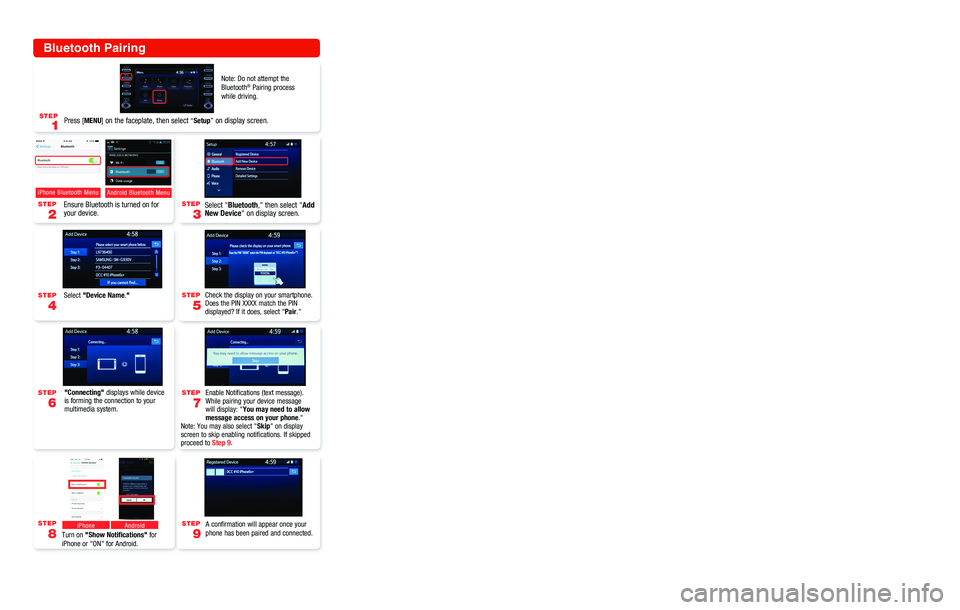

Bluetooth Pairing
Select "Bluetooth," then select "Add
New Device" on display screen.
Ensure Bluetooth is turned on for
your device.
Select
"Device Name."
iPhone Bluetooth MenuAndroid Bluetooth Menu
Check the display on your smartphone.
Does the PIN XXXX match the PIN
displayed? If it does, select "Pair."
STEP
3
STEP
5
STEP
7
STEP
9
STEP
2
STEP
4
STEP
8
STEP
1Press [MENU] on the faceplate, then select “Setup” on display screen.
Enable Notifications (text message).
While pairing your device message
will display: "You may need to allow
message access on your phone."
Note: You may also select "Skip" on display
screen to skip enabling notifications. If skipped
proceed to Step 9.STEP
6
"Connecting" displays while device
is forming the connection to your
multimedia system.
Turn on "Show Notifications" for
iPhone or "ON" for Android. A confirmation will appear once your
phone has been paired and connected.
iPhoneAndroid

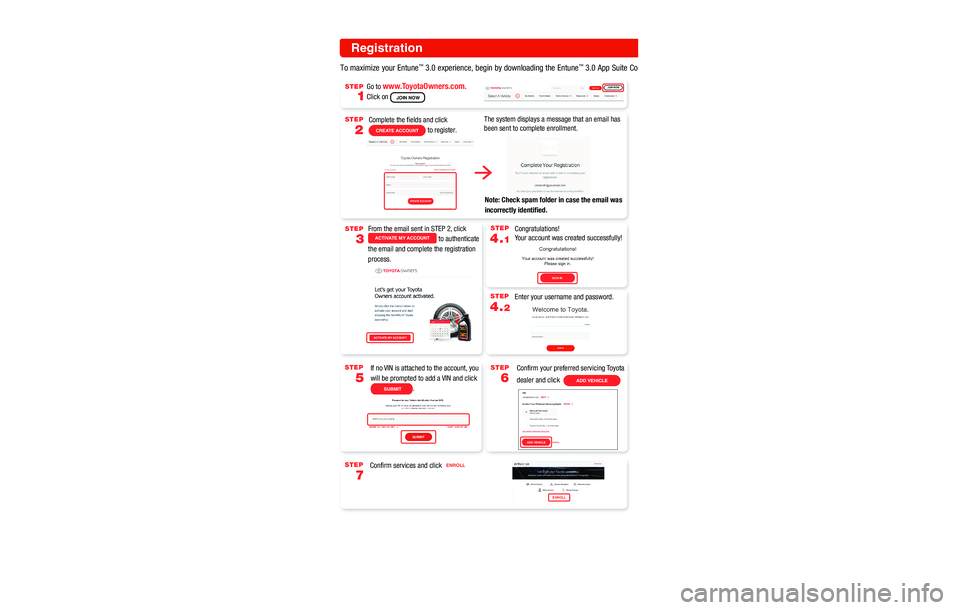

Registration
To maximize your Entune™ 3.0 experience, begin by downloading the Entune™ 3.0 App Suite Connect App onto your mobile device. Then visit www.ToyotaOwners.com to register.
Complete the fields and click
CREATE ACCOUNT to register.
Go to

www.ToyotaOwners.com.
Click on JOIN NOW
The system displays a message that an email has
been sent to complete enrollment.
Note: Check spam folder in case the email was
incorrectly identified.
From the email sent in STEP 2, click
ACTIVATE MY ACCOUNT to authenticate
the email and complete the registration
process. Congratulations!
Your account was created successfully!
Enter your username and password.
STEP
4.1
STEP
4.2
ACTIVATE MY ACCOUNT
CREATE ACCOUNT
SIGN IN
JOIN NOW
If no VIN is attached to the account, you
will be prompted to add a VIN and click
SUBMIT.
Confirm your preferred servicing Toyota
dealer and click ADD VEHICLE
JOIN NOW
CREATE ACCOUNT
SUBMIT
ACTIVATE MY ACCOUNT
CONFIRM ORDER
SUBMIT
SUBMIT CONTINUE
ADD VEHICLE
Confirm services and click ENROLL
ENROLL
STEP
1
STEP
2
STEP
3
STEP
5
STEP
6
STEP
7

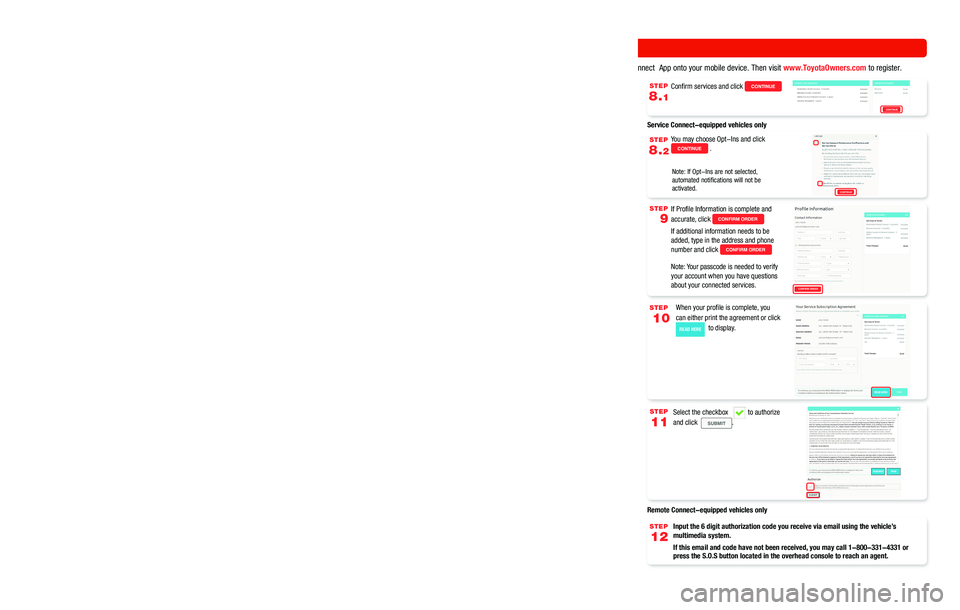

Confirm services and click CONTINUE
You may choose Opt-Ins and click CONTINUE .
CONTINUE
CONTINUE
If Profile Information is complete and
accurate, click
CONFIRM ORDER
If additional information needs to be
added, type in the address and phone
number and click
CONFIRM ORDER

Note: Your passcode is needed to verify
your account when you have questions
about your connected services.
STEP
9
CONFIRM ORDER
When your profile is complete, you
can either print the agreement or click
READ HERE to display.
STEP
10
READ HERE
READHEREPRINT
SUBMIT
Input the 6 digit authorization code you receive via email using the veh\
icle’s
multimedia system.
If this email and code have not been received, you may call 1-800-331-4331 or
press the S.O.S button located in the overhead console to reach an agent. Select the checkbox
to authorize
and click
SUBMIT.
STEP
12
STEP
11
Note: Do not attempt the
Bluetooth® Pairing process
while driving.
Service Connect-equipped vehicles only
Remote Connect-equipped vehicles only
Note: If Opt-Ins are not selected,
automated notifications will not be
activated.

STEP
8.1
STEP
8.2
Bluetooth Pairing
Select "Bluetooth," then select "Add
New Device" on display screen.
Ensure Bluetooth is turned on for
your device.
Select
"Device Name."
iPhone Bluetooth MenuAndroid Bluetooth Menu
Check the display on your smartphone.
Does the PIN XXXX match the PIN
displayed? If it does, select "Pair."
STEP
3
STEP
5
STEP
7
STEP
9
STEP
2
STEP
4
STEP
8
STEP
1Press [MENU] on the faceplate, then select “Setup” on display screen.
Enable Notifications (text message).
While pairing your device message
will display: "You may need to allow
message access on your phone."
Note: You may also select "Skip" on display
screen to skip enabling notifications. If skipped
proceed to Step 9.STEP
6
"Connecting" displays while device
is forming the connection to your
multimedia system.
Turn on "Show Notifications" for
iPhone or "ON" for Android. A confirmation will appear once your
phone has been paired and connected.
iPhoneAndroid
Registration
To maximize your Entune™ 3.0 experience, begin by downloading the Entune™ 3.0 App Suite Connect App onto your mobile device. Then visit www.ToyotaOwners.com to register.
Complete the fields and click
CREATE ACCOUNT to register.
Go to

www.ToyotaOwners.com.
Click on JOIN NOW
The system displays a message that an email has
been sent to complete enrollment.
Note: Check spam folder in case the email was
incorrectly identified.
From the email sent in STEP 2, click
ACTIVATE MY ACCOUNT to authenticate
the email and complete the registration
process. Congratulations!
Your account was created successfully!
Enter your username and password.
STEP
4.1
STEP
4.2
ACTIVATE MY ACCOUNT
CREATE ACCOUNT
SIGN IN
JOIN NOW
If no VIN is attached to the account, you
will be prompted to add a VIN and click
SUBMIT.
Confirm your preferred servicing Toyota
dealer and click ADD VEHICLE
JOIN NOW
CREATE ACCOUNT
SUBMIT
ACTIVATE MY ACCOUNT
CONFIRM ORDER
SUBMIT
SUBMIT CONTINUE
ADD VEHICLE
Confirm services and click ENROLL
ENROLL
STEP
1
STEP
2
STEP
3
STEP
5
STEP
6
STEP
7
Confirm services and click CONTINUE
You may choose Opt-Ins and click CONTINUE .
CONTINUE
CONTINUE
If Profile Information is complete and
accurate, click
CONFIRM ORDER
If additional information needs to be
added, type in the address and phone
number and click
CONFIRM ORDER

Note: Your passcode is needed to verify
your account when you have questions
about your connected services.
STEP
9
CONFIRM ORDER
When your profile is complete, you
can either print the agreement or click
READ HERE to display.
STEP
10
READ HERE
READHEREPRINT
SUBMIT
Input the 6 digit authorization code you receive via email using the veh\
icle’s
multimedia system.
If this email and code have not been received, you may call 1-800-331-4331 or
press the S.O.S button located in the overhead console to reach an agent. Select the checkbox
to authorize
and click
SUBMIT.
STEP
12
STEP
11
Note: Do not attempt the
Bluetooth® Pairing process
while driving.
Service Connect-equipped vehicles only
Remote Connect-equipped vehicles only
Note: If Opt-Ins are not selected,
automated notifications will not be
activated.

STEP
8.1
STEP
8.2
Bluetooth Pairing
Select "Bluetooth," then select "Add
New Device" on display screen.
Ensure Bluetooth is turned on for
your device.
Select
"Device Name."
iPhone Bluetooth MenuAndroid Bluetooth Menu
Check the display on your smartphone.
Does the PIN XXXX match the PIN
displayed? If it does, select "Pair."
STEP
3
STEP
5
STEP
7
STEP
9
STEP
2
STEP
4
STEP
8
STEP
1Press [MENU] on the faceplate, then select “Setup” on display screen.
Enable Notifications (text message).
While pairing your device message
will display: "You may need to allow
message access on your phone."
Note: You may also select "Skip" on display
screen to skip enabling notifications. If skipped
proceed to Step 9.STEP
6
"Connecting" displays while device
is forming the connection to your
multimedia system.
Turn on "Show Notifications" for
iPhone or "ON" for Android. A confirmation will appear once your
phone has been paired and connected.
iPhoneAndroid
Registration
To maximize your Entune™ 3.0 experience, begin by downloading the Entune™ 3.0 App Suite Connect App onto your mobile device. Then visit www.ToyotaOwners.com to register.
Complete the fields and click
CREATE ACCOUNT to register.
Go to

www.ToyotaOwners.com.
Click on JOIN NOW
The system displays a message that an email has
been sent to complete enrollment.
Note: Check spam folder in case the email was
incorrectly identified.
From the email sent in STEP 2, click
ACTIVATE MY ACCOUNT to authenticate
the email and complete the registration
process. Congratulations!
Your account was created successfully!
Enter your username and password.
STEP
4.1
STEP
4.2
ACTIVATE MY ACCOUNT
CREATE ACCOUNT
SIGN IN
JOIN NOW
If no VIN is attached to the account, you
will be prompted to add a VIN and click
SUBMIT.
Confirm your preferred servicing Toyota
dealer and click ADD VEHICLE
JOIN NOW
CREATE ACCOUNT
SUBMIT
ACTIVATE MY ACCOUNT
CONFIRM ORDER
SUBMIT
SUBMIT CONTINUE
ADD VEHICLE
Confirm services and click ENROLL
ENROLL
STEP
1
STEP
2
STEP
3
STEP
5
STEP
6
STEP
7
Confirm services and click CONTINUE
You may choose Opt-Ins and click CONTINUE .
CONTINUE
CONTINUE
If Profile Information is complete and
accurate, click
CONFIRM ORDER
If additional information needs to be
added, type in the address and phone
number and click
CONFIRM ORDER

Note: Your passcode is needed to verify
your account when you have questions
about your connected services.
STEP
9
CONFIRM ORDER
When your profile is complete, you
can either print the agreement or click
READ HERE to display.
STEP
10
READ HERE
READHEREPRINT
SUBMIT
Input the 6 digit authorization code you receive via email using the veh\
icle’s
multimedia system.
If this email and code have not been received, you may call 1-800-331-4331 or
press the S.O.S button located in the overhead console to reach an agent. Select the checkbox
to authorize
and click
SUBMIT.
STEP
12
STEP
11
Note: Do not attempt the
Bluetooth® Pairing process
while driving.
Service Connect-equipped vehicles only
Remote Connect-equipped vehicles only
Note: If Opt-Ins are not selected,
automated notifications will not be
activated.

See the Navigation and Multimedia System Owner’s Manual for detailed \
information. You may also visit:
www.Toyota.com/entune where additional audio/multimedia resources and the Entune™ 3.0 Quick
Reference Guide are accessible.
Mobile Device Apps
Service Connect
In order to use Entune™ 3.0 App Suite Connect in your vehicle, you will need to have the Entune\
™ 3.0
App Suite Connect App downloaded onto your smartphone.
Please download the apps you need from Apple App Store
™ or Google Play™.
All apps and data services are subject to change at any time without not\
ice.
Entune™ 3.0 App Suite Connect2
A collection of mobile applications and data services.
Smartphone based mobile app designed to integrate with your vehicles
touch-screen display.
Available on vehicles equipped with Entune
™ 3.0 Audio and Audio Plus.
Remote Connect enables you to start/stop engine, lock/
unlock doors and more using a compatible smartphone or
smartwatch.
Remote Connect app is compatible with Apple Watch
® and
smart watches with Wear OS by Google. (Samsung Gear,
Fitbit, Garmin are not compatible)
Take your Toyota ownership to the next level. Service coupons,
owner’s manuals, service scheduling, roadside assistance and
much more.
Scout® GPS Link Compatible2
Toyota Remote Connect2
Toyota Owners
After registering and opting into Service Connect, you will be greeted w\
ith a notification of
the following language “Would you like to start Toyota Service Connect Activation?”
Select "Ye s ." Select "OK."STEP
3
STEP
2
STEP
1
Remote Connect
To enable Entune™ 3.0 Remote Connect, you must authenticate and initialize your services \
via the
multimedia system using an authorization code.1
1
If you opted-in for Entune™ 3.0 Remote Connect you should have received an email with a 6-digit
authorization code. If you have not received your authorization code via\
email, please call
1-800-331-4331 for assistance.
Privacy & Protection
To learn about Entune 3.0’s data collection, use, sharing and retenti\
on, please go to www.toyota.com/
privacyvts. Select
"Remote Service" icon. Enter the 6 character authorization code
1
you received via email to enable remote
services.
Select "Submit." The vehicle has been successfully
authorized for remote services.
Select
"OK."
Press [APPS] on the faceplate, then select "Communications" on display screen.
STEP
3
STEP
5
STEP
2
STEP
4
STEP
1
Connected services may vary by vehicle. Remote & Service Connect not available on 2018/2019 Sienna,
Mirai or 2019 C-HR.
Bluetooth Pairing
Registration
Mobile Device Apps
Service Connect
Remote Connect
Getting Started with
Printe d in U.S .A. 10/1 8_V3
18 - M K G -11 997
2 Entune™ 3.0 services are dependent upon an operative telematics device, cellula\
r connectivity and
capability. Use Remote Connect only if aware of circumstances surroundin\
g vehicle and it is legal
and safe to do so (e.g., do not remotely start engine if vehicle is in\
an enclosed space or vehicle is
occupied by a child.) GPS satellite signal reception and limited funct\
ionality may affect the ability to
reach the response center or receive emergency support. The Scout
® GPS link app is compatible with
select vehicle models equipped with Entune™ 3.0 Audio and Audio Plus. Availability and accuracy of
the information provided by Entune™ 3.0 and/or Scout® GPS Link is subject to change at any time
without notice. Data charges may apply for use of services accessed thr\
ough cellular connection.
Subscription purchase required after trial. See usage precautions and se\
rvice limitations in Owner’s
Manual. See Toyota.com/entune for details.
Once the Scout GPS Link has been downloaded onto the smartphone and Blue\
tooth®
paired to the vehicle, this app will appear in the multimedia display.
Available on Entune™ 3.0 Audio Plus and Premium
Audio only. (Remote Start/Stop N/A on vehicles
equipped with Manual Transmission.)
2
Remote & Service Connect not available on
2018/2019 Sienna, Mirai or 2019 C-HR.
Remote Connect not available on 2018/2019 Sienna, Mirai or 2019 C-HR.
Remote Start/Stop not available with Manual Transmission equipped vehicles.
Available on Entune™ 3.0 Audio Plus and Premium Audio only.
Remote & Service Connect not available on 2018/2019 Sienna, Mirai or 2019 C-HR.

See the Navigation and Multimedia System Owner’s Manual for detailed \
information. You may also visit:
www.Toyota.com/entune where additional audio/multimedia resources and the Entune™ 3.0 Quick
Reference Guide are accessible.
Mobile Device Apps
Service Connect
In order to use Entune™ 3.0 App Suite Connect in your vehicle, you will need to have the Entune\
™ 3.0
App Suite Connect App downloaded onto your smartphone.
Please download the apps you need from Apple App Store
™ or Google Play™.
All apps and data services are subject to change at any time without not\
ice.
Entune™ 3.0 App Suite Connect2
A collection of mobile applications and data services.
Smartphone based mobile app designed to integrate with your vehicles
touch-screen display.
Available on vehicles equipped with Entune
™ 3.0 Audio and Audio Plus.
Remote Connect enables you to start/stop engine, lock/
unlock doors and more using a compatible smartphone or
smartwatch.
Remote Connect app is compatible with Apple Watch
® and
smart watches with Wear OS by Google. (Samsung Gear,
Fitbit, Garmin are not compatible)
Take your Toyota ownership to the next level. Service coupons,
owner’s manuals, service scheduling, roadside assistance and
much more.
Scout® GPS Link Compatible2
Toyota Remote Connect2
Toyota Owners
After registering and opting into Service Connect, you will be greeted w\
ith a notification of
the following language “Would you like to start Toyota Service Connect Activation?”
Select "Ye s ." Select "OK."STEP
3
STEP
2
STEP
1
Remote Connect
To enable Entune™ 3.0 Remote Connect, you must authenticate and initialize your services \
via the
multimedia system using an authorization code.1
1
If you opted-in for Entune™ 3.0 Remote Connect you should have received an email with a 6-digit
authorization code. If you have not received your authorization code via\
email, please call
1-800-331-4331 for assistance.
Privacy & Protection
To learn about Entune 3.0’s data collection, use, sharing and retenti\
on, please go to www.toyota.com/
privacyvts. Select
"Remote Service" icon. Enter the 6 character authorization code
1
you received via email to enable remote
services.
Select "Submit." The vehicle has been successfully
authorized for remote services.
Select
"OK."
Press [APPS] on the faceplate, then select "Communications" on display screen.
STEP
3
STEP
5
STEP
2
STEP
4
STEP
1
Connected services may vary by vehicle. Remote & Service Connect not available on 2018/2019 Sienna,
Mirai or 2019 C-HR.
Bluetooth Pairing
Registration
Mobile Device Apps
Service Connect
Remote Connect
Getting Started with
Printe d in U.S .A. 10/1 8_V3
18 - M K G -11 997
2 Entune™ 3.0 services are dependent upon an operative telematics device, cellula\
r connectivity and
capability. Use Remote Connect only if aware of circumstances surroundin\
g vehicle and it is legal
and safe to do so (e.g., do not remotely start engine if vehicle is in\
an enclosed space or vehicle is
occupied by a child.) GPS satellite signal reception and limited funct\
ionality may affect the ability to
reach the response center or receive emergency support. The Scout
® GPS link app is compatible with
select vehicle models equipped with Entune™ 3.0 Audio and Audio Plus. Availability and accuracy of
the information provided by Entune™ 3.0 and/or Scout® GPS Link is subject to change at any time
without notice. Data charges may apply for use of services accessed thr\
ough cellular connection.
Subscription purchase required after trial. See usage precautions and se\
rvice limitations in Owner’s
Manual. See Toyota.com/entune for details.
Once the Scout GPS Link has been downloaded onto the smartphone and Blue\
tooth®
paired to the vehicle, this app will appear in the multimedia display.
Available on Entune™ 3.0 Audio Plus and Premium
Audio only. (Remote Start/Stop N/A on vehicles
equipped with Manual Transmission.)
2
Remote & Service Connect not available on
2018/2019 Sienna, Mirai or 2019 C-HR.
Remote Connect not available on 2018/2019 Sienna, Mirai or 2019 C-HR.
Remote Start/Stop not available with Manual Transmission equipped vehicles.
Available on Entune™ 3.0 Audio Plus and Premium Audio only.
Remote & Service Connect not available on 2018/2019 Sienna, Mirai or 2019 C-HR.
