transmission TOYOTA C-HR 2019 Owners Manual (in English)

3
1
8 7 5 4
3
2
9
C-HR_OM_USA_OM10569U
6
4-1. Before drivingDriving the vehicle ............. 156
Cargo and luggage............ 166
Vehicle load limits ............. 169
Trailer towing..................... 170
Dinghy towing.................... 171
4-2. Driving procedures Engine (ignition) switch (vehicles without
a smart key system) ........ 172
Engine (ignition) switch (vehicles with
a smart key system) ........ 175
Continuously variable transmission .................... 181
Turn signal lever................ 186
Parking brake .................... 187
Brake Hold ........................ 192
4-3. Operating the lights and wipers
Headlight switch ................ 195
Automatic High Beam ....... 200
Windshield wipers and washer ............................ 205
Rear window wiper and washer ............................ 211 4-4. Refueling
Opening the fuel tank cap................................... 213
4-5. Using the driving support systems
Toyota Safety Sense P ...... 217
PCS (Pre-Collision System) ........................... 224
LDA (Lane Departure Alert with steering
control) ............................ 238
Dynamic radar cruise control with full-speed
range ............................... 248
Driving mode select ........... 263
BSM (Blind Spot Monitor)......... 265
• BSM function ................. 270
• RCTA function ............... 275
Driving assist systems ....... 280
4-6. Driving tips Winter driving tips .............. 286
4Driving

7
C-HR_OM_USA_OM10569UYour Toyota is equipped with several sophisticated computers th
at will record
certain data, such as:
• Engine speed
• Accelerator status
• Brake status
• Vehicle speed
• Shift position
The recorded data varies according to the vehicle grade level and options
with which it is equipped. These computers do not record conver sations or
sounds, and only record images outside of the vehicle in certai n situations.
●Data Transmission
Your vehicle may transmit the data recorded in these computers to Toyota
without notification to you.
●Data usage
Toyota may use the data recorded in these computers to diagnose malfunc-
tions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party exc ept:
• With the consent of the vehicle owner or with the consent of the lessee if the vehicle is leased
• In response to an official request by the police, a court of l aw or a govern-
ment agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
●Usage of data collected through Safety Connect (U.S. mainland only)
If your Toyota has Safety Connect and if you have subscribed to those ser-
vices, please refer to the Safety Connect Telematics Subscripti on Service
Agreement for information on data collected and its usage.
●To learn more about the vehicle data collected, used and shared by
Toyota, please visit www.toyota.com/privacyvts/.
Vehicle data recordings

155
4Driving
C-HR_OM_USA_OM10569U4-1. Before driving
Driving the vehicle ............. 156
Cargo and luggage ........... 166
Vehicle load limits ............. 169
Trailer towing..................... 170
Dinghy towing ................... 171
4-2. Driving procedures Engine (ignition) switch (vehicles without
a smart key system) ........ 172
Engine (ignition) switch (vehicles with
a smart key system) ........ 175
Continuously variable transmission .................... 181
Turn signal lever................ 186
Parking brake .................... 187
Brake Hold ........................ 192
4-3. Operating the lights and wipers
Headlight switch ................ 195
Automatic High Beam ....... 200
Windshield wipers and washer ............................ 205
Rear window wiper and washer ............................ 211 4-4. Refueling
Opening the fuel tank cap .................................. 213
4-5. Using the driving support systems
Toyota Safety Sense P ..... 217
PCS (Pre-Collision System)........................... 224
LDA (Lane Departure Alert with steering
control) ............................ 238
Dynamic radar cruise control with full-speed
range............................... 248
Driving mode select .......... 263
BSM (Blind Spot Monitor) ........ 265
• BSM function ................ 270
• RCTA function .............. 275
Driving assist systems ...... 280
4-6. Driving tips Winter driving tips ............. 286

1614-1. Before driving
4
Driving
C-HR_OM_USA_OM10569U
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When driving on slippery road surfaces
● Sudden braking, acceleration and steering may cause tire slippa ge and
reduce your ability to control the vehicle.
● Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
● After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads m ay prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected.
■ When shifting the shift lever
● Do not let the vehicle roll backward while the shift lever is i n a driving posi-
tion, or roll forward while the shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake an d steering
performance, resulting in an accident or damage to the vehicle.
● Do not shift the shift lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss o f vehicle
control.
● Do not shift the shift lever to R while the vehicle is moving f orward.
Doing so can damage the transmission and may result in a loss o f vehicle
control.
● Do not shift the shift lever to a driving position while the ve hicle is moving
backward.
Doing so can damage the transmission and may result in a loss o f vehicle
control.
● Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available w hen N is
selected.
● Be careful not to shift the shift lever with the accelerator pe dal depressed.
Shifting the shift lever to a gear other than P or N may lead to unexpected
rapid acceleration of the vehicle that may cause an accident an d result in
death or serious injury.

1814-2. Driving procedures
4
Driving
C-HR_OM_USA_OM10569U
Continuously variable transmission
Vehicles without a smart key system:
While the engine switch is in the “ON” position and the brake
pedal depressed
*, shift the shift lever while pushing the shift
release button on the shift knob.
Vehicles with a smart key system:
While the engine switch is in IGNITION ON mode and the
brake pedal depressed*, shift the shift lever while pushing the
shift release button on the shift knob.
Shift the shift lever while pushing the shift release button on
the shift knob.
Shift the shift lever normally.
When shifting the shift lever between P and D, make sure that t he
vehicle is completely stopped and the brake pedal is depressed.
*: To shift the shift lever from P, the brake pedal must be depre ssed
before the shift release button is pushed. If the shift release button is
pushed first, the shift lock will not be released.
Shifting the shift lever

1834-2. Driving procedures
4
Driving
C-HR_OM_USA_OM10569U
■Gear step functions
●You can choose from 7 levels of engine braking force.
● A lower gear step will provide greater engine braking force tha n a higher
gear step, and the engine speed will also increase.
■ If the 7-speed sport sequential shiftmatic mode indicator does not come
on even after shifting the shift lever to M
This may indicate a malfunction in the continuously variable tr ansmission
system. Have the vehicle inspected by your Toyota dealer immediately.
(In this situation, the transmission will operate in the same m anner as when
the shift lever is in D.)
■ When the vehicle comes to a stop with the shift lever in the M position
● The transmission will automatically downshift to M1 once the ve hicle is
stopped.
● After a stop, the vehicle will start off in M1.
● When the vehicle is stopped, the transmission is set at M1.
■ When driving with dynamic radar cruise control with full-speed range
activated
Even when performing the following actions with the intent of e nabling engine
braking, engine braking will not activate because cruise contro l will not be
canceled.
● When switching the driving mode to sport mode while driving in D position.
( P. 263)
■ Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting ope ration may
sometimes be restricted. In some circumstances, downshifting ma y not be
possible even when the shift lever is operated. (A buzzer will sound twice.)
■ Restraining sudden start (Drive-start Control)
P. 158
■ Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the engine switch is in the
“ON” position (vehicles without a smart key system) or IGNITION ON mode
(vehicles with a smart key system), and the brake pedal is bein g depressed.

2644-5. Using the driving support systems
C-HR_OM_USA_OM10569U■
Driving modes
●
“NORMAL” mode
Provides an optimal balance of fuel economy, quietness, and
dynamic performance. Suitable for city driving.
● “SPORT” mode
Controls the transmission and eng ine to provide quick, powerful
acceleration. This mode also chan ges the steering feel, making it
suitable for when agile driving response is desired, such as wh en
driving on roads with many curves.
When sport mode is selected, the “SPORT” indicator will illumin ate
on the multi-information display.
● “ECO” mode
Helps the driver accelerate in an eco-friendly manner and
improve fuel economy through moderate throttle characteristics
and by controlling the operation of the air conditioning system
(heating/cooling).
When Eco mode is selected, the “ECO MODE” indicator will illumi -
nate on the multi-information display.
While the air conditioning is being used, the system automatically
switches to air conditioning eco mode ( P. 297), allowing for driving
that leads to even better fuel economy.
■ Canceling driving modes
●Select another drive mode. Also, “SPORT” mode will be canceled automati-
cally when the engine switch is turned off.
● “NORMAL” mode and “ECO” mode will not be canceled automatically until
another drive mode is selected, even if the engine switch is tu rned off.

3406-2. Maintenance
C-HR_OM_USA_OM10569U
Vehicle interior
ItemsCheck points
Accelerator pedal• The accelerator pedal should move smoothly(without uneven pedal effort or catching).
Continuously variable
transmission “Park”
mechanism• When parked on a slope and the shift lever isin P, is the vehicle securely stopped?
Brake pedal
• Does the brake pedal move smoothly?
• Does the brake pedal have appropriate clear-ance from the floor? ( P. 467)
• Does the brake pedal have the correct
amount of free play? ( P. 467)
Brakes
• The vehicle should not pull to one side when
the brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The brake pedal should not get too close to the floor when the brakes are applied.

4117-2. Steps to take in an emergency
C-HR_OM_USA_OM10569U
7
When trouble arises
If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.
● The engine is running but t he vehicle does not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle
towed by your Toyota dealer o r commercial towing service,
using a wheel-lift type t ruck or flatbed truck.
Use a safety chain system for all towing, and abide by all stat e/
provincial and local laws.
Situations when it is necessary to contact dealers before towing

4217-2. Steps to take in an emergency
7
When trouble arises
C-HR_OM_USA_OM10569U
(U.S.A.)
(Canada)

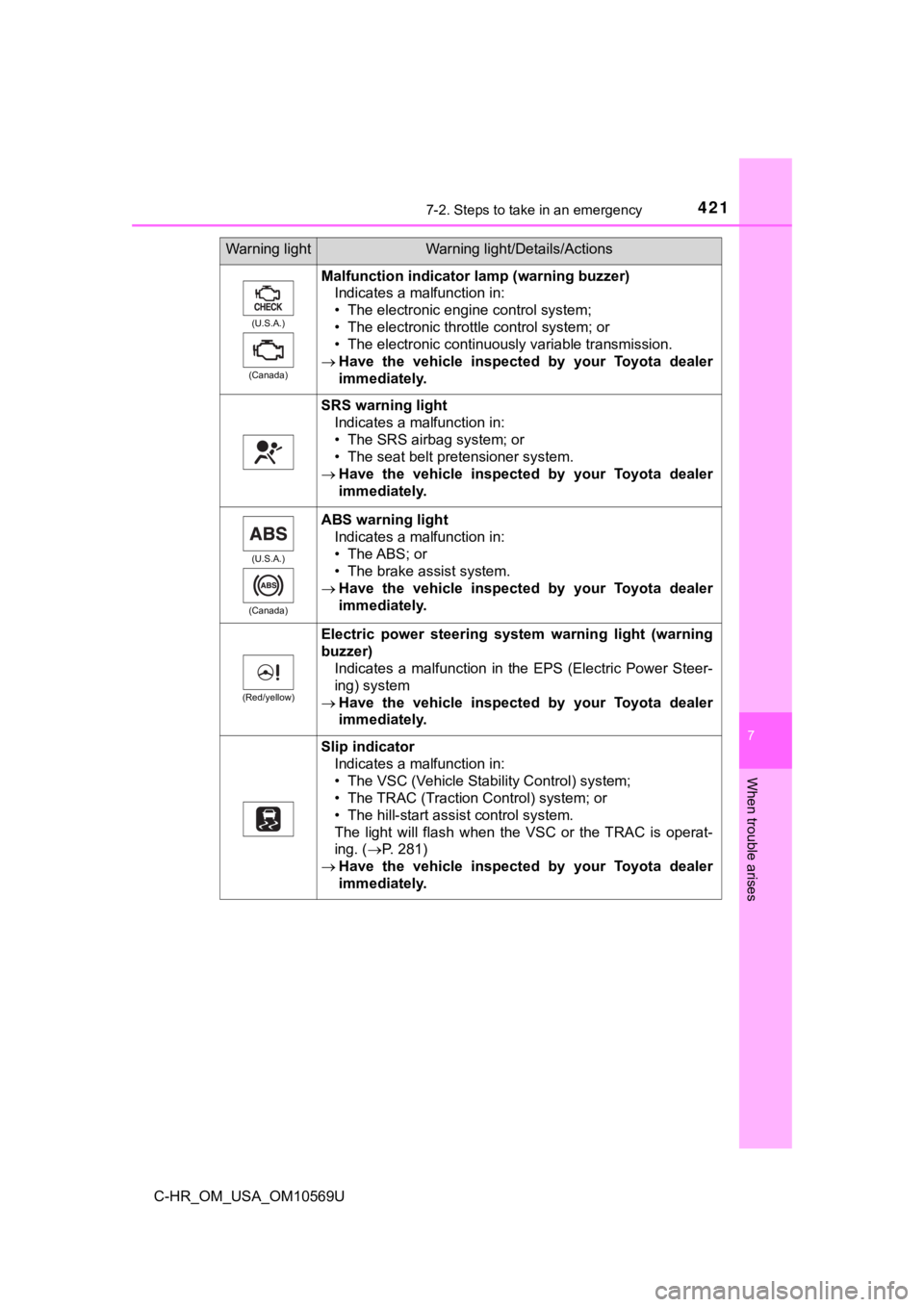

Malfunction indicator lamp (warning buzzer) Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic continuously variable transmission.
 Have the vehicle inspected by your Toyota dealer
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.
 Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
• The ABS; or
• The brake assist system.
 Have the vehicle inspected by your Toyota dealer
immediately.
(Red/yellow)
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
 Have the vehicle inspected by your Toyota dealer
immediately.
Slip indicator
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system; or
• The hill-start assist control system.
The light will flash when the VSC or the TRAC is operat-
ing. ( P. 281)
 Have the vehicle inspected by your Toyota dealer
immediately.
Warning lightWarning light/Details/Actions
