key TOYOTA C-HR 2021 Accessories, Audio & Navigation (in English)

232-1. Basic information before operation
2
Basic function
types. (P.23)
Select to make a space on
cursor.
●Keyboard layout can be changed.
(  P. 5 1 )
1 Select “Change Type”.
2 Select the desired character.
●Depending on the screen being
displayed, it may not be possible
to change keyboard characters.
When text is input, the system
predicts the text that may com-
plete the currently unconfirmed
text and displays predictive
replacement candidates that
match the beginning of the text.
1Input text. 2
Select the desired candidate.
 To select a candidate that is
not displayed, select , and
then select the desired predic-
tive replacement candidate.
The list screen may be dis-
played after entering characters.
When a list is displayed, use the
appropriate screen button to
scroll through the list.
Changing character type
Displaying predictive text
candidates
I
/LVWVFUHHQ
6FUROOLQJOLVWVFUHHQ

502-4. Other settings
2-4.Other settings
1Press the “MENU” button.
2 Select “Setup”.
 If the general settings screen
is not displayed, select “Gen-
eral”.
3 Select the desired items to
be set.
 “Clock”
Select to change the time zone and
select “On” or “Off” for daylight sav-
ing time, automatic adjustment of the clock, etc. (
P. 5 2 )
 “Language”
Select to change the language. The
language setting of Apple Car-
Play/Android Auto can only be
changed on the connected device.
“Customize Home Screen”
Select to change the display infor-
mation/area on the home screen
and the home screen layout.
( P. 2 1 )
 “Projection Settings”*1
Select to set automatic Apple Car-
Play/Android Auto connection
establishment on/off. ( P.53)
 “Beep”
Select to turn the beep sound
on/off.
“Theme Setting”
Select to change the screen theme
setting.
“Units of Measurement”
Select to change the unit of mea-
sure for fuel consumption.
“Keyboard Layout”
Select to change the keyboard lay-
out.
“Delete Keyboard History”
Select to delete the keyboard his-
tory.
“Memorize Keyboard History”
Select to set the memorize key-
board history on/off.
“Animation”
Select to turn the animations on/off.
“Driver Setting”
General settings
Settings are available for
clock, operation sounds,
etc.
Displaying the general
settings screen
General settings screen

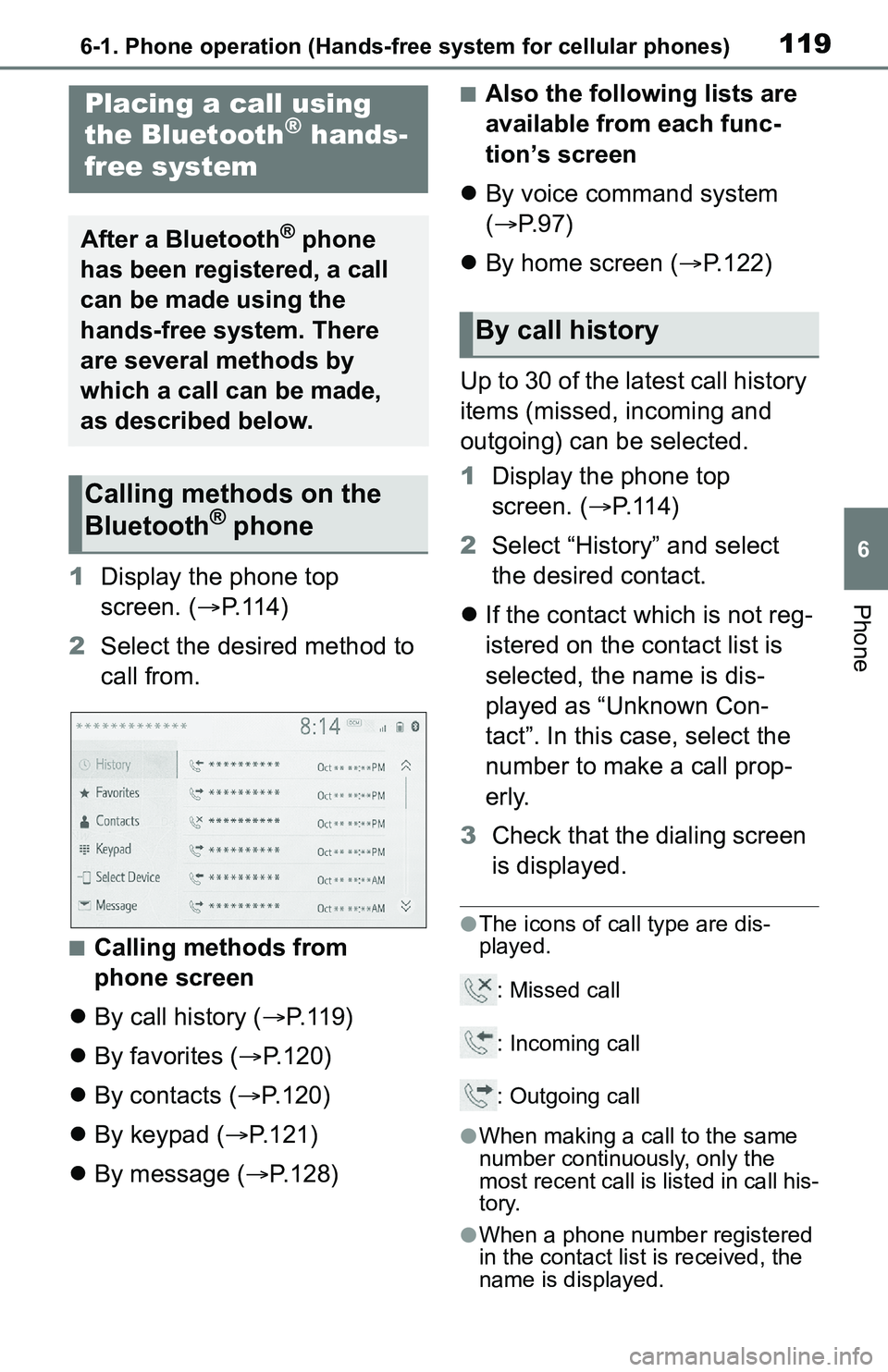

1196-1. Phone operation (Hands-free system for cellular phones)
6
Phone1Display the phone top
screen. ( P.114)
2 Select the desired method to
call from.
■Calling methods from
phone screen
 By call history ( P. 1 1 9 )
 By favorites ( P.120)
 By contacts ( P.120)
 By keypad ( P.121)
 By message ( P.128)
■Also the following lists are
available from each func-
tion’s screen
 By voice command system
( P.97)
 By home screen ( P.122)
Up to 30 of the latest call history
items (missed, incoming and
outgoing) can be selected.
1 Display the phone top
screen. ( P.114)
2 Select “History” and select
the desired contact.
 If the contact which is not reg-
istered on the contact list is
selected, the name is dis-
played as “Unknown Con-
tact”. In this case, select the
number to make a call prop-
erly.
3 Check that the dialing screen
is displayed.
●The icons of call type are dis-
played.
: Missed call
: Incoming call
: Outgoing call
●When making a call to the same
number continuously, only the
most recent call is listed in call his-
tory.
●When a phone number registered
in the contact list is received, the
name is displayed.
Placing a call using
the Bluetooth® hands-
free system
After a Bluetooth® phone
has been registered, a call
can be made using the
hands-free system. There
are several methods by
which a call can be made,
as described below.
Calling methods on the
Bluetooth® phone
By call history

1216-1. Phone operation (Hands-free system for cellular phones)
6
Phone
■For PBAP compatible Blue-
tooth
® phones when “Auto-
matic Transfer” is set to off
( P.132)
1 Select the desired item.
Select to always transfer all
the contacts from a con-
nected cellular phone auto-
matically.
Select to transfer all the con-
tacts from a connected cellu-
lar phone only once.
Select to cancel transferring.
2 Check that a confirmation
screen is displayed when the
operation is complete.
■For PBAP incompatible but
OPP compatible Blue-
tooth
® phones
1 Select the desired item.
Select to transfer the con- tacts from the connected cel-
lular phone.
Transfer the contact data to
the system using a Blue-
tooth
® phone.
Select to add a new contact
manually.
Follow the steps in “Register-
ing a new contact to the con-
tacts list” from step 2.
( P.135)
Select to cancel transferring.
●If your cellular phone is neither
PBAP nor OPP compatible, the
contacts cannot be transferred
using Bluetooth
®. But the contacts
can be transferred from USB
device. ( P.135)
●Depending on the type of Blue-
tooth® phone:
• It may be necessary to perform
additional steps on the phone
when transferring contact data.
• The registered image in the con-
tact list may not transfer depend-
ing on the type of Bluetooth
®
phone connected.
1 Display the phone top
screen. ( P.114)
2 Select “Keypad” and enter
the phone number.
3 Select or press the
switch on the steering wheel.
4 Check that the dialing screen
is displayed.
●Depending on the type of Blue-
A
B
C
A
By keypad
B
C

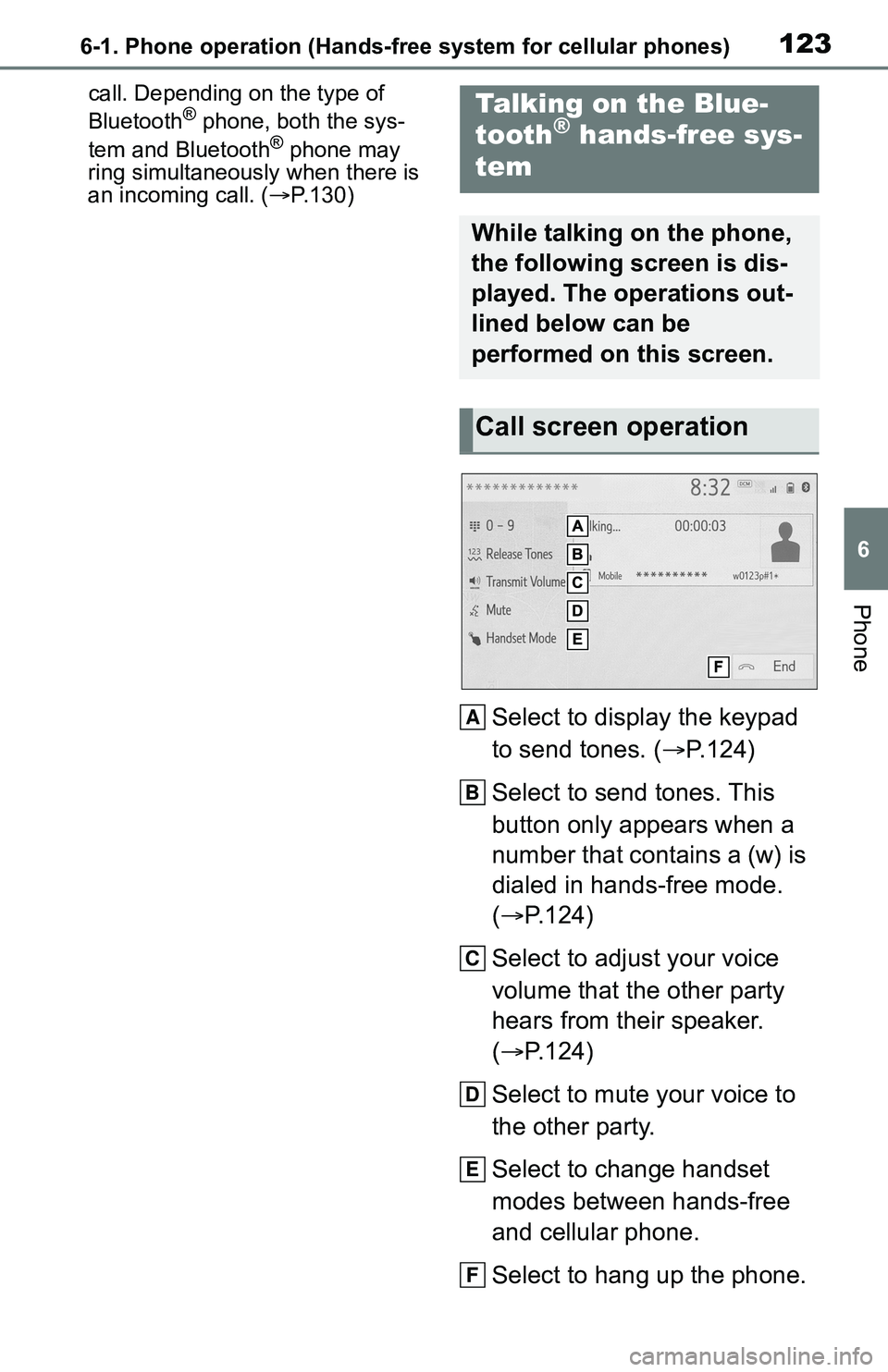

1236-1. Phone operation (Hands-free system for cellular phones)
6
Phone
call. Depending on the type of
Bluetooth® phone, both the sys-
tem and Bluetooth® phone may
ring simultaneously when there is
an incoming call. ( P.130)
Select to display the keypad
to send tones. ( P.124)
Select to send tones. This
button only appears when a
number that contains a (w) is
dialed in hands-free mode.
( P.124)
Select to adjust your voice
volume that the other party
hears from their speaker.
( P.124)
Select to mute your voice to
the other party.
Select to change handset
modes between hands-free
and cellular phone.
Select to hang up the phone.
Talking on the Blue-
tooth® hands-free sys-
tem
While talking on the phone,
the following screen is dis-
played. The operations out-
lined below can be
performed on this screen.
Call screen operation
A
B
C
D
E
F

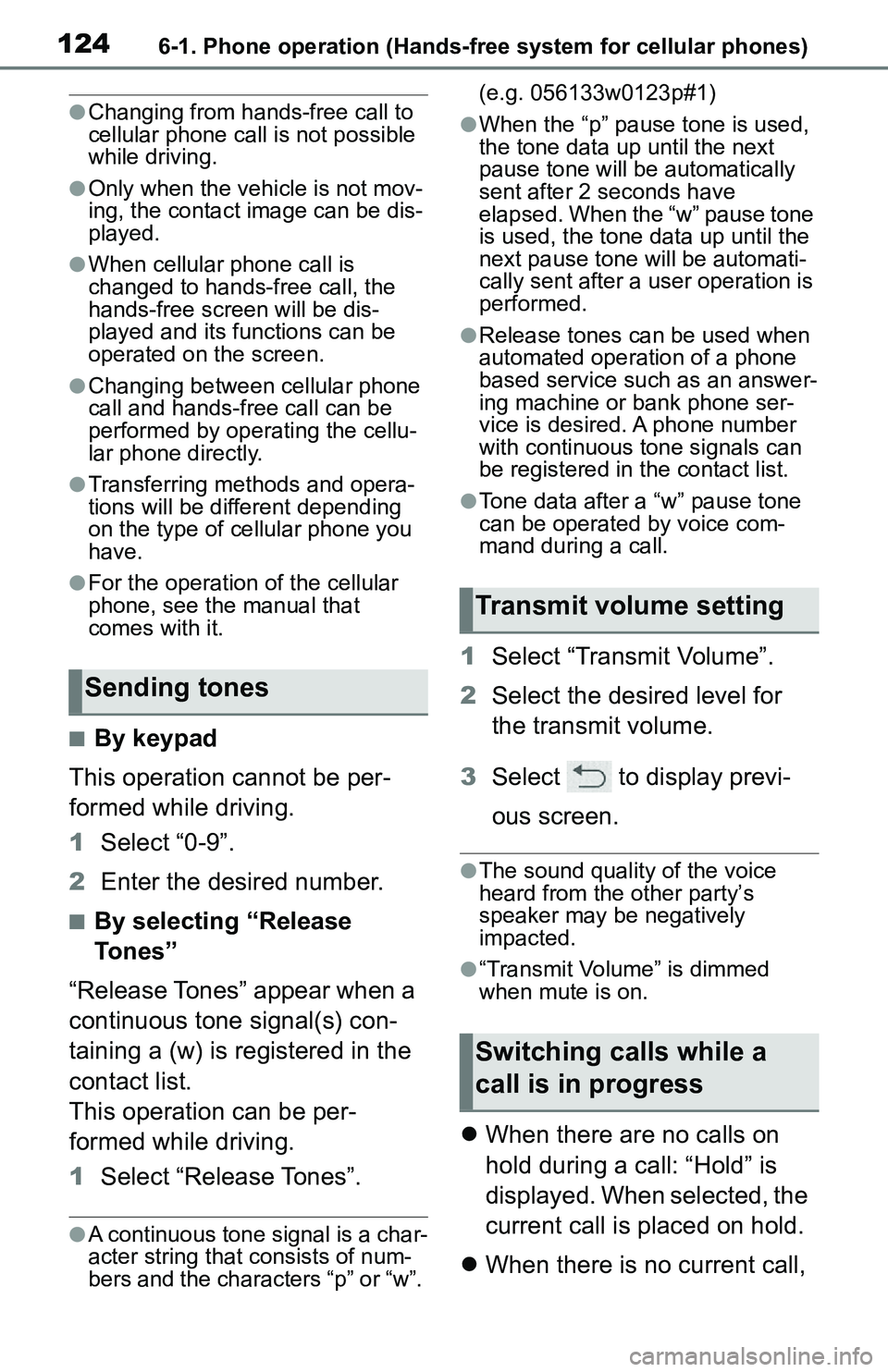

1246-1. Phone operation (Hands-free system for cellular phones)
●Changing from hands-free call to
cellular phone call is not possible
while driving.
●Only when the vehicle is not mov-
ing, the contact image can be dis-
played.
●When cellular phone call is
changed to hands-free call, the
hands-free screen will be dis-
played and its functions can be
operated on the screen.
●Changing between cellular phone
call and hands-free call can be
performed by operating the cellu-
lar phone directly.
●Transferring methods and opera-
tions will be diffe rent depending
on the type of cellular phone you
have.
●For the operation of the cellular
phone, see the manual that
comes with it.
■By keypad
This operation cannot be per-
formed while driving.
1 Select “0-9”.
2 Enter the desired number.
■By selecting “Release
Tones”
“Release Tones” appear when a
continuous tone signal(s) con-
taining a (w) is registered in the
contact list.
This operation can be per-
formed while driving.
1 Select “Release Tones”.
●A continuous tone signal is a char-
acter string that consists of num-
bers and the characters “p” or “w”. (e.g. 056133w0123p#1)
●When the “p” pause tone is used,
the tone data up until the next
pause tone will be
automatically
sent after 2 seconds have
elapsed. When the “w” pause tone
is used, the tone d ata up until the
next pause tone will be automati-
cally sent after a user operation is
performed.
●Release tones can be used when
automated operation of a phone
based service such as an answer-
ing machine or bank phone ser-
vice is desired. A phone number
with continuous tone signals can
be registered in the contact list.
●Tone data after a “w” pause tone
can be operated by voice com-
mand during a call.
1 Select “Transmit Volume”.
2 Select the desired level for
the transmit volume.
3 Select to display previ-
ous screen.
●The sound quality of the voice
heard from the other party’s
speaker may be negatively
impacted.
●“Transmit Volume” is dimmed
when mute is on.
When there are no calls on
hold during a call: “Hold” is
displayed. When selected, the
current call is placed on hold.
 When there is no current call,
Sending tones
Transmit volume setting
Switching calls while a
call is in progress

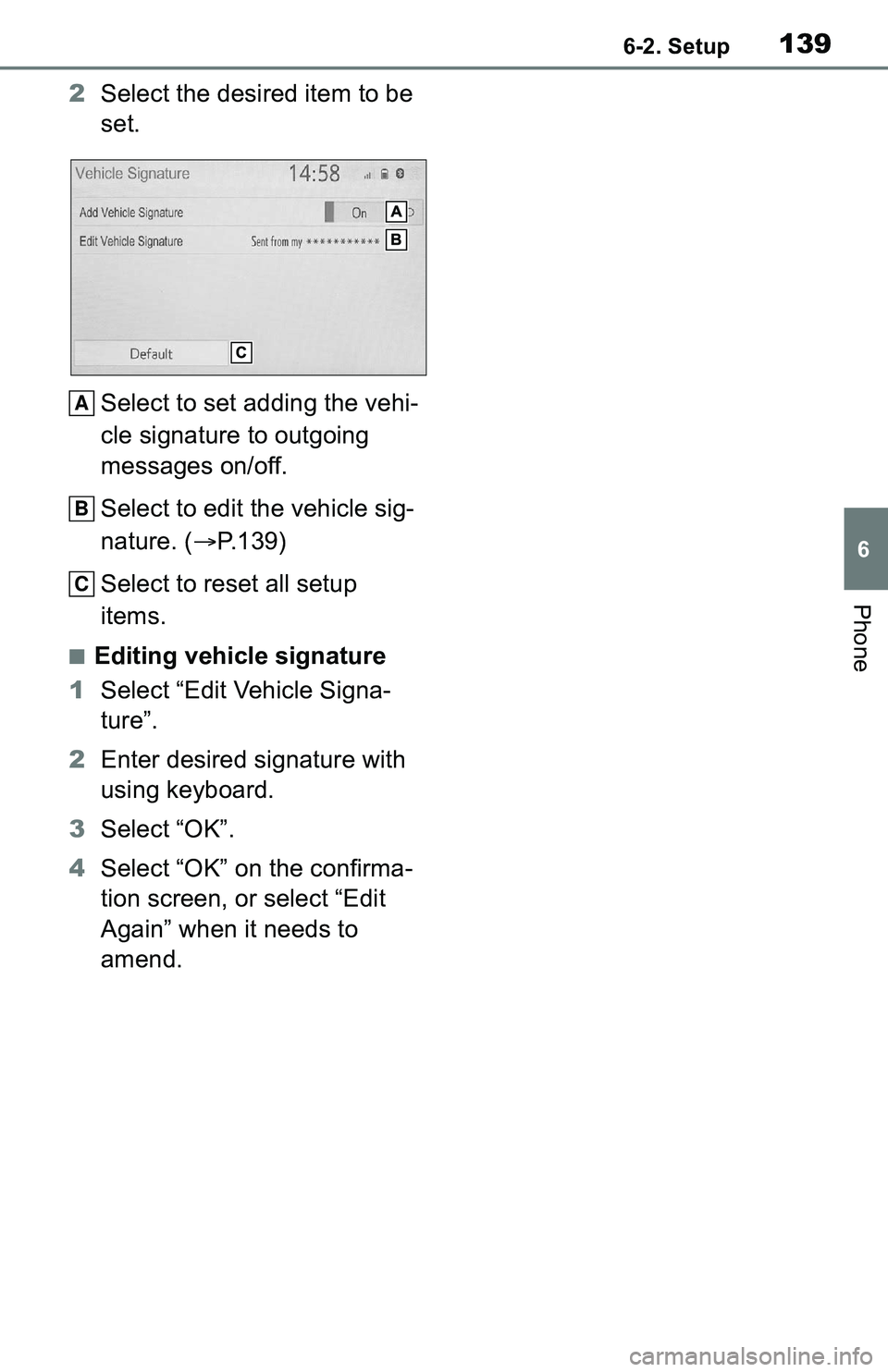

1396-2. Setup
6
Phone
2Select the desired item to be
set.
Select to set adding the vehi-
cle signature to outgoing
messages on/off.
Select to edit the vehicle sig-
nature. ( P.139)
Select to reset all setup
items.
■Editing vehicle signature
1 Select “Edit Vehicle Signa-
ture”.
2 Enter desired signature with
using keyboard.
3 Select “OK”.
4 Select “OK” on the confirma-
tion screen, or select “Edit
Again” when it needs to
amend.
A
B
C

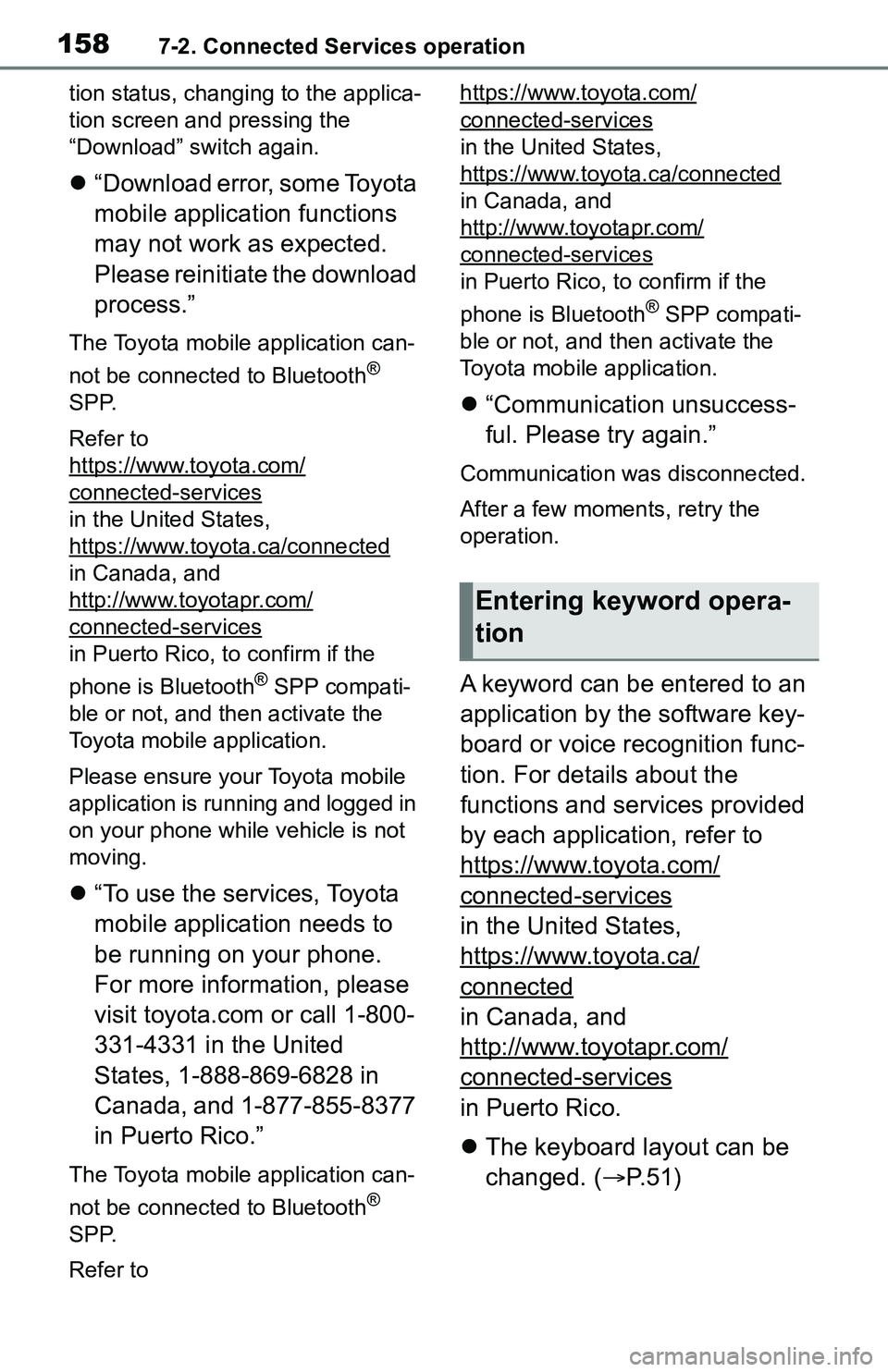

1587-2. Connected Services operation
tion status, changing to the applica-
tion screen and pressing the
“Download” switch again.
 “Download error, some Toyota
mobile application functions
may not work as expected.
Please reinitiate the download
process.”
The Toyota mobile application can-
not be connected to Bluetooth
®
SPP.
Refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico, to confirm if the
phone is Bluetooth
® SPP compati-
ble or not, and then activate the
Toyota mobile application.
Please ensure your Toyota mobile
application is running and logged in
on your phone while vehicle is not
moving.
 “To use the services, Toyota
mobile application needs to
be running on your phone.
For more information, please
visit toyota.com or call 1-800-
331-4331 in the United
States, 1-888-869-6828 in
Canada, and 1-877-855-8377
in Puerto Rico.”
The Toyota mobile application can-
not be connected to Bluetooth
®
SPP.
Refer to https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico, to confirm if the
phone is Bluetooth
® SPP compati-
ble or not, and then activate the
Toyota mobile application.
 “Communication unsuccess-
ful. Please try again.”
Communication was disconnected.
After a few moments, retry the
operation.
A keyword can be entered to an
application by the software key-
board or voice recognition func-
tion. For details about the
functions and services provided
by each application, refer to
https://www.toyota.com/
connected-services
in the United States,
https://www.toyota.ca/
connected
in Canada, and
http://www.toyotapr.com/
connected-services
in Puerto Rico.
The keyboard layout can be
changed. ( P.51)
Entering keyword opera-
tion

1597-2. Connected Services operation
7
Connected Services
1Display the application
screen. ( P.156)
2 Select the desired application
screen button.
3 Select the character entering
space.
4 Enter a search term, and
then select “OK”.
5 Entering characters will be
reflected on the character
entering space.
 For details on operating the
keyboard:  P. 2 2
1 Display the application
screen. ( P.156)
2 Select the desired application
screen button.
3 Press the talk switch.
( P. 9 6 )
4 Say the desired keyword.
 Completion of the keyword
will be detected automatically.
5 Search results will be dis-
played on the screen.Entering a keyword using
the software keyboard
Entering a keyword using
the voice recognition func-
tion

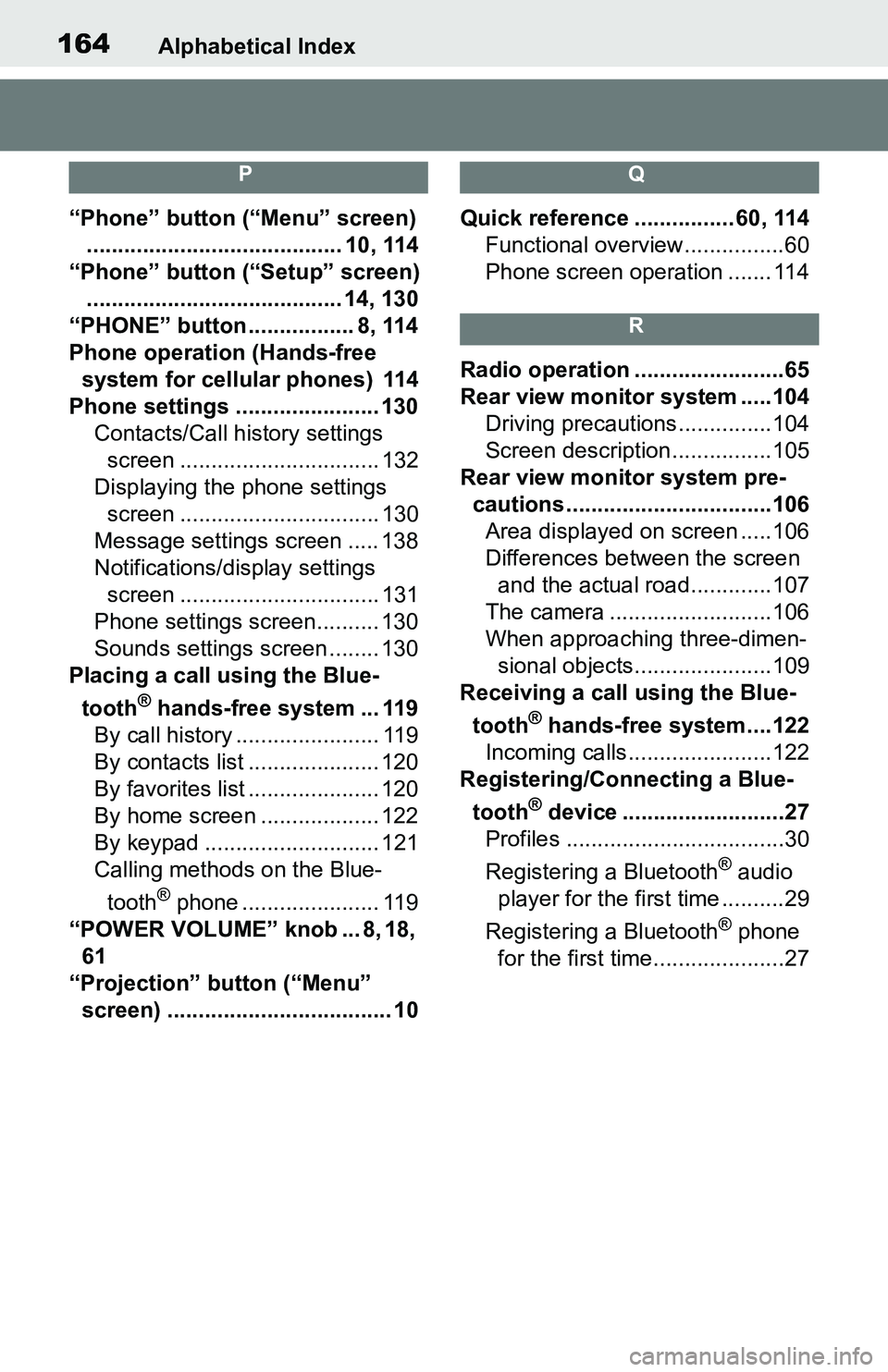

164Alphabetical Index
P
“Phone” button (“Menu” screen)......................................... 10, 114
“Phone” button (“Setup” screen) ......................................... 14, 130
“PHONE” button ................. 8, 114
Phone operation (Hands-free system for cellular phones) 114
Phone settings ....................... 130 Contacts/Call history settings screen ................................ 132
Displaying the phone settings screen ................................ 130
Message settings screen ..... 138
Notifications/display settings screen ................................ 131
Phone settings screen.......... 130
Sounds settings screen ........ 130
Placing a call u sing the Blue-
tooth
® hands-free system ... 119
By call history ....................... 119
By contacts list ..................... 120
By favorites list ..................... 120
By home screen ................... 122
By keypad ............................ 121
Calling methods on the Blue-
tooth
® phone ...................... 119
“POWER VOLUME” knob ... 8, 18, 61
“Projection” button (“Menu” screen) .................................... 10
Q
Quick reference ................ 60, 114 Functional overview................60
Phone screen operation ....... 114
R
Radio operation ........................65
Rear view monitor system .....104
Driving precautions ...............104
Screen description................105
Rear view moni tor system pre-
cautions .................................106 Area displayed on screen .....106
Differences between the screen and the actual roa d.............107
The camera ..........................106
When approaching three-dimen- sional objects......................109
Receiving a cal l using the Blue-
tooth
® hands-free system....122
Incoming calls.......................122
Registering/Connecting a Blue-
tooth
® device ..........................27
Profiles ...................................30
Registering a Bluetooth
® audio
player for the first time ..........29
Registering a Bluetooth
® phone
for the first time.....................27
