Vehicle specifications
C-HR_OM_USA_OM10684U
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
*: Minimum pedal clearance when depressed with a force of 30.6 kgf (300 N,67.4 lbf) while the engine is running

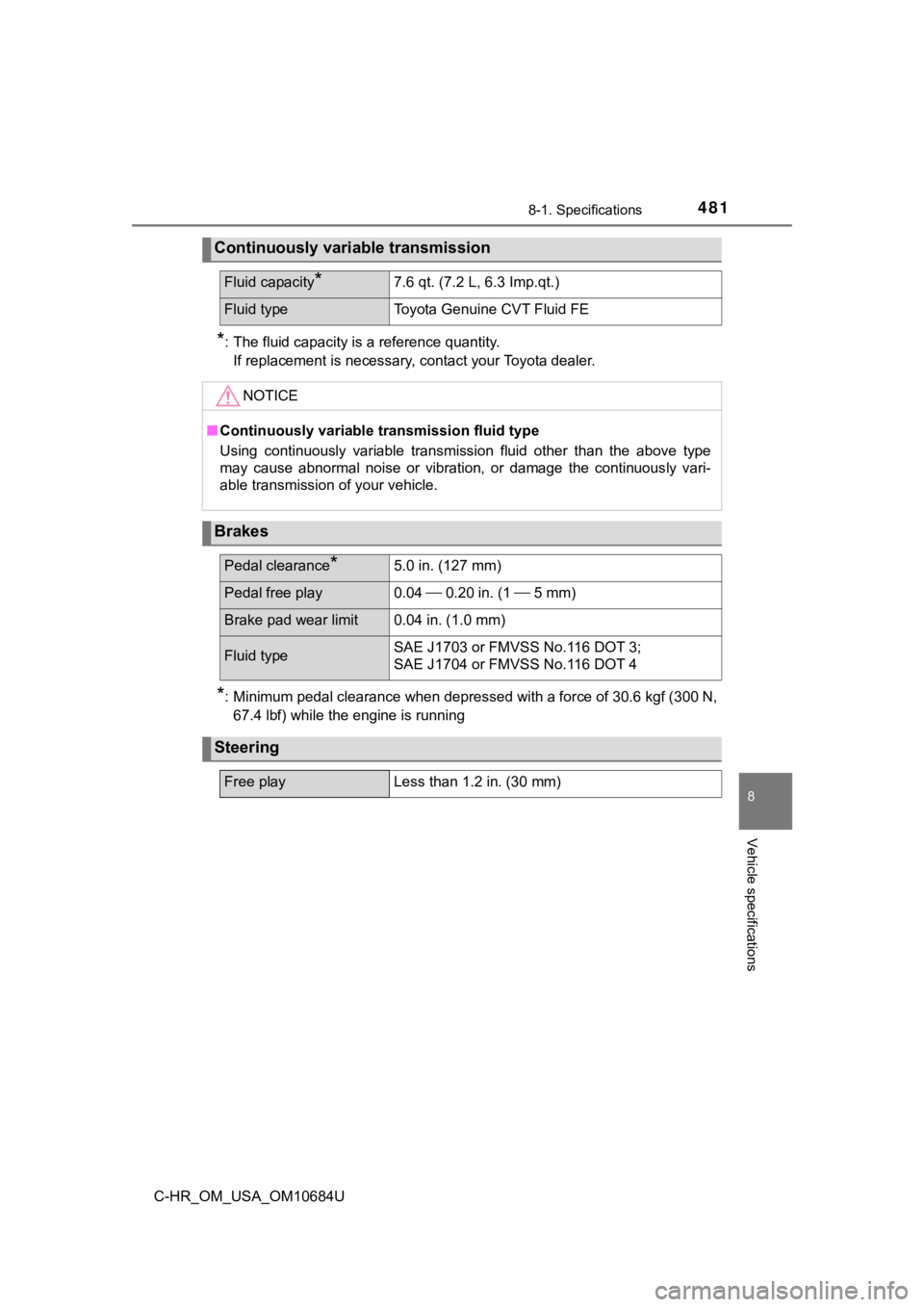

Continuously variable transmission
Fluid capacity*7.6 qt. (7.2 L, 6.3 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Continuously variable tr ansmission fluid type
Using continuously variable transmission fluid other than the a bove type
may cause abnormal noise or vibration, or damage the continuously vari-
able transmission of your vehicle.
Brakes
Pedal clearance*5.0 in. (127 mm)
Pedal free play 0.04  0.20 in. (1  5 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3;
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free play
Less than 1.2 in. (30 mm)

4848-1. Specifications
C-HR_OM_USA_OM10684U

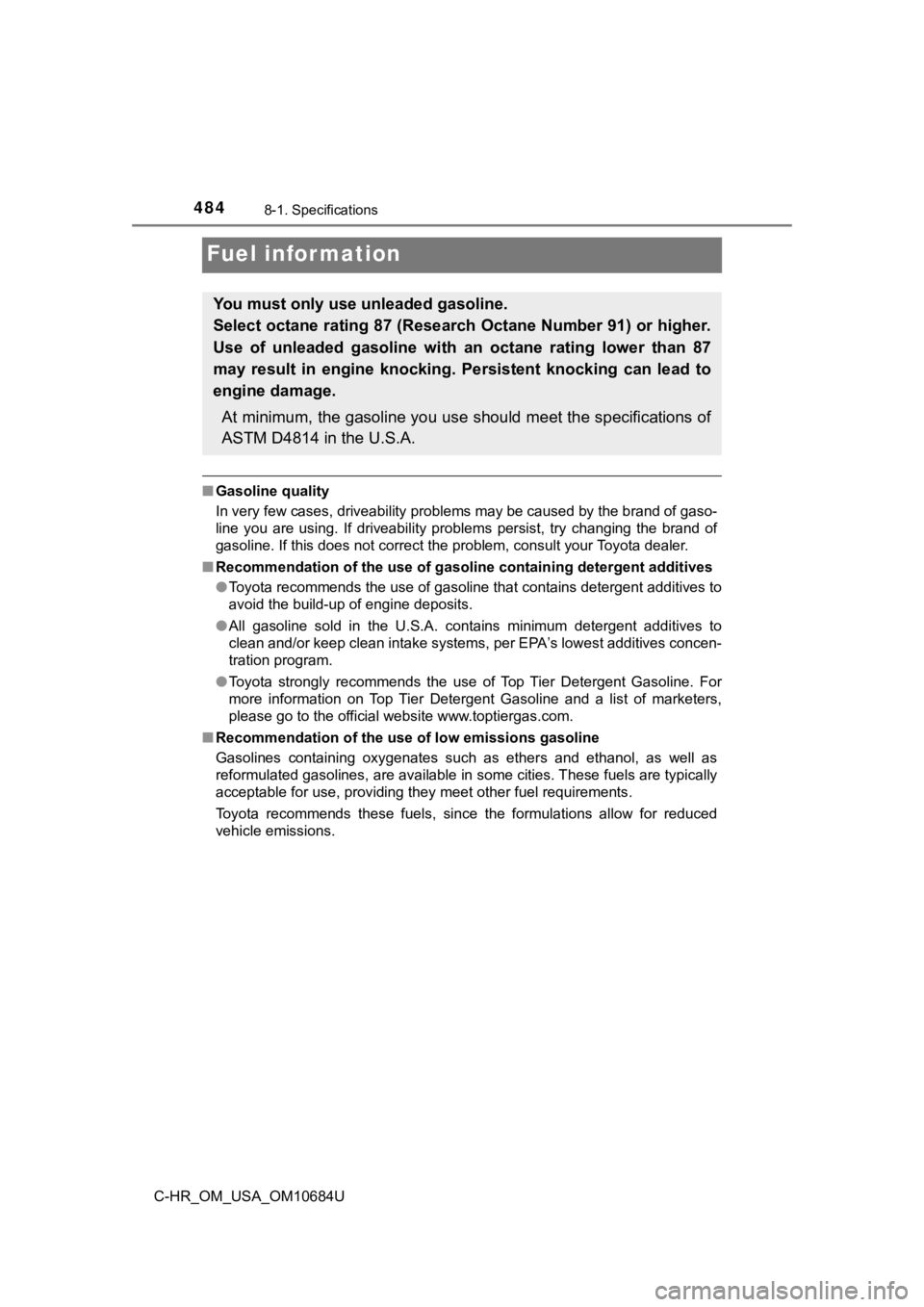

Fuel information
■Gasoline quality
In very few cases, driveability problems may be caused by the b rand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your To yota dealer.
■ Recommendation of the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent a dditives to
avoid the build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent addi tives to
clean and/or keep clean intake systems, per EPA’s lowest additi ves concen-
tration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoli ne. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fue ls are typically
acceptable for use, providing they meet other fuel requirements .
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.
You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A.

4858-1. Specifications
8
Vehicle specifications
C-HR_OM_USA_OM10684U■
Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octa ne rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methan ol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.
■ If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time whi le accelerat-
ing or driving uphill. This is normal and there is no need for concern.
●

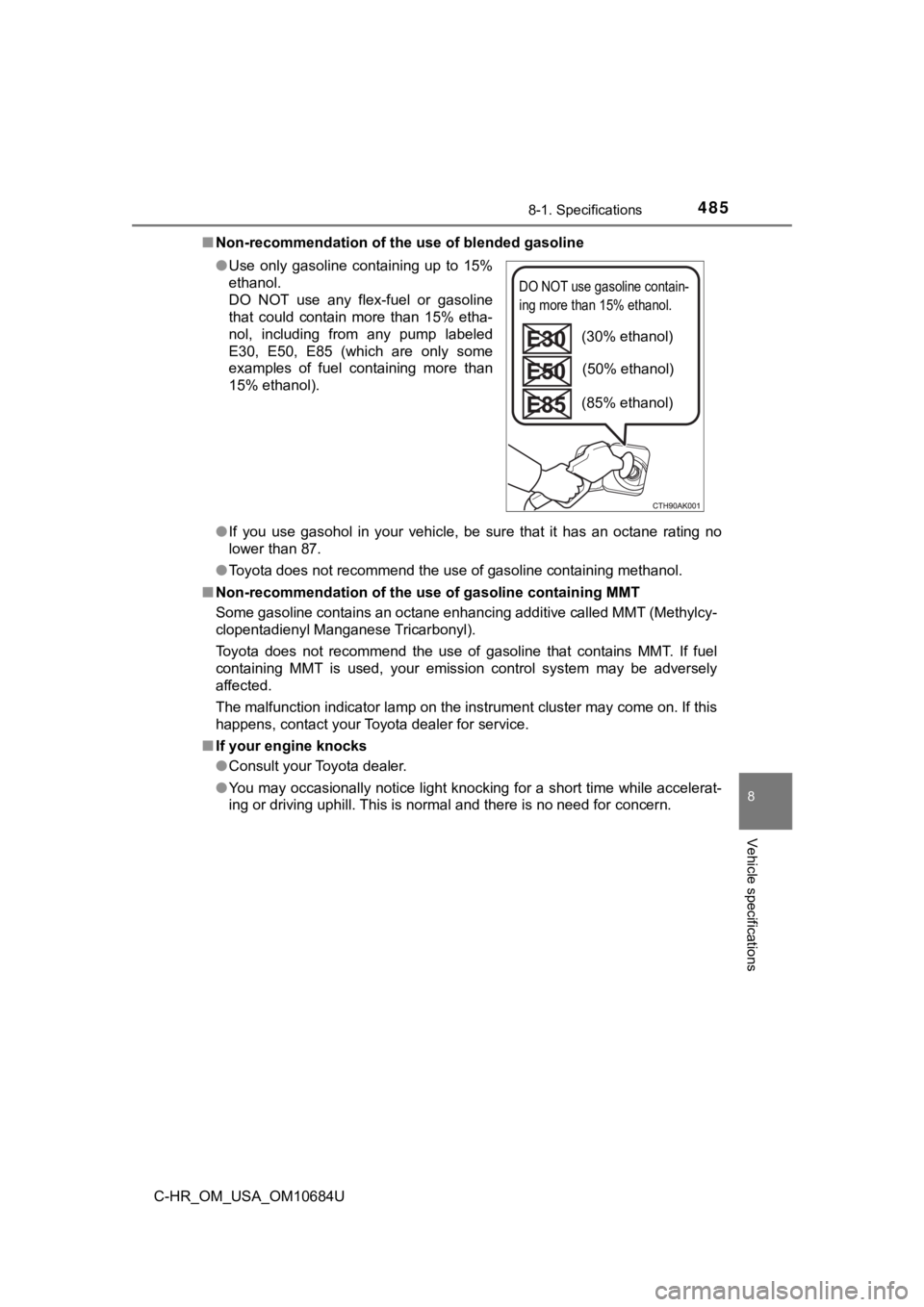

Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).
DO NOT use gasoline contain-
ing more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

4868-1. Specifications
C-HR_OM_USA_OM10684U
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engi ne will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way ca talytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performan ce
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine k nocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

4948-1. Specifications
C-HR_OM_USA_OM10684U
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below

5058-2. Customization
8
Vehicle specifications
C-HR_OM_USA_OM10684U■
Smart key system* (
 P. 133)
*: If equipped
■
Wireless remote control ( P. 1 2 0 )
■Outside rear view mirrors ( P. 1 5 4 )
FunctionDefault settingCustomized
setting
Smart key systemOnOff——O
Smart door unlockingDriver’s doorAll the doors—OO
Number of consecu-
tive door lock opera-
tions
2 timesAs many as desired——O
FunctionDefault settingCustomized setting
Wireless remote con-
trolOnOff——O
FunctionDefault settingCustomized
setting
Automatic mirror fold-
ing and extending
operationLinked to the
locking/unlocking of the doorsOff
——OLinked to opera-
tion of the engine switch

5108-2. Customization
C-HR_OM_USA_OM10684U■
Illumination (
P. 3 2 3 )
*1: Vehicles with a smart key system
*2: If equipped
FunctionDefault settingCustomized
setting
Time elapsed before
the interior lights turn
off15 seconds
Off
—OO7.5 seconds
30 seconds
Operation after the
engine switch is
turned off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
*1
OnOff——O
Outer mirror illumina-
tion
*2OnOff——O
Time elapsed before
the outer mirror illumi-
nation turn off
*215 seconds
Off
——O7.5 seconds
30 seconds
Operation of the outer
mirror illumination
when you approach
the vehicle with the
electronic key on your
person
*1, 2
OnOff——O
Operation of the outer
mirror illumination
when the doors are
unlocked
*2
OnOff——O
Interior lights illumina-
tion control
*2OnOff——O

5118-2. Customization
8
Vehicle specifications
C-HR_OM_USA_OM10684U
■In the following situations, customize mode in which the settin gs can be
changed through the multi-information display will automaticall y be
turned off
● A warning message appears after the customize mode screen is di splayed.
● The engine switch is turned off.
● The vehicle begins to move while the customize mode screen is d isplayed.
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a seri ous health
hazard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
