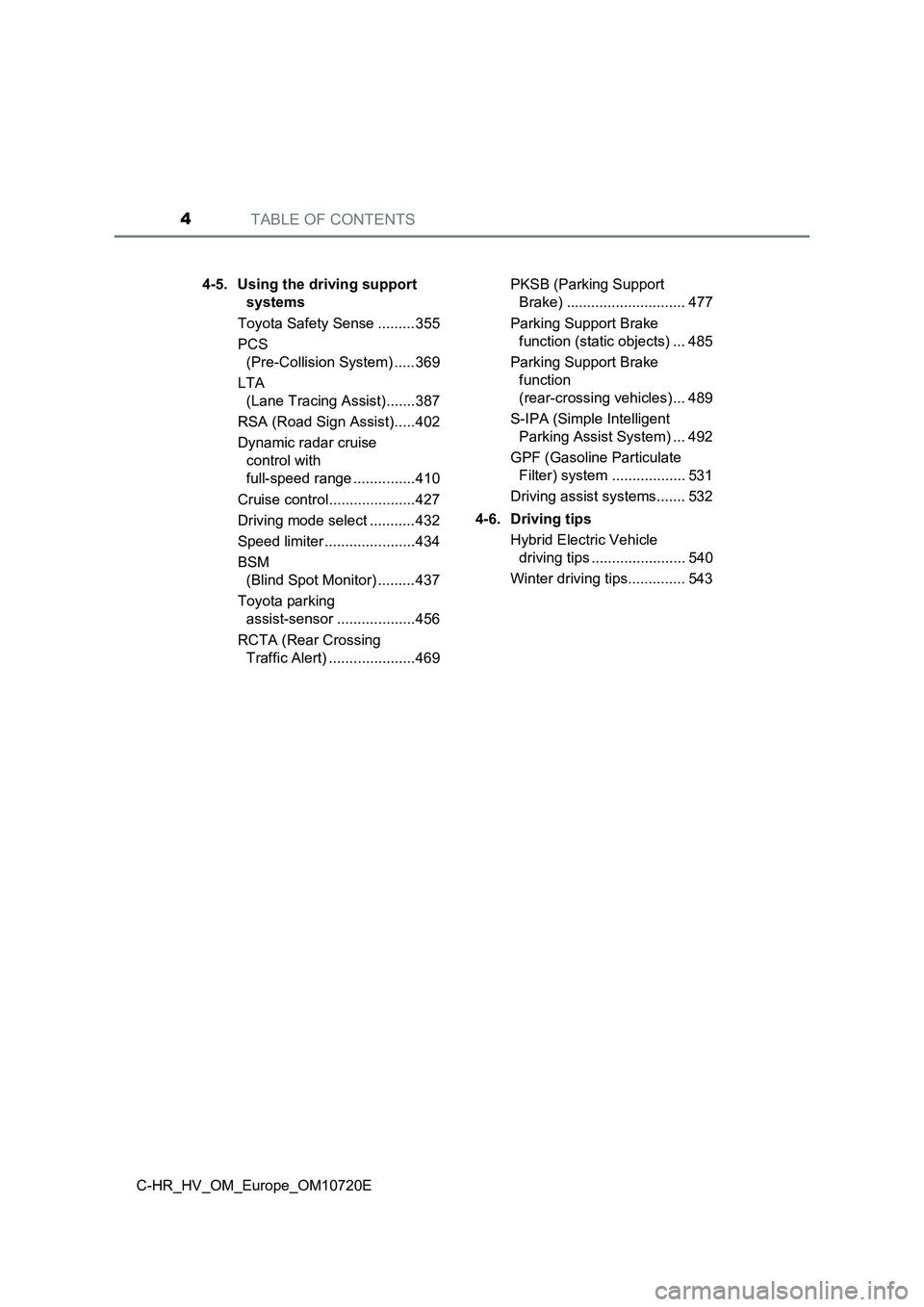

Page 6 of 818

TABLE OF CONTENTS4
C-HR_HV_OM_Europe_OM10720E
4-5. Using the driving support
systems
Toyota Safety Sense .........355
PCS
(Pre-Collision System) .....369
LTA
(Lane Tracing Assist).......387
RSA (Road Sign Assist).....402
Dynamic radar cruise
control with
full-speed range ...............410
Cruise control.....................427
Driving mode select ...........432
Speed limiter ......................434
BSM
(Blind Spot Monitor) .........437
Toyota parking
assist-sensor ...................456
RCTA (Rear Crossing
Traffic Alert) .....................469
PKSB (Parking Support
Brake) ............................. 477
Parking Support Brake
function (static objects) ... 485
Parking Support Brake
function
(rear-crossing vehicles)... 489
S-IPA (Simple Intelligent
Parking Assist System) ... 492
GPF (Gasoline Particulate
Filter) system .................. 531
Driving assist systems....... 532
4-6. Driving tips
Hybrid Electric Vehicle
driving tips ....................... 540
Winter driving tips.............. 543

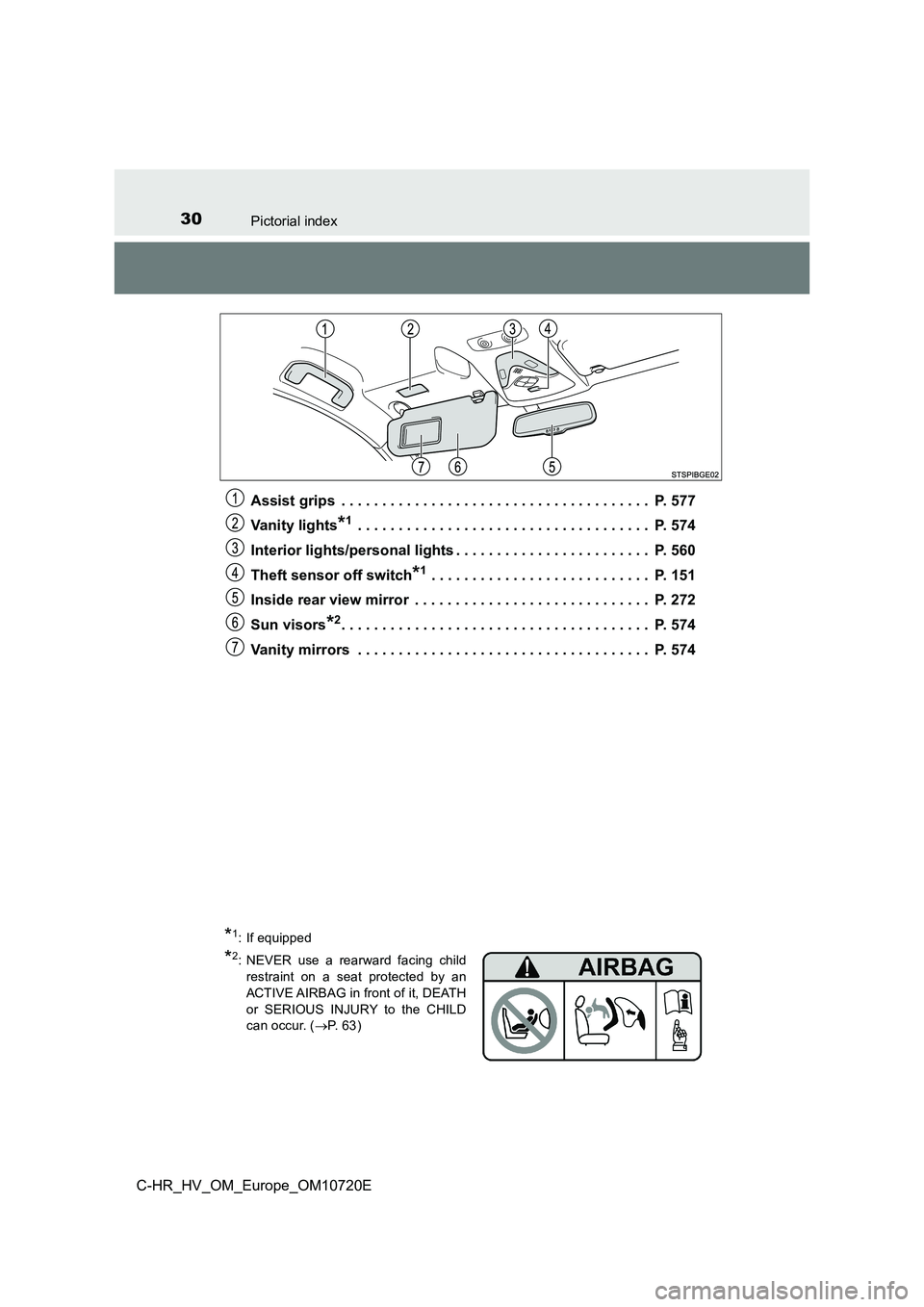

Page 32 of 818

30Pictorial index
C-HR_HV_OM_Europe_OM10720E
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 577
Vanity lights*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . . . . . P. 560
Theft sensor off switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Sun visors*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
*1: If equipped
*2: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. ( P. 6 3 )

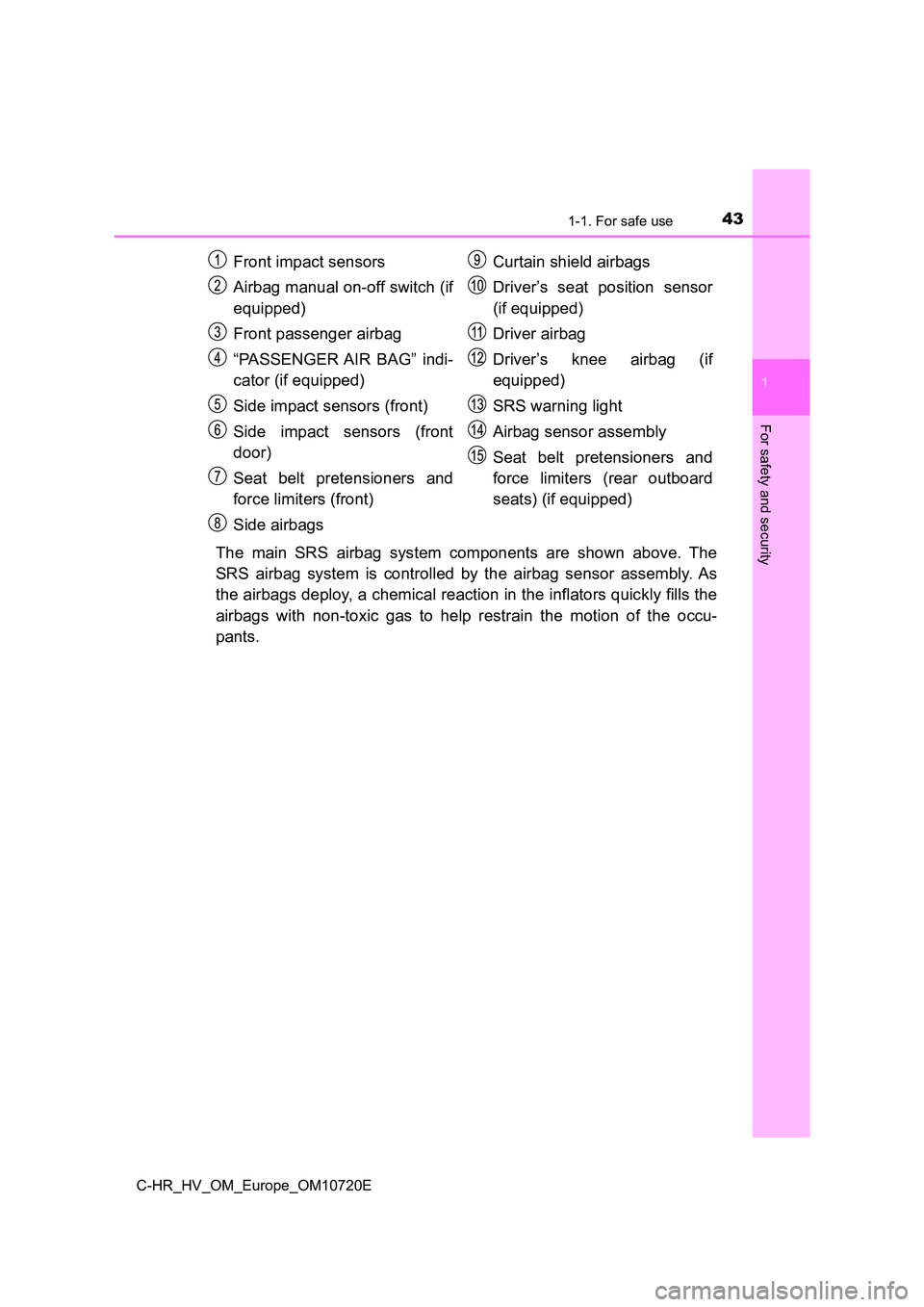

Page 45 of 818

431-1. For safe use
1
For safety and security
C-HR_HV_OM_Europe_OM10720E
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickl y fills the
airbags with non-toxic gas to help restrain the motion of the o ccu-
pants.
Front impact sensors
Airbag manual on-off switch (if
equipped)
Front passenger airbag
“PASSENGER AIR BAG” indi-
cator (if equipped)
Side impact sensors (front)
Side impact sensors (front
door)
Seat belt pretensioners and
force limiters (front)
Side airbags
Curtain shield airbags
Driver’s seat position sensor
(if equipped)
Driver airbag
Driver’s knee airbag (if
equipped)
SRS warning light
Airbag sensor assembly
Seat belt pretensioners and
force limiters (rear outboard
seats) (if equipped)

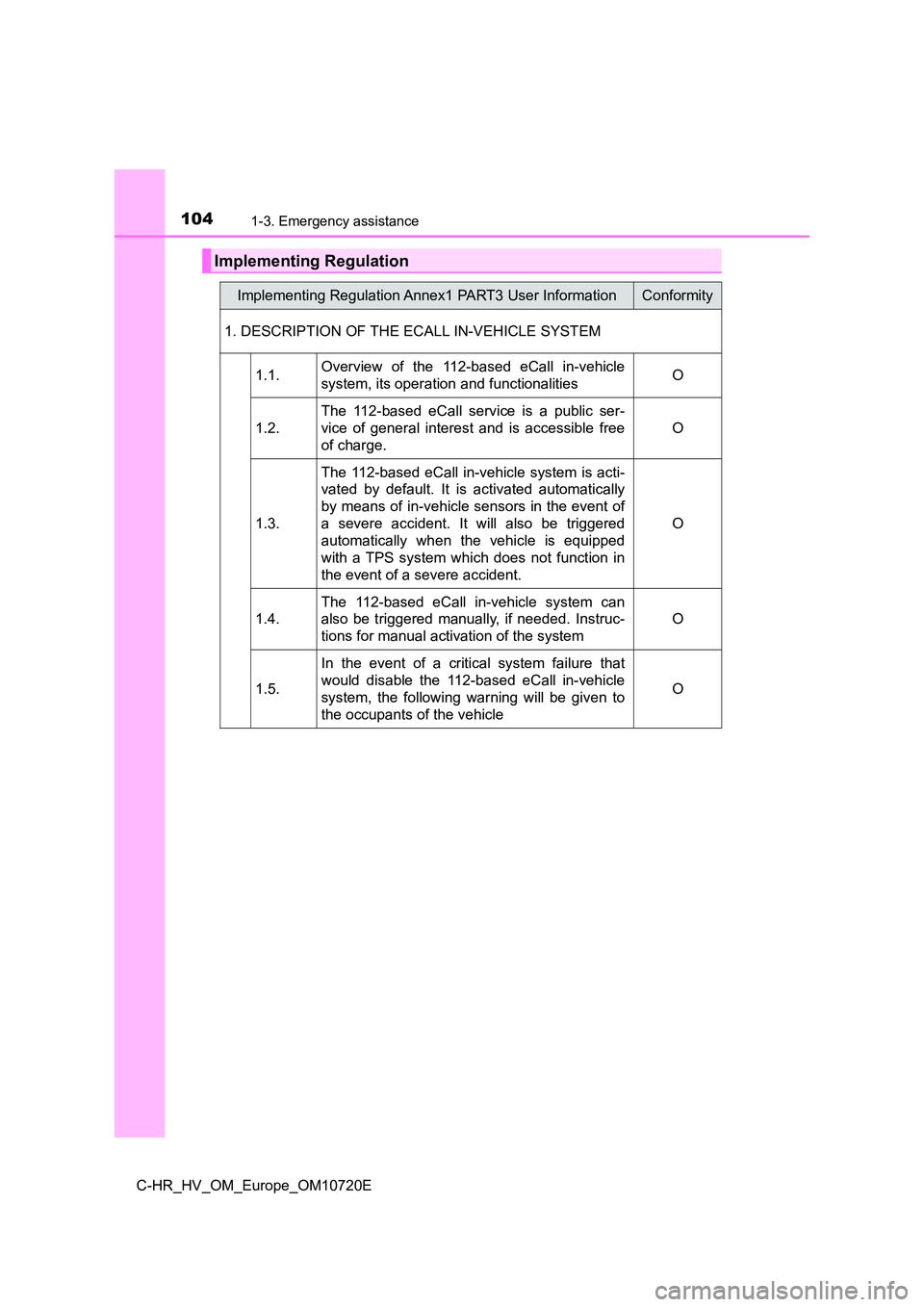

Page 106 of 818

1041-3. Emergency assistance
C-HR_HV_OM_Europe_OM10720E
Implementing Regulation
Implementing Regulation Annex1 PART3 User InformationConformity
1. DESCRIPTION OF THE ECALL IN-VEHICLE SYSTEM
1.1.Overview of the 112-based eCall in-vehicle
system, its operation and functionalities O
1.2.
The 112-based eCall service is a public ser-
vice of general interest and is accessible free
of charge.
O
1.3.
The 112-based eCall in-vehicle system is acti-
vated by default. It is activated automatically
by means of in-vehicle sensors in the event of
a severe accident. It will also be triggered
automatically when the vehicle is equipped
with a TPS system which does not function in
the event of a severe accident.
O
1.4.
The 112-based eCall in-vehicle system can
also be triggered manually, if needed. Instruc-
tions for manual activation of the system
O
1.5.
In the event of a critical system failure that
would disable the 112-based eCall in-vehicle
system, the following warning will be given to
the occupants of the vehicle
O
Page 126 of 818

1241-4. Hybrid system
C-HR_HV_OM_Europe_OM10720E
There is an air intake vent under
the right side of the rear seat for
the purpose of cooling the hybrid
battery (traction battery). If the
vent becomes blocked, it may
cause the input-output of the
hybrid battery (traction battery) to
be limited.
When a certain level of impact is detected by the impact sensor , the
emergency shut off system blocks the high voltage current and s tops
the fuel pump to minimize the risk of electrocution and fuel le akage. If
the emergency shut off system activates, your vehicle will not restart.
To restart the hybrid system, contact any authorized Toyota ret ailer or
Toyota authorized repairer, or any reliable repairer.
A message is automatically displayed when a malfunction occurs in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the
instructions.
Hybrid battery (traction battery) air intake vent
Emergency shut off system
Hybrid warning message

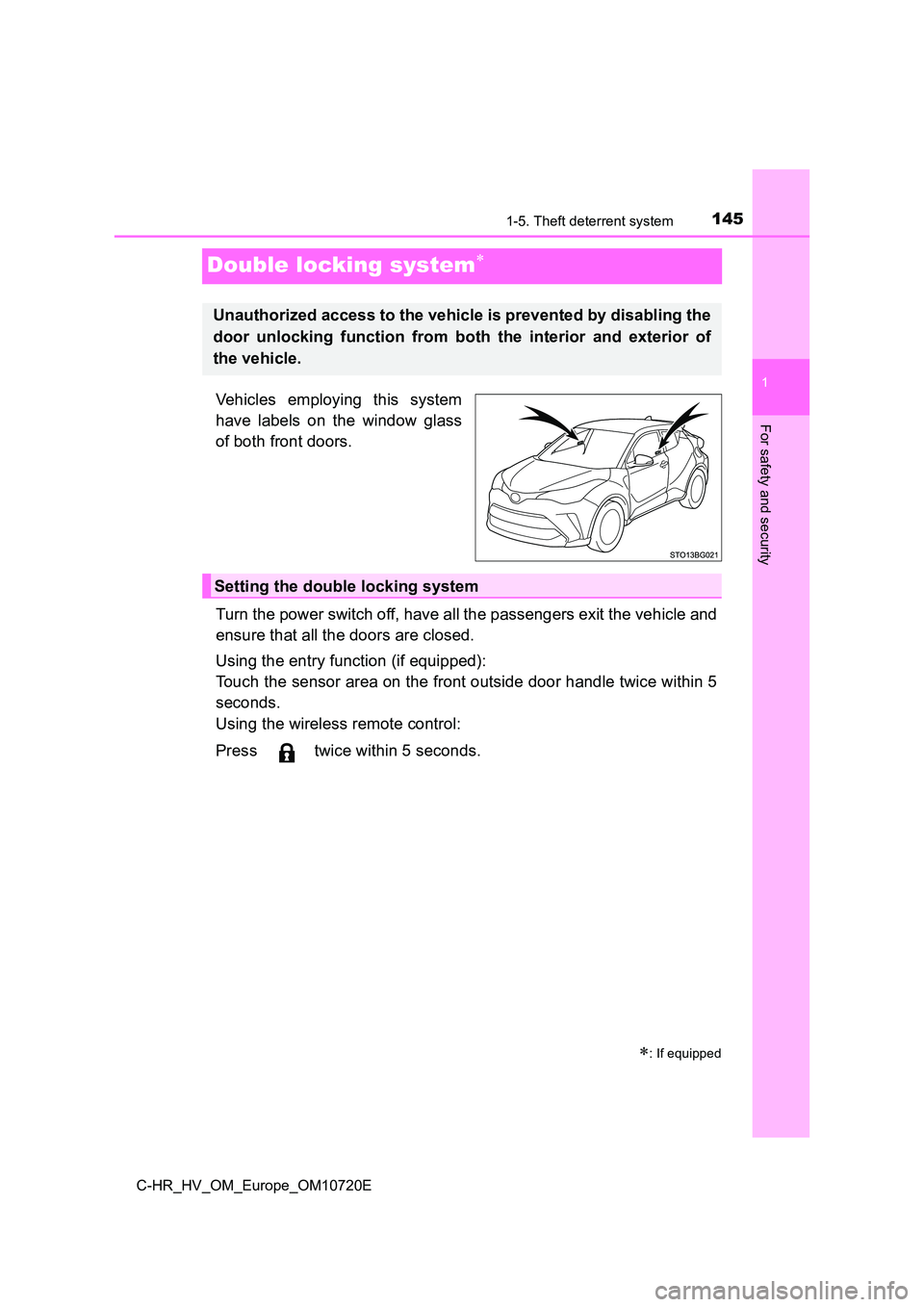

Page 147 of 818

145
1
1-5. Theft deterrent system
For safety and security
C-HR_HV_OM_Europe_OM10720E
Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the power switch off, have all the passengers exit the veh icle and
ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the front outside door handle twice wi thin 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling th e
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system

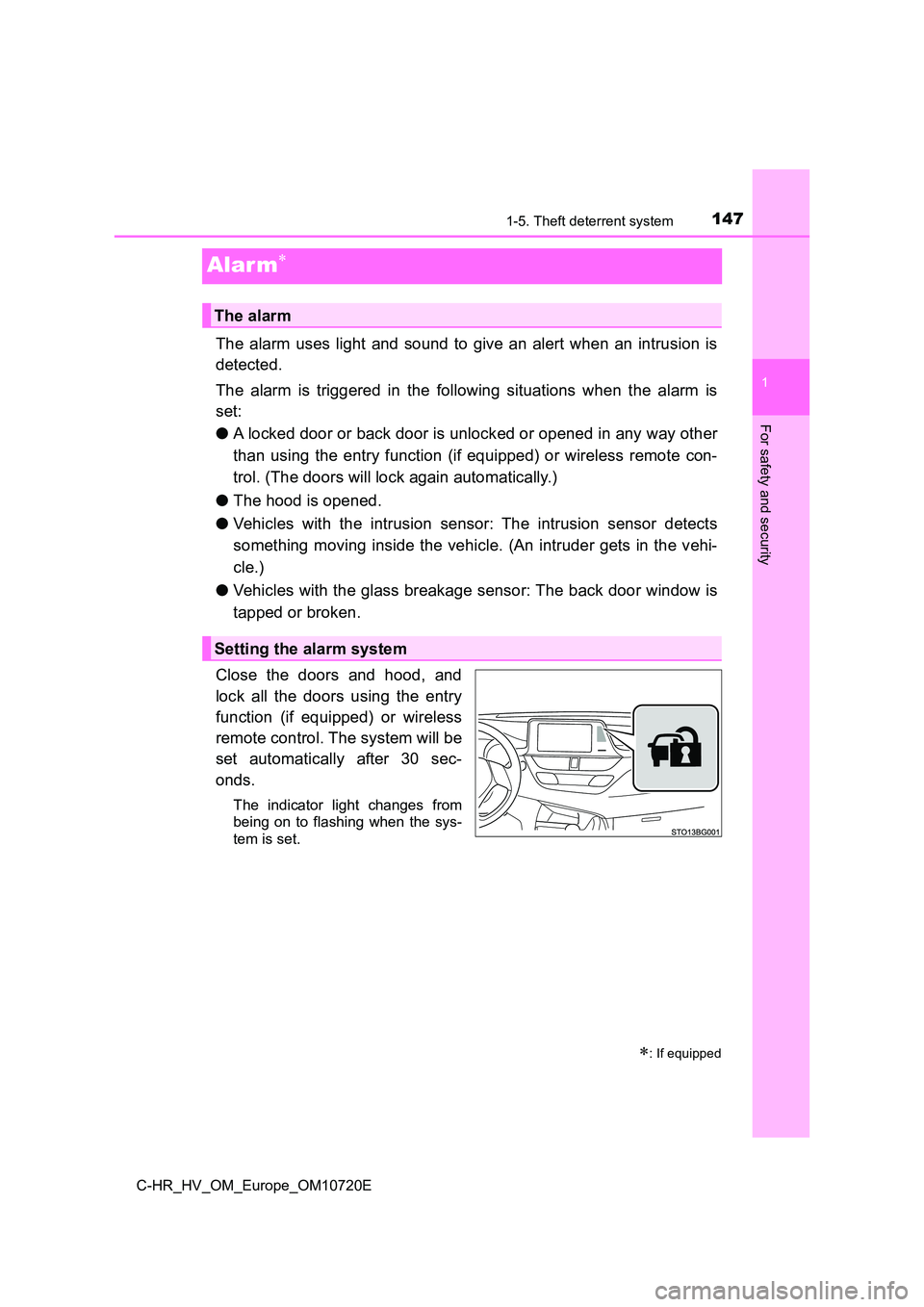

Page 149 of 818

147
1
1-5. Theft deterrent system
For safety and security
C-HR_HV_OM_Europe_OM10720E
Alar m
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the ala rm is
set:
● A locked door or back door is unlocked or opened in any way other
than using the entry function (if equipped) or wireless remote con-
trol. (The doors will lock again automatically.)
● The hood is opened.
● Vehicles with the intrusion sensor: The intrusion sensor detects
something moving inside the vehicle. (An intruder gets in the v ehi-
cle.)
● Vehicles with the glass breakage sensor: The back door window is
tapped or broken.
Close the doors and hood, and
lock all the doors using the entry
function (if equipped) or wireless
remote control. The system will be
set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
: If equipped
The alarm
Setting the alarm system
Page 153 of 818

1511-5. Theft deterrent system
1
For safety and security
C-HR_HV_OM_Europe_OM10720E
The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm i s set.
( P. 147)
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehic le,
make sure to disable the intrusion sensor before setting the al arm,
as it will respond to movement inside the vehicle.
Turn the power switch off.
Press the theft sensor off
switch.
A message will be shown on
the multi-information display.
The intrusion sensor will revert
to on each time the power
switch is turned to ON mode.
Intrusion sensor (if equipped)
1
2

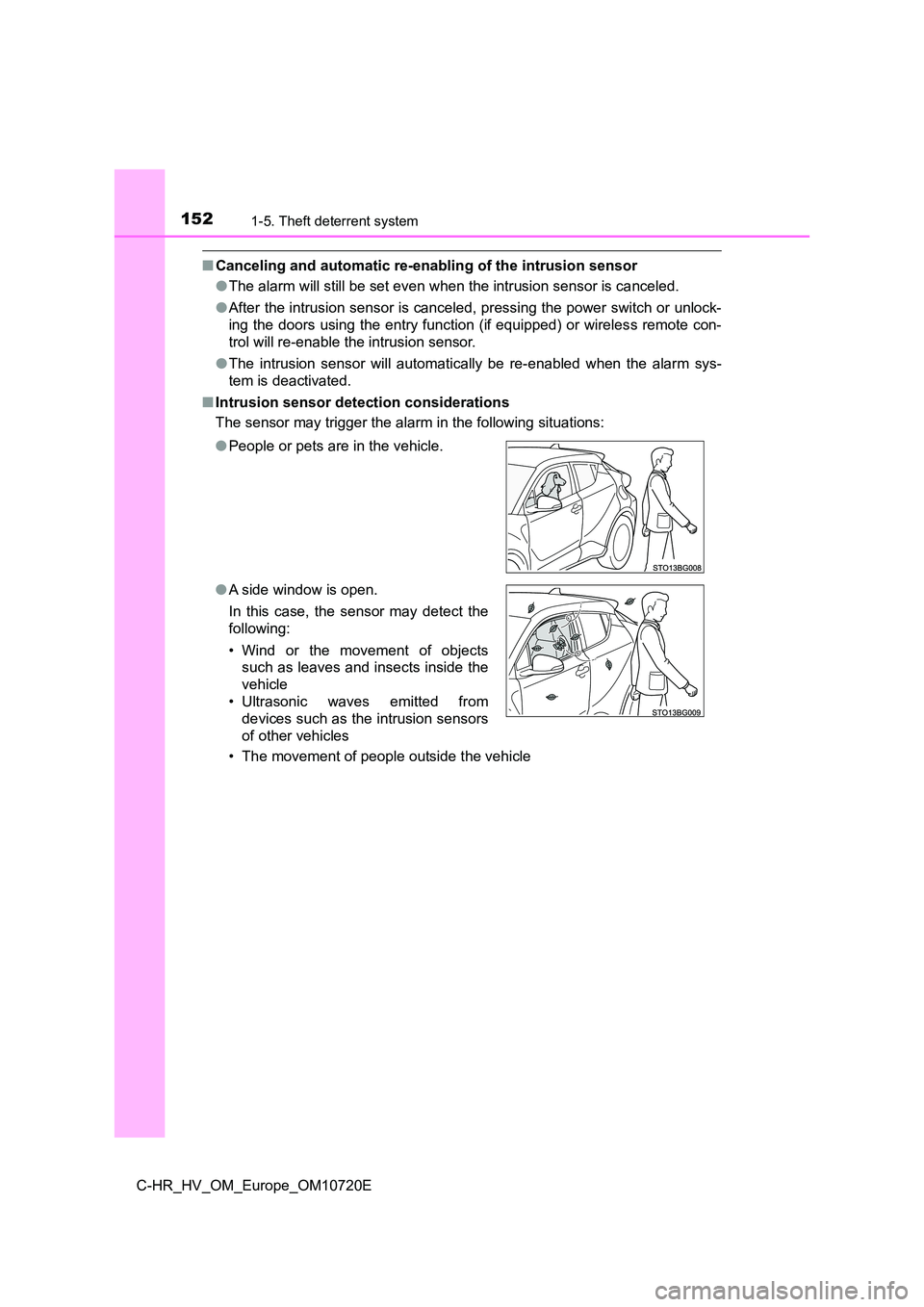

Page 154 of 818

1521-5. Theft deterrent system
C-HR_HV_OM_Europe_OM10720E
■Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function (if equipped) or wireles s remote con-
trol will re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
■ Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
• The movement of people outside the vehicle
● People or pets are in the vehicle.
● A side window is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
Page 156 of 818

1541-5. Theft deterrent system
C-HR_HV_OM_Europe_OM10720E

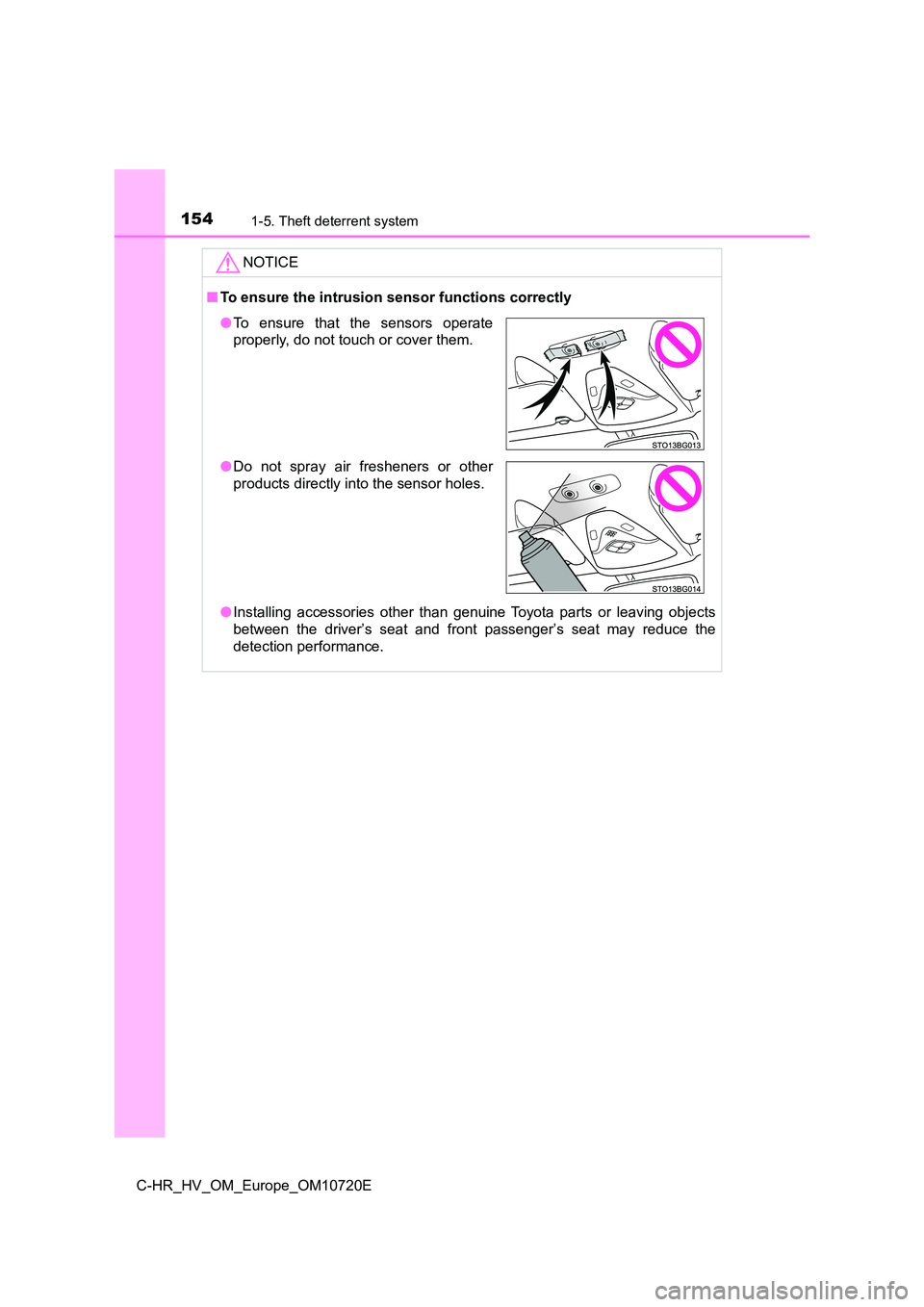

NOTICE
■To ensure the intrusion sensor functions correctly
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
● To ensure that the sensors operate
properly, do not touch or cover them.
● Do not spray air fresheners or other
products directly into the sensor holes.
