TOYOTA C-HR 2023 User Guide

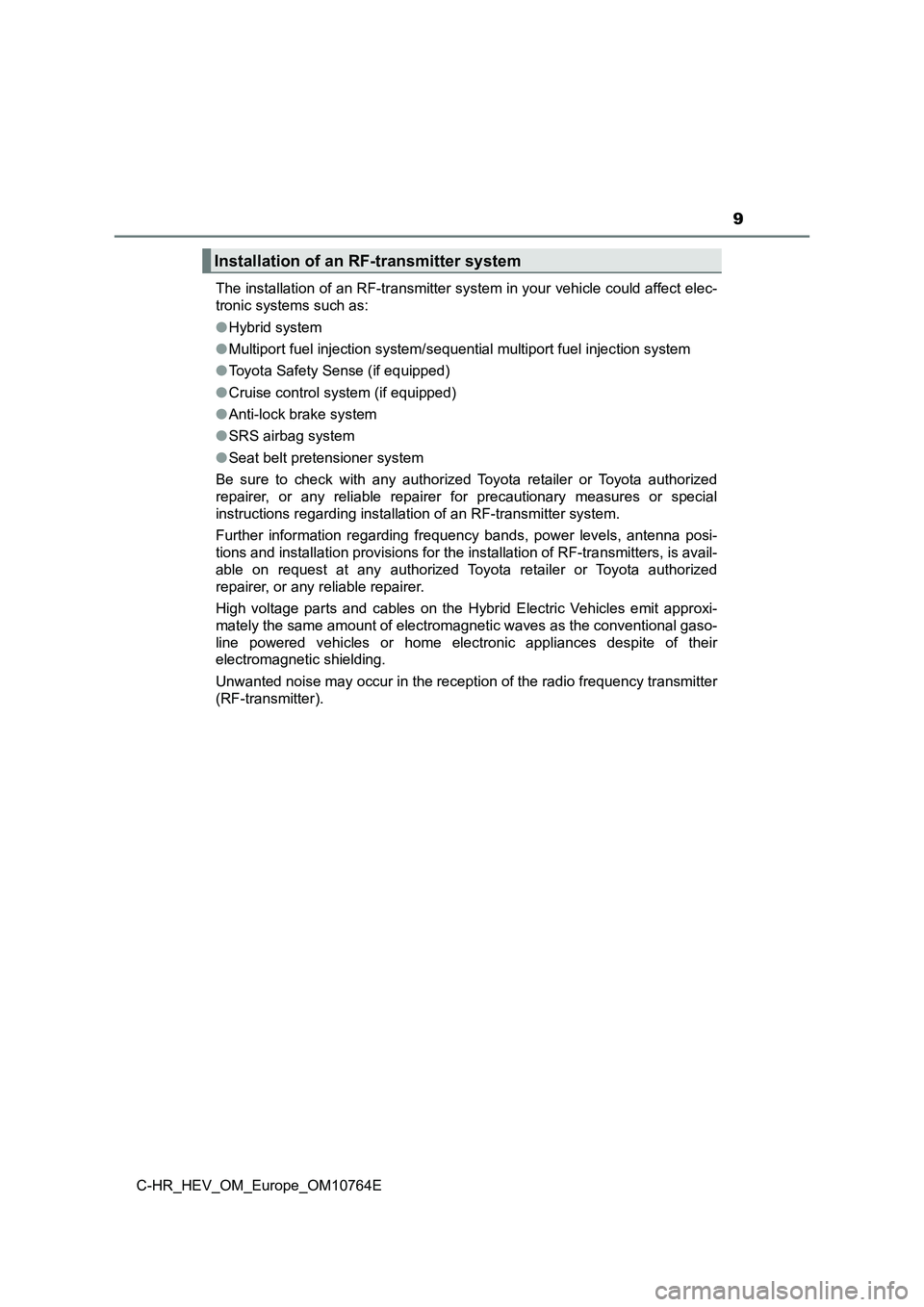

9
C-HR_HEV_OM_Europe_OM10764E
The installation of an RF-transmitter system in your vehicle co uld affect elec-
tronic systems such as:
● Hybrid system
● Multiport fuel injection system/sequential multiport fuel injection system
● Toyota Safety Sense (if equipped)
● Cruise control system (if equipped)
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for precautionary measures o r special
instructions regarding installation of an RF-transmitter system .
Further information regarding frequency bands, power levels, an tenna posi-
tions and installation provisions for the installation of RF-tr ansmitters, is avail-
able on request at any authorized Toyota retailer or Toyota aut horized
repairer, or any r eliable repairer.
High voltage parts and cables on the Hybrid Electric Vehicles e mit approxi-
mately the same amount of electromagnetic waves as the conventi onal gaso-
line powered vehicles or home electronic appliances despite of their
electromagnetic shielding.
Unwanted noise may occur in the reception of the radio frequenc y transmitter
(RF-transmitter).
Installation of an RF-transmitter system

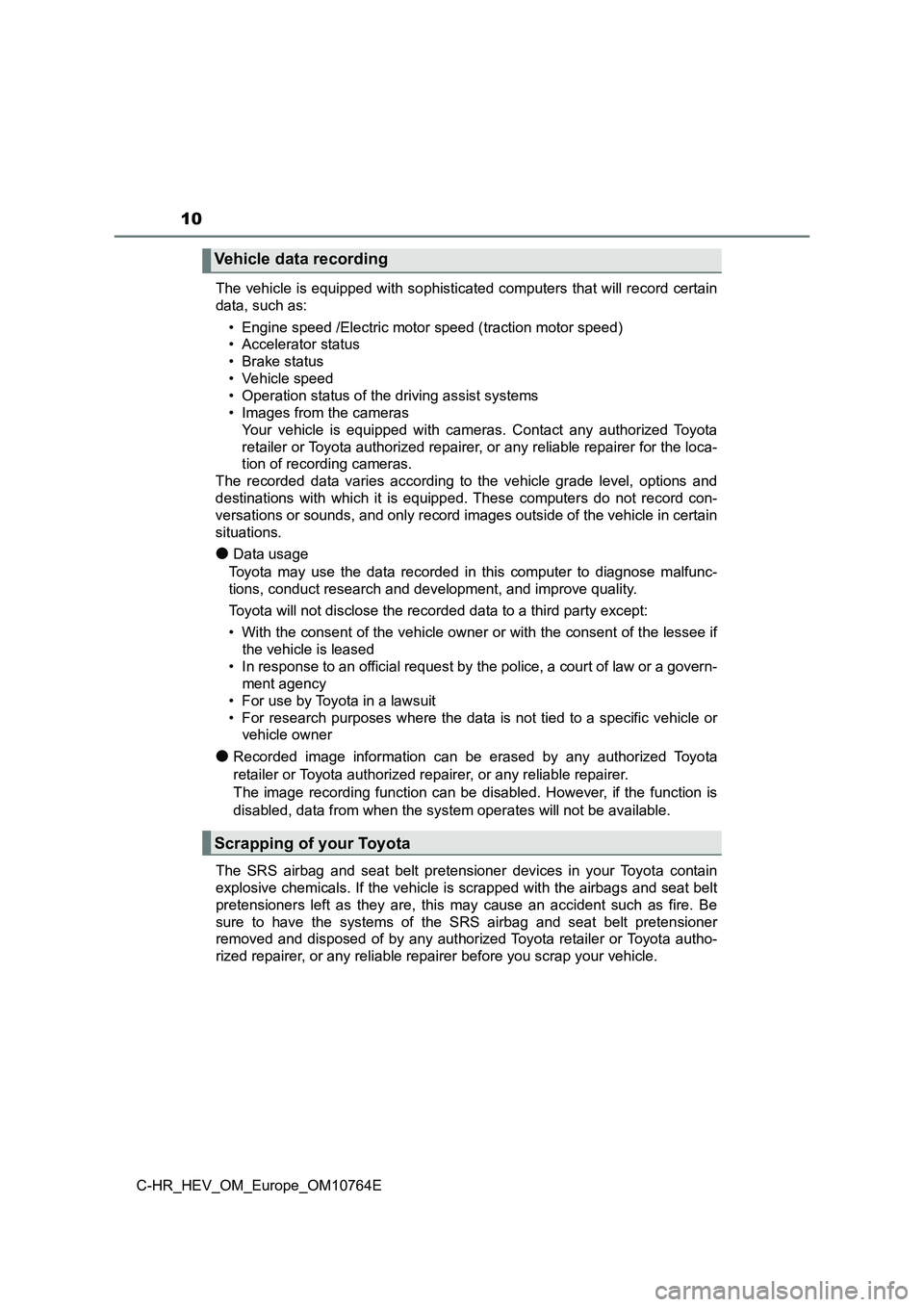

10
C-HR_HEV_OM_Europe_OM10764E
The vehicle is equipped with sophisticated computers that will record certain
data, such as:
• Engine speed /Electric motor speed (traction motor speed)
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the driving assist systems
• Images from the cameras
Your vehicle is equipped with cameras. Contact any authorized T oyota
retailer or Toyota authorized repairer, or any reliable repaire r for the loca-
tion of recording cameras.
The recorded data varies according to the vehicle grade level, options and
destinations with which it is equipped. These computers do not record con-
versations or sounds, and only record images outside of the veh icle in certain
situations.
●Data usage
Toyota may use the data recorded in this computer to diagnose m alfunc-
tions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party exc ept:
• With the consent of the vehicle owner or with the consent of t he lessee if
the vehicle is leased
• In response to an official request by the police, a court of l aw or a govern-
ment agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
●Recorded image information can be erased by any authorized Toyo ta
retailer or Toyota authorized repairer, or any reliable repaire r.
The image recording function can be disabled. However, if the f unction is
disabled, data from when the system operates will not be availa ble.
The SRS airbag and seat belt pretensioner devices in your Toyot a contain
explosive chemicals. If the vehicle is scrapped with the airbag s and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt preten sioner
removed and disposed of by any authorized Toyota retailer or To yota autho-
rized repairer, or any reliable repairer before you scrap your vehicle.
Vehicle data recording
Scrapping of your Toyota

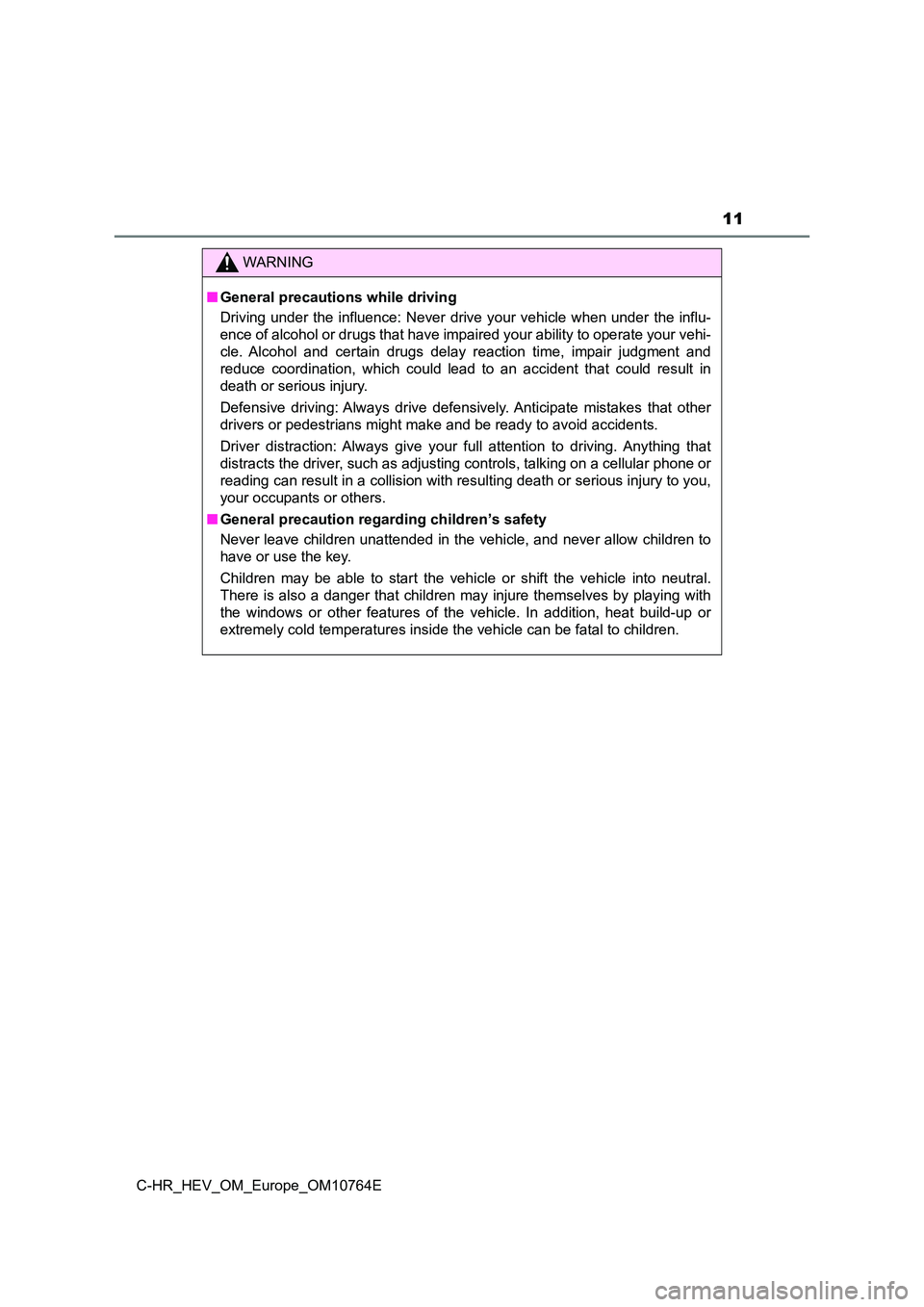

11
C-HR_HEV_OM_Europe_OM10764E
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when unde r the influ-
ence of alcohol or drugs that have impaired your ability to ope rate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistake s that other
drivers or pedestrians might m ake and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serio us injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by p laying with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures insi de the vehicle can be fatal to children.

12
C-HR_HEV_OM_Europe_OM10764E
Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

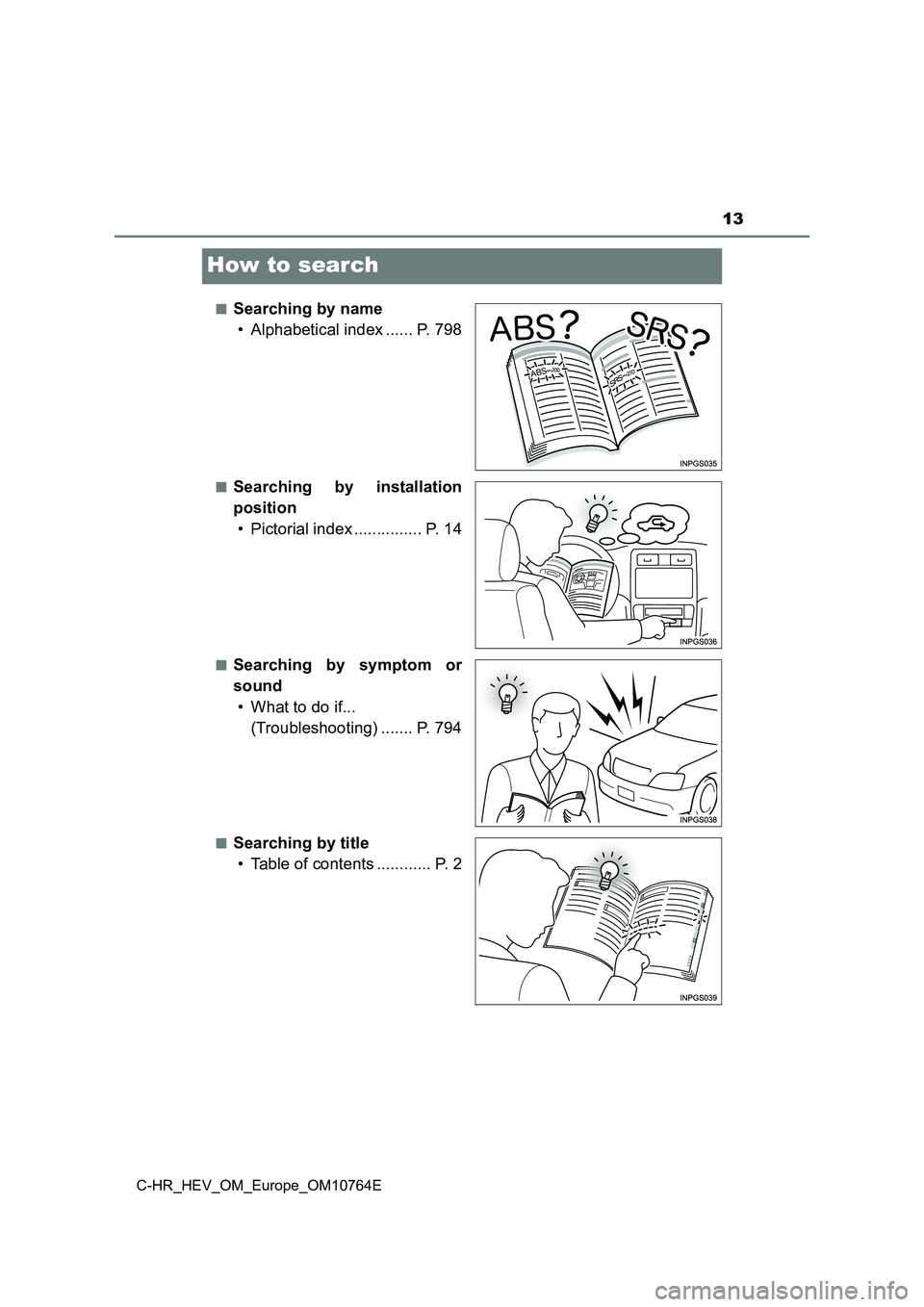

13
C-HR_HEV_OM_Europe_OM10764E
How to search
■Searching by name
• Alphabetical index ...... P. 798
■Searching by installation
position
• Pictorial index ............... P. 14
■Searching by symptom or
sound
• What to do if...
(Troubleshooting) ....... P. 794
■Searching by title
• Table of contents ............ P. 2

14Pictorial index
C-HR_HEV_OM_Europe_OM10764E
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc. (P. 651)
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Opening/closing the side windows . . . . . . . . . . . . . . . . . . . . . P. 275
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 744
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550

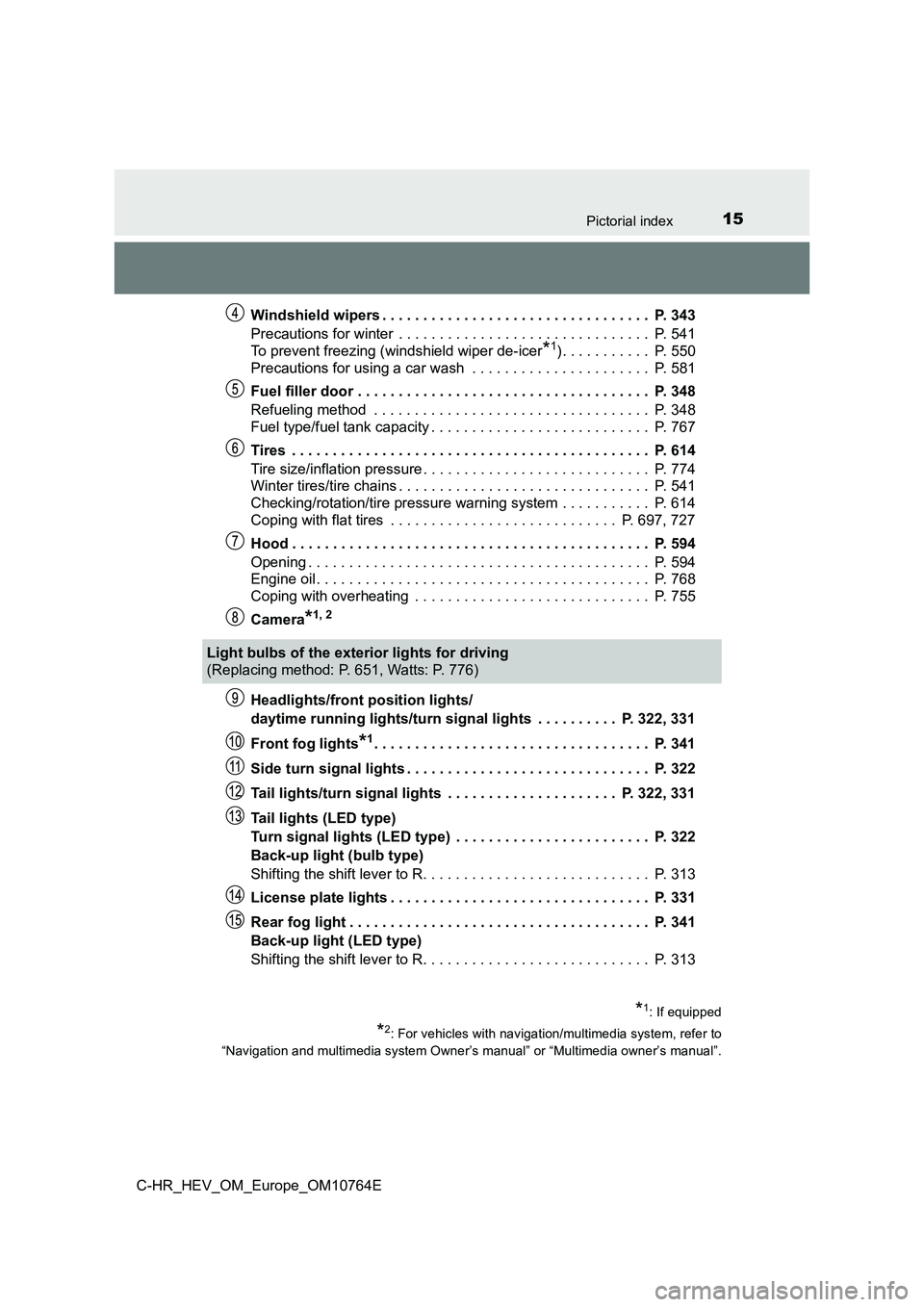

15Pictorial index
C-HR_HEV_OM_Europe_OM10764E
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
To prevent freezing (windshield wiper de-icer*1) . . . . . . . . . . . P. 550
Precautions for using a car wash . . . . . . . . . . . . . . . . . . . . . . P. 581
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 767
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 614
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 774
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 614
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 697, 727
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 768
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 755
Camera*1, 2
Headlights/front position lights/
daytime running lights/turn sig nal lights . . . . . . . . . . P. 322, 331
Front fog lights*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Tail lights/turn signal lights . . . . . . . . . . . . . . . . . . . . . P. 322, 331
Tail lights (LED type)
Turn signal lights (LED type) . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Back-up light (bulb type)
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Back-up light (LED type)
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
Light bulbs of the exterior lights for driving
(Replacing method: P. 651, Watts: P. 776)
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

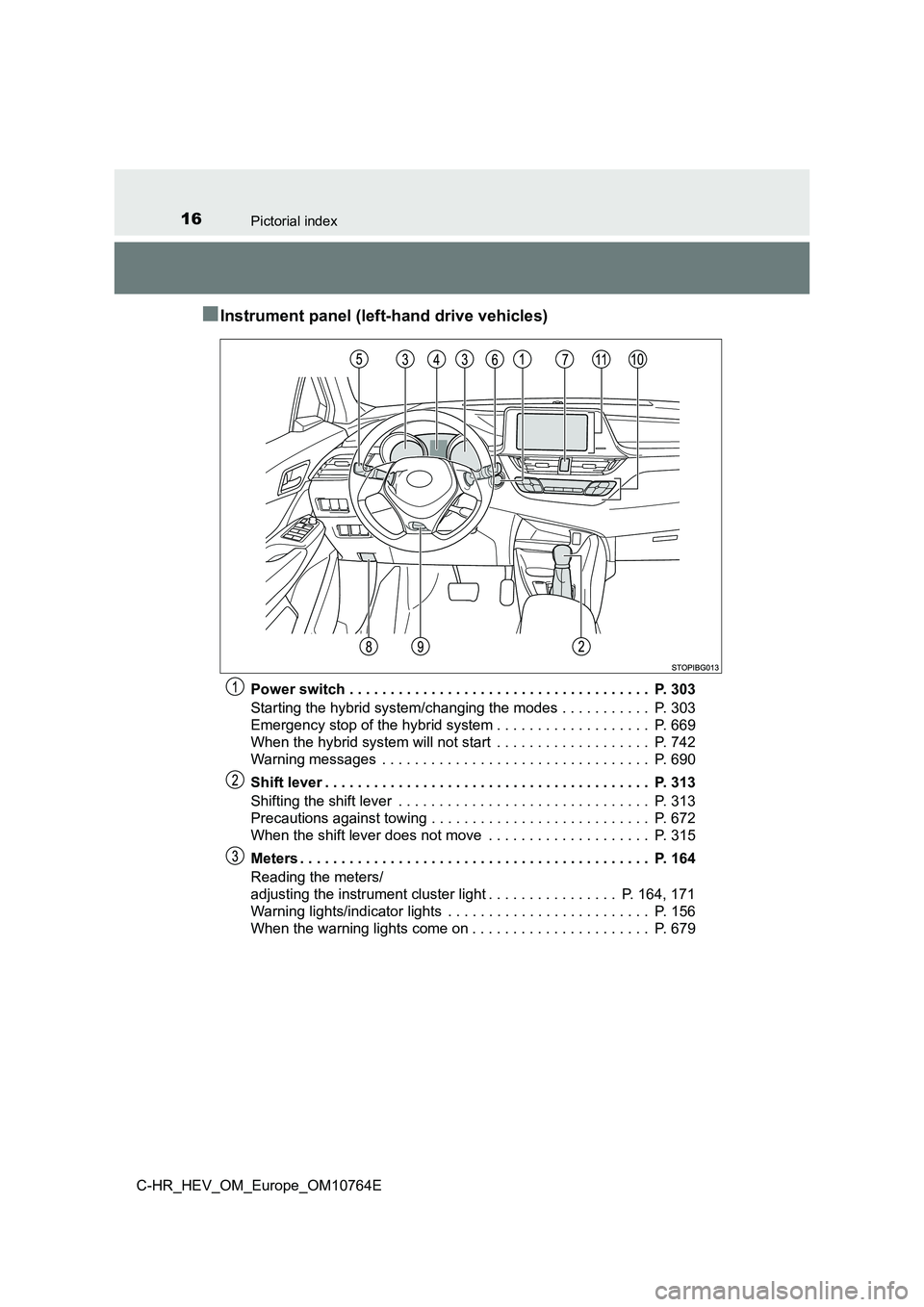

16Pictorial index
C-HR_HEV_OM_Europe_OM10764E
■Instrument panel (left-hand drive vehicles)
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 303
Starting the hybrid system/changing the modes . . . . . . . . . . . P. 303
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 669
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 742
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 690
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
Shifting the shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 672
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 315
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164
Reading the meters/
adjusting the instrument cluster light . . . . . . . . . . . . . . . . P. 164, 171
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 679

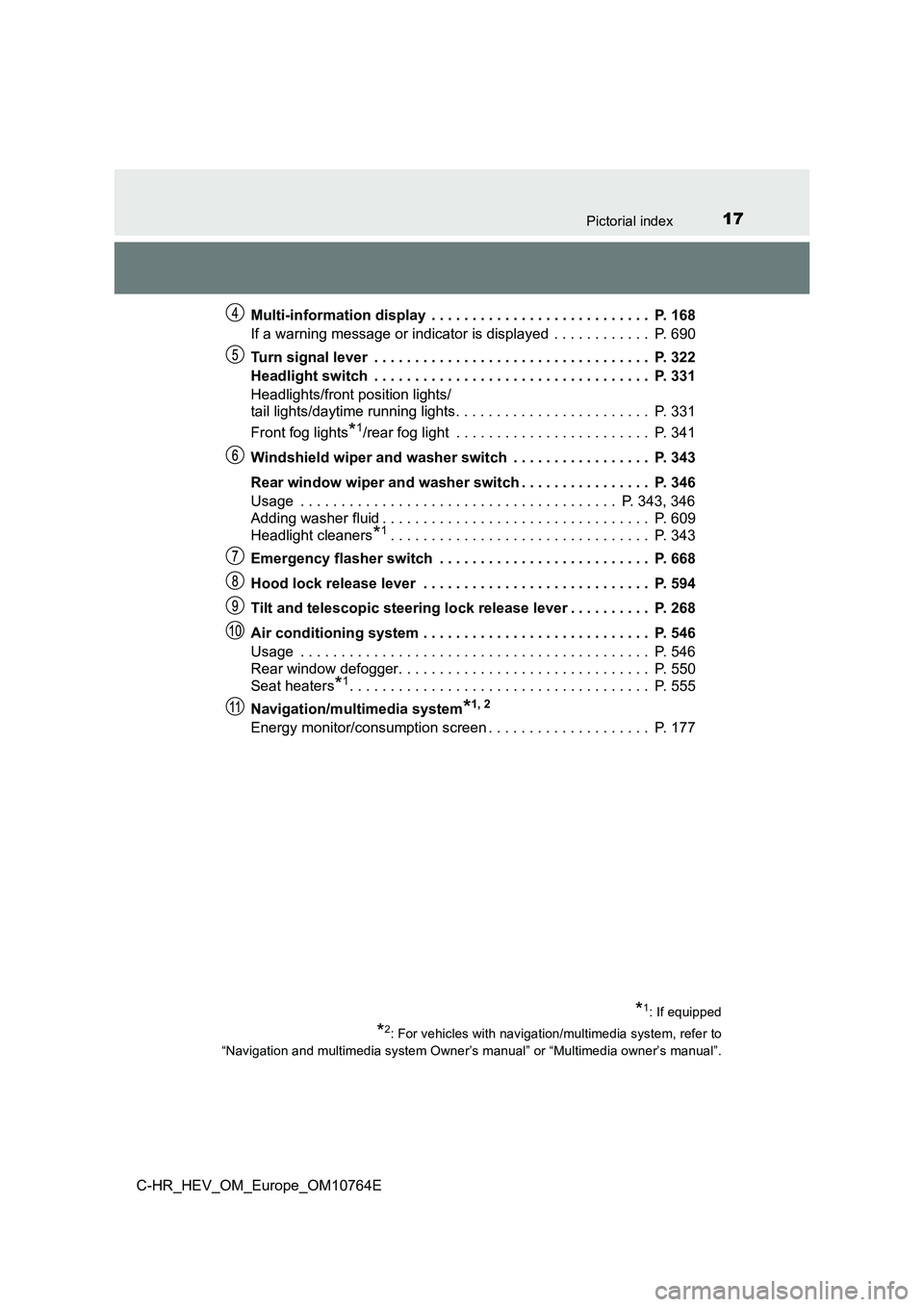

17Pictorial index
C-HR_HEV_OM_Europe_OM10764E
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
If a warning message or indicator is displayed . . . . . . . . . . . . P. 690
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
Headlights/front position lights/
tail lights/daytime running lights. . . . . . . . . . . . . . . . . . . . . . . . P. 331
Front fog lights*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 343
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 346
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343, 346
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 609
Headlight cleaners*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 668
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 268
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Seat heaters*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 555
Navigation/multimedia system*1, 2
Energy monitor/consumption screen . . . . . . . . . . . . . . . . . . . . P. 177
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

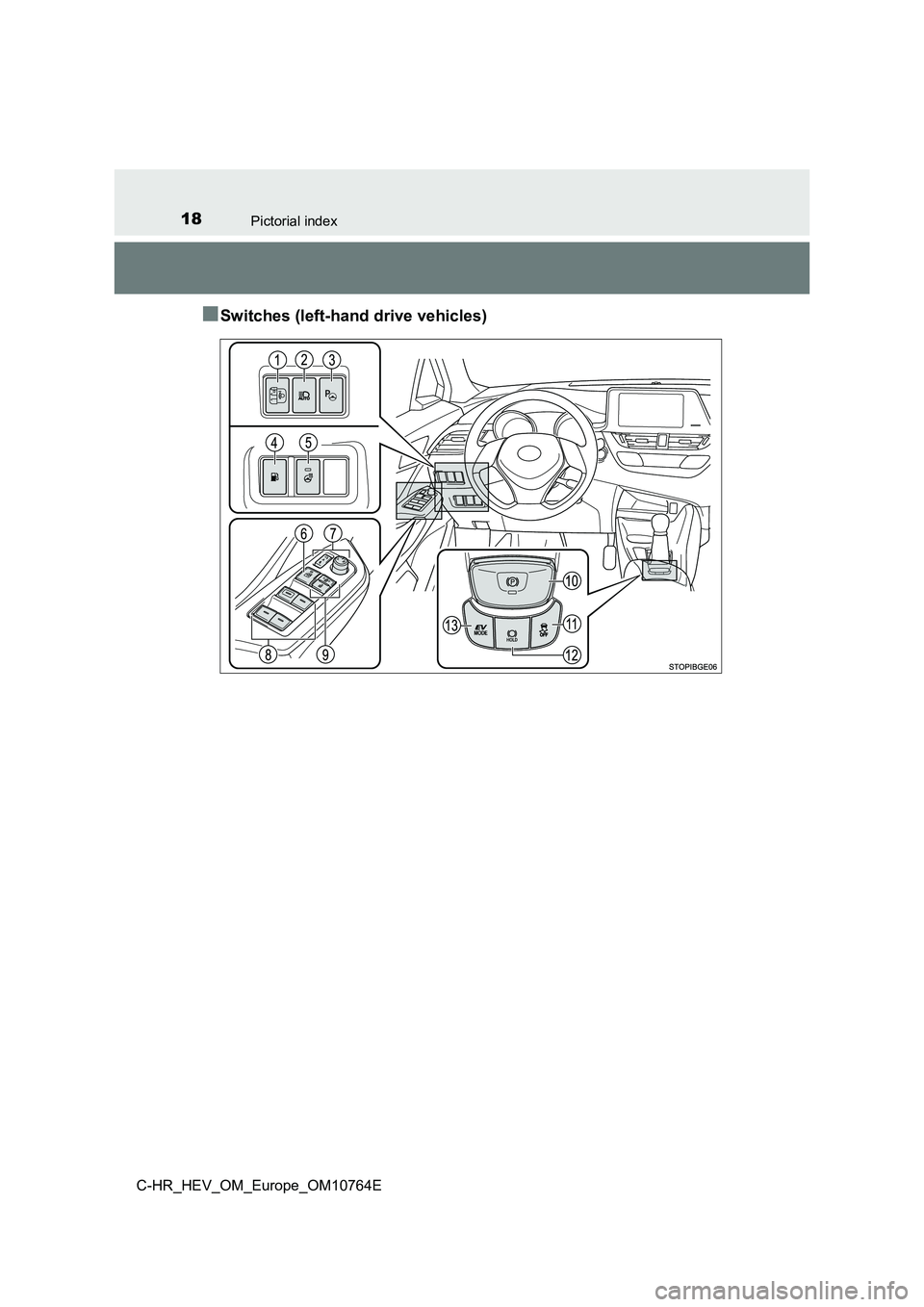

18Pictorial index
C-HR_HEV_OM_Europe_OM10764E
■Switches (left-hand drive vehicles)
