parking sensors TOYOTA C-HR 2023 User Guide

5024-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E

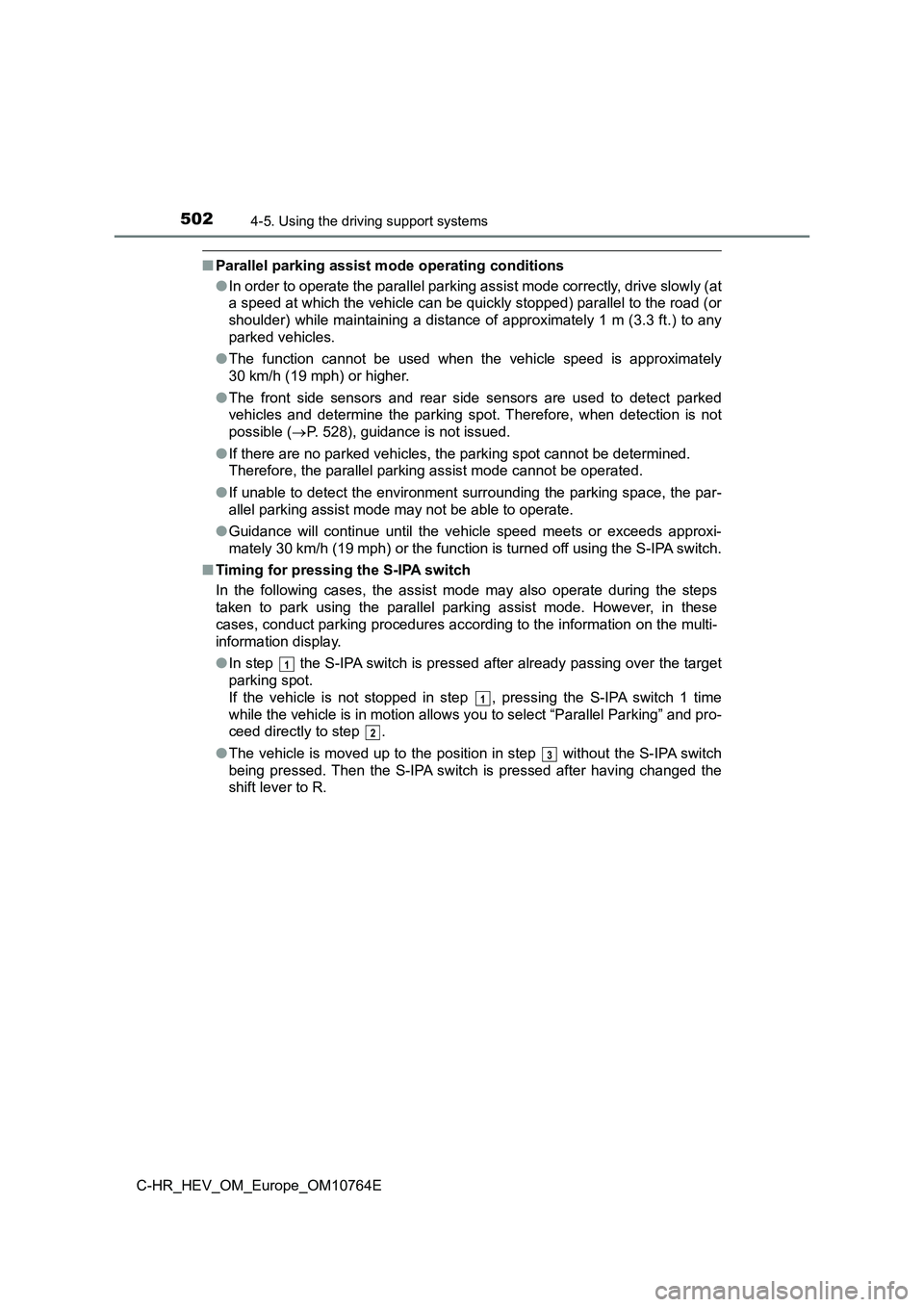

■Parallel parking assist mode operating conditions
● In order to operate the parallel parking assist mode correctly, drive slowly (at
a speed at which the vehicle can be quickly stopped) parallel t o the road (or
shoulder) while maintaining a distance of approximately 1 m (3. 3 ft.) to any
parked vehicles.
● The function cannot be used when the vehicle speed is approximately
30 km/h (19 mph) or higher.
● The front side sensors and rear side sensors are used to detect parked
vehicles and determine the parking spot. Therefore, when detect ion is not
possible ( P. 528), guidance is not issued.
● If there are no parked vehicles, the parking spot cannot be determined.
Therefore, the parallel parking assist mode cannot be operated.
● If unable to detect the environment surrounding the parking space, the par-
allel parking assist mode may not be able to operate.
● Guidance will continue until the vehicle speed meets or exceeds approxi-
mately 30 km/h (19 mph) or the function is turned off using the S-IPA switch.
■ Timing for pressing the S-IPA switch
In the following cases, the assist mode may also operate during the steps
taken to park using the parallel parking assist mode. However, in these
cases, conduct parking procedures according to the information on the multi-
information display.
● In step the S-IPA switch is pressed after already passing over the target
parking spot.
If the vehicle is not stopped in step , pressing the S-IPA swit ch 1 time
while the vehicle is in motion allows you to select “Parallel P arking” and pro-
ceed directly to step .
● The vehicle is moved up to the position in step without the S-IPA switch
being pressed. Then the S-IPA switch is pressed after having ch anged the
shift lever to R.
1
1
2
3

5094-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E

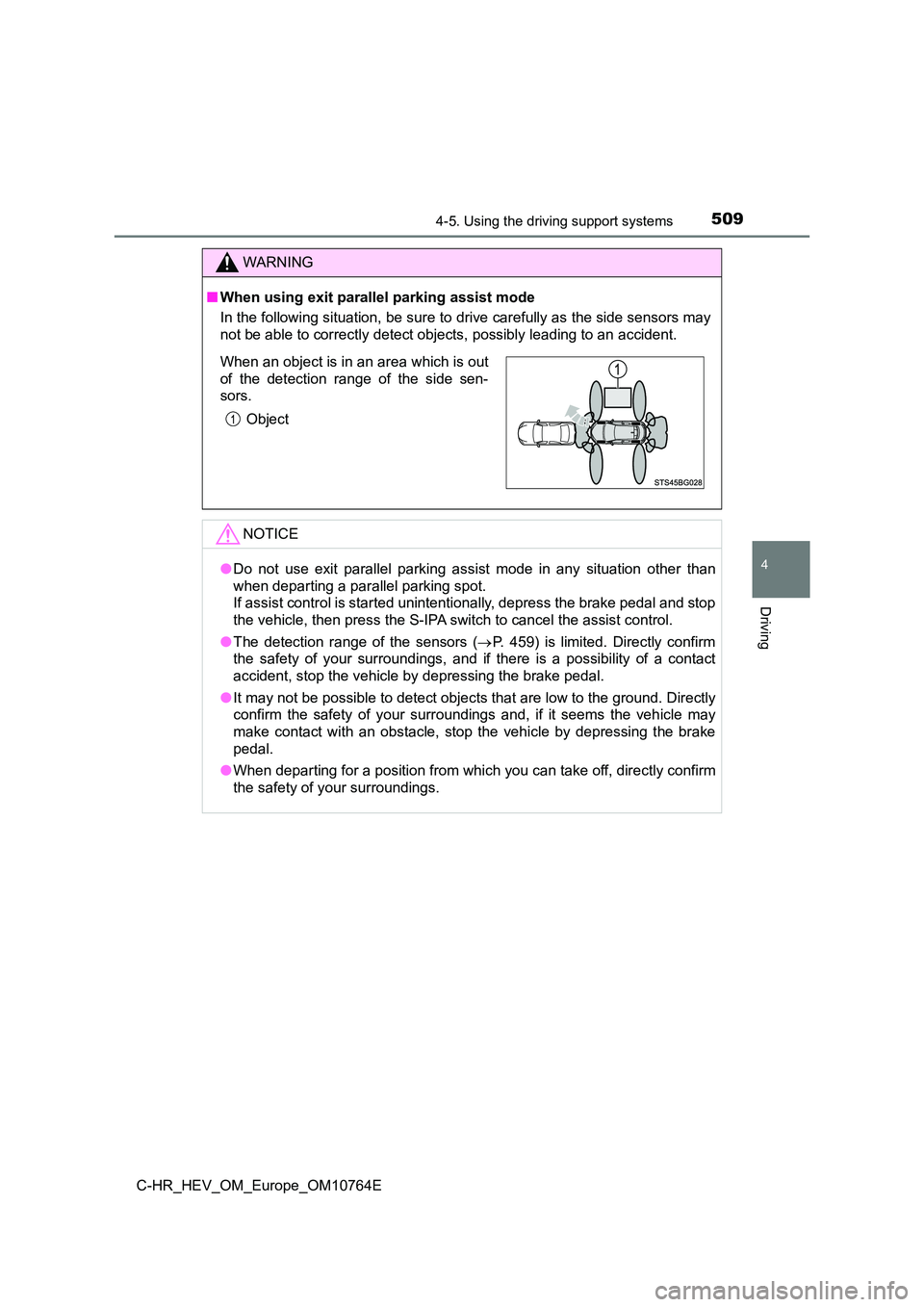

WARNING
■When using exit parallel parking assist mode
In the following situation, be sure to drive carefully as the s ide sensors may
not be able to correctly detect objects, possibly leading to an accident.
NOTICE
●Do not use exit parallel parking assist mode in any situation other than
when departing a parallel parking spot.
If assist control is started unintentionally, depress the brake pedal and stop
the vehicle, then press the S-IPA switch to cancel the assist c ontrol.
● The detection range of the sensors (P. 459) is limited. Directly confirm
the safety of your surroundings, and if there is a possibility of a contact
accident, stop the vehicle by depressing the brake pedal.
● It may not be possible to detect objects that are low to the ground. Directly
confirm the safety of your surroundings and, if it seems the ve hicle may
make contact with an obstacle, stop the vehicle by depressing t he brake
pedal.
● When departing for a position from which you can take off, directly confirm
the safety of your surroundings.
When an object is in an area which is out
of the detection range of the side sen-
sors.
Object

5154-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E

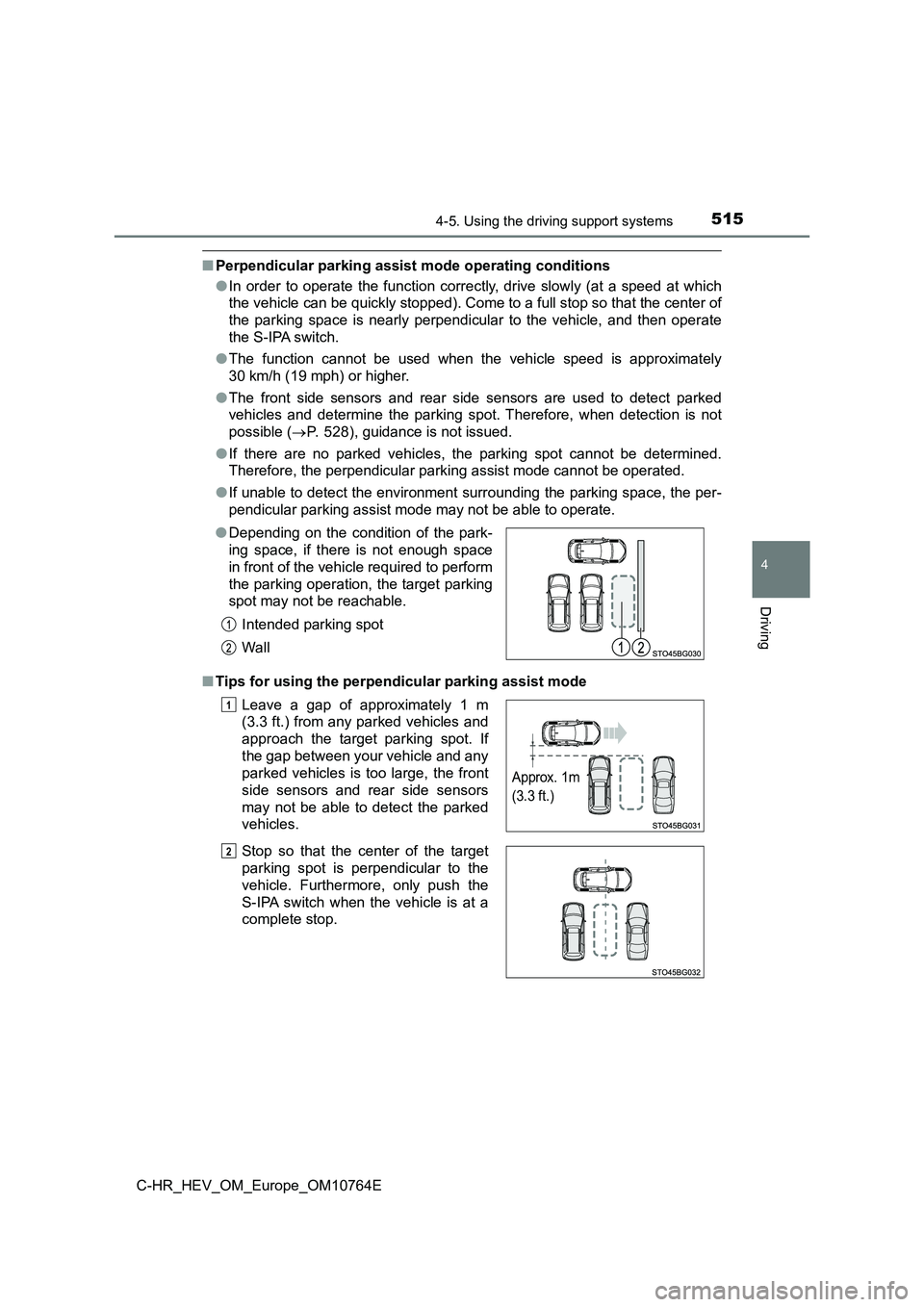

■Perpendicular parking assist mode operating conditions
● In order to operate the function correctly, drive slowly (at a speed at which
the vehicle can be quickly stopped). Come to a full stop so tha t the center of
the parking space is nearly perpendicular to the vehicle, and t hen operate
the S-IPA switch.
● The function cannot be used when the vehicle speed is approximately
30 km/h (19 mph) or higher.
● The front side sensors and rear side sensors are used to detect parked
vehicles and determine the parking spot. Therefore, when detect ion is not
possible ( P. 528), guidance is not issued.
● If there are no parked vehicles, the parking spot cannot be determined.
Therefore, the perpendicular parking assist mode cannot be oper ated.
● If unable to detect the environment surrounding the parking space, the per-
pendicular parking assist mode may not be able to operate.
■ Tips for using the perpendicular parking assist mode
● Depending on the condition of the park-
ing space, if there is not enough space
in front of the vehicle required to perform
the parking operation, the target parking
spot may not be reachable.
Intended parking spot
Wal l
Leave a gap of approximately 1 m
(3.3 ft.) from any parked vehicles and
approach the target parking spot. If
the gap between your vehicle and any
parked vehicles is too large, the front
side sensors and rear side sensors
may not be able to detect the parked
vehicles.
Stop so that the center of the target
parking spot is perpendicular to the
vehicle. Furthermore, only push the
S-IPA switch when the vehicle is at a
complete stop.
1
Approx. 1m
(3.3 ft.)
O

5224-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E

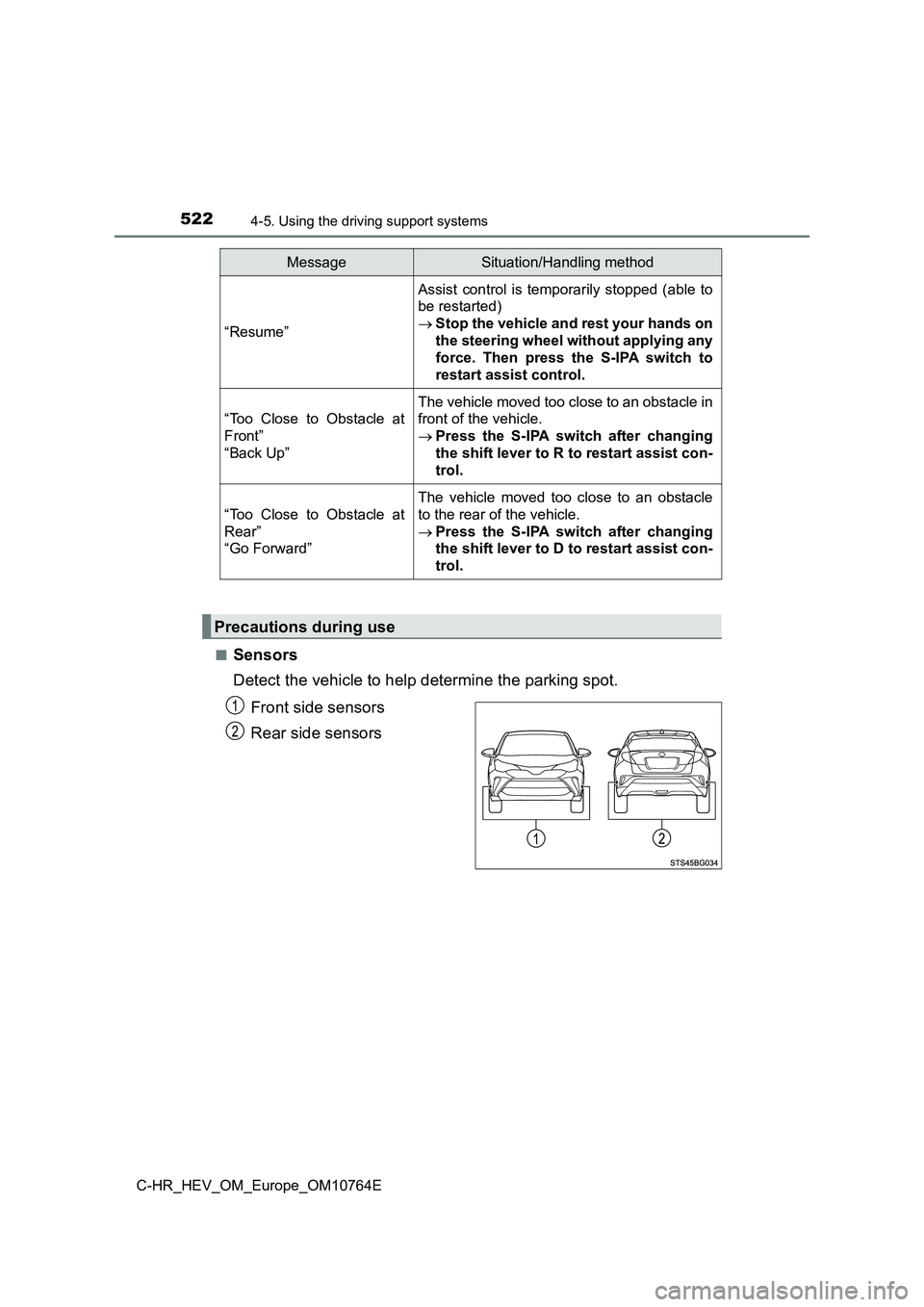

■Sensors
Detect the vehicle to help determine the parking spot.
Front side sensors
Rear side sensors
“Resume”
Assist control is temporarily stopped (able to
be restarted)
 Stop the vehicle and rest your hands on
the steering wheel without applying any
force. Then press the S-IPA switch to
restart assist control.
“Too Close to Obstacle at
Front”
“Back Up”
The vehicle moved too close to an obstacle in
front of the vehicle.
 Press the S-IPA switch after changing
the shift lever to R to restart assist con-
trol.
“Too Close to Obstacle at
Rear”
“Go Forward”
The vehicle moved too close to an obstacle
to the rear of the vehicle.
 Press the S-IPA switch after changing
the shift lever to D to restart assist con-
trol.
MessageSituation/Handling method
Precautions during use

5274-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E

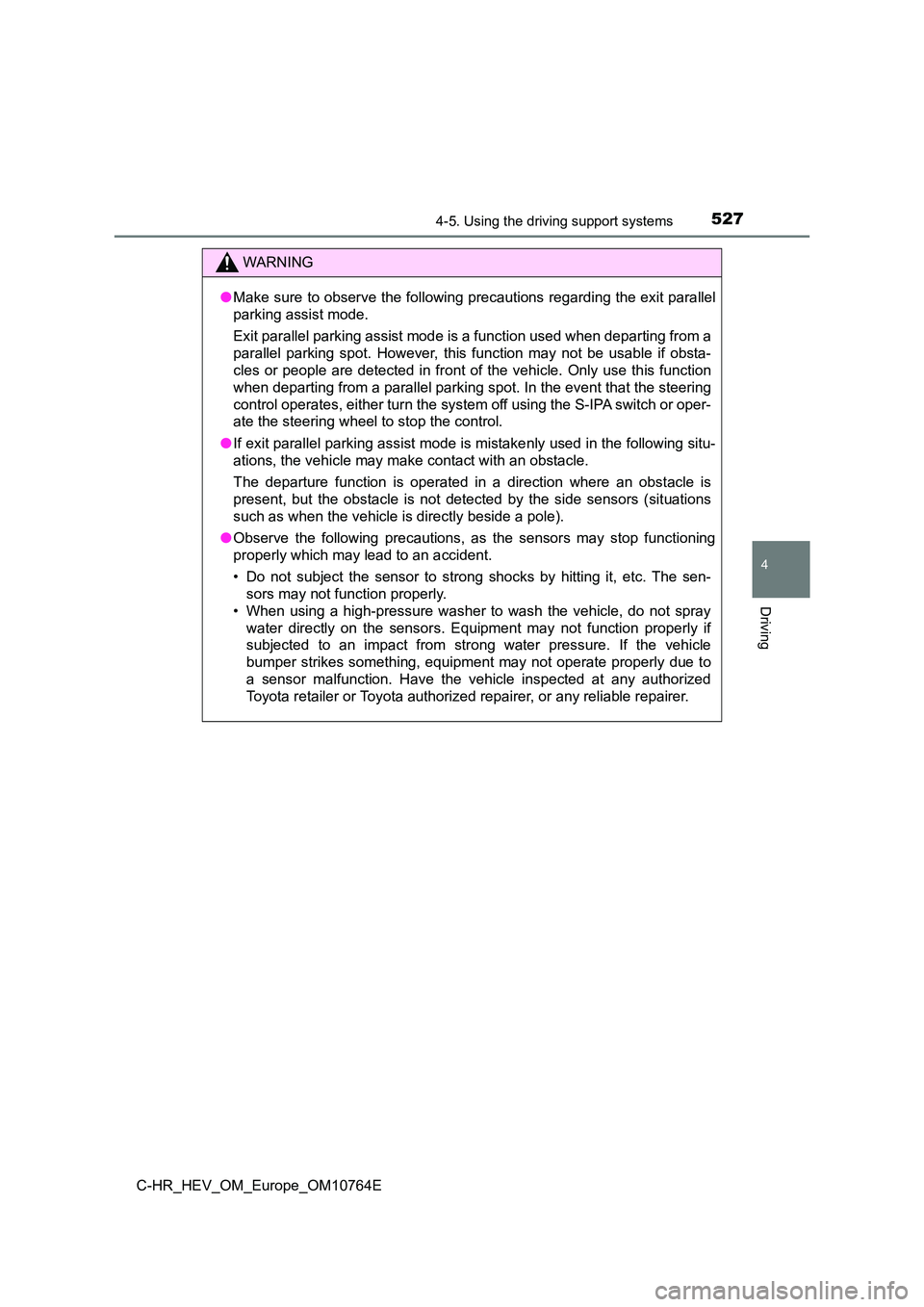

WARNING
●Make sure to observe the following precautions regarding the exit parallel
parking assist mode.
Exit parallel parking assist mode is a function used when depar ting from a
parallel parking spot. However, this function may not be usable if obsta-
cles or people are detected in front of the vehicle. Only use t his function
when departing from a parallel parking spot. In the event that the steering
control operates, either turn the system off using the S-IPA sw itch or oper-
ate the steering wheel to stop the control.
● If exit parallel parking assist mode is mistakenly used in the following situ-
ations, the vehicle may make contact with an obstacle.
The departure function is operated in a direction where an obst acle is
present, but the obstacle is not detected by the side sensors ( situations
such as when the vehicle is directly beside a pole).
● Observe the following precautions, as the sensors may stop functioning
properly which may lead to an accident.
• Do not subject the sensor to strong shocks by hitting it, etc. The sen-
sors may not function properly.
• When using a high-pressure washer to wash the vehicle, do not spray
water directly on the sensors. Equipment may not function prope rly if
subjected to an impact from strong water pressure. If the vehic le
bumper strikes something, equipm ent may not operate properly due to
a sensor malfunction. Have the vehicle inspected at any authori zed
Toyota retailer or Toyota author ized repairer, or any reliable repairer.

5284-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
WARNING
●In the following situations, the sensors may not operate normally and may
lead to an accident. Drive carefully.
• Obstacles cannot be detected in the side areas until a scan of the side
areas is completed. ( P. 461)
• Even after the scan of the side areas is completed, obstacles such as
other vehicles, people or animals that approach from the sides cannot
be detected.
• The sensor is frozen (if it thaws, the system returns to norma l).
A warning message may display at particularly low temperatures due to
the sensor freezing and it may not detect parked vehicles.
• The sensor is blocked by someone’s hand.
• The vehicle is tilted a large amount.
• The temperature is extremely hot or cold.
• The vehicle is driven on undulating roads, slopes, gravel road s, in areas
with tall grass, etc.
• An ultrasonic wave source is nearby, such as the horn or senso rs of
another vehicle, a motorcycle engine or the air brake of a larg e vehicle.
• Heavy rain or a water strikes the vehicle.
• The angle of the sensor may be deviated when assist control st arts
even if there is a parked vehicle in the target parking spot. H ave the
vehicle inspected at any authorized Toyota retailer or Toyota a uthorized
repairer, or any reliable repairer.
• Do not install any accessories within the sensor detection ran ge.

7858-2. Customization
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
■Toyota parking assist-sensor* (P. 4 5 4 )
*: If equipped
■RCTA (Rear Crossing Traffic Alert)* ( P. 467)
*: If equipped
■PCS (Pre-Collision System)* ( P. 367)
*: If equipped

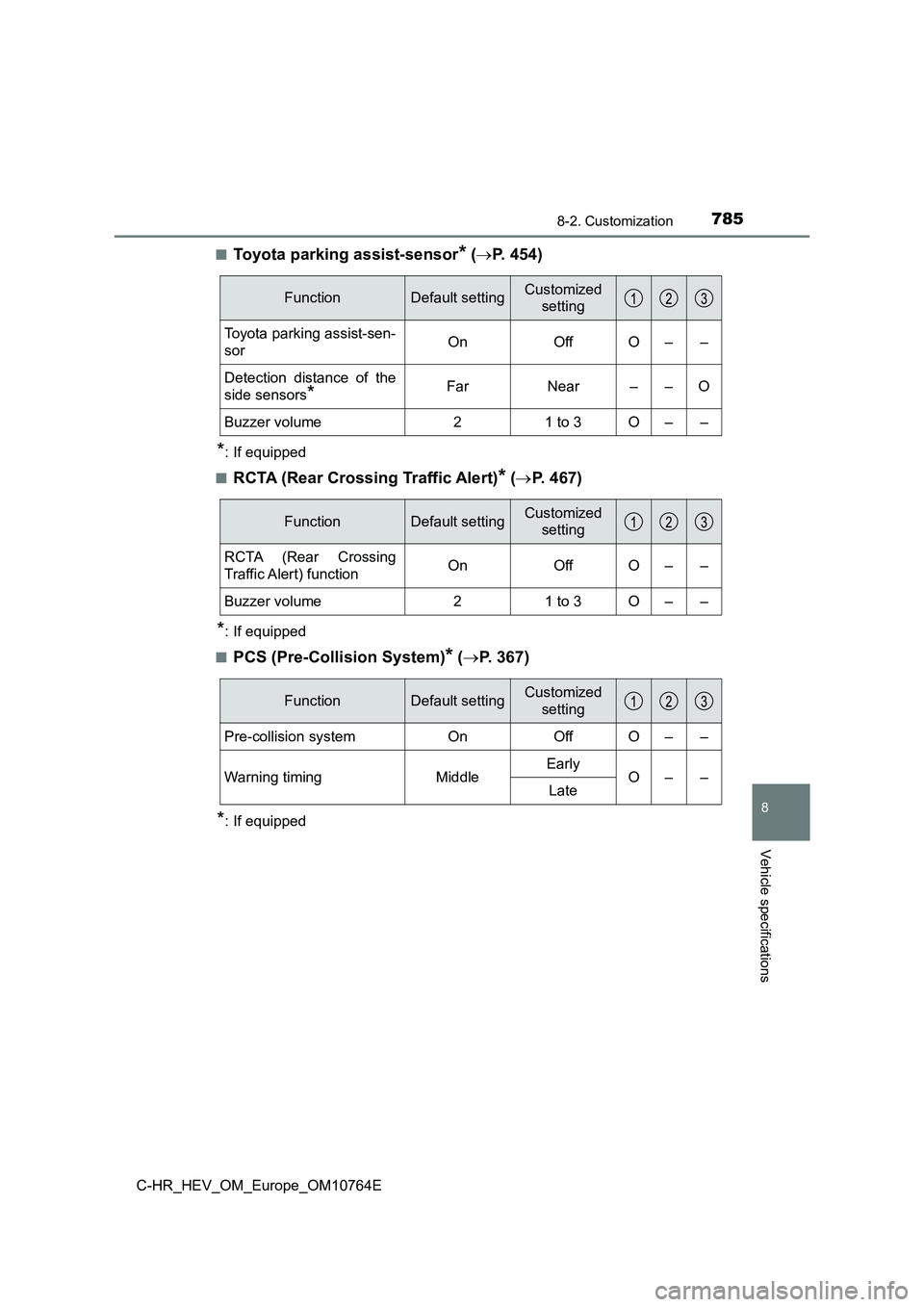

FunctionDefault settingCustomized
setting
Toyota parking assist-sen-
sorOnOffO––
Detection distance of the
side sensors*FarNear––O
Buzzer volume21 to 3O––
FunctionDefault settingCustomized
setting
RCTA (Rear Crossing
Traffic Alert) functionOnOffO––
Buzzer volume21 to 3O––
FunctionDefault settingCustomized
setting
Pre-collision systemOnOffO––
Warning timingMiddleEarlyO––Late
