5-1. Using the air conditioning
system and defogger
Air conditioning system ......546
Heated steering wheel/
seat heaters .....................555
5-2. Using the interior lights
Interior lights list .................557
• Interior lights ..................558
• Personal lights ...............558
5-3. Using the storage
features
List of storage features ......560
• Glove box ......................561
• Console box ..................561
• Bottle holders ................562
• Cup holders ...................563
Luggage compartment
features............................564
5-4. Using the other interior
features
Other interior features ........572
• Sun visors ......................572
• Vanity mirrors ................572
• Clock .............................573
• Power outlet ..................574
• Assist grips ....................575
6-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ................ 578
Cleaning and protecting the
vehicle interior ................. 584
6-2. Maintenance
Maintenance
requirements ................... 588
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ..................... 591
Hood.................................. 594
Positioning a floor jack ...... 596
Engine compartment ......... 597
12-volt battery
(M20A-FXS engine) ........ 610
Tires .................................. 614
Tire inflation pressure........ 630
Wheels .............................. 632
Air conditioning filter .......... 635
Hybrid battery
(traction battery)
air intake vent and filter ... 638
Electronic key battery ........ 643
Checking and replacing
fuses ............................... 646
Light bulbs ......................... 651
5Interior features6Maintenance and care

15Pictorial index
C-HR_HEV_OM_Europe_OM10764E
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
To prevent freezing (windshield wiper de-icer*1) . . . . . . . . . . . P. 550
Precautions for using a car wash . . . . . . . . . . . . . . . . . . . . . . P. 581
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 767
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 614
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 774
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 614
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 697, 727
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 768
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 755
Camera*1, 2
Headlights/front position lights/
daytime running lights/turn sig nal lights . . . . . . . . . . P. 322, 331
Front fog lights*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Tail lights/turn signal lights . . . . . . . . . . . . . . . . . . . . . P. 322, 331
Tail lights (LED type)
Turn signal lights (LED type) . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Back-up light (bulb type)
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Back-up light (LED type)
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
Light bulbs of the exterior lights for driving
(Replacing method: P. 651, Watts: P. 776)
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

2864-1. Before driving
C-HR_HEV_OM_Europe_OM10764E
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When driving the vehicle
● Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the b rake
pedal will result in sudden acceleration that may lead to an ac cident.
• When backing up, you may twist your body around, leading to a diffi-
culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving t he
vehicle only slightly. This allows you to depress the brake and accelera-
tor pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● The driver should pay extra attention to pedestrians when the vehicle is
powered only by the electric motor (traction motor). As there i s no engine
noise, the pedestrians may misjudge the vehicle’s movement.
Even though the vehicle is equipped with the acoustic vehicle a lerting sys-
tem, drive with care as pedestrians in the vicinity may still n ot notice the
vehicle if the surrounding area is noisy.
● Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. Thes e hot
parts may cause a fire if there is any flammable material nearb y.
● During normal driving, do not turn off the hybrid system. Turning the hybrid
system off while driving will not cause loss of steering or bra king control,
however, power assist to the steering will be lost. This will m ake it more
difficult to steer smoothly, so you should pull over and stop t he vehicle as
soon as it is safe to do so.
In the event of an emergency, such as if it becomes impossible to stop the
vehicle in the normal way: P. 669
● Use engine braking (shift lever to B) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( P. 314, 318)
● Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
● Always check that all passengers’ arms, heads or other parts of their body
are not outside the vehicle.

303
4
4-2. Driving procedures
Driving
C-HR_HEV_OM_Europe_OM10764E
Power (ignition) switch
Check that the parking brake is set.
Check that the shift lever is in P.
Firmly depress the brake pedal.
and a message will be displayed on the multi-information displ ay.
If it is not displayed, the hybrid system cannot be started.
Press the power switch shortly
and firmly.
When operating the power switch,
one short, firm press is enough. It
is not necessary to press and hold
the switch.
If the “READY” indicator turns on,
the hybrid system will operate nor-
mally.
Continue depressing the brake
pedal until the “READY” indicator
is illuminated.
The hybrid system can be started
from any power switch mode.
Check that the “READY” indicator is illuminated.
If the “READY” indicator changes from a flashing light to a sol id light and
the buzzer sounds, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if t he engine
is stopped. (The gasoline engine starts or stops automatically in accor-
dance with the state of the vehicle.)
Performing the following operations when carrying the elec-
tronic key on your person starts the hybrid system or changes
power switch modes.
Starting the hybrid system
1
2
3
4
5

5394-6. Driving tips
4
Driving
C-HR_HEV_OM_Europe_OM10764E

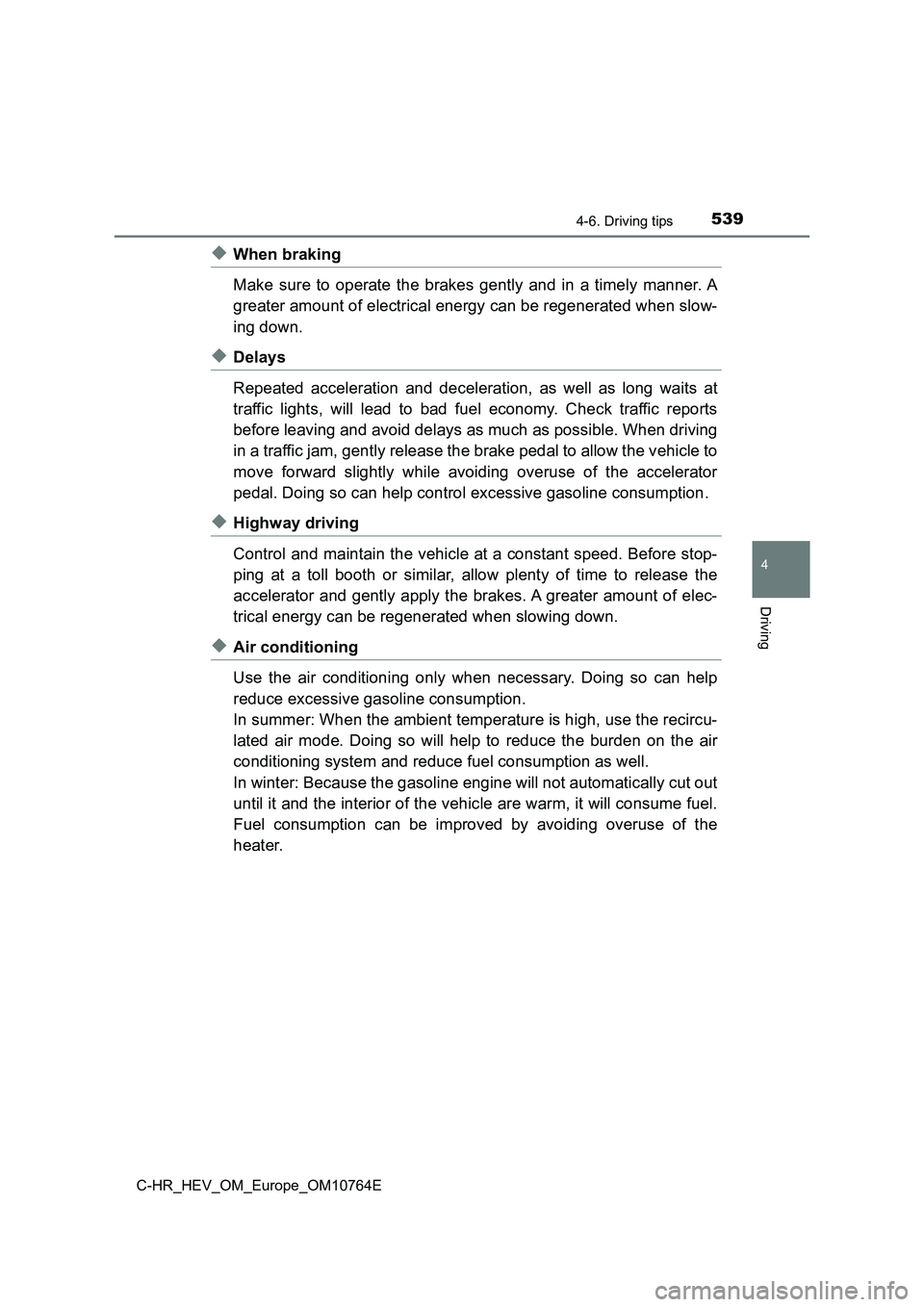

◆When braking
Make sure to operate the brakes gently and in a timely manner. A
greater amount of electrical energy can be regenerated when slo w-
ing down.
◆Delays
Repeated acceleration and deceleration, as well as long waits a t
traffic lights, will lead to bad fuel economy. Check traffic re ports
before leaving and avoid delays as much as possible. When drivi ng
in a traffic jam, gently release the brake pedal to allow the v ehicle to
move forward slightly while avoiding overuse of the accelerator
pedal. Doing so can help control excessive gasoline consumption .
◆Highway driving
Control and maintain the vehicle at a constant speed. Before st op-
ping at a toll booth or similar, allow plenty of time to releas e the
accelerator and gently apply the brakes. A greater amount of el ec-
trical energy can be regenerated when slowing down.
◆Air conditioning
Use the air conditioning only when necessary. Doing so can help
reduce excessive gasoline consumption.
In summer: When the ambient temperature is high, use the recirc u-
lated air mode. Doing so will help to reduce the burden on the air
conditioning system and reduce fuel consumption as well.
In winter: Because the gasoline engine will not automatically c ut out
until it and the interior of the vehicle are warm, it will cons ume fuel.
Fuel consumption can be improved by avoiding overuse of the
heater.

541
4
4-6. Driving tips
Driving
C-HR_HEV_OM_Europe_OM10764E

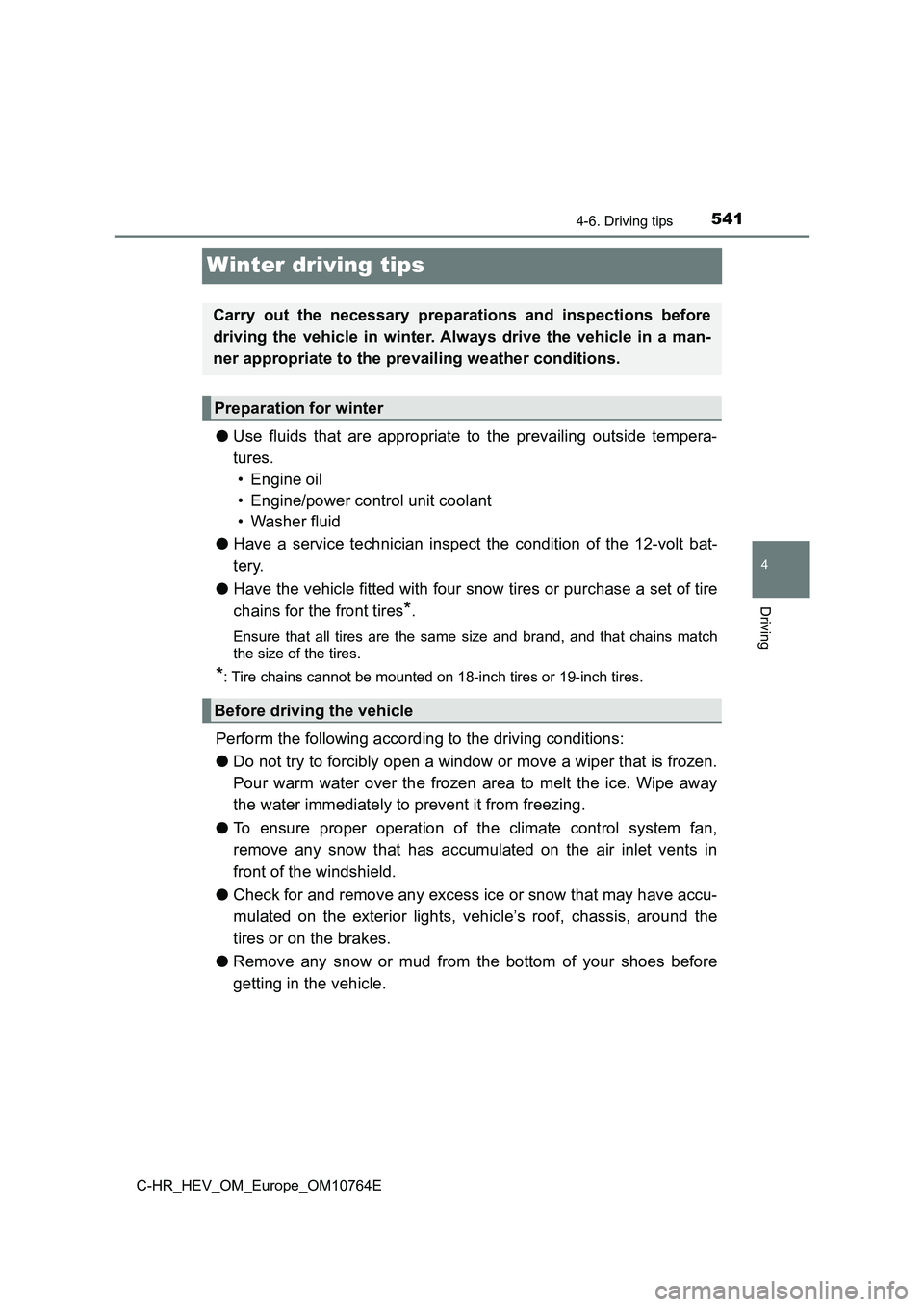

Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have a service technician inspect the condition of the 12-volt bat-
tery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires*.
Ensure that all tires are the same size and brand, and that cha ins match
the size of the tires.
*: Tire chains cannot be mounted on 18-inch tires or 19-inch tir es.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a ma n-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

577
6Maintenance and care
C-HR_HEV_OM_Europe_OM10764E
6-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ................ 578
Cleaning and protecting the
vehicle interior ................. 584
6-2. Maintenance
Maintenance
requirements.................... 588
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ...................... 591
Hood .................................. 594
Positioning a floor jack ....... 596
Engine compartment.......... 597
12-volt battery
(M20A-FXS engine) ......... 610
Tires ................................... 614
Tire inflation pressure ........ 630
Wheels ............................... 632
Air conditioning filter .......... 635
Hybrid battery
(traction battery) air intake
vent and filter ................... 638
Electronic key battery ........ 643
Checking and replacing
fuses ................................ 646
Light bulbs ......................... 651

6847-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E

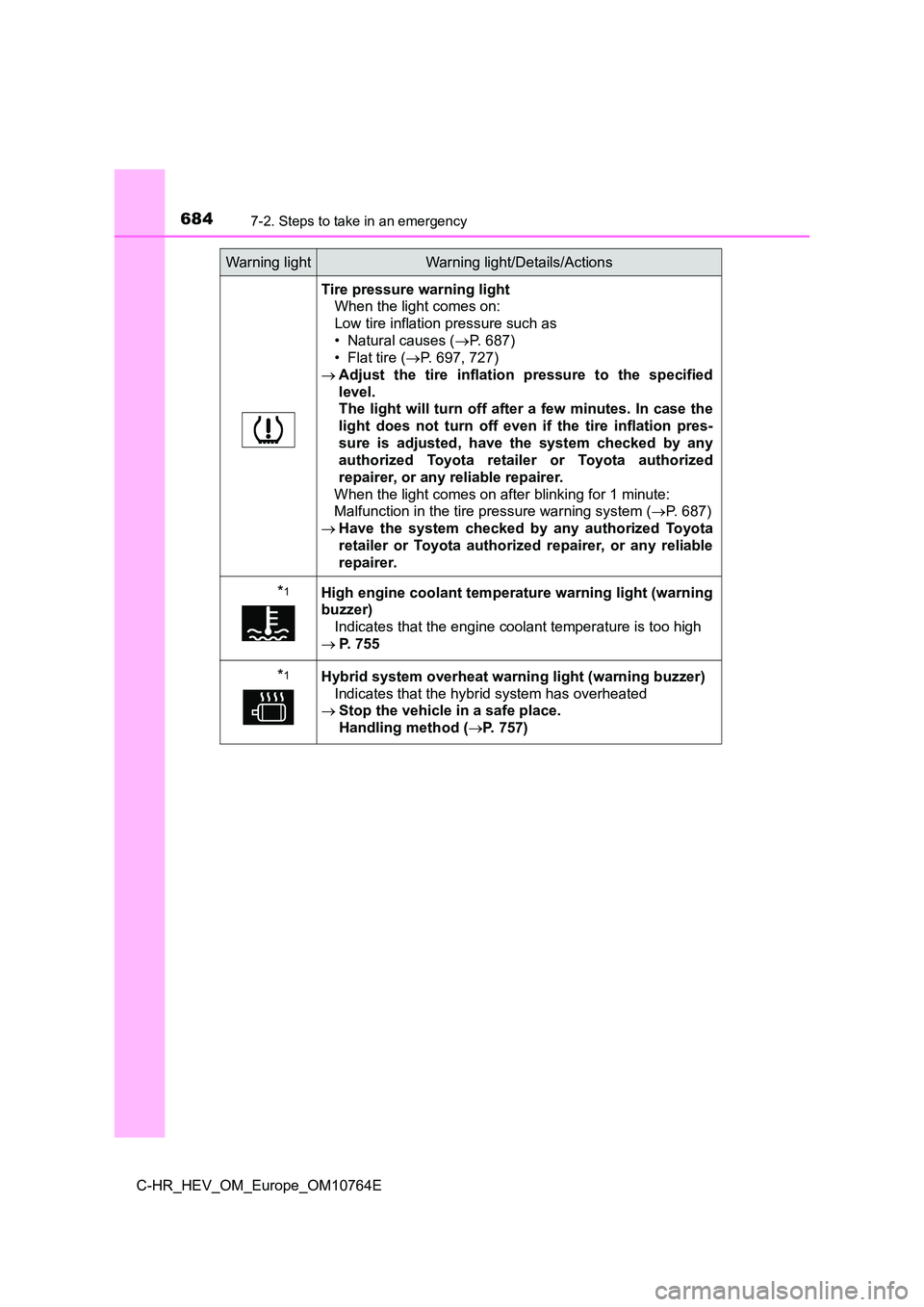

Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes ( P. 687)
• Flat tire ( P. 697, 727)
 Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
sure is adjusted, have the system checked by any
authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system ( P. 687)
 Have the system checked by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer.
*1High engine coolant temperature warning light (warning
buzzer)
Indicates that the engine coolant temperature is too high
 P. 755
*1Hybrid system overheat warning light (warning buzzer)
Indicates that the hybrid system has overheated
 Stop the vehicle in a safe place.
Handling method ( P. 757)
Warning lightWarning light/Details/Actions

802Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Identification number............. 766
If the hybrid system will not
start..................................... 742
If your vehicle has to be
stopped in an emergency ... 669
Ignition switch
(power switch) .................... 303
Overheating .......................... 755
Power switch ......................... 303
Engine coolant
Capacity ................................ 771
Checking ............................... 602
Preparing and
checking before winter........ 541
Warning light ......................... 684
Engine oil
Capacity ................................ 768
Checking ............................... 599
Oil pressure warning light ..... 679
Preparing and checking
before winter....................... 541
Engine switch........................... 303
Auto power off function ......... 305
Changing the
power switch modes ........... 304
If your vehicle has to be
stopped in an emergency ... 669
Starting the hybrid system .... 303
EPS
(Electronic Power Steering)
Function ................................ 531
Warning light ......................... 680
EV drive mode .......................... 310
EV indicator ...................... 119, 161
Exhaust gas precautions .......... 54
Extended headlight lighting
system .................................... 332
First-aid kit storage space ...... 567
Flat tire.............................. 697, 727
Floor mats .................................. 32
Fluid
Brake .................................... 773
Transmission ........................ 772
Washer ................................. 609
Fog lights
Replacing
light bulbs ........... 653, 660, 664
Switch ................................... 341
Wattage ................................ 776
Front doors .............................. 191
Front fog lights
Replacing light bulbs..... 653, 664
Switch ................................... 341
Wattage ................................ 776
Front personal lights ............... 558
Wattage ................................ 776
Front position lights
Light switch ........................... 331
Replacing light bulbs............. 664
Front seats ............................... 260
Adjustment ............................ 260
Cleaning................................ 584
Correct driving posture ........... 34
Head restraints ..................... 264
Seat heaters ......................... 555
Front turn signal lights
Replacing light bulbs..... 655, 664
Turn signal lever ................... 322
Wattage ................................ 776
F

811Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Warning buzzers
Blind Spot Monitor (BSM) ..... 435
Brake system ........................ 679
Lane Tracing Assist (LTA) .... 385
Open back door .................... 200
Open door ............................. 197
Pre-collision warning ............. 367
Radar cruise control .............. 418
RSA (Road Sign Assist) ........ 400
Parking brake ........................ 326
PKSB
(Parking Support Brake) ..... 681
Seat belt reminder................. 683
Toyota
parking assist-sensor.......... 456
Warning lights .......................... 157
ABS ....................................... 680
Brake Override System ......... 685
Brake system ........................ 679
Charging system ................... 679
Electric parking brake ... 682, 683
Electric power steering.......... 680
High coolant temperature...... 684
Low engine oil pressure ........ 679
Low fuel level ........................ 683
Malfunction indicator lamp .... 680
PKSB OFF indicator.............. 681
PCS....................................... 682
Seat belt reminder light ......... 683
Slip indicator ......................... 682
SRS....................................... 680
Tire pressure ......................... 684
Toyota parking assist-sensor
OFF indicator...................... 681
Warning messages .................. 690
Washer
Checking ............................... 609
Preparing and checking
before winter....................... 541
Switch ........................... 343, 346
Washing and waxing ............... 578
What to do if...
(Troubleshooting) ................. 794
Wheels ...................................... 632
Replacing wheels.................. 632
Size ....................................... 774
Window glasses....................... 275
Window lock switch ................ 275
Windows
Power windows ..................... 275
Rear window defogger .......... 550
Washer ......................... 343, 346
Windshield wipers ................... 343
Winter driving tips ................... 541
Wireless remote control key... 186
Locking/Unlocking......... 186, 192
Replacing the battery ............ 643
W
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or
“Multimedia owner’s manual”.
