navigation system TOYOTA C-HR 2023 Owner's Manual
[x] Cancel search | Manufacturer: TOYOTA, Model Year: 2023, Model line: C-HR, Model: TOYOTA C-HR 2023Pages: 814, PDF Size: 112.62 MB
Page 408 of 814

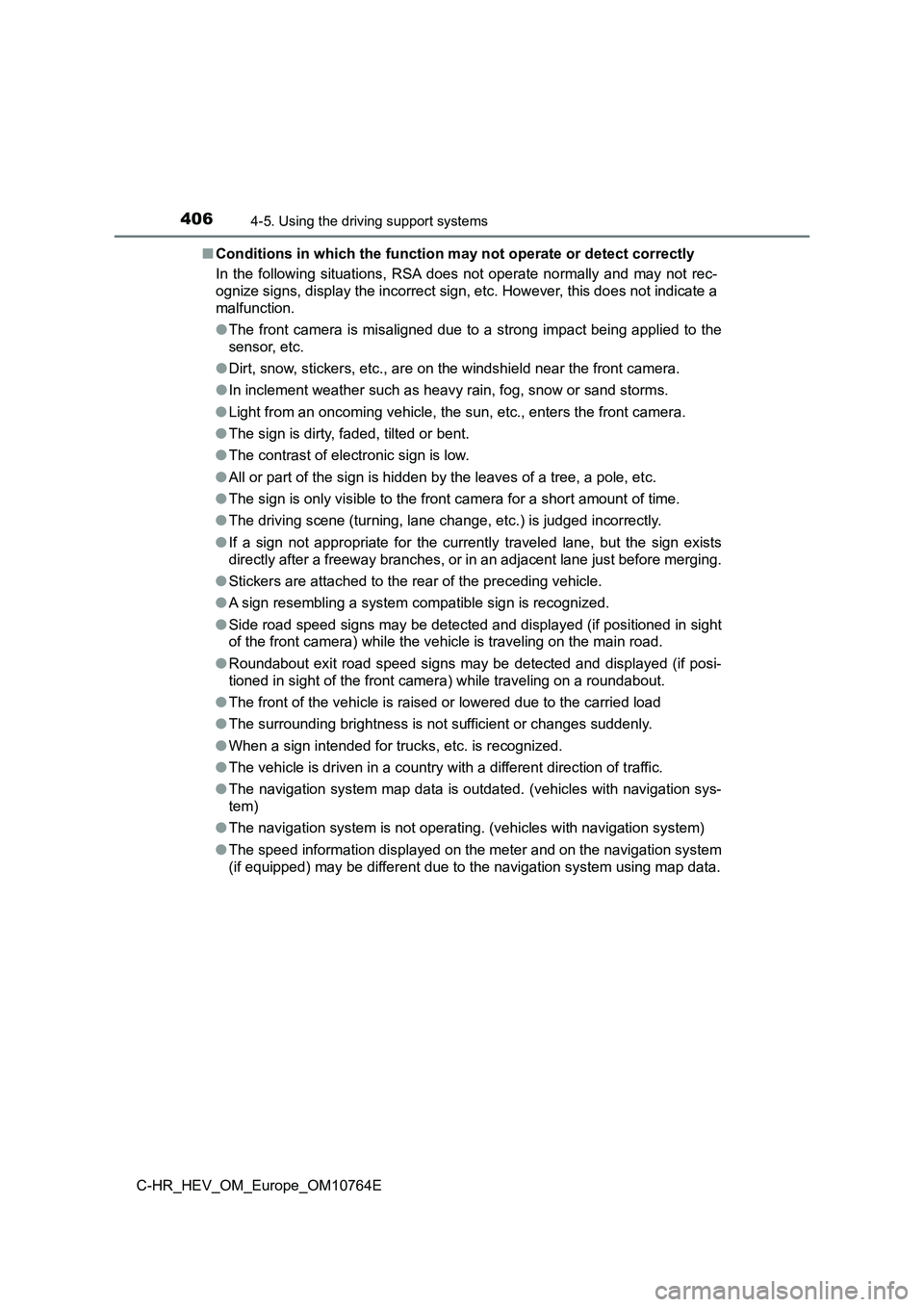

4064-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
■ Conditions in which the function may not operate or detect correctly
In the following situations, RSA does not operate normally and may not rec-
ognize signs, display the incorrect sign, etc. However, this do es not indicate a
malfunction.
● The front camera is misaligned due to a strong impact being applied to the
sensor, etc.
● Dirt, snow, stickers, etc., are on the windshield near the front camera.
● In inclement weather such as heavy rain, fog, snow or sand storms.
● Light from an oncoming vehicle, the sun, etc., enters the front camera.
● The sign is dirty, faded, tilted or bent.
● The contrast of electronic sign is low.
● All or part of the sign is hidden by the leaves of a tree, a pole, etc.
● The sign is only visible to the front camera for a short amount of time.
● The driving scene (turning, lane change, etc.) is judged incorrectly.
● If a sign not appropriate for the currently traveled lane, but the sign exists
directly after a freeway branches, or in an adjacent lane just before merging.
● Stickers are attached to the rear of the preceding vehicle.
● A sign resembling a system compatible sign is recognized.
● Side road speed signs may be detected and displayed (if positioned in sight
of the front camera) while the vehicle is traveling on the main road.
● Roundabout exit road speed signs may be detected and displayed (if posi-
tioned in sight of the front camera) while traveling on a round about.
● The front of the vehicle is raised or lowered due to the carried load
● The surrounding brightness is not sufficient or changes suddenly.
● When a sign intended for trucks, etc. is recognized.
● The vehicle is driven in a country with a different direction of traffic.
● The navigation system map data is outdated. (vehicles with navigation sys-
tem)
● The navigation system is not operating. (vehicles with navigation system)
● The speed information displayed on the meter and on the navigation system
(if equipped) may be different due to the navigation system usi ng map data.
Page 742 of 814

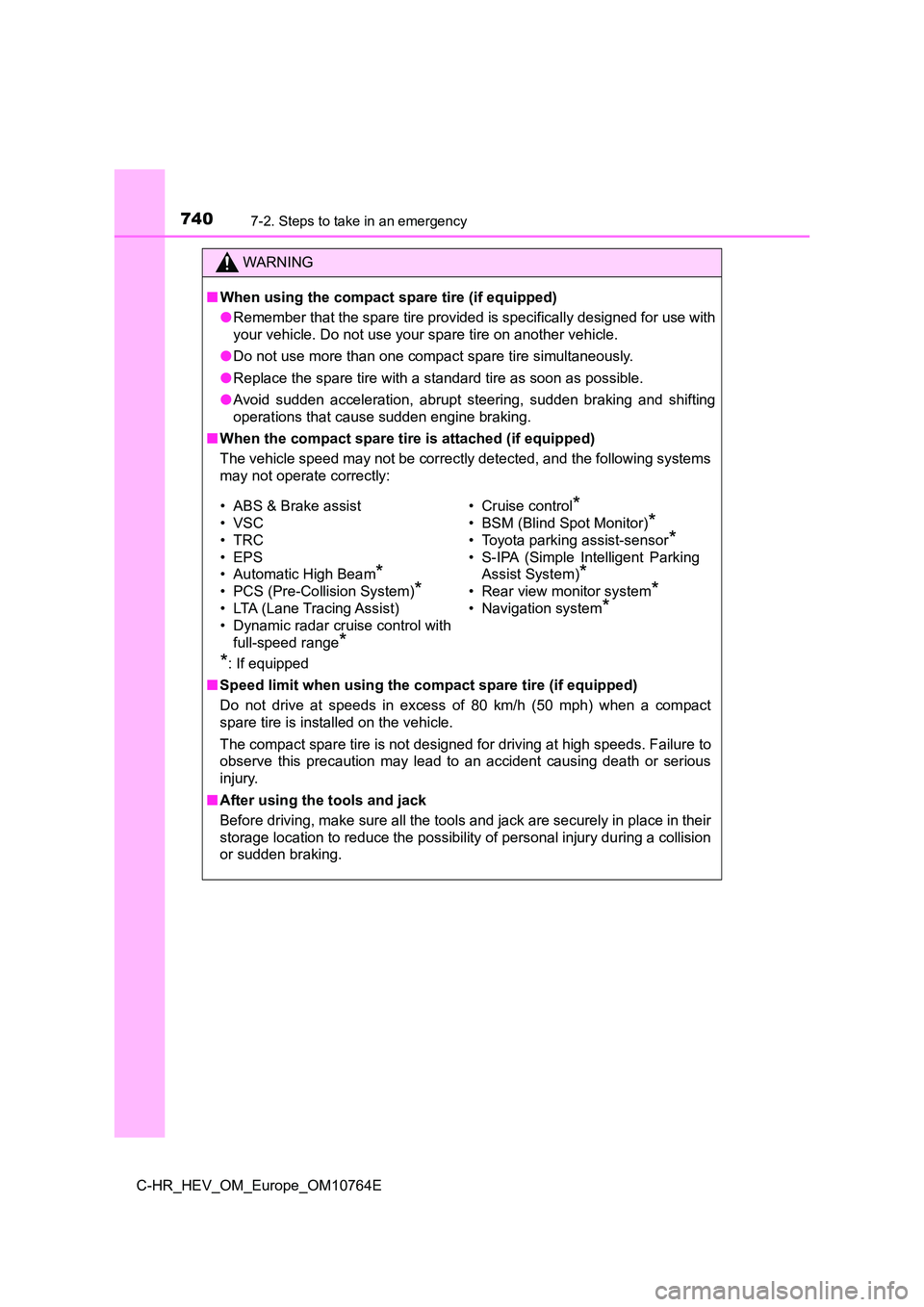

7407-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
WARNING
■When using the compact spare tire (if equipped)
● Remember that the spare tire provided is specifically designed for use with
your vehicle. Do not use your spare tire on another vehicle.
● Do not use more than one compact spare tire simultaneously.
● Replace the spare tire with a standard tire as soon as possible.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■ When the compact spare tire is attached (if equipped)
The vehicle speed may not be correctly detected, and the follow ing systems
may not operate correctly:
*: If equipped
■ Speed limit when using the compact spare tire (if equipped)
Do not drive at speeds in excess of 80 km/h (50 mph) when a com pact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high spee ds. Failure to
observe this precaution may lead to an accident causing death o r serious
injury.
■ After using the tools and jack
Before driving, make sure all the tools and jack are securely i n place in their
storage location to reduce the possibility of personal injury d uring a collision
or sudden braking.
• ABS & Brake assist
• VSC
•TRC
• EPS
• Automatic High Beam*
• PCS (Pre-Collision System)*
• LTA (Lane Tracing Assist)
• Dynamic radar cruise control with
full-speed range*
• Cruise control*
• BSM (Blind Spot Monitor)*
• Toyota parking assist-sensor*
• S-IPA (Simple Intelligent Parking
Assist System)*
• Rear view monitor system*
• Navigation system*
Page 781 of 814

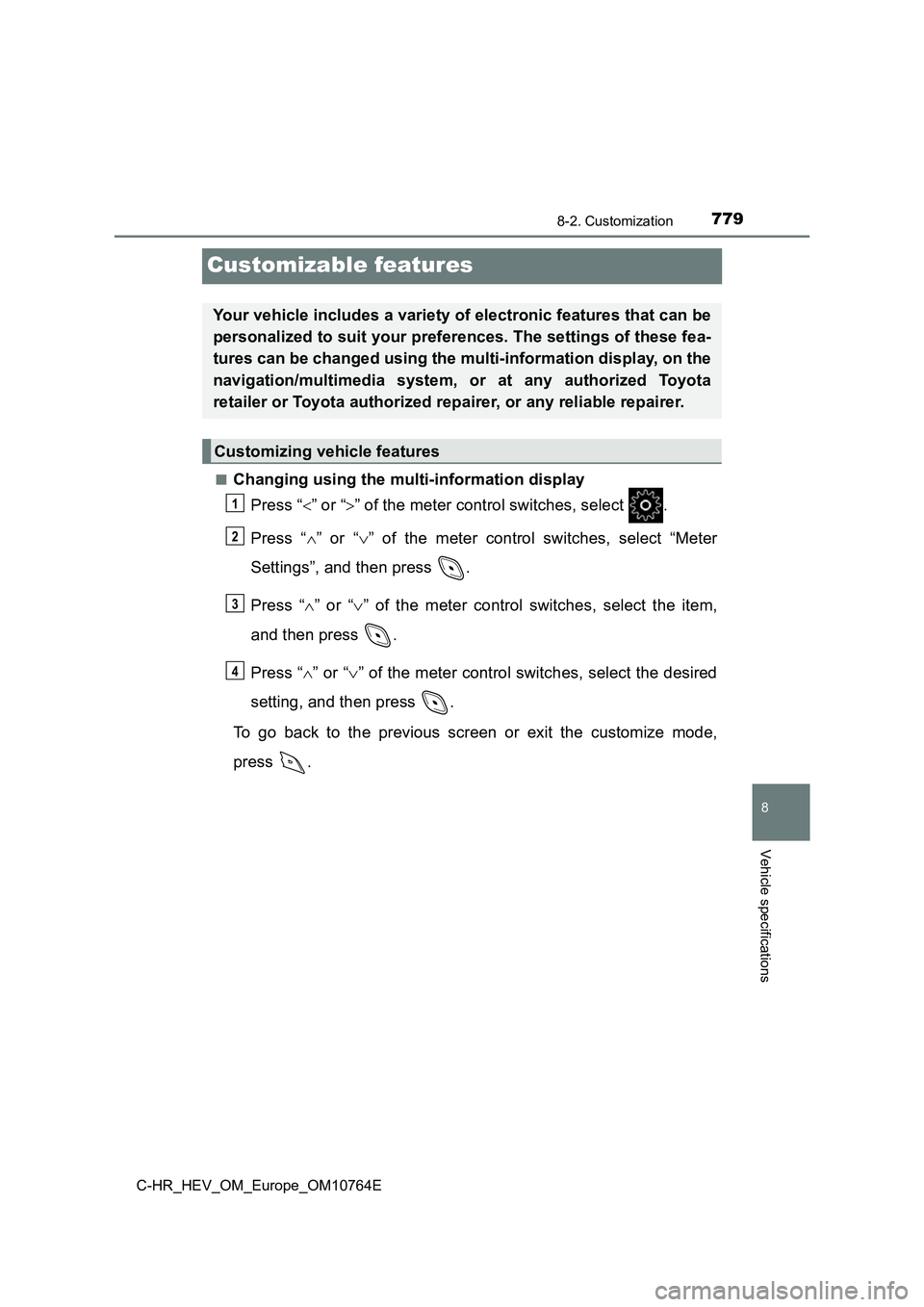

7798-2. Customization
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
Customizable features
■Changing using the multi-information display
Press “ ” or “” of the meter control switches, select .
Press “ ” or “” of the meter control switches, select “Meter
Settings”, and then press .
Press “ ” or “” of the meter control switches, select the item,
and then press .
Press “ ” or “” of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fe a-
tures can be changed using the multi-information display, on th e
navigation/multimedia system, or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r.
Customizing vehicle features
1
2
3
4
Page 782 of 814

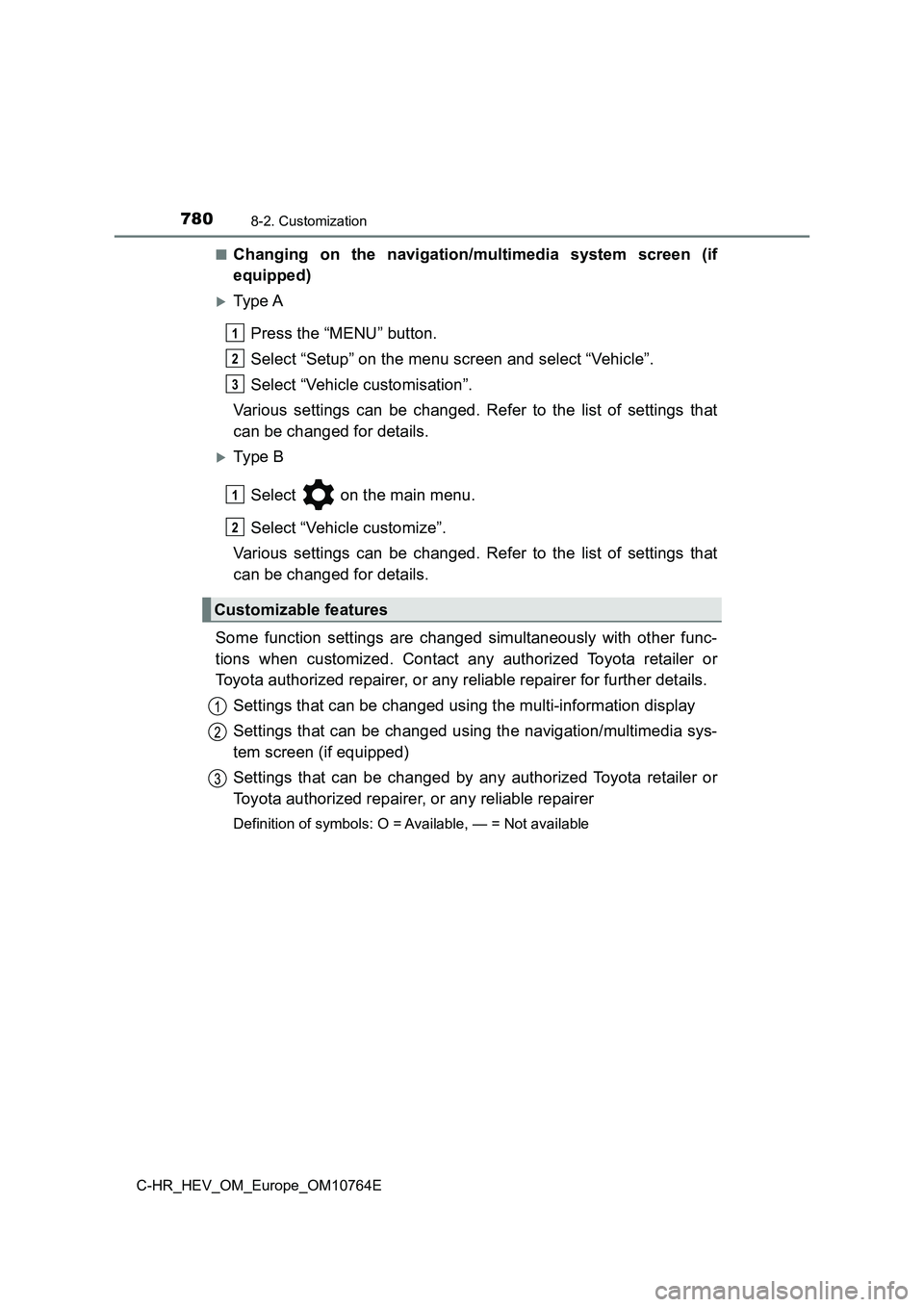

7808-2. Customization
C-HR_HEV_OM_Europe_OM10764E
■Changing on the navigation/multimedia system screen (if
equipped)
Ty pe A
Press the “MENU” button.
Select “Setup” on the menu screen and select “Vehicle”.
Select “Vehicle customisation”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Ty pe B
Select on the main menu.
Select “Vehicle customize”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Some function settings are changed simultaneously with other fu nc-
tions when customized. Contact any authorized Toyota retailer o r
Toyota authorized repairer, or any reliable repairer for furthe r details.
Settings that can be changed using the multi-information displa y
Settings that can be changed using the navigation/multimedia sy s-
tem screen (if equipped)
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
Customizable features
1
2
3
1
2
Page 783 of 814

7818-2. Customization
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
■Gauges, meters and multi-information display (P. 168)
*1: The default setting varies according to country.
*2: German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwegian,
Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hu ngarian,
Czech, Slovak, Romanian
*3: 2 of the following items: current fuel consumption (gauge disp lay), current
fuel consumption (numerical display), average fuel economy (aft er reset),
average fuel economy (after start), average fuel economy (after refuel),
average vehicle speed (after reset), average vehicle speed (aft er start),
elapsed time (after reset), elapsed time (after start), distanc e (driving
range), distance (after start), blank.
*4: For type A navigation/multimedia systems only
FunctionDefault settingCustomized
setting
Language*1English*2OO*4–
Units*1km (L/100 km)km (km/L)OO*4–miles (MPG)
EV IndicatorOn
(Self-lighting)OffO––
Drive information 1
Current fuel
consumption
(gauge display)
*3O––Average fuel
economy (after
reset)
Drive information 2
Distance
(driving range)
*3O––Average vehi-
cle speed (after
reset)
Pop-up displayOnOffO––
Page 789 of 814

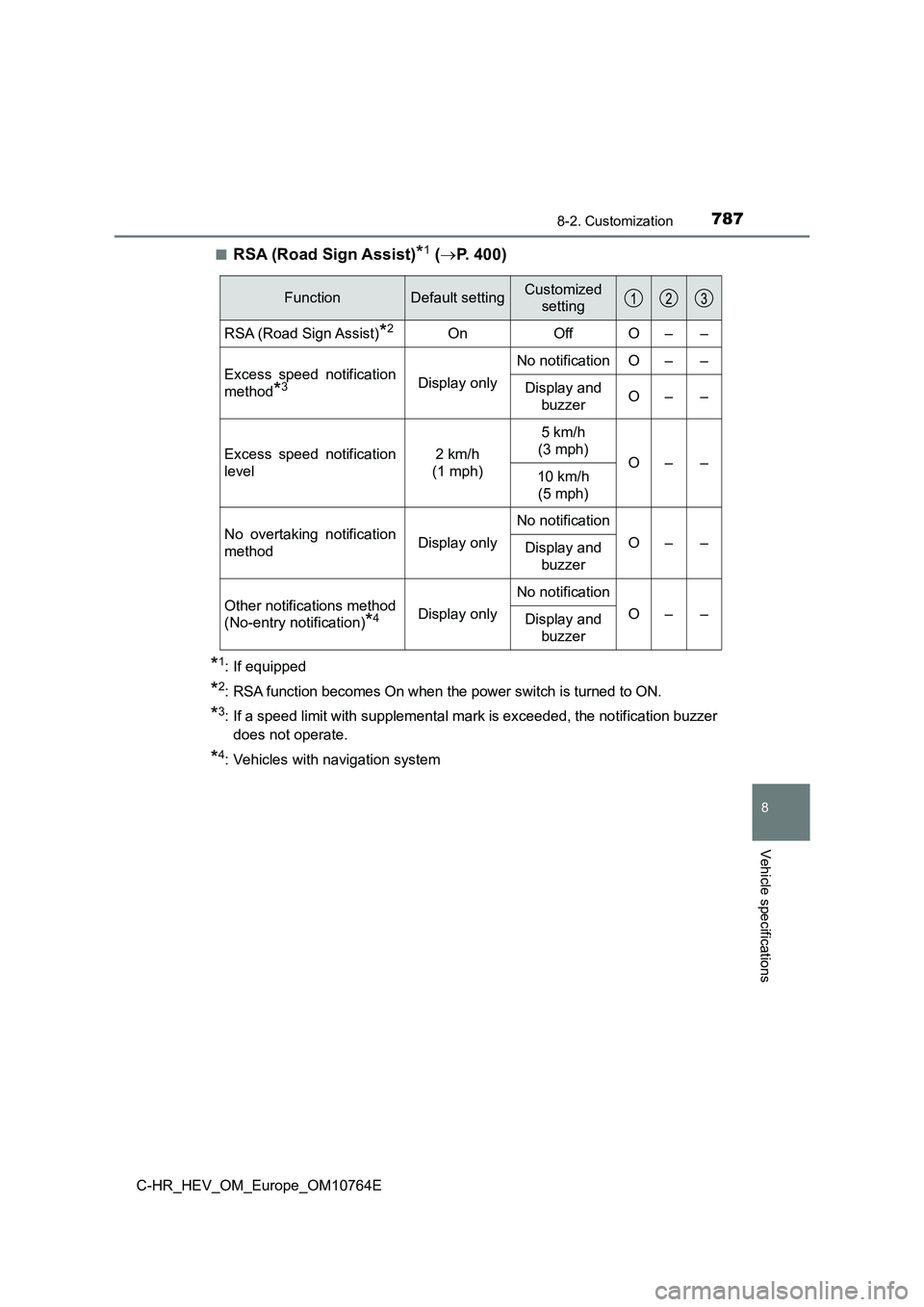

7878-2. Customization
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
■RSA (Road Sign Assist)*1 (P. 400)
*1: If equipped
*2: RSA function becomes On when the power switch is turned to ON.
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer
does not operate.
*4: Vehicles with navigation system
FunctionDefault settingCustomized
setting
RSA (Road Sign Assist)*2OnOffO––
Excess speed notification
method*3Display only
No notificationO––
Display and
buzzerO––
Excess speed notification
level
2km/h
(1 mph)
5km/h
(3 mph)O––10 km/h
(5 mph)
No overtaking notification
methodDisplay only
No notification
O––Display and
buzzer
Other notifications method
(No-entry notification)*4Display only
No notification
O––Display and
buzzer
Page 795 of 814

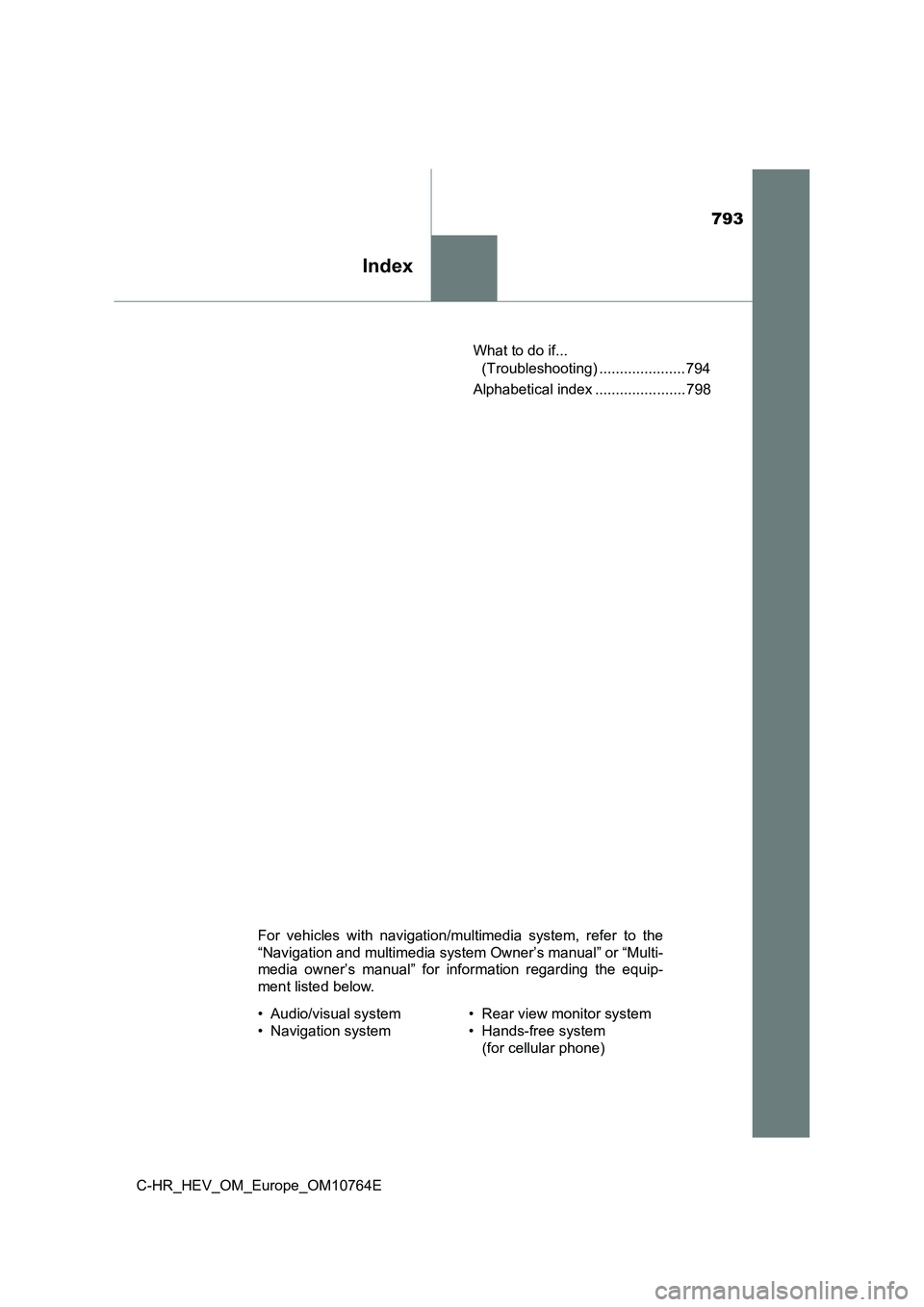

793
Index
C-HR_HEV_OM_Europe_OM10764E
What to do if...
(Troubleshooting) ..................... 794
Alphabetical index ...................... 798
For vehicles with navigation/multimedia system, refer to the
“Navigation and multimedia system Owner’s manual” or “Multi-
media owner’s manual” for information regarding the equip-
ment listed below.
• Audio/visual system
• Navigation system
• Rear view monitor system
• Hands-free system
(for cellular phone)
Page 801 of 814

799Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Back door ................................. 199
Back-up lights
Replacing light bulbs ..... 658, 664
Wattage................................. 776
Battery (12-volt battery)
Battery checking ........... 604, 610
If the 12-volt battery is
discharged .......................... 747
Preparing and
checking before winter........ 541
Replacing .............................. 751
Warning light ......................... 679
Battery (traction battery) ......... 122
Blind Spot Monitor (BSM) ....... 435
Bluetooth®*
Bottle holders........................... 562
Brake
Fluid ...................................... 773
Parking brake ........................ 323
Regenerative braking ............ 119
Warning light ......................... 679
Brake assist.............................. 530
Brake Hold ................................ 328
Brake Override System ........... 284
Break-in tips ............................. 285
Brightness control
Instrument cluster light
control................................. 171
BSM (Blind Spot Monitor) ....... 435
Care
Aluminum wheels.................. 579
Camera sensor ..................... 355
Exterior ................................. 578
Interior................................... 584
Radar sensor ........................ 354
Seat belts .............................. 585
Cargo hooks............................. 564
Catch protection function ....... 276
Chains....................................... 543
Child restraint system ............... 59
Fixed with a seat belt .............. 90
Fixed with an
ISOFIX lower anchorage ...... 92
Points to remember ................ 60
Riding with children................. 58
Types of child restraint system
installation method ............... 89
Using a
top tether anchorage ............ 94
Child safety ................................ 58
12-volt battery precautions ... 607
Airbag precautions .................. 44
Child restraint system ............. 59
How your child should
wear the seat belt ................. 38
Installing child restraints ......... 89
Power window lock switch .... 275
Power window precautions ... 279
Rear door child-protectors .... 195
Removed key battery
precautions......................... 645
Seat belt precautions .............. 91
Seat heater precautions........ 555
BC
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or
“Multimedia owner’s manual”.
Page 805 of 814

803Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Fuel
Capacity ................................ 767
Emergency
shut off system ................... 123
Fuel gauge ............................ 164
Gas station information ......... 812
Information ............................ 777
Refueling ............................... 348
Type ...................................... 767
Warning light ......................... 683
Fuel filler door .......................... 350
Opener .................................. 350
Refueling ............................... 348
When the fuel filler door
cannot be opened ............... 351
Fuses ........................................ 646
Gas station information .......... 812
Gauges...................................... 164
Glove box ................................. 561
GPF (Gasoline Particulate
Filter) system ......................... 529
Grocery bag hooks .................. 564
Hands-free system
(for cellular phone)*
Head restraints ........................ 264
Headlight cleaners................... 343
Headlights ................................ 331
Automatic headlight
leveling ............................... 335
Automatic High Beam ........... 336
Extended headlight lighting
system ................................ 332
Light switch ........................... 331
Manual headlight leveling
dial...................................... 333
Replacing light bulbs............. 664
Heated steering wheel............. 555
Heaters
Automatic air conditioning
system ................................ 546
Heated steering wheel .......... 555
Outside rear view mirrors...... 550
Seat heaters ......................... 555
High coolant temperature
warning light .......................... 684
High mounted stoplight
Replacing .............................. 664
Hill-start assist control............ 531
Hood ......................................... 594
Hooks
Cargo hooks ......................... 564
Grocery bag hook ................. 564
Retaining hooks (floor mat)..... 32
Horn .......................................... 268
G
H
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or
“Multimedia owner’s manual”.
Page 808 of 814

806Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Maintenance
Do-it-yourself maintenance ... 591
Maintenance data ................. 764
Maintenance requirements ... 588
Malfunction indicator lamp ..... 680
Manual headlight leveling
dial .......................................... 333
Meter
Indicators .............................. 159
Meter light control ................. 171
Multi-information display ....... 168
Warning lights ....................... 157
Microphone*
Mirrors
Inside rear view mirror .......... 270
Outside rear view mirror
defoggers............................ 550
Outside rear view mirrors ...... 272
Vanity mirrors ........................ 572
Multi-information display
BSM (Blind Spot Monitor) ..... 435
Drive information ................... 169
Dynamic radar cruise control
with full-speed range .......... 408
Energy monitor...................... 177
Language .............................. 171
LTA (Lane Tracing Assist) .... 385
Parking assist system ........... 455
Pre-collision warning ............. 367
RSA (Road Sign Assist) ........ 401
Settings ................................. 171
Warning message ................. 690
Multimedia system*
Navigation system*
Odometer.................................. 164
Oil
Engine oil .............................. 768
Opener
Back door.............................. 200
Fuel filler door ....................... 350
Hood ..................................... 594
Outside rear view mirrors ....... 272
Adjustment ............................ 272
Blind Spot Monitor ................ 435
Folding .................................. 273
Outside rear view mirror
defoggers ........................... 550
Outside temperature
display .................................... 164
Overheating.............................. 755
Overheating, Engine................ 755
Parking assist sensors
S-IPA (Simple Intelligent
Parking Assist System) ...... 490
Toyota parking
assist-sensor ...................... 454
Parking brake ........................... 323
Parking brake engaged
warning buzzer ................... 326
Warning light ................. 682, 683
Parking Support Brake
function (rear-crossing
vehicles) ................................. 487
Parking Support Brake
function (static objects)........ 483
PCS (Pre-Collision System)
Enabling/disabling the
system ................................ 373
Function ................................ 367
Warning light ......................... 682
M
N
O
P
