7648-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
Maintenance data (fuel, oil level, etc.)
*1: 2ZR-FXE engine
*2: M20A-FXS engine
*3: Unladen vehicle
*4: Vehicles with 215/60R17 tires
*5: Vehicles with 225/50R18 tires
*6: Except for 2ZR-FXE engine for Guadeloupe, Martinique, F. Guiana and
Svalbard

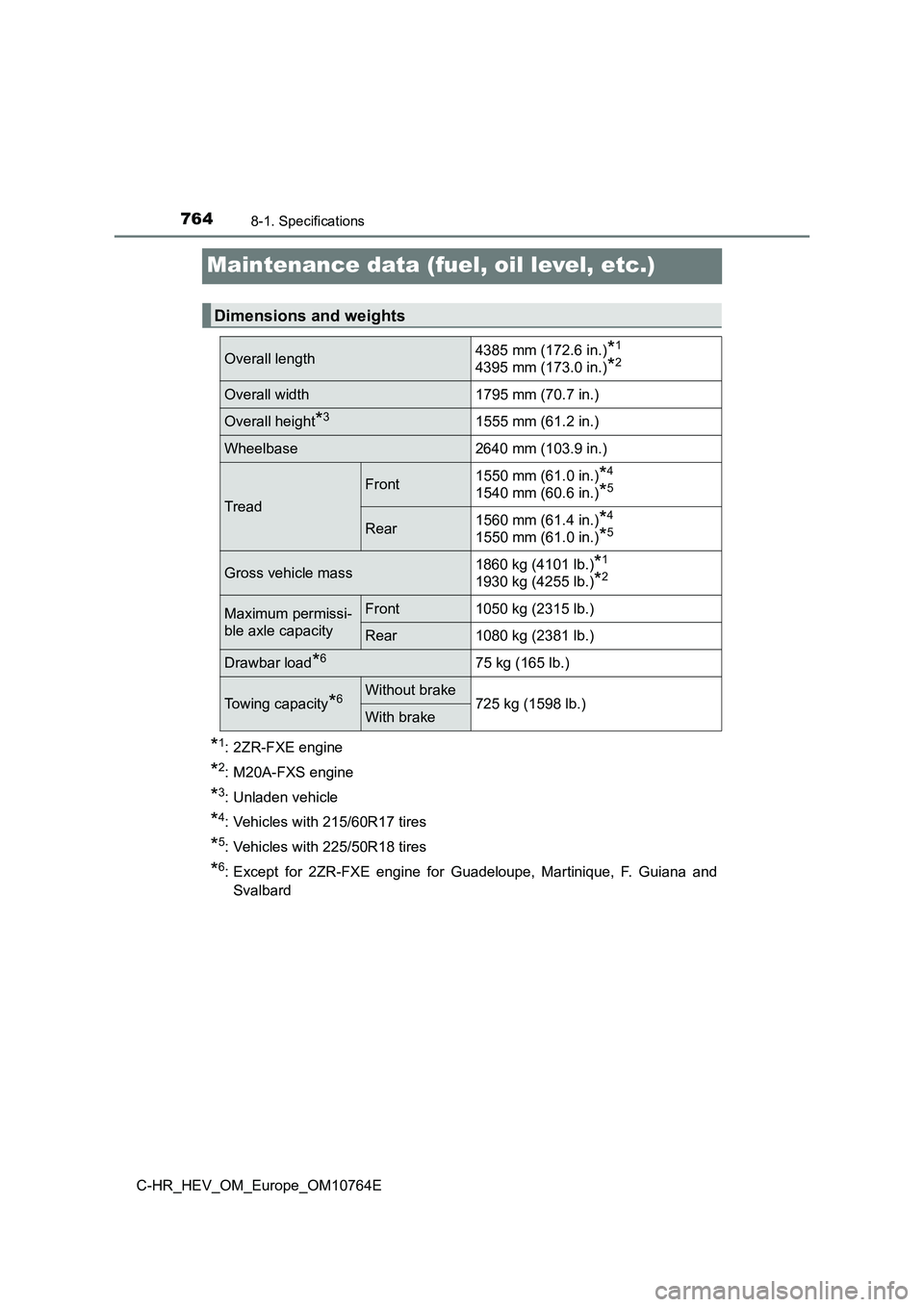

Dimensions and weights
Overall length4385 mm (172.6 in.)*1
4395 mm (173.0 in.)*2
Overall width1795 mm (70.7 in.)
Overall height*31555 mm (61.2 in.)
Wheelbase2640 mm (103.9 in.)
Tread
Front1550 mm (61.0 in.)*4
1540 mm (60.6 in.)*5
Rear1560 mm (61.4 in.)*4
1550 mm (61.0 in.)*5
Gross vehicle mass1860 kg (4101 lb.)*1
1930 kg (4255 lb.)*2
Maximum permissi-
ble axle capacity
Front1050 kg (2315 lb.)
Rear1080 kg (2381 lb.)
Drawbar load*675 kg (165 lb.)
Towing capacity*6Without brake725 kg (1598 lb.)With brake
