towing TOYOTA C-HR 2023 Owners Manual

3
1
5
4
3
2
C-HR_HEV_OM_Europe_OM10764E
8
7
6
3-1. Key information
Keys ...................................186
3-2. Opening, closing and
locking the doors
Side doors..........................191
Back door...........................199
Smart entry & start
system .............................205
3-3. Adjusting the seats
Front seats .........................260
Rear seats .........................262
Head restraints ..................264
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ...................268
Inside rear view mirror .......270
Outside rear view
mirrors .............................272
3-5. Opening and closing the
windows
Power windows ..................275
4-1. Before driving
Driving the vehicle ............. 282
Cargo and luggage............ 293
Trailer towing..................... 294
4-2. Driving procedures
Power (ignition) switch ...... 303
EV drive mode................... 310
Hybrid transmission
(2ZR-FXE engine) ........... 313
Hybrid transmission
(M20A-FXS engine) ........ 317
Turn signal lever................ 322
Parking brake .................... 323
Brake Hold ........................ 328
4-3. Operating the
lights and wipers
Headlight switch ................ 331
Automatic High Beam ....... 336
Fog light switch ................. 341
Windshield wipers and
washer ............................ 343
Rear window wiper and
washer ............................ 346
4-4. Refueling
Opening the
fuel tank cap .................... 348
3Operation of
each component4Driving

16Pictorial index
C-HR_HEV_OM_Europe_OM10764E
■Instrument panel (left-hand drive vehicles)
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 303
Starting the hybrid system/changing the modes . . . . . . . . . . . P. 303
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 669
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 742
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 690
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
Shifting the shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 672
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 315
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164
Reading the meters/
adjusting the instrument cluster light . . . . . . . . . . . . . . . . P. 164, 171
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 679

24Pictorial index
C-HR_HEV_OM_Europe_OM10764E
■Instrument panel (right-hand drive vehicles)
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 303
Starting the hybrid system/changing the modes . . . . . . . . . . . P. 303
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 669
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 742
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 690
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
Shifting the shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 672
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 315
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164
Reading the meters/
adjusting the instrument cluster light . . . . . . . . . . . . . . . . P. 164, 171
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 679

1261-4. Hybrid system
C-HR_HEV_OM_Europe_OM10764E

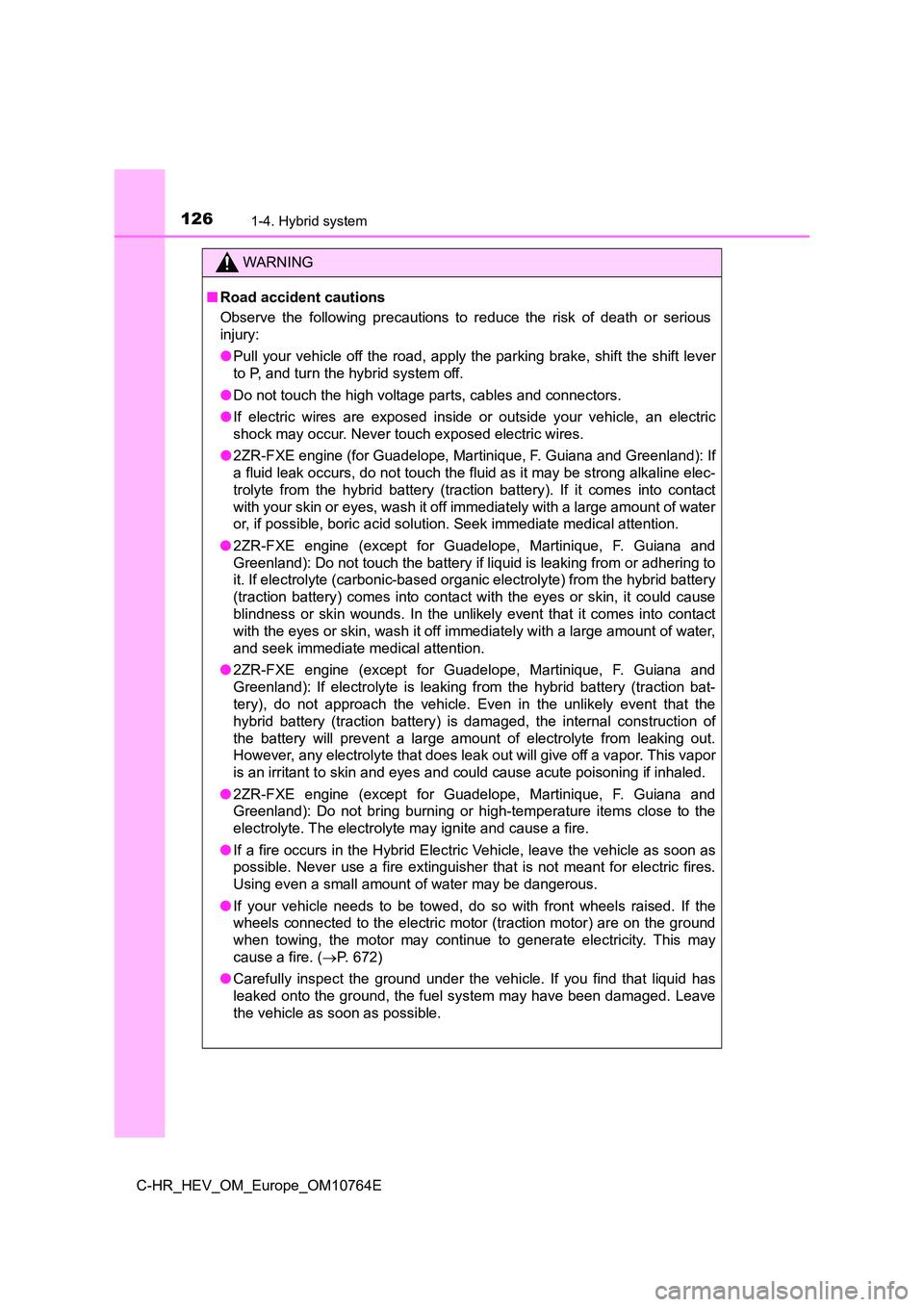

WARNING
■Road accident cautions
Observe the following precautions to reduce the risk of death o r serious
injury:
● Pull your vehicle off the road, apply the parking brake, shift the shift lever
to P, and turn the hybrid system off.
● Do not touch the high voltage parts, cables and connectors.
● If electric wires are exposed inside or outside your vehicle, an electric
shock may occur. Never touch exposed electric wires.
● 2ZR-FXE engine (for Guadelope, Martinique, F. Guiana and Greenland): If
a fluid leak occurs, do not touch the fluid as it may be strong alkaline elec-
trolyte from the hybrid battery (traction battery). If it comes into contact
with your skin or eyes, wash it off immediately with a large am ount of water
or, if possible, boric acid solution. Seek immediate medical at tention.
● 2ZR-FXE engine (except for Guadelope, Martinique, F. Guiana and
Greenland): Do not touch the batte ry if liquid is leaking from or adhering to
it. If electrolyte (carbonic-based organic electrolyte) from th e hybrid battery
(traction battery) comes into contact with the eyes or skin, it could cause
blindness or skin wounds. In the unlikely event that it comes i nto contact
with the eyes or skin, wash it of f immediately with a large amount of water,
and seek immediate medical attention.
● 2ZR-FXE engine (except for Guadelope, Martinique, F. Guiana and
Greenland): If electrolyte is leaking from the hybrid battery ( traction bat-
tery), do not approach the vehicle. Even in the unlikely event that the
hybrid battery (traction battery) is damaged, the internal cons truction of
the battery will prevent a large amount of electrolyte from lea king out.
However, any electrolyte that does leak out will give off a vap or. This vapor
is an irritant to skin and eyes and could cause acute poisoning if inhaled.
● 2ZR-FXE engine (except for Guadelope, Martinique, F. Guiana and
Greenland): Do not bring burning or high-temperature items close to the
electrolyte. The electrolyte may ignite and cause a fire.
● If a fire occurs in the Hybrid Electric Vehicle, leave the vehicle as soon as
possible. Never use a fire extinguisher that is not meant for e lectric fires.
Using even a small amount of water may be dangerous.
● If your vehicle needs to be towed, do so with front wheels raised. If the
wheels connected to the electric motor (traction motor) are on the ground
when towing, the motor may continue to generate electricity. Th is may
cause a fire. ( P. 672)
● Carefully inspect the ground under the vehicle. If you find that liquid has
leaked onto the ground, the fuel system may have been damaged. Leave
the vehicle as soon as possible.

281
4Driving
C-HR_HEV_OM_Europe_OM10764E
4-1. Before driving
Driving the vehicle ............. 282
Cargo and luggage ............ 293
Trailer towing ..................... 294
4-2. Driving procedures
Power (ignition) switch ....... 303
EV drive mode ................... 310
Hybrid transmission
(2ZR-FXE engine) ........... 313
Hybrid transmission
(M20A-FXS engine) ......... 317
Turn signal lever ................ 322
Parking brake .................... 323
Brake Hold ......................... 328
4-3. Operating the
lights and wipers
Headlight switch ................ 331
Automatic High Beam ........ 336
Fog light switch .................. 341
Windshield wipers and
washer ............................. 343
Rear window wiper and
washer ............................. 346
4-4. Refueling
Opening the
fuel tank cap .................... 348
4-5. Using the driving support
systems
Toyota Safety Sense ......... 353
PCS
(Pre-Collision System) ..... 367
LTA
(Lane Tracing Assist)....... 385
RSA (Road Sign Assist)..... 400
Dynamic radar cruise
control with
full-speed range ............... 408
Cruise control..................... 425
Driving mode select ........... 430
Speed limiter ...................... 432
BSM
(Blind Spot Monitor) ......... 435
Toyota parking
assist-sensor ................... 454
RCTA (Rear Crossing
Traffic Alert) ..................... 467
PKSB (Parking Support
Brake) .............................. 475
Parking Support Brake
function (static objects) .... 483
Parking Support Brake
function
(rear-crossing vehicles) ... 487
S-IPA (Simple Intelligent
Parking Assist System).... 490
GPF (Gasoline Particulate
Filter) system .................. 529
Driving assist systems ....... 530
4-6. Driving tips
Hybrid Electric Vehicle
driving tips ....................... 538
Winter driving tips .............. 541

2944-1. Before driving
C-HR_HEV_OM_Europe_OM10764E

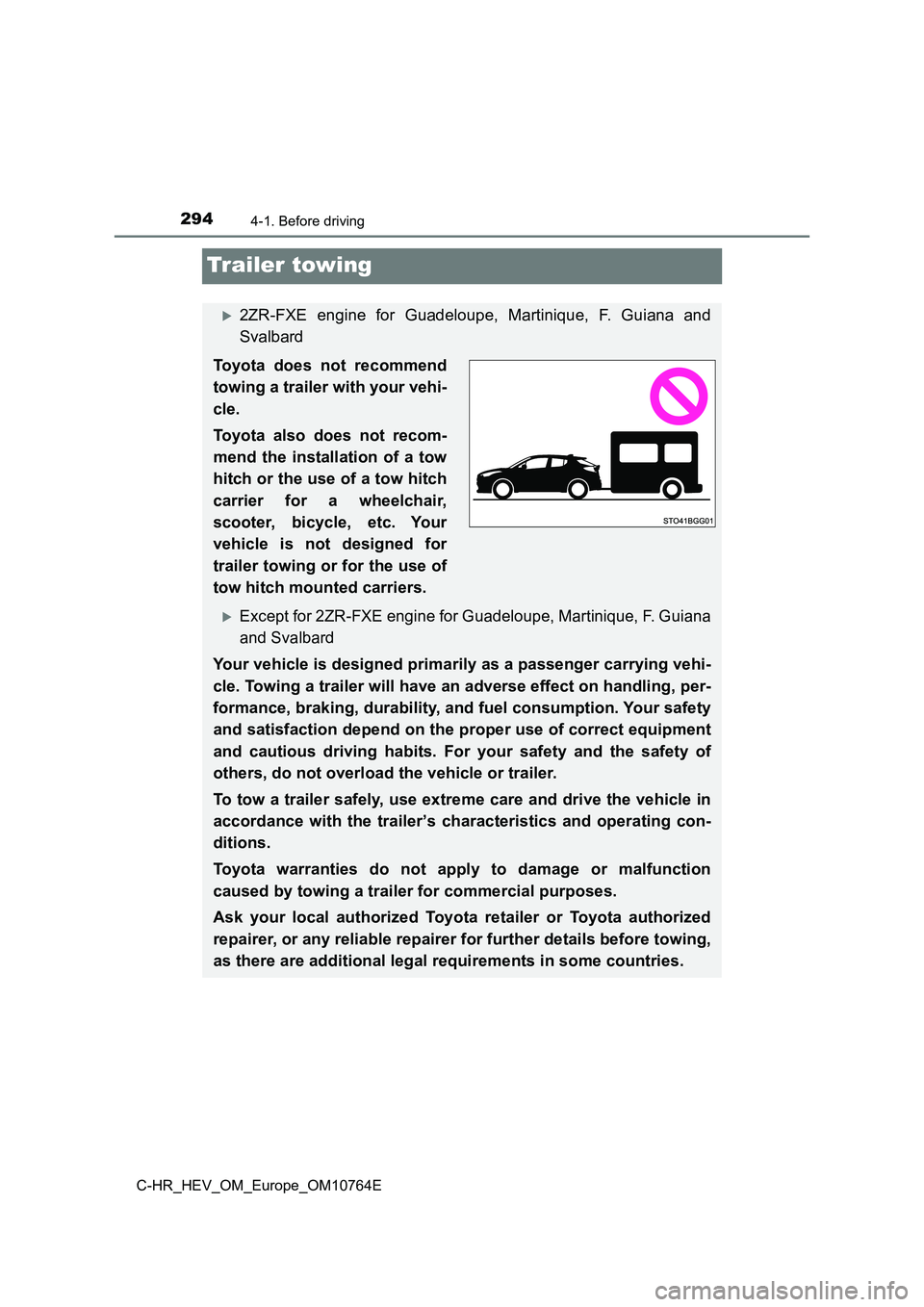

Trailer towing
2ZR-FXE engine for Guadeloupe, Martinique, F. Guiana and
Svalbard
Toyota does not recommend
towing a trailer with your vehi-
cle.
Toyota also does not recom-
mend the installation of a tow
hitch or the use of a tow hitch
carrier for a wheelchair,
scooter, bicycle, etc. Your
vehicle is not designed for
trailer towing or for the use of
tow hitch mounted carriers.
Except for 2ZR-FXE engine for Guadeloupe, Martinique, F. Guiana
and Svalbard
Your vehicle is designed primarily as a passenger carrying vehi -
cle. Towing a trailer will have an adverse effect on handling, per-
formance, braking, durability, and fuel consumption. Your safet y
and satisfaction depend on the proper use of correct equipment
and cautious driving habits. For your safety and the safety of
others, do not overload the vehicle or trailer.
To tow a trailer safely, use extreme care and drive the vehicle in
accordance with the trailer’s characteristics and operating con -
ditions.
Toyota warranties do not apply to damage or malfunction
caused by towing a trailer for commercial purposes.
Ask your local authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for further details before t owing,
as there are additional legal requirements in some countries.

2954-1. Before driving
4
Driving
C-HR_HEV_OM_Europe_OM10764E

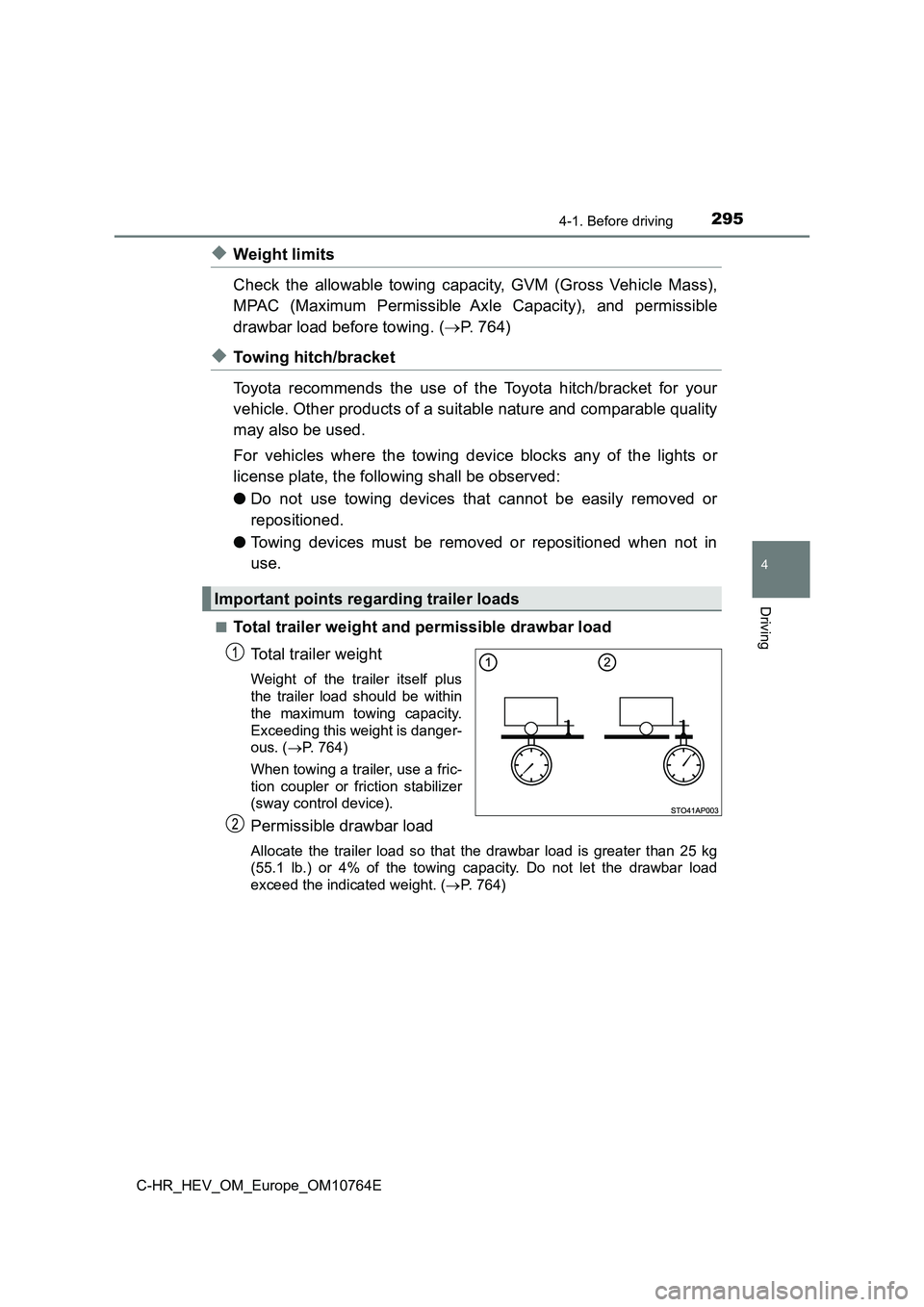

◆Weight limits
Check the allowable towing capacity, GVM (Gross Vehicle Mass),
MPAC (Maximum Permissible Axle Capacity), and permissible
drawbar load before towing. ( P. 764)
◆Towing hitch/bracket
Toyota recommends the use of the Toyota hitch/bracket for your
vehicle. Other products of a suitable nature and comparable qua lity
may also be used.
For vehicles where the towing device blocks any of the lights o r
license plate, the following shall be observed:
● Do not use towing devices that cannot be easily removed or
repositioned.
● Towing devices must be removed or repositioned when not in
use.
■Total trailer weight and permissible drawbar load
Total trailer weight
Weight of the trailer itself plus
the trailer load should be within
the maximum towing capacity.
Exceeding this weight is danger-
ous. ( P. 764)
When towing a trailer, use a fric-
tion coupler or friction stabilizer
(sway control device).
Permissible drawbar load
Allocate the trailer load so that the drawbar load is greater t han 25 kg
(55.1 lb.) or 4% of the towing capacity. Do not let the drawbar load
exceed the indicated weight. ( P. 764)
Important points regarding trailer loads

2964-1. Before driving
C-HR_HEV_OM_Europe_OM10764E

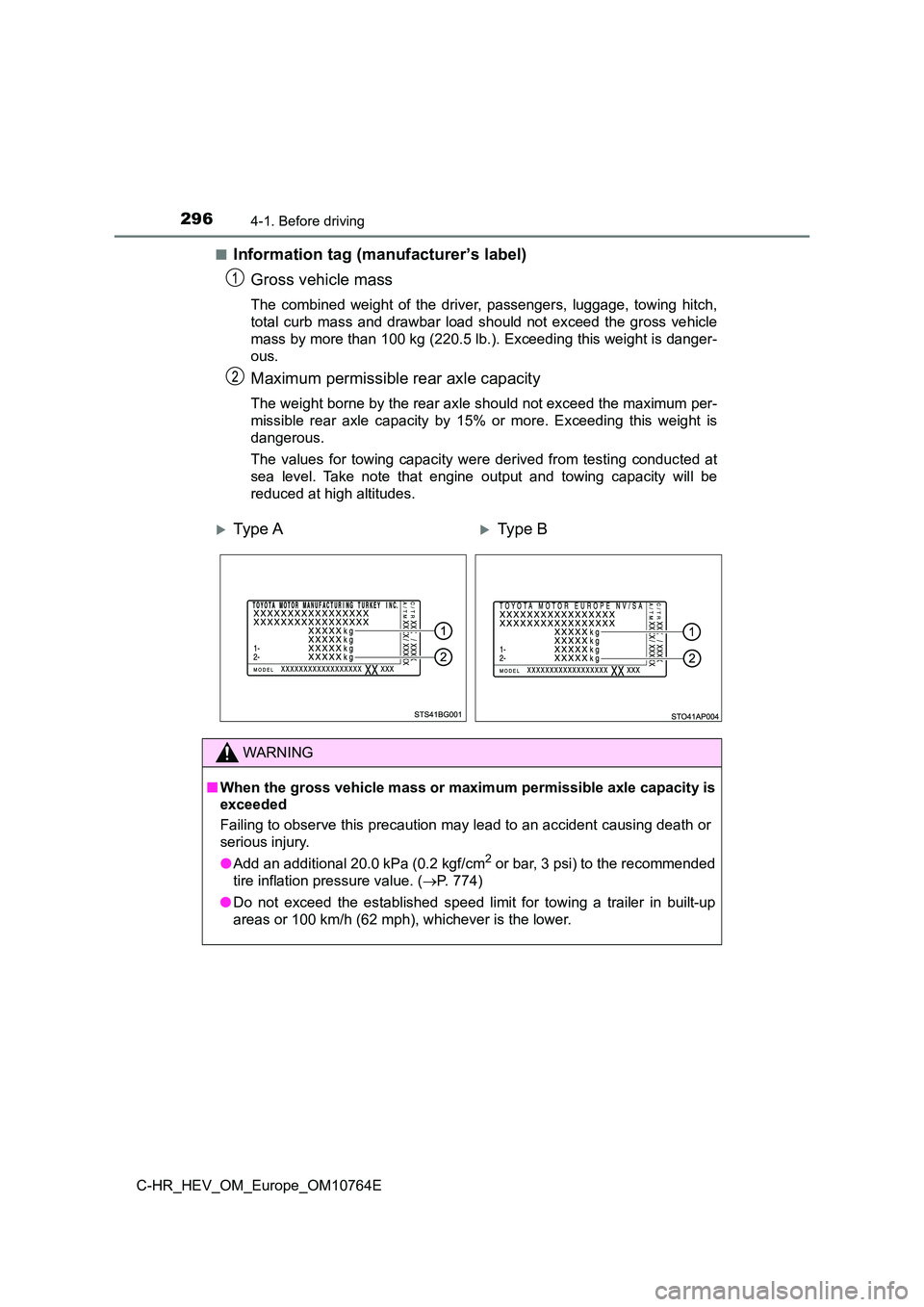

■Information tag (manufacturer’s label)
Gross vehicle mass
The combined weight of the driver, passengers, luggage, towing hitch,
total curb mass and drawbar load should not exceed the gross ve hicle
mass by more than 100 kg (220.5 lb.). Exceeding this weight is danger-
ous.
Maximum permissible rear axle capacity
The weight borne by the rear axle should not exceed the maximum per-
missible rear axle capacity by 15% or more. Exceeding this weig ht is
dangerous.
The values for towing capacity were derived from testing conduc ted at
sea level. Take note that engine output and towing capacity wil l be
reduced at high altitudes.
Ty pe AType B
WARNING
■ When the gross vehicle mass or maximum permissible axle capacity is
exceeded
Failing to observe this precaution may lead to an accident caus ing death or
serious injury.
● Add an additional 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended
tire inflation pressure value. ( P. 774)
● Do not exceed the established speed limit for towing a trailer in built-up
areas or 100 km/h (62 mph), whichever is the lower.

2974-1. Before driving
4
Driving
C-HR_HEV_OM_Europe_OM10764E

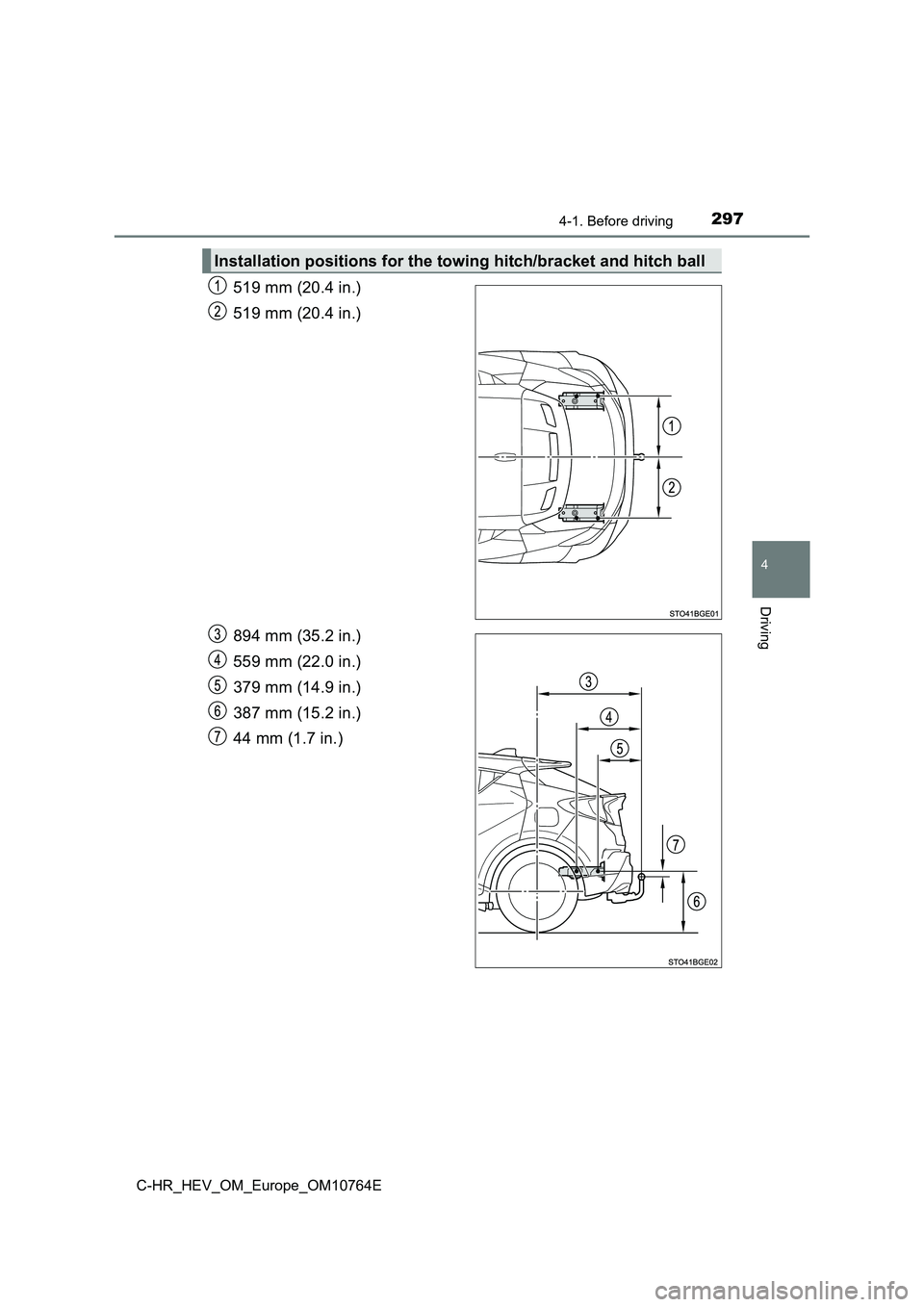

519 mm (20.4 in.)
519 mm (20.4 in.)
894 mm (35.2 in.)
559 mm (22.0 in.)
379 mm (14.9 in.)
387 mm (15.2 in.)
44 mm (1.7 in.)
Installation positions for the towing hitch/bracket and hitch b all

2984-1. Before driving
C-HR_HEV_OM_Europe_OM10764E

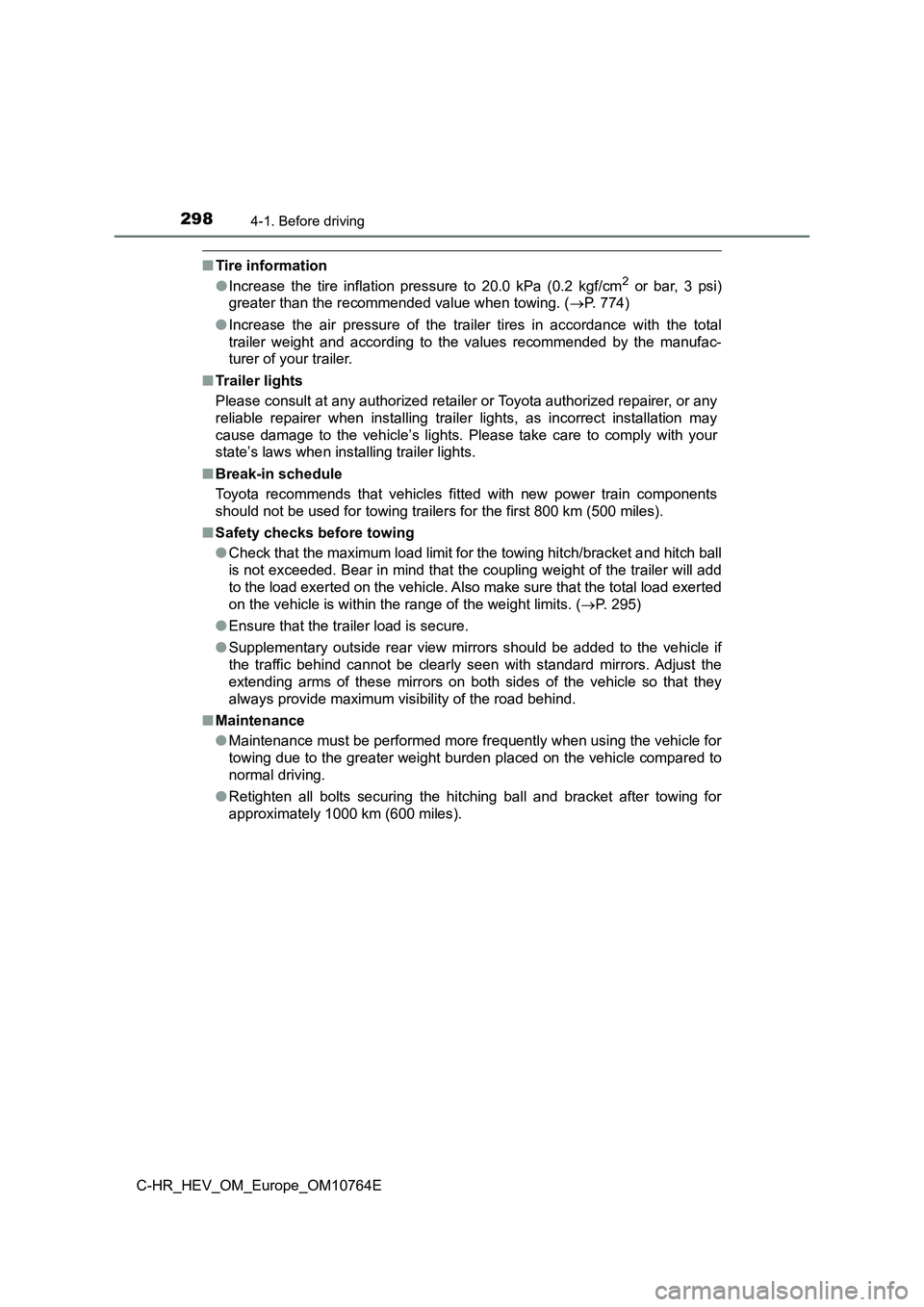

■Tire information
● Increase the tire inflation pressure to 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi)
greater than the recommended value when towing. ( P. 774)
● Increase the air pressure of the trailer tires in accordance with the total
trailer weight and according to the values recommended by the m anufac-
turer of your trailer.
■ Trailer lights
Please consult at any authorized retailer or Toyota authorized repairer, or any
reliable repairer when installing trailer lights, as incorrect installation may
cause damage to the vehicle’s lights. Please take care to compl y with your
state’s laws when installing trailer lights.
■ Break-in schedule
Toyota recommends that vehicles fitted with new power train com ponents
should not be used for towing trailers for the first 800 km (50 0 miles).
■ Safety checks before towing
● Check that the maximum load limit for the towing hitch/bracket and hitch ball
is not exceeded. Bear in mind that the coupling weight of the t railer will add
to the load exerted on the vehicle. Also make sure that the tot al load exerted
on the vehicle is within the range of the weight limits. ( P. 295)
● Ensure that the trailer load is secure.
● Supplementary outside rear view mirrors should be added to the vehicle if
the traffic behind cannot be clearly seen with standard mirrors . Adjust the
extending arms of these mirrors on both sides of the vehicle so that they
always provide maximum visibility of the road behind.
■ Maintenance
● Maintenance must be performed more frequently when using the vehicle for
towing due to the greater weight burden placed on the vehicle c ompared to
normal driving.
● Retighten all bolts securing the hitching ball and bracket after towing for
approximately 1000 km (600 miles).
