TOYOTA C_HR HYBRID 2017 Owners Manual

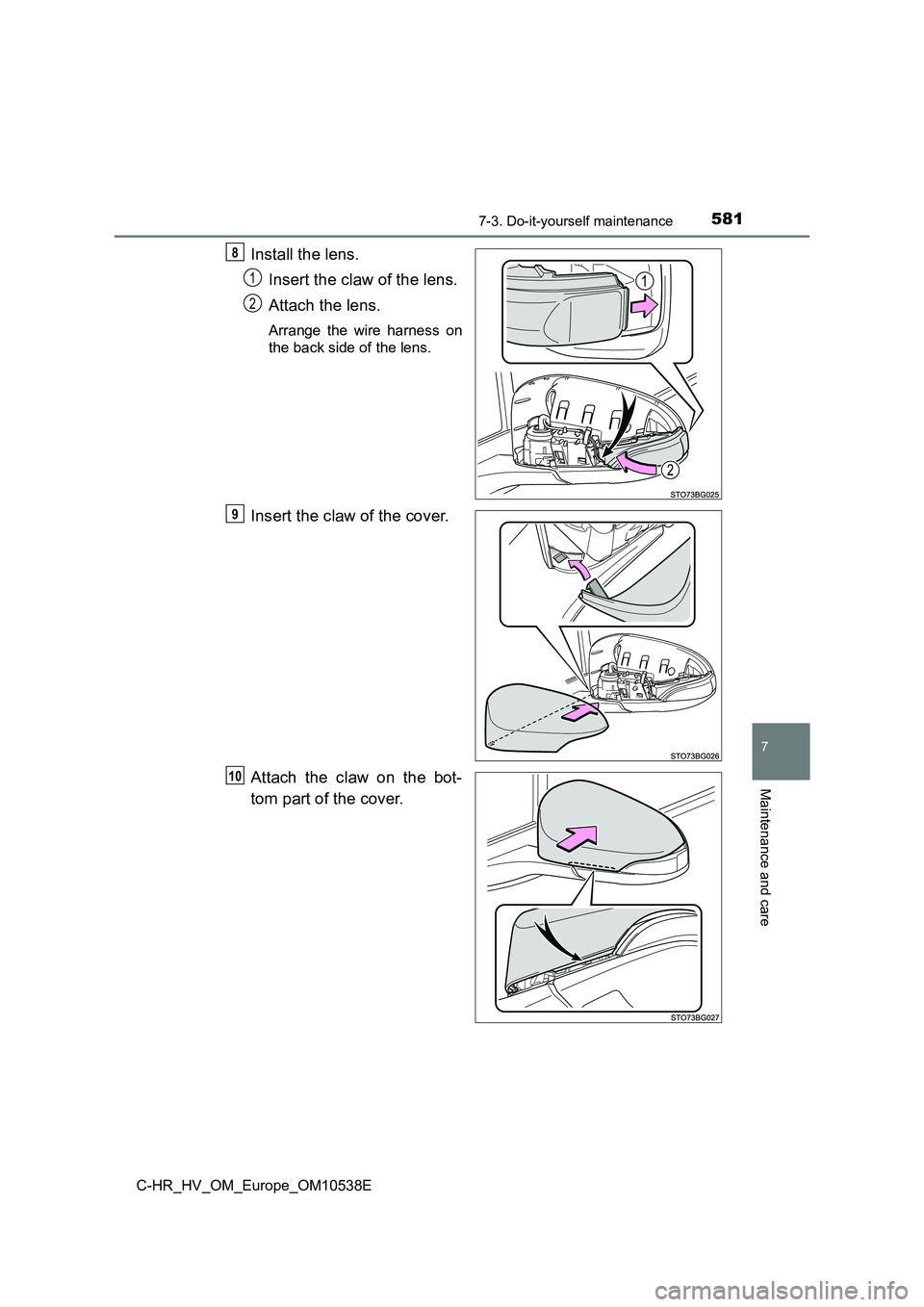

5817-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10538E
7
Maintenance and care
Install the lens.
Insert the claw of the lens.
Attach the lens.
Arrange the wire harness on
the back side of the lens.
Insert the claw of the cover.
Attach the claw on the bot-
tom part of the cover.
8
1
2
9
10

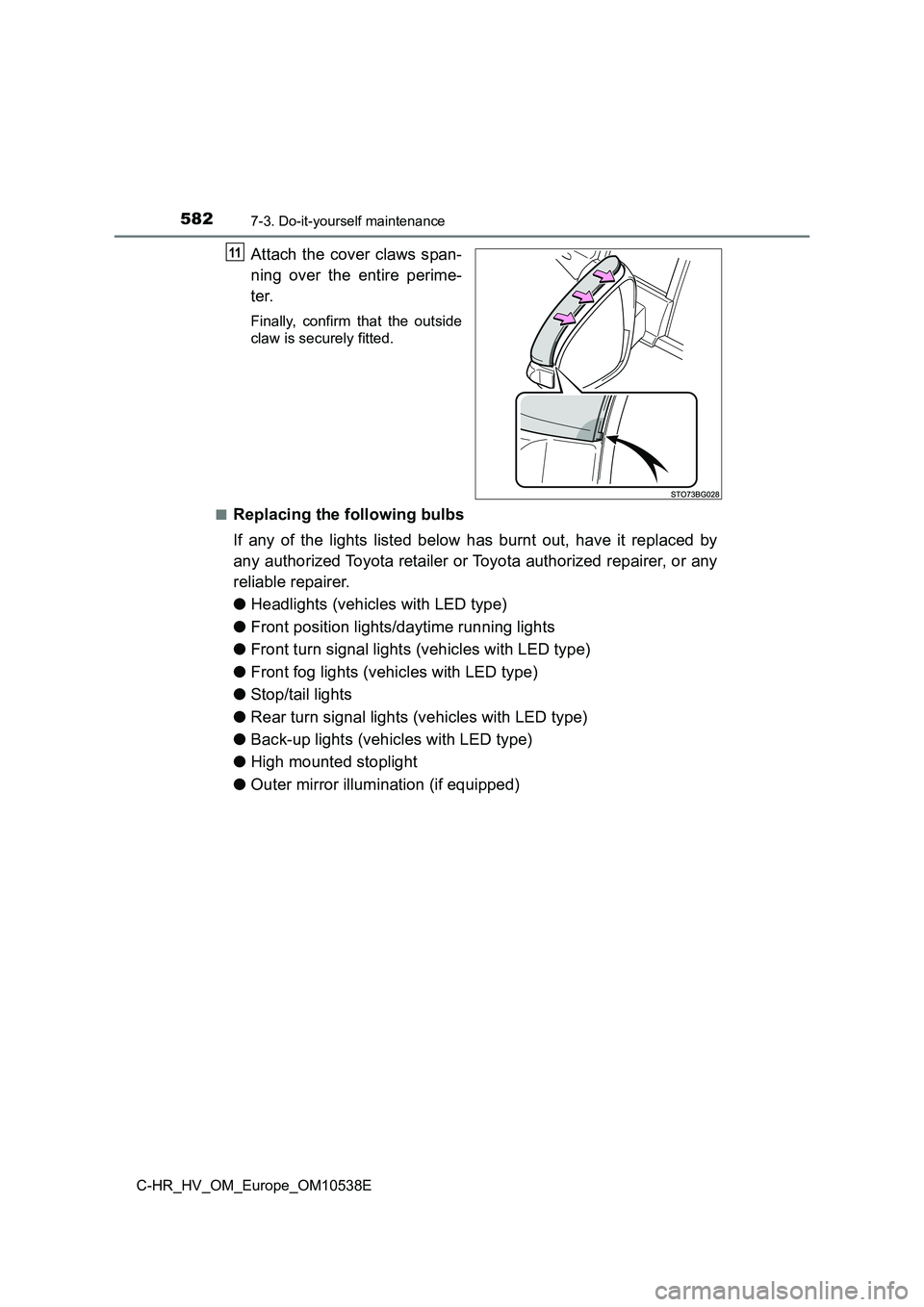

5827-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10538E
Attach the cover claws span-
ning over the entire perime-
ter.
Finally, confirm that the outside
claw is securely fitted.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Headlights (vehicles with LED type)
● Front position lights/daytime running lights
● Front turn signal lights (vehicles with LED type)
● Front fog lights (vehicles with LED type)
● Stop/tail lights
● Rear turn signal lights (vehicles with LED type)
● Back-up lights (vehicles with LED type)
● High mounted stoplight
● Outer mirror illumination (if equipped)
11

5837-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10538E
7
Maintenance and care
■LED light bulbs
The following lights consist of a number of LEDs. If any of the LEDs burn out,
take your vehicle to any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
● Headlights (vehicles with LED type)
● Front position lights/daytime running lights
● Front turn signal lights (vehicles with LED type)
● Front fog lights (vehicles with LED type)
● High mounted stoplight
● Stop/tail lights
● Rear turn signal lights (vehicles with LED type)
● Back-up lights (vehicles with LED type)
● Outer mirror illumination (if equipped)
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer for more information in the following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
 P. 567

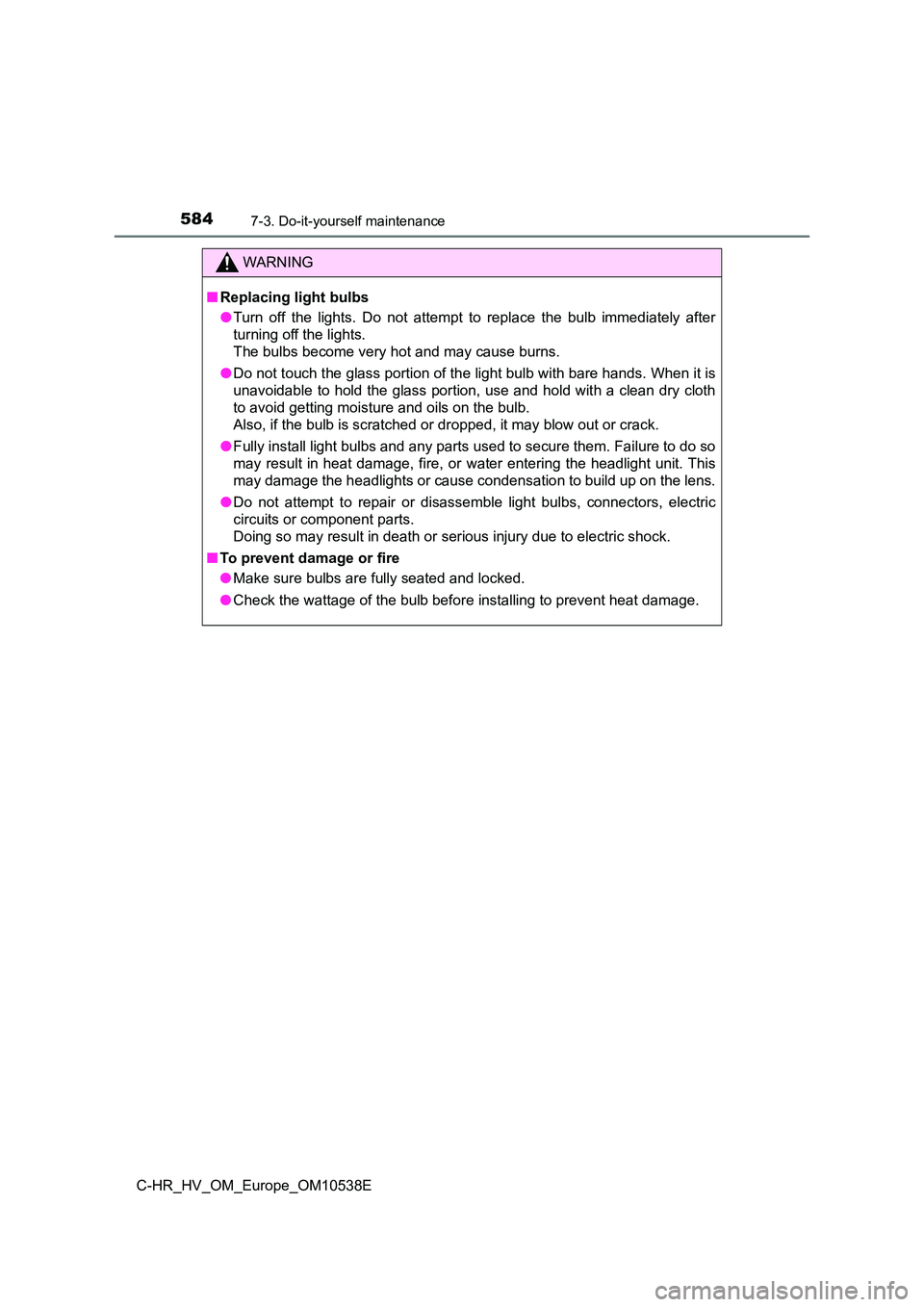

5847-3. Do-it-yourself maintenance
C-HR_HV_OM_Europe_OM10538E
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

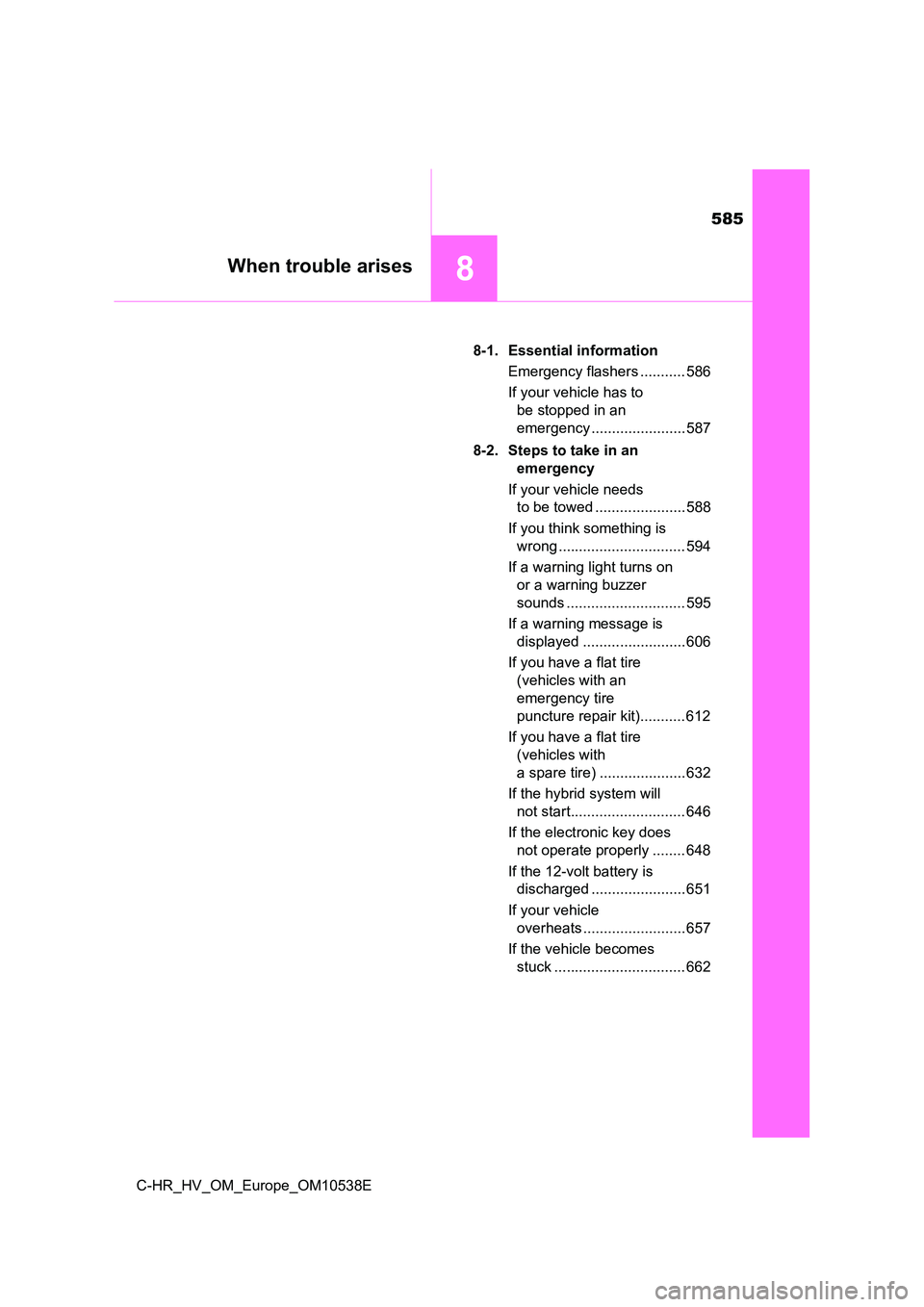

585
8When trouble arises
C-HR_HV_OM_Europe_OM10538E
8-1. Essential information
Emergency flashers ........... 586
If your vehicle has to
be stopped in an
emergency ....................... 587
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ...................... 588
If you think something is
wrong ............................... 594
If a warning light turns on
or a warning buzzer
sounds ............................. 595
If a warning message is
displayed ......................... 606
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit)........... 612
If you have a flat tire
(vehicles with
a spare tire) ..................... 632
If the hybrid system will
not start............................ 646
If the electronic key does
not operate properly ........ 648
If the 12-volt battery is
discharged ....................... 651
If your vehicle
overheats ......................... 657
If the vehicle becomes
stuck ................................ 662

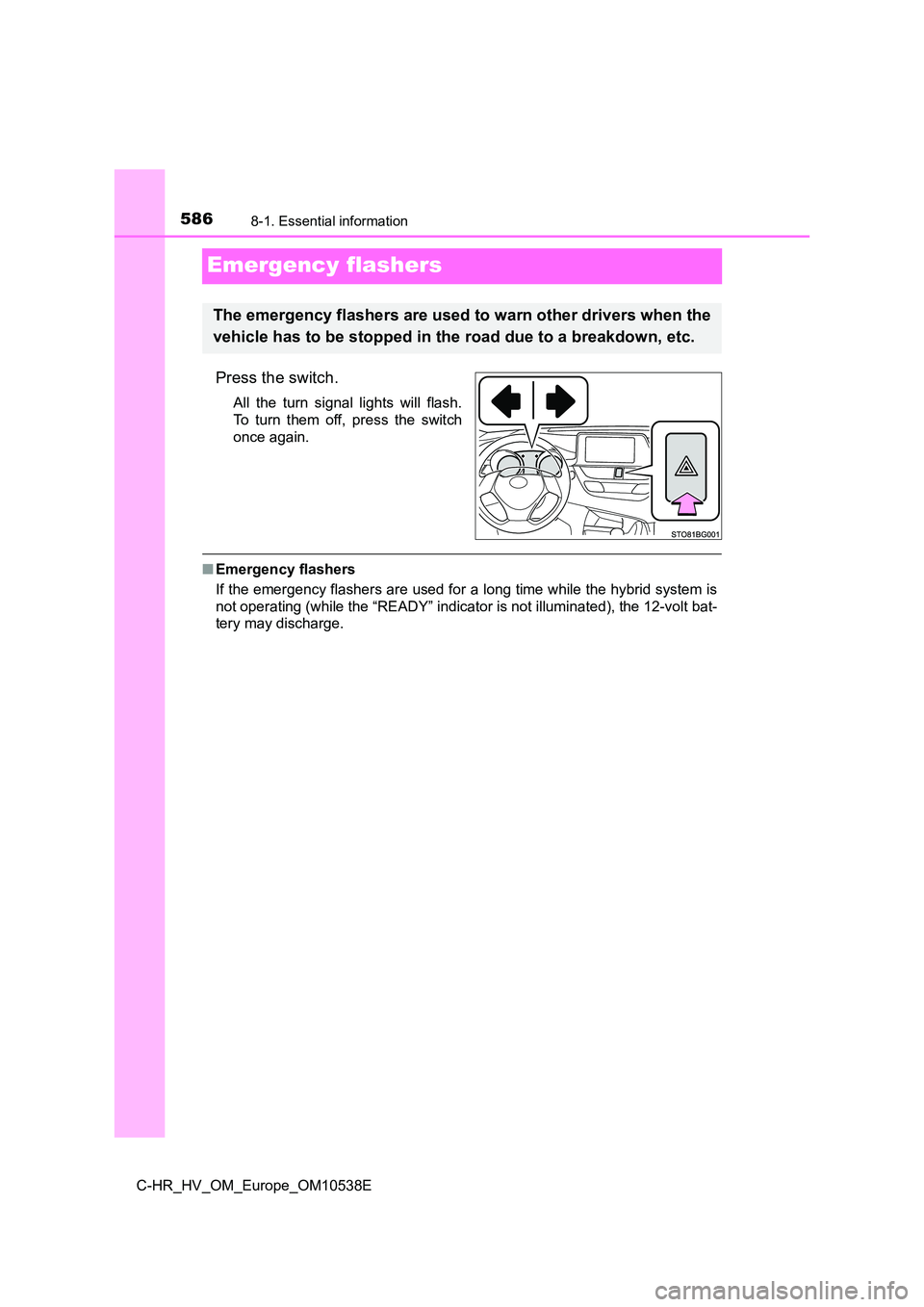

5868-1. Essential information
C-HR_HV_OM_Europe_OM10538E
Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicato r is not illuminated), the 12-volt bat-
tery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.

5878-1. Essential information
C-HR_HV_OM_Europe_OM10538E
8
When trouble arises

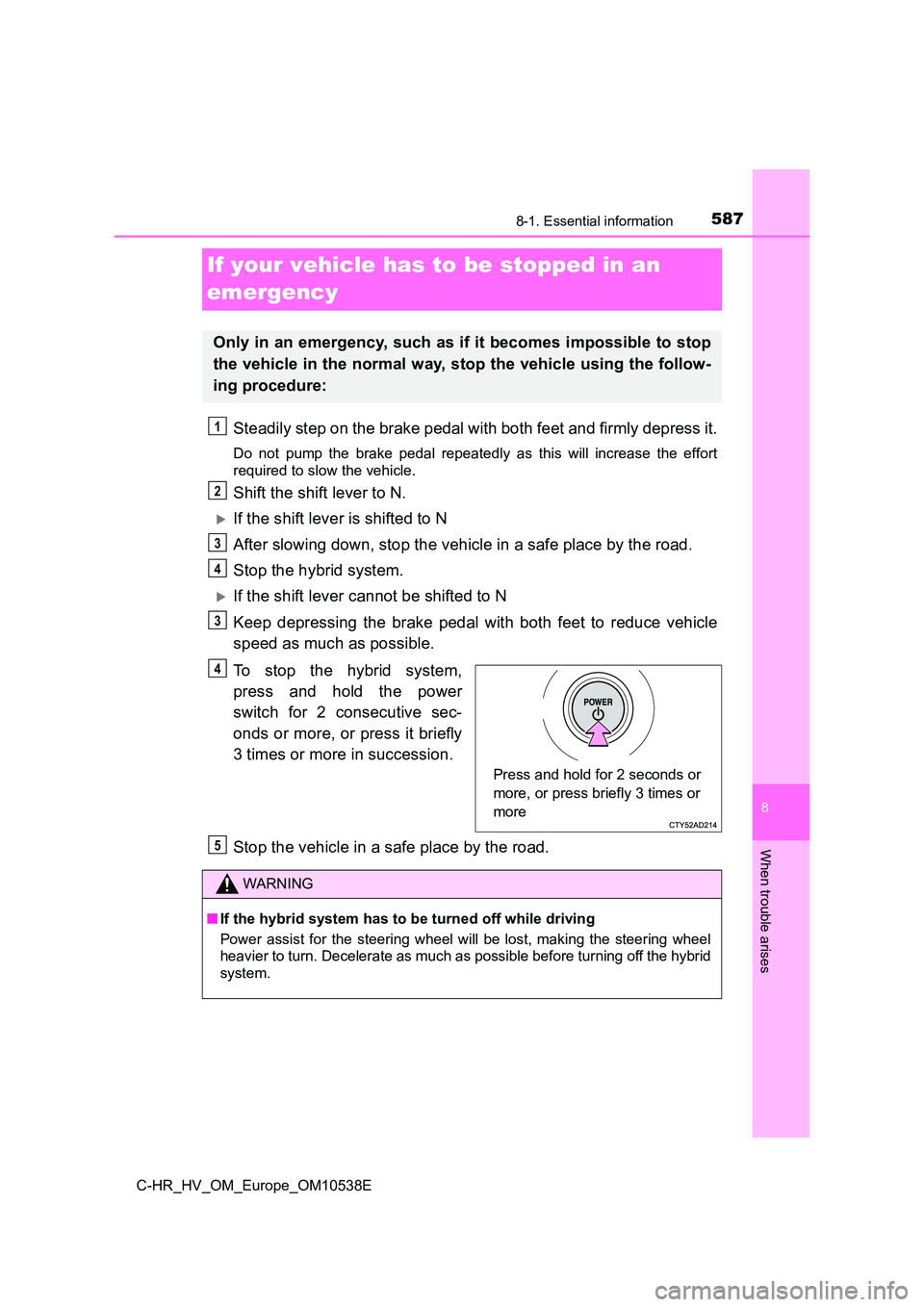

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
Press and hold for 2 seconds or
more, or press briefly 3 times or
more
4
WARNING
■ If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the hybrid
system.
5

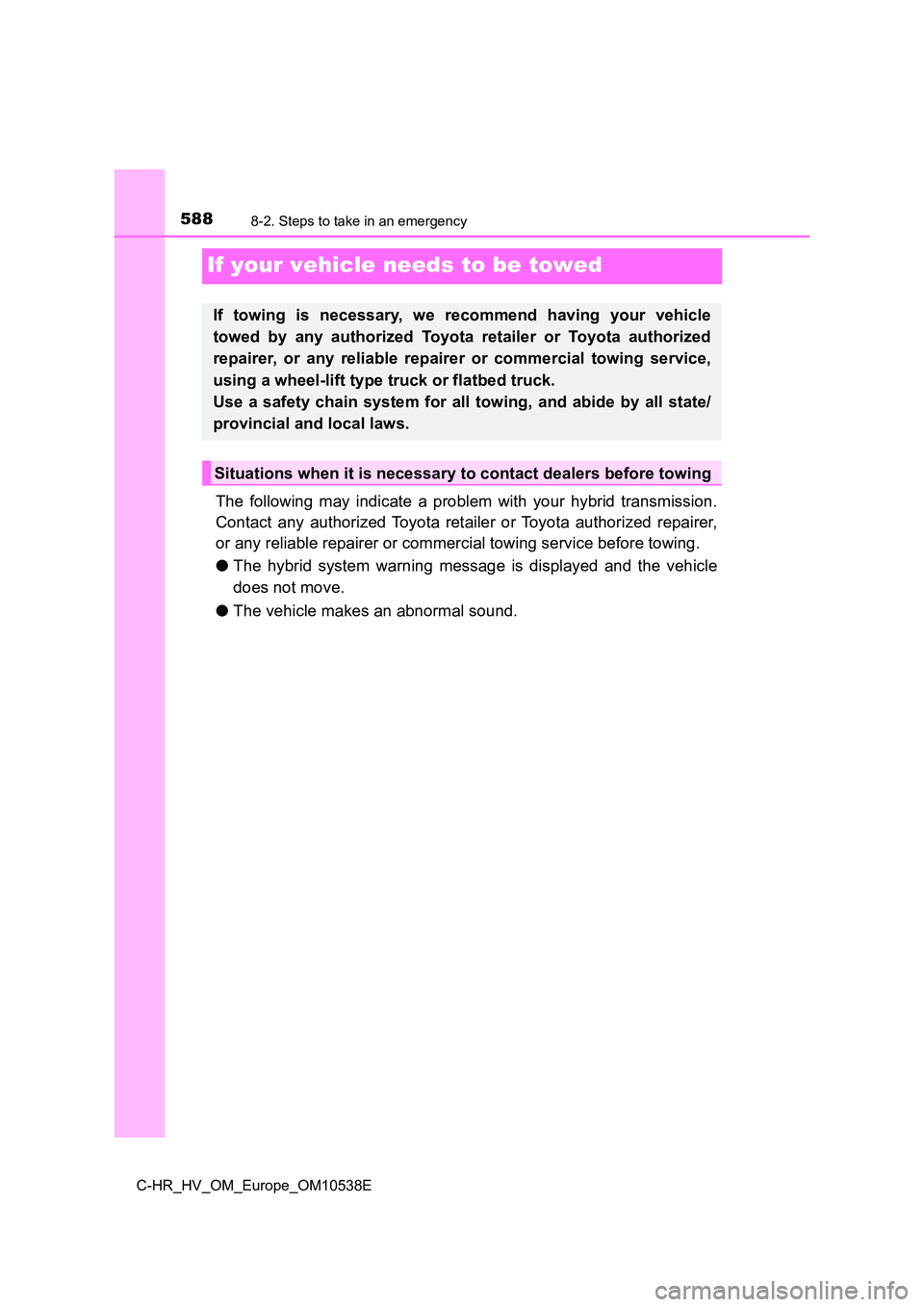

5888-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
If your vehicle needs to be towed
The following may indicate a problem with your hybrid transmission.
Contact any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer or commercial towing service before towing.
● The hybrid system warning message is displayed and the vehicle
does not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer or commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is necessary to contact dealers before towing

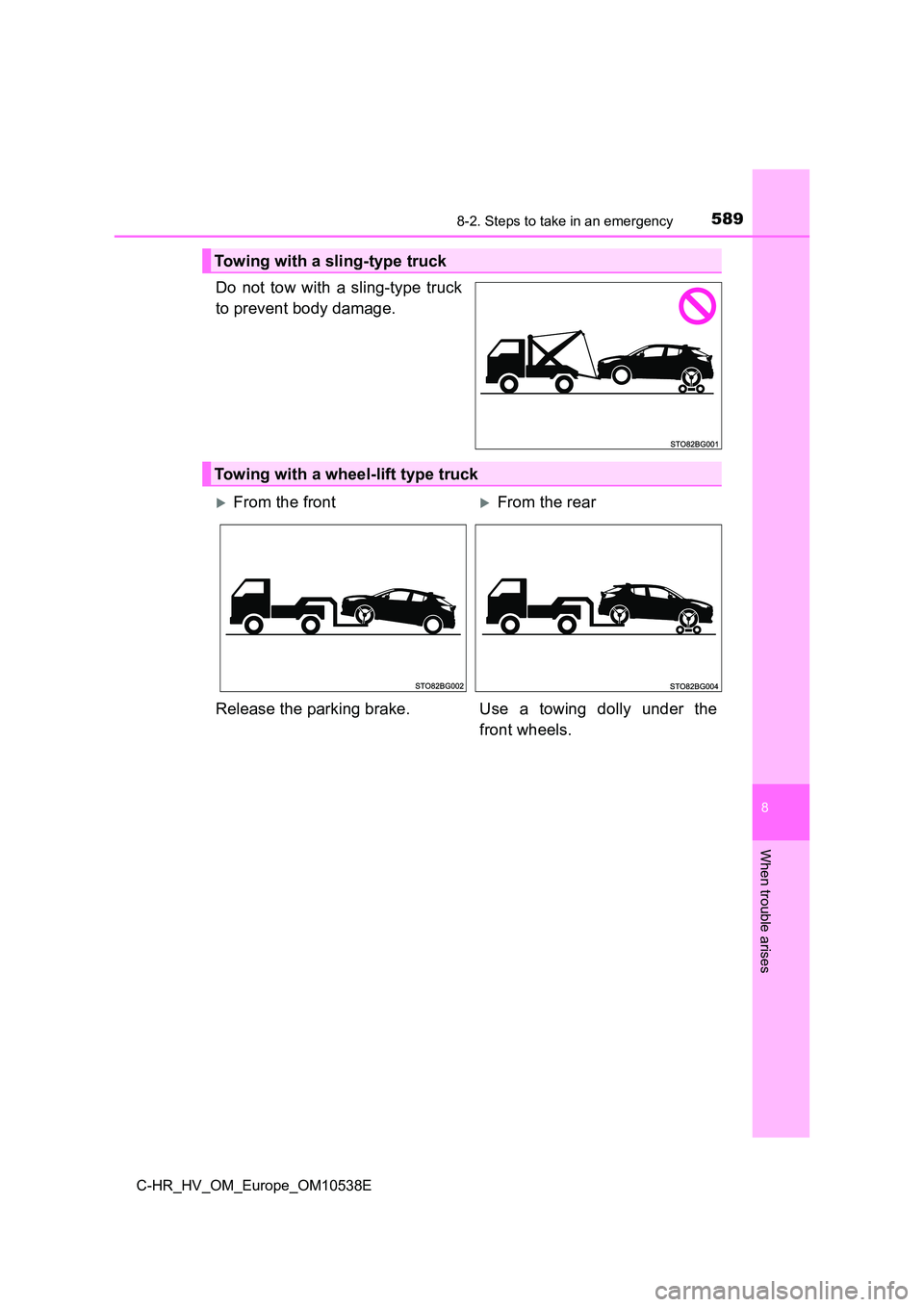

5898-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
8
When trouble arises
Do not tow with a sling-type truck
to prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
From the frontFrom the rear
Release the parking brake. Use a towing dolly under the
front wheels.

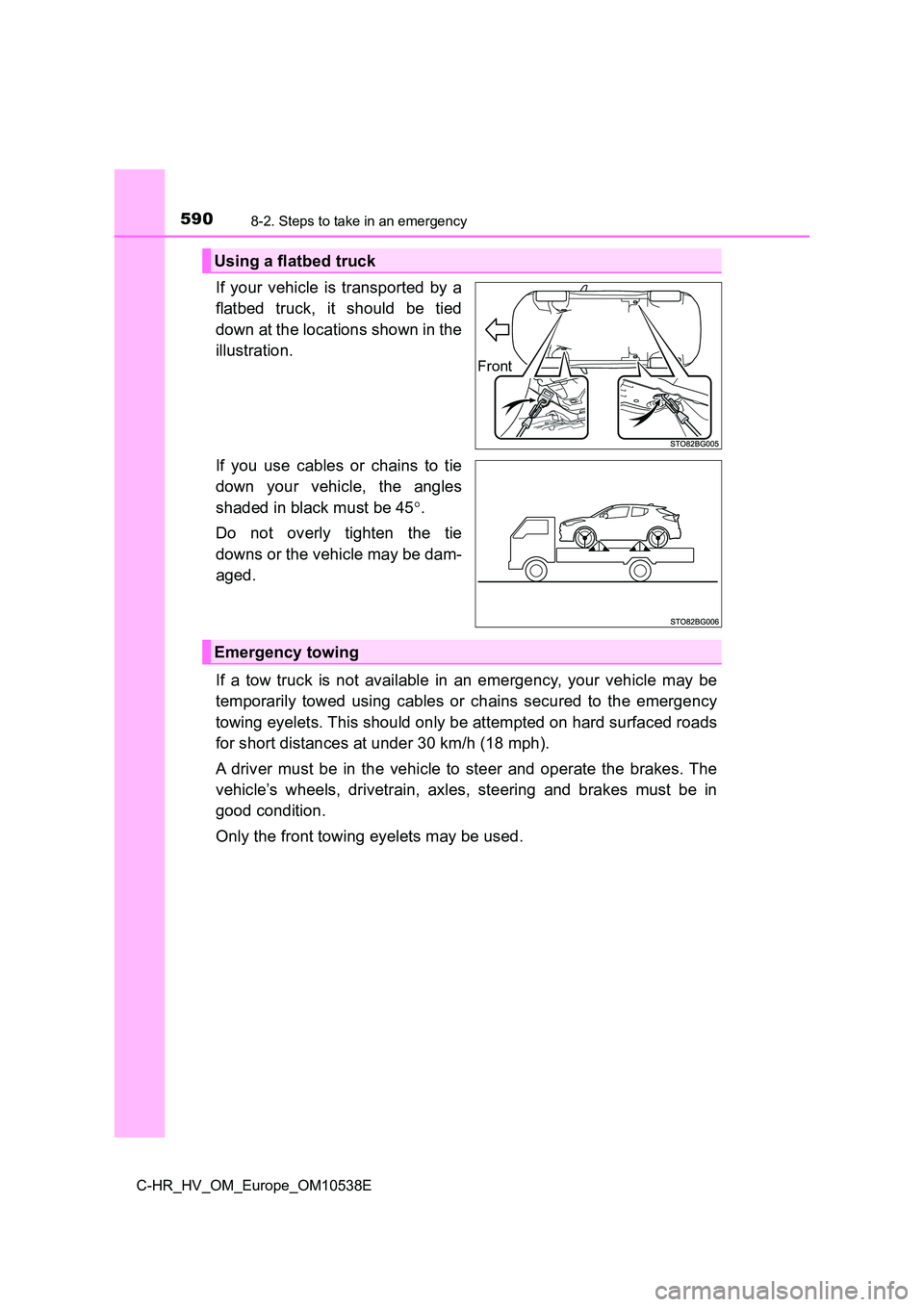

5908-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
If your vehicle is transported by a
flatbed truck, it should be tied
down at the locations shown in the
illustration.
If you use cables or chains to tie
down your vehicle, the angles
shaded in black must be 45 .
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing eyelets. This should only be attempted on hard surfaced roads
for short distances at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drivetrain, axles, steering and brakes must be in
good condition.
Only the front towing eyelets may be used.
Using a flatbed truck
Front
Emergency towing
