TOYOTA C_HR HYBRID 2017 Owners Manual

6018-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
8
When trouble arises

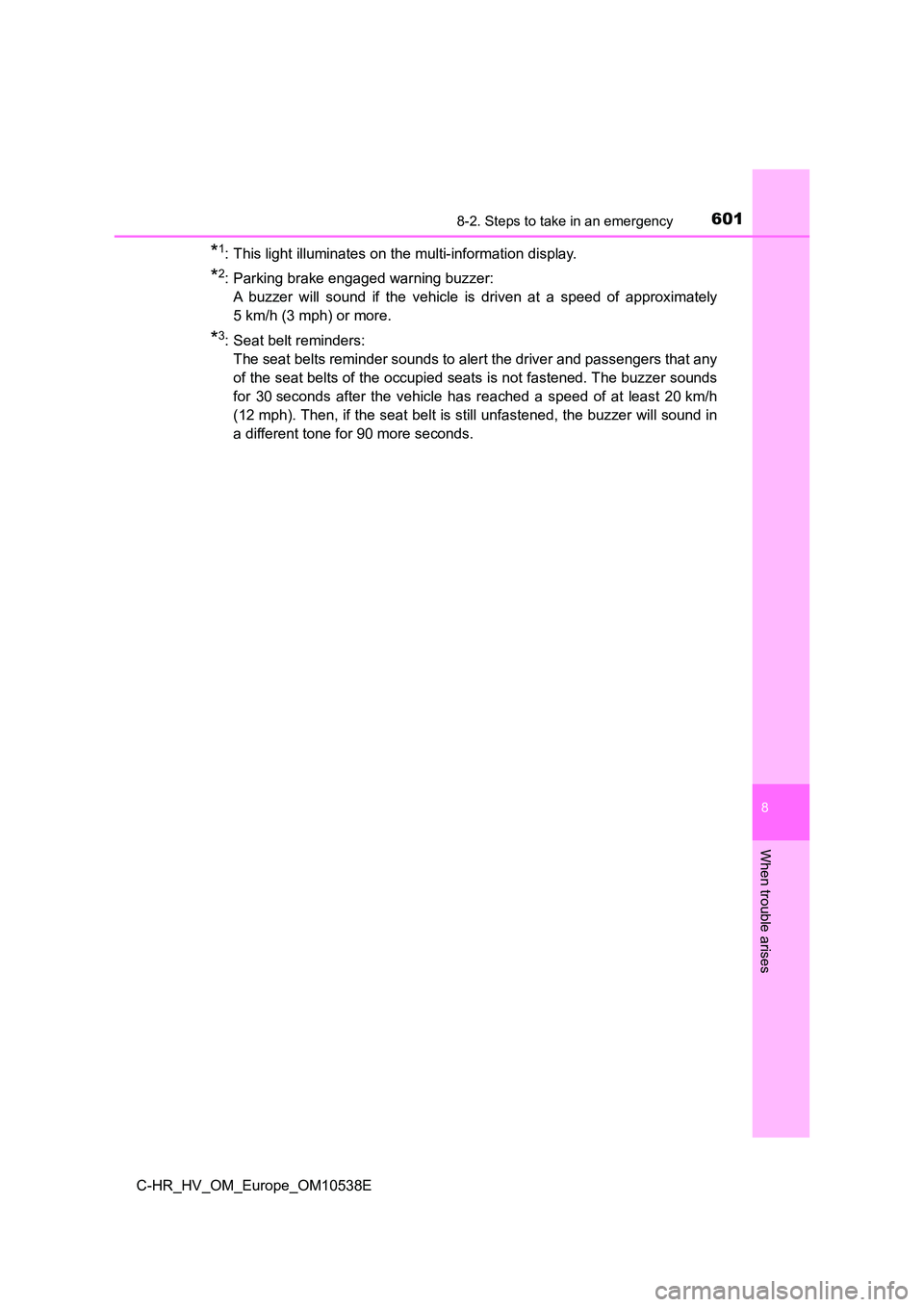

*1: This light illuminates on the multi-information display.
*2: Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately
5 km/h (3 mph) or more.
*3: Seat belt reminders:
The seat belts reminder sounds to alert the driver and passengers that any
of the seat belts of the occupied seats is not fastened. The buzzer sounds
for 30 seconds after the vehicle has reached a speed of at least 20 km/h
(12 mph). Then, if the seat belt is still unfastened, the buzzer will sound in
a different tone for 90 more seconds.

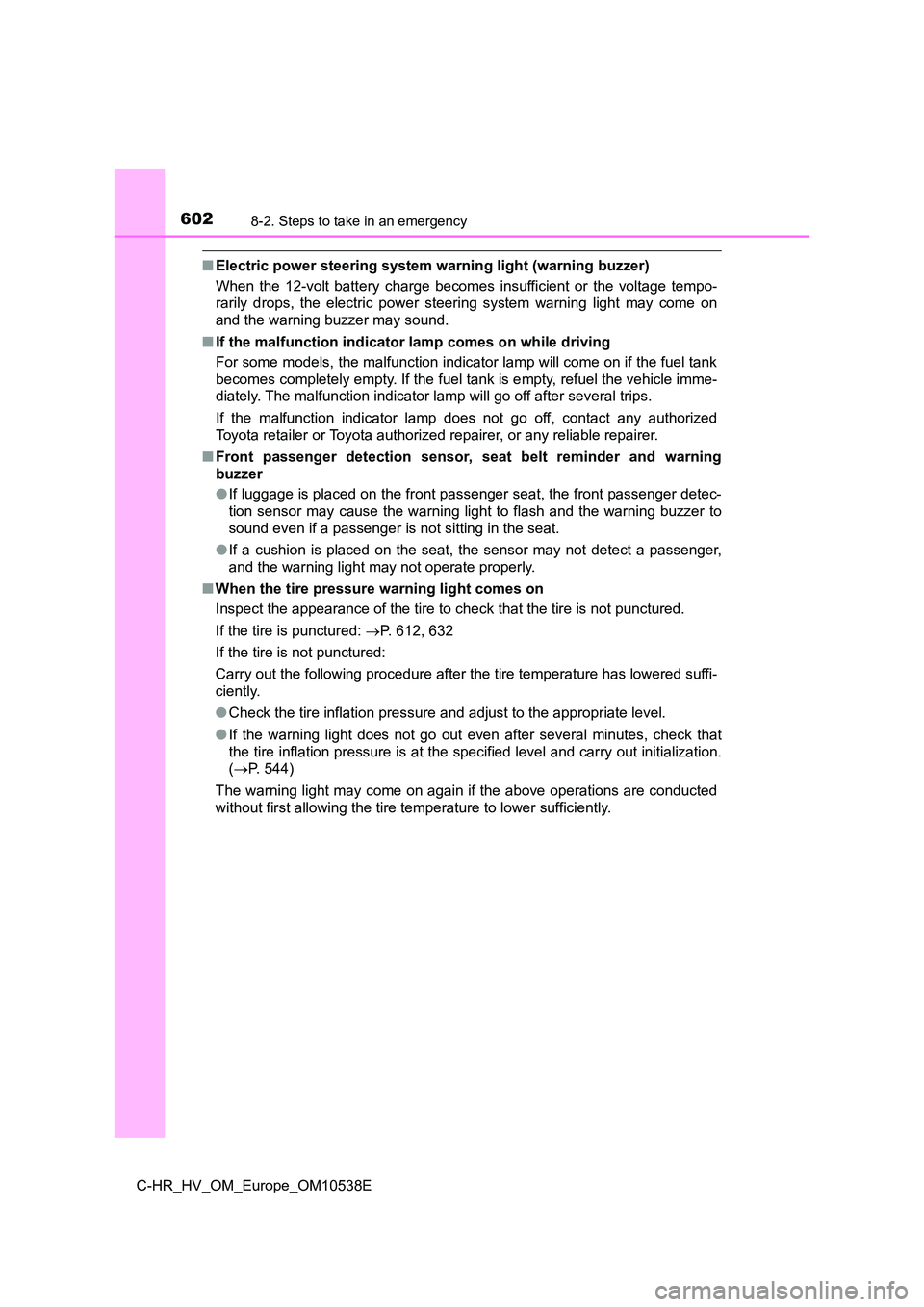

6028-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.
■ If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■ Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ When the tire pressure warning light comes on
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: P. 612, 632
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust to the appropriate level.
● If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
( P. 544)
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.

6038-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
8
When trouble arises

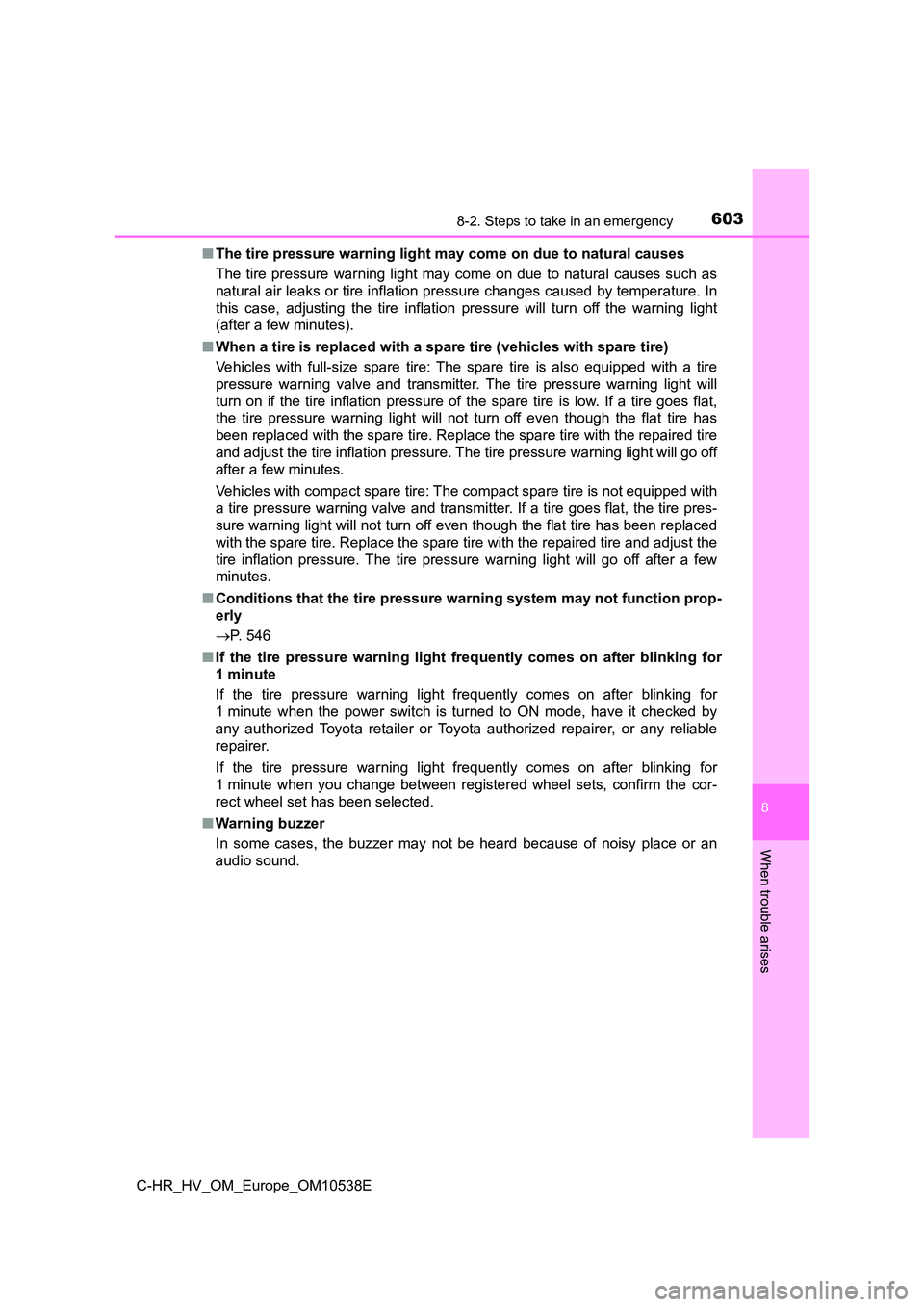

■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as
natural air leaks or tire inflation pressure changes caused by temperature. In
this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire (vehicles with spare tire)
Vehicles with full-size spare tire: T he spare tire is also equipped with a tire
pressure warning valve and transmitter. The tire pressure warning light will
turn on if the tire inflation pressure of the spare tire is low. If a tire goes flat,
the tire pressure warning light will not turn off even though the flat tire has
been replaced with the spare tire. Replace the spare tire with the repaired tire
and adjust the tire inflation pressure. The tire pressure warning light will go off
after a few minutes.
Vehicles with compact spare tire: The compact spare tire is not equipped with
a tire pressure warning valve and transmitter. If a tire goes flat, the tire pres-
sure warning light will not turn off even though the flat tire has been replaced
with the spare tire. Replace the spare ti re with the repaired tire and adjust the
tire inflation pressure. The tire pressure warning light will go off after a few
minutes.
■ Conditions that the tire pressure warning system may not function prop-
erly
 P. 546
■ If the tire pressure warning light frequently comes on after blinking for
1minute
If the tire pressure warning light frequently comes on after blinking for
1 minute when the power switch is turned to ON mode, have it checked by
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
If the tire pressure warning light frequently comes on after blinking for
1 minute when you change between registered wheel sets, confirm the cor-
rect wheel set has been selected.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

6048-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota retailer or Toyota authorized r epairer, or any reliable repairer. The
vehicle will become extremely unstable during braking, and the ABS system
may fail, which could cause an accident resulting in death or serious injury.
■ When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steering is
restricted. When the light comes on red, the assist to the power steering is
lost and handling operations of the steering wheel become extremely
heavy. When steering wheel operations are heavier than usual, grip the
steering wheel firmly and operate it using more force than usual.
■ If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that you have a flat
tire. Check the tires. If a tire is flat, change it with the spare tire and have
the flat tire repaired by the nearest any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
● Vehicles with emergency tire puncture repair kit: If the tire pressure warn-
ing light comes on even after tire inflat ion pressure adjustment, it is proba-
ble that you have a flat tire. Check the tire s. If a tire is flat, repair the flat tire
by using emergency tire puncture repair kit. ( P. 612)
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.

6058-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
8
When trouble arises

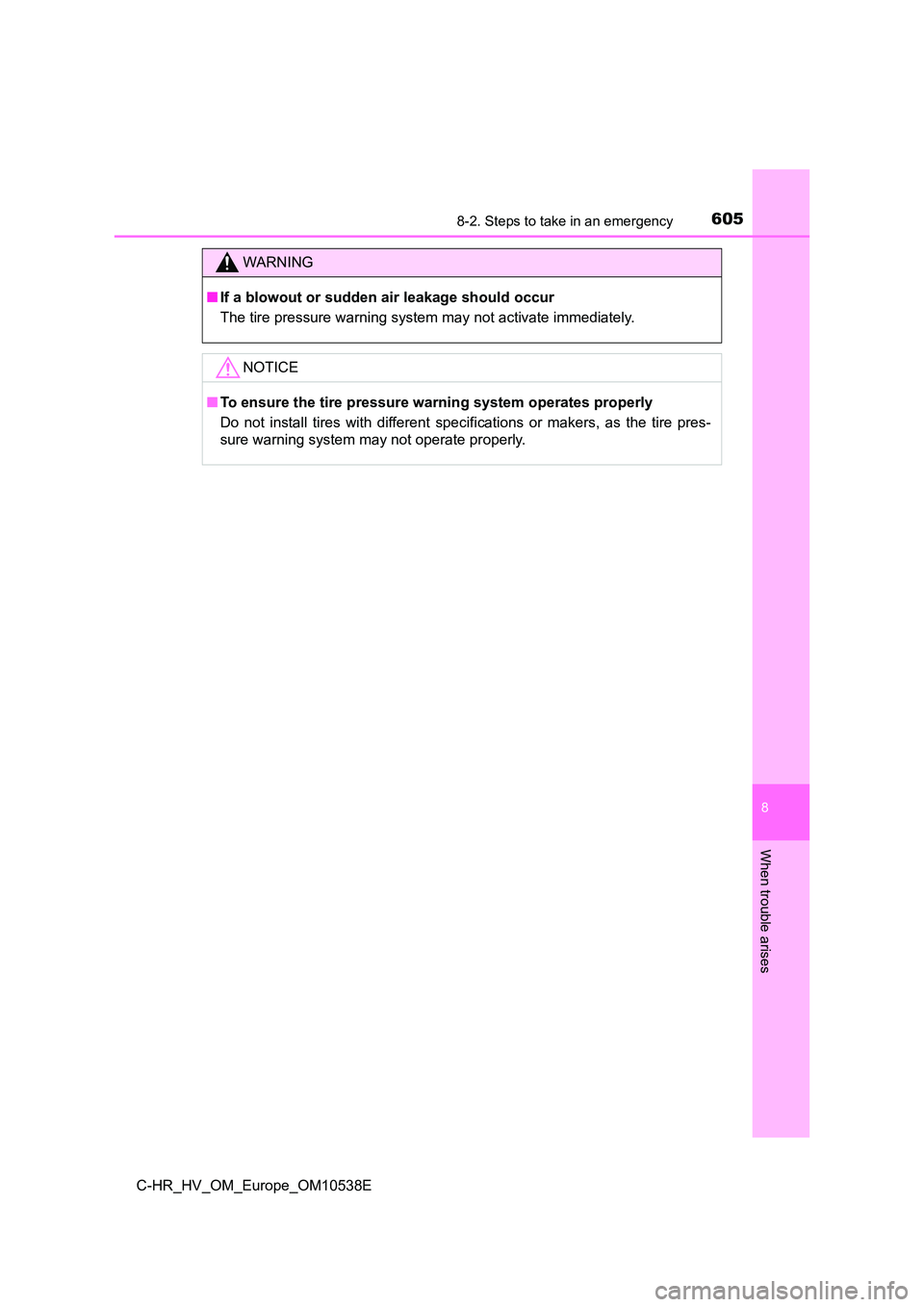

WARNING
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■ To ensure the tire pressure warning system operates properly
Do not install tires with different specif ications or makers, as the tire pres-
sure warning system may not operate properly.

6068-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E

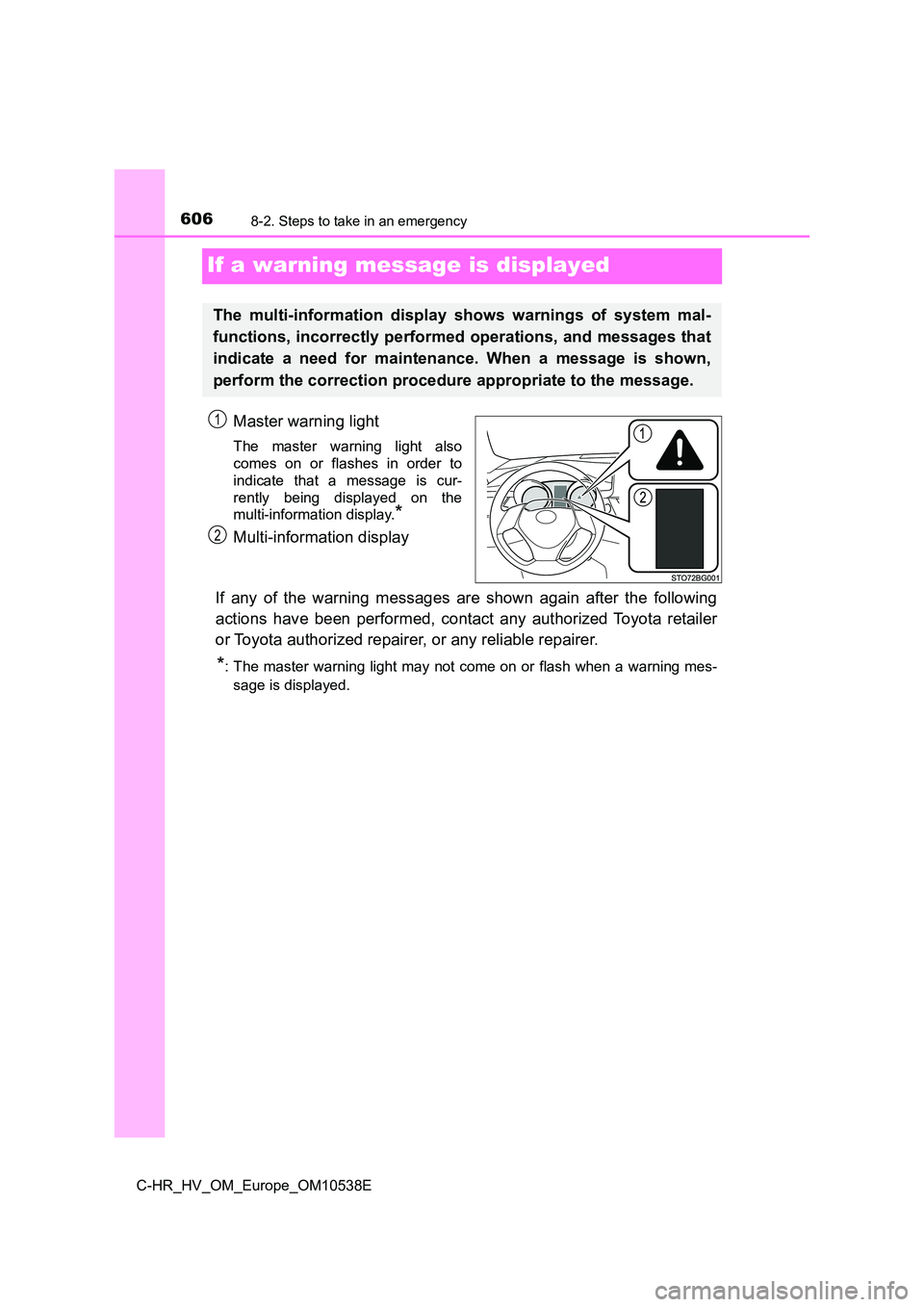

If a warning message is displayed
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.*
Multi-information display
If any of the warning messages are shown again after the following
actions have been performed, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
*: The master warning light may not come on or flash when a warning mes-
sage is displayed.
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
1
2

6078-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
8
When trouble arises

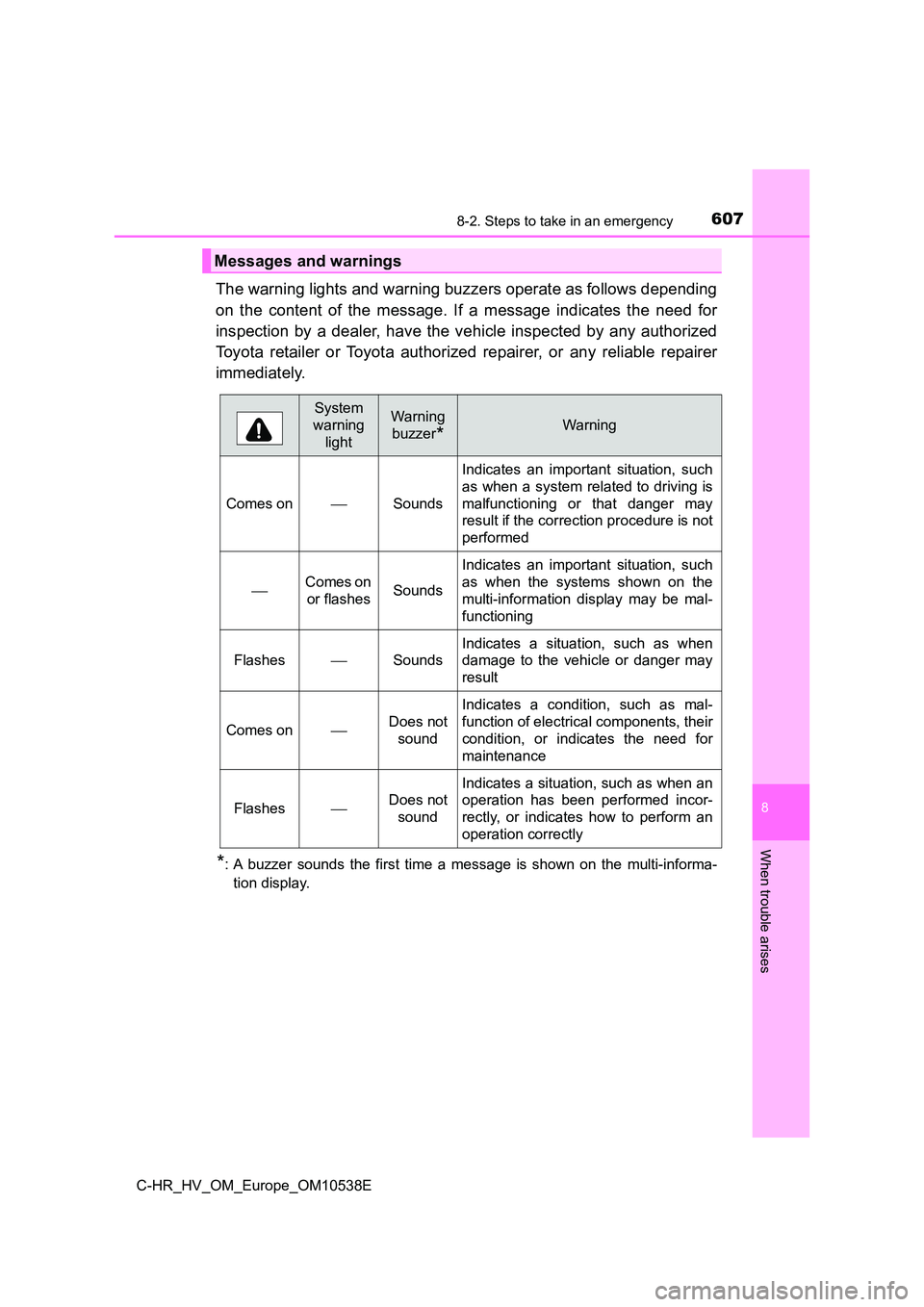

The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display.
Messages and warnings
System
warning
light
Warning
buzzer*Warning
Comes onSounds
Indicates an important situation, such
as when a system related to driving is
malfunctioning or that danger may
result if the correction procedure is not
performed
Comes on
or flashesSounds
Indicates an important situation, such
as when the systems shown on the
multi-information display may be mal-
functioning
FlashesSounds
Indicates a situation, such as when
damage to the vehicle or danger may
result
Comes onDoes not
sound
Indicates a condition, such as mal-
function of electrical components, their
condition, or indicates the need for
maintenance
FlashesDoes not
sound
Indicates a situation, such as when an
operation has been performed incor-
rectly, or indicates how to perform an
operation correctly

6088-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E

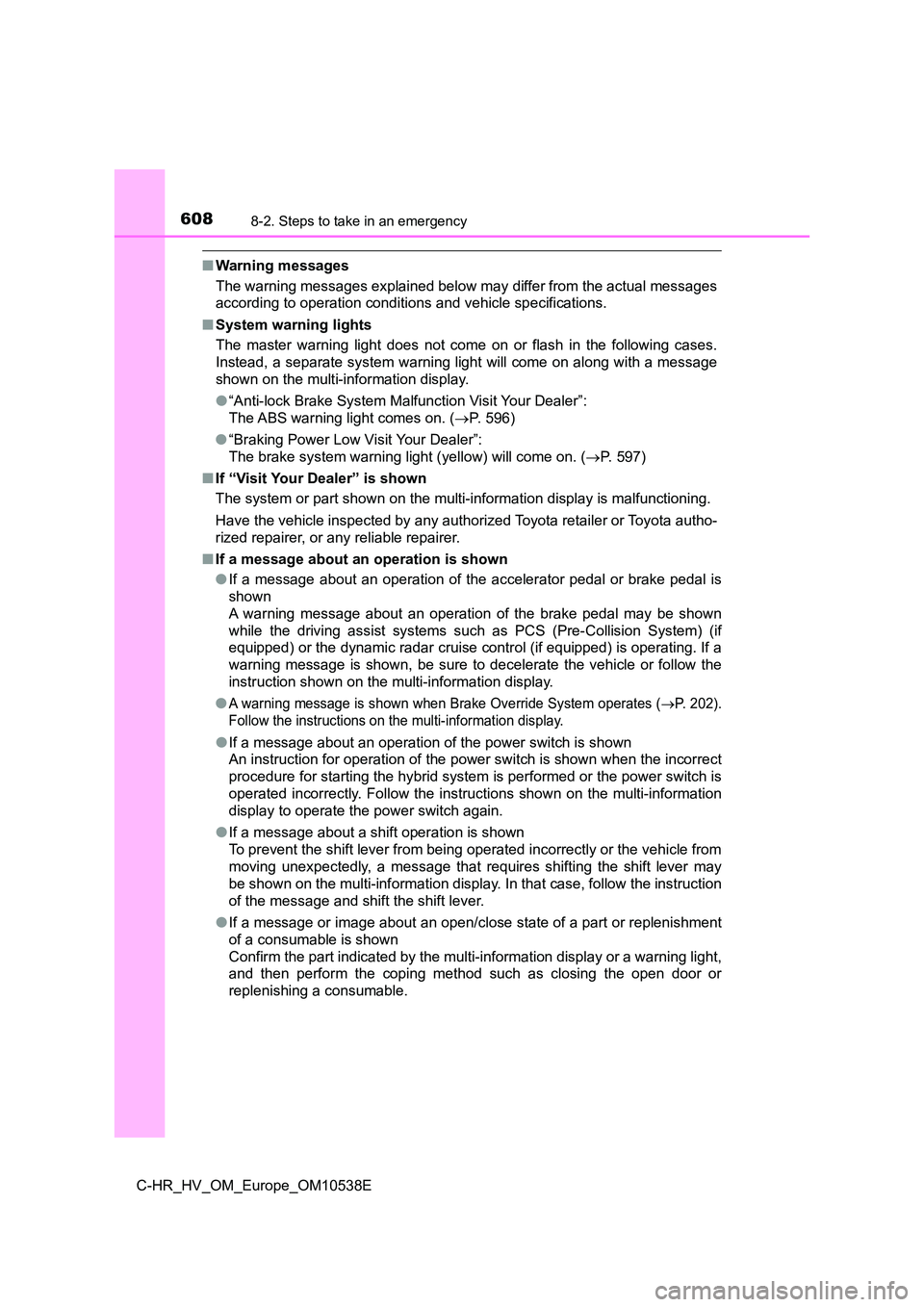

■Warning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
■ System warning lights
The master warning light does not come on or flash in the following cases.
Instead, a separate system warning light will come on along with a message
shown on the multi-information display.
● “Anti-lock Brake System Malfunction Visit Your Dealer”:
The ABS warning light comes on. ( P. 596)
● “Braking Power Low Visit Your Dealer”:
The brake system warning light (yellow) will come on. ( P. 597)
■ If “Visit Your Dealer” is shown
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
■ If a message about an operation is shown
● If a message about an operation of the accelerator pedal or brake pedal is
shown
A warning message about an operation of the brake pedal may be shown
while the driving assist systems such as PCS (Pre-Collision System) (if
equipped) or the dynamic radar cruise control (if equipped) is operating. If a
warning message is shown, be sure to decelerate the vehicle or follow the
instruction shown on the multi-information display.
●A warning message is shown when Brake Override System operates (P. 202).
Follow the instructions on the multi-information display.
● If a message about an operation of the power switch is shown
An instruction for operation of the power switch is shown when the incorrect
procedure for starting the hybrid system is performed or the power switch is
operated incorrectly. Follow the instructions shown on the multi-information
display to operate the power switch again.
● If a message about a shift operation is shown
To prevent the shift lever from being operated incorrectly or the vehicle from
moving unexpectedly, a message that requires shifting the shift lever may
be shown on the multi-information display. In that case, follow the instruction
of the message and shift the shift lever.
● If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning light,
and then perform the coping method such as closing the open door or
replenishing a consumable.

6098-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
8
When trouble arises

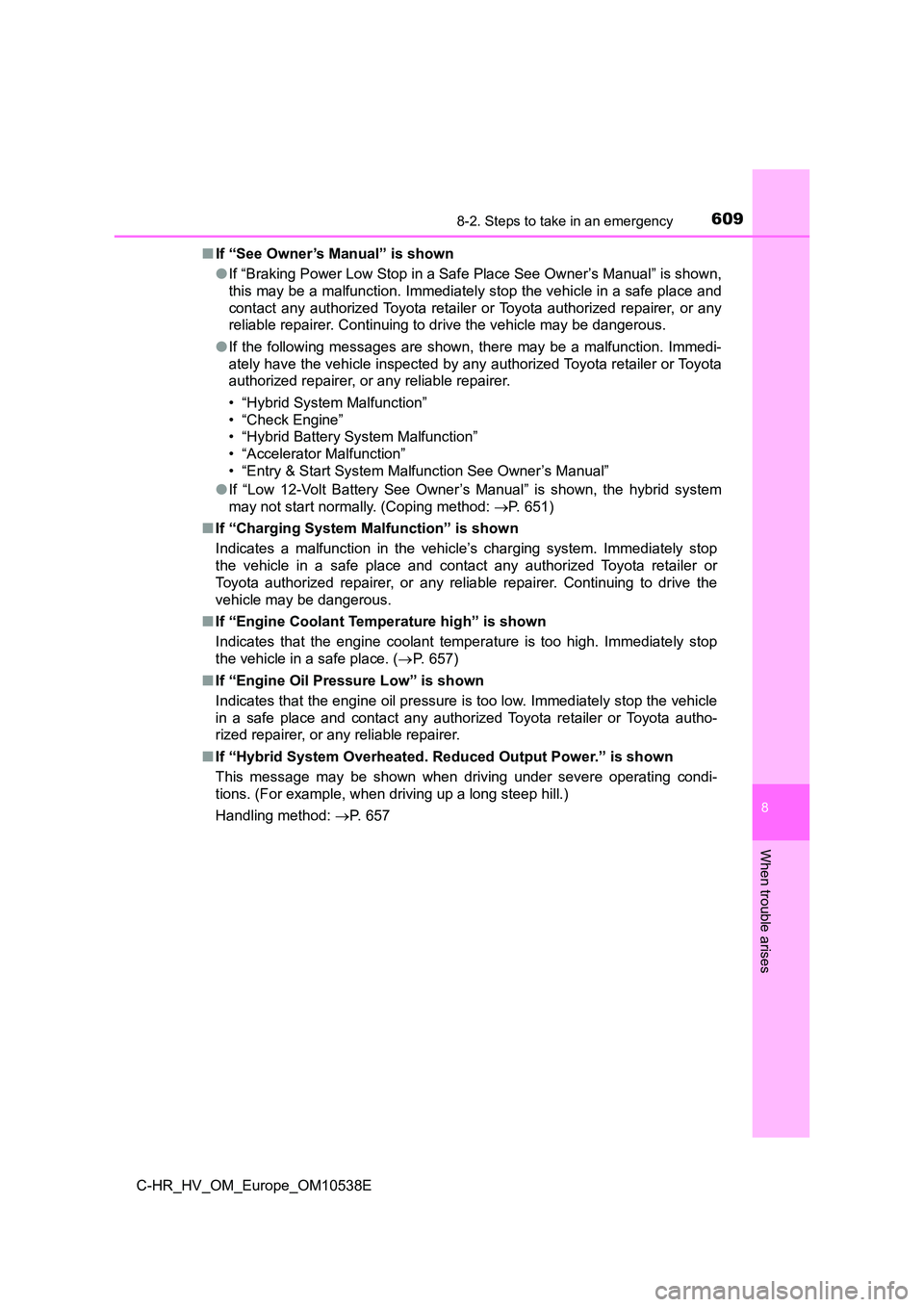

■If “See Owner’s Manual” is shown
● If “Braking Power Low Stop in a Safe Place See Owner’s Manual” is shown,
this may be a malfunction. Immediately stop the vehicle in a safe place and
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer. Continuing to drive the vehicle may be dangerous.
● If the following messages are shown, there may be a malfunction. Immedi-
ately have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
• “Hybrid System Malfunction”
• “Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator Malfunction”
• “Entry & Start System Malfunction See Owner’s Manual”
● If “Low 12-Volt Battery See Owner’s Manual” is shown, the hybrid system
may not start normally. (Coping method: P. 651)
■ If “Charging System Malfunction” is shown
Indicates a malfunction in the vehicle’s charging system. Immediately stop
the vehicle in a safe place and contact any authorized Toyota retailer or
Toyota authorized repairer, or any reli able repairer. Continuing to drive the
vehicle may be dangerous.
■ If “Engine Coolant Temperature high” is shown
Indicates that the engine coolant temperature is too high. Immediately stop
the vehicle in a safe place. ( P. 657)
■ If “Engine Oil Pressure Low” is shown
Indicates that the engine oil pressure is too low. Immediately stop the vehicle
in a safe place and contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
■ If “Hybrid System Overheated. Reduced Output Power.” is shown
This message may be shown when driving under severe operating condi-
tions. (For example, when driving up a long steep hill.)
Handling method: P. 657

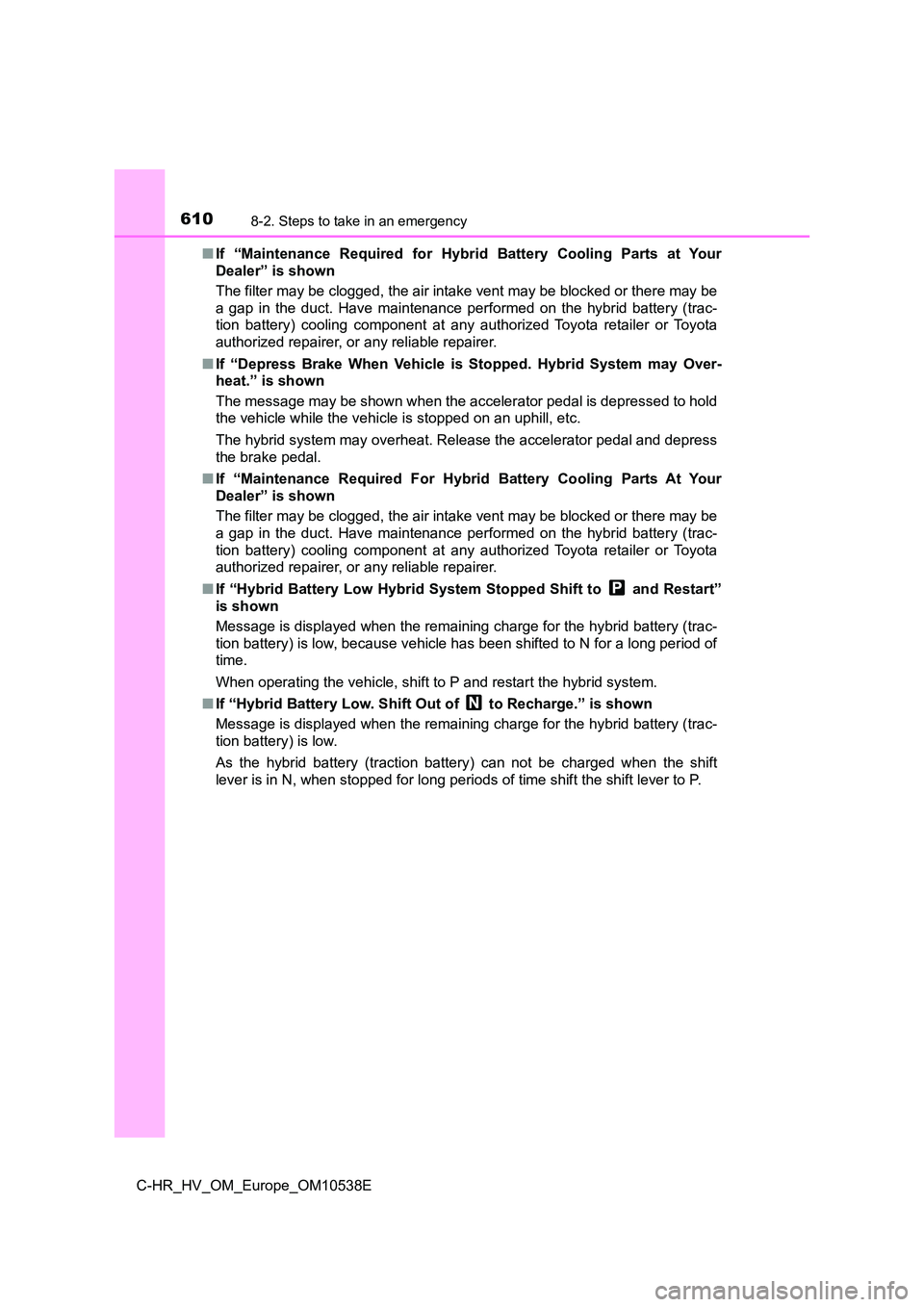

6108-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
■ If “Maintenance Required for Hybrid Battery Cooling Parts at Your
Dealer” is shown
The filter may be clogged, the air intake vent may be blocked or there may be
a gap in the duct. Have maintenance performed on the hybrid battery (trac-
tion battery) cooling component at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
■ If “Depress Brake When Vehicle is Stopped. Hybrid System may Over-
heat.” is shown
The message may be shown when the accelerator pedal is depressed to hold
the vehicle while the vehicle is stopped on an uphill, etc.
The hybrid system may overheat. Release the accelerator pedal and depress
the brake pedal.
■ If “Maintenance Required For Hybrid Battery Cooling Parts At Your
Dealer” is shown
The filter may be clogged, the air intake vent may be blocked or there may be
a gap in the duct. Have maintenance performed on the hybrid battery (trac-
tion battery) cooling component at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
■ If “Hybrid Battery Low Hybrid System Stopped Shift to and Restart”
is shown
Message is displayed when the remaining charge for the hybrid battery (trac-
tion battery) is low, because vehicle has been shifted to N for a long period of
time.
When operating the vehicle, shift to P and restart the hybrid system.
■ If “Hybrid Battery Low. Shift Out of to Recharge.” is shown
Message is displayed when the remaining charge for the hybrid battery (trac-
tion battery) is low.
As the hybrid battery (traction battery) can not be charged when the shift
lever is in N, when stopped for long periods of time shift the shift lever to P.
