TOYOTA C_HR HYBRID 2017 Owners Manual

6719-1. Specifications
C-HR_HV_OM_Europe_OM10538E
9
Vehicle specifications

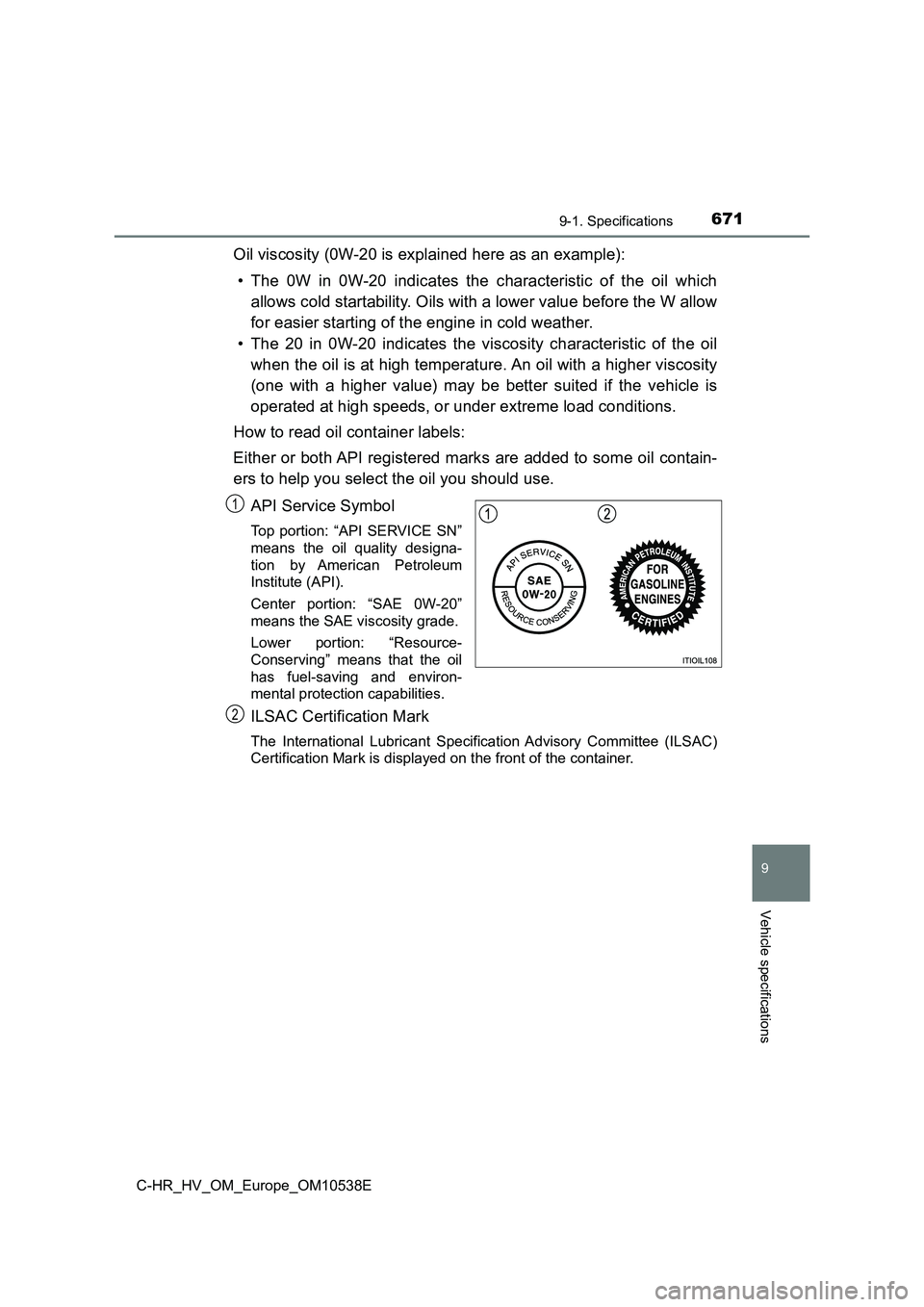

Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

6729-1. Specifications
C-HR_HV_OM_Europe_OM10538E
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or Toy-
ota authorized repairer, or any reliable repairer.
Cooling system
Capacity*
Gasoline
engine5.4 L (5.7 qt., 4.7 Imp.qt.)
Power
control unit1.4 L (1.5 qt., 1.3 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-C9
Gap0.9 mm (0.035 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

6739-1. Specifications
C-HR_HV_OM_Europe_OM10538E
9
Vehicle specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or Toy-
ota authorized repairer, or any reliable repairer.

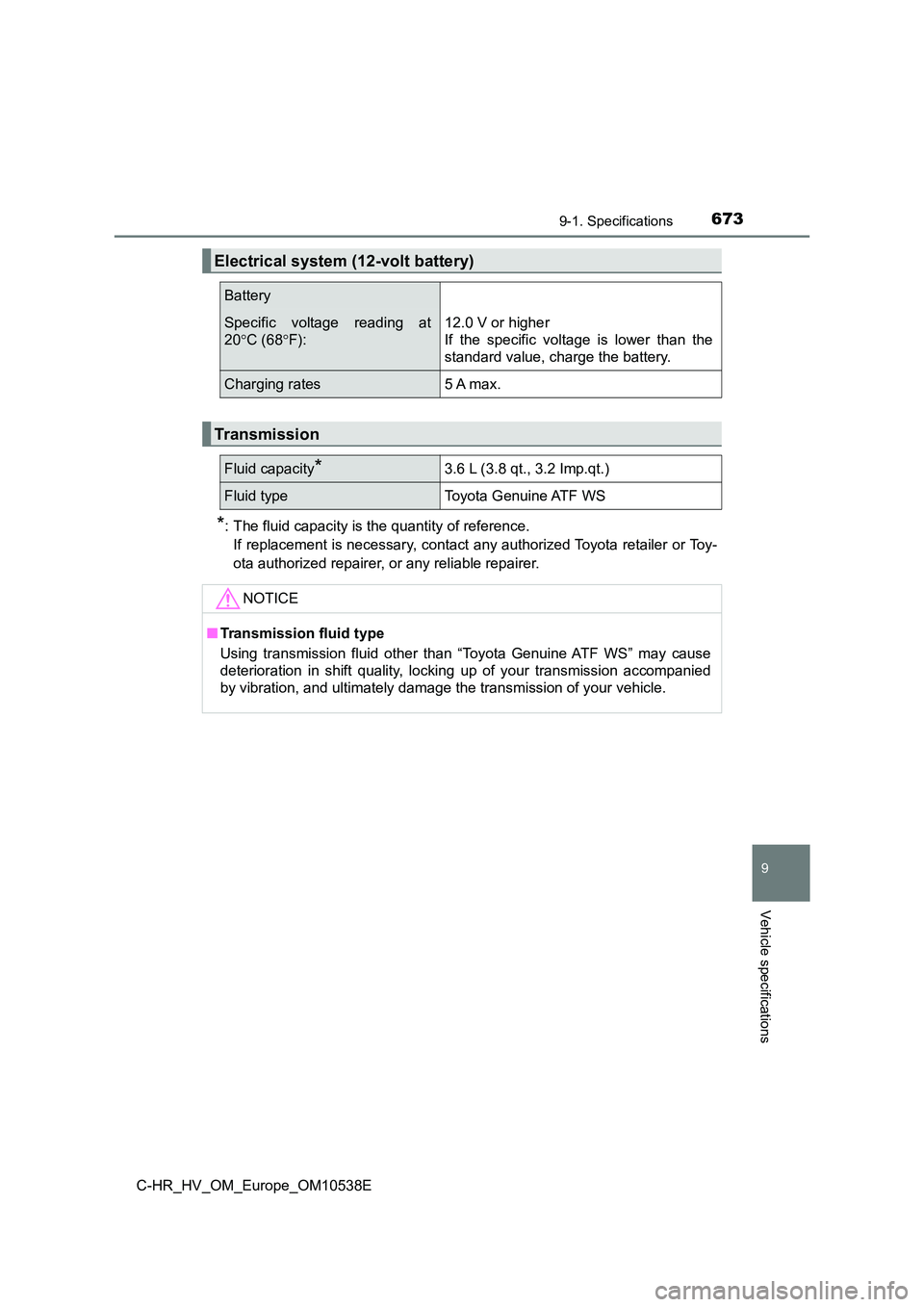

Electrical system (12-volt battery)
Battery
Specific voltage reading at
20 C (68F):
12.0 V or higher
If the specific voltage is lower than the
standard value, charge the battery.
Charging rates5 A max.
Transmission
Fluid capacity*3.6 L (3.8 qt., 3.2 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.

6749-1. Specifications
C-HR_HV_OM_Europe_OM10538E
*: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the hybrid system is operating.
16-inch tires
Brakes
Pedal clearance*119 mm (4.9 in.)
Pedal free play 1  5 mm (0.04  0.20 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size215/65R16 98H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear
Wheel size16  6 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

6759-1. Specifications
C-HR_HV_OM_Europe_OM10538E
9
Vehicle specifications

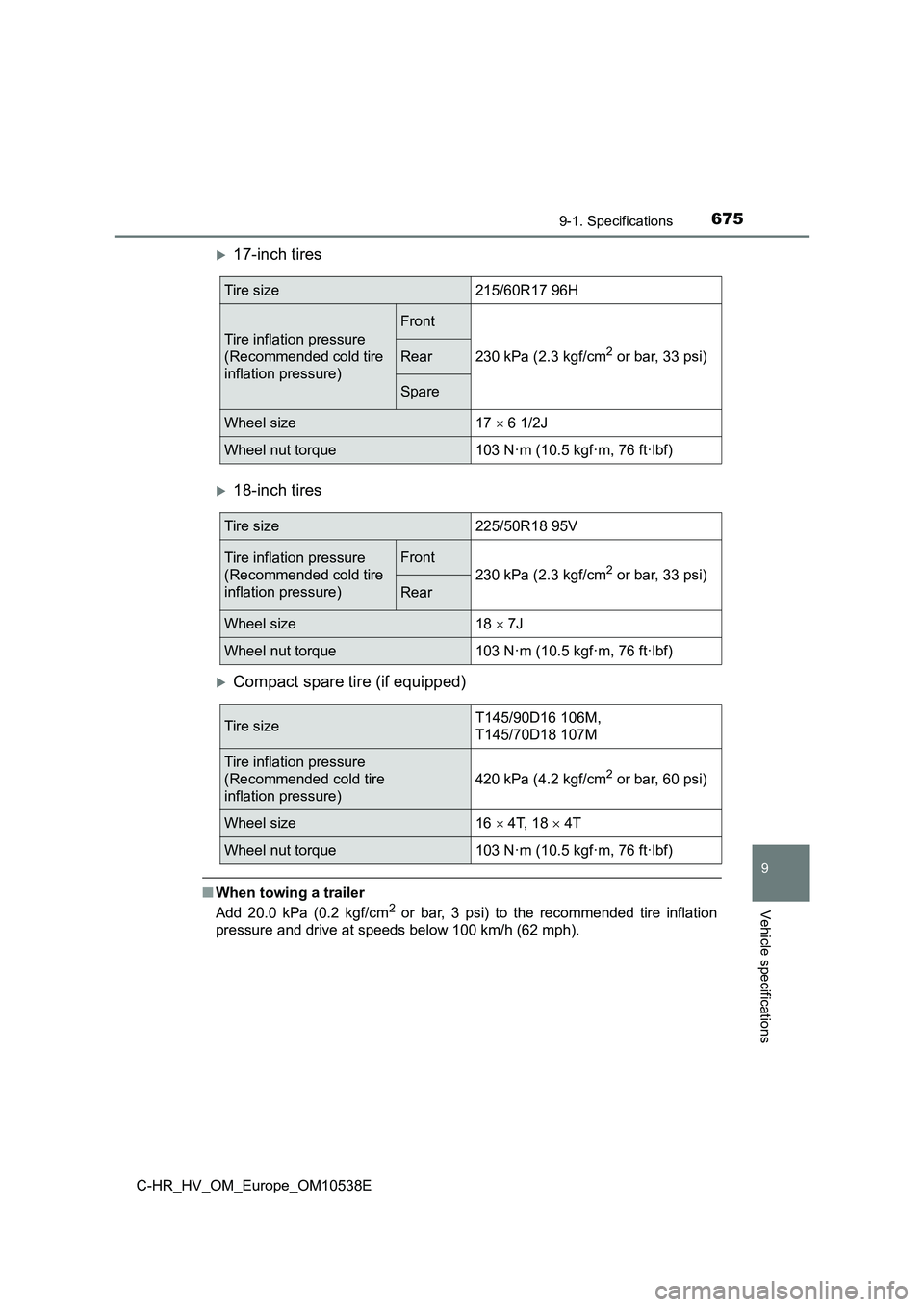

17-inch tires
18-inch tires
Compact spare tire (if equipped)
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire size215/60R17 96H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)Rear
Spare
Wheel size17  6 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size225/50R18 95V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear
Wheel size18  7J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire sizeT145/90D16 106M,
T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T, 18  4T
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

6769-1. Specifications
C-HR_HV_OM_Europe_OM10538E

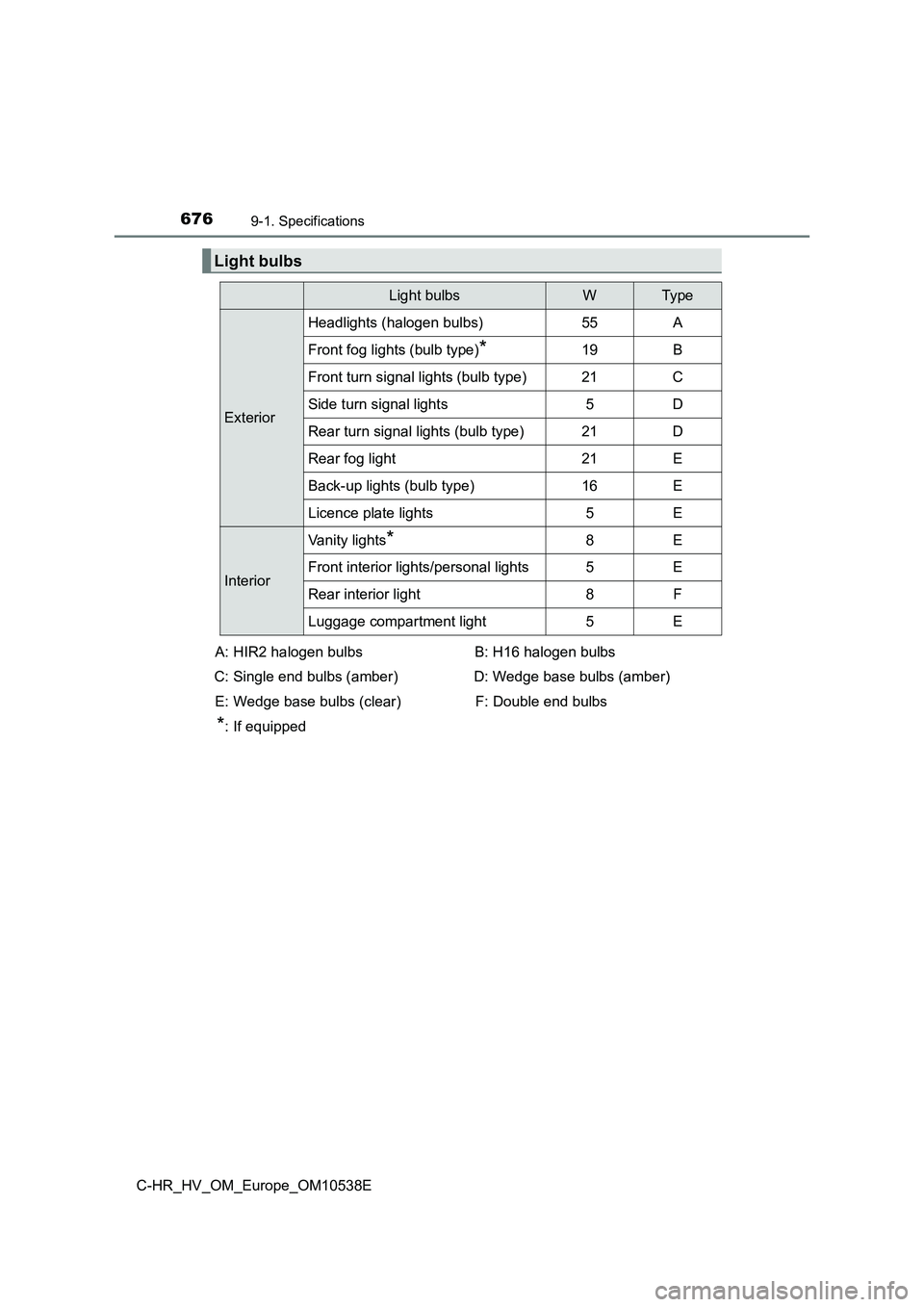

Light bulbs
Light bulbsWTyp e
Exterior
Headlights (halogen bulbs)55A
Front fog lights (bulb type)*19B
Front turn signal lights (bulb type)21C
Side turn signal lights5D
Rear turn signal lights (bulb type)21D
Rear fog light21E
Back-up lights (bulb type)16E
Licence plate lights5E
Interior
Vanity lights*8E
Front interior lights/personal lights5E
Rear interior light8F
Luggage compartment light5E
A: HIR2 halogen bulbs
C: Single end bulbs (amber)
E: Wedge base bulbs (clear)
*: If equipped
B: H16 halogen bulbs
D: Wedge base bulbs (amber)
F: Double end bulbs

6779-1. Specifications
9
Vehicle specifications
C-HR_HV_OM_Europe_OM10538E

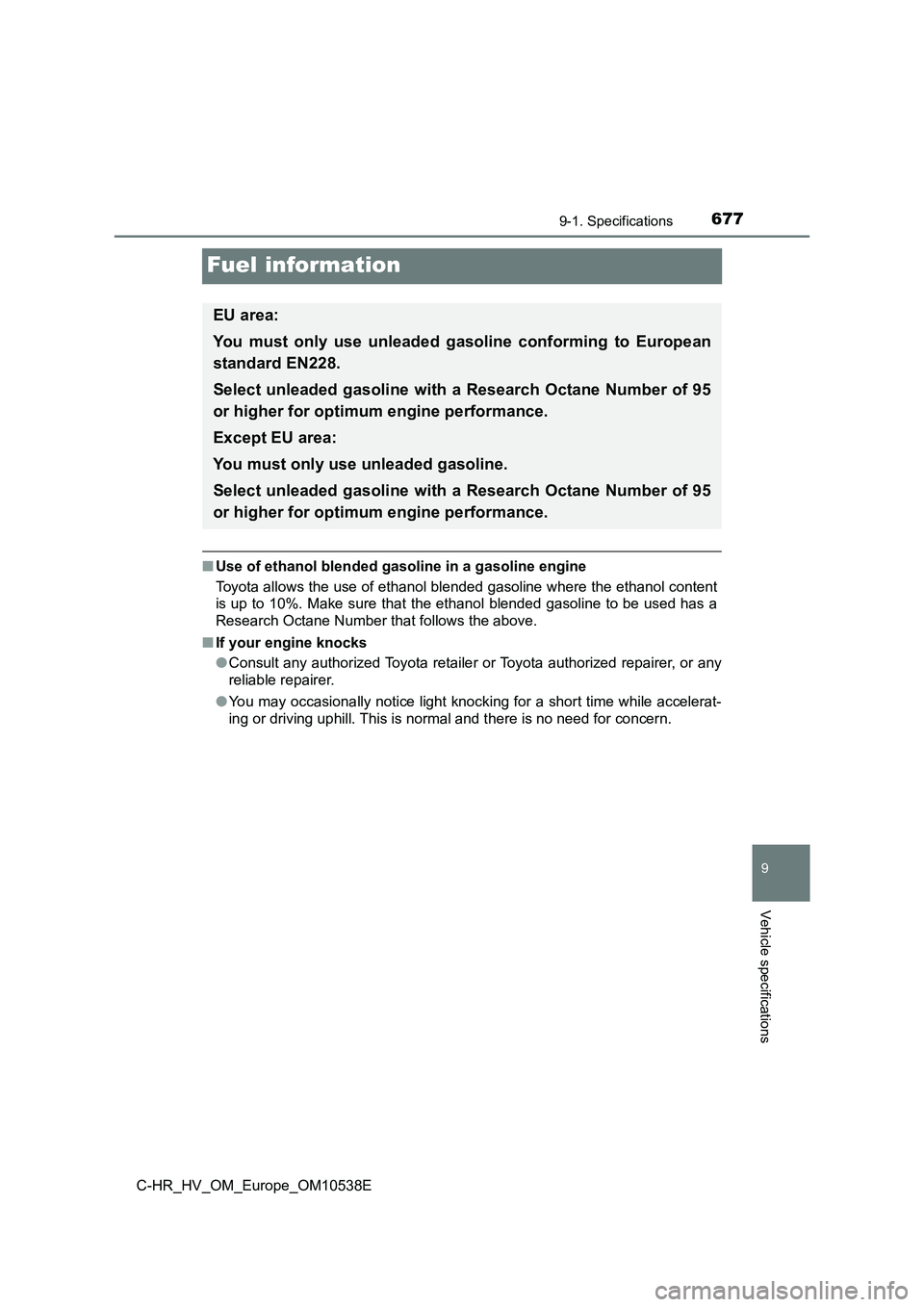

Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

6789-1. Specifications
C-HR_HV_OM_Europe_OM10538E

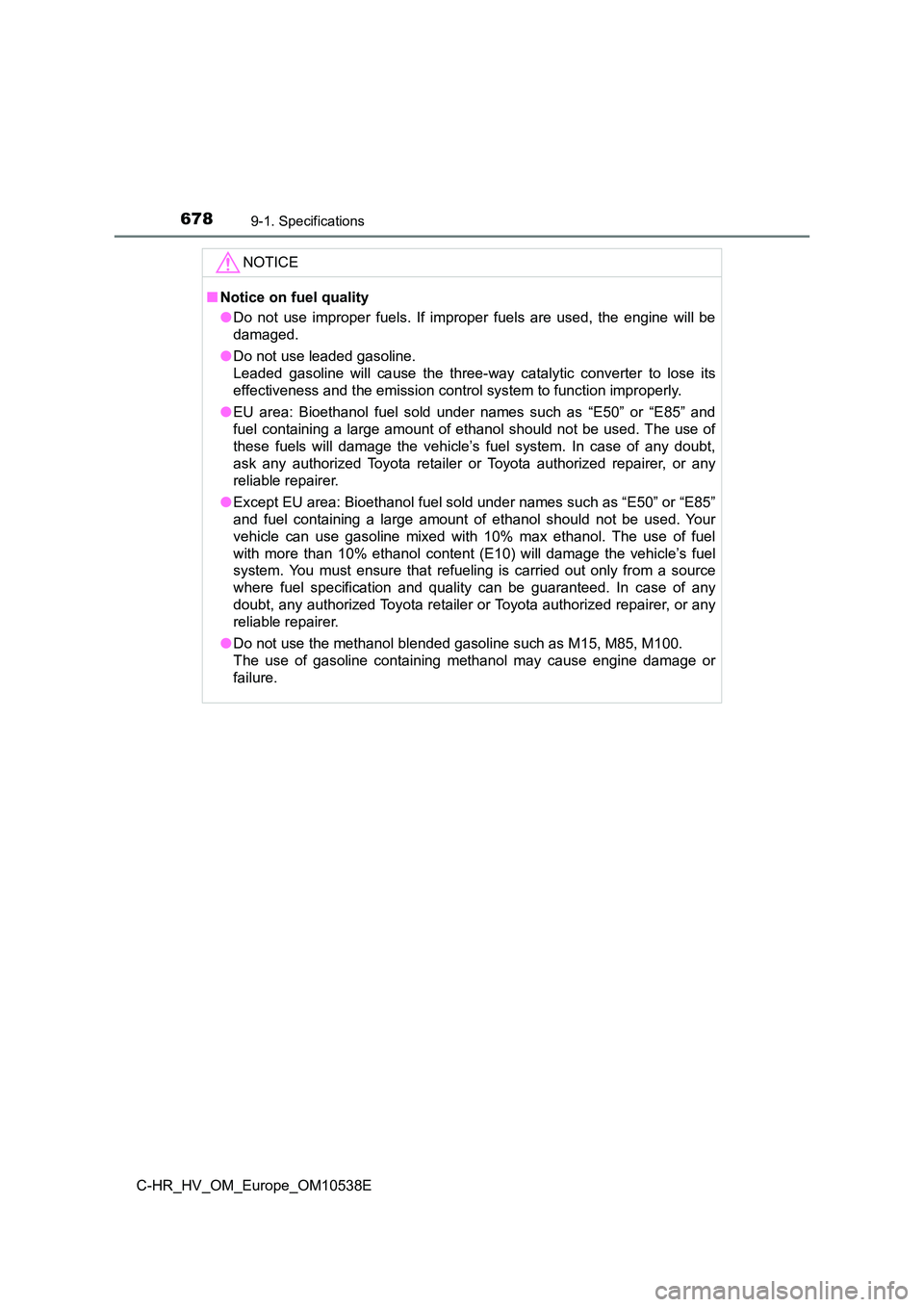

NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.

6799-2. Customization
C-HR_HV_OM_Europe_OM10538E
9
Vehicle specifications

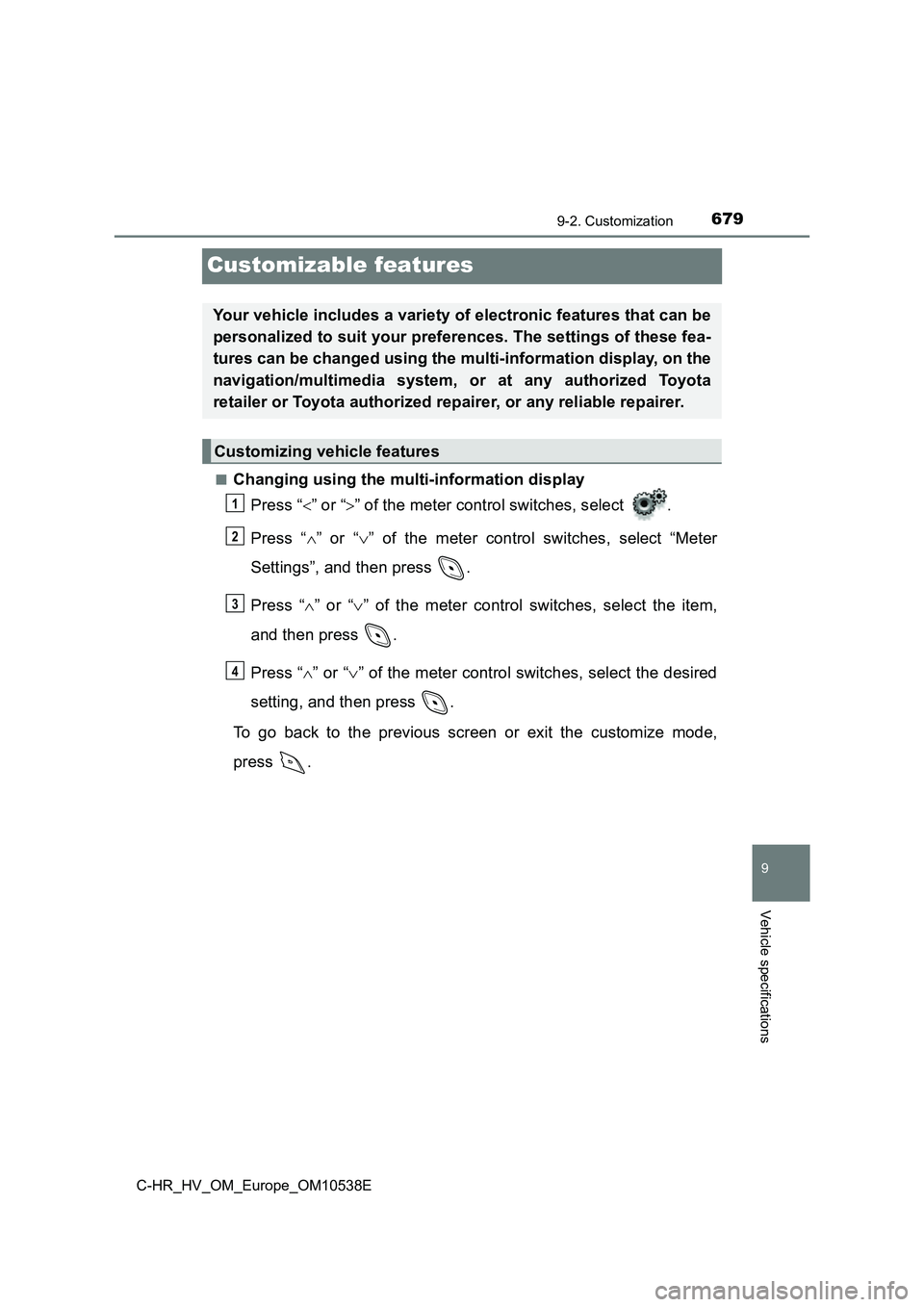

Customizable features
■Changing using the multi-information display
Press “ ” or “” of the meter control switches, select .
Press “ ” or “” of the meter control switches, select “Meter
Settings”, and then press .
Press “ ” or “” of the meter control switches, select the item,
and then press .
Press “ ” or “” of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, on the
navigation/multimedia system, or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Customizing vehicle features
1
2
3
4

6809-2. Customization
C-HR_HV_OM_Europe_OM10538E

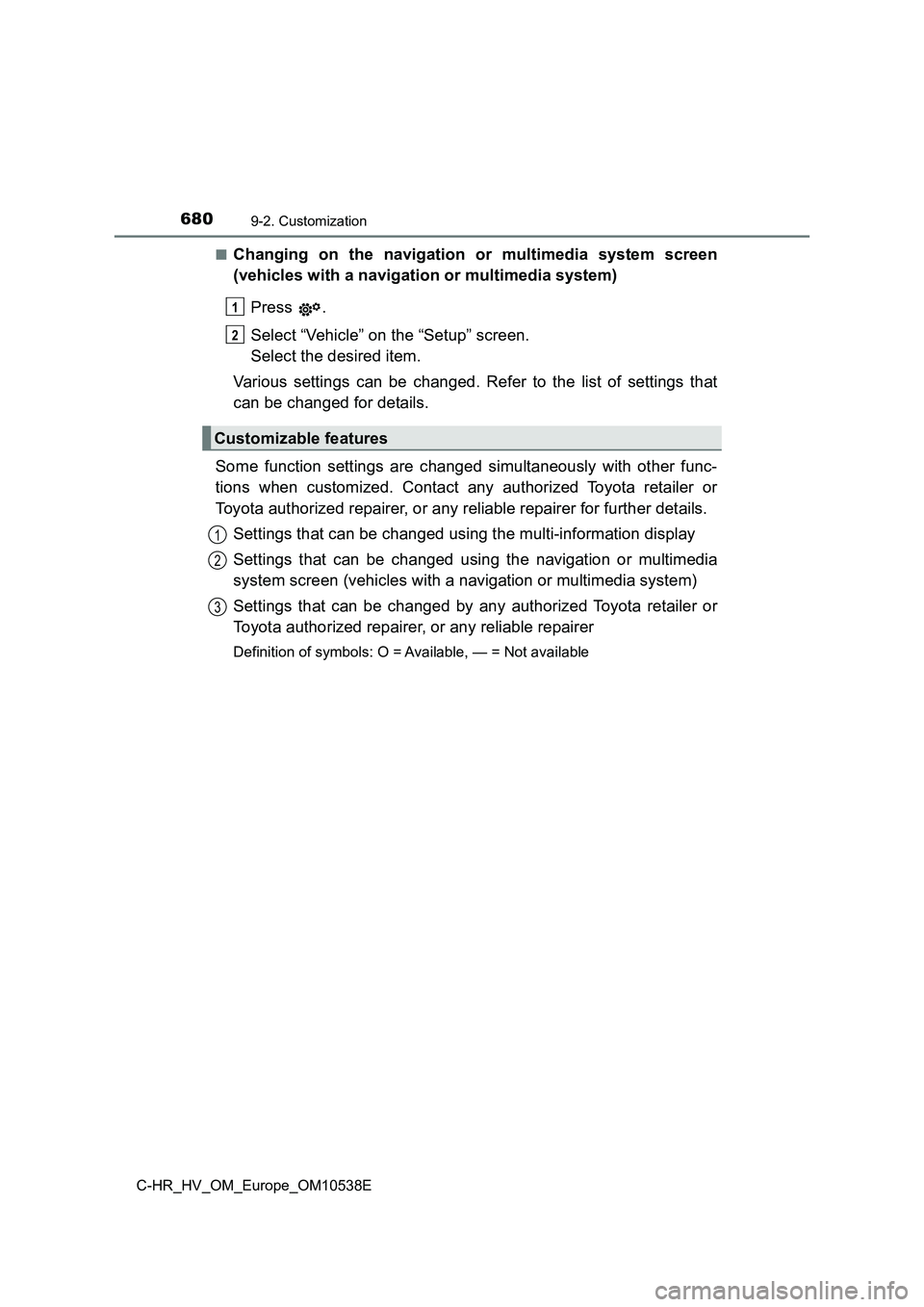

■Changing on the navigation or multimedia system screen
(vehicles with a navigation or multimedia system)
Press .
Select “Vehicle” on the “Setup” screen.
Select the desired item.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Some function settings are changed simultaneously with other func-
tions when customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Settings that can be changed using the multi-information display
Settings that can be changed using the navigation or multimedia
system screen (vehicles with a navigation or multimedia system)
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Av ailable, — = Not available
Customizable features
1
2
1
2
3
